2019 HONDA CLARITY ELECTRIC Owner's Manual (in English)

535
Handling the Unexpected

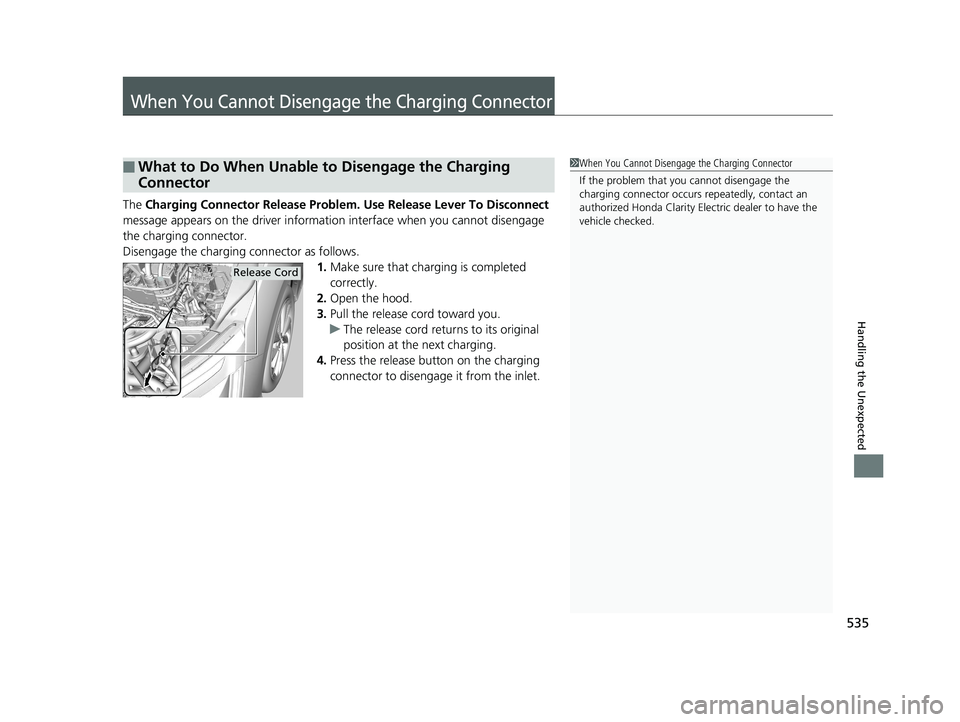

When You Cannot Disengage the Charging Connector
The Charging Connector Release Problem. Use Release Lever To Disconnect
message appears on the driver informatio n interface when you cannot disengage
the charging connector.
Disengage the charging connector as follows.
1.Make sure that charging is completed
correctly.
2. Open the hood.
3. Pull the release cord toward you.
u The release cord returns to its original
position at the next charging.
4. Press the release button on the charging
connector to disengage it from the inlet.
■What to Do When Unable to Disengage the Charging
Connector1When You Cannot Disengage the Charging Connector
If the problem that y ou cannot disengage the
charging connector occurs repeatedly, contact an
authorized Honda Clarity Electric dealer to have the
vehicle checked.
Release Cord
19 CLARITY BEV-31TRV6200.book 535 ページ ２０１８年１０月２９日　月曜日　午前１０時５４分

536
Handling the Unexpected

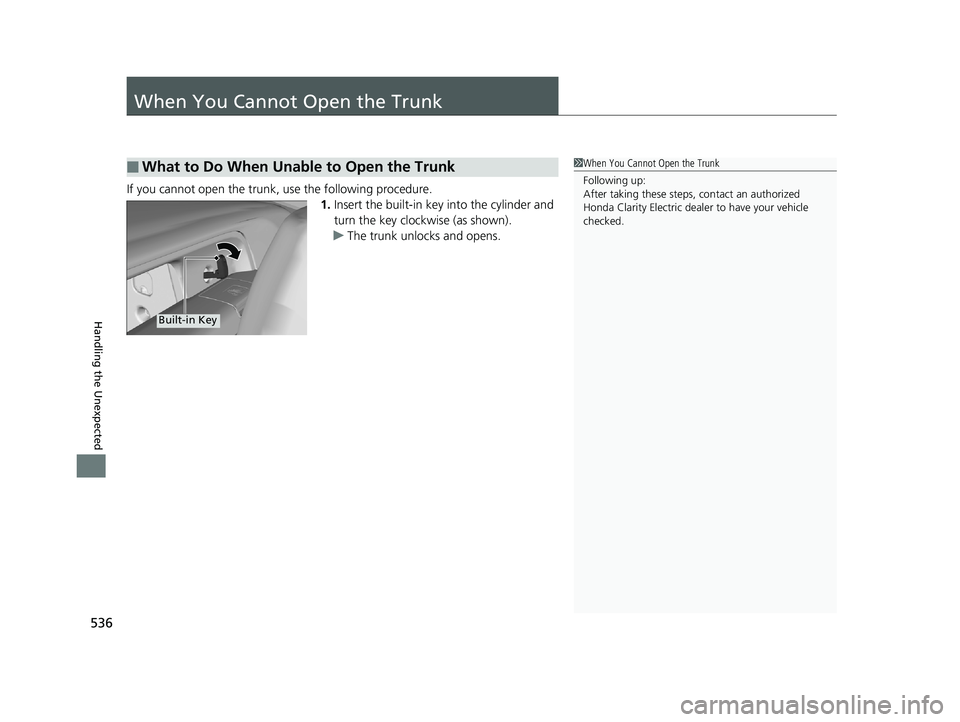

When You Cannot Open the Trunk
If you cannot open the trunk, use the following procedure.1.Insert the built-in key into the cylinder and
turn the key clockwise (as shown).
u The trunk unlocks and opens.
■What to Do When Unable to Open the Trunk1When You Cannot Open the Trunk
Following up:
After taking these steps, contact an authorized
Honda Clarity Electric deal er to have your vehicle
checked.
Built-in Key
19 CLARITY BEV-31TRV6200.book 536 ページ ２０１８年１０月２９日　月曜日　午前１０時５４分

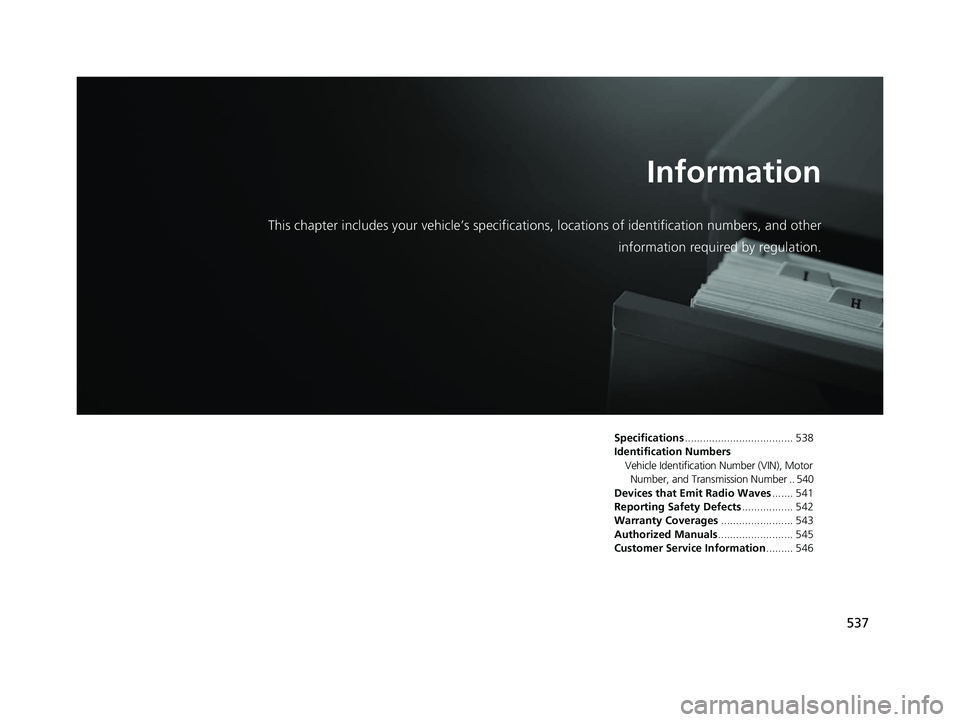

537
Information
This chapter includes your vehicle’s specifications, locations of identification numbers, and other
information required by regulation.
Specifications.................................... 538
Identification Numbers Vehicle Identification Number (VIN), Motor
Number, and Transmission Number .. 540
Devices that Emit Radio Waves ....... 541
Reporting Safety Defects ................. 542
Warranty Coverages ........................ 543
Authorized Manuals ......................... 545
Customer Service Information ......... 546
19 CLARITY BEV-31TRV6200.book 537 ページ ２０１８年１０月２９日　月曜日　午前１０時５４分

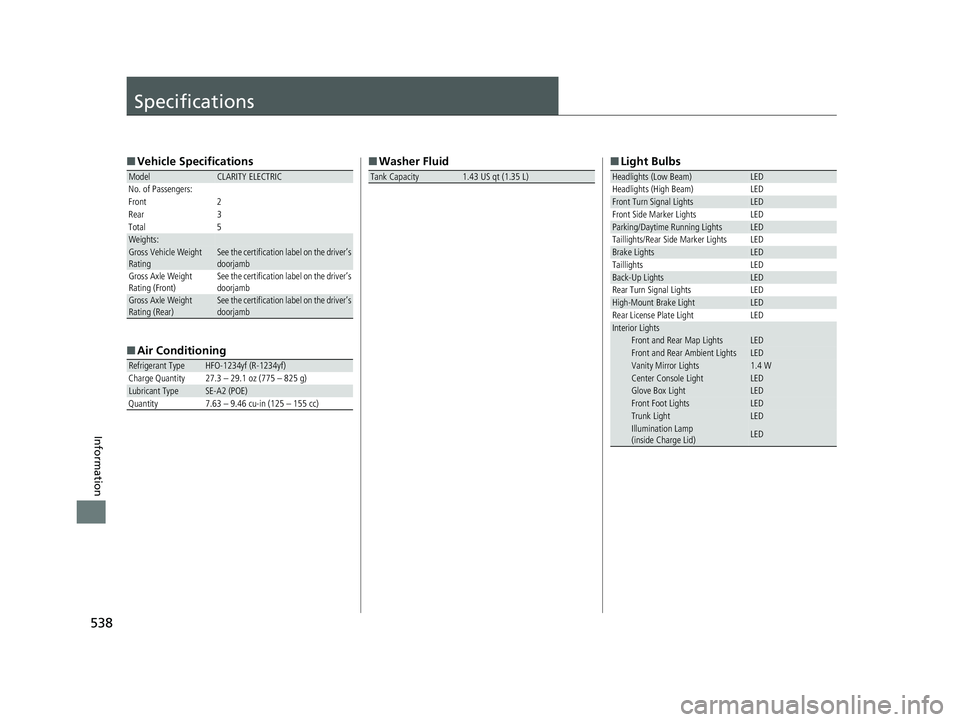

538
Information
Specifications
■Vehicle Specifications
■ Air Conditioning
ModelCLARITY ELECTRIC
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle Weight
Rating See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Front)See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Rear)See the certification label on the driver’s
doorjamb
Refrigerant TypeHFO-1234yf (R-1234yf)
Charge Quantity 27.3 – 29.1 oz (775 – 825 g)
Lubricant TypeSE-A2 (POE)
Quantity 7.63 – 9.46 cu-in (125 – 155 cc)
■ Washer Fluid
Tank Capacity1.43 US qt (1.35 L)
■Light Bulbs
Headlights (Low Beam)LED
Headlights (High Beam) LED
Front Turn Signal LightsLED
Front Side Marker Lights LED
Parking/Daytime Running LightsLED
Taillights/Rear Side Marker Lights LED
Brake LightsLED
Taillights LED
Back-Up LightsLED
Rear Turn Signal Lights LED
High-Mount Brake LightLED
Rear License Plate Light LED
Interior LightsFront and Rear Map LightsLEDFront and Rear Ambient LightsLEDVanity Mirror Lights1.4 WCenter Console LightLEDGlove Box LightLEDFront Foot LightsLEDTrunk LightLEDIllumination Lamp
(inside Charge Lid)LED
19 CLARITY BEV-31TRV6200.book 538 ページ ２０１８年１０月２９日　月曜日　午前１０時５４分

539
uuSpecifications u
Information
■Brake Fluid
■ Transmission Fluid
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda Automatic Transmission Fluid
ATF DW-1
Capacity Change 1.85 US qt (1.75 L)
■ Coolant
SpecifiedHonda Long Life Antifreeze/Coolant Type 2
■Tire
RegularSize235/45R18 94VPressure
psi (kPa [kgf/cm2])Front36 (250 [2.5])Rear38 (260 [2.7])
Wheel Size Regular 18 x 8J
19 CLARITY BEV-31TRV6200.book 539 ページ ２０１８年１０月２９日　月曜日　午前１０時５４分

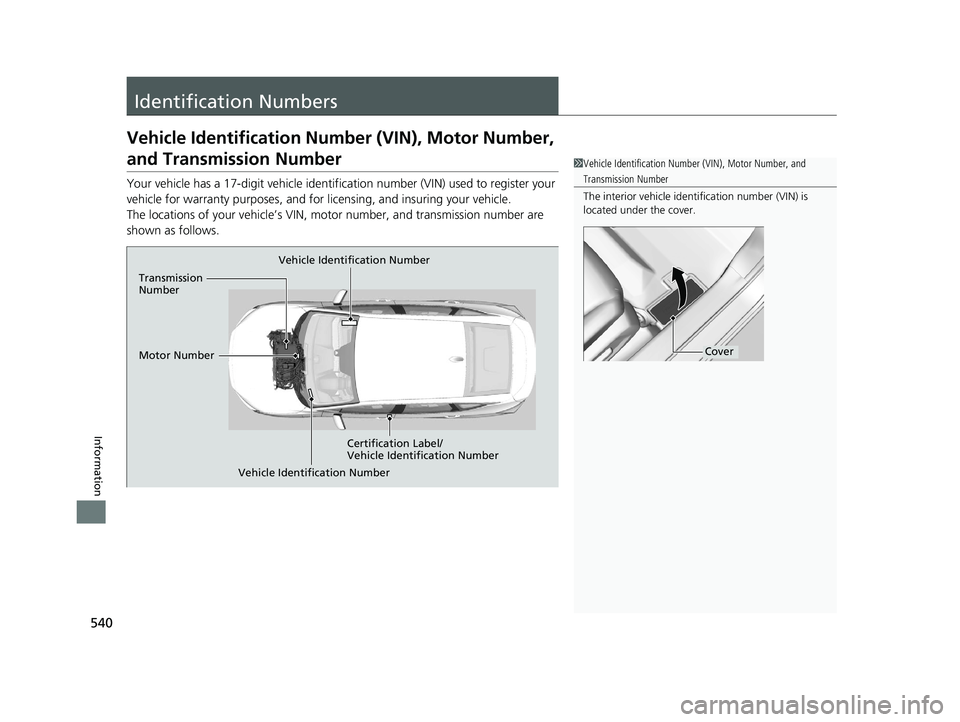

540
Information
Identification Numbers
Vehicle Identification Number (VIN), Motor Number,
and Transmission Number
Your vehicle has a 17-digit vehicle identification number (V IN) used to register your
vehicle for warranty purposes, and for licensing, and insuring your vehicle.
The locations of your vehicle’s VIN, motor number, and transmission number are
shown as follows.
1 Vehicle Identification Number (VIN), Motor Number, and
Transmission Number
The interior vehicle identification number (VIN) is
located under the cover.
Cover
Vehicle Identification Number
Transmission
Number
Certification Label/
Vehicle Identification Number
Vehicle Identification Number
Motor Number
19 CLARITY BEV-31TRV6200.book 540 ページ ２０１８年１０月２９日　月曜日　午前１０時５４分

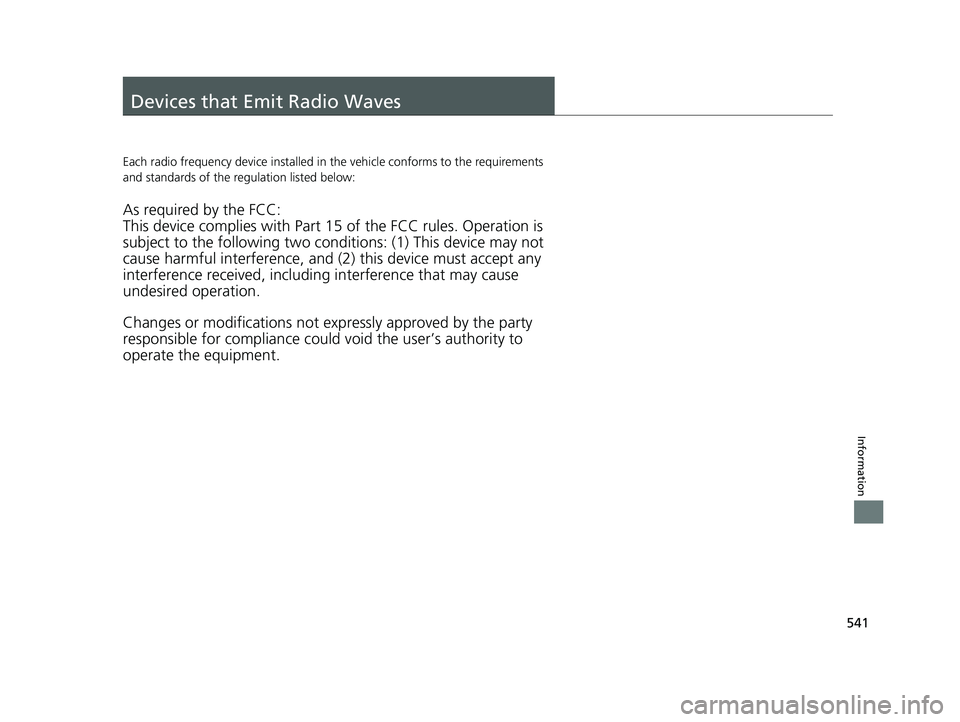

541
Information
Devices that Emit Radio Waves
Each radio frequency device installed in the vehicle conforms to the requirements
and standards of the regulation listed below:
As required by the FCC:
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two cond itions: (1) This device may not
cause harmful interferenc e, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Changes or modifications not ex pressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
19 CLARITY BEV-31TRV6200.book 541 ページ ２０１８年１０月２９日　月曜日　午前１０時５４分

542
Information
Reporting Safety Defects
In the U.S.
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you
should immediately inform the Nati onal Highway Traffic Safety Administration (NHTSA) in addition to
notifying American Honda Motor Co., Inc.
If NHTSA receives similar complaints, it may open an inve stigation, and if it finds that a safety defect exists
in a group of vehicles, it may order a recall and remedy campaign. However, NHTSA cannot become involved
in individual problems between you, your dealer, or American Honda Motor Co., Inc.
To contact NHTSA, you may call the Vehicle Safety Ho tline toll-free at 1-888-327-4236 (TTY: 1-800-424-
9153); go to http://www.safercar.gov ; or write to: Administrator, NHTSA , 1200 New Jersey Avenue, SE.,
Washington, DC 20590. You can also obtain othe r information about motor vehicle safety from http://
www.safercar.gov .
