2019 HONDA CLARITY ELECTRIC Owner's Manual (in English)

527
uuFuses uFuse Locations
Continued
Handling the Unexpected

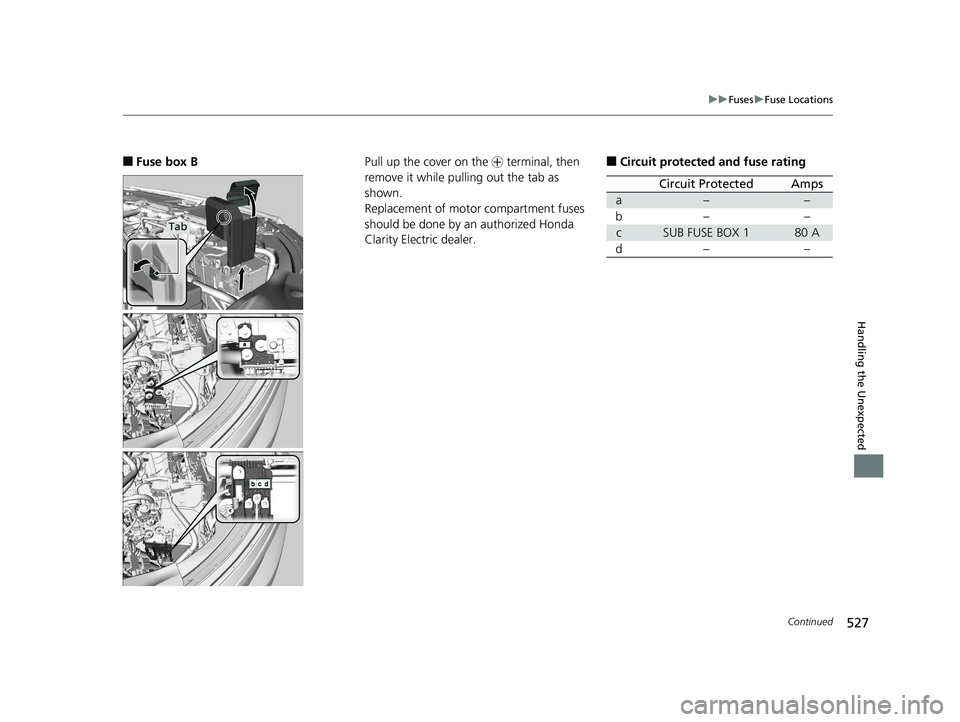

■Fuse box B
Tab
Pull up the cover on the + terminal, then
remove it while pulling out the tab as
shown.
Replacement of motor compartment fuses
should be done by an authorized Honda
Clarity Electric dealer.■Circuit protected and fuse rating
Circuit ProtectedAmps
a––
b––
cSUB FUSE BOX 180 A
d– –
19 CLARITY BEV-31TRV6200.book 527 ページ ２０１８年１０月２９日　月曜日　午前１０時５４分

528
uuFuses uFuse Locations
Handling the Unexpected
There are four fuse boxes on the driver’s
side.
■Fuse Box A
Located under the dashboard.
Fuse locations are shown on the label on
the under panel.
Locate the fuse in question by the fuse
number and label number.
■Driver’s Side Interior Fuse Box
Fuse Label
Fuse Box A
■Circuit protected and fuse rating
Circuit ProtectedAmps
1ACC7.5 A
2−−
3−−
4SHIFTER7.5 A
5OPTION MAIN15 A
6SRS OPTION10 A
7METER10 A
8FUEL PUMP (BATTERY ECU)7.5 A
9OPTION7.5 A
10CTR ACC SOCKET20 A
11−−
12R SIDE DOOR LOCK10 A
13L SIDE DOOR UNLOCK10 A
14RR L P/W20 A
15AS P/W20 A
16DOOR LOCK20 A
17P-DRV7.5 A
18−−
19WASHER15 A
20−−
Circuit ProtectedAmps
21ACG10 A
22DRL7.5 A
23−−
24FR SENSOR CAMERA5 A
25DR DOOR LOCK10 A
26R SIDE DOOR UNLOCK10 A
27RR R P/W20 A
28DR P/W20 A
29FR ACC SOCKET20 A
30INTERIOR LIGHT7.5 A
31DR P/SEAT REC20 A
32FR SEAT HEATER20 A
33DR P/SEAT SLI20 A
34ABS/VSA7.5 A
35SRS10 A
36−−
37LID ACT10 A
38L SIDE DOOR LOCK10 A
39DR DOOR UNLOCK10 A
19 CLARITY BEV-31TRV6200.book 528 ページ ２０１８年１０月２９日　月曜日　午前１０時５４分

529
uuFuses uFuse Locations
Continued
Handling the Unexpected

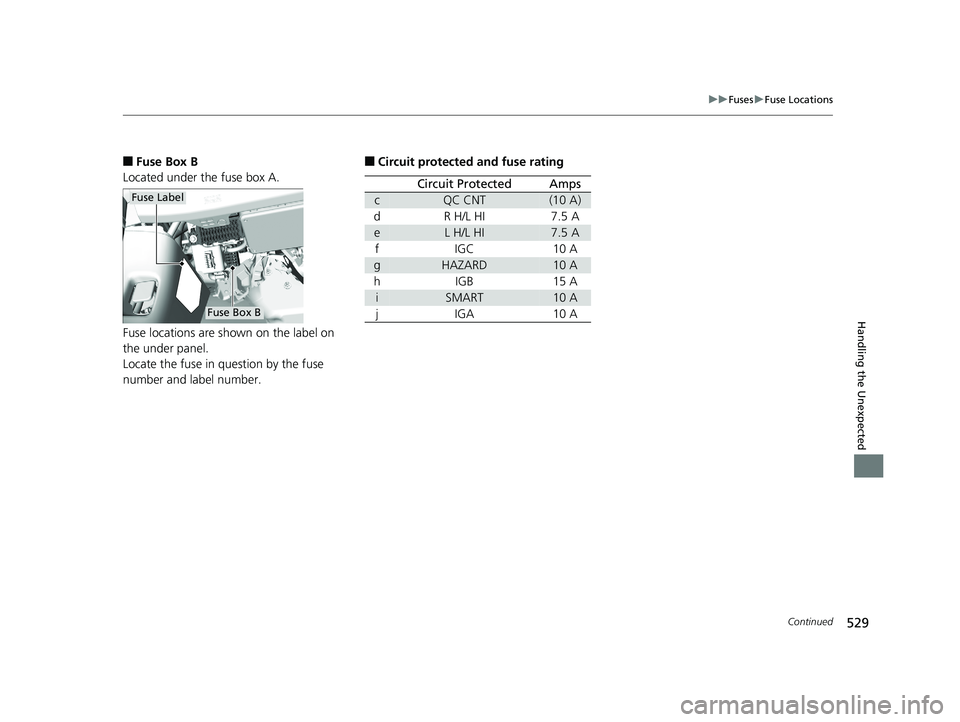

■Fuse Box B
Located under the fuse box A.
Fuse locations are shown on the label on
the under panel.
Locate the fuse in question by the fuse
number and label number.
Fuse Label
Fuse Box B
■Circuit protected and fuse rating
Circuit ProtectedAmps
cQC CNT(10 A)
dR H/L HI7.5 A
eL H/L HI7.5 A
fIGC10 A
gHAZARD10 A
hIGB15 A
iSMART10 A
jIGA10 A
19 CLARITY BEV-31TRV6200.book 529 ページ ２０１８年１０月２９日　月曜日　午前１０時５４分

530
uuFuses uFuse Locations
Handling the Unexpected

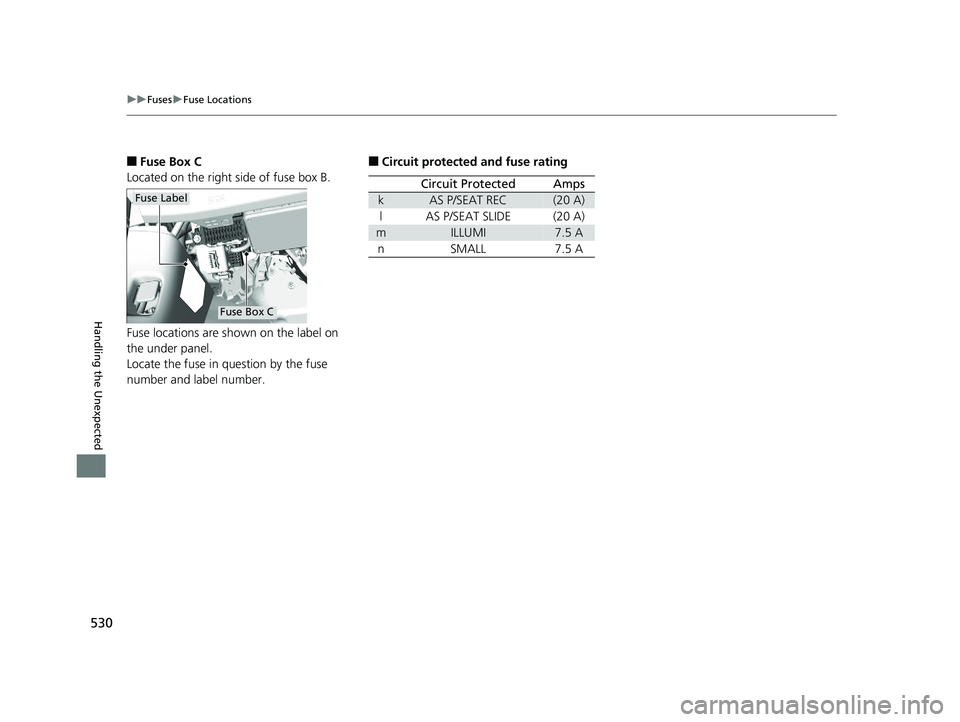

■Fuse Box C
Located on the right side of fuse box B.
Fuse locations are shown on the label on
the under panel.
Locate the fuse in question by the fuse
number and label number.
Fuse Label
Fuse Box C
■Circuit protected and fuse rating
Circuit ProtectedAmps
kAS P/SEAT REC(20 A)
lAS P/SEAT SLIDE(20 A)
mILLUMI7.5 A
nSMALL7.5 A
19 CLARITY BEV-31TRV6200.book 530 ページ ２０１８年１０月２９日　月曜日　午前１０時５４分

531
uuFuses uFuse Locations
Handling the Unexpected

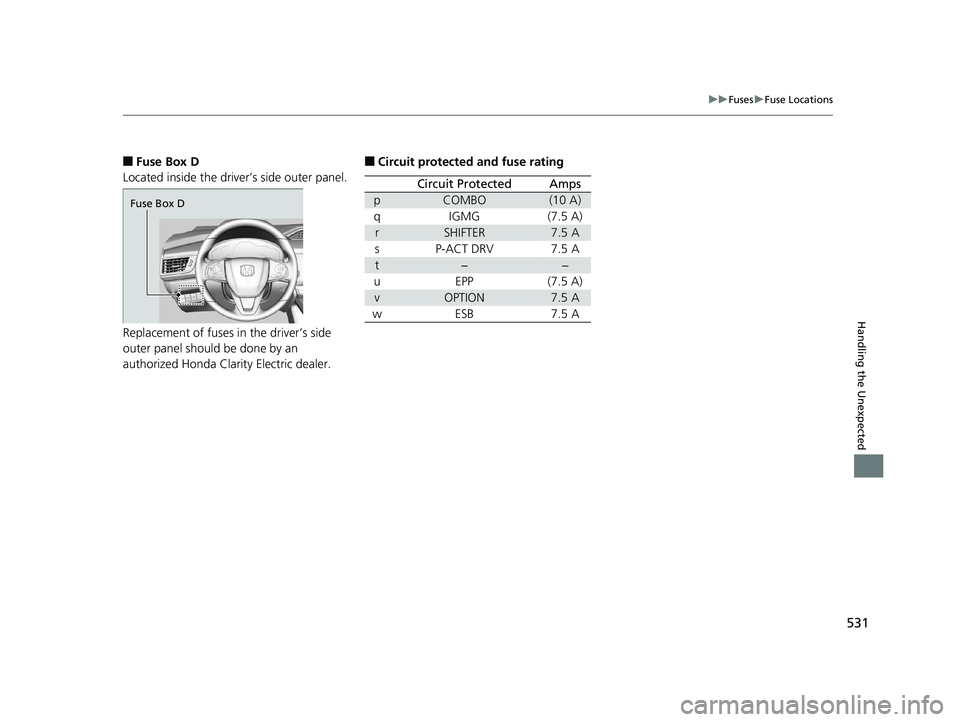

■Fuse Box D
Located inside the driver’s side outer panel.
Replacement of fuses in the driver’s side
outer panel should be done by an
authorized Honda Clarity Electric dealer.
Fuse Box D
■Circuit protected and fuse rating
Circuit ProtectedAmps
pCOMBO(10 A)
qIGMG(7.5 A)
rSHIFTER7.5 A
sP-ACT DRV7.5 A
t−−
uEPP(7.5 A)
vOPTION7.5 A
wESB7.5 A
19 CLARITY BEV-31TRV6200.book 531 ページ ２０１８年１０月２９日　月曜日　午前１０時５４分

532
uuFuses uInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1. Set the power mode to VEHICLE OFF
(LOCK). Turn headlight s and all accessories
off.
2. Check the fuses on the battery in the motor
compartment.
u If the fuse is blown, have it replaced by
an authorized Honda Clarity Electric
dealer.
3. Remove the fuse box cover.
4. Check the large fuse in the motor
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remove the screw, and
replace it with a new one.
5. Inspect the small fuses in the motor
compartment and the vehicle interior.
u If there is a blown fuse, remove it with
the fuse puller, and replace it with a new
one.1Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace the fuse with a spare fuse of the same
specified amperage.
Confirm the specified amperage using the charts on
P. 526 to 531.
There is a fuse puller on the back of the cover of the
motor compartment fuse box A.
12-Volt Battery
Blown Fuse
Fuse Puller
19 CLARITY BEV-31TRV6200.book 532 ページ ２０１８年１０月２９日　月曜日　午前１０時５４分

533
Handling the Unexpected

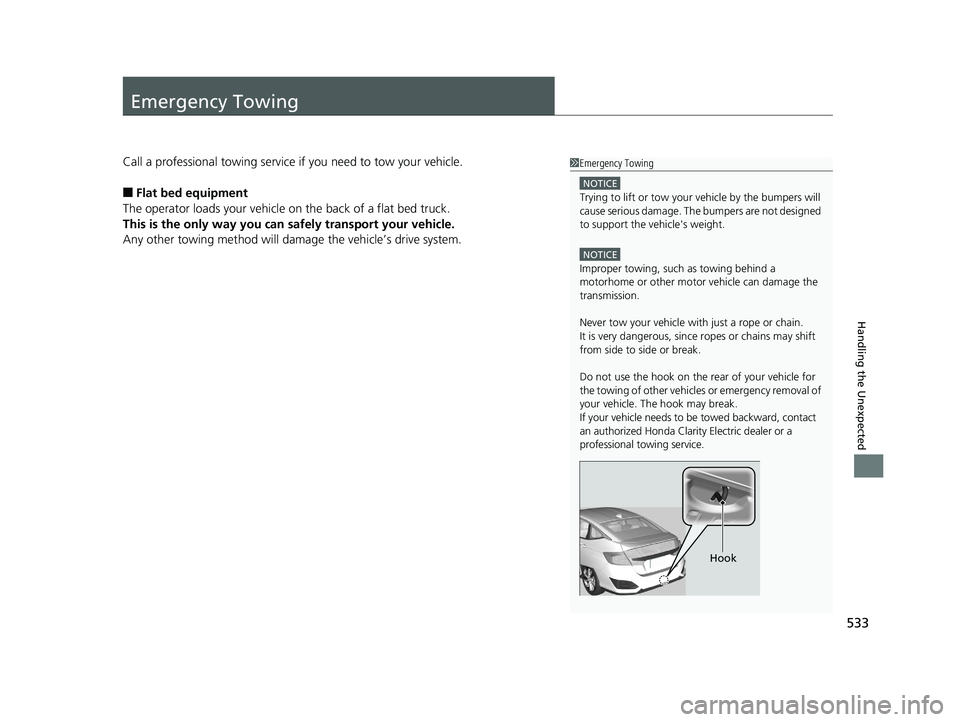

Emergency Towing
Call a professional towing service if you need to tow your vehicle.
■Flat bed equipment
The operator loads your vehicle on the back of a flat bed truck.
This is the only way you can safely transport your vehicle.
Any other towing method will dama ge the vehicle’s drive system.
1Emergency Towing
NOTICE
Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle's weight.
NOTICE
Improper towing, such as towing behind a
motorhome or other motor vehicle can damage the
transmission.
Never tow your vehicle with just a rope or chain.
It is very dangerous, since ropes or chains may shift
from side to side or break.
Do not use the hook on the rear of your vehicle for
the towing of other vehicles or emergency removal of
your vehicle. The hook may break.
If your vehicle needs to be towed backward, contact
an authorized Honda Clarity Electric dealer or a
professional towing service.
Hook
19 CLARITY BEV-31TRV6200.book 533 ページ ２０１８年１０月２９日　月曜日　午前１０時５４分

534
Handling the Unexpected

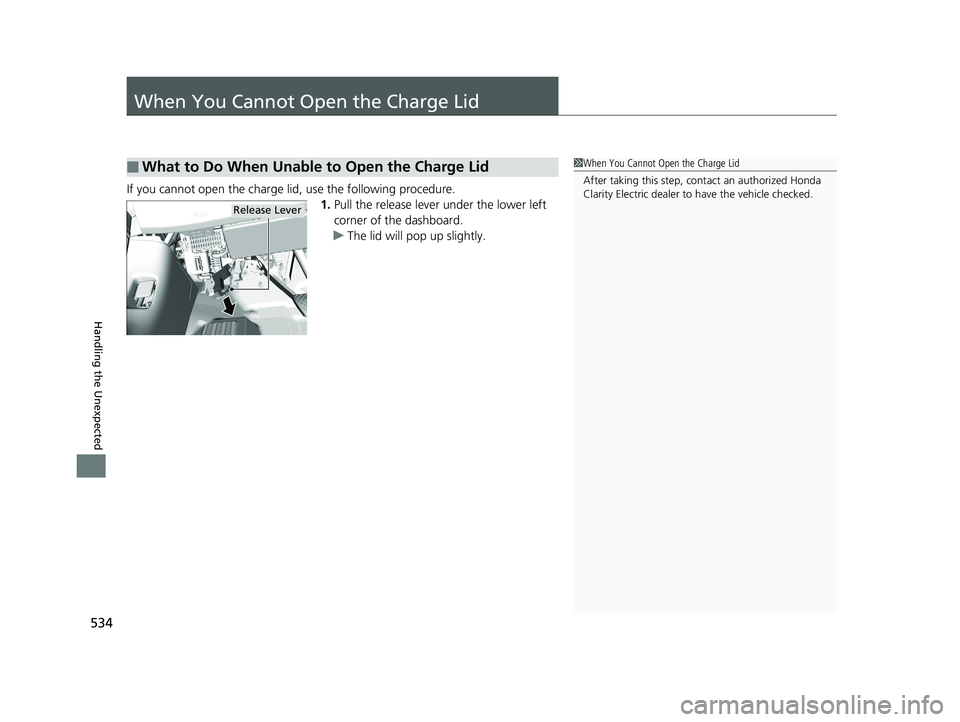

When You Cannot Open the Charge Lid
If you cannot open the charge lid, use the following procedure.1.Pull the release lever under the lower left
corner of the dashboard.
u The lid will pop up slightly.
■What to Do When Unable to Open the Charge Lid1When You Cannot Open the Charge Lid
After taking this step, cont act an authorized Honda
Clarity Electric dealer to have the vehicle checked.
Release Lever
19 CLARITY BEV-31TRV6200.book 534 ページ ２０１８年１０月２９日　月曜日　午前１０時５４分
