2019 HONDA CLARITY ELECTRIC Owner's Manual (in English)

Continued375
uuWhen Driving uShifting
Driving

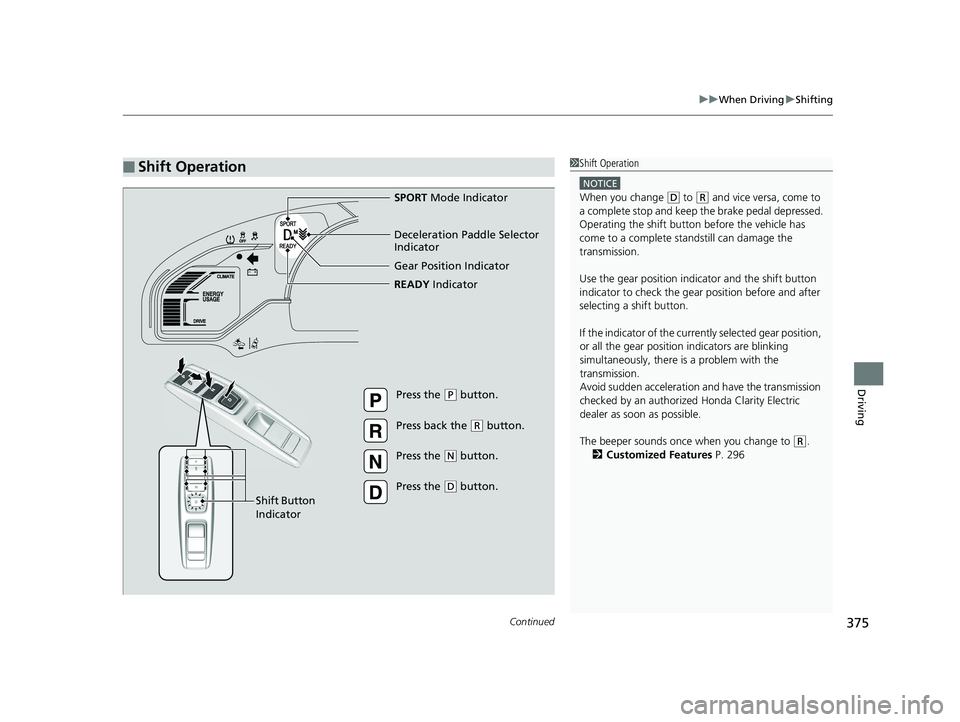

■Shift Operation1Shift Operation
NOTICE
When you change (D to (R and vice versa, come to
a complete stop and keep the brake pedal depressed.
Operating the shift button before the vehicle has
come to a complete standstill can damage the
transmission.
Use the gear position indicator and the shift button
indicator to check the gear position before and after
selecting a shift button.
If the indicator of the curren tly selected gear position,
or all the gear position indicators are blinking
simultaneously, there is a problem with the
transmission.
Avoid sudden acceleration and have the transmission
checked by an authorized Honda Clarity Electric
dealer as soon as possible.
The beeper sounds once when you change to
( R.
2 Customized Features P. 296
Gear Position Indicator
READY Indicator
Press the (P button.
Press back the
( R button.
Press the
( N button.
Press the
( D button.
Shift Button
Indicator SPORT
Mode Indicator
Deceleration Paddle Selector
Indicator
19 CLARITY BEV-31TRV6200.book 375 ページ ２０１８年１０月２９日　月曜日　午前１０時５４分

uuWhen Driving uShifting
376
Driving

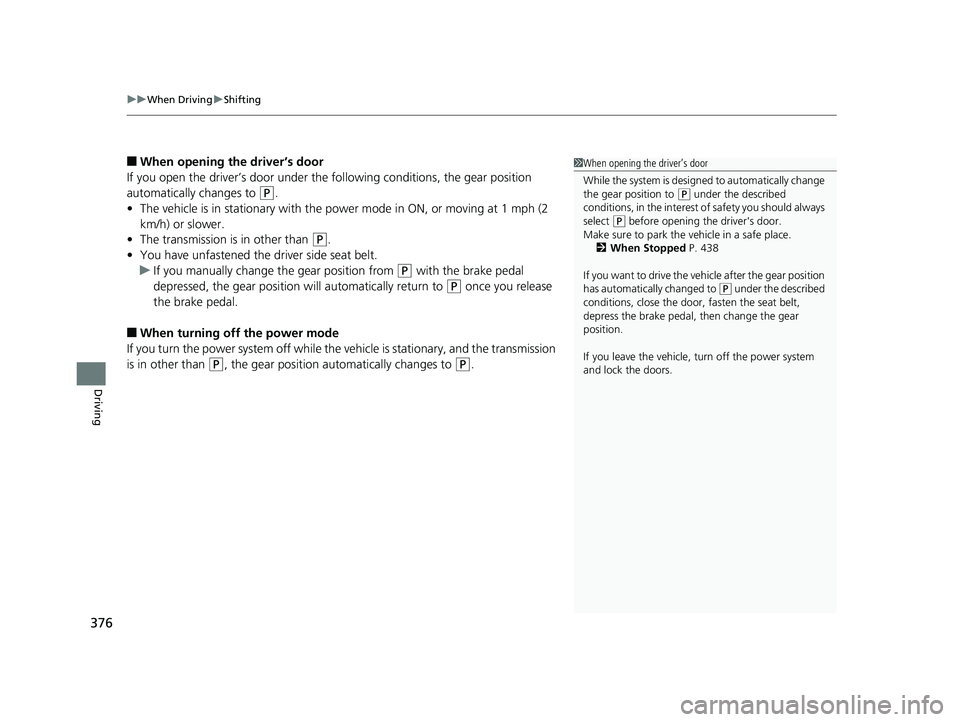

■When opening the driver’s door
If you open the driver’s door under the following conditions, the gear position
automatically changes to
(P.
• The vehicle is in stationary with the pow er mode in ON, or moving at 1 mph (2
km/h) or slower.
• The transmission is in other than
(P.
• You have unfastened the driver side seat belt.
u If you manually change the gear position from
(P with the brake pedal
depressed, the gear position will automatically return to
(P once you release
the brake pedal.
■When turning o ff the power mode
If you turn the power system off while the vehicle is stationary, and the transmission
is in other than
(P, the gear position auto matically changes to (P.
1When opening the driver’s door
While the system is designed to automatically change
the gear position to
(P under the described
conditions, in the interest of safety you should always
select
( P before opening the driver's door.
Make sure to park the vehicle in a safe place.
2 When Stopped P. 438
If you want to drive the ve hicle after the gear position
has automatically changed to
( P under the described
conditions, close the door, fasten the seat belt,
depress the brake pedal, then change the gear
position.
If you leave the vehicle, turn off the power system
and lock the doors.
19 CLARITY BEV-31TRV6200.book 376 ページ ２０１８年１０月２９日　月曜日　午前１０時５４分

Continued377
uuWhen Driving uShifting
Driving

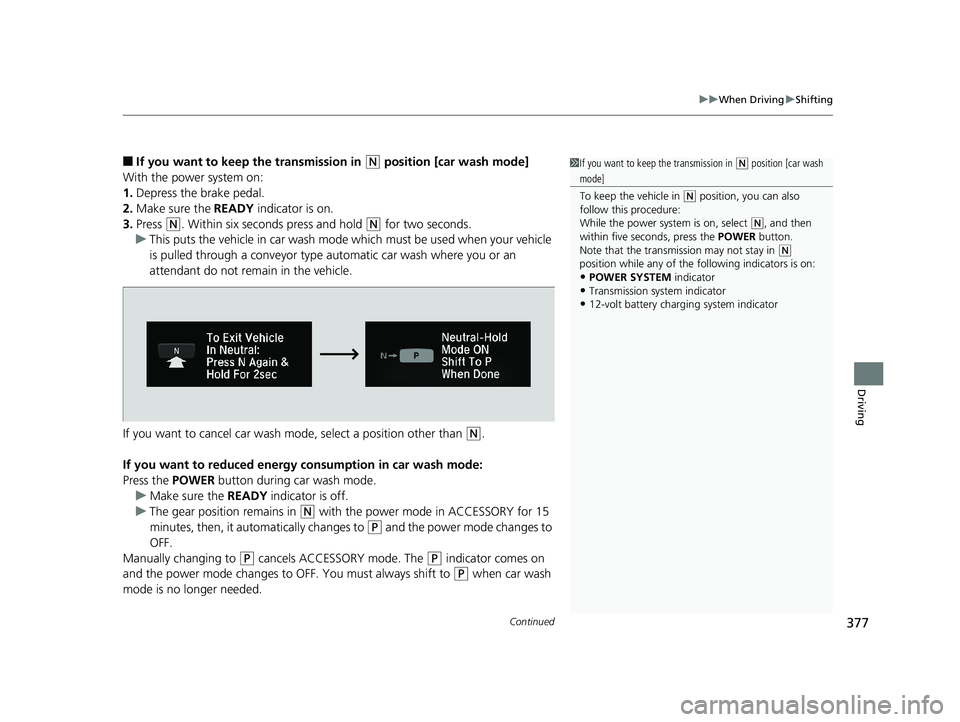

■If you want to keep the transmission in (N position [car wash mode]
With the power system on:
1. Depress the brake pedal.
2. Make sure the READY indicator is on.
3. Press
(N. Within six seconds press and hold (N for two seconds.
u This puts the vehicle in car wash mode which must be used when your vehicle
is pulled through a conveyor type automatic car wash where you or an
attendant do not remain in the vehicle.
If you want to cancel car wash mode, select a position other than
(N.
If you want to reduced energy consumption in car wash mode:
Press the POWER button during car wash mode.
u Make sure the READY indicator is off.
u The gear position remains in
(N with the power mode in ACCESSORY for 15
minutes, then, it auto matically changes to
(P and the power mode changes to
OFF.
Manually changing to
(P cancels ACCESSORY mode. The (P indicator comes on
and the power mode changes to OFF. You must always shift to
(P when car wash
mode is no longer needed.
1 If you want to keep the transmission in (N position [car wash
mode]
To keep the vehicle in
(N position, you can also
follow this procedure:
While the power system is on, select
( N, and then
within five seconds, press the POWER button.
Note that the transmiss ion may not stay in
(N
position while any of the following indicators is on:
•POWER SYSTEM indicator
•Transmission system indicator
•12-volt battery charging system indicator
19 CLARITY BEV-31TRV6200.book 377 ページ ２０１８年１０月２９日　月曜日　午前１０時５４分

378
uuWhen Driving uShifting
Driving

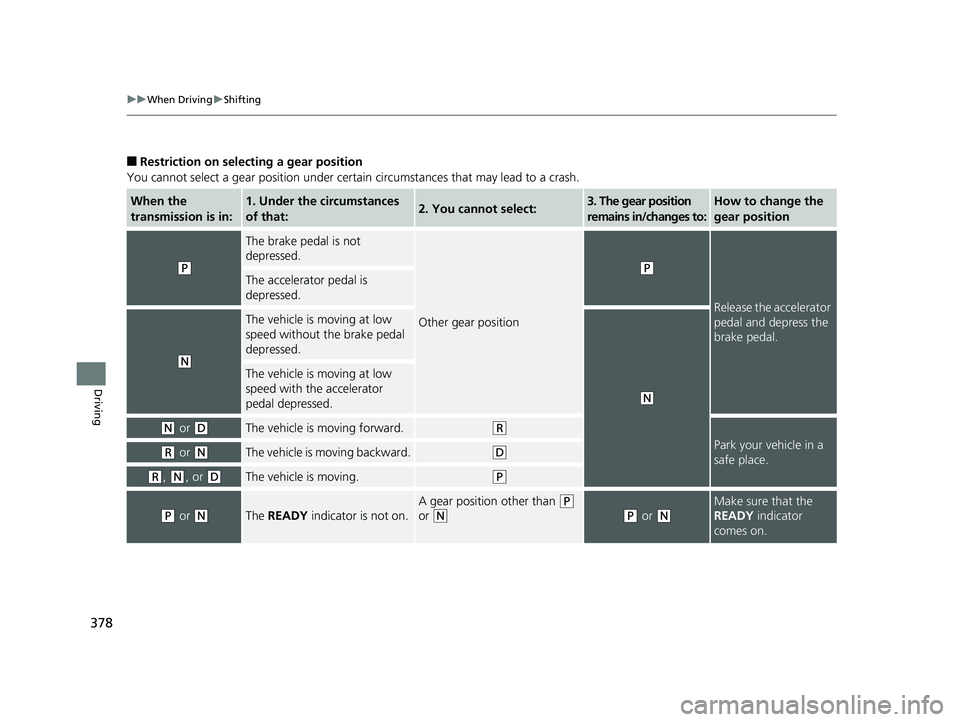

■Restriction on selecting a gear position
You cannot select a gear position under certa in circumstances that may lead to a crash.
When the
transmission is in:1. Under the circumstances
of that:2. You cannot select:3. The gear position
remains in/changes to:How to change the
gear position
(P
The brake pedal is not
depressed.
Other gear position
(P
Release the accelerator
pedal and depress the
brake pedal.
The accelerator pedal is
depressed.
(N
The vehicle is moving at low
speed without the brake pedal
depressed.
(N
The vehicle is moving at low
speed with the accelerator
pedal depressed.
(N or (DThe vehicle is moving forward.(R
Park your vehicle in a
safe place.(R or (NThe vehicle is moving backward.(D
(R, (N, or (DThe vehicle is moving.(P
(P or (NThe READY indicator is not on.
A gear position other than (P
or
(N(P or (N
Make sure that the
READY indicator
comes on.
19 CLARITY BEV-31TRV6200.book 378 ページ ２０１８年１０月２９日　月曜日　午前１０時５４分

379
uuWhen Driving uECON Mode
Driving
ECON Mode
The ECON button turns the ECON mode on and off.
The ECON mode helps you improve your energy economy by adjusting the
performance of the climate control system.
1 ECON Mode
While in the ECON mode, the climate control system
has greater temperat ure fluctuations.
When the ECON mode is active, the driver’s side seat
heater functions accordi ng to the status of the
climate control system. If you want to use only the
climate control system, press the seat heater button
to OFF.
19 CLARITY BEV-31TRV6200.book 379 ページ ２０１８年１０月２９日　月曜日　午前１０時５４分

380
uuWhen Driving uSPORT Mode
Driving

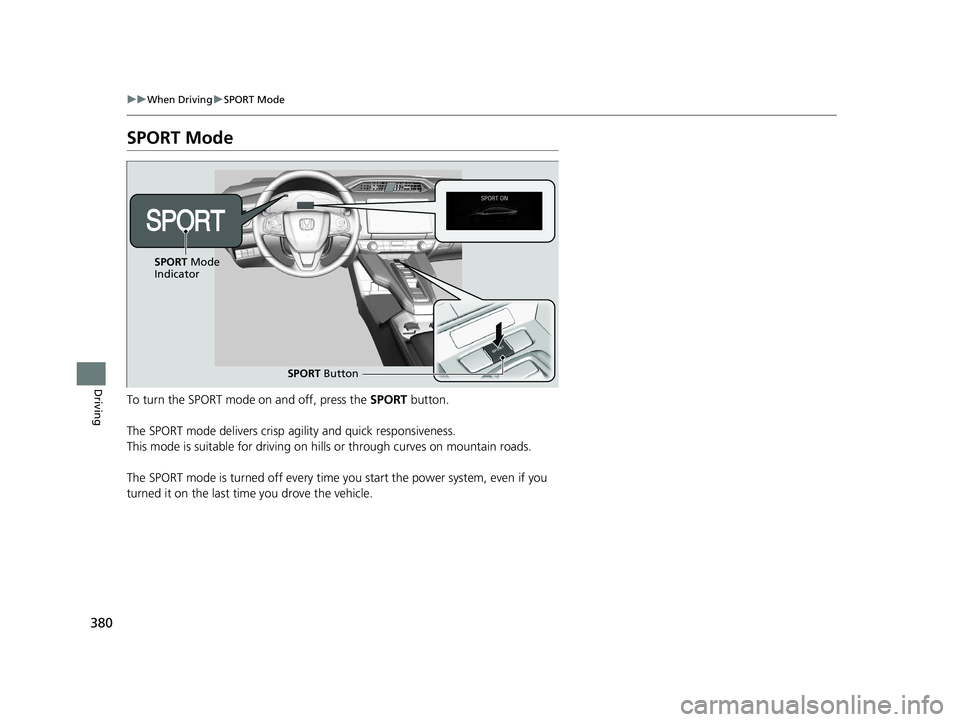

SPORT Mode
To turn the SPORT mode on and off, press the SPORT button.
The SPORT mode delivers crisp ag ility and quick responsiveness.
This mode is suitable for driving on hills or through curves on mountain roads.
The SPORT mode is turned off every time you start the power system, even if you
turned it on the last time you drove the vehicle.
SPORT Button
SPORT
Mode
Indicator
19 CLARITY BEV-31TRV6200.book 380 ページ ２０１８年１０月２９日　月曜日　午前１０時５４分

381
uuWhen Driving uDeceleration Paddle Selector
Continued
Driving

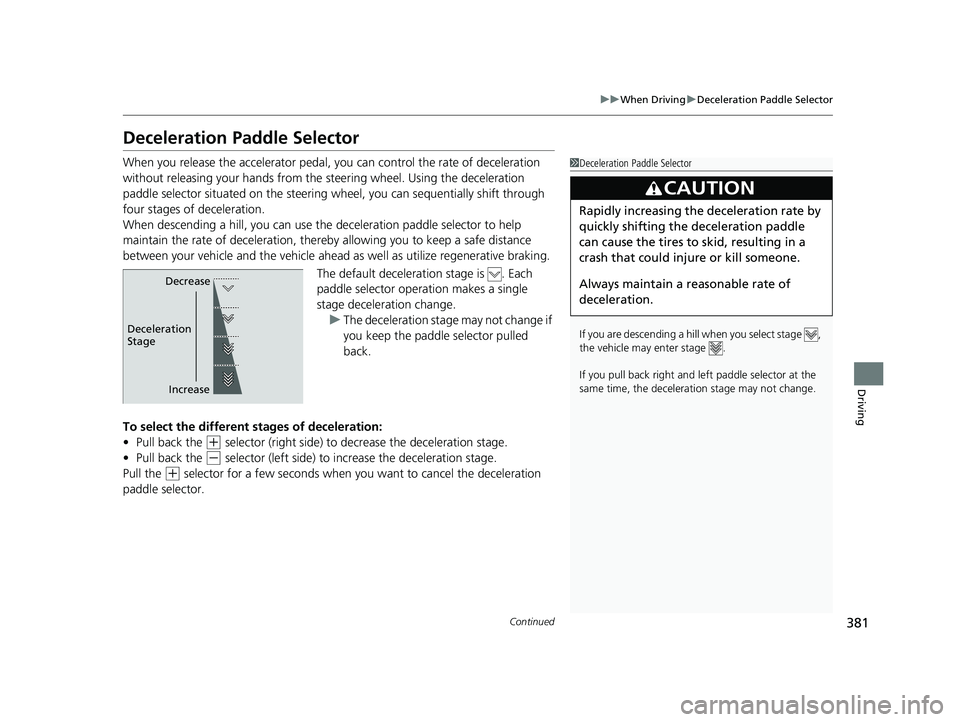

Deceleration Paddle Selector
When you release the accelerator pedal, yo u can control the rate of deceleration
without releasing your hands from the steering wheel. Using the deceleration
paddle selector situated on the steering wheel, you can sequentially shift through
four stages of deceleration.
When descending a hill, you can use the deceleration paddle selector to help
maintain the rate of deceleration, thereb y allowing you to keep a safe distance
between your vehicle and the vehicle ahead as well as utilize regenerative braking.
The default deceleration stage is . Each
paddle selector operation makes a single
stage deceleration change. u The deceleration stag e may not change if
you keep the paddle selector pulled
back.
To select the different stages of deceleration:
• Pull back the
(+ selector (right side) to decrease the deceleration stage.
• Pull back the
(- selector (left side) to increase the deceleration stage.
Pull the
(+ selector for a few seconds when y ou want to cancel the deceleration
paddle selector.
1 Deceleration Paddle Selector
If you are descending a hill when you select stage ,
the vehicle may enter stage .
If you pull back right and le ft paddle selector at the
same time, the deceleration stage may not change.
3CAUTION
Rapidly increasing the deceleration rate by
quickly shifting the deceleration paddle
can cause the tires to skid, resulting in a
crash that could injure or kill someone.
Always maintain a reasonable rate of
deceleration.
Increase
Decrease
Deceleration
Stage
19 CLARITY BEV-31TRV6200.book 381 ページ ２０１８年１０月２９日　月曜日　午前１０時５４分

uuWhen Driving uDeceleration Paddle Selector
382
Driving
1Deceleration Paddle Selector
In the following situations , the stage may not change
and the stage icon will blink ev en if you pull back the
selector. The dece leration stage may decrease or
cancel automatically:
•The high voltage battery is fully charged or its
temperature is too cold or too hot.
•The speed of the vehicle is beyond the deceleration
range with SPORT mode off.
•Power system protection is needed.
•The paddle selector is opera ted while your vehicle is
stopped automatically by ACC with LSF.
If either paddle selector is operated, ACC with LSF
will cancel automatically.
Gear position is in ( D
When SPORT mode is OFF,
the deceleration stage
appears. When SPORT mode is ON,
the deceleration stage and
M
appear.
When to use
Deceleration Stage
Paddle Selector
Increase the deceleration
stage when pulling the
( -
paddle selector (left side) Decrease the deceleration
stage when pulling the (
+
paddle selector (right side)
19 CLARITY BEV-31TRV6200.book 382 ページ ２０１８年１０月２９日　月曜日　午前１０時５４分
