ELECTRIC WINDOWS
21)
Moving the windows up and down is
possible with the ignition device at MAR
and for about 3 minutes after the
ignition device switches to STOP (or
also after the mechanical key has been
extracted, for cars equipped with
mechanical key with remote control).
When one of the front doors is opened
this operation is disabled.
Driver side front door controls
All windows can be controlled from the
driver side door panel fig. 36.
A: front left window opening/closing.
"Continuous automatic" operation
during window opening/closing stage
and anti-pinch system activated.
B: right front window opening/
closing. "Automatic continuous"
operation during window
opening/closing and anti-pinch system
activated (where provided);
C: enabling/disabling of rear door
electric window controls;
D: left rear window opening/closing
(if present). "Automatic continuous"
mode for opening only;
E: right rear window opening/closing
(if present). "Automatic continuous"
mode for opening only.
Window opening
Push the buttons to open the desired
window fig. 37.
When any of the buttons on front or
rear doors is pressed briefly, the
window moves in stages; if the button
is held down, "continuous automatic"
operation is activated.If the button is pressed or lifted again,
the window will stop in the desired
position.
Window closing
Lift the buttons to close the desired
window fig. 38.
When any of the buttons on front or
rear doors is raised briefly, the window
moves in steps. Hold the front window
control up to activate "continuous
automatic" operation. If the button is
pressed or lifted again, the window will
stop in the desired position.
The rear door windows can only be
closed in stages.
36F1B0066C
37F1B0067C
38F1B0068C
39

Front window anti-pinch safety
device
(where provided)
This safety system can recognise the
presence of any obstacle during the
window closing movement. If this
occurs, the system stops the window's
movement and reverts it, depending on
its position. The window is therefore
lowered by about 5 cm from its initial
stop position. The window cannot be
operated in any way during this time.
Front electric window system
initialisation
If power supply is interrupted, the
electric window automatic operation
must be reinitialised.
The initialisation procedure described
below must be carried out with the
doors closed and for each door:
close the window by holding up the
button;
once the window has closed
completely, keep holding the button
down for at least a further 3 seconds;
open the window by holding down
the button;
once the window has opened
completely, keep holding the button
down for at least a further 3 seconds.
WARNING
21)Incorrect use of the electric windows
may be dangerous. Before and during
operation, always check that nobody is
exposed to the risk of being injured either
directly by the moving window or through
objects getting caught or hit by it. When
leaving the vehicle (equipped with
mechanical key with remote control),
always remove the key from the ignition
device to prevent accidental operation of
the electric windows from being a hazard
for those still on board.
ELECTRIC SUNROOF
(where provided)
22)11)
The electric sun roof comprises two
glass panels (the front one is mobile
and the rear one fixed) and is fitted with
two manually operated blinds.
The sun roof can only operated with the
ignition device at MAR.
OPENING
Press button A fig. 39: the roof will
open up completely.
40
GETTING TO KNOW YOUR CAR

The automatic motion can be
interrupted in any position by pressing
button A again.
CLOSING
Press button A fig. 39: the roof will
close completely.
The automatic motion can be
interrupted in any position by pressing
button A again.
SWIVEL OPENING
To bring the roof into "swivel" position,
press and release button B fig. 39.
This type of swivel-opening can be
activated irrespective of the position of
the sun roof. When starting with the
roof in closed position, pressing the
button automatically causes its
swivel-opening. If the roof is already
open, the button must be held until the
roof reaches the swivel-opening
position.
Pressing button B again during
automatic movement of the roof will
stop it.
SUN BLIND MOVEMENT
The blind is manually-operated: it can
be stopped in any position.
ANTI-PINCH DEVICE
The sun roof has an anti-pinch safety
system capable of detecting the
presence of an obstacle during the
closing movement: if this happens, the
system intervenes and the movement of
the roof is immediately reversed into
opening.
EMERGENCY OPERATION
If the control buttons fail to operate, the
sun roof can be moved manually,
proceeding as described below:
remove protective cap A fig. 40 on
the internal trim;
take Allen key B provided;
place Allen key B into housing A;
turn Allen key B in a clockwise
direction to open the roof or in an
anticlockwise direction to close it.
INITIALISATION
PROCEDURE
After irregular behaviour of the sun roof
or an emergency manoeuvre (see
description in the previous paragraph),
the automatic operation of the sun roof
must be initialised again.
Proceed as follows:
press button A fig. 39 to bring the
roof into completely closed position;
39F1B0069C
40F1B0070C
41

hold button A down for at least
10 seconds, then you should hear the
mechanical stop of the roof motor;
within 5 seconds hold button A
down: the roof will perform a complete
automatic opening and closing cycle (to
indicate that the initialisation procedure
has been successful). If this does not
occur, the procedure must be restarted
from the beginning.
WARNING
22)When leaving the vehicle, always
remove the key (where present) from the
ignition to avoid the risk of injury due to
accidental operation of the sun roof.
Improper use of the roof can be
dangerous. Before and during operation,
always check that no-one is exposed to
the risk of being injured by the moving
sunroof or by objects getting caught or hit
by it.
IMPORTANT
11)Do not open the sun roof if a roof rack
or crossbars are fitted. Do not open the
sun roof if there is snow or ice on it: you
may damage it.

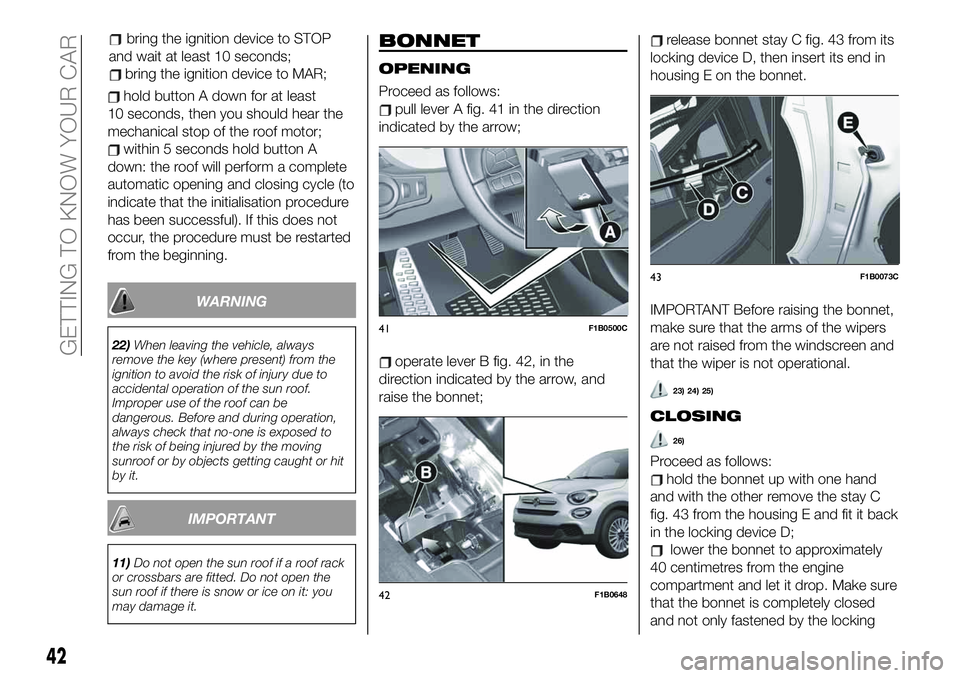

BONNET
OPENING
Proceed as follows:
pull lever A fig. 41 in the direction
indicated by the arrow;
operate lever B fig. 42, in the
direction indicated by the arrow, and
raise the bonnet;
release bonnet stay C fig. 43 from its
locking device D, then insert its end in
housing E on the bonnet.
IMPORTANT Before raising the bonnet,
make sure that the arms of the wipers
are not raised from the windscreen and
that the wiper is not operational.
23) 24) 25)
CLOSING
26)
Proceed as follows:
hold the bonnet up with one hand
and with the other remove the stay C
fig. 43 from the housing E and fit it back
in the locking device D;
lower the bonnet to approximately
40 centimetres from the engine
compartment and let it drop. Make sure
that the bonnet is completely closed
and not only fastened by the locking
41F1B0500C
42F1B0648
43F1B0073C
42
GETTING TO KNOW YOUR CAR
bring the ignition device to STOP
and wait at least 10 seconds;
bring the ignition device to MAR;

device by trying to open it. If it is not
perfectly closed, do not try to press the
bonnet lid down but open it and repeat
the procedure.
IMPORTANT Always check that the
bonnet is closed correctly to prevent it
from opening while the vehicle is
travelling.
WARNING
23)Perform these operations only when
the car is stationary.
24)The bonnet may drop suddenly if the
supporting rod is not positioned correctly.
25)Use both hands to lift the bonnet.
Before lifting, check that the windscreen
wiper arms are not raised from the
windscreen, that the vehicle is stationary
and that the electric parking brake is
engaged.
26)For safety reasons, the bonnet must
always be properly closed while the car is
travelling. Therefore, make sure that the
bonnet is properly closed and that the lock
is engaged. If you discover that the bonnet
is not perfectly closed during travel, stop
immediately and close the bonnet in the
correct manner.
BOOT
The boot unlocking is electrically
operated and is deactivated when the
vehicle is in motion.
OPENING FROM THE
OUTSIDE
27)
Opening from the outside
When unlocked, the tailgate can be
opened from outside the car using the
electric opening handle A
fig. 44 located under the handle until
the unlocking click is heard or by
quickly pressing button
on the
remote control twice.The direction indicators will flash twice
when the tailgate is opened and at the
same time the ceiling light inside the
boot will turn on; the ceiling light will
automatically switch off when the
tailgate is closed (see also "Interior
lights").
If the tailgate is left open, the ceiling
light will automatically switch off to
preserve the battery charge.
Emergency opening from the inside
Proceed as follows:
lower the head restraints and fold the
backrests;
identify and remove yellow guard A
fig. 45, which is press-fitted on the lock,
using the screwdriver provided;
insert the screwdriver in order to
activate tab B fig. 46, to mechanically
release the lock.
44F1B0747
45F1B0075C
43

CLOSING
Grip handle A fig. 47 and lower the
tailgate, pressing next to the lock until it
clicks.
IMPORTANT With the doors closed,
before closing the boot make sure that
you have the keys with you because
the boot will be locked automatically.
Closing with Keyless Entry
Press button B fig. 44 with the tailgate
correctly closed. This operation locks all
doors and arms the alarm (where
provided).
BOOT INITIALISATION
IMPORTANT If the battery is
disconnected or the protection fuse
blows, the boot opening/closing
mechanism must be reinitialised as
follows:
close all the doors and the boot;
press the"FIAT" button on the
remote control;
press thebutton on the remote
control.
LOAD COMPARTMENT
FEATURES
Reconfigurable load platform
12)
The car is equipped with a
reconfigurable load platform A, which
makes the boot volume modular:
The load platform can be set to
2 different positions:
Floor level (low)fig. 48: allows use
of the full luggage compartment
capacity.
Sill level (high)fig. 49: combined
with folding the rear seats and front
passenger seat, it allows long items to
be loaded and also makes
loading/unloading items in the luggage
compartment easier. It also allows the
space underneath (double bottom) to
be used as a further compartment for
stowing objects which are more fragile
or small.
The load platform can also be tilted,
and is equipped with a washable plastic
surface, useful for instance for
transporting wet or muddy items.
IMPORTANT Movements of the load
platform must take place in a central
position relative to the luggage
compartment.
46F1B0076C
47F1B0077C
48F1B0327C
44
GETTING TO KNOW YOUR CAR

Anchoring your load
Four hooks may be arranged in the
corners of the boot, according to the
versions, at the corners of the boot (two
at the front A fig. 50 and two at the rear
B ) for attaching cables for firmly
securing the carried load.
EMERGENCY KIT(where provided)
Inside the kit, located in the luggage
compartment, are a fire extinguisher
and a first-aid bag.
WARNING
27)Be careful not to hit objects on the
storage shelf when you open the tailgate.
IMPORTANT
12)The dimensions of the platform permit
a maximum distributed weight capacity of
70 kg: do not load objects with a greater
weight.
49F1B0328C
50F1B0079C
45

KNOWING THE INSTRUMENT PANEL
This section of the booklet gives you all
the information you need to
understand, interpret and use the
instrument panel correctly.CONTROL PANEL AND ON-BOARD
INSTRUMENTS..............47
DISPLAY..................48
TRIP COMPUTER.............50
WARNING LIGHTS AND
MESSAGES................51
46
KNOWING THE INSTRUMENT PANEL
