2019 DODGE GRAND CARAVAN audio

(5 km/h), to objects moving a maximum of approximately
20 mph (32 km/h), such as in parking lot situations.
NOTE:In a parking lot situation, oncoming vehicles can be
obscured by vehicles parked on either side. If the sensors
are blocked by other structures or vehicles, the system will
not be able to alert the driver.
When RCP is on and the vehicle is in REVERSE, the driver
is alerted using both the visual and audible alarms, includ-
ing reducing the radio volume.
WARNING!
Rear Cross Path Detection (RCP) is not a back up aid
system. It is intended to be used to help a driver detect
an oncoming vehicle in a parking lot situation. Drivers
must be careful when backing up, even when using
RCP. Always check carefully behind your vehicle, look
behind you, and be sure to check for pedestrians,
animals, other vehicles, obstructions, and blind spots
before backing up. Failure to do so can result in serious
injury or death.
Modes Of Operation
Modes Of Operation With Instrument Cluster Display
Three selectable modes of operation are available in the
instrument cluster display. Refer to “Instrument Cluster
Display” in “Getting To Know Your Instrument Panel” for
further information.
Blind Spot Alert Lights Only
When operating in Blind Spot Alert mode, the BSM system will
provide a visual alert in the appropriate side view mirror based
on a detected object. However, when the system is operating in
RCP, the system will respond with both visual and audible
alerts when a detected object is present. Whenever an audible
alert is requested, the radio volume is reduced.
Blind Spot Alert Lights/Chime
When operating in Blind Spot Alert Lights/Chime mode,
the BSM system will provide a visual alert in the appro-
priate side view mirror based on a detected object. If the
turn signal is then activated, and it corresponds to an alert
present on that side of the vehicle, an audible chime will
also be sounded. Whenever a turn signal and detected
object are present on the same side at the same time, both
the visual and audio alerts will be issued. In addition to the
audible alert the radio (if on) volume will be reduced.
5
SAFETY 173

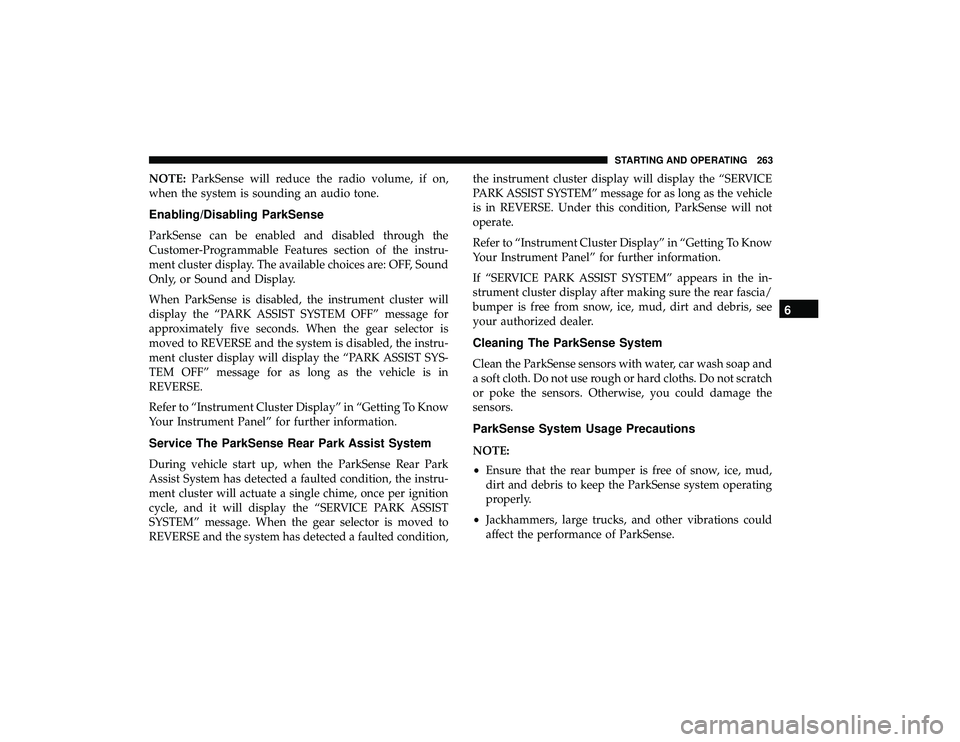

NOTE:ParkSense will reduce the radio volume, if on,
when the system is sounding an audio tone.
Enabling/Disabling ParkSense
ParkSense can be enabled and disabled through the
Customer-Programmable Features section of the instru-
ment cluster display. The available choices are: OFF, Sound
Only, or Sound and Display.
When ParkSense is disabled, the instrument cluster will
display the “PARK ASSIST SYSTEM OFF” message for
approximately five seconds. When the gear selector is
moved to REVERSE and the system is disabled, the instru-
ment cluster display will display the “PARK ASSIST SYS-
TEM OFF” message for as long as the vehicle is in
REVERSE.
Refer to “Instrument Cluster Display” in “Getting To Know
Your Instrument Panel” for further information.
Service The ParkSense Rear Park Assist System
During vehicle start up, when the ParkSense Rear Park
Assist System has detected a faulted condition, the instru-
ment cluster will actuate a single chime, once per ignition
cycle, and it will display the “SERVICE PARK ASSIST
SYSTEM” message. When the gear selector is moved to
REVERSE and the system has detected a faulted condition, the instrument cluster display will display the “SERVICE
PARK ASSIST SYSTEM” message for as long as the vehicle
is in REVERSE. Under this condition, ParkSense will not
operate.
Refer to “Instrument Cluster Display” in “Getting To Know
Your Instrument Panel” for further information.
If “SERVICE PARK ASSIST SYSTEM” appears in the in-
strument cluster display after making sure the rear fascia/
bumper is free from snow, ice, mud, dirt and debris, see
your authorized dealer.
Cleaning The ParkSense System
Clean the ParkSense sensors with water, car wash soap and
a soft cloth. Do not use rough or hard cloths. Do not scratch
or poke the sensors. Otherwise, you could damage the
sensors.
ParkSense System Usage Precautions
NOTE:
•
Ensure that the rear bumper is free of snow, ice, mud,
dirt and debris to keep the ParkSense system operating
properly.
• Jackhammers, large trucks, and other vibrations could
affect the performance of ParkSense.
6
STARTING AND OPERATING 263

MULTIMEDIA
CONTENTS
CYBERSECURITY ...................... .403
 RADIO 430/430N CD/DVD/HDD/NAV —
IF EQUIPPED ......................... .404
▫ Operating Instructions (Voice Command System) —
If Equipped .......................... .404
▫ Operating Instructions (Uconnect Phone) —
If Equipped .......................... .404
▫ Accessibility — If Equipped ...............404
 STEERING WHEEL AUDIO CONTROLS —
IF EQUIPPED ......................... .405
▫ Radio Operation ....................... .405
▫ CD Player ........................... .405
 IPOD/USB/MP3 CONTROL — IF EQUIPPED . . .406
▫ Connecting The iPod Or External USB Device . . .406
▫ Using This Feature ..................... .407▫
Controlling The iPod Or External USB Device
Using Radio Buttons .................... .407
▫ Play Mode ........................... .407
▫ List Or Browse Mode ................... .408
▫ Bluetooth Streaming Audio (BTSA) ..........410
 UCONNECT MULTIMEDIA — VIDEO
ENTERTAINMENT SYSTEM (VES) —
IF EQUIPPED ..........................411
▫ Getting Started ........................411
▫ Play Video Games ..................... .412
▫ Play A DVD Using The Touchscreen Radio .....413
▫ Play A DVD Using The VES Player —
If Equipped .......................... .414
▫ VES Remote Control — If Equipped .........416
▫ Remote Control Storage ..................418
10

STEERING WHEEL AUDIO CONTROLS — IF
EQUIPPED
The remote sound system controls are located on the rear
surface of the steering wheel, at the three and nine o’clock
positions.
The right-hand rocker switch has a push-button in the
center, and controls the volume and mode of the sound
system. Pushing the top of the rocker switch will increase
the volume. Pushing the bottom of the rocker switch will
decrease the volume. Pushing the center button changes
the operation of the radio from AM to FM, or to CD mode,
depending on which radio is in the vehicle.The left-hand rocker switch has a push-button in the center.
The function of the left-hand switch is different, depending
on which mode you are in.
The following describes the left-hand rocker switch opera-
tion in each mode.
Radio Operation
Pushing the top of the switch will SEEK up for the next
listenable station, and pushing the bottom of the switch
will SEEK down for the next listenable station.
The button located in the center of the left-hand switch will
tune to the next preset station that you have programmed
in the radio preset push-button.
CD Player
Pushing the top of the switch once will go to the next track
on the CD. Pushing the bottom of the switch once will go
to the beginning of the current track, or to the beginning of
the previous track if it is within one second after the
current track begins to play.
If you push the switch up or down twice it plays the
second track; three times, it will play the third, etc.
The button in the center of the left-hand switch has no
function in this mode.
Remote Sound System Controls (Back View Of Steering Wheel)
10
MULTIMEDIA 405

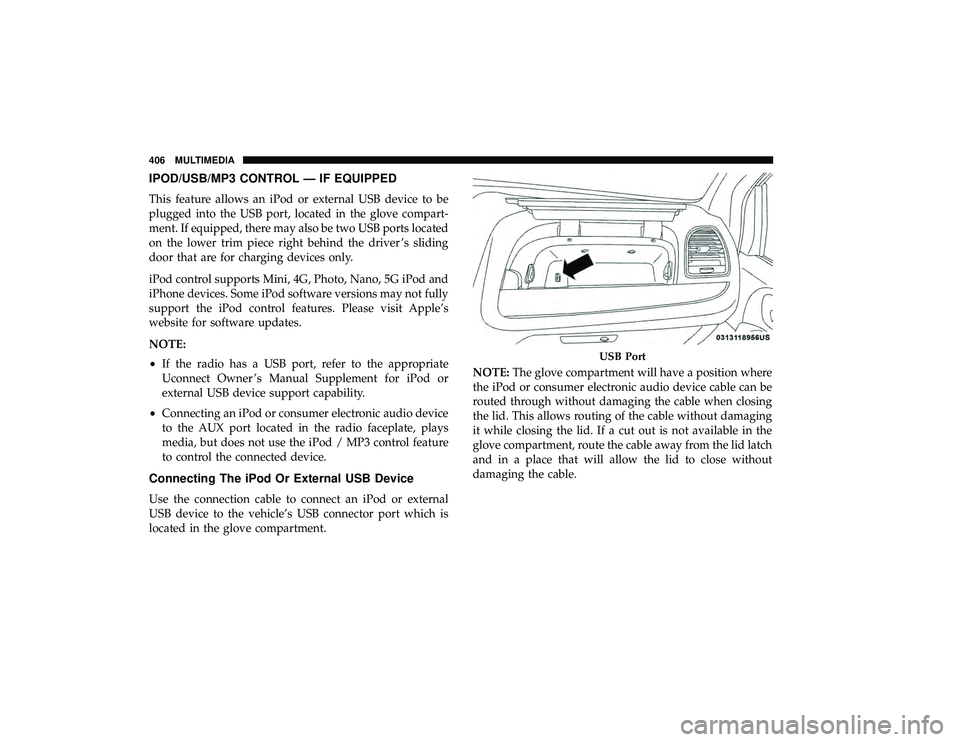

IPOD/USB/MP3 CONTROL — IF EQUIPPED
This feature allows an iPod or external USB device to be
plugged into the USB port, located in the glove compart-
ment. If equipped, there may also be two USB ports located
on the lower trim piece right behind the driver ’s sliding
door that are for charging devices only.
iPod control supports Mini, 4G, Photo, Nano, 5G iPod and
iPhone devices. Some iPod software versions may not fully
support the iPod control features. Please visit Apple’s
website for software updates.
NOTE:
•If the radio has a USB port, refer to the appropriate
Uconnect Owner ’s Manual Supplement for iPod or
external USB device support capability.
• Connecting an iPod or consumer electronic audio device
to the AUX port located in the radio faceplate, plays
media, but does not use the iPod / MP3 control feature
to control the connected device.
Connecting The iPod Or External USB Device
Use the connection cable to connect an iPod or external
USB device to the vehicle’s USB connector port which is
located in the glove compartment. NOTE:
The glove compartment will have a position where
the iPod or consumer electronic audio device cable can be
routed through without damaging the cable when closing
the lid. This allows routing of the cable without damaging
it while closing the lid. If a cut out is not available in the
glove compartment, route the cable away from the lid latch
and in a place that will allow the lid to close without
damaging the cable.
USB Port
406 MULTIMEDIA

Once the audio device is connected and synchronized to
the vehicle’s iPod/USB/MP3 control system (iPod or ex-
ternal USB device may take a few minutes to connect), the
audio device starts charging and is ready for use by
pushing radio buttons, as described below.
NOTE:If the audio device battery is completely dis-
charged, it may not communicate with the iPod/USB/MP3
control system until a minimum charge is attained. Leav-
ing the audio device connected to the iPod/USB/MP3
control system may charge it to the required level.
Using This Feature
By using an external USB device to connect to the USB port:
• The audio device can be played on the vehicle’s sound
system, providing metadata (artist, track title, album,
etc.) information on the radio display.
• The audio device can be controlled using the radio
buttons to Play, Browse, and List the iPod contents.
• The audio device battery charges when plugged into the
USB connector (if supported by the specific audio de-
vice).
Controlling The iPod Or External USB Device
Using Radio Buttons
To enter the AUX/USB/MP3 control mode and access a
connected audio device, either push the “AUX” button on
the radio faceplate or push the VR button and say USBor
Switch to USB. Once in the AUX/USB/MP3 control
mode, audio tracks (if available from audio device) start
playing over the vehicle’s audio system.
Play Mode
When switched to AUX/USB/MP3 control mode, the iPod
or external USB device automatically starts Play mode. In
Play mode, the following buttons on the radio faceplate
may be used to control the iPod or external USB device and
display data:
• Use the TUNEcontrol knob to select the next or previ-
ous track.
• Turning it clockwise (forward) by one click, while play-
ing a track, skips to the next track or push the VR button
and say Next Track.
• Turning it counterclockwise (backward) by one click,
will jump to the previous track in the list or push the VR
button and say Previous Track.
10
MULTIMEDIA 407

•Jump backward in the current track by pushing and
holding the << RWbutton. Holding the << RWbutton
long enough will jump to the beginning of the current
track.
• Jump forward in the current track by pushing and
holding the FF>> button.
• A single push backward << RWor forward FF>> will
jump backward or forward respectively, for five seconds.
• Use the << SEEKandSEEK >> buttons to jump to the
previous or next track. Pushing the SEEK>> button
during play mode will jump to the next track in the list,
or push the VR button and say Next or Previous Track.
• While a track is playing, push the INFObutton to see the
associated metadata (artist, track title, album, etc.) for
that track. Pushing the INFObutton again jumps to the
next screen of data for that track. Once all screens have
been viewed, the last INFObutton push will go back to
the play mode screen on the radio.
• Pushing the REPEATbutton will change the audio
device mode to repeat the current playing track or push
the VR button and say Repeat ONorRepeat Off. •
Push the SCANbutton to use AUX/USB/MP3 device
scan mode, which will play the first ten seconds of each
track in the current list and then forward to the next
song. To stop SCAN mode and start playing the desired
track, when it is playing the track, push the SCAN
button again. During Scan mode, pushing the << SEEK
and SEEK >> buttons will select the previous and next
tracks.
• RND button (available on sales code RES radio only):
Pushing this button toggles between Shuffle ON and
Shuffle OFF modes for the iPod or external USB device,
or push the VR button and say Shuffle ONorShuffle
Off. If the RNDicon is showing on the radio display,
then the shuffle mode is ON.
List Or Browse Mode
During Play mode, pushing any of the buttons described
below, will bring up List mode. List mode enables scrolling
through the list of menus and tracks on the audio device.
TUNE control knob: The TUNEcontrol knob functions in
a similar manner as the scroll wheel on the audio device or
external USB device.
408 MULTIMEDIA

•Turning it clockwise (forward) and counterclockwise
(backward) scrolls through the lists, displaying the track
detail on the radio display. Once the track to be played
is highlighted on the radio display, push the TUNE
control knob to select and start playing the track. Turn-
ing the TUNEcontrol knob fast will scroll through the
list faster. During fast scroll, a slight delay in updating
the information on the radio display may be noticeable.
During all List modes, the iPod displays all lists in “wrap-
around” mode. So if the track is at the bottom of the list,
just turn the wheel backward (counterclockwise) to get to
the track faster.
In List mode, the radio PRESETbuttons are used as
shortcuts to the following lists on the iPod or external USB
device:
• Preset 1 – Playlists
• Preset 2 – Artists
• Preset 3 – Albums
• Preset 4 – Genres
• Preset 5 – Audiobooks
• Preset 6 – Podcasts Pushing a PRESET button will display the current list on
the top line and the first item in that list on the second line.
To exit List mode without selecting a track, push the same
PRESET
button again to go back to Play mode.
LIST button: The LISTbutton will display the top level
menu of the iPod or external USB device.
• Turn the TUNEcontrol knob to list the top-menu item to
be selected and push the TUNEcontrol knob. This will
display the next sub-menu list item on the audio device,
then follow the same steps to go to the desired track in
that list. Not all iPod or external USB device sub-menu
levels are available on this system.
MUSIC TYPE button: TheMUSIC TYPE button is another
shortcut button to the genre listing on your audio device.
WARNING!
Do not plug in or remove the iPod or external USB
device while driving. Failure to follow this warning
could result in an accident.
10
MULTIMEDIA 409
