Page 321 of 435
321
3. WHAT TO DO IF...
SIENNA_Navi+MM_OM08021U_(U)
17.08.16 10:05
PHONE
7

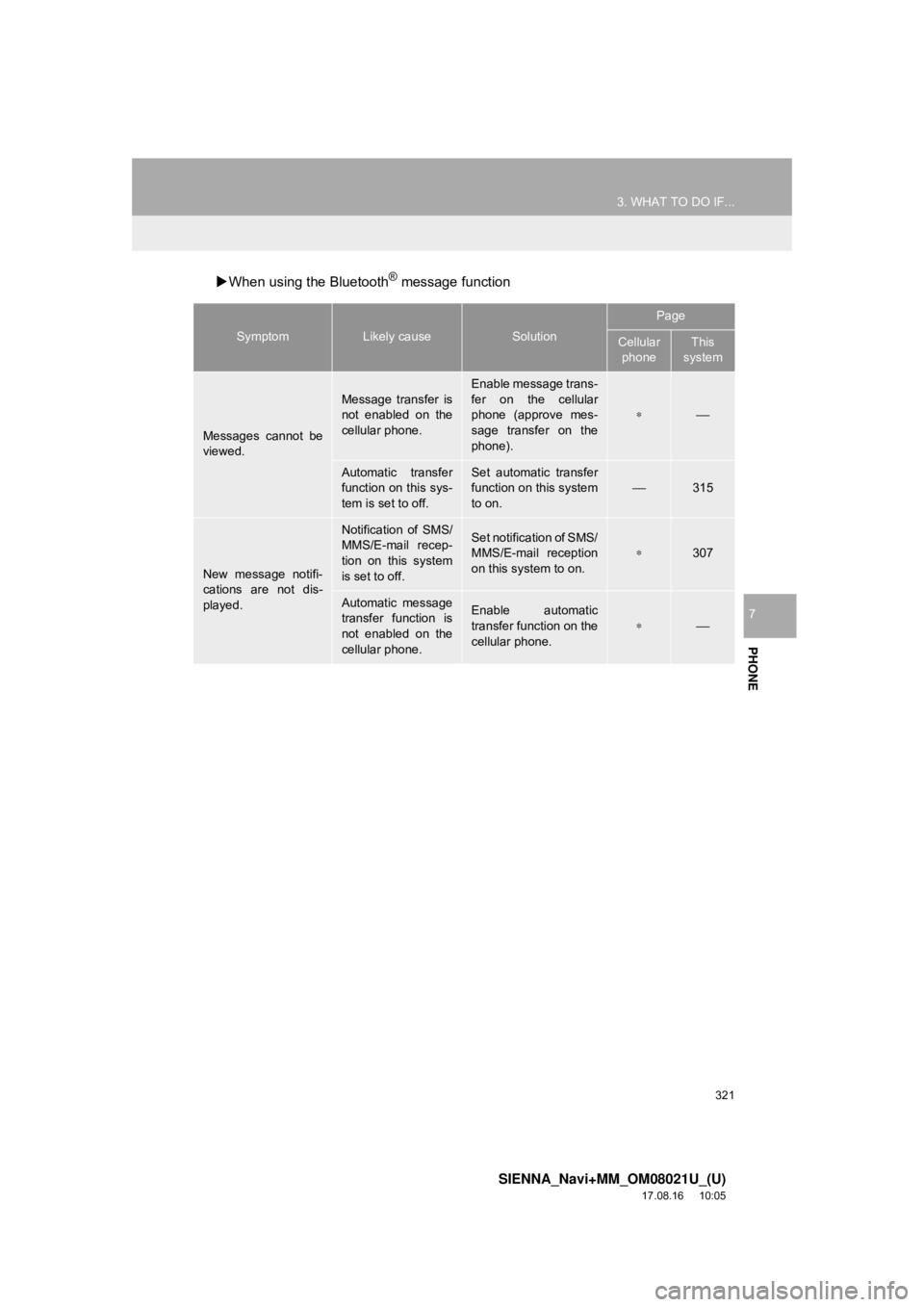

When using the Bluetooth® message function
SymptomLikely causeSolution
Page
Cellular
phoneThis
system
Messages cannot be
viewed.
Message transfer is
not enabled on the
cellular phone.
Enable message trans-
fer on the cellular
phone (approve mes-
sage transfer on the
phone).
∗⎯
Automatic transfer
function on this sys-
tem is set to off.Set automatic transfer
function on this system
to on.
⎯315
New message notifi-
cations are not dis-
played.
Notification of SMS/
MMS/E-mail recep-
tion on this system
is set to off.Set notification of SMS/
MMS/E-mail reception
on this system to on.
∗307
Automatic message
transfer function is
not enabled on the
cellular phone.Enable automatic
transfer function on the
cellular phone.
∗⎯
Page 322 of 435
322
3. WHAT TO DO IF...
SIENNA_Navi+MM_OM08021U_(U)
17.08.16 10:05
In other situations
SymptomLikely causeSolution
Page
Cellular
phoneThis
system
The Bluetooth® con-
nection status is dis-
played at the top of
the screen each time
the engine switch is in
following.
Vehicles without
a smart key sys-
tem
The engine switch is
in the “ACC” or “ON”
position.
Vehicles with a
smart key system
The engine switch is
in ACCESSORY or
IGNITION ON mode.
Connection confir-
mation display on
this system is set to
on.To turn off the display,
set connection confir-
mation display on this
system to off.
⎯54
Page 323 of 435

323
3. WHAT TO DO IF...
SIENNA_Navi+MM_OM08021U_(U)
17.08.16 10:05
PHONE
7
Even though all con-
ceivable measures
have been taken, the
symptom status does
not change.
The cellular phone
is not close enough
to this system.Bring the cellular
phone closer to this
system.⎯⎯
Radio interference
has occurred.Turn off Wi-Fi® devices
or other devices that
may emit radio waves.⎯⎯
The cellular phone
is the most likely
cause of the symp-
tom.
Turn the cellular phone
off, remove and rein-
stall the battery pack,
and then restart the
cellular phone.
∗⎯
Enable the cellular
phone’s Bluetooth®
connection.
∗⎯
Disable the Wi-Fi®
connection of the cellu-
lar phone.∗⎯
Stop the cellular
phone’s security soft-
ware and close all ap-
plications.
∗⎯
Before using an appli-
cation installed on the
cellular phone, careful-
ly check its source and
how its operation might
affect this system.
∗⎯
∗ : For details, refer to the owner’s manual that came with the cellular phone.
SymptomLikely causeSolution
Page
Cellular
phoneThis
system
Page 324 of 435

324
SIENNA_Navi+MM_OM08021U_(U)
17.08.16 10:05
1. QUICK REFERENCE ................... 326
MAP SCREEN ..................................... 326
2. MAP SCREEN OPERATION ....... 328
CURRENT POSITION DISPLAY ......... 328
MAP SCALE ........................................ 328
ORIENTATION OF THE MAP ............. 329
MAP SCROLL OPERATION................ 330
ADJUSTING LOCATION IN SMALL INCREMENTS................................... 330
DISPLAYING INFORMATION ABOUT THE ICON WHERE THE CURSOR
IS SET ............................................... 331
STANDARD MAP ICONS .................... 331
3. MAP OPTIONS OPERATION ...... 332
SWITCHING THE MAP MODE............ 332
SELECTING THE POI*2 ICONS .......... 334
ROUTE TRACE ................................... 335
4. TRAFFIC INFORMATION ............ 336
DISPLAYING TRAFFIC INFORMATION ON THE MAP .......... 339
1. DESTINATION SEARCH OPERATION ............................. 340
SELECTING SEARCH AREA .............. 342
SETTING HOME AS
DESTINATION................................... 342
SEARCHING BY KEYWORD............... 342
SEARCHING BY FAVORITES LIST .... 343
SEARCHING BY Destination Assist Connect ............................................. 343
SEARCHING BY RECENT DESTINATIONS ................................ 343
SEARCHING BY EMERGENCY .......... 344
SEARCHING BY CONTACT ................ 344
SEARCHING BY ADDRESS ................ 344
SEARCHING BY POINT OF INTEREST ......................................... 345
ONE-TOUCH SETTING HOME/ FAVORITE AS A DESTINATION ..... 348
2. STARTING ROUTE GUIDANCE ....... ......................... 350
CONFIRM DESTINATION SCREEN ... 351
ROUTE OVERVIEW SCREEN ............ 351
A ROUTE FROM THE Toyota
Entune CENTER (VEHICLES WITH
DCM) ................................................. 354
1BASIC OPERATION2DESTINATION SEARCH
8
NAVIGATION SYSTEM *1
Page 325 of 435

8
325
SIENNA_Navi+MM_OM08021U_(U)
17.08.16 10:05
1
2
3
4
5
6
7
8
9
1. ROUTE GUIDANCE SCREEN ..... 355
SCREEN FOR ROUTE GUIDANCE ... 355
DURING FREEWAY DRIVING............ 357
WHEN APPROACHING AN INTERSECTION ............................... 359
TURN LIST SCREEN .......................... 359
TURN-BY-TURN ARROW SCREEN ... 360
2. TYPICAL VOICE GUIDANCE PROMPTS.................................. 361
3. ROUTE OPTIONS OPERATION .............................. 362
REORDERING DESTINATIONS ......... 362
SETTING ROUTE PREFERENCES ... 363
SELECTING ROUTE TYPE ................ 363
DETOUR SETTING ............................. 364
ADJACENT ROAD .............................. 365
1. MEMORY POINTS SETTINGS .... 366
SETTING UP HOME ........................... 367
SETTING UP FAVORITES LIST ......... 368
SETTING UP AREAS TO AVOID ........ 371
1. DETAILED NAVIGATIONSETTINGS ................................. 373
SCREENS FOR NAVIGATION
SETTINGS ........................................ 373
2. TRAFFIC SETTINGS................... 377
SCREEN FOR TRAFFIC SETTINGS ........................................ 377
AVOID TRAFFIC.................................. 378
MY TRAFFIC ROUTES ....................... 379
3. USE OF INFORMATION ACCUMULATED BY
NAVIGATION SYSTEM
(VEHICLES WITH DCM) ........... 382
1. GPS (GLOBAL POSITIONING SYSTEM) .................... ............... 383
LIMITATIONS OF THE NAVIGATION
SYSTEM ............................................ 383
2. MAP DATABASE VERSION AND COVERED AREA ............. 385
MAP INFORMATION ........................... 385
TEMPORARY UPDATES OF THE
MAP (VEHICLES WITH DCM) .......... 385
3ROUTE GUIDANCE
4MEMORY POINTS
5SETUP
6TIPS FOR THE NAVIGATION
SYSTEM
*1: Entune Premium Audio only
*2: Point of Interest
NAVIGATION SYSTEM*1
Page 326 of 435
326
SIENNA_Navi+MM_OM08021U_(U)
17.08.16 10:05
1. BASIC OPERATION
1. QUICK REFERENCE
MAP SCREEN
To display this screen, press the “MAP” button.
No.NameFunctionPage
2D North-up, 2D
heading-up or 3D
heading-up sym-
bolIndicates whether the map orientation is set to
north-up or heading-up. The letter(s) under this
symbol indicate the vehicle’s heading direction
(e.g. N for north). In 3D map, only a heading-up
view is available.
329
Destination but-
tonSelect to display the destination screen.340
Map options but-
tonSelect to display the map options screen.332
Route options
buttonSelect to display the route options screen.362
Mute buttonSelect to mute the voice guidance. When set to
on, the indicator will illuminate.⎯
Page 327 of 435
327
1. BASIC OPERATION
SIENNA_Navi+MM_OM08021U_(U)
17.08.16 10:05
NAVIGATION SYSTEM
8
Zoom in/out but-
tonSelect to magnify or reduce the map scale. When
either button is selected, the map scale indicator
bar appears at the bottom of the screen.328
Micro city map
buttonSelect to display the micro city map screen.329
Route informa-
tion bar
Displays the distance with the estimated travel
time/arrival time to the destination. The route in-
formation bar fills from left to right as the vehicle
progresses on the route.
356
Delete destina-
tion buttonSelect to delete destinations.⎯
Speed limit iconIndicates the speed limit on the current road. The
display of the speed limit icon can be set to on/off.332
No.NameFunctionPage
INFORMATION
●When the vehicle is not receiving GPS signals, such as when driving in a tunnel,
will be displayed at the bottom left corner of the screen.
Page 328 of 435

328
1. BASIC OPERATION
SIENNA_Navi+MM_OM08021U_(U)
17.08.16 10:05
2. MAP SCREEN OPERATION
1Press the “MAP” button.
2Check that the curr ent position map is
displayed.
1Select or to change the scale
of the map screen.
The scale indicator bar appears at the bot-
tom of the screen.
Select and hold or to continue
changing the scale of the map screen.
The scale of the map screen can also be
changed by selecting the scale bar
directly. This function is not available while
driving.
Pinch outward on the screen to zoom in
and pinch inward to zoom out.
In areas where the micro city map is avail-
able the map scale changes from to
when at the minimum range.
CURRENT POSITION
DISPLAY
To correct the current position manu-
ally:
→P.375
INFORMATION
●While driving, the current position mark
is fixed on the screen and the map
moves.
● The current position is automatically set
as the vehicle receives signals from the
GPS (Global Positioning System). If the
current position is not correct, it is auto-
matically corrected after the vehicle
receives signals from the GPS.
● After the battery disconnection, or on a
new vehicle, the current position may
not be correct. As soon as the system
receives signals from the GPS, the cor-
rect current position is displayed.
MAP SCALE
