Page 217 of 435
217
1. USEFUL INFORMATION
SIENNA_Navi+MM_OM08021U_(U)
17.08.16 10:05
INFORMATION
51Select “Yes” when the pop-up mes-
sage appears.
2Check that the weather information is
displayed.
The time since the information was last
updated is displayed.
When detailed audio weather information
is available, an icon will be displayed on
the weather map. Select the icon to listen
to the weather information.
WEATHER GUIDANCE
SERVICE
When weather information for areas
around the current position,
destination, or along the set route is
available, important information will be
output through the speakers and a
pop-up message asking if you would
like to view the full weather information
will be displayed.

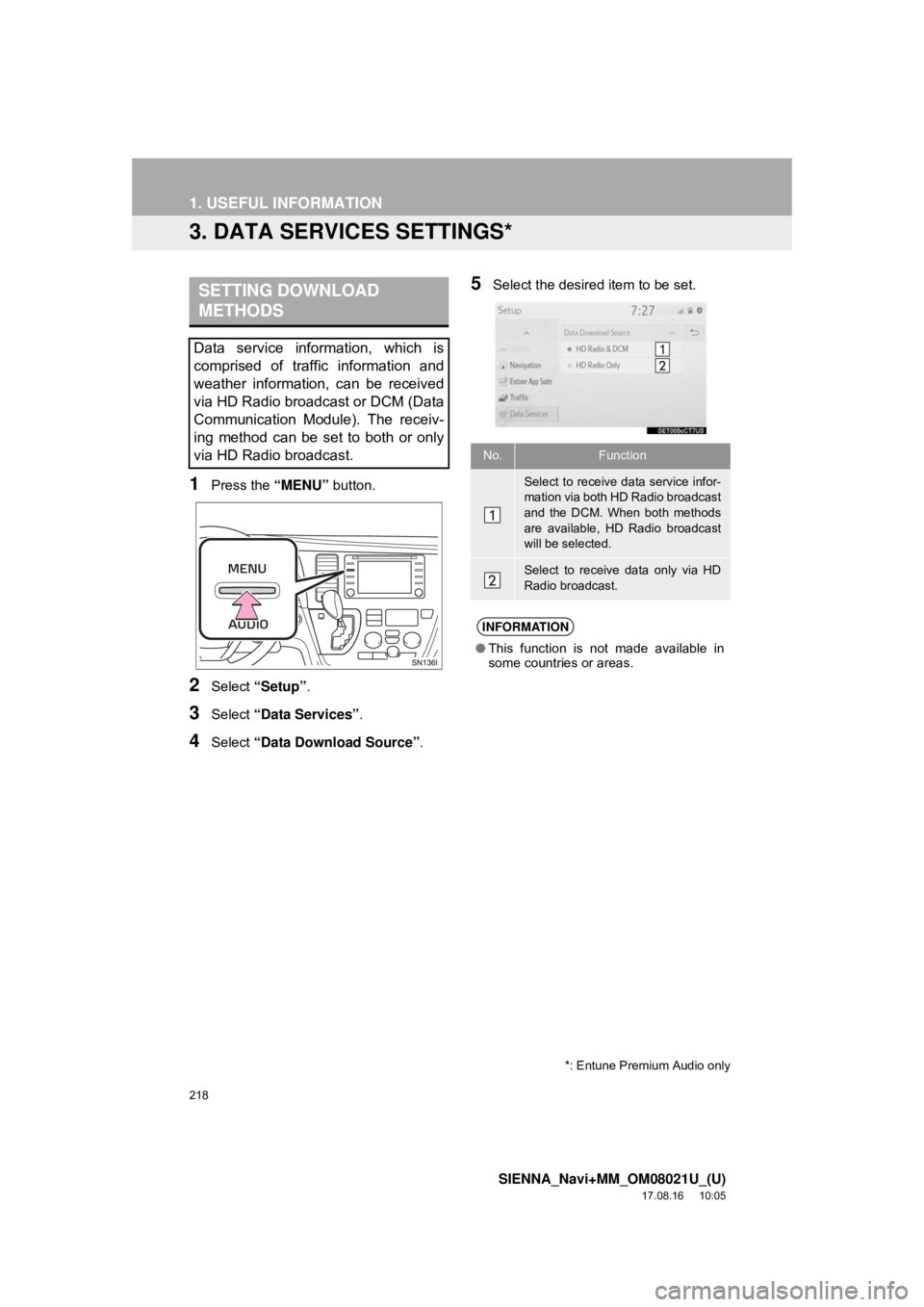

Page 218 of 435
218
1. USEFUL INFORMATION
SIENNA_Navi+MM_OM08021U_(U)
17.08.16 10:05
3. DATA SERVICES SETTINGS*
1Press the “MENU” button.
2Select “Setup” .
3Select “Data Services” .
4Select “Data Download Source” .
5Select the desired item to be set.SETTING DOWNLOAD
METHODS
Data service information, which is
comprised of traffic information and
weather information, can be received
via HD Radio broadcast or DCM (Data
Communication Module). The receiv-
ing method can be set to both or only
via HD Radio broadcast.
*: Entune Premium Audio only
No.Function
Select to receive data service infor-
mation via both HD Radio broadcast
and the DCM. When both methods
are available, HD Radio broadcast
will be selected.
Select to receive data only via HD
Radio broadcast.
INFORMATION
●This function is not made available in
some countries or areas.
Page 219 of 435
219
1. USEFUL INFORMATION
SIENNA_Navi+MM_OM08021U_(U)
17.08.16 10:05
INFORMATION
5
Page 220 of 435

220
SIENNA_Navi+MM_OM08021U_(U)
17.08.16 10:05
1. REAR VIEW MONITORSYSTEM..................................... 222
DRIVING PRECAUTIONS ................... 222
SCREEN DESCRIPTION .................... 224
2. REAR VIEW MONITOR
SYSTEM PRECAUTIO NS.......... 225
AREA DISPLAYED ON SCREEN........ 225
THE CAMERA ..................................... 225
DIFFERENCES BETWEEN THE
SCREEN AND THE ACTUAL
ROAD ................................................ 226
WHEN APPROACHING THREE-DIMENSIONAL
OBJECTS .......................................... 228
3. THINGS YOU SHOULD KNOW ... 230
IF YOU NOTICE ANY SYMPTOMS .... 230
1. TOYOTA PARKING ASSIST MONITOR .................................. 231
DRIVING PRECAUTIONS ................... 231
SCREEN DISPLAY .............................. 233
USING THE SYSTEM .......................... 235
2. ESTIMATED COURSE LINEDISPLAY MODE ....................... 236
SCREEN DESCRIPTION ..................... 236
PARKING ............................................. 238
3. PARKING ASSIST GUIDE LINEDISPLAY MODE ....................... 239
SCREEN DESCRIPTION ..................... 239
PARKING ............................................. 240
4. DISTANCE GUIDE LINE DISPLAYMODE ........................................ 241
SCREEN DESCRIPTION ..................... 241
5. TOYOTA PARKING ASSIST
MONITOR PRECAUTIONS ....... 242
AREA DISPLAYED ON SCREEN ........ 242
THE CAMERA ...................................... 243
DIFFERENCES BETWEEN
THE SCREEN AND THE ACTUAL
ROAD ................................................ 244
WHEN APPROACHING THREE-DIMENSIONAL
OBJECTS .......................................... 245
6. THINGS YOU SHOULD KNOW ....................................... 247
IF YOU NOTICE ANY SYMPTOMS ..... 247
1REAR VIEW MONITOR
SYSTEM2TOYOTA PARKING ASSIST
MONITOR
6
PERIPHERAL MONITORING SYSTEM
Page 221 of 435

6
221
SIENNA_Navi+MM_OM08021U_(U)
17.08.16 10:05
1
2
3
4
5
6
7
8
9
1. PANORAMIC VIEW MONITOR ... 249
DRIVING PRECAUTIONS ................... 249
CAMERA SWITCH .............................. 251
DISPLAY ............................................. 251
HOW TO SWITCH THE DISPLAY ...... 253
2. CHECKING AROUND THE VEHICLE .................................... 254
SCREEN DISPLAY ............................. 254
3. CHECKING THE FRONT AND
AROUND THE VEHICLE ........... 255
SCREEN DISPLAY ............................. 255
4. CHECKING THE SIDES OF THEVEHICLE .................................... 258
SCREEN DISPLAY ............................. 258
5. CHECKING THE REAR AND
AROUND THE VEHICLE ........... 261
SCREEN DISPLAY ............................. 261
GUIDE LINES DISPLAYED ON THE
SCREEN ........................................... 263
PARKING ............................................ 266
6. DISPLAY WHEN THE OUTSIDE REAR VIEW MIRRORS ARE
RETRACTED.............. ............... 268
SCREEN DISPLAY .............................. 268
7. MAGNIFYING FUNCTION .......... 269
MAGNIFYING THE DISPLAY .............. 269
8. CUSTOMIZING THE PANORAMIC
VIEW MONITOR........................ 270
CHANGING THE BODY COLOR
DISP LAYED IN THE PANORAMIC
VIEW MONITOR .............................. 270
9. PANORAMIC VIEW MONITOR PRECAUTIONS......................... 271
AREA DISPLAYED ON SCREEN........ 271
THE CAMERA ..................................... 274
DIFFERENCES BETWEEN THE
SCREEN AND THE ACTUAL
ROAD ................................................ 275
DISTORTION OF THREE-DIMENSIONAL OBJECTS
ON THE SCREEN ............................. 278
WHEN APPROACHING THREE-DIMENSIONAL
OBJECTS .......................................... 279
MAGNIFYING FUNCTION DISPLAY ........................................... 281
10. THINGS YOU SHOULD KNOW ....................................... 282
IF YOU NOTICE ANY SYMPTOMS .... 282
PRODUCT LICENSE ........................... 283
3PANORAMIC VIEW MONITOR
PERIPHERAL MONITORING SYSTEM
Page 222 of 435

222
SIENNA_Navi+MM_OM08021U_(U)
17.08.16 10:05
1. REAR VIEW MONITOR SYSTEM
1. REAR VIEW MONITOR SYSTEM*
The rear view monitor system assists
the driver by displaying an image of the
view behind the vehicle with fixed
guide lines on the screen while backing
up, for example while parking.
INFORMATION
●The screen illustrations used in this text
are intended as examples, and may dif-
fer from the image that is actually dis-
played on the screen.
DRIVING PRECAUTIONS
The rear view monitor system is a sup-
plemental device intended to assist the
driver when backing up. When backing
up, be sure to visually check all around
the vehicle both directly and using the
mirrors before proceeding. If you do
not, you may hit another vehicle, and
could possibly cause an accident.
Pay attention to the following precau-
tions when using the rear view monitor
system.
*: If equipped
WA R N I N G
●Never depend on the rear view monitor
system entirely when backing up. The
image and the position of the guide lines
displayed on the screen may differ from
the actual state.
Use caution, just as you would when
backing up any vehicle.
● Be sure to back up slowly, depressing
the brake pedal to control vehicle speed.
● The instructions given are only guide
lines. When and how much to turn the
steering wheel will vary according to
traffic conditions, road surface condi-
tions, vehicle condition, etc. when park-
ing. It is necessary to be fully aware of
this before using the rear view monitor
system.
● When parking, be sure to check that the
parking space will accommodate your
vehicle before maneuvering into it.
● Do not use the rear view monitor system
in the following cases:
• On icy or slick road surfaces, or in
snow
• When using tire chains or emergency tires
• When the back door is not closed com- pletely
• On roads that are not flat or straight,
such as curves or slopes
Page 223 of 435
223
1. REAR VIEW MONITOR SYSTEM
SIENNA_Navi+MM_OM08021U_(U)
17.08.16 10:05
PERIPHERAL MONITORING SYSTEM
6
WA R N I N G
●In low temperatures, the screen may
darken or the image may become faint.
The image could distort when the vehi-
cle is moving, or you may become
unable to see the image on the screen.
Be sure to visually check all around the
vehicle both directly and using the mir-
rors before proceeding.
● If the tire sizes are changed, the position
of the fixed guide lines displayed on the
screen may change.
● The camera uses a special lens. The
distances between objects and pedestri-
ans that appear in the image displayed
on the screen will differ from the actual
distances.( →P.226)
Page 224 of 435

224
1. REAR VIEW MONITOR SYSTEM
SIENNA_Navi+MM_OM08021U_(U)
17.08.16 10:05
SCREEN DESCRIPTION
Vehicles without a smart key system
The rear view monitor system screen will be disp layed if the shift lever is shifted to the
“R” position while the engine swit ch is in the “ON” position.
Vehicles with a smart key system
The rear view monitor system screen will be disp layed if the shift lever is shifted to the
“R” position while the engine swit ch is in IGNITION ON mode.
No.DisplayFunction
Vehicle width guide line
Displays a guide path when the vehicle is being backed
straight up.
•The displayed width is wider than the actual vehicle
width.
Vehicle center guide lineThis line indicates the estimated vehicle center on the
ground.
Distance guide lineShows distance behind the vehicle.
• Displays a point approximatel y 1.5 ft. (0.5 m) (red) from
the edge of the bumper.
Distance guide lineShows distance behind the vehicle.
• Displays a point approximately 3 ft. (1 m) (blue) from
the edge of the bumper.
CANCELING REAR VIEW MONITOR SYSTEM
The rear view monitor system is canceled when the shift lever is shifted into any
position other than the “R” position.
