■Auto power off function
Vehicles with Multidrive
If the vehicle is left in ACCESSORY mode for more than 20 minutes or IGNI-
TION ON mode (the engine is not running) for more than an hour with the
shift lever in P, the engine switch will automatically turn off. However, this
function cannot entirely prevent battery discharge. Do not leave the vehicle
with the engine switch in ACCESSORY or IGNITION ON mode for long peri-
ods of time when the engine is not running.
Vehicles with manual transmission
If the vehicle is left in ACCESSORY mode for more than 20 minutes or IGNI-
TION ON mode (the engine is not running) for more than an hour, the engine
switch will automatically turn off. However, this function cannot entirely pre-
vent battery discharge. Do not leave the vehicle with the engine switch in
ACCESSORY or IGNITION ON mode for long periods of time when the
engine is not running.
■Operation of the engine switch
●If the switch is not pressed shortly and firmly, the engine switch mode may
not change or the engine may not start.
●If attempting to restart the engine immediately after turning the engine
switch off, the engine may not start in some cases. After turning the engine
off, please wait a few seconds before restarting the engine.
■Electronic key battery depletion
P. 124
■Conditions affecting operation
P. 152
■Note for the smart entry & start system
P. 153
■If the engine does not start
The engine immobilizer system may not have been deactivated. (P. 78)
Contact any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer.
■Steering lock
After turning the engine switch off and opening and closing the doors, the
steering wheel will be locked due to the steering lock function. Operating the
engine switch again automatically cancels the steering lock.

2174-2. Driving procedures
4
Driving
AVENSIS_OM_OM20C79E_(EE)
■ When the steering lock cannot be released
■ Steering lock motor overheating prevention
To prevent the steering lock motor from overheating, the motor may be sus-
pended if the engine is turned on and off repeatedly in a short period of time.
In this case, refrain from running the engine. After about 10 seconds, the
steering lock motor will resume functioning.
■ When the engine switch indicator flashes in amber
The system may be malfunctioning. Have the vehicle inspected by any autho-
rized Toyota retailer or Toyota author ized repairer, or any reliable repairer,
immediately.
■ When the electronic key battery is depleted
 P. 592
The green indicator light on the engine
switch will flash and a message will be
shown on the multi-information display.
Press the engine switch again while turn-
ing the steering wheel left and right.
WARNING
■ When starting the engine
Always start the engine while sitting in the driver’s seat. Do not depress the
accelerator pedal while starting the engine under any circumstances.
Doing so may cause an accident resulting in death or serious injury.
■ Caution while driving
If engine failure occurs while the vehicle is moving, do not lock or open the
doors until the vehicle reaches a safe and complete stop. Activation of the
steering lock in this circumstance may lead to an accident, resulting in
death or serious injury.
■ Stopping the engine in an emergency
If you want to stop the engine in an emergency while driving the vehicle,
press and hold the engine switch for more than 2 seconds, or press it briefly
3 times or more in succession. ( P. 519)
However, do not touch the engine switch while driving except in an emer-
gency. Turning the engine off while driving will not cause loss of steering or
braking control, but the power assist to these systems will be lost. This will
make it more difficult to steer and brake, so you should pull over and stop
the vehicle as soon as it is safe to do so.

2184-2. Driving procedures
AVENSIS_OM_OM20C79E_(EE)
NOTICE
■To prevent battery discharge
● Do not leave the engine switch in ACCESSORY or IGNITION ON mode
for long periods of time without the engine running.
● If the indicator on the engine switch is illuminated, the engine switch is not
off. When exiting the vehicle, always check that the engine switch is off.
● On vehicles with Multidrive, do not stop the engine when the shift lever is
in a position other than P. If the engine is stopped in another shift lever
position, the engine switch will not be turned off but instead be turned to
ACCESSORY mode. If the vehicle is left in ACCESSORY mode, battery
discharge may occur.
■ When starting the engine
● Do not race a cold engine.
● If the engine becomes difficult to start or stalls frequently, have your vehi-
cle checked by any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer immediately.
■ Symptoms indicating a malfunction with the engine switch
If the engine switch seems to be operating somewhat differently than usual,
such as the switch sticking slightly, there may be a malfunction. Contact any
authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer immediately.

219
4
4-2. Driving procedures
Driving
AVENSIS_OM_OM20C79E_(EE)
Multidrive
While the engine switch is in the “ON” position (vehicles with-
out smart entry & start system) or IGNITION ON mode (vehi-
cles with smart entry & start system), move the shift lever with
the brake pedal depressed.
When shifting the shift lever between P and D, make sure that
the vehicle is completely stopped.
: If equipped
Shifting the shift lever

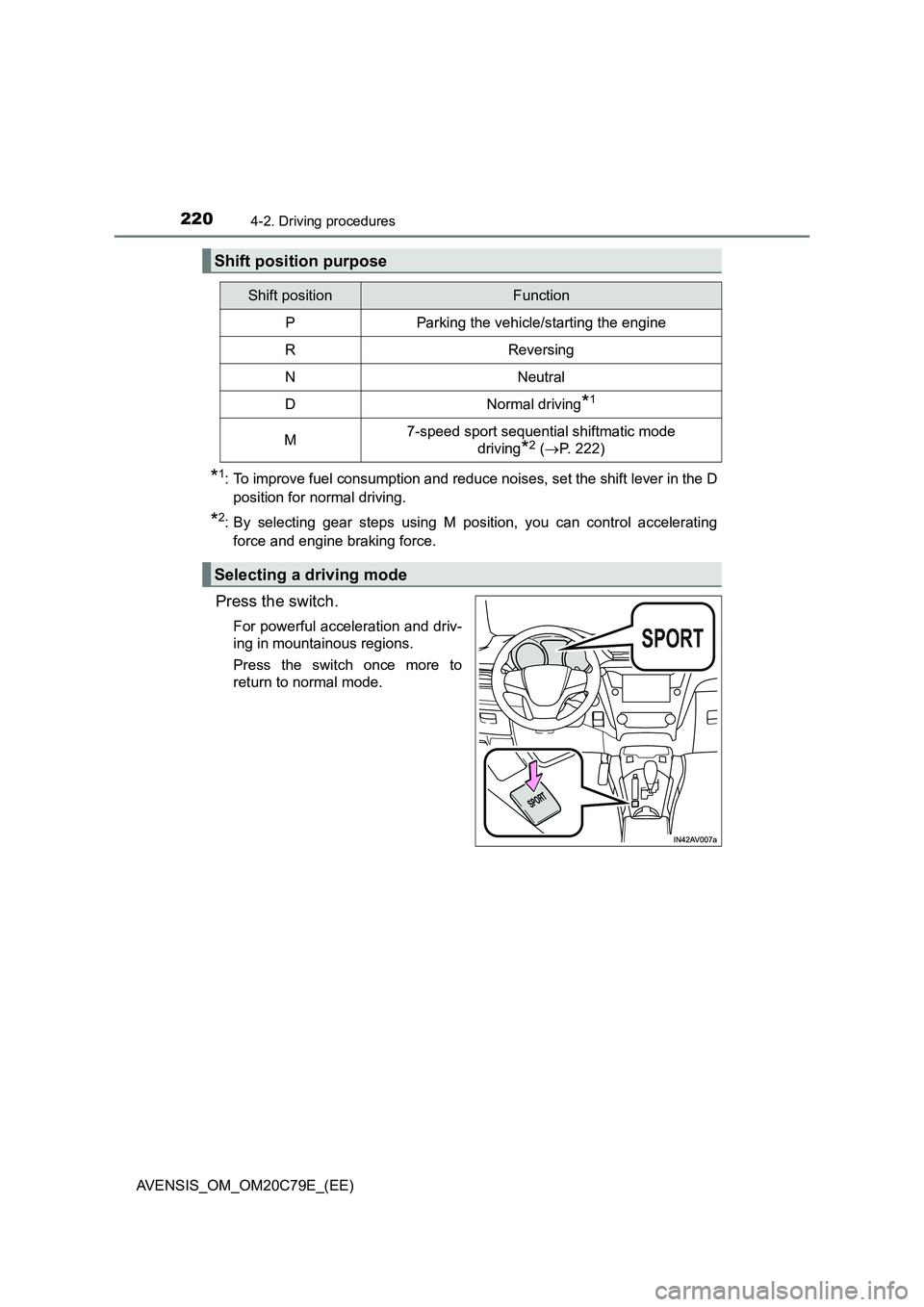

2204-2. Driving procedures
AVENSIS_OM_OM20C79E_(EE)
*1: To improve fuel consumption and reduce noises, set the shift lever in the D
position for normal driving.
*2: By selecting gear steps using M position, you can control accelerating
force and engine braking force.
Press the switch.
For powerful acceleration and driv-
ing in mountainous regions.
Press the switch once more to
return to normal mode.
Shift position purpose
Shift positionFunction
PParking the vehicle/starting the engine
RReversing
NNeutral
DNormal driving*1
M7-speed sport sequential shiftmatic mode
driving
*2 (P. 2 2 2 )
Selecting a driving mode

2214-2. Driving procedures
4
Driving
AVENSIS_OM_OM20C79E_(EE)
To drive using temporary gear step selection, operate the “-” paddle
shift switch while the shift lever in D. Changing the gear step enables
the level of engine braking force to be selected. The gear step can
then be selected by operating the “-” and “+” paddle shift switches.
Upshifting
Downshifting
The selected gear step, from 1 to
7, will be displayed on the multi-
information display.
To return to normal D position
driving, the “+” paddle shift
switch must be held down for a
period of time.
■
Gear steps and their functions
●You can choose from 7 levels of engine braking force.
●A lower gear step will provide greater engine braking force than a
higher gear step, and the engine revolutions will also increase.
Selecting gear steps in the D position (vehicles with paddle shift
switches)
1
2

2224-2. Driving procedures
AVENSIS_OM_OM20C79E_(EE)
To enter 7-speed sport sequential shiftmatic mode, shift the shift lever
to M. Gear steps can be selected by operating the shift lever or the “-”
and “+” paddle shift switches (if equipped), allowing you to drive in the
gear step of your choice.
Upshifting
Downshifting
The gear changes by one gear
every time the shift lever or paddle
shift switch is operated.
The selected gear step, from 1 to
7, will be displayed on the multi-
information display.
However, even when in the M position, the gear steps will be automat-
ically changed if the engine speed is too high, or too low.
■Gear step functions
●You can choose from 7 levels of accelerating force and engine
braking force.
●A lower gear step will provide greater accelerating force and
engine braking force than a higher gear step, and the engine rev-
olutions will also increase.
Changing gear steps in 7-speed sport sequential shiftmatic
mode
1
2

2234-2. Driving procedures
4
Driving
AVENSIS_OM_OM20C79E_(EE)
■When the vehicle comes to a stop with the shift lever in the M position
●The transmission will automatically downshift to M1 once the vehicle is
stopped.
●After a stop, the vehicle will start off in M1.
●When the vehicle is stopped, the transmission is set at M1.
■Paddle shift switch (if equipped)
●When the paddle shift switch is operated with the shift lever in the D posi-
tion, a gear step will be automatically selected according to the vehicle
speed and driving conditions.
●Automatic deactivation of gear step selection with the shift lever in the D
position
Gear step selection in the D position will be deactivated in the following situ-
ations:
• When the vehicle comes to a stop
• If the accelerator pedal is depressed for longer than a certain period of
time in one gear step
• When the shift lever is shifted to a position other than D
■Downshifting restrictions warning buzzer
To help ensure safety and driving performance, downshifting operation may
sometimes be restricted. In some circumstances, downshifting may not be
possible even when the shift lever or paddle shift switch (if equipped) is oper-
ated. (The warning buzzer will sound twice.)
■When driving with cruise control activated (if equipped)
Even when performing the following actions with the intent of enabling engine
braking, engine braking will not activate because cruise control will not be
canceled.
●While driving in D or 7-speed sport sequential shiftmatic mode, downshifting
to 6, 5 or 4. (P. 289)
●When switching the driving mode to sport mode while driving in D position.
(P. 221)
■Automatic deactivation of sport mode
If the engine switch is turned to the “LOCK” position (vehicles without smart
entry & start system) or off (vehicles with smart entry & start system) after
driving in sport mode, the mode is automatically deactivated.
■Shift lock system
The shift lock system is a system to prevent accidental operation of the shift
lever in starting.
The shift lever can be shifted from P only when the engine switch is in the
“ON” position (vehicles without smart entry & start system) or ON mode (vehi-
cles with smart entry & start system) and the brake pedal is being depressed.
