2018 RENAULT MASTER Owners Manual

1.51
CHILD SEATS: attachment by seat belt (12/18)
(3) RISK OF DEATH OR SERIOUS INJURY: before installing a child seat on the front passenger seat, check that \
the
airbag has been deactivated (refer to “Child safety: front passenger\
airbag deactivation, activation” Section 1).
X = Seat not suitable for fitting child seats.
U = Seat which allows a child seat with “Universal” approval to be ins\
talled using a seat belt; check that it can be fitted.
UF = Seat which only allows a forward-facing seat with “Universal” appr\
oval to be attached with a seat belt; check that it can be
fitted.
(1) Move the front seat as far forward as possible to install a rear-facing \
child seat, then move back the seat in front as far as it will
go, although without allowing it to come into contact with the child sea\
t.
(2) Forward-facing child seat; position the seatback of the child seat in co\
ntact with the seatback of the vehicle seat. Adjust the
height of the headrest or remove it if necessary; do not push the seat i\
n front of the child more than halfway back on its runn ers
and do not recline the seatback more than 25°.

1.52

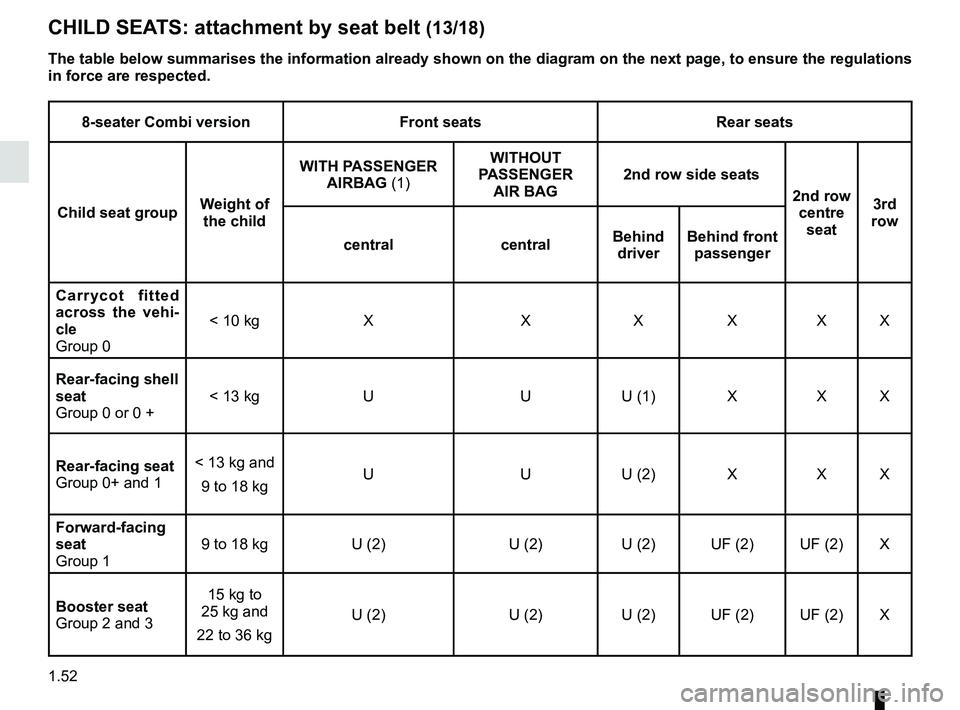

CHILD SEATS: attachment by seat belt (13/18)
8-seater Combi versionFront seatsRear seats
Child seat group Weight of
the child WITH PASSENGER
AIRBAG (1) WITHOUT
PASSENGER AIR BAG 2nd row side seats
2nd row centre seat 3rd
row
central centralBehind
driver Behind front
passenger
Carrycot fitted
across the vehi-
cle
Group 0 < 10 kg
X XXXX X
Rear-facing shell
seat
Group 0 or 0 + < 13 kg
U UU (1) X X X
Rear-facing seat
Group 0+ and 1 < 13 kg and
9 to 18 kg U
UU (2) X X X
Forward-facing
seat
Group 1 9 to 18 kg
U (2) U (2)U (2) UF (2) UF (2) X
Booster seat
Group 2 and 3 15 kg to
25 kg and
22 to 36 kg U (2)
U (2)U (2) UF (2) UF (2) X
The table below summarises the information already shown on the diagram \
on the next page, to ensure the regulations
in force are respected.

1.53
CHILD SEATS: attachment by seat belt (14/18)
(3) RISK OF DEATH OR SERIOUS INJURY: before installing a child seat on the front passenger seat, check that \
the
airbag has been deactivated (refer to “Child safety: front passenger\
airbag deactivation, activation” Section 1).
X = Seat not suitable for fitting child seats.
U = Seat which allows a child seat with “Universal” approval to be ins\
talled using a seat belt; check that it can be fitted.
UF = Seat which only allows a forward-facing seat with “Universal” appr\
oval to be attached with a seat belt; check that it can be
fitted.
(1) Move the front seat as far forward as possible to install a rear-facing \
child seat, then move back the seat in front as far as it will
go, although without allowing it to come into contact with the child sea\
t.
(2) Forward-facing child seat; position the seatback of the child seat in co\
ntact with the seatback of the vehicle seat. Adjust the
height of the headrest or remove it if necessary; do not push the seat i\
n front of the child more than halfway back on its runn ers
and do not recline the seatback more than 25°.

1.54
³Check the status of the air bag
before fitting a child seat or al-
lowing a passenger to use the seat.
RISK OF DEATH OR
SERIOUS INJURY: before
fitting a rear-facing child
seat on the front passen-
ger seat, check that the air bag has
been deactivated (refer to the infor-
mation on “Deactivating the front
passenger air bag” in Section 1).
Child seat attached using the belt
¬Seat which allows a child seat
with “Universal” approval to be
attached by a seat belt;
²Seat not suitable for fitting
child seats.
Seat which only allows a for-
ward-facing seat with
“Universal” approval to be attached
with a seat belt.

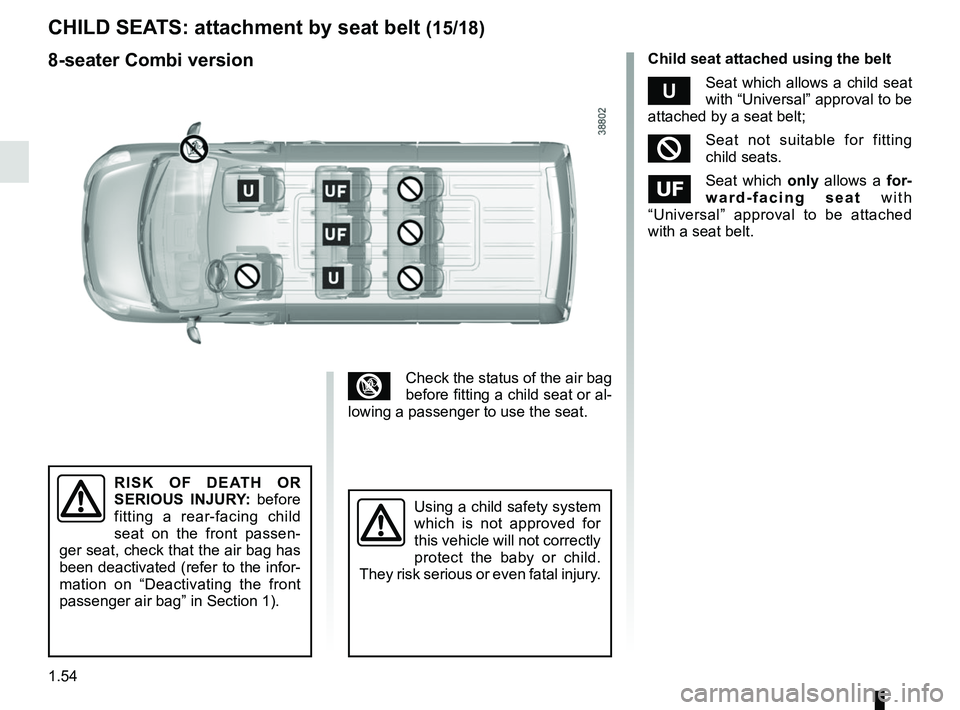

8-seater Combi version
Using a child safety system
which is not approved for
this vehicle will not correctly
protect the baby or child.
They risk serious or even fatal injury.
CHILD SEATS: attachment by seat belt (15/18)

1.55

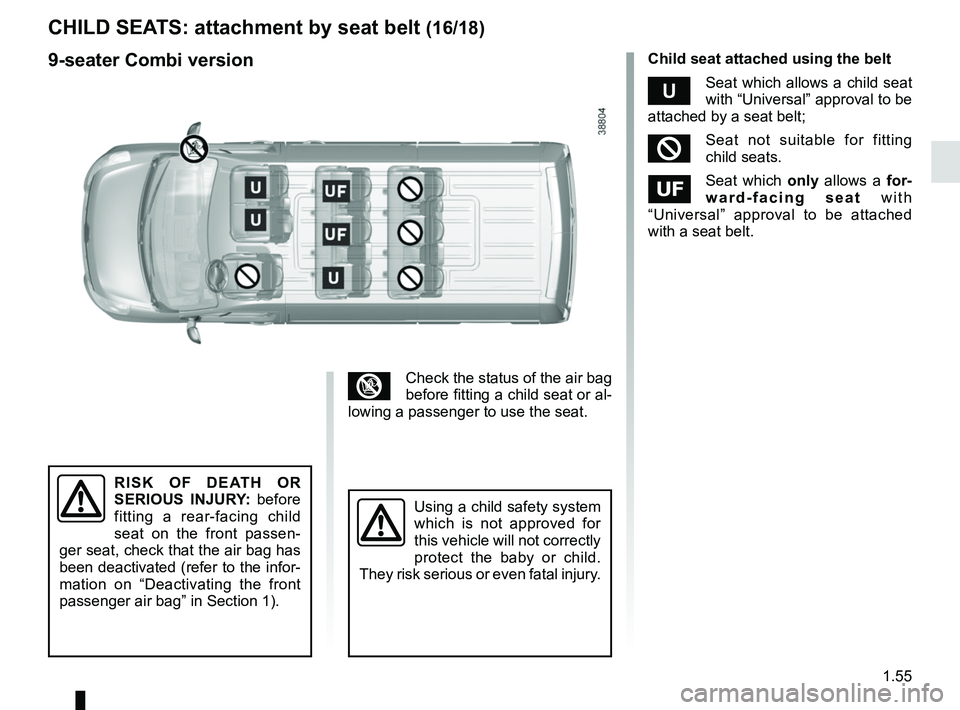

CHILD SEATS: attachment by seat belt (16/18)
³Check the status of the air bag
before fitting a child seat or al-
lowing a passenger to use the seat.
RISK OF DEATH OR
SERIOUS INJURY: before
fitting a rear-facing child
seat on the front passen-
ger seat, check that the air bag has
been deactivated (refer to the infor-
mation on “Deactivating the front
passenger air bag” in Section 1).
Child seat attached using the belt
¬Seat which allows a child seat
with “Universal” approval to be
attached by a seat belt;
²Seat not suitable for fitting
child seats.
Seat which only allows a for-
ward-facing seat with
“Universal” approval to be attached
with a seat belt.
Using a child safety system
which is not approved for
this vehicle will not correctly
protect the baby or child.
They risk serious or even fatal injury.
9-seater Combi version

1.56

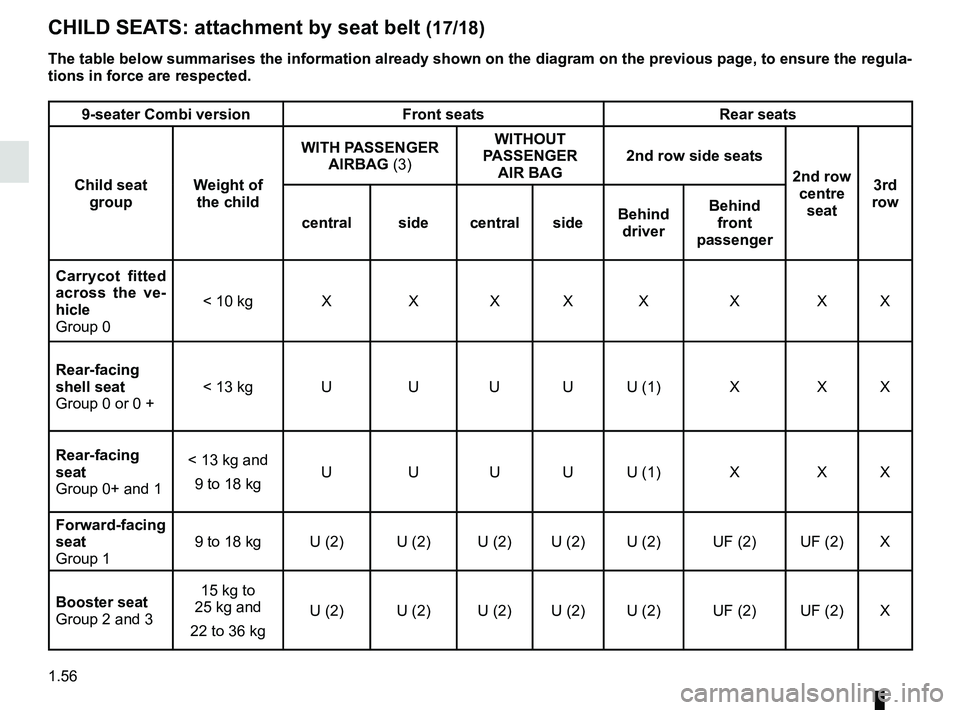

CHILD SEATS: attachment by seat belt (17/18)
9-seater Combi versionFront seatsRear seats
Child seat group Weight of
the child WITH PASSENGER
AIRBAG (3) WITHOUT
PASSENGER AIR BAG 2nd row side seats
2nd row centre seat 3rd
row
central side central side Behind
driver Behind
front
passenger
Carrycot fitted
across the ve-
hicle
Group 0 < 10 kg X X X X X X X X
Rear-facing
shell seat
Group 0 or 0 + < 13 kg U U U U U (1) X X X
Rear-facing
seat
Group 0+ and 1 < 13 kg and
9 to 18 kg U U U U U (1) X X X
Forward-facing
seat
Group 1 9 to 18 kg U (2) U (2) U (2) U (2) U (2) UF (2) UF (2) X
Booster seat
Group 2 and 3 15 kg to
25 kg and
22 to 36 kg U (2) U (2) U (2) U (2) U (2) UF (2) UF (2) X
The table below summarises the information already shown on the diagram \
on the previous page, to ensure the regula-
tions in force are respected.

1.57
CHILD SEATS: attachment by seat belt (18/18)
(3) RISK OF DEATH OR SERIOUS INJURY: before installing a child seat on the front passenger seat, check that \
the
airbag has been deactivated (refer to “Child safety: front passenger\
airbag deactivation, activation” Section 1).
X = Seat not suitable for fitting child seats.
U = Seat which allows a child seat with “Universal” approval to be ins\
talled using a seat belt; check that it can be fitted.
UF = Seat which only allows a forward-facing seat with “Universal” appr\
oval to be attached with a seat belt; check that it can be
fitted.
(1) Move the front seat as far forward as possible to install a rear-facing \
child seat, then move back the seat in front as far as it will
go, although without allowing it to come into contact with the child sea\
t.
(2) Forward-facing child seat; position the seatback of the child seat in co\
ntact with the seatback of the vehicle seat. Adjust the
height of the headrest or remove it if necessary; do not push the seat i\
n front of the child more than halfway back on its runn ers
and do not recline the seatback more than 25°.

1.58

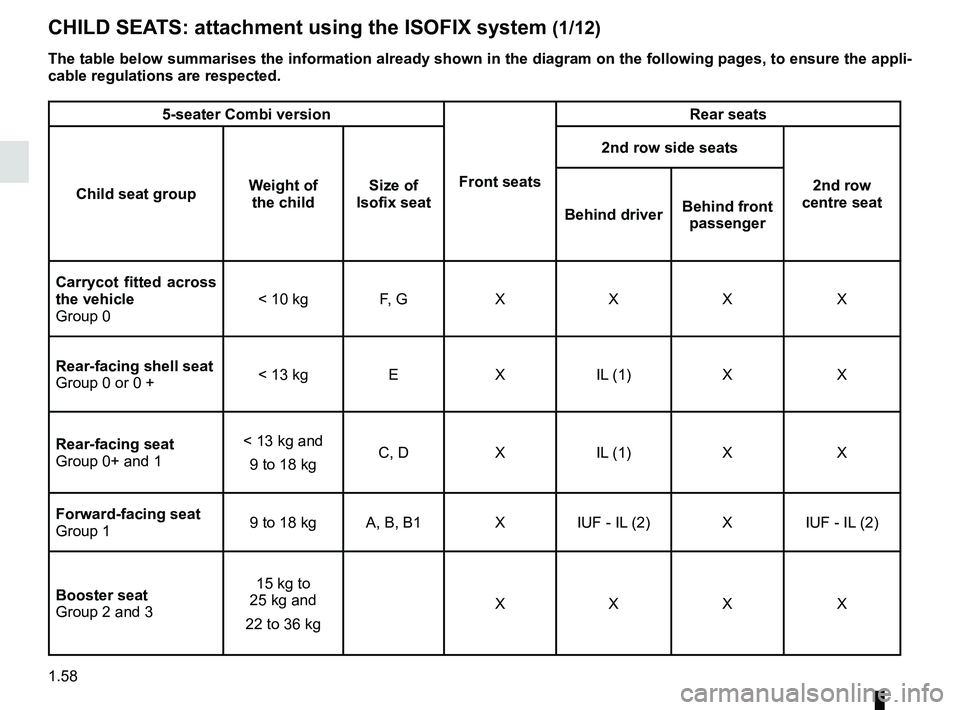

CHILD SEATS: attachment using the ISOFIX system (1/12)
The table below summarises the information already shown in the diagram \
on the following pages, to ensure the appli-
cable regulations are respected.
5-seater Combi versionFront seatsRear seats
Child seat group Weight of
the child Size of
Isofix seat 2nd row side seats
2nd row
centre seat
Behind driver Behind front
passenger
Carrycot fitted across
the vehicle
Group 0 < 10 kg F, G X X X X
Rear-facing shell seat
Group 0 or 0 + < 13 kg E X IL (1) X X
Rear-facing seat
Group 0+ and 1 < 13 kg and
9 to 18 kg C, D X IL (1) X X
Forward-facing seat
Group 1 9 to 18 kg A, B, B1 X IUF - IL (2) X IUF - IL (2)
Booster seat
Group 2 and 3 15 kg to
25 kg and
22 to 36 kg XXX X
