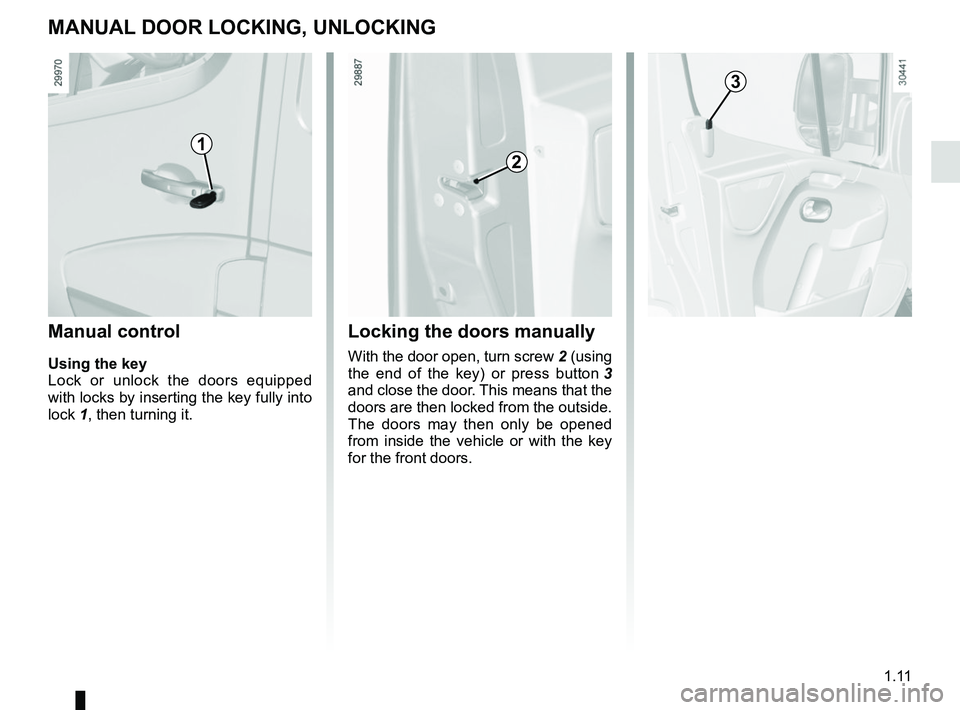

2018 RENAULT MASTER Owners Manual

1.11
MANUAL DOOR LOCKING, UNLOCKING
Manual control
Using the key
Lock or unlock the doors equipped
with locks by inserting the key fully into
lock 1, then turning it.
Locking the doors manually
With the door open, turn screw 2 (using
the end of the key) or press button 3
and close the door. This means that the
doors are then locked from the outside.
The doors may then only be opened
from inside the vehicle or with the key
for the front doors.
1
2
3

1.12
RAID (AUTOMATIC LOCKING WHEN DRIVING)
You can decide whether you want to
activate this function.
To activate
With the ignition on, press switch 1
for approximately 5 seconds until you
hear a beep.
The indicator light built into the switch
comes on when the doors are locked.
To deactivate
With the ignition on , press and hold
switch 1 for approximately 5 seconds,
until you hear a beep. The indicator
light in the switch goes out.
Operating principle
When the engine is started, the system
automatically locks the doors when the
vehicle reaches a speed of approxi-
mately 4 mph (7 km/h).
Operating faults
If you notice an operating fault (auto-
matic locking impossible), first check
that all doors are correctly locked. If
they are correctly locked and the fault
is still present, contact an approved
Dealer.
Also make sure that locking has not
been inadvertently deactivated.
If it has, switch the ignition off and on
again and reactivate it.
1
Driver’s responsibility
If you decide to keep the
doors locked when you are
driving, remember that it
may be more difficult for those as-
sisting you to gain access to the
passenger compartment in the
event of an emergency.

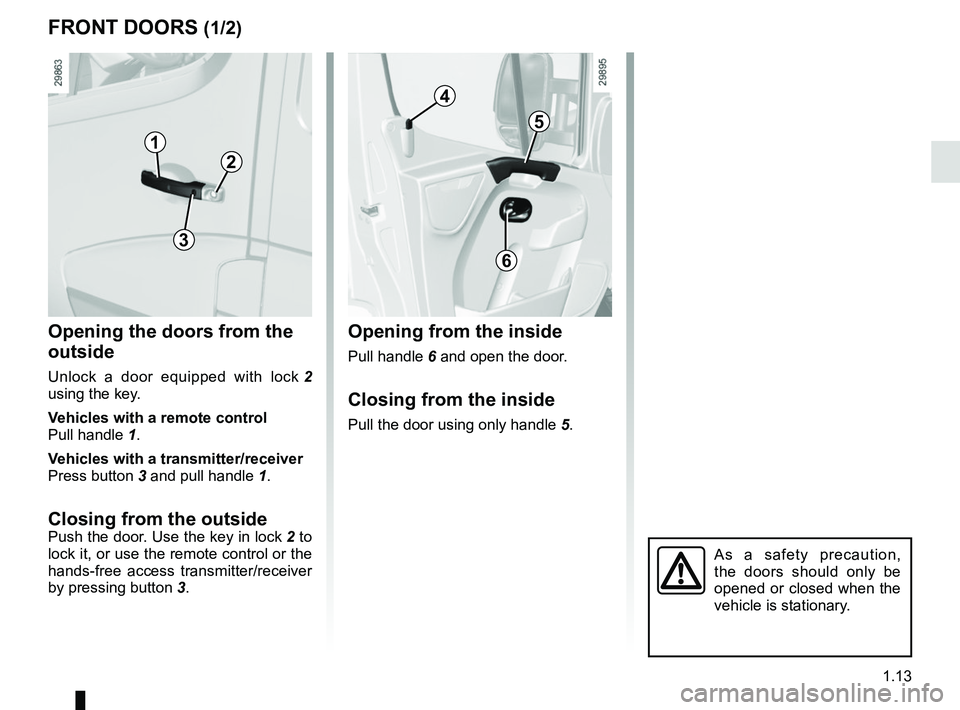

1.13
FRONT DOORS (1/2)
Opening the doors from the
outside
Unlock a door equipped with lock 2
using the key.
Vehicles with a remote control
Pull handle 1.
Vehicles with a transmitter/receiver
Press button 3 and pull handle 1.
Closing from the outsidePush the door. Use the key in lock 2 to
lock it, or use the remote control or the
hands-free access transmitter/receiver
by pressing button 3.
Opening from the inside
Pull handle 6 and open the door.
Closing from the inside
Pull the door using only handle 5.
As a safety precaution,
the doors should only be
opened or closed when the
vehicle is stationary.
1
2
4
5
6
3

1.14
FRONT DOORS (2/2)
Manual locking
With the door closed, lock the door by
pressing button 4.
Lights-on reminder buzzer
If you have switched off the ignition
and left the lights switched on, a re-
minder buzzer will sound when a door
is opened.
NOTE
The front door mechanism cannot
be locked if the door is open.Driver’s responsibility
when parking or stopping
the vehicle
Never leave an animal,
child or adult who is not self-suffi-
cient alone on your vehicle, even for
a short time.
They may pose a risk to themselves
or to others by starting the engine,
activating equipment such as the
electric windows or by locking the
doors.
Also, in hot and/or sunny weather,
please remember that the tempera-
ture inside the passenger compart-
ment increases very quickly.
RISK OF DEATH OR SERIOUS
INJURY.

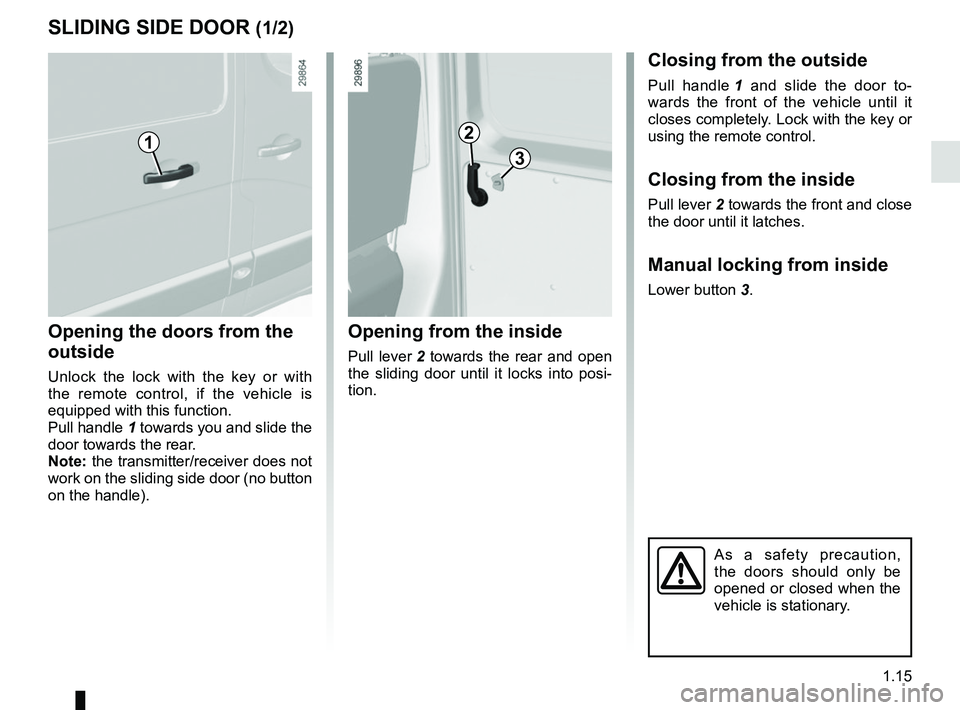

1.15
SLIDING SIDE DOOR (1/2)
Opening from the inside
Pull lever 2 towards the rear and open
the sliding door until it locks into posi-
tion.
12
3
Opening the doors from the
outside
Unlock the lock with the key or with
the remote control, if the vehicle is
equipped with this function.
Pull handle 1 towards you and slide the
door towards the rear.
Note: the transmitter/receiver does not
work on the sliding side door (no button
on the handle).
Closing from the outside
Pull handle 1 and slide the door to-
wards the front of the vehicle until it
closes completely. Lock with the key or
using the remote control.
Closing from the inside
Pull lever 2 towards the front and close
the door until it latches.
Manual locking from inside
Lower button 3.
As a safety precaution,
the doors should only be
opened or closed when the
vehicle is stationary.

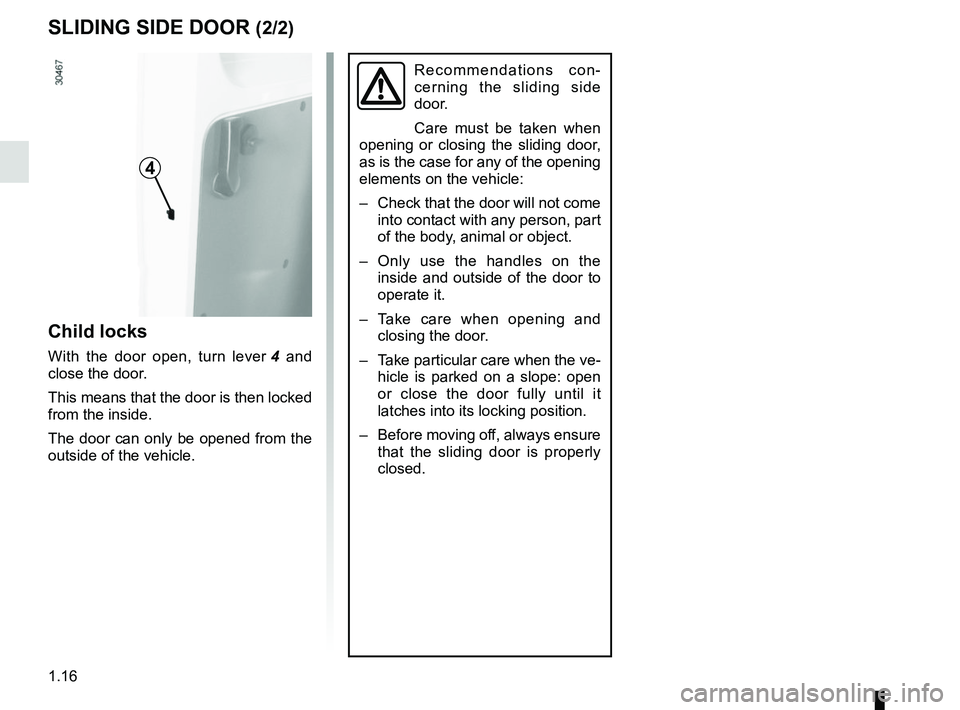

1.16
Recommendations con-
cerning the sliding side
door.
Care must be taken when
opening or closing the sliding door,
as is the case for any of the opening
elements on the vehicle:
– Check that the door will not come into contact with any person, part
of the body, animal or object.
– Only use the handles on the inside and outside of the door to
operate it.
– Take care when opening and closing the door.
– Take particular care when the ve- hicle is parked on a slope: open
or close the door fully until it
latches into its locking position.
– Before moving off, always ensure that the sliding door is properly
closed.
Child locks
With the door open, turn lever 4 and
close the door.
This means that the door is then locked
from the inside.
The door can only be opened from the
outside of the vehicle.
SLIDING SIDE DOOR (2/2)
4

1.17
Lower lever 4 to open the door.
If the vehicle is parked on
the hard shoulder with tail-
gate open, the rear lights
may be obscured. You
should make other road users aware
of your vehicle by using a warning
triangle or other equipment speci-
fied by the road traffic regulations of
the country you are driving in.
REAR DOORS (1/2)
Opening the doors from the
outside
Unlock lock 1 using the key or, on
equipped vehicles, use the remote con-
trol or the hands-free access remote
control by pressing button 3. Pull
handle 2 towards you and open the
door.
Opening the doors to 180°
Open the door, but not fully.
Remove tie rod 7 from its housing 5.
Lock the tie rod on the hook 6.
Open the door as far as possible.
1
24
1
Do not leave the hinged
rear doors open in case of
strong winds. Risk of injury.For your safety, check that
all the vehicle’s doors are
properly closed before
starting the engine.
3
5
6
7

1.18
REAR DOORS (2/2)
Opening the doors to 270°
Remove the check-strap from its hous-
ing as when opening to 180°. Open
the door fully until the magnets 6 make
contact.
Closing from the outside
Partially close the left-hand door, then
slam it shut.
Then repeat this with the right-hand
door.
Lock.
Opening from the inside
Lower lever 7 and push door A.
Pull lever 8 and open door B.
Closing from the inside
Partially close door B, then slam it shut.
Do the same with door A using
handle 9.
Locking/unlocking
Turn button 10.
9
78106
For your safety, check that
all the vehicle’s doors are
properly closed before
starting the engine.
ABAB
