2018 PEUGEOT 3008 Owners Manual

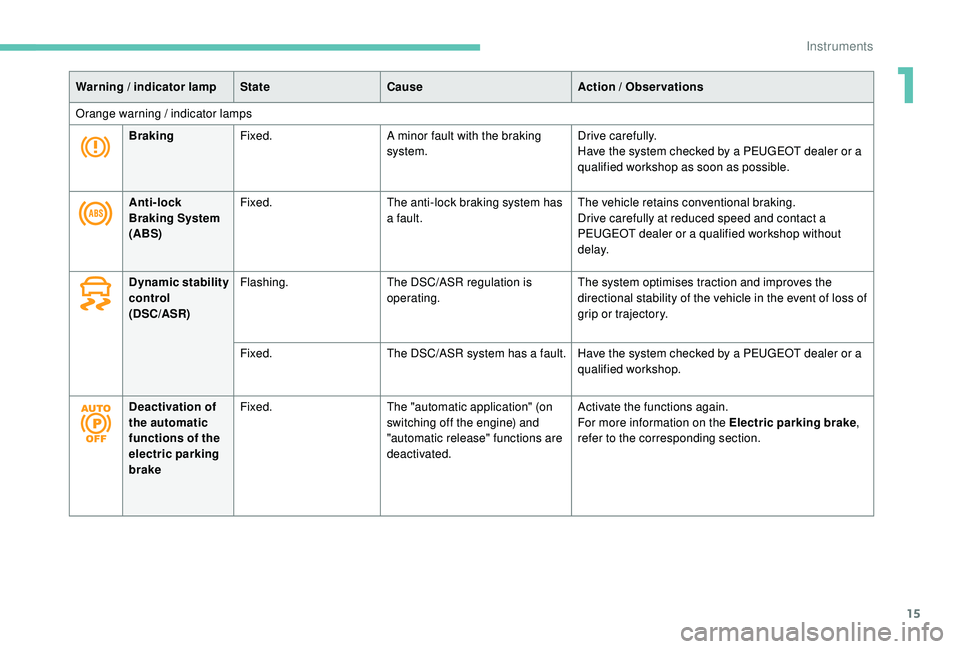

15
Warning / indicator lampStateCause Action / Observations
Orange warning / indicator lamps Braking Fixed. A minor fault with the braking
system. Drive carefully.
Have the system checked by a PEUGEOT dealer or a
qualified workshop as soon as possible.
Anti-lock
Braking System
(ABS) Fixed.
The anti-lock braking system has
a fault. The vehicle retains conventional braking.
Drive carefully at reduced speed and contact a
PEUGEOT dealer or a qualified workshop without
d e l ay.
Dynamic stability
control
(DSC/ASR) Flashing.
The DSC/ASR regulation is
operating. The system optimises traction and improves the
directional stability of the vehicle in the event of loss of
grip or trajectory.
Fixed. The DSC/ASR system has a fault. Have the system checked by a PEUGEOT dealer or a
qualified workshop.
Deactivation of
the automatic
functions of the
electric parking
brake Fixed.
The "automatic application" (on
switching off the engine) and
"automatic release" functions are
deactivated. Activate the functions again.
For more information on the Electric parking brake
,
refer to the corresponding section.
1
Instruments

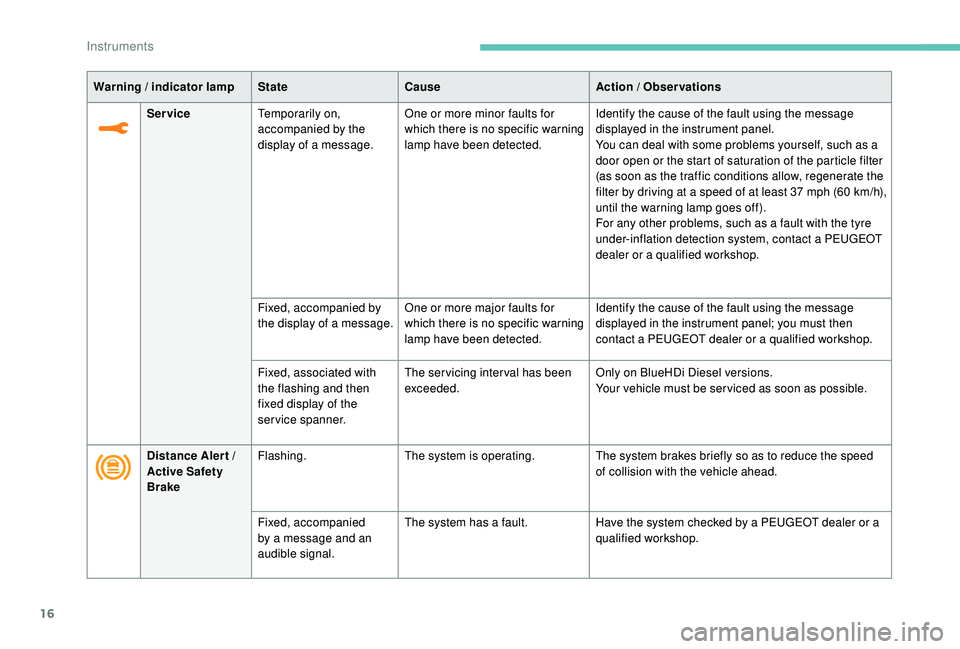

16
Warning / indicator lampStateCause Action / Observations
Service Temporarily on,
accompanied by the
display of a message. One or more minor faults for
which there is no specific warning
lamp have been detected. Identify the cause of the fault using the message
displayed in the instrument panel.
You can deal with some problems yourself, such as a
door open or the start of saturation of the particle filter
(as soon as the traffic conditions allow, regenerate the
filter by driving at a speed of at least 37

m
ph (60
k
m/h),
until the warning lamp goes off).
For any other problems, such as a fault with the tyre
under-inflation detection system, contact a PEUGEOT
dealer or a qualified workshop.
Fixed, accompanied by
the display of a message. One or more major faults for
which there is no specific warning
lamp have been detected. Identify the cause of the fault using the message
displayed in the instrument panel; you must then
contact a PEUGEOT dealer or a qualified workshop.
Fixed, associated with
the flashing and then
fixed display of the
service spanner. The servicing interval has been
exceeded.
Only on BlueHDi Diesel versions.
Your vehicle must be ser viced as soon as possible.
Distance Aler t
/
Active Safety
Brake Flashing.
The system is operating. The system brakes briefly so as to reduce the speed
of collision with the vehicle ahead.
Fixed, accompanied
by a message and an
audible signal. The system has a fault.
Have the system checked by a PEUGEOT dealer or a
qualified workshop.
Instruments

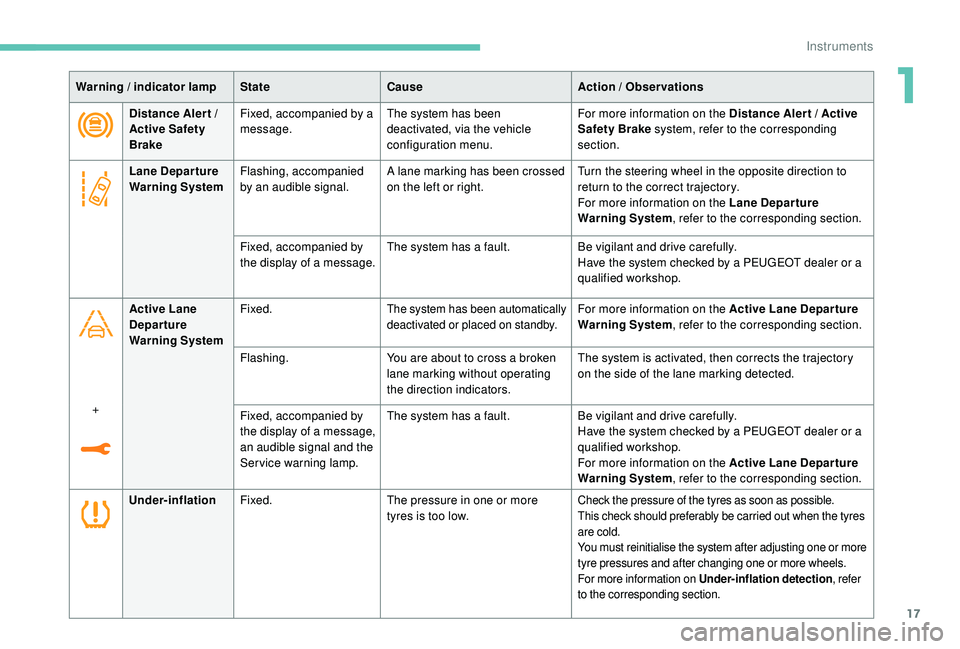

17
Warning / indicator lampStateCause Action / Observations
Distance Aler t
/
Active Safety
Brake Fixed, accompanied by a
message.
The system has been
deactivated, via the vehicle
configuration menu. For more information on the Distance Aler t / Active
Safety Brake
system, refer to the corresponding
section.
Lane Depar ture
Warning System Flashing, accompanied
by an audible signal. A lane marking has been crossed
on the left or right. Turn the steering wheel in the opposite direction to
return to the correct trajectory.
For more information on the Lane Depar ture
Warning System
, refer to the corresponding section.
Fixed, accompanied by
the display of a message. The system has a fault.
Be vigilant and drive carefully.
Have the system checked by a PEUGEOT dealer or a
qualified workshop.
Active Lane
Departure
Warning System Fixed.
The system has been automatically
deactivated or placed on standby.For more information on the Active Lane Depar ture
Warning System
, refer to the corresponding section.
Flashing. You are about to cross a broken
lane marking without operating
the direction indicators. The system is activated, then corrects the trajectory
on the side of the lane marking detected.
+ Fixed, accompanied by
the display of a message,
an audible signal and the
Service warning lamp.The system has a fault.
Be vigilant and drive carefully.
Have the system checked by a PEUGEOT dealer or a
qualified workshop.
For more information on the Active Lane Depar ture
Warning System, refer to the corresponding section.
Under-inflation Fixed. The pressure in one or more
tyres is too low.
Check the pressure of the tyres as soon as possible.
This check should preferably be carried out when the tyres
are cold.
You must reinitialise the system after adjusting one or more
tyre pressures and after changing one or more wheels.
For more information on Under-inflation detection , refer
to the corresponding section.
1
Instruments

18
Warning / indicator lampStateCause Action / Observations
+ Flashing then fixed,
accompanied by the
Service warning lamp.
The tyre pressure monitoring
system has a fault or no sensor
is detected on one of the wheels. Under-inflation detection is no longer assured.
Have the system checked by a PEUGEOT dealer or
a qualified workshop.
Airbags Temporarily on. This warning lamp comes on for
a few seconds when you turn on
the ignition, then goes off.
This warning lamp should go off when the engine is started.
If it does not go off, contact a PEUGEOT dealer or a
qualified workshop.
Fixed.One of the airbag or seat belt
pretensioner systems has a fault. Have them checked by a PEUGEOT dealer or a
qualified workshop.
Front passenger
airbag Fixed, in the seat belt
and front passenger
airbag warning lamps
display. The control switch, located in
the glove box, is set to the "
OFF"
position.
The front passenger airbag is
deactivated.
You can install a rearward facing
child seat, unless there is a fault
with the airbags (airbag warning
lamp on). Set the control to the "
ON" position to activate the
front passenger airbag. In this case, do not install a
rear ward facing child seat on this seat.
Instruments

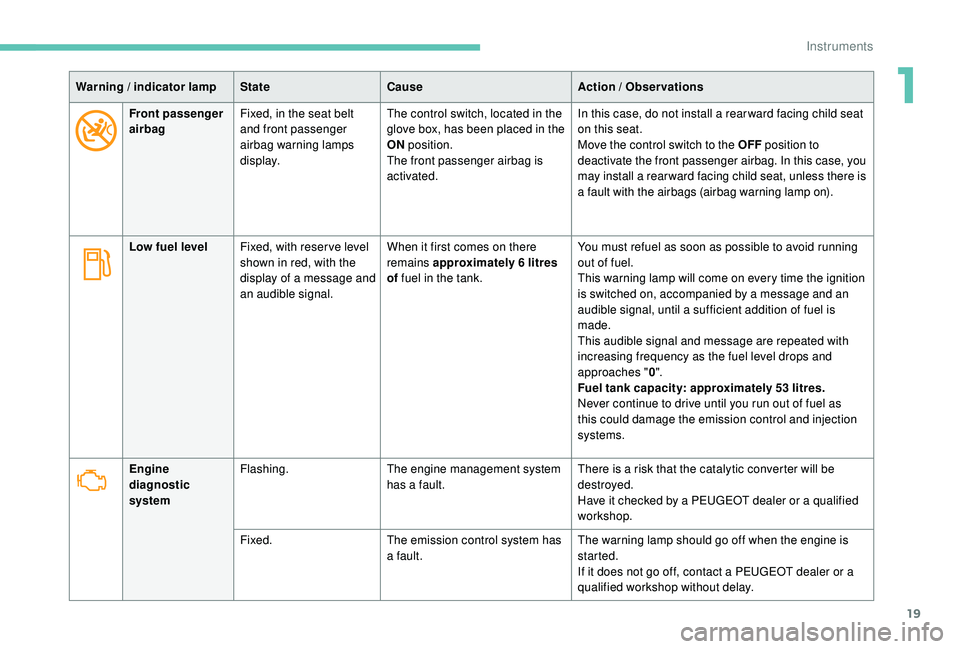

19
Warning / indicator lampStateCause Action / Observations
Front passenger
airbag Fixed, in the seat belt
and front passenger
airbag warning lamps
display. The control switch, located in the
glove box, has been placed in the
ON
position.
The front passenger airbag is
activated. In this case, do not install a rear ward facing child seat
on this seat.
Move the control switch to the OFF
position to
deactivate the front passenger airbag. In this case, you
may install a rear ward facing child seat, unless there is
a fault with the airbags (airbag warning lamp on).
Low fuel level Fixed, with reser ve level
shown in red, with the
display of a message and
an audible signal. When it first comes on there
remains approximately 6
litres
of fuel in the tank. You must refuel as soon as possible to avoid running
out of fuel.
This warning lamp will come on every time the ignition
is switched on, accompanied by a message and an
audible signal, until a sufficient addition of fuel is
made.
This audible signal and message are repeated with
increasing frequency as the fuel level drops and
approaches "
0".
Fuel tank capacity: approximately 53
litres.
Never continue to drive until you run out of fuel as
this could damage the emission control and injection
systems.
Engine
diagnostic
system Flashing.
The engine management system
has a fault. There is a risk that the catalytic converter will be
destroyed.
Have it checked by a PEUGEOT dealer or a qualified
workshop.
Fixed. The emission control system has
a fault. The warning lamp should go off when the engine is
started.
If it does not go off, contact a PEUGEOT dealer or a
qualified workshop without delay.
1
Instruments

20
Warning / indicator lampStateCause Action / Observations
+ AdBlue
®
(with 1.6 BlueHDi and
2 .0 BlueHDi 150 S&S
engines) Fixed, on switching on the
ignition, accompanied by
an audible signal and a
message indicating the
remaining driving range.The remaining driving range
is between 375 and 1,500
miles (600 and 2,400 km).
Top up the AdBlue
® as soon as possible, or go
to a PEUGEOT dealer or a qualified workshop.
Flashing, accompanied
by an audible signal and
a message indicating the
remaining driving range. The remaining driving
range is less than 375

miles
(6 0 0


k m). Yo u must
top up the AdBlue
® to avoid a
breakdown or go to a PEUGEOT dealer or a
qualified workshop.
Flashing, accompanied
by an audible signal and
a message indicating that
starting is prevented. The AdBlue
® tank is empty:
the starting prevention
system required by
regulations prevents the
engine from restarting. To be able to restart the engine, you must
top
up the AdBlue® or go to a PEUGEOT dealer or
a qualified workshop.
It is essential to add at least 5
litres of AdBlue
®
to its tank.
Instruments

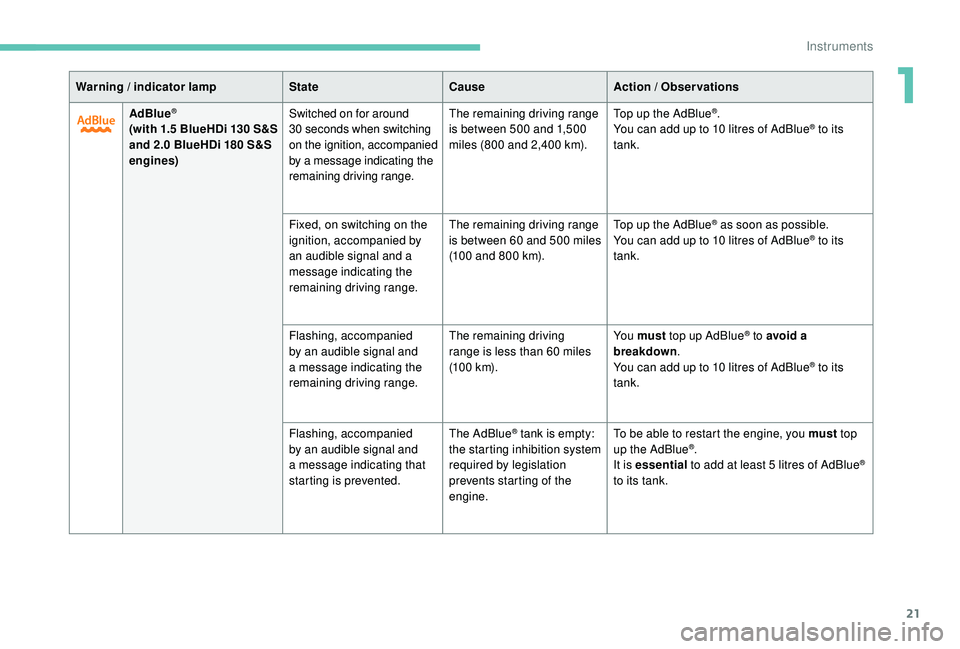

21
Warning / indicator lampStateCause Action / Observations
AdBlue
®
(with 1.5 B lueHDi 130 S &S
and 2.0 BlueHDi 180 S&S
engines)Switched on for around
30 seconds when switching
on the ignition, accompanied
by a message indicating the
remaining driving range.The remaining driving range
is between 500 and 1,500
miles (800 and 2,400 km). Top up the AdBlue®.
You can add up to 10 litres of AdBlue® to its
tank.
Fixed, on switching on the
ignition, accompanied by
an audible signal and a
message indicating the
remaining driving range. The remaining driving range
is between 60 and 500 miles
(100 and 800 km).
Top up the AdBlue
® as soon as possible.
You can add up to 10 litres of AdBlue® to its
tank.
Flashing, accompanied
by an audible signal and
a message indicating the
remaining driving range. The remaining driving
range is less than 60

miles
(10 0


k m). Yo u must
top up AdBlue
® to avoid a
breakdown .
You can add up to 10

litres of AdBlue
® to its
tank.
Flashing, accompanied
by an audible signal and
a message indicating that
starting is prevented. The AdBlue
® tank is empty:
the starting inhibition system
required by legislation
prevents starting of the
engine. To be able to restart the engine, you must
top
up the AdBlue®.
It is essential to add at least 5
litres of AdBlue®
to its tank.
1
Instruments

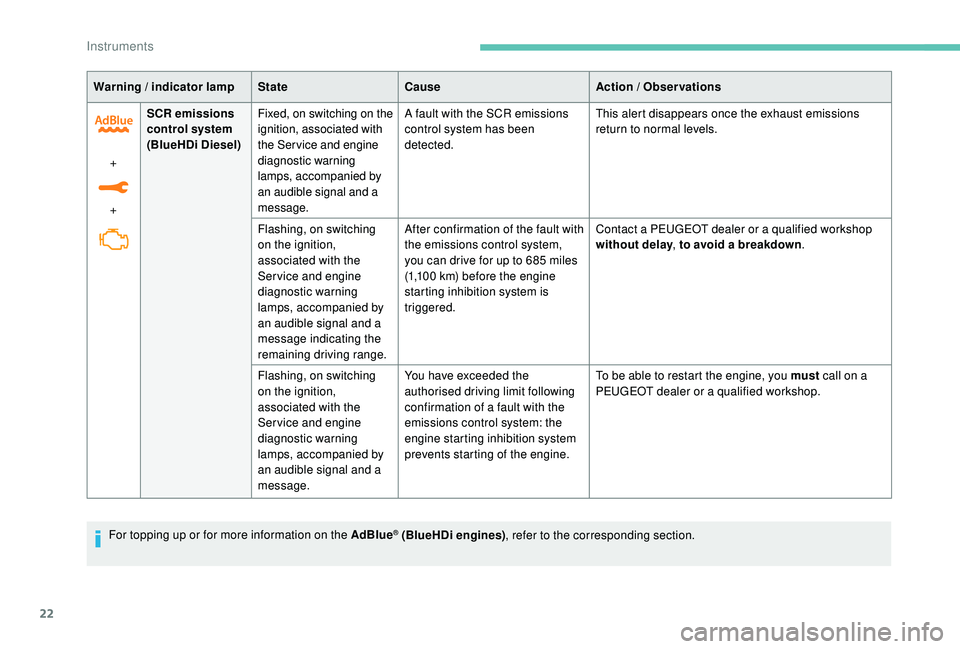

22
Warning / indicator lampStateCause Action / Observations
+
+ SCR emissions
control system
(BlueHDi Diesel)
Fixed, on switching on the
ignition, associated with
the Service and engine
diagnostic warning
lamps, accompanied by
an audible signal and a
message.A fault with the SCR emissions
control system has been
detected.
This alert disappears once the exhaust emissions
return to normal levels.
Flashing, on switching
on the ignition,
associated with the
Service and engine
diagnostic warning
lamps, accompanied by
an audible signal and a
message indicating the
remaining driving range. After confirmation of the fault with
the emissions control system,
you can drive for up to 685
miles
(1,100
km) before the engine
starting inhibition system is
triggered. Contact a PEUGEOT dealer or a qualified workshop
without delay
, to avoid a breakdown .
Flashing, on switching
on the ignition,
associated with the
Service and engine
diagnostic warning
lamps, accompanied by
an audible signal and a
message. You have exceeded the
authorised driving limit following
confirmation of a fault with the
emissions control system: the
engine starting inhibition system
prevents starting of the engine.
To be able to restart the engine, you must
call on a
PEUGEOT dealer or a qualified workshop.
For topping up or for more information on the AdBlue
® (BlueHDi engines) , refer to the corresponding section.
Instruments
