2018 PEUGEOT 3008 Owners Manual

23
Warning / indicator lampStateCause Action / Observations
Diesel engine
pre-heating Fixed.
When the ignition is switched on
with a key in the ignition switch
or a starting instruction is made
using the "START/STOP " button,
the engine temperature makes
engine pre-heating necessary. The period of illumination of the lamp is determined
by
the climatic conditions (up to about thirty seconds
in severe winter conditions).
With a key in the ignition switch, wait until the lamp
goes off before starting.
With

K
eyless Entry and Starting, once it goes off,
starting is immediate, on the condition that the brake
pedal remains pressed with an automatic gearbox.
With

K
eyless Entry and Starting, once it goes off,
starting is immediate, on the condition that the clutch
pedal remains pressed with a manual gearbox.
If the engine does not start, switch the ignition off
and then on, wait until the lamp goes off again, then
start the engine.
Stop & Star t Fixed, accompanied
by the display of a
message. The Stop & Start system is
deactivated.
The engine will not switch off at the next traffic stop.
Reactivate the system by pressing the button again.
For more information on Stop & Star t
, refer to the
corresponding section.
Rear foglamps Fixed. The rear foglamps have been
switched on using the ring on the
lighting control stalk. Turn the ring on the lighting control stalk rear wards to
switch off the rear foglamps.
1
Instruments

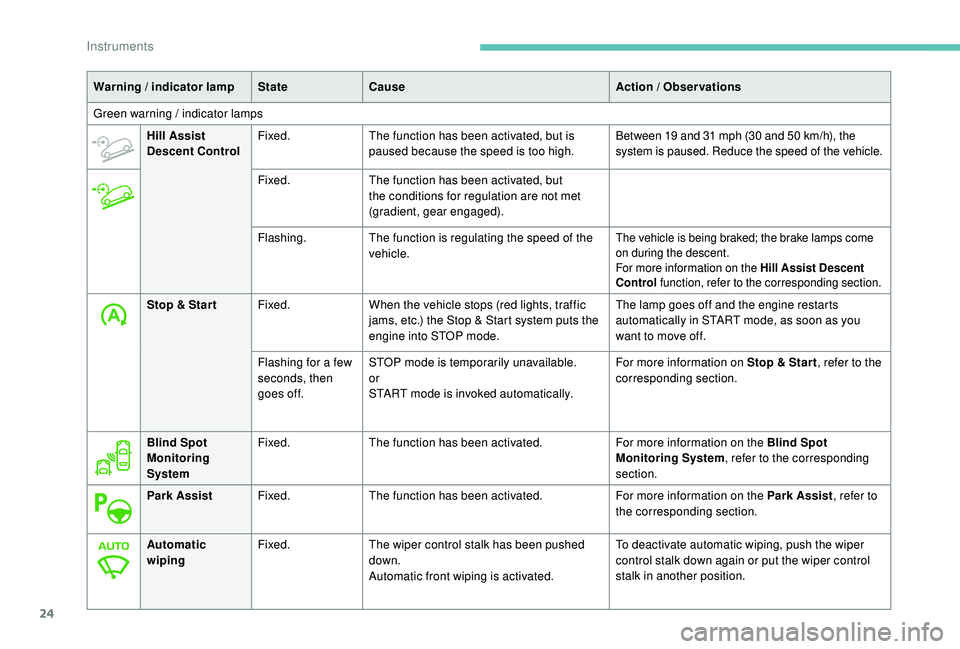

24
Warning / indicator lampStateCause Action / Observations
Green warning / indicator lamps Hill Assist
Descent Control Fixed.
The function has been activated, but is
paused because the speed is too high.
Between 19 and 31 mph (30 and 50 km/h), the
s ystem is paused. Reduce the speed of the vehicle.
Fixed. The function has been activated, but
the conditions for regulation are not met
(gradient, gear engaged).
Flashing. The function is regulating the speed of the
vehicle.
The vehicle is being braked; the brake lamps come
on during the descent.
For more information on the Hill Assist Descent
Control function, refer to the corresponding section.
Stop & Star t Fixed.When the vehicle stops (red lights, traffic
jams, etc.) the Stop & Start system puts the
engine into STOP mode. The lamp goes off and the engine restarts
automatically in START mode, as soon as you
want to move off.
Flashing for a few
seconds, then
goes off. STOP mode is temporarily unavailable.
or
START mode is invoked automatically. For more information on Stop & Star t
, refer to the
corresponding section.
Blind Spot
Monitoring
System Fixed.
The function has been activated. For more information on the Blind Spot
Monitoring System, refer to the corresponding
section.
Park Assist Fixed.The function has been activated. For more information on the Park Assist, refer to
the corresponding section.
Automatic
wiping Fixed.
The wiper control stalk has been pushed
down.
Automatic front wiping is activated. To deactivate automatic wiping, push the wiper
control stalk down again or put the wiper control
stalk in another position.
Instruments

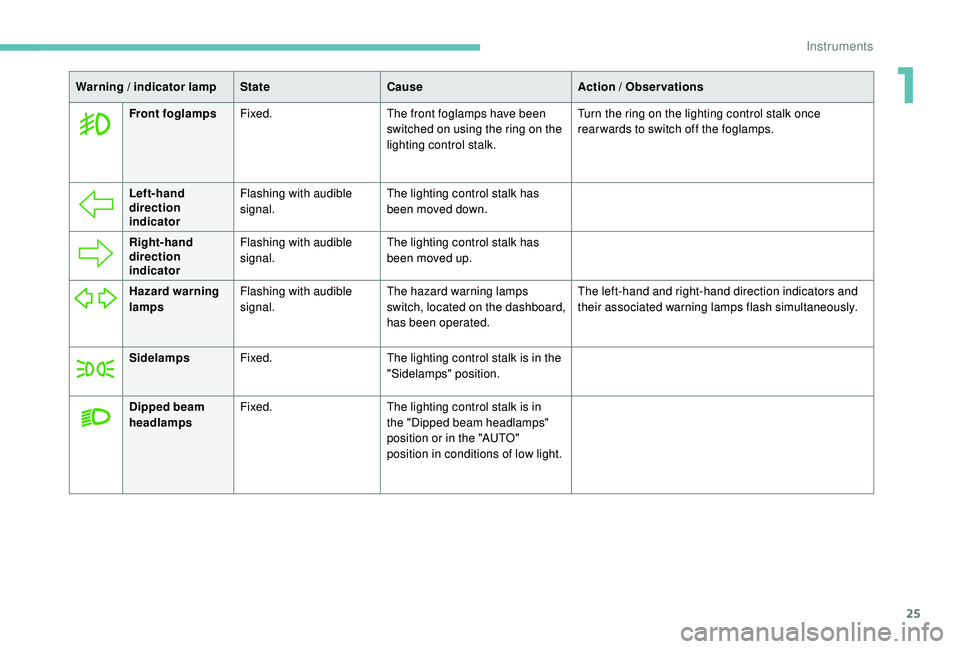

25
Warning / indicator lampStateCause Action / Observations
Front foglamps Fixed. The front foglamps have been
switched on using the ring on the
lighting control stalk. Turn the ring on the lighting control stalk once
rearwards to switch off the foglamps.
Left-hand
direction
indicator Flashing with audible
signal.
The lighting control stalk has
been moved down.
Right-hand
direction
indicator Flashing with audible
signal.
The lighting control stalk has
been moved up.
Hazard warning
lamps Flashing with audible
signal. The hazard warning lamps
switch, located on the dashboard,
has been operated. The left-hand and right-hand direction indicators and
their associated warning lamps flash simultaneously.
Sidelamps Fixed. The lighting control stalk is in the
"Sidelamps" position.
Dipped beam
headlamps Fixed.
The lighting control stalk is in
the "Dipped beam headlamps"
position or in the "AUTO"
position in conditions of low light.
1
Instruments

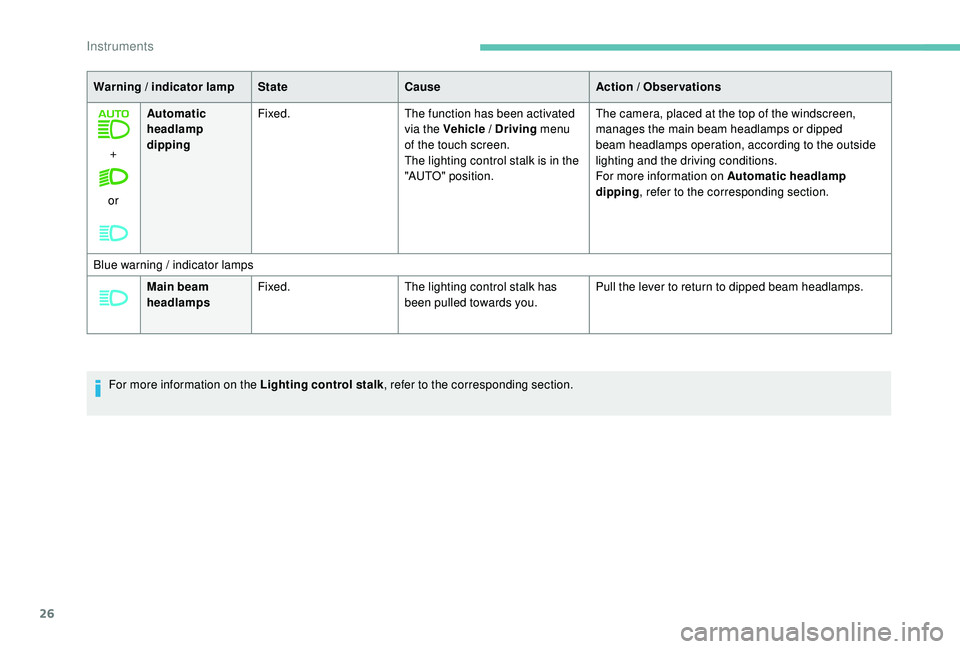

26
+
or Automatic
headlamp
dipping
Fixed.
The function has been activated
via the Vehicle / Driving menu
of the touch screen.
The lighting control stalk is in the
"AUTO" position. The camera, placed at the top of the windscreen,
manages the main beam headlamps or dipped
beam headlamps operation, according to the outside
lighting and the driving conditions.
For more information on Automatic headlamp
dipping
, refer to the corresponding section.
Warning / indicator lamp
StateCause Action / Observations
Blue warning / indicator lamps Main beam
headlamps Fixed.
The lighting control stalk has
been pulled towards you. Pull the lever to return to dipped beam headlamps.
For more information on the Lighting control stalk , refer to the corresponding section.
Instruments

27
Warning /
indicator lamp State
Cause Action / Observations
It lights up,
accompanied by
the display of the
message "Parking
brake fault". Automatic release is not
available.
If you attempt an automatic release, a help message is displayed upon
acceleration while the parking brake is applied, prompting you to use
manual release.
+ They light up,
accompanied by
the display of the
message "Parking
brake fault". Emergency braking does not
have full power.
If automatic release is not available, a help message is displayed upon
acceleration while the parking brake is applied, prompting you to use
manual release.
+ They light up,
accompanied by
the display of the
message "Parking
brake fault". Automatic application is not
available.
The electric parking brake control lever must be used.
The electric parking brake can only be used manually.
If automatic release is also not available, a help message is displayed
upon acceleration while the parking brake is applied, prompting you to
use manual release.
+ They light up,
accompanied by
the display of the
message "Parking
brake fault". You can no longer immobilise
the vehicle with the engine
running.
If manual application and release are not working, the electric parking
brake control lever is faulty.
The automatic functions must be used at all times: they are
automatically reactivated in the event of failure of the control lever.
Electric parking brakeContact a PEUGEOT dealer or a qualified
workshop as soon as possible.
1
Instruments

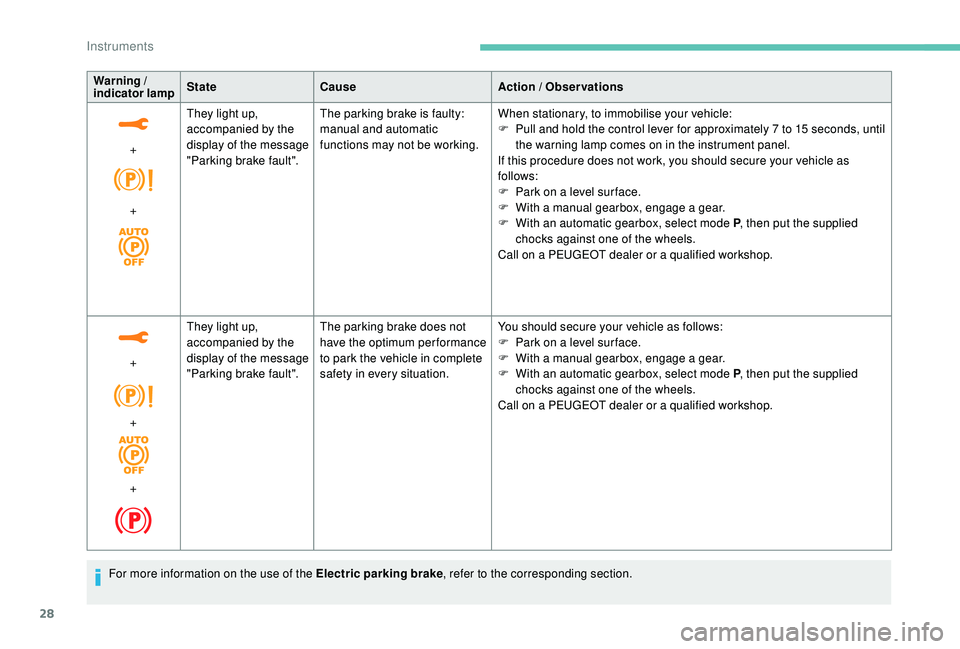

28
Warning /
indicator lamp State
Cause Action / Observations
+

+ They light up,
accompanied by the
display of the message
"Parking brake fault".
The parking brake is faulty:
manual and automatic
functions may not be working.
When stationary, to immobilise your vehicle:
F

P
ull and hold the control lever for approximately 7 to 15 seconds, until
the warning lamp comes on in the instrument panel.
If this procedure does not work, you should secure your vehicle as
follows:
F

P
ark on a level sur face.
F

W
ith a manual gearbox, engage a gear.
F

W
ith an automatic gearbox, select mode P, then put the supplied
chocks against one of the wheels.
Call on a PEUGEOT dealer or a qualified workshop.
+
+

+ They light up,
accompanied by the
display of the message
"Parking brake fault".
The parking brake does not
have the optimum performance
to park the vehicle in complete
safety in every situation. You should secure your vehicle as follows:
F

P
ark on a level sur face.
F

W
ith a manual gearbox, engage a gear.
F

W
ith an automatic gearbox, select mode P, then put the supplied
chocks against one of the wheels.
Call on a PEUGEOT dealer or a qualified workshop.
For more information on the use of the Electric parking brake , refer to the corresponding section.
Instruments

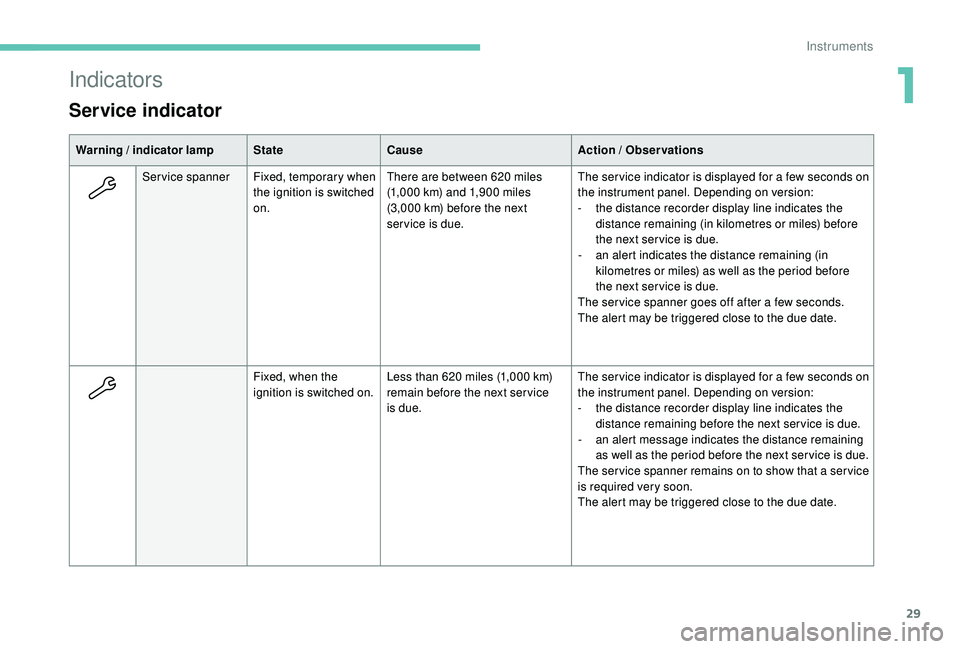

29
Indicators
Service indicator
Warning / indicator lampStateCause Action / Observations
Service spanner Fixed, temporary when
the ignition is switched
on. There are between 620
miles
(1,000
km) and 1,900 miles
(3,000
km) before the next
service is due. The ser vice indicator is displayed for a few seconds on
the instrument panel. Depending on version:
-

t
he distance recorder display line indicates the
distance remaining (in kilometres or miles) before
the next ser vice is due.
-

a
n alert indicates the distance remaining (in
kilometres or miles) as well as the period before
the next ser vice is due.
The ser vice spanner goes off after a few seconds.
The alert may be triggered close to the due date.
Fixed, when the
ignition is switched on. Less than 620
miles (1,000 km)
remain before the next ser vice
is due. The ser vice indicator is displayed for a few seconds on
the instrument panel. Depending on version:
-

t
he distance recorder display line indicates the
distance remaining before the next ser vice is due.
-

a
n alert message indicates the distance remaining
as well as the period before the next ser vice is due.
The ser vice spanner remains on to show that a ser vice
is required very soon.
The alert may be triggered close to the due date.
1
Instruments

30
The distance indicated (in miles or kilometres) is calculated according to the distance covered and the time elapsed since the last ser vice.
Warning / indicator lamp
StateCause Action / Observations
Service spanner Flashing then fixed,
when the ignition is
switched on. The servicing interval has been
exceeded.
The ser vice indicator is displayed for a few seconds
on the instrument panel. Depending on version:
-
t
he distance recorder display line indicates the
distance travelled since the ser vice was due. The
value is preceded by the "-" sign.
-
a
n alert message indicates that the due date has
passed.
The ser vice spanner remains on until the ser vice has
been performed.
The alert is triggered when the due date has passed.
+ Flashing then fixed,
when the ignition
is switched on,
associated with the
Ser vice warning
lamp.Ser vice date passed for BlueHDi
Diesel versions.
The ser vice indicator is displayed for a few seconds
on the instrument panel. Depending on version:
-
t
he distance recorder display line indicates the
distance travelled since the ser vice was due. The
value is preceded by the "-" sign.
-
a
n alert message indicates that the due date has
passed.
The ser vice spanner remains on until the ser vice has
been performed.
The alert is triggered when the due date has passed.
Instruments
