2018 NISSAN MICRA Owner´s Manual

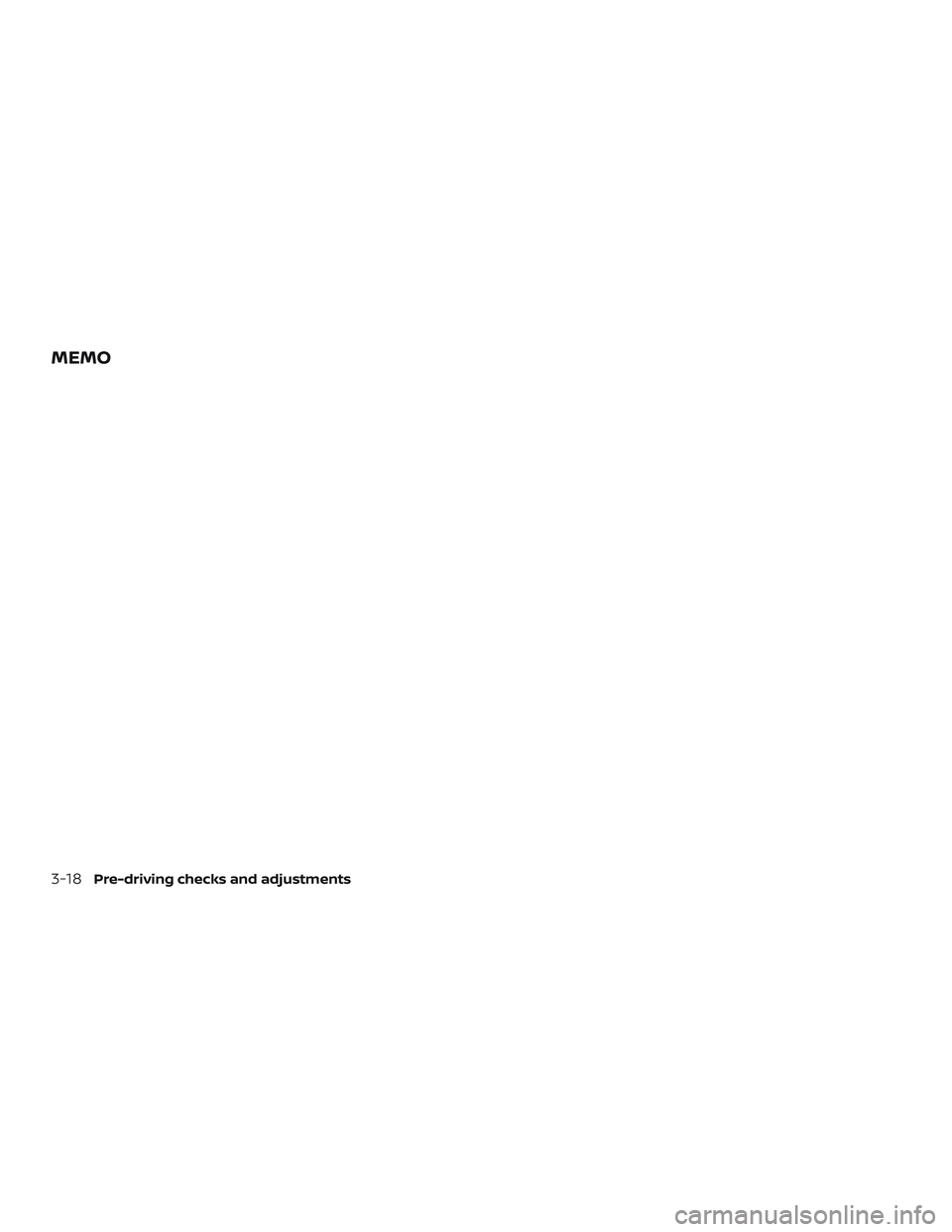

MEMO
3-18Pre-driving checks and adjustments

4 Heater, air conditioner, audio and
phone systems
RearView Monitor (if so equipped)...............4-2
RearView Monitor system operation ..........4-3
How to read the displayed lines ...............4-4
Difference between predicted and
actual distances ..............................4-4
Adjusting the screen .........................4-6
RearView Monitor system limitations .........4-6
System maintenance .........................4-8
Vents ............................................4-8
Heater (manual) (if so equipped) .................4-9
Controls ..................................... 4-10
Heater operation ............................. 4-11
Air flow charts ............................... 4-12
Heater and air conditioner (manual)
(if so equipped) ................................. 4-15
Controls ..................................... 4-16
Heater operation ............................ 4-17
Air conditioner operation ....................4-18
Air flow charts ............................... 4-19
Servicing air conditioner (if so equipped) ........4-23
Audio system ................................... 4-23
Radio ........................................ 4-23FM radio reception
.......................... 4-23
AM radio reception .......................... 4-24
Audio operation precautions ................4-24
FM/AM radio with compact disc (CD)
player (Type A) (if so equipped) ...............4-31
FM/AM radio with compact disc (CD)
player (Type B) (if so equipped) ...............4-36
USB (Universal Serial Bus) connection
port (if so equipped) ......................... 4-40
iPod®* player operation (if so equipped) ......4-42
CD care and cleaning ........................ 4-44
Steering wheel switch for audio control
(if so equipped) .............................. 4-45
Antenna ..................................... 4-46
Car phone or CB radio ..........................4-47
Bluetooth® Hands-Free Phone System
(if so equipped) .................................4-47
Regulatory information ......................4-49
Using the system ............................ 4-49
Control buttons ............................. 4-51
Getting started .............................. 4-51
List of

voice commands ..................... 4-53
Troubleshooting guide ......................4-57

LHA4621

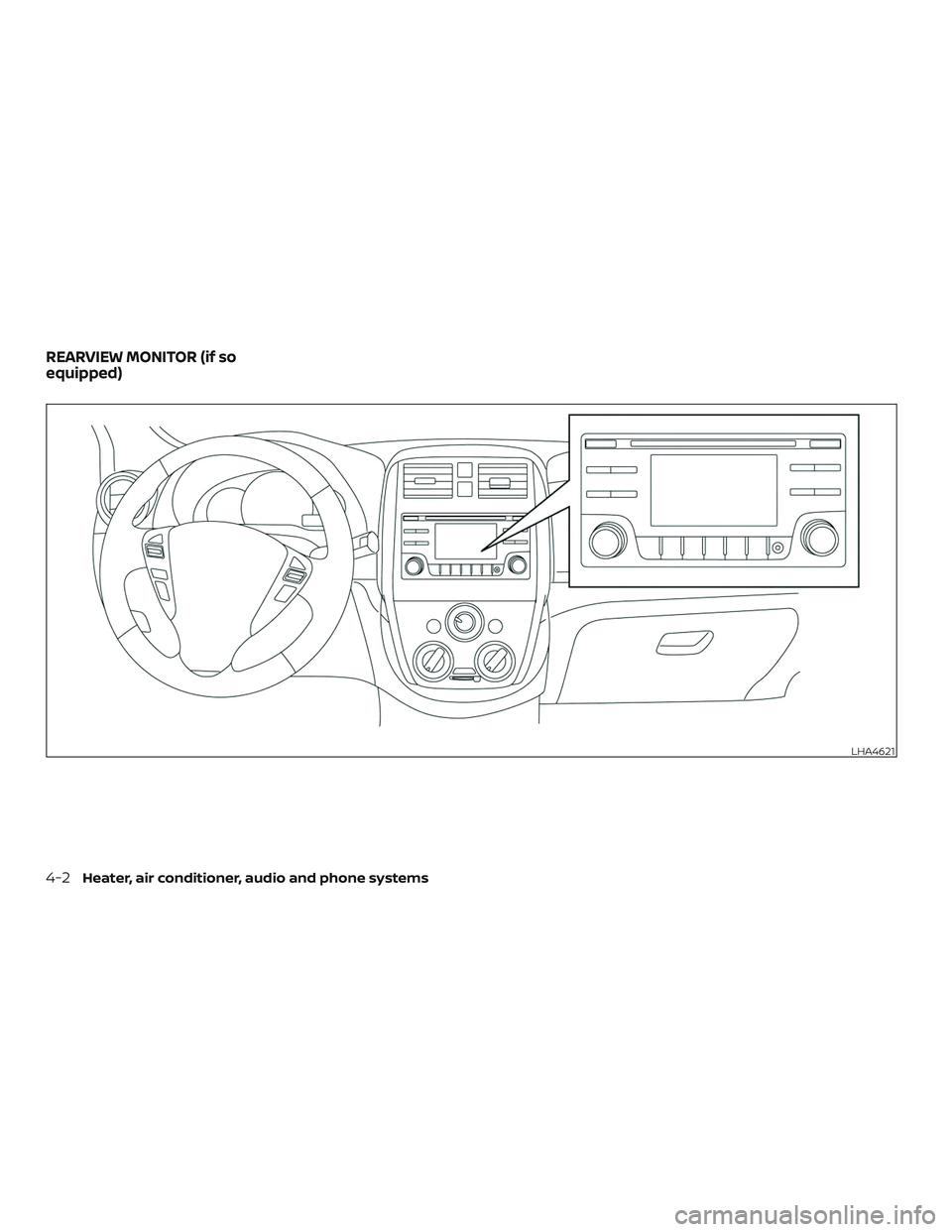

REARVIEW MONITOR (if so
equipped)
4-2Heater, air conditioner, audio and phone systems

WARNING
∙ Failure to follow the warnings and in-structions for proper use of the Rear-
View Monitor system could result in
serious injury or death.
∙ RearView Monitor is a convenience feature and is not a substitute for
proper backing. Always turn and look
out the windows and check mirrors to
be sure that it is safe to move before
operating the vehicle. Always back up
slowly.
∙ The system is designed as an aid to the driver in showing large stationary
objects directly behind the vehicle, to
help avoid damaging the vehicle.
∙ The distance guide line and the ve- hicle width line should be used as a
reference only when the vehicle is on a
level paved surface. The distance
viewed on the monitor is for reference
only and may be different than the
actual distance between the vehicle
and displayed objects.
CAUTION
Do not scratch the camera lens when
cleaning dirt or snow from the front of
the camera.
The RearView Monitor system automati-
cally shows a rear view of the vehicle when
the shif t lever is shif ted into the R (Reverse)
position. The radio can still be heard while
the RearView Monitor is active.
To display the rear view, the RearView Moni-
tor system uses a camera located on the
rear hatch near the handle
1.
REARVIEW MONITOR SYSTEM
OPERATION
With the ignition switch in the ON position,
move the shif t lever to the R (Reverse) po-
sition to operate the RearView Monitor.
LHA4623
Heater, air conditioner, audio and phone systems4-3

HOW TO READ THE DISPLAYED
LINES
Guiding lines which indicate the vehicle
width and distances to objects with refer-
ence to the vehicle body line
Aare dis-
played on the monitor.
Distance guide lines:
Indicate distances from the vehicle body.
∙ Red line
1: approx. 0.5 m (1.5 f t)
∙ Yellow line
2: approx. 1 m (3 f t)
∙ Green line
3: approx. 2 m (7 f t)
∙ Green line
4: approx. 3 m (10 f t) Vehicle width guide lines
5:
Indicate the vehicle width when backing
up.
DIFFERENCE BETWEEN PREDICTED
AND ACTUAL DISTANCES
The displayed guidelines and their loca-
tions on the ground are for approximate
reference only. Objects on uphill or downhill
surfaces or projecting objects will be actu-
ally located at distances different from
those displayed in the monitor relative to
the guidelines (refer to illustrations). When
in doubt, turn around and view the objects
as you are backing up, or park and exit the
vehicle to view the positioning of objects
behind the vehicle.
Backing up on a steep uphill
When backing up the vehicle up a hill, the
distance guide lines and the vehicle width
guide lines are shown closer than the actual
distance. Note that any object on the hill is
further than it appears on the monitor.
LHA2944
LHA3751
4-4Heater, air conditioner, audio and phone systems

Backing up on a steep downhill
When backing up the vehicle down a hill, the
distance guide lines and the vehicle width
guide lines are shown farther than the actual
distance. Note that any object on the hill is
closer than it appears on the monitor.
Backing up near a projecting
object
The vehicle may seem to nearly clear the
object in the display. However, the vehicle
may hit the object if it projects over the
actual backing up course.
Backing up behind a projecting
object
The positionCis shown farther than the
position
Bin the display. However, the po-
sition
Cis actually at the same distance as
the position
A. The vehicle may hit the
LHA3752LHA4513LHA4303
Heater, air conditioner, audio and phone systems4-5

object when backing up to the positionA
if the object projects over the actual back-
ing up course.

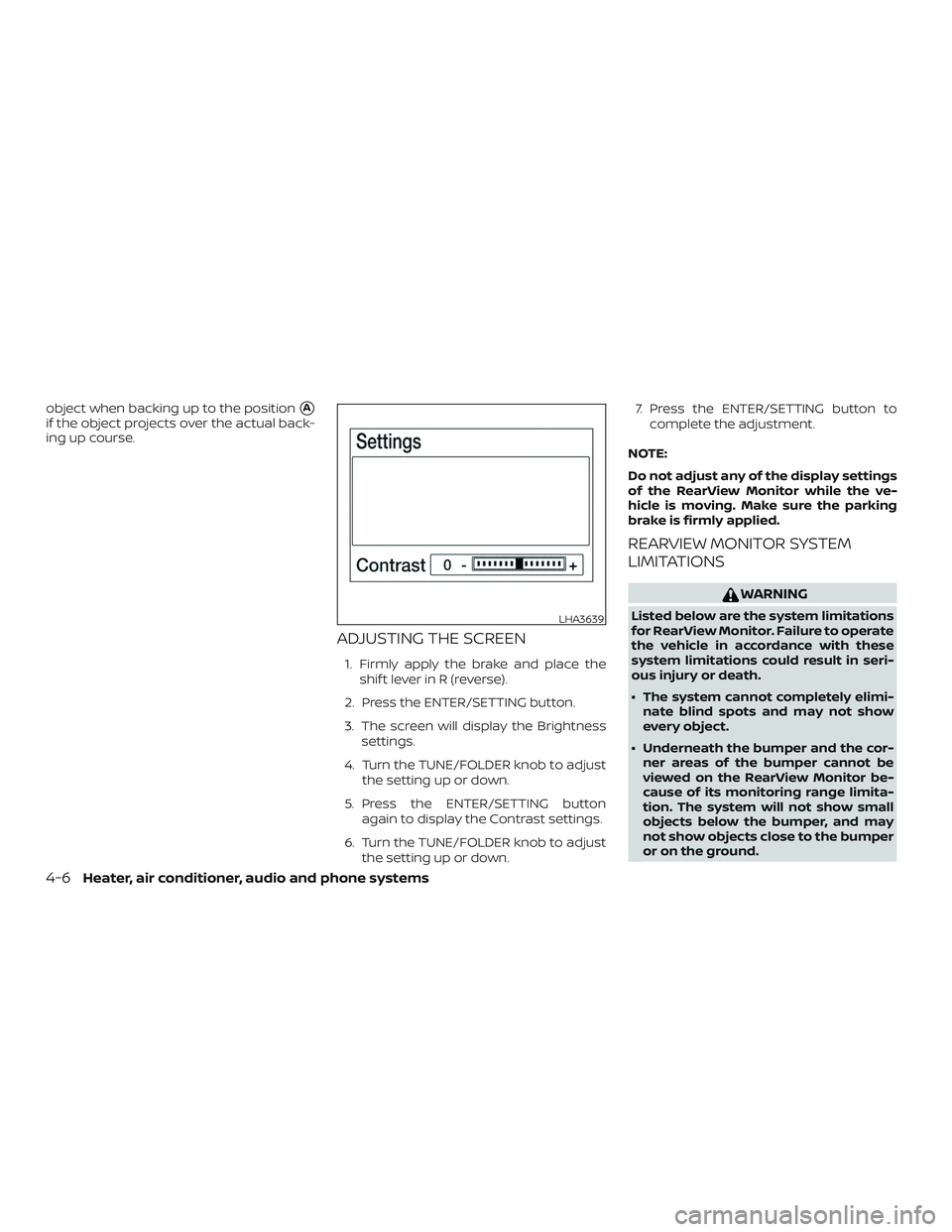

ADJUSTING THE SCREEN
1. Firmly apply the brake and place theshif t lever in R (reverse).
2. Press the ENTER/SETTING button.
3. The screen will display the Brightness settings.
4. Turn the TUNE/FOLDER knob to adjust the setting up or down.
5. Press the ENTER/SETTING button again to display the Contrast settings.
6. Turn the TUNE/FOLDER knob to adjust the setting up or down. 7. Press the ENTER/SETTING button to
complete the adjustment.
NOTE:
Do not adjust any of the display settings
of the RearView Monitor while the ve-
hicle is moving. Make sure the parking
brake is firmly applied.
REARVIEW MONITOR SYSTEM
LIMITATIONS
WARNING
Listed below are the system limitations
for RearView Monitor. Failure to operate
the vehicle in accordance with these
system limitations could result in seri-
ous injury or death.
∙ The system cannot completely elimi- nate blind spots and may not show
every object.
∙ Underneath the bumper and the cor- ner areas of the bumper cannot be
viewed on the RearView Monitor be-
cause of its monitoring range limita-
tion. The system will not show small
objects below the bumper, and may
not show objects close to the bumper
or on the ground.LHA3639
4-6Heater, air conditioner, audio and phone systems

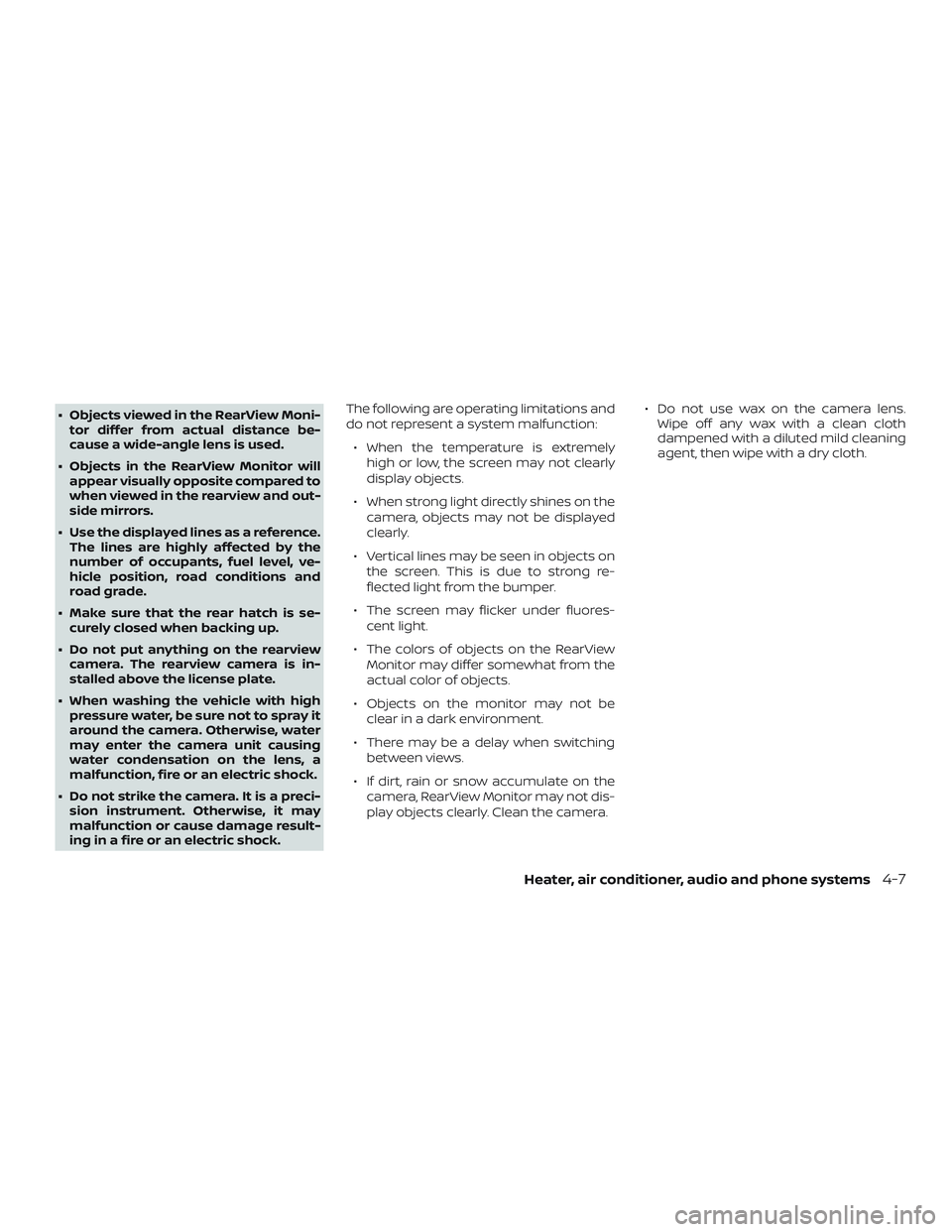

∙ Objects viewed in the RearView Moni-tor differ from actual distance be-
cause a wide-angle lens is used.
∙ Objects in the RearView Monitor will appear visually opposite compared to
when viewed in the rearview and out-
side mirrors.
∙ Use the displayed lines as a reference. The lines are highly affected by the
number of occupants, fuel level, ve-
hicle position, road conditions and
road grade.
∙ Make sure that the rear hatch is se- curely closed when backing up.
∙ Do not put anything on the rearview camera. The rearview camera is in-
stalled above the license plate.
∙ When washing the vehicle with high pressure water, be sure not to spray it
around the camera. Otherwise, water
may enter the camera unit causing
water condensation on the lens, a
malfunction, fire or an electric shock.
∙ Do not strike the camera. It is a preci- sion instrument. Otherwise, it may
malfunction or cause damage result-
ing in a fire or an electric shock. The following are operating limitations and
do not represent a system malfunction:
∙ When the temperature is extremely high or low, the screen may not clearly
display objects.
∙ When strong light directly shines on the camera, objects may not be displayed
clearly.
∙ Vertical lines may be seen in objects on the screen. This is due to strong re-
flected light from the bumper.
∙ The screen may flicker under fluores- cent light.
∙ The colors of objects on the RearView Monitor may differ somewhat from the
actual color of objects.
∙ Objects on the monitor may not be clear in a dark environment.
∙ There may be a delay when switching between views.
∙ If dirt, rain or snow accumulate on the camera, RearView Monitor may not dis-
play objects clearly. Clean the camera. ∙ Do not use wax on the camera lens.
Wipe off any wax with a clean cloth
dampened with a diluted mild cleaning
agent, then wipe with a dry cloth.
Heater, air conditioner, audio and phone systems4-7
