2018 NISSAN MICRA height adjustment

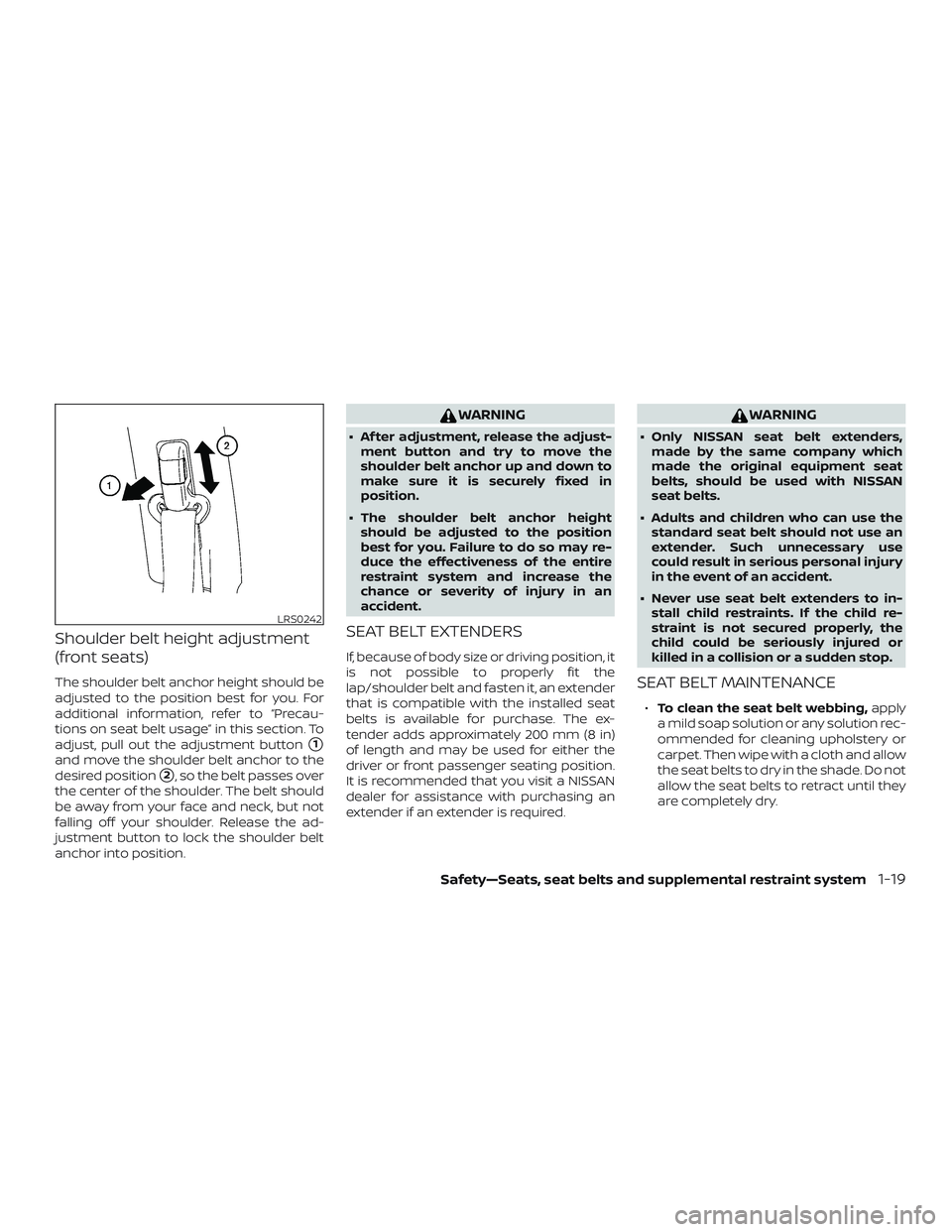

Shoulder belt height adjustment
(front seats)
The shoulder belt anchor height should be
adjusted to the position best for you. For
additional information, refer to “Precau-
tions on seat belt usage” in this section. To
adjust, pull out the adjustment button
1
and move the shoulder belt anchor to the
desired position
2, so the belt passes over
the center of the shoulder. The belt should
be away from your face and neck, but not
falling off your shoulder. Release the ad-
justment button to lock the shoulder belt
anchor into position.
WARNING
∙ Af ter adjustment, release the adjust- ment button and try to move the
shoulder belt anchor up and down to
make sure it is securely fixed in
position.
∙ The shoulder belt anchor height should be adjusted to the position
best for you. Failure to do so may re-
duce the effectiveness of the entire
restraint system and increase the
chance or severity of injury in an
accident.
SEAT BELT EXTENDERS
If, because of body size or driving position, it
is not possible to properly fit the
lap/shoulder belt and fasten it, an extender
that is compatible with the installed seat
belts is available for purchase. The ex-
tender adds approximately 200 mm (8 in)
of length and may be used for either the
driver or front passenger seating position.
It is recommended that you visit a NISSAN
dealer for assistance with purchasing an
extender if an extender is required.
WARNING
∙ Only NISSAN seat belt extenders,made by the same company which
made the original equipment seat
belts, should be used with NISSAN
seat belts.
∙ Adults and children who can use the standard seat belt should not use an
extender. Such unnecessary use
could result in serious personal injury
in the event of an accident.
∙ Never use seat belt extenders to in- stall child restraints. If the child re-
straint is not secured properly, the
child could be seriously injured or
killed in a collision or a sudden stop.
SEAT BELT MAINTENANCE
∙ To clean the seat belt webbing, apply
a mild soap solution or any solution rec-
ommended for cleaning upholstery or
carpet. Then wipe with a cloth and allow
the seat belts to dry in the shade. Do not
allow the seat belts to retract until they
are completely dry.
LRS0242
Safety—Seats, seat belts and supplemental restraint system1-19

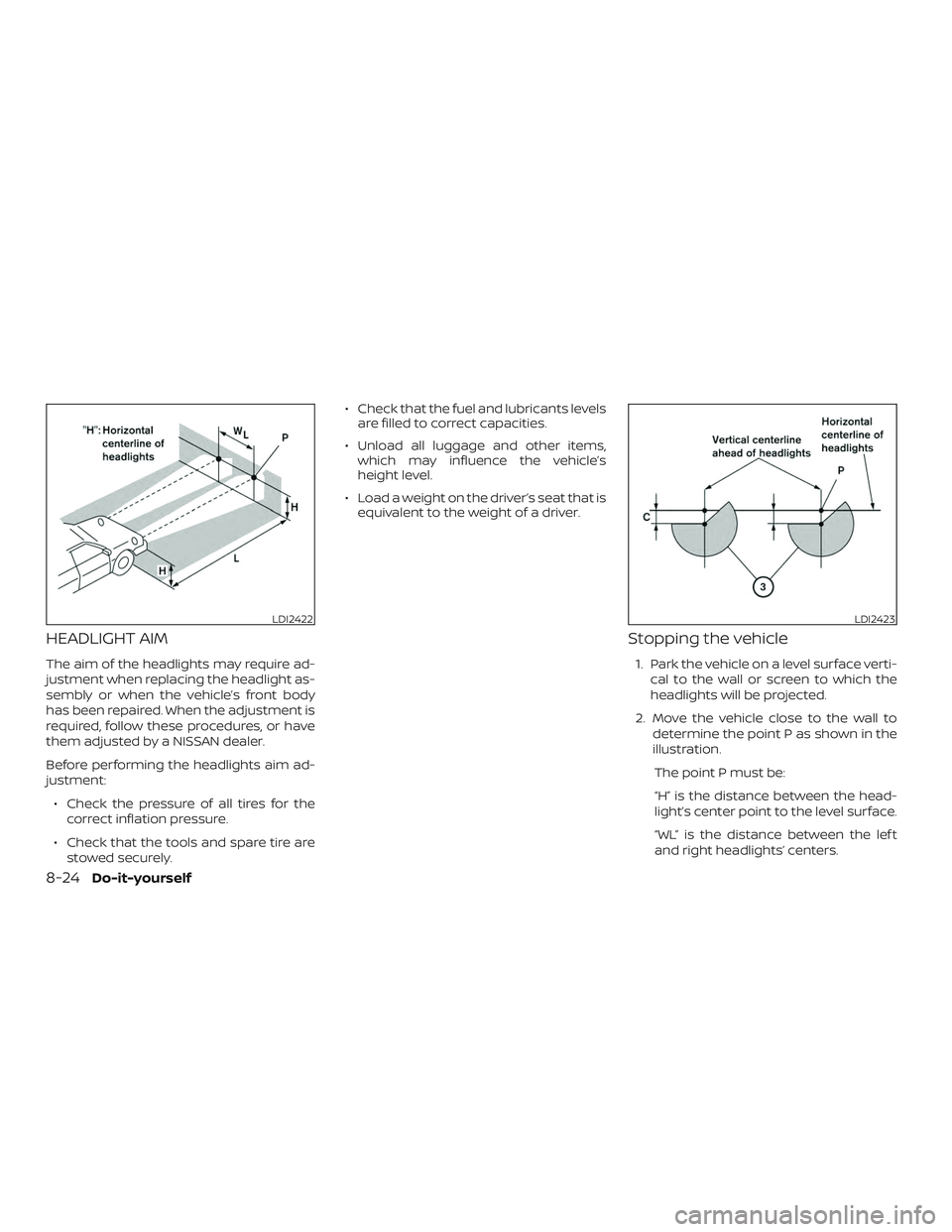

HEADLIGHT AIM
The aim of the headlights may require ad-
justment when replacing the headlight as-
sembly or when the vehicle’s front body
has been repaired. When the adjustment is
required, follow these procedures, or have
them adjusted by a NISSAN dealer.
Before performing the headlights aim ad-
justment:∙ Check the pressure of all tires for the correct inflation pressure.
∙ Check that the tools and spare tire are stowed securely. ∙ Check that the fuel and lubricants levels
are filled to correct capacities.
∙ Unload all luggage and other items, which may influence the vehicle’s
height level.
∙ Load a weight on the driver’s seat that is equivalent to the weight of a driver.
Stopping the vehicle
1. Park the vehicle on a level surface verti-
cal to the wall or screen to which the
headlights will be projected.
2. Move the vehicle close to the wall to determine the point P as shown in the
illustration.
The point P must be:
“H” is the distance between the head-
light’s center point to the level surface.
“WL” is the distance between the lef t
and right headlights’ centers.
LDI2422LDI2423
8-24Do-it-yourself
