HEADLIGHT AIM
The aim of the headlights may require ad-
justment when replacing the headlight as-
sembly or when the vehicle’s front body
has been repaired. When the adjustment is
required, follow these procedures, or have
them adjusted by a NISSAN dealer.
Before performing the headlights aim ad-
justment:∙ Check the pressure of all tires for the correct inflation pressure.
∙ Check that the tools and spare tire are stowed securely. ∙ Check that the fuel and lubricants levels
are filled to correct capacities.
∙ Unload all luggage and other items, which may influence the vehicle’s
height level.
∙ Load a weight on the driver’s seat that is equivalent to the weight of a driver.
Stopping the vehicle
1. Park the vehicle on a level surface verti-
cal to the wall or screen to which the
headlights will be projected.
2. Move the vehicle close to the wall to determine the point P as shown in the
illustration.
The point P must be:
“H” is the distance between the head-
light’s center point to the level surface.
“WL” is the distance between the lef t
and right headlights’ centers.
LDI2422LDI2423
8-24Do-it-yourself

3. Mark point P on the wall or screen.
4. Back up the vehicle 5,000 mm (197.0 in,16.4 f t) straight away from the wall or
screen.
”L” is the distance between the wall or
screen to the vehicle’s front bumper.
5. Apply the parking brake.
Adjusting the headlight aim
Be sure that the vehicle is parked directly
vertical to the wall on which the headlights
will be projected. 1. Turn on the headlight low beam
2. Open the hood.
3. Turn the aiming adjustment screws
1
2, located inside the engine compart-
ment, until the headlight projection, on
the wall or screen, does not move. NOTE:
The aim adjustment screws are located
on each side of the headlights. The lower
screw
1is used to adjust the horizontal
aim. The upper screw
2is used to adjust
the vertical aim.
The screws can be turned indefinitely in
each direction. Therefore be sure to ob-
serve the headlight projection move-
ment to determine the necessary turn-
ing amount.
LDI2979
Do-it-yourself8-25

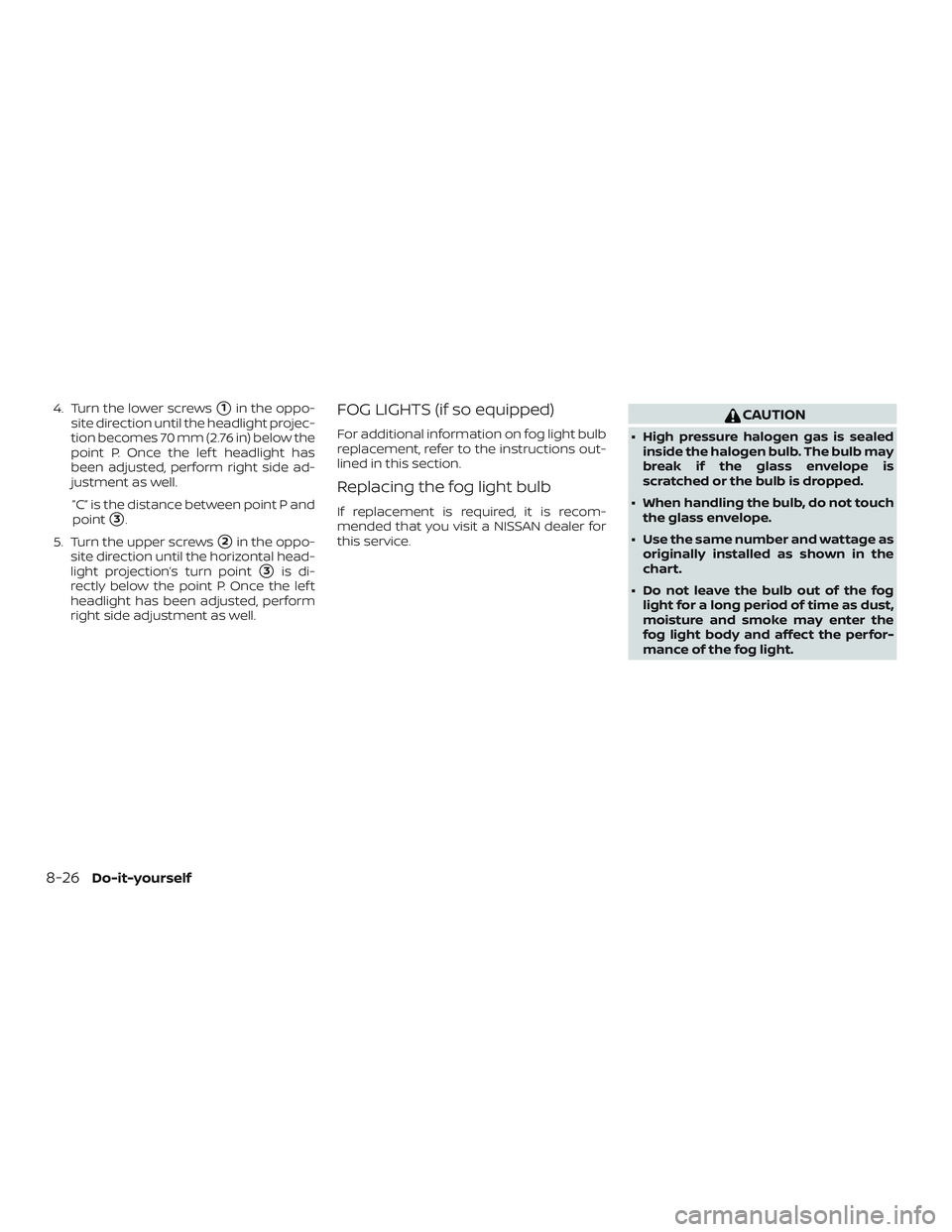

4. Turn the lower screws1in the oppo-
site direction until the headlight projec-
tion becomes 70 mm (2.76 in) below the
point P. Once the lef t headlight has
been adjusted, perform right side ad-
justment as well.
”C” is the distance between point P and
point
3.
5. Turn the upper screws
2in the oppo-
site direction until the horizontal head-
light projection’s turn point
3is di-
rectly below the point P. Once the lef t
headlight has been adjusted, perform
right side adjustment as well.
FOG LIGHTS (if so equipped)
For additional information on fog light bulb
replacement, refer to the instructions out-
lined in this section.
Replacing the fog light bulb
If replacement is required, it is recom-
mended that you visit a NISSAN dealer for
this service.
CAUTION
∙ High pressure halogen gas is sealed inside the halogen bulb. The bulb may
break if the glass envelope is
scratched or the bulb is dropped.
∙ When handling the bulb, do not touch the glass envelope.
∙ Use the same number and wattage as originally installed as shown in the
chart.
∙ Do not leave the bulb out of the fog light for a long period of time as dust,
moisture and smoke may enter the
fog light body and affect the perfor-
mance of the fog light.
8-26Do-it-yourself

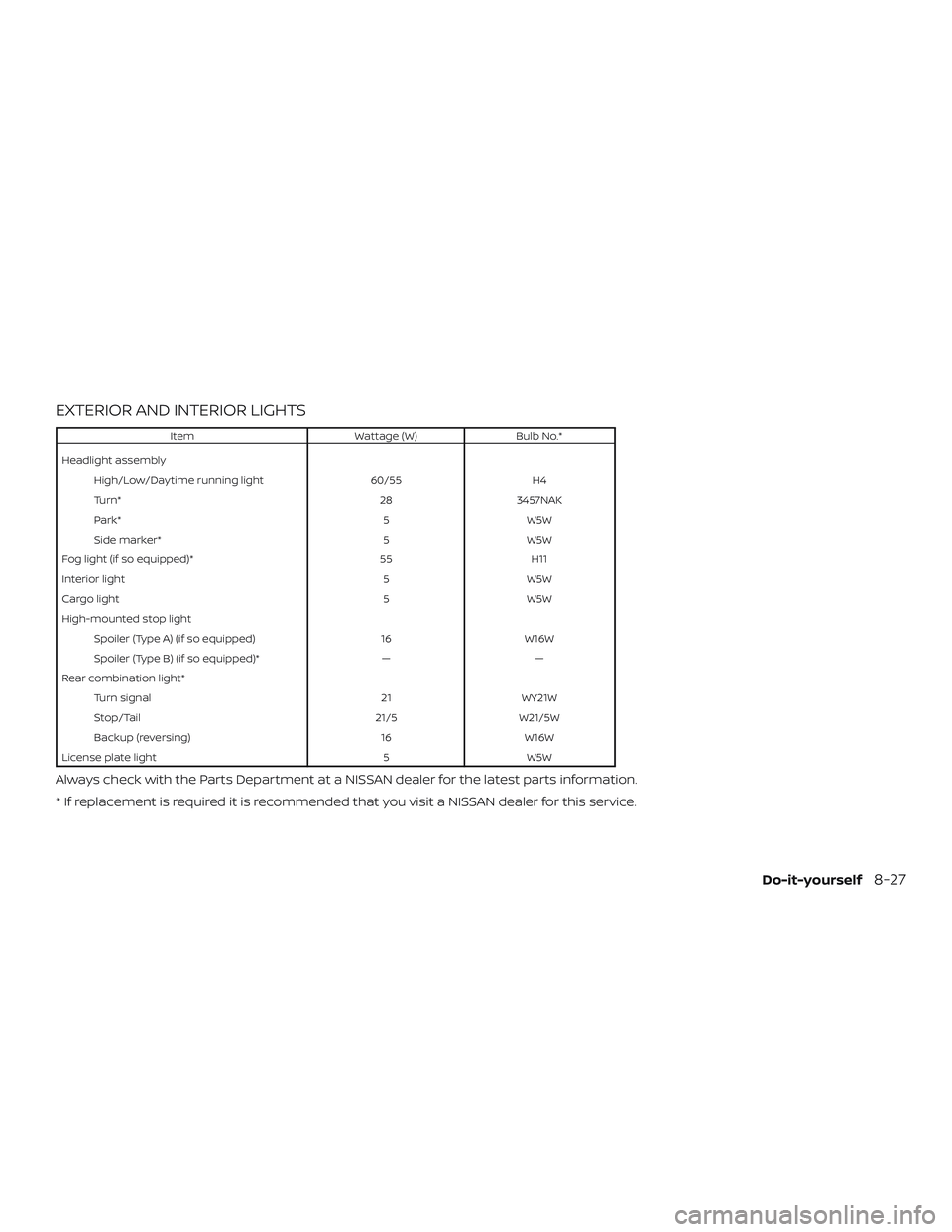

EXTERIOR AND INTERIOR LIGHTS
ItemWattage (W)Bulb No.*
Headlight assembly High/Low/Daytime running light 60/55H4
Turn* 283457NAK
Park* 5W5W
Side marker* 5W5W
Fog light (if so equipped)* 55H11
Interior light 5W5W
Cargo light 5W5W
High-mounted stop light Spoiler (Type A) (if so equipped) 16W16W
Spoiler (Type B) (if so equipped)* ——
Rear combination light* Turn signal 21WY21W
Stop/Tail 21/5W21/5W
Backup (reversing) 16W16W
License plate light 5W5W
Always check with the Parts Department at a NISSAN dealer for the latest parts information.
* If replacement is required it is recommended that you visit a NISSAN dealer for this service.
Do-it-yourself8-27

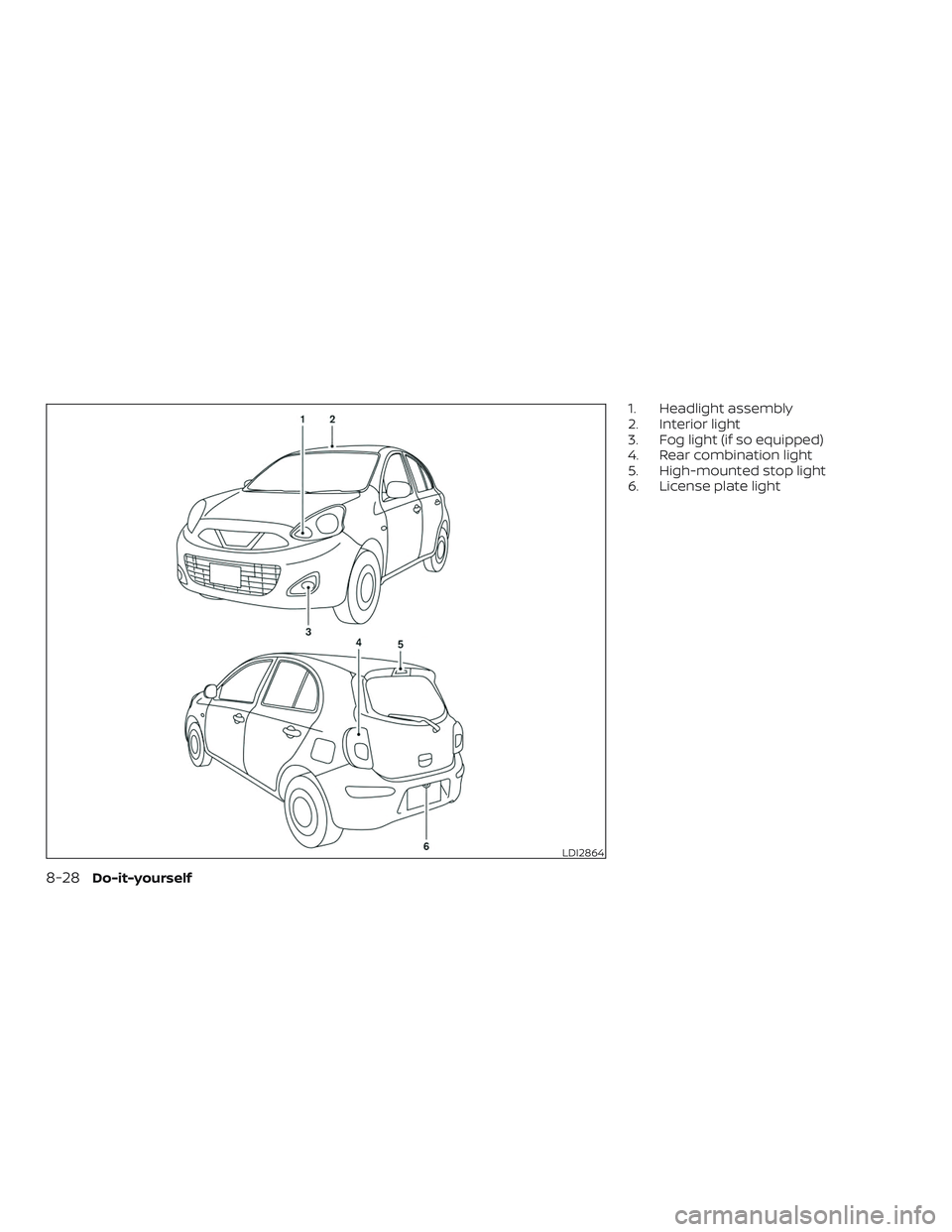

1. Headlight assembly
2. Interior light
3. Fog light (if so equipped)
4. Rear combination light
5. High-mounted stop light
6. License plate light
LDI2864
8-28Do-it-yourself

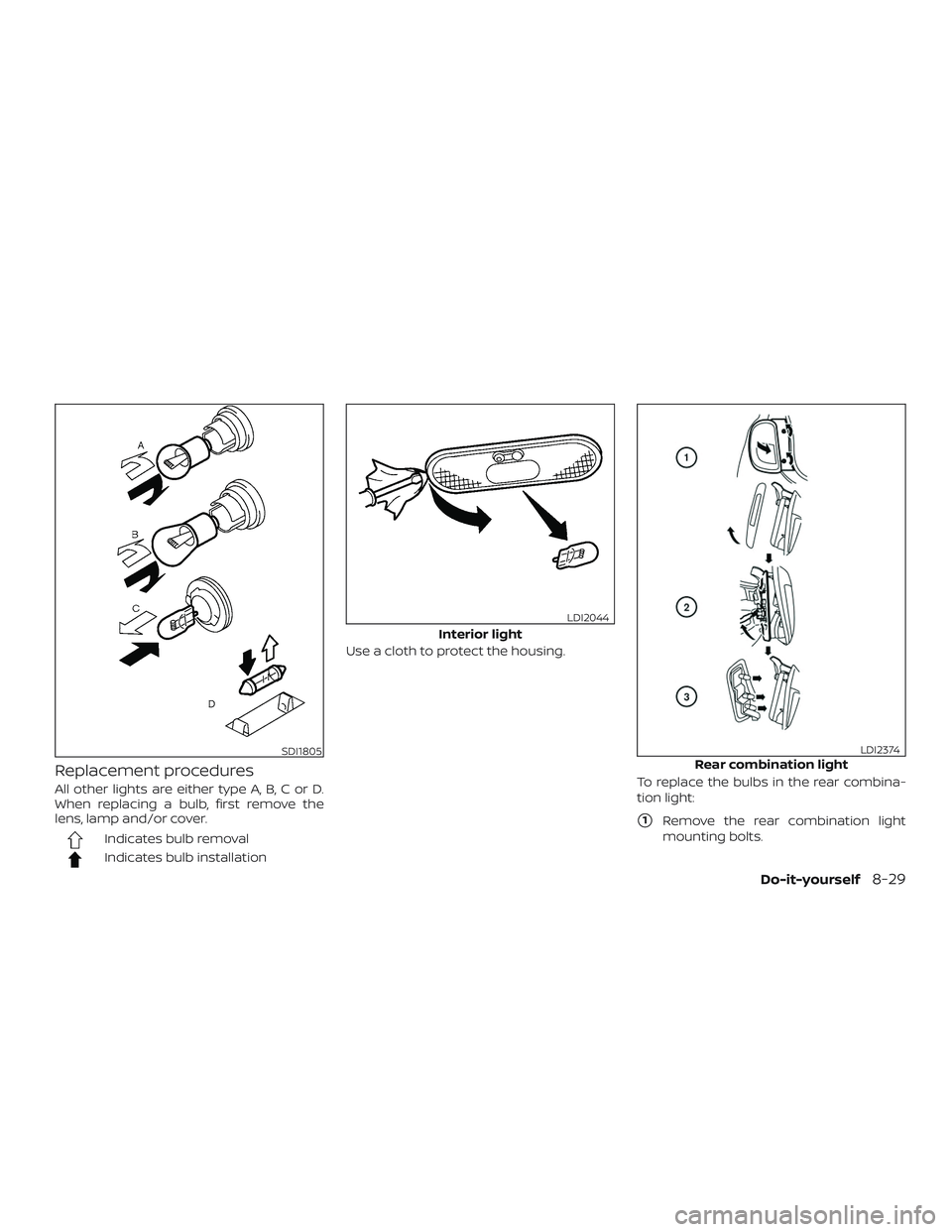

Replacement procedures
All other lights are either type A, B, C or D.
When replacing a bulb, first remove the
lens, lamp and/or cover.
Indicates bulb removal
Indicates bulb installationUse a cloth to protect the housing.
To replace the bulbs in the rear combina-
tion light:
1Remove the rear combination light
mounting bolts.
SDI1805
Interior light
LDI2044
Rear combination lightLDI2374
Do-it-yourself8-29

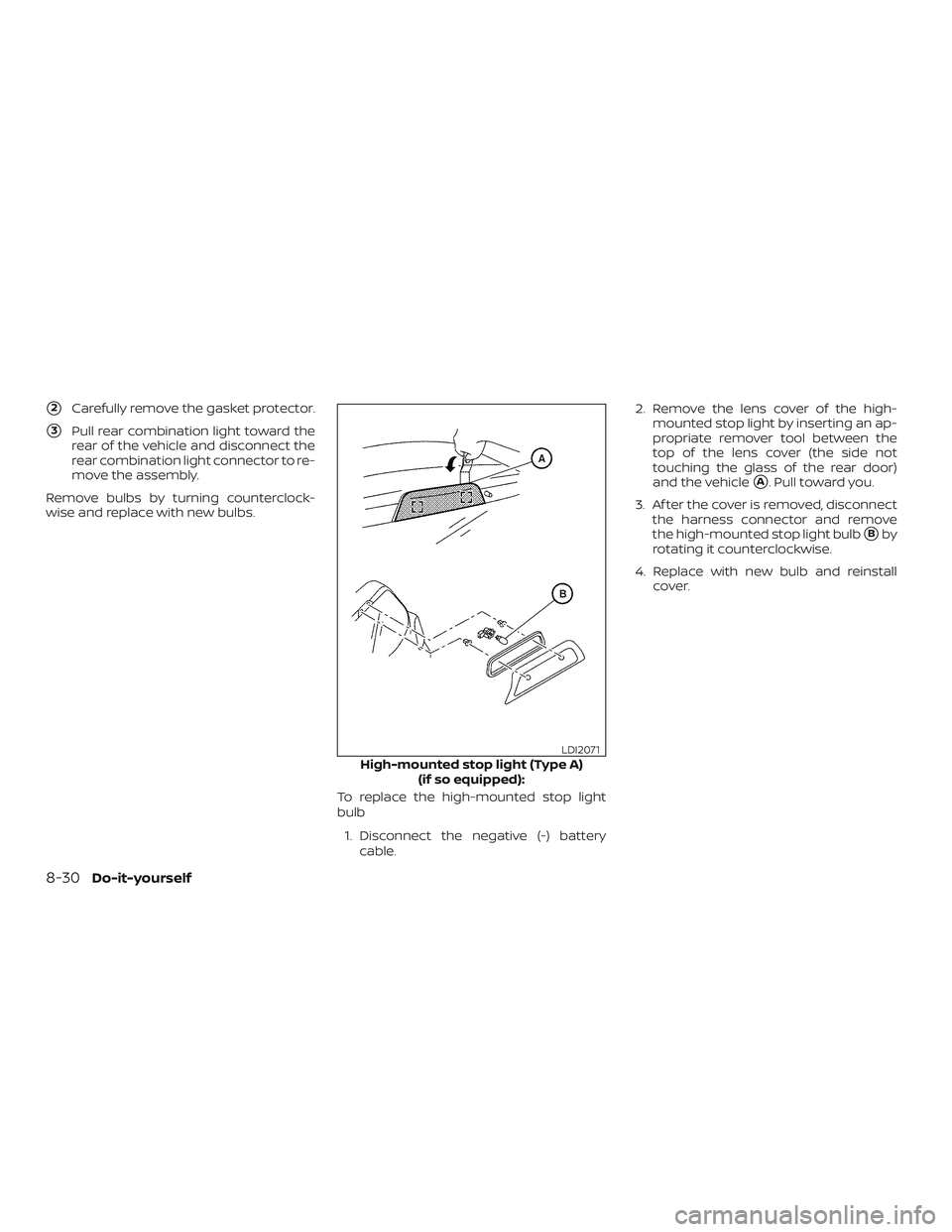

2Carefully remove the gasket protector.
3Pull rear combination light toward the
rear of the vehicle and disconnect the
rear combination light connector to re-
move the assembly.
Remove bulbs by turning counterclock-
wise and replace with new bulbs.
To replace the high-mounted stop light
bulb1. Disconnect the negative (-) battery cable. 2. Remove the lens cover of the high-
mounted stop light by inserting an ap-
propriate remover tool between the
top of the lens cover (the side not
touching the glass of the rear door)
and the vehicle
A. Pull toward you.
3. Af ter the cover is removed, disconnect the harness connector and remove
the high-mounted stop light bulb
Bby
rotating it counterclockwise.
4. Replace with new bulb and reinstall cover.
High-mounted stop light (Type A) (if so equipped):LDI2071
8-30Do-it-yourself

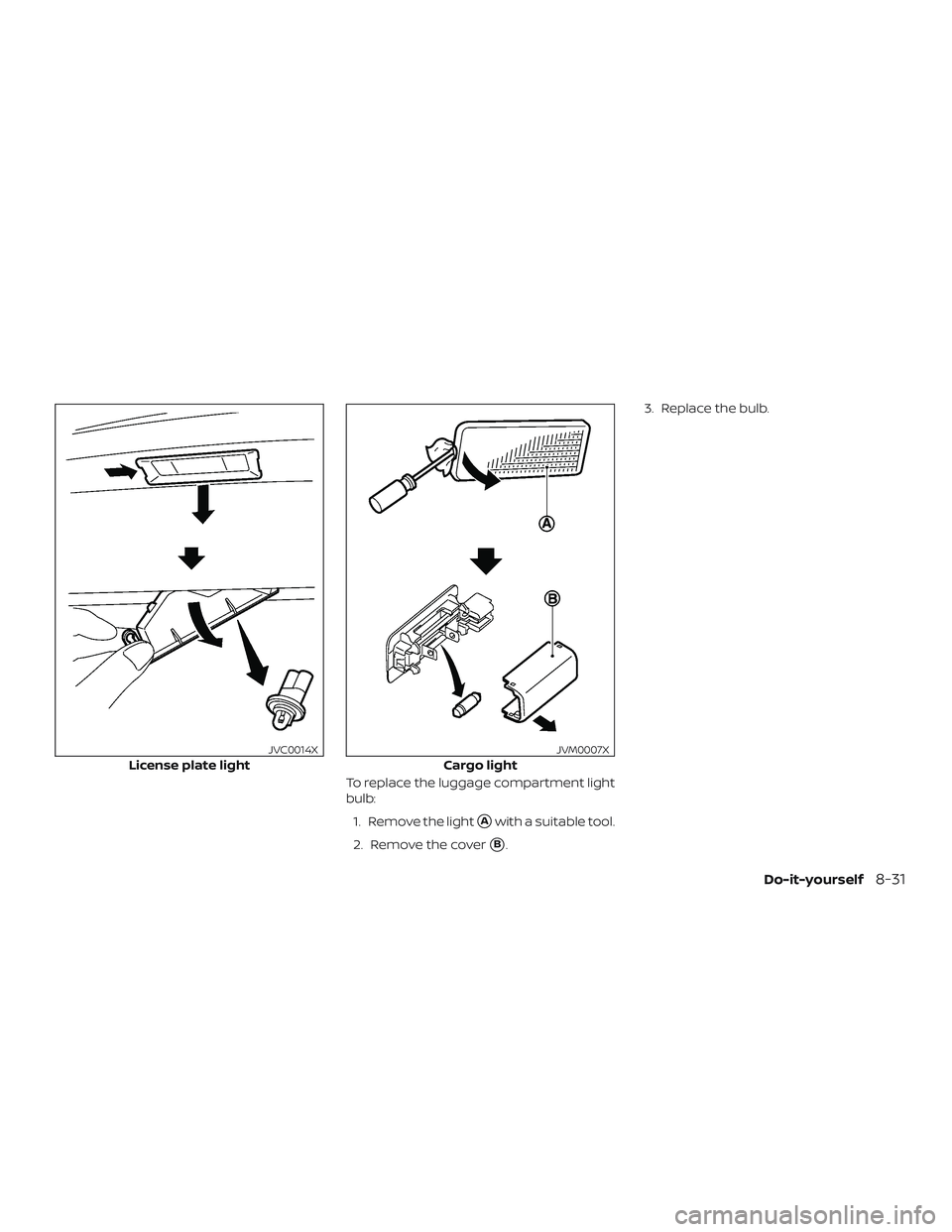

To replace the luggage compartment light
bulb:1. Remove the light
Awith a suitable tool.
2. Remove the cover
B. 3. Replace the bulb.
License plate light
JVC0014X
Cargo light
JVM0007X
