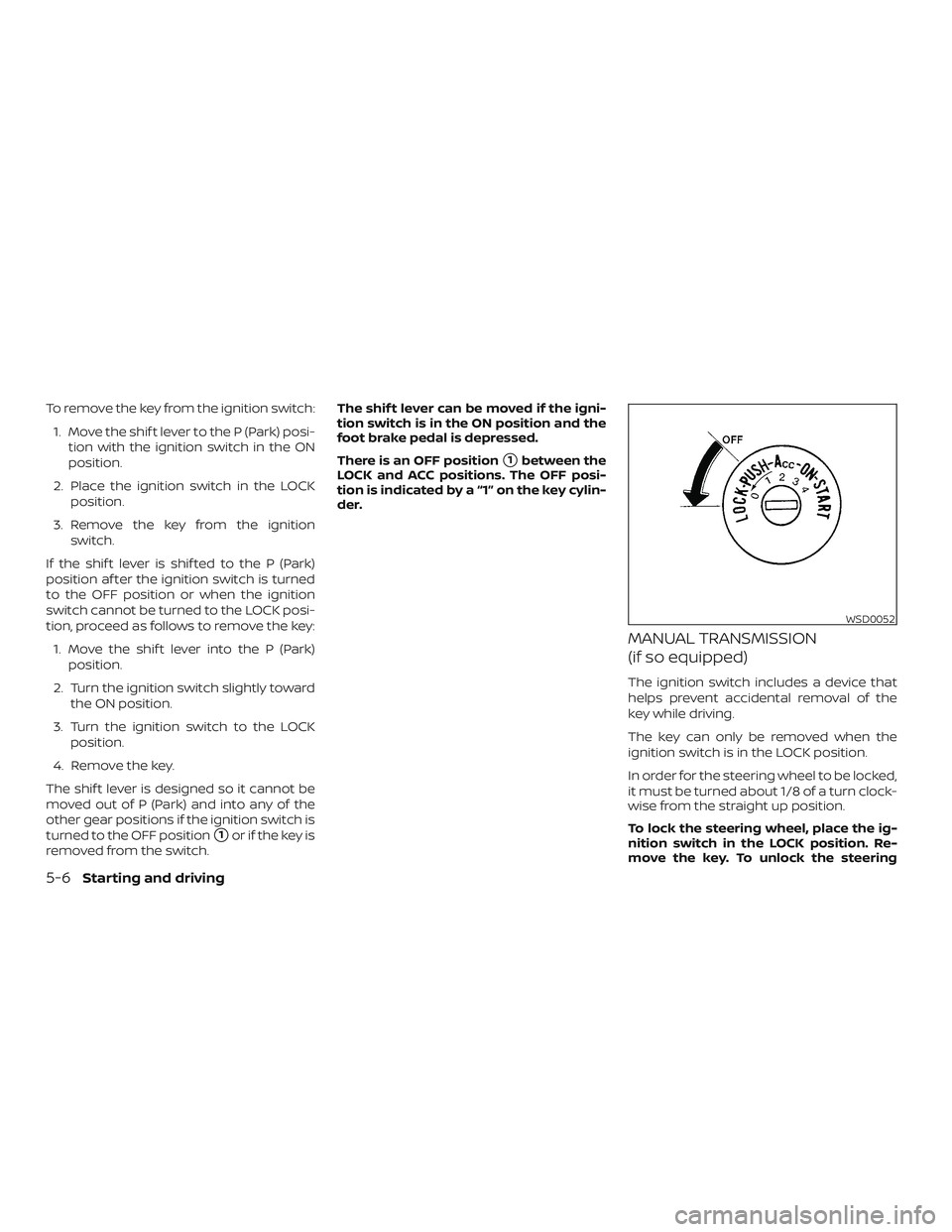

To remove the key from the ignition switch:1. Move the shif t lever to the P (Park) posi- tion with the ignition switch in the ON
position.
2. Place the ignition switch in the LOCK position.
3. Remove the key from the ignition switch.
If the shif t lever is shif ted to the P (Park)
position af ter the ignition switch is turned
to the OFF position or when the ignition
switch cannot be turned to the LOCK posi-
tion, proceed as follows to remove the key: 1. Move the shif t lever into the P (Park) position.
2. Turn the ignition switch slightly toward the ON position.
3. Turn the ignition switch to the LOCK position.
4. Remove the key.
The shif t lever is designed so it cannot be
moved out of P (Park) and into any of the
other gear positions if the ignition switch is
turned to the OFF position
1or if the key is
removed from the switch. The shif t lever can be moved if the igni-
tion switch is in the ON position and the
foot brake pedal is depressed.
There is an OFF position
1between the
LOCK and ACC positions. The OFF posi-
tion is indicated by a “1” on the key cylin-
der.
MANUAL TRANSMISSION
(if so equipped)
The ignition switch includes a device that
helps prevent accidental removal of the
key while driving.
The key can only be removed when the
ignition switch is in the LOCK position.
In order for the steering wheel to be locked,
it must be turned about 1/8 of a turn clock-
wise from the straight up position.
To lock the steering wheel, place the ig-
nition switch in the LOCK position. Re-
move the key. To unlock the steering
WSD0052
5-6Starting and driving

wheel, insert the key and turn it gently
while rotating the steering wheel slightly
right and lef t.
IGNITION SWITCH POSITIONS
LOCK: Normal parking position (0)
OFF: (1)
The engine can be turned off without lock-
ing the steering wheel.
ACC: (Accessories) (2)
This position activates electrical accesso-
ries such as the radio when the engine is
not running.
ON: Normal operating position (3)
This position turns on the ignition system
and the electrical accessories.
START: (4)
This position starts the engine. As soon as
the engine has started, release the key. It
automatically returns to the ON position.
NISSAN VEHICLE IMMOBILIZER
SYSTEM
The NISSAN Vehicle Immobilizer System
will not allow the engine to start without
the use of the registered key.
If the engine fails to start using a registered
key (for example, when interference is
caused by another registered key, an auto-
mated toll road device or automatic pay-
ment device on the key ring), restart the
engine using the following procedure:1. Leave the ignition switch in the ON po- sition for approximately 5 seconds.
2. Place the ignition switch in the OFF or LOCK position, and wait approximately
10 seconds.
3. Repeat steps 1 and 2.
4. Restart the engine while holding the device (which may have caused the in-
terference) separate from the regis-
tered key.
If the no start condition re-occurs, NISSAN
recommends placing the registered key on
a separate key ring to avoid interference
from other devices. ∙ Make sure the area around the vehicle is
clear.
∙ Check fluid levels such as engine oil, coolant, brake and clutch fluid (if so
equipped), and windshield-washer fluid
as frequently as possible, or at least
whenever you refuel.
∙ Check that all windows and lights are clean.
∙ Visually inspect tires for their appear- ance and condition. Also check tires for
proper inflation.
∙ Lock all doors.
∙ Position seat and adjust head re- straints.
∙ Adjust inside and outside mirrors.
∙ Fasten seat belts and ask all passen- gers to do likewise.
∙ Check the operation of warning lights when the key is turned to the ON posi-
tion. For additional information, refer to
“Warning lights, indicator lights and au-
dible reminders” in the “Instruments
and controls” section of this manual.
BEFORE STARTING THE ENGINE
Starting and driving5-7

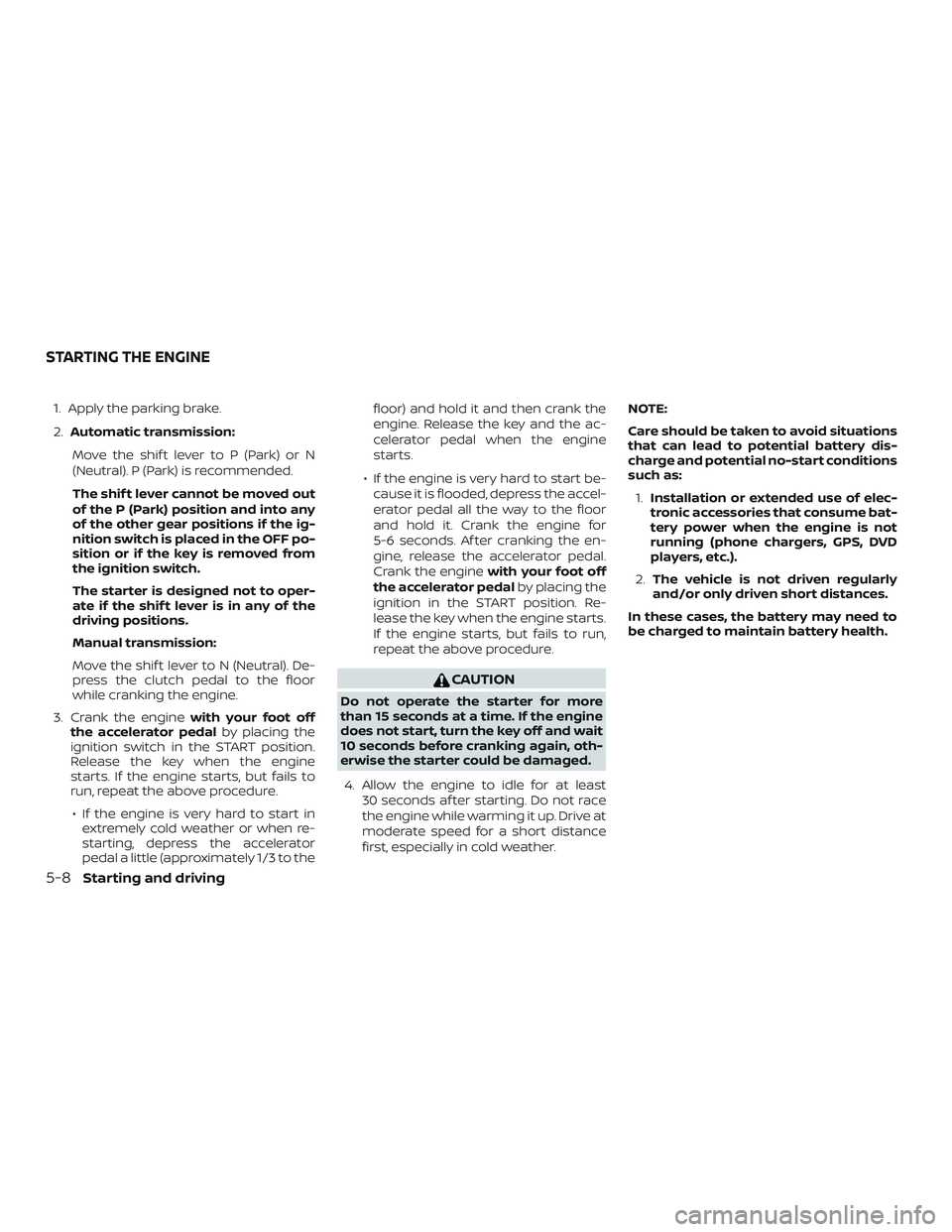

1. Apply the parking brake.
2.Automatic transmission:
Move the shif t lever to P (Park) or N
(Neutral). P (Park) is recommended.
The shif t lever cannot be moved out
of the P (Park) position and into any
of the other gear positions if the ig-
nition switch is placed in the OFF po-
sition or if the key is removed from
the ignition switch.
The starter is designed not to oper-
ate if the shif t lever is in any of the
driving positions.
Manual transmission:
Move the shif t lever to N (Neutral). De-
press the clutch pedal to the floor
while cranking the engine.
3. Crank the engine with your foot off
the accelerator pedal by placing the
ignition switch in the START position.
Release the key when the engine
starts. If the engine starts, but fails to
run, repeat the above procedure.
∙ If the engine is very hard to start in extremely cold weather or when re-
starting, depress the accelerator
pedal a little (approximately 1/3 to the floor) and hold it and then crank the
engine. Release the key and the ac-
celerator pedal when the engine
starts.
∙ If the engine is very hard to start be- cause it is flooded, depress the accel-
erator pedal all the way to the floor
and hold it. Crank the engine for
5-6 seconds. Af ter cranking the en-
gine, release the accelerator pedal.
Crank the engine with your foot off
the accelerator pedal by placing the
ignition in the START position. Re-
lease the key when the engine starts.
If the engine starts, but fails to run,
repeat the above procedure.
CAUTION
Do not operate the starter for more
than 15 seconds at a time. If the engine
does not start, turn the key off and wait
10 seconds before cranking again, oth-
erwise the starter could be damaged.
4. Allow the engine to idle for at least 30 seconds af ter starting. Do not race
the engine while warming it up. Drive at
moderate speed for a short distance
first, especially in cold weather. NOTE:
Care should be taken to avoid situations
that can lead to potential battery dis-
charge and potential no-start conditions
such as:
1. Installation or extended use of elec-
tronic accessories that consume bat-
tery power when the engine is not
running (phone chargers, GPS, DVD
players, etc.).
2. The vehicle is not driven regularly
and/or only driven short distances.
In these cases, the battery may need to
be charged to maintain battery health.
STARTING THE ENGINE
5-8Starting and driving

AUTOMATIC TRANSMISSION
(if so equipped)
The automatic transmission in your vehicle
is electronically controlled to produce
maximum power and smooth operation.
The recommended operating procedures
for this transmission are shown on the fol-
lowing pages. Follow these procedures for
maximum vehicle performance and driv-
ing enjoyment.
WARNING
∙ Do not depress the accelerator pedalwhile shif ting from P (Park) or N (Neu-
tral) to R (Reverse), D (Drive), 2 or 1.
Always depress the brake pedal until
shif ting is completed. Failure to do so
could cause you to lose control and
have an accident.
∙ The cold engine idle speed is high, so use caution when shif ting the trans-
mission into a forward or reverse po-
sition before the engine has warmed
up.
∙ Avoid revving up the engine while the vehicle is stopped. This could cause
unexpected vehicle movement. ∙ Do not downshif t abruptly on slippery
roads. This may cause a loss of
control.
CAUTION
∙ Never shif t to either the P (Park) or R(Reverse) position while the vehicle is
moving forward and P (Park) or D
(Drive) position while the vehicle is re-
versing. This could cause an accident
or damage the transmission.
∙ Except in an emergency, do not shif t to the N (Neutral) position while driv-
ing. Coasting with the transmission in
the N (Neutral) position may cause se-
rious damage to the transmission.
∙ Start the engine in either the P (Park) or N (Neutral) position. The engine will
not start in any other position. If it
does, have your vehicle checked. It is
recommended that you visit a NISSAN
dealer for this service.
∙ Shif t into the P (Park) position and ap- ply the parking brake when at a
standstill for longer than a short wait-
ing period. ∙ Keep the engine at idling speed while
shif ting from the N (Neutral) position
to any driving position.
∙ To avoid possible damage to your ve- hicle; when stopping the vehicle on an
uphill grade, do not hold the vehicle by
depressing the accelerator pedal. The
foot brake should be used for this
purpose.
Starting the vehicle
1. Af ter starting the engine, fully depress the foot brake pedal before moving the
shif t lever out of the P (Park) position.
2. Keep the foot brake pedal depressed and move the shif t lever to a drive po-
sition.
3. Release the parking brake, the foot brake pedal, and then gradually start
the vehicle in motion.
The automatic transmission is designed
so the foot brake pedal MUST be de-
pressed before shif ting from P (Park) to
any drive position while the ignition
switch is in the ON position.
DRIVING THE VEHICLE
Starting and driving5-9

The shif t lever cannot be moved out of P
(Park) and into any of the other gear po-
sitions if the ignition switch is turned to
the LOCK, OFF or ACC position or if the
keyisremoved.
CAUTION
∙ Depress the foot brake pedal - Shif t-ing the shif t lever to D, R, 2 or 1 without
depressing the foot brake pedal
causes the vehicle to move slowly
when the engine is running. Make
sure the foot brake pedal is depressed
fully and the vehicle is stopped before
shif ting the shif t lever.
∙ Make sure of the shif t lever position- Make sure the shif t lever is in the de-
sired position. D, 2 and 1 are used to
move forward and R to back up.
∙ Warm up the engine- Due to the higher idle speeds when the engine is
cold, extra caution must be exercised
when shif ting the shif t lever into the
driving position immediately af ter
starting the engine. To move the shif t lever:
Press the buttonAwhile depressing
the brake pedal.
Press the buttonA.
Just move the shif t lever.
Shif ting
WARNING
∙ Apply the parking brake if the shif t lever is in any position while the en-
gine is not running. Failure to do so
could cause the vehicle to move unex-
pectedly or roll away and result in se-
rious personal injury or property
damage.
∙ If the shif t lever cannot be moved from the P (Park) position while the
engine is running and the brake pedal
is depressed, the stop lights may not
work. Malfunctioning stop lights
could cause an accident injuring your-
self and others.
Af ter starting the engine, fully depress the
foot brake pedal, press the shif t lever but-
ton and move the shif t lever out of the P
(Park) position.
If the ignition switch is in the OFF or ACC
position for any reason while the shif t lever
is in any position other than the P (Park)
position, the ignition switch cannot be
turned to the LOCK position.
LSD2005
5-10Starting and driving

If the ignition switch cannot be placed in
the LOCK position, perform the following
steps:1. Apply the parking brake when the ve- hicle is stopped.
2. Place the ignition switch in the ON po- sition while depressing the foot brake
pedal.
3. Move the shif t lever to the P (Park) po- sition.
4. Place the ignition switch in the LOCK position.
P (Park)
CAUTION
To prevent transmission damage, use
the P (Park) position only when the ve-
hicle is completely stopped.
Use the P (Park) position when the vehicle is
parked or when starting the engine. Make
sure the vehicle is completely stopped. The
brake pedal must be depressed and the
shif t lever button pressed to move the
shif t lever from N (Neutral) or any drive
position to P (Park). Apply the parking brake. When parking on a
hill, apply the parking brake first, then shif t
the shif t lever into the P (Park) position.
R (Reverse)
CAUTION
To prevent transmission damage, use
the R (Reverse) position only when the
vehicle is completely stopped.
Use the R (Reverse) position to back up.
Make sure the vehicle is completely
stopped before selecting the R (Reverse)
position. The brake pedal must be de-
pressed and the shif t lever button
pressed to move the shif t lever from P
(Park), N (Neutral) or any drive position to
R (Reverse).
N (Neutral)
Neither forward nor reverse gear is en-
gaged. The engine can be started in this
position. You may shif t to N (Neutral) and
restart a stalled engine while the vehicle is
moving. D (Drive)
Use this position for all normal forward
driving.
2 (Second gear)
Use this position for hill climbing or engine
braking on downhill grades.
1(Lowgear)
Use this position when climbing steep hills
slowly or driving slowly through deep snow,
sand or mud, or for maximum engine brak-
ing on steep downhill grades.
Do not shif t into the gears when the vehicle
speed exceeds the following limits, other-
wise the engine may over-rev and cause
engine damage.
Shif t Lever position
12
50 km/h (31 mph) 95 km/h (59 mph)
Starting and driving5-11

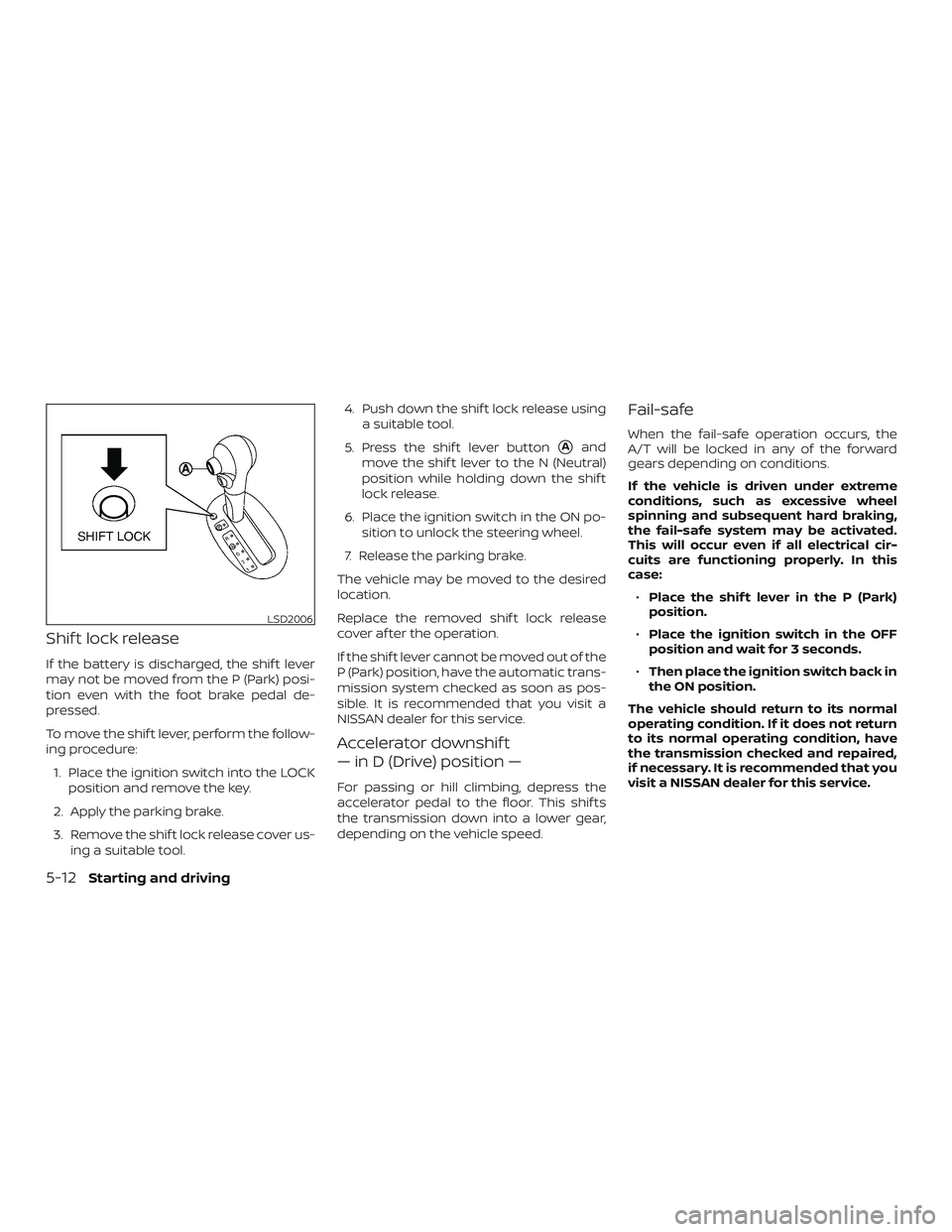

Shif t lock release
If the battery is discharged, the shif t lever
may not be moved from the P (Park) posi-
tion even with the foot brake pedal de-
pressed.
To move the shif t lever, perform the follow-
ing procedure:1. Place the ignition switch into the LOCK position and remove the key.
2. Apply the parking brake.
3. Remove the shif t lock release cover us- ing a suitable tool. 4. Push down the shif t lock release using
a suitable tool.
5. Press the shif t lever button
Aand
move the shif t lever to the N (Neutral)
position while holding down the shif t
lock release.
6. Place the ignition switch in the ON po- sition to unlock the steering wheel.
7. Release the parking brake.
The vehicle may be moved to the desired
location.
Replace the removed shif t lock release
cover af ter the operation.
If the shif t lever cannot be moved out of the
P (Park) position, have the automatic trans-
mission system checked as soon as pos-
sible. It is recommended that you visit a
NISSAN dealer for this service.
Accelerator downshif t
— in D (Drive) position —
For passing or hill climbing, depress the
accelerator pedal to the floor. This shif ts
the transmission down into a lower gear,
depending on the vehicle speed.
Fail-safe
When the fail-safe operation occurs, the
A/T will be locked in any of the forward
gears depending on conditions.
If the vehicle is driven under extreme
conditions, such as excessive wheel
spinning and subsequent hard braking,
the fail-safe system may be activated.
This will occur even if all electrical cir-
cuits are functioning properly. In this
case: ∙ Place the shif t lever in the P (Park)
position.
∙ Place the ignition switch in the OFF
position and wait for 3 seconds.
∙ Then place the ignition switch back in
the ON position.
The vehicle should return to its normal
operating condition. If it does not return
to its normal operating condition, have
the transmission checked and repaired,
if necessary. It is recommended that you
visit a NISSAN dealer for this service.
LSD2006
5-12Starting and driving

Overdrive (O/D) OFF switch
Each time your vehicle is started, the trans-
mission is automatically “reset” to overdrive
ON.
ON: With the engine running andthe shif t lever in the D (Drive)
position, the transmission up-
shif ts into overdrive as vehicle
speed increases.
Overdrive does not engage until the en-
gine has reached operating tempera-
ture.
OFF: For driving up and down longslopes where engine braking is
necessary push the overdrive
switch once. The Overdrive OFF
indicator light in the instrument
panel comes on at this time.
When cruising at a low speed or climbing a
gentle slope, you may feel uncomfortable
shif t shocks as the transmission shif ts into
and out of overdrive repeatedly. In this
case, depress the overdrive switch to turn
the overdrive off. The Overdrive OFF indica-
tor light in the instrument panel comes on
at this time.
When driving conditions change, depress
the overdrive switch to turn the overdrive
on.
Remember not to drive at high speeds for
extended periods of time with the over-
drive off. This reduces fuel economy.
MANUAL TRANSMISSION
(if so equipped)
WARNING
∙ Do not downshif t abruptly on slipperyroads. This may cause a loss of
control. ∙ Do not over-rev the engine when
shif ting to a lower gear. This may
cause a loss of control or engine
damage.
CAUTION
∙ Do not rest your foot on the clutchpedal while driving. This may cause
clutch damage.
∙ Fully depress the clutch pedal before shif ting to help prevent transmission
damage.
∙ Stop your vehicle completely before shif ting into R (Reverse).
∙ When the vehicle is stopped with the engine running (for example, at a stop
light), shif t to N (Neutral) and release
the clutch pedal with the foot brake
applied.
∙ Do not shif t to the N (Neutral) position while driving. Doing so may result in
an accident due to loss of engine
braking.
LSD2012
Starting and driving5-13
