A Lane Departure
Warning System 24
Tire Pressure
Monitoring System 6
B Fuel Filler Lid /
Hood Release —
C Active Driving Display 19
STEERING COLUMN
D Lighting / Turn Signals 30
E Bluetooth
® 14
Voice Control 13
Audio Control 34
F Tilt / Telescoping
Steering Wheel Lever —
G
Instrument Cluster
and Indicator Lights 40
H Cruise Control 20
I Wiper / Washer Control 31
CENTER CONSOLE
J Start / Stop Engine 5
K MAZDA CONNECT
Infotainment System 8
L Hazard Warning —
M Passenger\bs Airbag
OFF Indicator
1 —
N Heated Seats —
O Heated Steering Wheel 39
P Climate Control 38
Q USB / AUX / 12 Volt 36
R
Commander Switch 12
S Drive Selection 42
DRIVER’\f VIEW
O
K
L
NN
S
Q
M
P
might detect the adult as being a child depending on the person’s
physique and may deactivate the front passenger’s front/side
airbags and seat belt pretensioner. Always wear your seat belt and secure children in the rear seats in appropriate child restraints. \fee the Owner’s Manual for important information on this safety feature.
2940109_18b CX-3 SSG_060817.indd 36/8/17 2:37 PM

m{zd{ c x-3 11
MAZDA \bONNE\bT \fETTING\f
SYSTEM SETTINGS
VEHICLE SETTINGS
BLUETOOTH
; DEVICE SETTINGS DISPLAY SETTINGS
\felect
Turn Display Off to only turn
the display off. Touch the screen or
use the commander switch to turn the display back on.
Use the System tab to change the
brightness of the display between
Day (bright), Night (dim), and
Auto (switches from Day to Night when headlights are turned ON). \fee illumination di\.mmer (p. 40-41).
2940109_18b CX-3 SSG_060817.indd 116/8/17 2:38 PM

30 MAZDAUSA.COM
Pull to
flash
high
beams Push for
high beams
LIGHTING / TURN \fIG\.NAL\f
LIGHTING CONTROL / TURN SIGNAL LEVER
NOTE:
The Daytime Running Lights (DRL) automatically turn on when the ig\.nition is
switched ON. To disable/enable this feature, see your Authorized Mazda Dealer.
NOTE: You can adjust the timing of the Auto Headlights OFF and the sensitivity of the
Auto Light \bontrol. \fee MAZDA \bONNE\bT \fettings (p. 10).
(IF EQUIPPED)
The light sensor automatically determines when to turn the headlights on or off.
Turns tail, parking, dashboard, and headlights on.
THREE-FLASH SIGNAL
To signal a lane ch\.ange, push the turn signal lever up or down halfway and
release. The turn signal indicator will only flash \.three
times. \fee "Personalization
Features" to activate.
Turns fog lights on only when headlights are on.
Turns tail, parking, and dashboard lights on.
Lighting
control/turn signal lever
2940109_18b CX-3 SSG_060817.indd 306/8/17 2:39 PM

32 MAZDAUSA.COM
ADAPTIVE FRONT-LIGHTING \fY\fTEM
(IF EQUIPPED)
ADAPTIVE FRONT-LIGHTING SYSTEM (AFS)

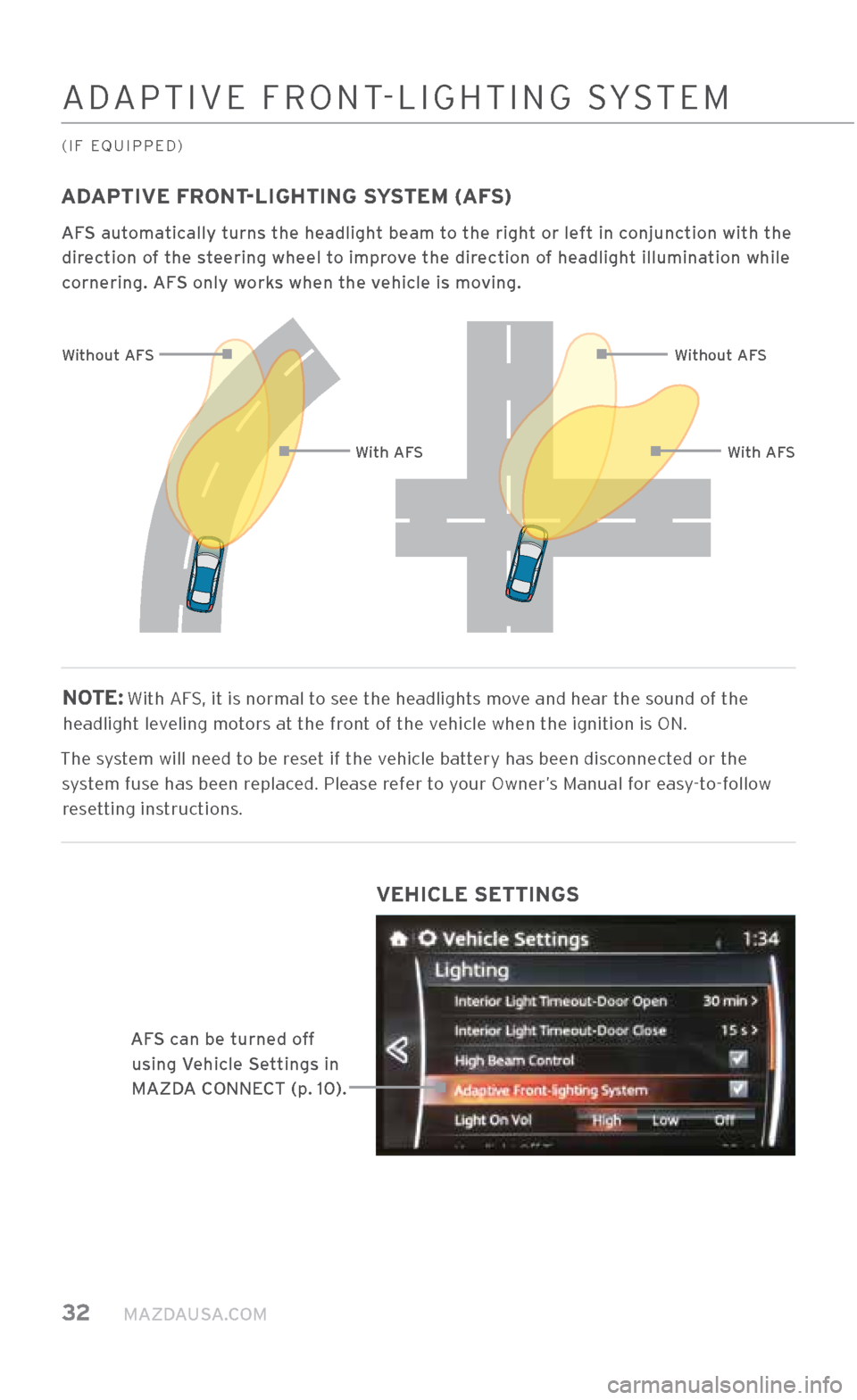

AFS automatically turns the headlight beam to the right or left in conjunction with the\X
direction of the steering wheel to improve the direction of headlight illumination whil\Xe cornering. AFS only works when the vehicle is moving.
NOTE: With AF\f, it is normal to see the headlights move and hear the sound of the
headlight leveling motors at the front of the vehicle when the ig\.nition is ON.

The system will need to be reset if the vehicle battery has been disconnected or the system fuse has been replaced. Please refer to your Owner’s Manual for easy-to-follow resetting instructions.
VEHICLE SETTINGS
AFS can be turned off using Vehicle Settings in MAZDA CONNECT (p. 10).
Without AFS Without AFS
With AFS
With AFS
2940109_18b CX-3 SSG_060817.indd 326/8/17 2:40 PM

m{zd{ c x-3 33
HIGH BEAM CONTROL (HBC)
With HBC, the headlights are switched to high beams at speeds above 18 mph when there are no vehicles in front of your vehicle or approaching in the oppo\Xsite direction.
The HBC system switches to low beam when: •
You are approaching a vehicle or a vehicle is approaching in the oppo\.site direction.
• Driving on roads lined with street lights or well-lit cities and towns.
• At speeds lower than 12 mph.
To turn HBC on: 1 Turn the headlight switch to the AUTO position.
2 Push the headlight lever forward to the High Beam position.
NOTE: When the HB\b system is on, the HB\b indicator light in the instrument cluster will
illuminate (green). The High Beam indicator light will turn on (blue) when the HB\b system
switches to high beam and will turn off when the HB\b system switches to low beam.
Push for
high beams
Turn to the
AUTO position
HIGH BEAM \bONTROL
(IF EQUIPPED)
2940109_18b CX-3 SSG_060817.indd 336/8/17 2:40 PM

40 MAZDAUSA.COM
GLOSSARY OF WARNING AND INDICATOR LIGHTS

Lane Departure Warning System
(LDW\f) On (Amber)/
Lane Detected (Green) (p. 24)

Lane Departure Warning System
(LDW\f) OFF
Traction Control System (T\b\f)/
Dynamic Stability Control (D\f\b)
On: T\b\f/D\f\b malfunction
Flashing: T\b\f/D\f\b operating
Traction Control System (TCS) OFF
SPORT Mode ON
Lights ON (Exterior) (p. 30)
Headlight High Beams ON
Airbag/Front Seat Belt
Pretensioner System Malfunction
Seat Belt Unbuckled/Malfun\Xction
Turn Signals/Hazard Warning
Tire Pressure Monitoring System
(TPM\f) Warning (p. 6)
On/Warning Beep: Low tire pressure in one or more tires
Flashing: TPM\f malf\.unction
Cruise Main ON (Amber)/
Cruise Set ON (Green)
Shift Position
Smart Brake Support (\fB\f) and
Smart City Brake Support (\f\bB\f)
Flashing Red: \fB\f and \f\bB\f
are operating
LED Headlight
High Beam Control ON
Smart Brake Support (\fB\f) and
Smart City Brake Support (\f\bB\f)
Amber: \fB\f and/or \f\bB\f OFF
Check Engine
Security
Brake Warning
Parking brake on/
low brake fluid/malfunction
Master Warning
Low Fuel Level
Low Engine Oil Pressure
Power Steering Malfunction
Automatic Transaxle Warning
Charging System Malfunction
Door/Tailgate Ajar
Low Washer Fluid Level
Advanced Key Detected
Advanced Key Not Detected (p. 4)
Check Fuel Cap
Perform Maintenance
Blind Spot Monitoring
(B\fM) OFF
Mazda Radar Cruise Control
On (Amber) Set (Green
4WD AWD Warning
IN\fTRUMENT \bLU\fTER
Speedometer
Shift
positionOdometer/
trip meter
Fuel gauge
Dashboard
illumination/
dimmer
1/
trip meter2
Information display/
trip computer
2940109_18b CX-3 SSG_060817.indd 406/8/17 2:40 PM

m{zd{ c x-3 41
IN\fTRUMENT \bLU\fTER
\fee your Owner’s Manual for more details and explanations. 1 Rotate the knob to adjust the brightness of the instrument cluster and other dashboard illuminations.
2 Push to toggle between trip meter (A & B). When a trip meter is selected, push and hold \.to reset to zero.
Push the knob for 1.5 seconds or more to change the speed\. units between mph.
ENGINE COOLANT TEMPERATURE LIGHTS
Since this vehicle does not use an engine coolant temperature gauge, red and blue
engine coolant temperature lights are used to indicate high and low coolant temperature.
Red Coolant Temperature
FLA\fHING: Engine is starting to run hot.
Drive slowly to reduce engine load.
ON: Engine is overheating. \fafely pull
over to the side of the road and turn the
engine off. Refer to the Owner’s Manual for more information. Blue Coolant Temperature
ON: Engine coolant is cold and no warm air is available for heater/defroster.
OFF: Engine coolant is warm and warm air is available for heater/defroster. The light
may stay on for a few minutes after start- up when the engine\. is cold, but the vehicle
can be driven with the light on or off.
TRIP COMPUTER
The following information can be selected by pushing the or of the INFO button on
the steering wheel.
• Approximate distance you can travel on the available fuel (RANGE)
•
Average fuel economy •
\burrent fuel economy • Average vehicle speed

To reset, push and hold th\.e INFO button for more than 1.5 seconds.
OUTSIDE TEMPERATURE DISPLAY
The outside temperature unit can be switched between °\b and °F using\. \fystem \fettings
in the Infotainment \fystem.
IMPORTANT: When your MAZDA \bONNE\bT display setting is set on “AUTO”, the
instrument cluster and display may become dimmer when th\.e headlights are on. If the
display and instrument cluster become too dim or too bright when the headlights are on, simply rotate the dimmer knob \.located on your instrument cluster to adjust the brightness.
TPMS NOTE: Low ambient temperature and/or high altitude may cause tire pressures to
change and turn the TPM\f warning light on. If the warning light comes on, see p. 6.
2940109_18b CX-3 SSG_060817.indd 416/8/17 2:40 PM

VEHICLE PRESENTATION:
Refer to the \fmart \ftart Guide during presentation.
ESSENTIAL INFORMATION
Driver\bs View
•
Location of \fwitches and \bontrols
Advanced Keyless Entry System*
•
Door Request \fwitch*
Starting the Engine
•
Accelerated Warm-up \fystem
•
Push-Button \ftart \fystem
•
Emergency Engine \ftart/\ftop
Tire Pressure Monitoring System
•
Initialize TPM\f before delivery
Seat Warmers*
Heated Steering Wheel*
Rear Seats
MAZDA CONNECT
Infotainment System*
MAZDA CONNECT Settings*
Commander Switch
Voice Control
Bluetooth®
• Pair Phone
• Make/Receive \ball
•
Toll-Free
\bustomer \fervice 800\f430\f0153
Navigation System*
• \fD \bard
• Planning a Route
SAFETY AND TECHNOLOGY INFORMATION
Active Driving Display*
Mazda Radar Cruise Control*
Smart City Brake Support*
Smart Brake Support*
Lane Departure Warning System*
Distance Recognition Support System*
Traffic Sign Recognition
Blind Spot Monitoring
Rear Cross Traffic Alert*
GENERAL INFORMATION
Exterior Lights
Wiper / Washer
Set Clock
Adaptive Front\flighting System *
High Beam Control
Audio Controls
• Bluetooth® Audio
• \firius XM® Activation and Operation
Audio USB and AUX Inputs
Automatic Climate Control
Instrument Cluster
•
Review of Warning and Indicator
Light Function and Location
Transmission
Auto\fDimming Mirror and HomeLink®*

*If equipped
\bU\fTOMER DELIVERY \bHE\bKLI\fT
