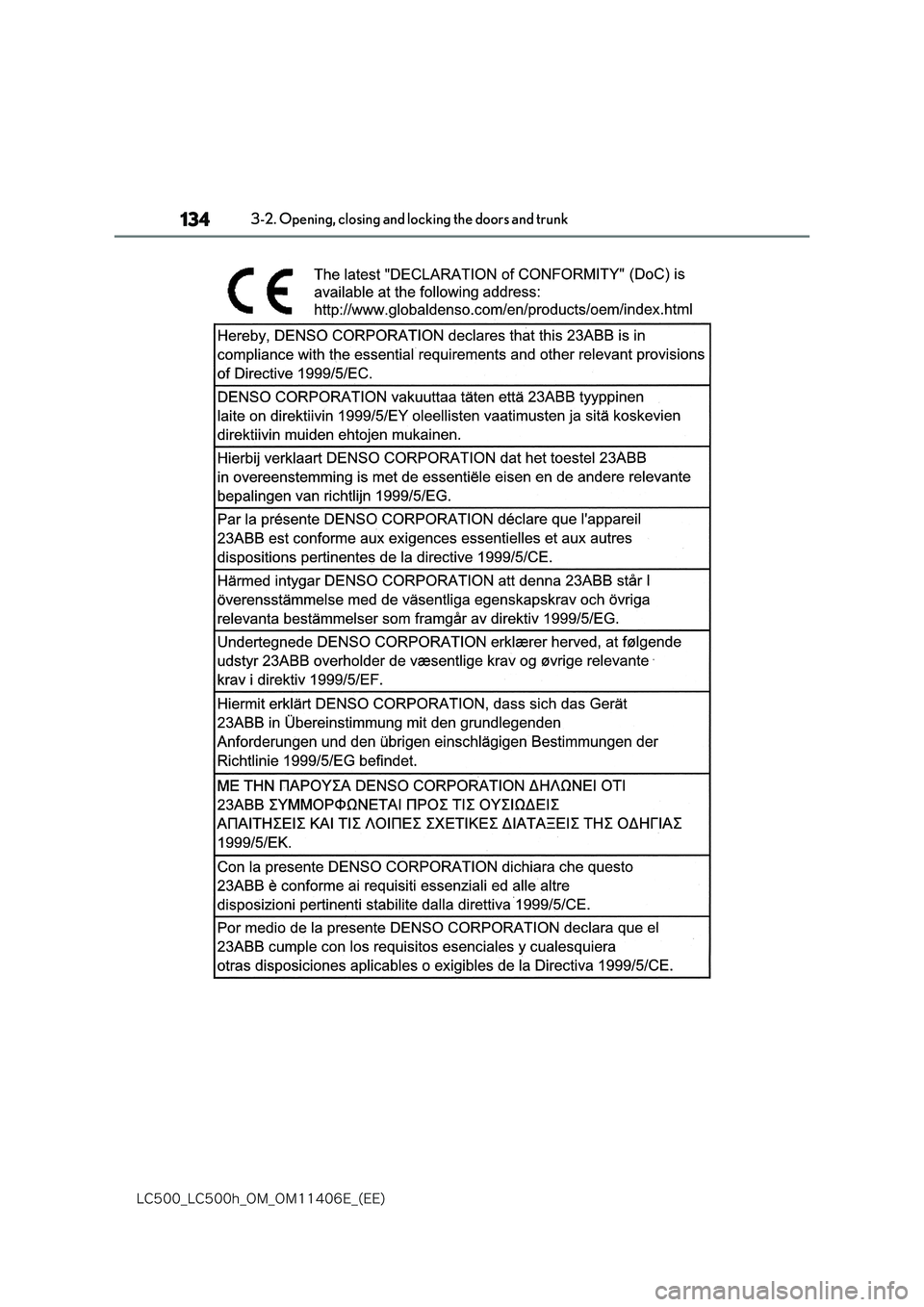

134
-$@-$I@0.@0.&@ &&

3-2. Opening, closing and locking the doors and trunk

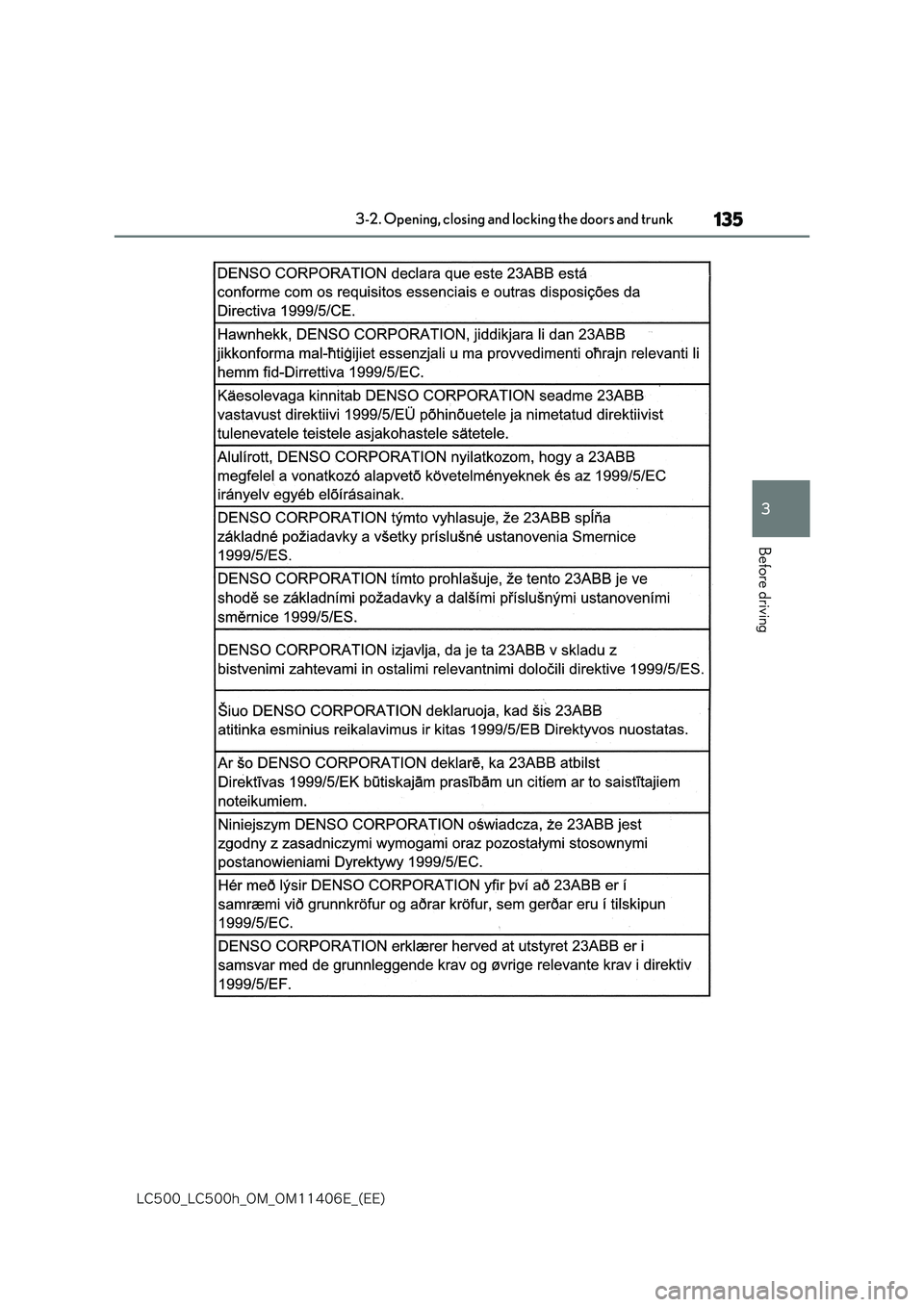

135
3
-$@-$I@0.@0.&@ &&

3-2. Opening, closing and locking the doors and trunk
Before driving

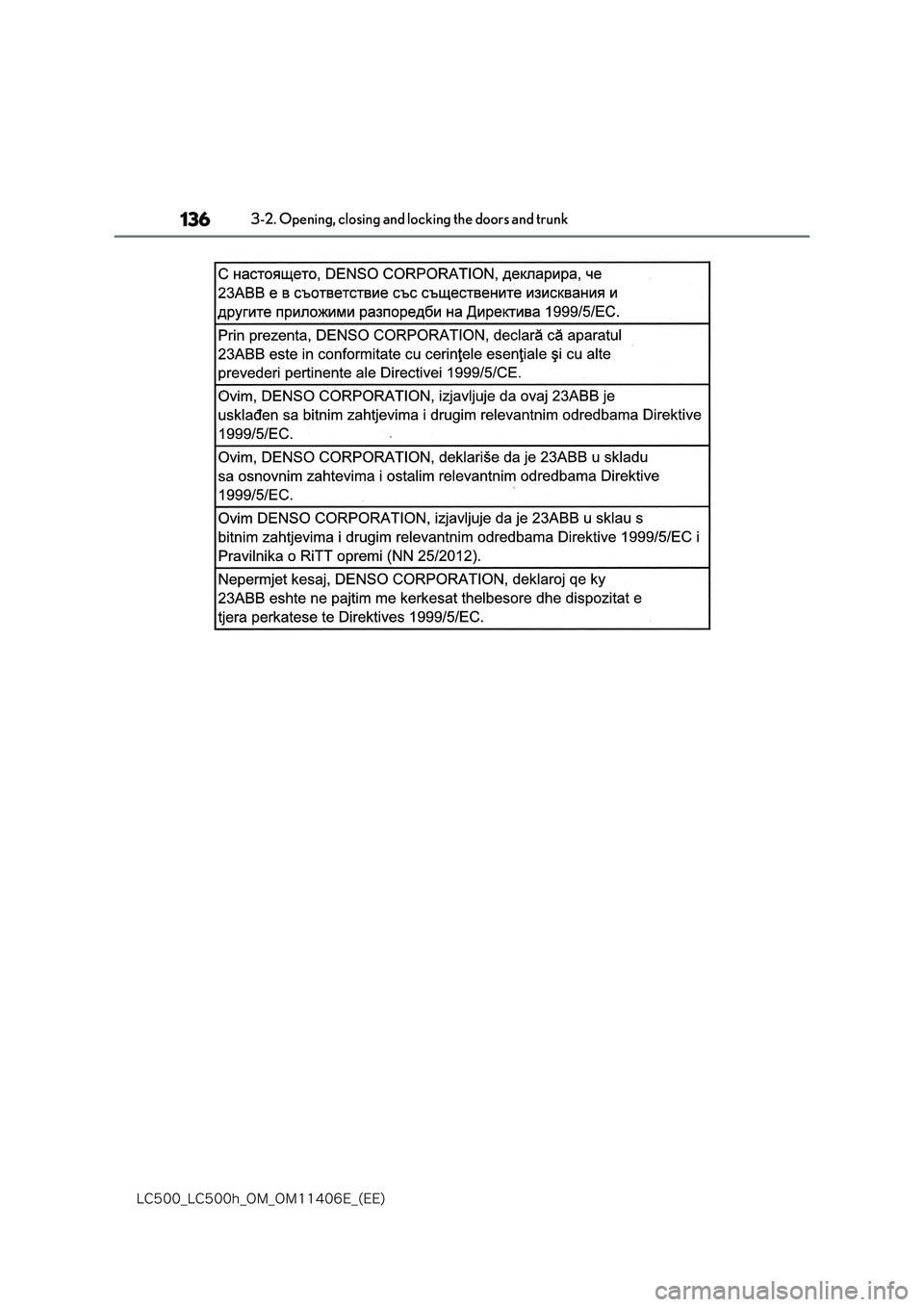

136
-$@-$I@0.@0.&@ &&

3-2. Opening, closing and locking the doors and trunk

137
3
-$@-$I@0.@0.&@ &&

3-2. Opening, closing and locking the doors and trunk
Before driving
WARNING
■Caution regarding interference with electronic devices
●People with implantable cardiac pace-makers, cardiac resynchronization therapy-pacemakers or implantable
cardioverter defibrillators should maintain a reasonable distance between themselves and the smart
entry & start system antennas. ( P.122) The radio waves may affect the opera-
tion of such devices. If necessary, the entry function can be disabled. Ask any authorized Lexus retailer or Lexus
authorized repairer, or any reliable repairer for details, such as the fre-quency of radio waves and timing of
the emitted radio waves. Then, consult your doctor to see if you should dis-able the entry function.
●Users of any electrical medical device
other than implantable cardiac pace- makers, cardiac resynchronization therapy-pacemakers or implantable
cardioverter defibrillators should con- sult the manufacturer of the device for information about its operation under
the influence of radio waves. Radio waves could have unexpected effects on the operation of such medi-
cal devices.
Ask any authorized Lexus retailer or Lexus authorized repairer, or any reliable repairer for details on disabling the entry
function.

142
-$@-$I@0.@0.&@ &&

3-3. Adjusting the seats
Carry only the key you want to register,
and then close the driver’s door.
If 2 or more keys are in the vehicle, the
driving position cannot be recorded
properly.
1 Turn the engine switch switch> to IGNITION ON mode
.
2 Check that the shift position is in P.
3 Recall the driving position that you
want to record.
4 While pressing the recalled button,
press and hold the door lock switch
(either lock or unlock) until the
buzzer sounds.
If the button could not be registered, the buzzer sounds continuously for approxi-mately 3 seconds.
■Cancelation procedure
1 Carry only the key you want to can-
cel and then close the driver’s door.
If 2 or more keys are in the vehicle, the driving position cannot be canceled prop-erly.
2 Turn the engine switch switch> to IGNITION ON mode
.
3 While pressing the “SET” button,
press and hold the door lock switch
(either lock or unlock) until the
buzzer sounds twice.
If the button could not be canceled, the buzzer sounds continuously for approxi-
mately 3 seconds.
■Recall procedure
1 Make sure that the doors are
locked before recalling the driving
position. Carry the electronic key
that has been registered to the driv-
ing position, and then unlock and
open the driver’s door using the
smart entry & start system or wire-
less remote control.
The driving position will move to the recorded position (not including the steer-
ing wheel and head-up display).
If the driving position is in a position that
has already been recorded, the seat and outside rear view mirrors will not move.
2 Turn the engine switch switch> to ACCESSORY mode or
IGNITION ON mode mode>.
The steering wheel and head-up display will move to the recorded position.
■Recalling the driving position using the
memory recall function
●Different driving positions can be regis-
tered for each electronic key. Therefore, the driving position that is recalled may be different depending on the key being
carried.
●If the passenger’s door is unlocked with
the smart entry & start system, the driving position cannot be recalled. In this case, press the driving position button which
has been set.
■Customization
The unlock door settings of the memory
recall function can be changed. (Customizable features: P.423)

148
-$@-$I@0.@0.&@ &&

3-4. Adjusting the steering wheel and mirrors
■Using the switch
Press the switch to fold the mirrors.
Press it again to extend them to the original
position.
■Setting automatic mode
Automatic mode allows the folding or
extending of the mirrors to be linked to
locking/unlocking of the doors.
Press the “AUTO” switch to set auto-
matic mode.
The indicator will come on.
Pressing the switch on ce more will return
to manual mode.
■When disconnecting and reconnecting 12-volt battery terminals
The automatic folding/extending mirror function will return to off as default. To turn the function on, press the switch again to
select on.
■Using automatic mode in cold weather
When automatic mode is used in cold
weather, the door mirror could freeze up and automatic stowing and return may not be possible. In this case, remove any ice and
snow from the door mirror, then either operate the mirror using manual mode or move the mirror by hand.
■Customization
The automatic mirror folding and extending operation can be changed.
(Customizable features: P.423)
When either “L” or “R” of the mirror
select switch is selected, the outside
rear view mirrors will automatically
angle downwards when the vehicle is
reversing in order to give a better view
WARNING
■When the outside rear view mirror defoggers are operating
Do not touch the outside rear view mir- ror surfaces, as they can become very hot and burn you.
Folding and extending the mir-
rors
A
WARNING
■When a mirror is moving
To avoid personal injury and mirror mal- function, be careful not to get your hand caught by the moving mirror.
Linked mirror function when
reversing

151
3
-$@-$I@0.@0.&@ &&

3-5. Opening, closing the windows
Before driving
again. After the door window is com- pletely closed, continue holding the switch for a further 1 second or more.
If you release the switch while the window is moving, start again from the beginning.
If the window reverses and cannot be fully closed or opened, have the vehicle inspected by any authorized Lexus retailer
or Lexus authorized repairer, or any reliable repairer.
■Door lock linked window operation
●The power windows can be opened and
closed using the mechanical key.*
( P.389)
●The power windows can be opened and
closed using the wireless remote con-
trol.* ( P.115)
*: These settings must be customized at any
authorized Lexus retailer or Lexus autho-
rized repairer, or any reliable repairer.
■Power windows open warning buzzer
The buzzer sounds and “Window Open” is
shown on the multi-information display in the instrument cluster when the engine switch is turned off and the
driver’s door is opened with the power win- dows open.
■Customization
Settings (e.g. linked door lock operation) can be changed. (Customizable features: P.423)
WARNING
Observe the following precautions. Failure to do so may result in death or serious injury.
■Closing the windows
●The driver is responsible for all the power window operations, including the operation for the passengers. In
order to prevent accidental operation, especially by a child, do not let a child operate the power windows. It is possi-
ble for children and other passengers to have body parts caught in the power window. Also, when riding with a child,
it is recommended to use the window lock switch. ( P.152)
●Check to make sure that all passen- gers do not have any part of their body
in a position where it could be caught when a window is being operated.
●When using the wireless remote con-trol or mechanical key and operating
the power windows, operate the power window after checking to make sure that there is no possibility of any
passenger having any of their body parts caught in the window. Also do not let a child operate window by the
wireless remote control or mechanical key. It is possible for children and other
passengers to get caught in the power window.
●When exiting the vehicle, turn the engine switch off, carry
the key and exit the vehicle along with the child. There may be accidental operation, due to mischief, etc., that
may possibly lead to an accident.
■Jam protection function
●Never use any part of your body to
intentionally activate the jam protec- tion function.
●The jam protection function may not work if something gets jammed just
before the window is fully closed. Be careful not to get any part of your body jammed in the window.

154
-$@-$I@0.@0.&@ &&

4-1. Before driving
4-1.Before driving
■Starting the engine tem>
 P.163, 167
■Driving
1 With the brake pedal depressed,
shift the shift position to D. ( P.175,
181)
Check that the shift position indicator shows D.
2 If the parking brake is in manual
mode, release the parking brake.
( P.187)
3 Gradually release the brake pedal
and gently depress the accelerator
pedal to accelerate the vehicle.
■Stopping
1 With the shift position in D, depress
the brake pedal.
2 If necessary, set the parking brake.
If the vehicle is to be stopped for an
extended period of time, shift the shift posi- tion to P. ( P.175, 181)
■Parking the vehicle
1 Stop the vehicle completely.
2 If the parking brake is in manual
mode, set the parking brake.
( P.187)
3 Shift the shift position to P. (P.175,
182)
Check that the shift position indicator shows P.
4 Press the engine switch switch> to stop the engine system>.
5 Slowly release the brake pedal.
6 Lock the door, making sure that you
have the electronic key on your
person.
If parking on a hill, block the wheels as
needed.
■Starting off on a steep uphill
1 Make sure that the parking brake is
set with the brake pedal depressed,
and then shift the shift position to D.
The hill-start assist control will be activated.
( P.262)
2Release the brake pedal and gently
depress the accelerator pedal.
3 Release the parking brake.
■For fuel-efficient driving (LC500h)
Keep in mind that hybrid vehicles are similar
to conventional vehicles, and it is necessary to refrain from activities such as sudden acceleration, etc. Refer to “Hybrid vehicle
driving tips”. ( P.267)
■Driving in the rain
●Drive carefully when it is raining, because
visibility will be reduced, the windows may become fogged-up, and the road will be slippery.
●Drive carefully when it starts to rain, because the road surface will be espe-
cially slippery.
●Refrain from high speeds when driving on
an expressway in the rain, because there may be a layer of water between the tires and the road surface, preventing the
steering and brakes from operating prop- erly.
Driving the vehicle
The following procedures should be
observed to ensure safe driving:
Driving procedure
