2018 FIAT 500 Owner handbook (in English)

143
LPG versions
The LPG system components are
protected by specific fuses.
Contact a Fiat Dealership for
replacement.
The number identifying the electrical
component corresponding to each
fuse is shown on the cover fig. 131.
FuseAmpereDescription
F02 20 Hi-Fi
F08 30 Climate control system fan
F09 30 Headlight washers
F10 10 Horns
F14 15 Main beam headlights
F15 20 Electric sunroof motor
F16 7.5 Dualogic gearbox control unit power supply
(+ignition)
F20 30 Heated rear window
F30 15 Fog lights
F84 10 Dualogic gearbox control unit
F85 20 Front power socket
(with or without cigar lighter)
131DVDF0S0202c

IN AN EMERGENCY
144
IF THE BATTERY IS
FLAT36)
IMPORTANT The battery recharging
procedure is provided for information
purposes only. You are advised to
contact a Fiat Dealership to have this
operation carried out.
IMPORTANT After turning the ignition
key to STOP and having closed the
driver’s side door, wait at least one
minute before disconnecting the battery
and then reconnecting the electrical
supply to the battery.
Charging should be slow at a low
ampere rating for approximately 24
hours. Charging for a longer time may
damage the battery.
Versions without Start&Stop
(for versions/markets, where provided)
To recharge, proceed as follows:
❒ disconnect the terminal from the
negative battery pole;
❒ connect the charger cables to the
battery terminals, making sure that
polarities are correct;
❒ turn on the charger;
❒ when you have finished, turn the
charger off before disconnecting the
battery;
❒ reconnect the terminal to the
negative battery pole.
Versions with Start&Stop
(for versions/markets, where provided)
To recharge, proceed as follows:
❒ disconnect the connector A fig. 132
(pressing the button B) from the
sensor C monitoring the battery
charge status, on the negative pole
D of the battery;
132DVDF0S0127c
❒ connect the positive cable of the
battery charger to the positive
battery pole E fig. 133 and the
negative cable to the terminal of
sensor D;
❒ turn on the charger. At the end of
the charging process, switch the
battery charger off;
❒ after having disconnected the
battery charger, reconnect
connector A to the sensor C as
shown in fig. 132.
133DVDF0S0128c

145
TOWING THE CAR 37)
Version with Dualogic gearbox
Make sure that the gearbox is in neutral
(N) (checking that the vehicle moves
when pushed) and proceed in the
same way as for towing a normal
vehicle with a manual gearbox.
If the gearbox cannot be put in neutral,
do not tow the vehicle and contact a
Fiat Dealership.
ATTACHING THE
TOW RING
The tow ring provided with the car is
housed in the tool box under the boot
mat.
Proceed as follows:
❒ release the front cap
A-fig. 134 or the rear cap fig. 135;
❒ take the tow hook B from its
housing in the tool support;
❒ fully tighten it on the threaded pin.
134 - frontDVDF0S0203c
135 - rearDVDF0S0204c

Blank page

147

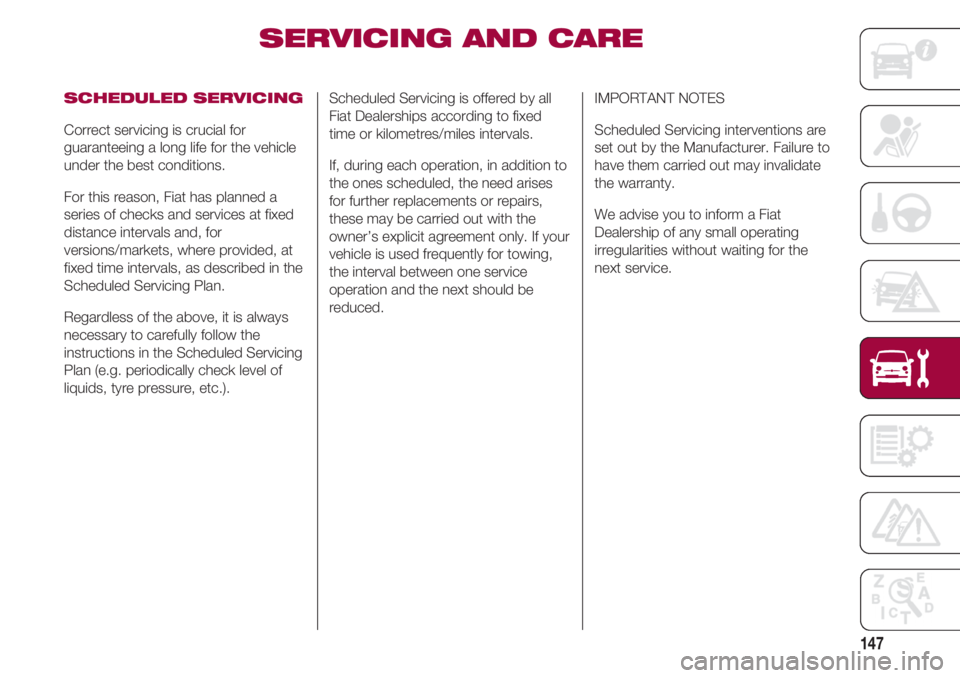

SERVICING AND CARE
SCHEDULED SERVICING
Correct servicing is crucial for
guaranteeing a long life for the vehicle
under the best conditions.
For this reason, Fiat has planned a
series of checks and services at fixed
distance intervals and, for
versions/markets, where provided, at
fixed time intervals, as described in the
Scheduled Servicing Plan.
Regardless of the above, it is always
necessary to carefully follow the
instructions in the Scheduled Servicing
Plan (e.g. periodically check level of
liquids, tyre pressure, etc.).
Scheduled Servicing is offered by all
Fiat Dealerships according to fixed
time or kilometres/miles intervals.
If, during each operation, in addition to
the ones scheduled, the need arises
for further replacements or repairs,
these may be carried out with the
owner’s explicit agreement only. If your
vehicle is used frequently for towing,
the interval between one service
operation and the next should be
reduced. IMPORTANT NOTES
Scheduled Servicing interventions are
set out by the Manufacturer. Failure to
have them carried out may invalidate
the warranty.
We advise you to inform a Fiat
Dealership of any small operating
irregularities without waiting for the
next service.

Years4321SERVICING AND CARE
148
5109876
SCHEDULED SERVICING PLAN39) 21)
Thousands of kilometres7515013512010590
PETROL/LPG VERSIONS
IMPORTANT: When you have carried out the last intervention in the table, continue with the scheduled servicing,
maintaining the frequency indicated in the plan by marking each operation with a dot or dedicated note.
Warning: simply restarting maintenance from the beginning of the plan may cause the allowed interval to be exceeded for
some operations!
60453015
Thousands of miles4590817263543627189








 Check tyre condition/wear and adjust pressure, if necessary;
check the condition/expiry date of the “Fix&Go Automatic” repair kit (for versions/markets, where provided)
Check operation of lighting system (headlights, direction indicators,
hazard warning lights, boot, passenger compartment,
glove compartment, instrument panel warning lights, etc.)
Check and, if necessary, top up fluid levels (1)
Check exhaust emissions/smokiness
Use the diagnosis socket to check supply/engine management
systems, emissions and engine oil decay
(for versions/markets, where provided)
Visually inspect the conditions of: bodywork, underbody protection,
pipes and tubes (exhaust - fuel - brakes), rubber parts
(boots, sleeves, bushes, etc.)
Check windscreen/rear window wiper blade
position/wear (for markets/versions, where provided)
Check operation of windscreen washer system and adjust jets
if necessary
Check cleanliness of bonnet and luggage compartment locks,
cleanliness and lubrication of linkage
(1) Topping up must be carried out with the fluids indicated in this Use and Maintenance Booklet and only after checking that the system is
undamaged

149
43215109876
Check soft top operation while closing and opening; check
of seals and lubrication of canvas sliding side guide
(convertible versions only)
Check handbrake lever travel and adjust, if necessary
Check and adjust clutch pedal travel (0.9 TwinAir 65 HP versions)
Check conditions and wear of front/rear disc brake pads
(for versions/markets, where provided) and operation
of pad wear indicator
Visually inspect condition and wear of the rear drum brake lining
Visually inspect condition of the accessory drive belt(s)
Inspect and if necessary adjust tensioning of accessory drive belt(s)
(for versions without automatic tensioner only)
Visually inspect conditions of toothed timing drive belt
(0.9 TwinAir versions excluded)
Check and adjust tappet clearance (1.2 8V engines)
Check and, if necessary, top up Dualogic gearbox
electro-hydraulic control oil level (2)
Visually inspect condition of: LPG pipes and connectors,
LPG tank fixing (LPG versions only)
Check fuel system operation and parameters using
the diagnosis socket (LPG versions only)
(2) Check to carry out every year for vehicles on the road in countries with particularly severe climates (cold countries)











Thousands of kilometres751501351201059060453015
Thousands of miles4590817263543627189
Years

Thousands of kilometres751501351201059060453015
Thousands of miles4590817263543627189
Years
SERVICING AND CARE
150
43215109876
❍❍❍❍❍

Replace engine oil and oil filter (3)
Replace spark plugs (0.9 TwinAir 65 HP engines) (4)
Replace spark plugs
(0.9 TwinAir 85 HP - 1.2 8V - 1.4 16V) (4)
Replace accessory drive belt(s) (5)
Replace toothed timing drive belt (1.2 8V and 1.4 16V engines) (5)
Replace air cleaner cartridge (6)
Change brake fluid (7)
Replace filter inside the pressure regulator
(LPG versions only)
Replace paper filter (LPG in gaseous state)
(LPG versions only)
Replace passenger compartment cleaner (6)
(3) If the vehicle is used mainly on urban routes or the annual distance travelled is less than 10,000 km, the engine oil and engine oil filter
must be changed every year.
(4) For 0.9 TwinAir versions, the following are essential to ensure correct operation of the engine: only use spark plugs of the same make
and type which are specially certified for such engines (see the information in the “Engine” paragraph in the “Technical specifications”
chapter); strictly comply with the spark plug replacement interval given in the Scheduled Servicing Plan; for spark plug replacement, it is
advisable to contact a FIAT Dealership.
(5) Areas that are not dusty: advised maximum mileage 120,000 km. The belt must be replaced every 6 years, regardless of distance
travelled. Dusty areas and/or heavy conditions (cold climates, urban driving, long periods of idling): the recommended maximum distance is
60,000 km. Irrespective of the mileage, the timing drive belt must be replaced every 4 years.
(6) If the vehicle is used in dusty areas, you are advised to change this filter every 15,000 km.
(7) The brake fluid replacement has to be done every 2 years, irrespective of the mileage.
(
❍) Recommended operations () Mandatory operations


❍❍❍❍❍
