Model without AUTO lighting

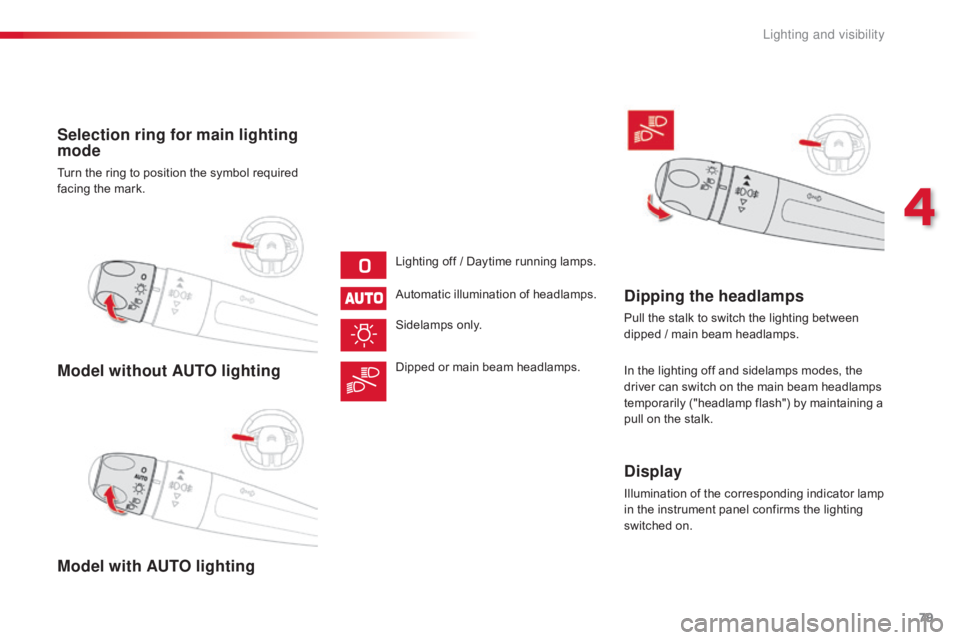

Model with AUTO lighting Selection ring for main lighting
mode
Turn the ring to position the symbol required facing   the   mark.
Lighting
  off   /   Daytime   running   lamps.
Automatic
  illumination   of   headlamps.
Sidelamps
 o

nly.
Dipped
  or   main   beam   headlamps.
Dipping the headlamps
Pull the stalk to switch the lighting between dipped   /   main   beam   headlamps.
In
  the   lighting   off   and   sidelamps   modes,   the
d

river   can   switch   on   the   main   beam   headlamps
t

emporarily   ("headlamp   flash")   by   maintaining   a
p

ull   on   the   stalk.
Display
Illumination of the corresponding indicator lamp in   the   instrument   panel   confirms   the   lighting
s

witched   on.
4
Lighting and visibility

80
C4-cactus_en_Chap04_Eclairage-et-visibilite_ed01-2016
Foglamp selection ring
The foglamps operate with dipped and main beam headlamps.
Front foglamps and rear
foglamp
When the headlamps switch off with automatic illumination   of   headlamps   (AUTO   model)
o

r   when   the   dipped   beam   headlamps   are
s

witched   off   manually,   the   foglamps   and
si

delamps
 re
main
 o
n.
F

T
urn   the   ring   rear wards   to   switch   off
t

he   foglamps,   the   sidelamps   will   then
s

witch off.
Rear foglamp only
F To   switch   it   on,   turn   the   ring   for wards.
When   the   lighting   is   switched   off   automatically
(

with   AUTO   model),   the   foglamp   and   the   dipped
b

eam   headlamps   will   remain   on.
F

T
o   switch   it   off,   turn   the   ring   rear wards.Rotate
  and   release   the   ring:
F  f or wards   a   first   time   to   switch   on   the   front
fo

glamps,
F

f
or wards   a   second   time   to   switch   on   the
r

ear
 fo
glamp,
F

r
ear wards   a   first   time   to   switch   off   the   rear
fo

glamp,
F

r
ear wards   a   second   time   to   switch   of   the
f

ront   fog   lamps.
Lighting and visibility

81
C4-cactus_en_Chap04_Eclairage-et-visibilite_ed01-2016
In good or rainy weather, both day and   night,   the   front   foglamps   and   the
r

ear   foglamp   are   prohibited.   In   these
s

ituations,   the   power   of   their   beams
m

ay   dazzle   other   drivers.   They   should
o

nly   be   used   in   fog   or   snow.
In these weather conditions, it is your
responsibility
  to   switch   on   the   foglamps
a

nd   dipped   beam   headlamps   manually
a

s   the   sunshine   sensor   may   detect
s

ufficient   light.
Do
  not   forget   to   switch   off   the   front
f

oglamps   and   the   rear   foglamp   when
t

hey   are   no   longer   necessary.Switching off the lamps when
the ignition is switched off
On switching off the ignition, all of the lamps   turn   off   immediately,   except   for
d

ipped   beam   if   guide-me-home   lighting
i

s   activated.
Switching on the lamps
after the ignition is
switched off
To reactivate the lighting control, rotate the   ring   to   the   "0"  position   -   lamps   off,
t

hen   to   the   desired   position.
On
  opening   the   driver's   door   a
t

emporary   audible   signal   warns   the
d

river   that   the   lighting   is   on.
The
  lamps,   with   the   exception   of   the
s

idelamps,   switch   off   automatically   after
a

  maximum   duration   of   thirty   minutes   to
p

revent   discharging   of   the   battery.
Direction indicators
F Left:  lower   the   lighting   stalk   passing   the  p
oint   of   resistance.
F

R
ight:   raise   the   lighting   stalk   passing   the
p

oint   of   resistance.
Three flashes of the direction
indicators
F Press briefly upwards or downwards, without   going   beyond   the   point   of
r

esistance;   the   direction   indicators   will
f

lash   3   times.
4
Lighting and visibility

82
C4-cactus_en_Chap04_Eclairage-et-visibilite_ed01-2016
Automatic illumination
of headlamps
Activation
F Turn  the   ring   to   the   "AUTO"  position.   The  a
ctivation   of   the   function   is   accompanied
b

y   the   display   of   a   message.
When

a

low

level

of

ambient

light

is

detected

b

y

a

sunshine

sensor,

the

number

plate

lam

ps,


sidelamps
 an

d
 d

ipped
 b

eam
 h

eadlamps
 a

re

switched

on

automatically,

without

any

a

ction

on

the

part

of

the

driver.

They

can

also

c

ome

on

if

rain

is

detected,

at

the

same

time

as

a

utomatic

operation

of

the

windscreen

wipers.
As

soon

as

the

brightness

returns

to

a

s

ufficient level or after the windscreen wipers
are

switched

off,

the

lamps

are

switched

off

au

tomatically.
Deactivation
F Turn   the   ring   to   another   position.  D
eactivation of the function is
accompanied
  by   the   display   of   a   message.
Operating fault
In the event of a malfunction of the sunshine   sensor,   the   lighting   comes
o

n,   this   warning   lamp   is   displayed
I

n

fog   or   snow,   the   sunshine   sensor
m

ay

detect   sufficient   light.   In   this
c

ase,   the   lighting   will   not   come   on
au

tomatically.
Do not cover the sunshine sensor,
coupled with the rain sensor and
located in the centre of the windscreen
behind
  the   rear   view   mirror;   the
a

ssociated   functions   would   no   longer
be c

ontrolled.
Contact

a

CITROËN   dealer   or   a   qualified
w

orkshop.
in

the

instrument   panel   accompanied   by   an
a

udible

signal   and/or   a   message.
Lighting and visibility

83
C4-cactus_en_Chap04_Eclairage-et-visibilite_ed01-2016
Parking lamps
Side markers for the vehicle by illumination of the   sidelamps   on   the   traffic   side   only.
F

D
epending   on   version,   within   one   minute
o

f   switching   off   the   ignition,   operate   the
l

ighting   control   stalk   up   or   down   depending
o

n   the   traffic   side   (for   example:   when
p

arking   on   the   left;   lighting   control   stalk
u

pwards;   the   right   hand   sidelamps   are   on).
This
  is   confirmed   by   an   audible   signal   and
i

llumination   of   the   corresponding   direction
i

ndicator   warning   lamp   in   the   instrument   panel.
To
  switch   off   the   parking   lamps,   return   the
l

ighting   control   stalk   to   the   central   position.
Daytime running lamps / Sidelamps
(LEDs)
The light-emitting diodes (LEDs) come on automatically   when   the   engine   is   started.
In
  some   weather   conditions   (e.g.   low
t

emperature   or   humidity),   the   presence
o

f   misting   on   the   internal   sur face   of   the
g

lass   of   the   headlamps   and   rear   lamps
i

s   normal;   it   disappears   after   the   lamps
h

ave   been   on   for   a   few   minutes.They
  provide   the   following   functions:
-  D aytime   running   lamps   (lighting   control
s

talk   in   position   "0 " or " AUTO " with
adequate
  light   level).
-

S
idelamps   (lighting   control   stalk   in
p

osition "AUTO"
  with   low   light   level   or
"

Sidelamps   only"   or   "Main   or   dipped   beam
h

eadlamps").The
  LEDs   are   brighter   when   operating
a

s   daytime   running   lamps.
4
Lighting and visibility

84
C4-cactus_en_Chap04_Eclairage-et-visibilite_ed01-2016
Switching on
F W ith   the   ignition   off,   "flash"   the   headlamps
u

sing   the   lighting   stalk.
F

A
  further   "headlamp   flash"   switches   the
f

unction   off.
Switching off
The
  manual   guide-me-home   lighting   switches
o

ff   automatically   after   a   set   time.
The
  temporary   illumination   of   the   dipped   beam
h

eadlamps   after   the   vehicle's   ignition   has   been
s

witched   off   makes   the   driver's   exit   easier
w

hen   the   light   is   poor.
Guide-me-home

lighting
Automatic
When the automatic illumination of headlamps i
s   activated,   if   the   ambient   light   level   is
l

ow,   the   dipped   beam   headlamps   come   on
a

utomatically   when   switching   off   the   ignition.
Activation
  or   deactivation   of   the   system,   as   well
a

s   the   period   for   the   guide-me-home   lighting   is
s

et   in   the   touch   screen   tablet.
F

Sel
ect the "Driving assistance "
menu,
  then   "Vehicle settings ".
Manual
Headlamp beam
h

eight
 ad
justment
To avoid causing a nuisance to other road users, t
he   height   of   the   headlamp   beams   should   be a

djusted   according   to   the   load   in   the   vehicle.
The
  initial   setting   is   position   "0".
0.

D
river only
 o

r   driver   +   front   passenger.
-.

D
river   +   front   passenger   +   rear
p

assengers.
1.
 D

river   +   front   passenger   +   rear   passengers   +
 l

oad   in   the   boot.
-.
 D

river   +   front   passenger   +   rear   passengers   +
 l

oad   in   the   boot.
2.
 D

river   only   +   maximum   authorised   load   in
t

he   boot.
This
  position   is   sufficient   to   avoid   causing   dazzle.
Higher
  settings   may   limit   the   spread   of   light   from
 t

he
 hea
dlamps.
Lighting and visibility

85
C4-cactus_en_Chap04_Eclairage-et-visibilite_ed01-2016
Cornering lighting
With dipped or main beams, this system makes   use   of   the   beam   from   a   front
f

oglamp   to   illuminate   the   inside   of   a   bend,
w

hen   the   vehicle   speed   is   below   25   mph
(

approximately 40   km/h)   (urban   driving,   winding
r

oad,   intersections,   parking   manoeuvres...).With cornering l
ighting
Without cornering
 l
ighting
Switching on
This system starts:
-  w hen   the   corresponding   direction   indicator
i

s switched on,


or
-

f
rom   a   certain   angle   of   rotation   of   the
s

teering
 w
heel.
Switching off
The system does not operate:
-  b elow   a   certain   angle   of   rotation   of   the
s

teering
 w
heel,
-

a
bove   25   mph   (40   km/h),
-

w
hen   reverse   gear   is   engaged.
4
Lighting and visibility

86
C4-cactus_en_Chap04_Eclairage-et-visibilite_ed01-2016
Wiper control stalk
Manual controls
The wipers are controlled directly by the driver.
Model with AUTO wiping Model with manual wipingWindscreen wipers
Wiping speed control stalk: raise or lower the s
talk   to   the   desired   position.
Fast
  wipe   (heavy   rain).
Normal
  wipe   (moderate   rain).
Intermittent
  wipe   (proportional   to   the
s

peed   of   the   vehicle).
Park.
Single
  wipe   (press   downwards   or   pull
t

he   stalk   briefly   towards   you,   then
r

elease).
or Automatic
  wiping   (press   down,
t

hen   release)   or   single   wipe   (pull
t

he   stalk   briefly   towards   you).
Do not operate the wipers on a dry
windscreen.

Under

extremely

hot

or

c

old conditions, ensure that the wiper
blades

are

not

stuck

to

the

windscreen

b

efore

operating

the

wipers.
In

wintry

conditions,

remove

snow,

ice

o

r frost present on the windscreen,
around

the

wiper

arms

and

blades

and
 t
he

windscreen

seal,

before

operating

t

he

wipers.
Lighting and visibility
