2018 CHRYSLER PACIFICA Owners Manual

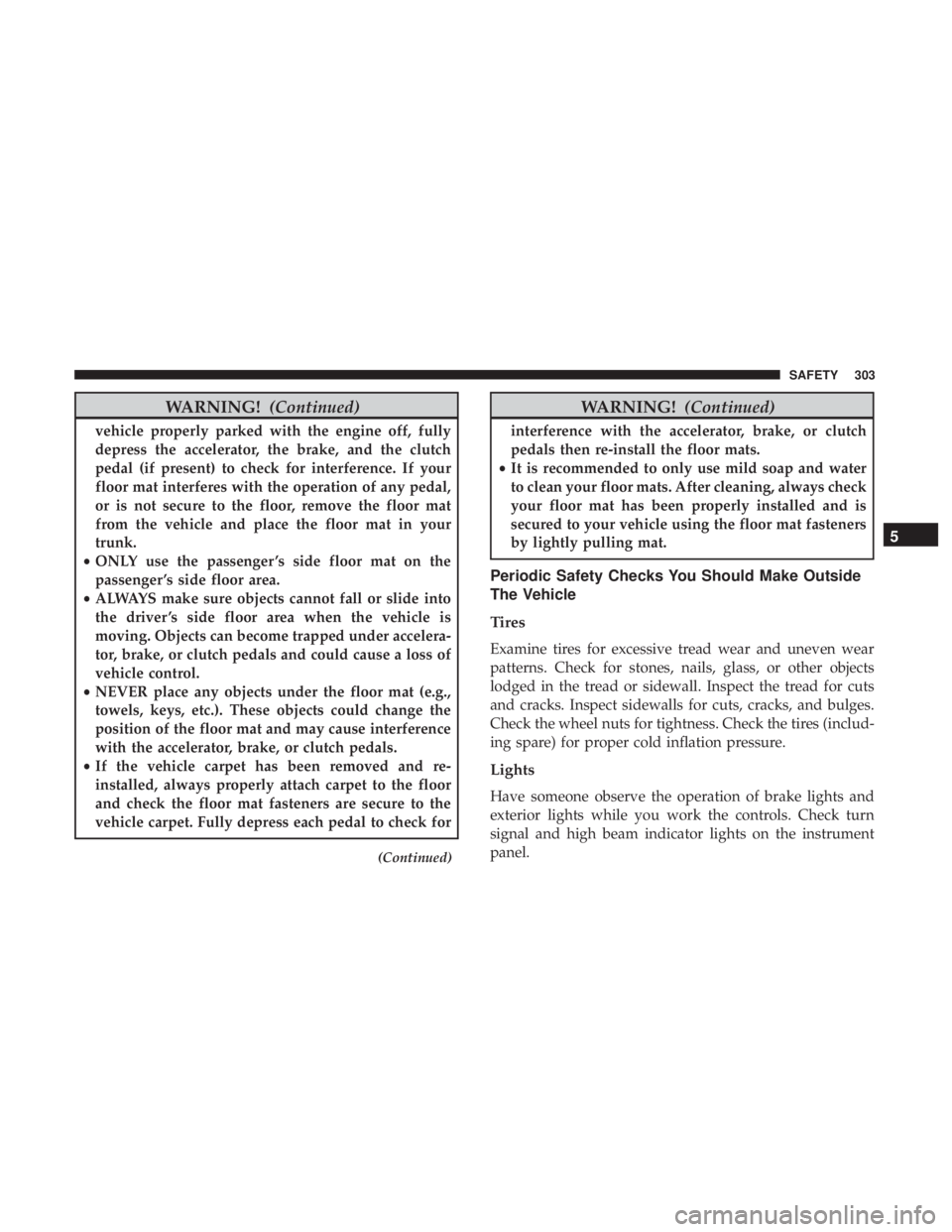

WARNING!(Continued)
vehicle properly parked with the engine off, fully
depress the accelerator, the brake, and the clutch
pedal (if present) to check for interference. If your
floor mat interferes with the operation of any pedal,
or is not secure to the floor, remove the floor mat
from the vehicle and place the floor mat in your
trunk.
• ONLY use the passenger ’s side floor mat on the
passenger ’s side floor area.
• ALWAYS make sure objects cannot fall or slide into
the driver ’s side floor area when the vehicle is
moving. Objects can become trapped under accelera-
tor, brake, or clutch pedals and could cause a loss of
vehicle control.
• NEVER place any objects under the floor mat (e.g.,
towels, keys, etc.). These objects could change the
position of the floor mat and may cause interference
with the accelerator, brake, or clutch pedals.
• If the vehicle carpet has been removed and re-
installed, always properly attach carpet to the floor
and check the floor mat fasteners are secure to the
vehicle carpet. Fully depress each pedal to check for
(Continued)
WARNING! (Continued)
interference with the accelerator, brake, or clutch
pedals then re-install the floor mats.
• It is recommended to only use mild soap and water
to clean your floor mats. After cleaning, always check
your floor mat has been properly installed and is
secured to your vehicle using the floor mat fasteners
by lightly pulling mat.
Periodic Safety Checks You Should Make Outside
The Vehicle
Tires
Examine tires for excessive tread wear and uneven wear
patterns. Check for stones, nails, glass, or other objects
lodged in the tread or sidewall. Inspect the tread for cuts
and cracks. Inspect sidewalls for cuts, cracks, and bulges.
Check the wheel nuts for tightness. Check the tires (includ-
ing spare) for proper cold inflation pressure.
Lights
Have someone observe the operation of brake lights and
exterior lights while you work the controls. Check turn
signal and high beam indicator lights on the instrument
panel.
5
SAFETY 303

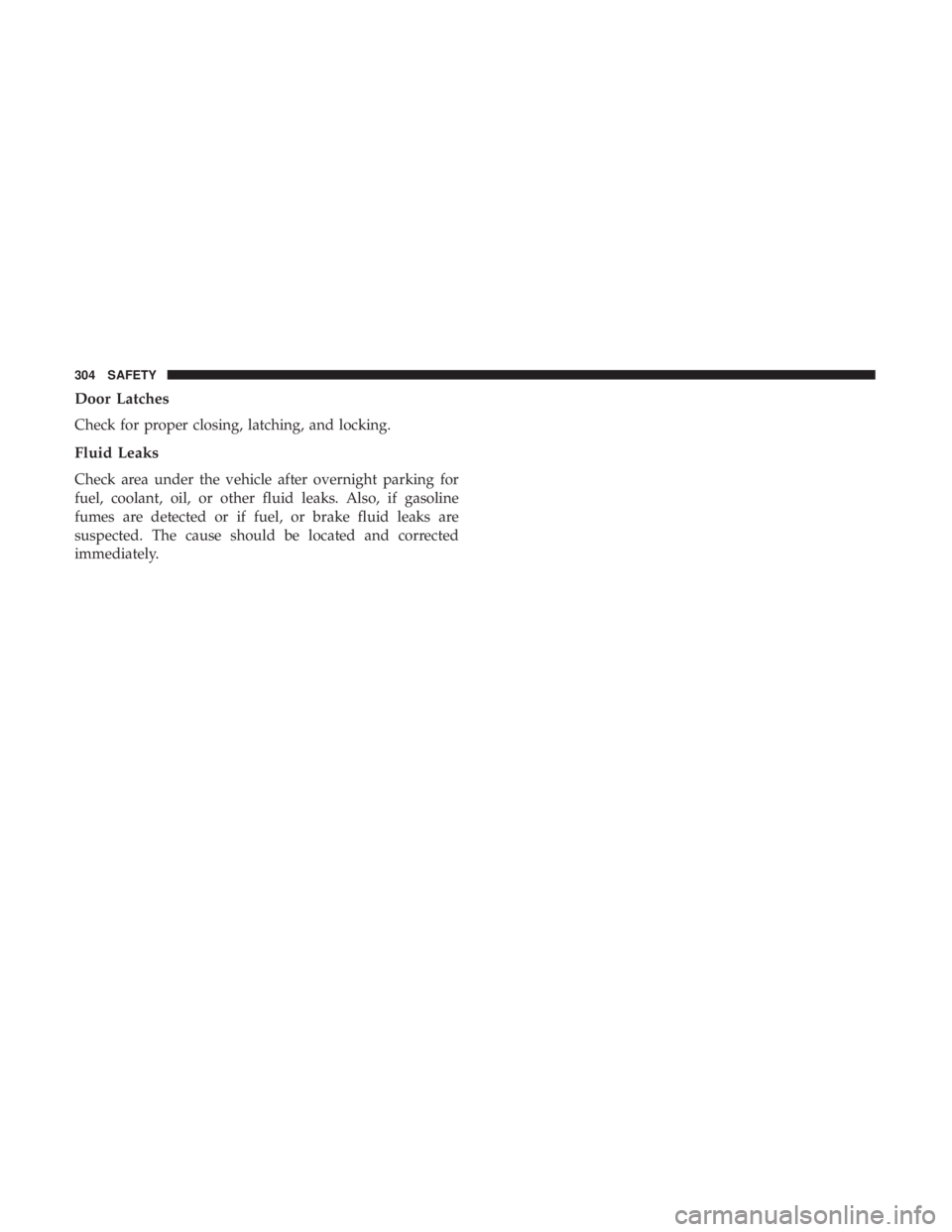

Door Latches
Check for proper closing, latching, and locking.
Fluid Leaks
Check area under the vehicle after overnight parking for
fuel, coolant, oil, or other fluid leaks. Also, if gasoline
fumes are detected or if fuel, or brake fluid leaks are
suspected. The cause should be located and corrected
immediately.
304 SAFETY

STARTING AND OPERATING
CONTENTS
STARTING THE ENGINE ..................309
▫ Normal Starting .......................309
▫ Cold Weather Operation
(Below –22°F Or 30°C) ..................310
▫ After Starting — Warming Up The Engine .....310
▫ If Engine Fails To Start ..................310
▫ To Turn Off The Engine Using ENGINE
START/STOP Button ....................311
 ENGINE BLOCK HEATER — IF EQUIPPED . . . .311
 ENGINE BREAK-IN RECOMMENDATIONS . . . .312
 PARK BRAKE ..........................313
▫ Electric Park Brake (EPB) .................313
 AUTOMATIC TRANSMISSION ..............317
▫ Ignition Park Interlock ...................318
▫ Brake/Transmission Shift Interlock System . . . .319 ▫
Nine-Speed Automatic Transmission .........319
▫ Gear Ranges ..........................320
 ACTIVE NOISE CANCELLATION ............325
 POWER STEERING ..................... .325
 STOP/START SYSTEM — IF EQUIPPED ........326
▫ Auto Stop/Start ........................326
▫ Possible Reasons The Engine Does Not
Autostop ............................327
▫ To Start The Engine While In Auto Stop/Start. . .328
▫ To Manually Turn Off The Stop/Start System . . .328
▫ To Manually Turn On The Stop/Start System . . .329
▫ System Malfunction .....................329
 SPEED CONTROL — IF EQUIPPED ..........330
▫ To Activate .......................... .330
6

▫To Set A Desired Speed ...................331
▫ To Vary The Speed Setting ................331
▫ To Accelerate For Passing .................332
▫ To Resume Speed ..................... .332
▫ To Deactivate ........................ .332
 ADAPTIVE CRUISE CONTROL (ACC) —
IF EQUIPPED ..........................332
▫ Adaptive Cruise Control (ACC) Operation .....334
▫ Activating Adaptive Cruise Control (ACC) .....335
▫ To Activate/Deactivate ...................335
▫ To Set A Desired ACC Speed ...............336
▫ To Cancel ............................336
▫ ToTurnOff.......................... .337
▫ To Resume .......................... .337
▫ To Vary The Speed Setting ................337
▫ Setting The Following Distance In ACC .......339
▫ Overtake Aid ..........................341 ▫
ACC Operation At Stop ..................342
▫ Adaptive Cruise Control (ACC) Menu ........342
▫ Display Warnings And Maintenance .........343
▫ Precautions While Driving With ACC .........345
▫ General Information .....................348
▫ Normal (Fixed Speed) Cruise Control Mode . . . .349
 PARKSENSE REAR PARK ASSIST —
IF EQUIPPED ..........................351
▫ ParkSense Sensors ..................... .353
▫ ParkSense Visual Alert ...................353
▫ ParkSense Display ..................... .353
▫ Enabling And

Disabling ParkSense ..........358
▫ Service The ParkSense Rear Park Assist System. .358
▫ Cleaning The ParkSense System .............359
▫ ParkSense System Usage Precautions .........359
 PARKSENSE FRONT AND REAR PARK
ASSIST — IF EQUIPPED ..................360
▫ ParkSense Sensors ..................... .362
306 STARTING AND OPERATING

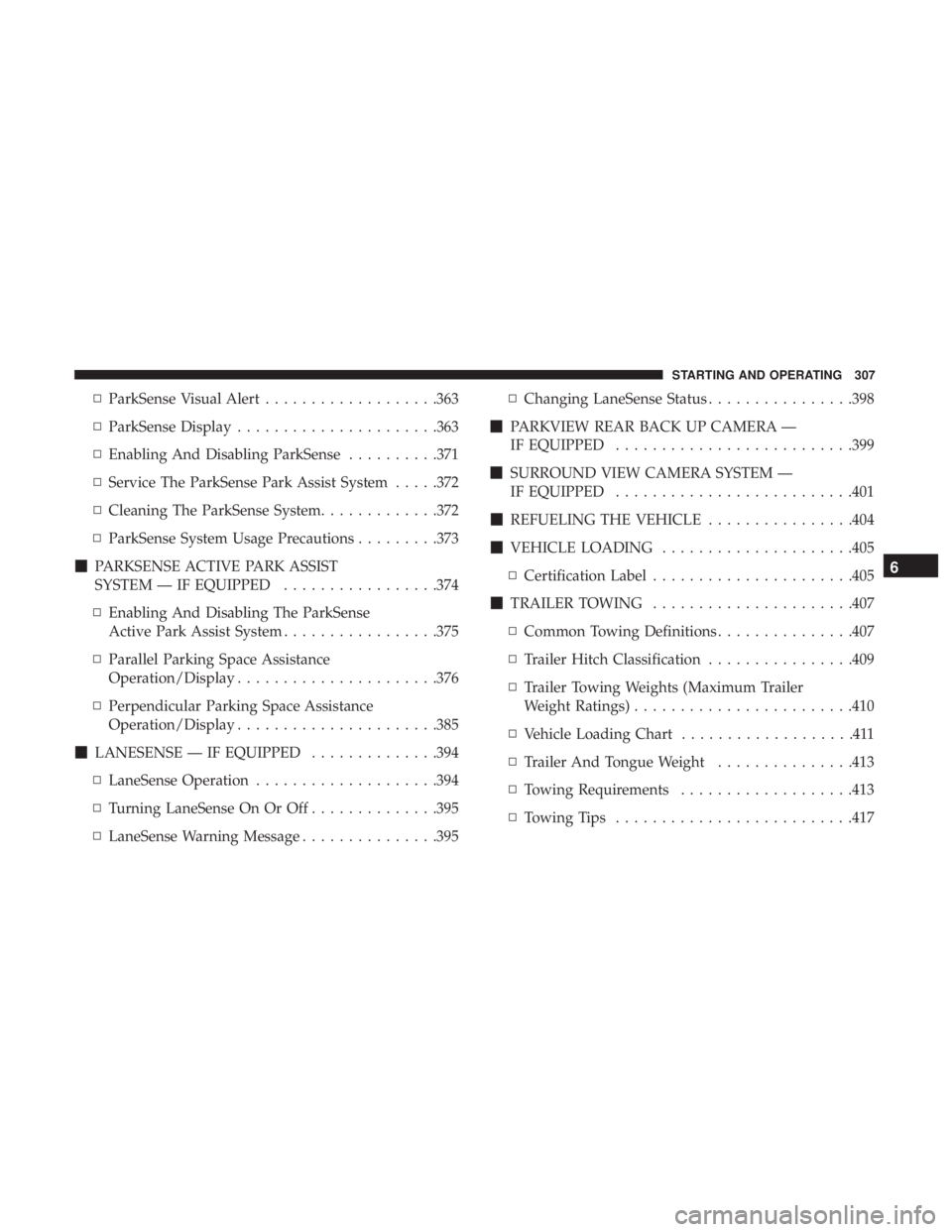

▫ParkSense Visual Alert ...................363
▫ ParkSense Display ..................... .363
▫ Enabling And Disabling ParkSense ..........371
▫ Service The ParkSense Park Assist System .....372
▫ Cleaning The ParkSense System .............372
▫ ParkSense System Usage Precautions .........373
 PARKSENSE ACTIVE PARK ASSIST
SYSTEM — IF EQUIPPED .................374
▫ Enabling And Disabling The ParkSense
Active Park Assist System .................375
▫ Parallel Parking Space Assistance
Operation/Display ..................... .376
▫ Perpendicular Parking Space Assistance
Operation/Display ..................... .385
 LANESENSE — IF EQUIPPED ..............394
▫ LaneSense Operation ....................394
▫ Turning LaneSense On Or Off ..............395
▫ LaneSense Warning Message ...............395 ▫
Changing LaneSense Status ................398
 PARKVIEW REAR BACK UP CAMERA —
IF EQUIPPED ..........................399
 SURROUND VIEW CAMERA SYSTEM —
IF EQUIPPED ..........................401
 REFUELING THE VEHICLE ................404
 VEHICLE LOADING .....................405
▫ Certification Label ..................... .405
 TRAILER TOWING ..................... .407
▫ Common Towing Definitions ...............407
▫ Trailer Hitch Classification ................409
▫ Trailer Towing Weights (Maximum Trailer
Weight Ratings) ........................410
▫ Vehicle

Loading Chart ...................411
▫ Trailer And Tongue Weight ...............413
▫ Towing Requirements ...................413
▫ Towing Tips ..........................417
6
STARTING AND OPERATING 307

RECREATIONAL TOWING (BEHIND
MOTORHOME, ETC.) ....................418
▫ Towing This Vehicle Behind Another Vehicle. . . .418
▫ Recreational Towing — All Models ..........418
DRIVING TIPS ..........................419
▫ Driving On Slippery Surfaces ..............419
▫ Driving Through Water ..................420
308 STARTING AND OPERATING

STARTING THE ENGINE
Before starting your vehicle, adjust your seat, adjust both
inside and outside mirrors, and fasten your seat belts.
WARNING!
•When exiting the vehicle, always remove the key fob
from the vehicle and lock your vehicle.
• Never leave children alone in a vehicle, or with
access to an unlocked vehicle.
• Allowing children to be in a vehicle unattended is
dangerous for a number of reasons. A child or others
could be seriously or fatally injured. Children
should be warned not to touch the parking brake,
brake pedal or the transmission gear selector.
• Do not leave the key fob in or near the vehicle, or in
a location accessible to children, and do not leave the
ignition of a vehicle equipped with Keyless Enter-
N-Go in the ACC or ON/RUN mode. A child could
operate power windows, other controls, or move the
vehicle.
• Do not leave children or animals inside parked
vehicles in hot weather. Interior heat build-up may
cause serious injury or death. Start the engine with the gear selector in the NEUTRAL or
PARK position. Apply the brake before shifting to any
driving range.
Normal Starting
NOTE:
Normal starting of either a cold or a warm engine
is obtained without pumping or pressing the accelerator
pedal.
To Turn On The Engine Using ENGINE START/STOP
Button
1. The transmission must be in PARK or NEUTRAL.
2. Press and hold the brake pedal while pushing the ENGINE START/STOP button once.
3. The system takes over and attempts to start the vehicle. If the vehicle fails to start, the starter will disengage
automatically after 10 seconds.
4. If you wish to stop the cranking of the engine prior to the engine starting, push the button again.
6
STARTING AND OPERATING 309

ENGINE START/STOP Button Functions — With Driv-
er ’s Foot OFF The Brake Pedal (In PARK Or NEUTRAL
Position)
The ENGINE START/STOP button operates similar to an
ignition switch. It has three positions, OFF, ACC, and RUN.
To change the ignition positions without starting the ve-
hicle and use the accessories follow these steps:
•Starting with the ignition in the OFF position,
• Push the ENGINE START/STOP button once to place
the ignition to the ACC position (instrument cluster will
display “ACC”),
• Push the ENGINE START/STOP button a second time to
place the ignition to the RUN position (instrument
cluster will display “ON/RUN”),
• Push the ENGINE START/STOP button a third time to
return the ignition to the OFF position (instrument
cluster will display “OFF”).
Cold Weather Operation (Below –22°F Or 30°C)
To ensure reliable starting at these temperatures, use of an
externally powered electric engine block heater (available
from your authorized dealer) is recommended.
After Starting — Warming Up The Engine
The idle speed is controlled automatically and it will
decrease as the engine warms up.
If Engine Fails To Start
WARNING!
•Never pour fuel or other flammable liquid into the
throttle body air inlet opening in an attempt to start
the vehicle. This could result in flash fire causing
serious personal injury.
• Do not attempt to push or tow your vehicle to get it
started. Vehicles equipped with an automatic trans-
mission cannot be started this way. Unburned fuel
could enter the catalytic converter and once the
engine has started, ignite and damage the converter
and vehicle.
• If the vehicle has a discharged battery, booster cables
may be used to obtain a start from a booster battery
or the battery in another vehicle. This type of start
can be dangerous if done improperly. Refer to “Jump
Starting Procedure” in “In Case Of Emergency” for
further information.
310 STARTING AND OPERATING
