2018 CHRYSLER PACIFICA Owners Manual

▫Conversation Mirror .....................91
▫ Power Mirrors — If Equipped ..............91
▫ Outside Mirrors Folding Feature ............92
▫ Heated Mirrors — If Equipped .............92
▫ Tilt Side Mirrors In Reverse (Available With
Memory Seat Only) — If Equipped ...........92
▫ Power Folding Mirrors — If Equipped .........92
▫ Illuminated Vanity Mirrors — If Equipped .....93
 EXTERIOR LIGHTS .......................94
▫ Multifunction Lever .....................94
▫ Headlight Switch ........................94
▫ Daytime Running Lights — If Equipped .......95
▫ High/Low Beam Switch ...................95
▫ Automatic High Beam — If Equipped ........95
▫ Flash-To-Pass ..........................96
▫ Automatic Headlights — If Equipped .........96
▫ Headlights On With Wipers — If Equipped .....96▫
Headlight Delay — If Equipped .............96
▫ Lights-On Reminder .....................97
▫ Front Fog Lights — If Equipped .............97
▫ Turn Signals ...........................97
▫ Lane Change Assist — If Equipped ..........98
▫ Battery Protection .......................98
 INTERIOR LIGHTS .......................98
▫ Courtesy/Interior Lighting ................98
 WINDSHIELD WIPER AND WASHERS ........101
▫ Windshield Wiper Operation ..............101
▫ Rain Sensing Wipers — If Equipped .........102
▫ Rear Wiper And Washer ..................103
 CLIMATE CONTROLS ....................104
▫ Manual Climate Controls Overview .........104
▫ Automatic Uconnect 4 Climate Control
Overview ............................117
3
GETTING TO KNOW YOUR VEHICLE 15

▫Automatic Uconnect 4C/4C NAV Climate
Control Overview ......................118
▫ Climate Control Functions .................129
▫ Automatic Temperature Control (ATC) —
If Equipped ..........................130
▫ Operating Tips ........................130
 WINDOWS ............................132
▫ Power Windows ........................132
 TRI-PANE PANORAMIC SUNROOF —
IF EQUIPPED ..........................135
▫ Opening Sunroof .......................136
▫ Closing Sunroof ........................137
▫ Wind Buffeting ........................137
▫ Power Sun Shade — If Equipped ............138
▫ Pinch Protect Feature ....................138
▫ Sunroof Maintenance ....................139
▫ Ignition Off Operation ...................139
 HOOD ...............................139 ▫
Opening ............................ .139
▫ Closing ............................. .140
 LIFTGATE ............................ .141
▫ Opening ............................ .141
▫ Closing ............................ .142
▫ Power Liftgate — If Equipped .............142
▫ Hands-Free Liftgate — If Equipped ..........144
▫ Cargo Area Features ....................146
 GARAGE DOOR OPENER — IF EQUIPPED . . . .154
▫ Before You Begin Programming HomeLink .....155
▫ Canadian/Gate Operator
Programming.......158
▫ Using HomeLink .......................159
▫ Security ............................. .159
▫ Troubleshooting Tips ....................159
▫ General Information .....................160
 INTERNAL EQUIPMENT ..................161
▫ Storage ............................. .161
16 GETTING TO KNOW YOUR VEHICLE

▫Sun Screens — If Equipped ................168
▫ Power Outlets ........................ .168
▫ Power Inverter — If Equipped .............171
▫ Cigar Lighter — If Equipped ..............172
▫ Smoker’s Package Kit — If Equipped ........172▫
Overhead Sunglass Storage ...............173
 ROOF LUGGAGE RACK — IF EQUIPPED ......173
▫ Deploying The Crossbars .................174
▫ Stowing The Crossbars ...................177
3
GETTING TO KNOW YOUR VEHICLE 17

KEYS
Key Fob
Your vehicle uses a keyless ignition system. The ignition
system consists of a key fob with Remote Keyless Entry
(RKE) and a START/STOP push button ignition system.
The Remote Keyless Entry system consists of a key fob and
Keyless Enter-N-Go feature.
NOTE:The key fob may not be found if it is located next to
a mobile phone, laptop or other electronic device; these
devices may block the key fob’s wireless signal.
This system allows you to lock or unlock the doors and
liftgate, activate the Panic Alarm, optional power liftgate,
left power sliding door, and right power sliding door from
distances up to approximately 66 ft (20 m) using a key fob.
The key fob does not need to be pointed at the vehicle to
activate the system. NOTE:
The emergency key allows for entry into the
vehicle should the battery in the vehicle or the key fob go
dead. The emergency key is also for locking/unlocking the
glove compartment. You can keep the emergency key with
you when valet parking.
Three Button Key Fob
18 GETTING TO KNOW YOUR VEHICLE

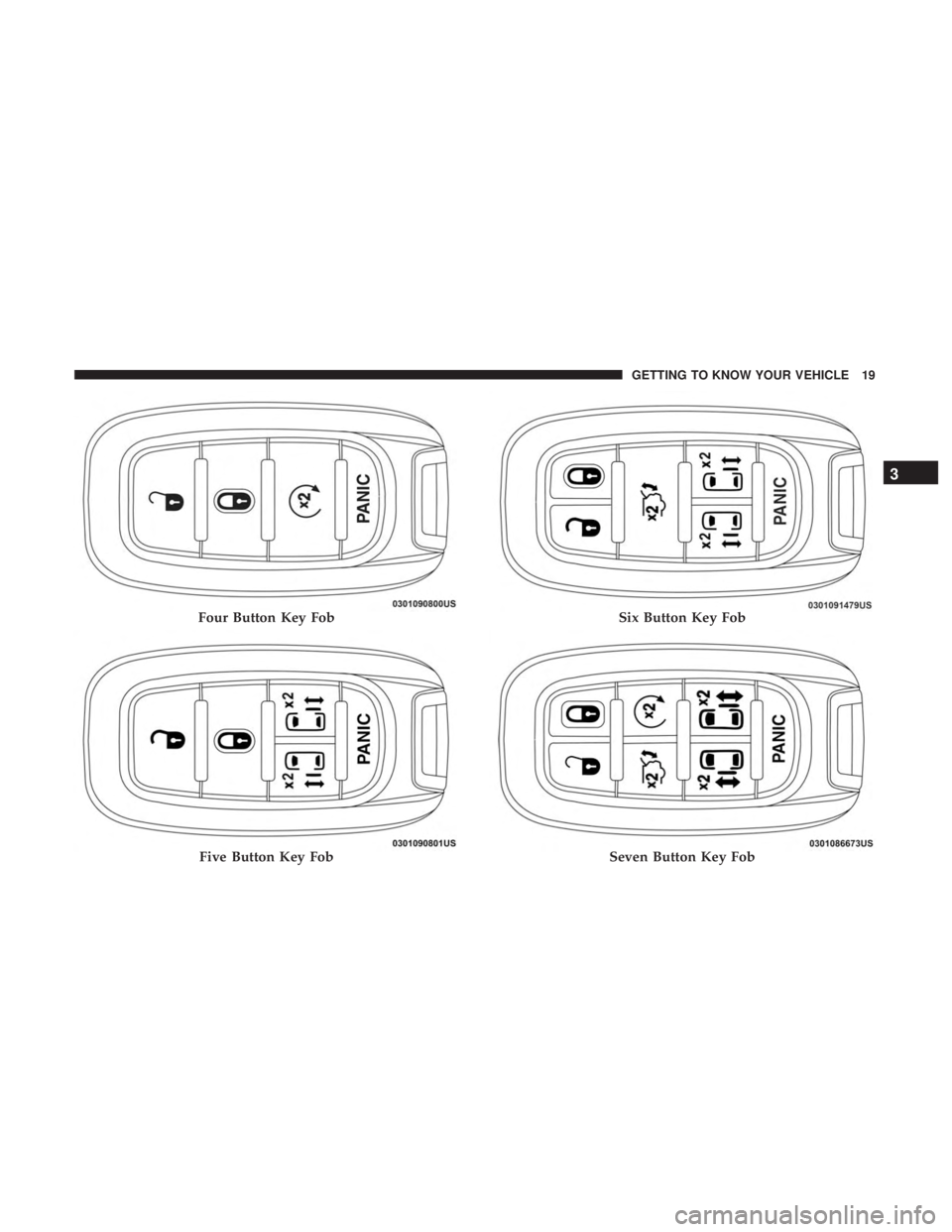

Four Button Key Fob
Five Button Key Fob
Six Button Key Fob
Seven Button Key Fob
3
GETTING TO KNOW YOUR VEHICLE 19

To Unlock The Doors
NOTE:Uconnect Settings lets you program the system to
unlock either the driver’s side doors on the first push
(default) or unlock all doors on the first push of the unlock
button on the key fob. To change the default setting, refer
to “Uconnect Settings” in “Multimedia” for further infor-
mation.
1st Push Of Key Fob Unlocks
Push and release the unlock button on the key fob once to
unlock the driver front door and sliding door or twice
within five seconds to unlock all doors and liftgate. The
hazard lights will flash to acknowledge the unlock signal.
The illuminated entry system will be activated. 2nd Push Of Key Fob Unlocks
Push and release the unlock button on the key fob twice
within five seconds to unlock all doors and liftgate. The
turn signal lights will flash to acknowledge the unlock
signal. The illuminated entry system will be activated.
First Push Unlock
20 GETTING TO KNOW YOUR VEHICLE

This feature lets you program the system to unlock either
the driver’s side doors or all doors on the first push of the
unlock button on the key fob. To change the current setting,
refer to “Uconnect Settings” in “Multimedia” for further
information.
NOTE:Your vehicle is equipped with Passive Entry; refer
to “Keyless Enter-N-Go — Passive Entry” in “Getting To
Know Your Vehicle” for further information.
Emergency Key Feature
The key fob also contains an emergency key, which stores
in the bottom of the key fob. The emergency key allows for entry into the vehicle should
the battery in the vehicle or the key fob go dead. The
emergency key is also for locking/unlocking the glove
compartment. You can keep the emergency key with you
when valet parking.
To remove the emergency key, press the mechanical button
on the side of the key fob with your thumb and pull the
emergency key out with your other hand while pushing
the mechanical button.
Second Push UnlockMechanical Latch To Release Emergency Key
3
GETTING TO KNOW YOUR VEHICLE 21

To Lock The Doors And Liftgate
Push and release the lock button on the key fob to lock all
doors and liftgate. The hazard lights will flash once and the
horn will chirp once to acknowledge the signal. Settings in
radio can change to lights only, chirp only, or both.
If the vehicle is equipped with Passive Entry, refer to
“Keyless Enter-N-Go — Passive Entry” in “Getting To
Know Your Vehicle” for further information.
Key Fob With Remote Control And Integrated Vehicle
Key
If one or more doors are open or the liftgate is open, the
doors can be locked. This is signaled by a quick flash of the
turn signals.
Vehicles Equipped With Keyless Enter-N-Go — Passive
Entry
If one or more doors are open, or the liftgate is open, the
doors can be locked. The doors will unlock again only if the
key is inside the passenger compartment.
Key Fob Battery Replacement
The recommended replacement battery is one CR2032
battery.
NOTE:
•Batteries contain harmful chemicals. Dispose old batter-
ies by placing them in correct containers according to the
law or by taking them to a dealership, where they will be
handled appropriately.
• Perchlorate Material — special handling may apply. See
www.dtsc.ca.gov/hazardouswaste/perchlorate
• Do not touch the battery terminals that are on the back
housing or the printed circuit board.
1. Remove the emergency key by pushing the mechanical release button on the side of the key fob with your
thumb and then pull the key out with your other hand.
22 GETTING TO KNOW YOUR VEHICLE
