2018 CHRYSLER PACIFICA HYBRID child seat

▫To Arm The System .....................54
▫ To Disarm The System ...................54
 DOORS ...............................55
▫ Manual Lock ...........................55
▫ Central Lock/Unlock — If Equipped ..........57
▫ Unlock Doors Automatically On Exit —
If Equipped ...........................58
▫ Keyless Enter-N-Go — Passive Entry .........58
▫ Manual Sliding Side Door ..................62
▫ Power Sliding Side Door — If Equipped .......63
▫ Hands-Free Sliding Doors — If Equipped .......65
▫ Child Locks ............................66
 SEATS ................................68
▫
Manual Adjustment (Front Seats) — If Equipped . .68
▫ Manual Adjustment (Rear Seats) ............70
▫ Power Adjustment (Front Seats) — If Equipped . .72
▫ Heated Seats ...........................74 ▫
Ventilated Seats — If Equipped ..............75
▫ Easy Entry Slide Second Row Seating .........76
▫ Fold-Flat ..............................78
▫ Second Row Removable Seat ...............78
▫ Manually Folding Third Row Seats —
If Equipped ............................81
 HEAD RESTRAINTS ......................83
▫ Head Restraints — Front Seats ..............83
▫ Head Restraints — Second Row .............85
▫ Head Restraints — Third Row ..............86
 STEERING WHEEL .......................87
▫ Tilt/Telescoping Steering Column ............87
▫ Heated Steering Wheel — If Equipped ........88
 MIRRORS ..............................89
▫ Inside Day/Night Mirror — If Equipped ......89
▫ Automatic Dimming Mirror — If Equipped .....89
▫ Outside Mirrors ........................90
14 GETTING TO KNOW YOUR VEHICLE

WARNING!(Continued)
•Do not leave the key fob in or near the vehicle, or in
a location accessible to children, and do not leave the
ignition of a vehicle equipped with Keyless Enter-
N-Go in the RUN mode. A child could operate power
windows, other controls, or move the vehicle.
• Do not leave children or animals inside parked
vehicles in hot weather. Interior heat build-up may
cause serious injury or death.
CAUTION!
An unlocked vehicle is an invitation. Always remove
the key from the ignition and lock all the doors when
leaving the vehicle unattended.
NOTE: If the brake is pressed and the ignition is placed in
the RUN position with an EVSE connected to the vehicle,
the instrument cluster will not display the Ready state.
When the Electric Vehicle Supply Equipment (EVSE) is
unplugged from the vehicle, the vehicle will go into the
“Ready” state. If the vehicle is not shifted out of Park 30
minutes after being unplugged, the vehicle will disable the
“Ready” state. After an additional 30 minutes with no
change in Ignition status, the Ignition shall go to OFF and the vehicle shall power down. For further information,
refer to
Starting The Engine inStarting And Operating
for further information,
REMOTE STARTING SYSTEM — IF EQUIPPED
NOTE: Remote start on Hybrid while plugged in may
not always start the engine.
This system uses the key fob to start the vehicle
conveniently from outside the vehicle while still
maintaining security. The system has a range of
328 ft (100 m).
The Remote Starting System also activates the Climate
Control, vented seats (if equipped) in temperatures above
80° F (26.7° C), the optional heated seats, optional heated
steering wheel, optional heated mirrors and rear defroster
in temperatures below 40° F (4.4° C).
NOTE:
• Obstructions between the vehicle and key fob may
reduce this range.
• While plugged in the remote start feature for the vehicle
may not always start the engine.
3
GETTING TO KNOW YOUR VEHICLE 49

location below the door handle(s). Do not move your foot
sideways or in a sweeping motion or the sensors may not
detect the motion.
When a valid kicking motion is completed, the sliding door
will chime, the hazard lights will flash and the sliding door
will open almost instantaneously. This assumes all options
are enabled in the radio settings.
NOTE:
•To open the Hands-Free Sliding Doors requires a valid
Passive Entry key fob within 5 ft (1.5 m) of the door
handle. If a valid Passive Entry key fob is not within 5 ft
(1.5 m), the door will not respond to any kicks.
• The Hands-Free Sliding Door will only operate when the
transmission is in PARK.
• With every movement of the Hands-Free sliding doors,
an audible tone will sound and the turn signals will
flash. Refer to “Uconnect Settings” in “Multimedia” for
further information on turning these alerts on or off.
• If anything obstructs the power sliding side door while
it is closing or opening, the door will automatically
reverse to the closed or open position and an audible
tone will sound, provided it meets sufficient resistance.
The turn signals will flash with sliding door movements. •
If the power sliding doors encounters multiple obstruc-
tions within the same cycle, the system will automati-
cally stop.
The Hands-Free Sliding Doors feature may be turned off
through Uconnect Settings. Refer to “Uconnect Settings” in
“Multimedia” for further information. The Hands-Free
Sliding Doors feature should be turned off during Jacking,
Tire Changing, and Vehicle Service.
Child Locks
To provide a safer environment for small children riding in
the rear seats, the sliding doors are equipped with a Child
Protection Door Lock system.
To Engage The Child Protection Door Lock
1. Open the sliding side door.
2. On the rear of the sliding door, slide the Child Protection Door Lock control inward (toward the vehicle) to en-
gage the Child Protection Door Lock.
66 GETTING TO KNOW YOUR VEHICLE

3. Repeat Steps 1 and 2 on the opposite sliding door.
NOTE:
•After engaging (or disengaging) the Child Protection
Door Lock, always test the inside door handle with the
sliding door closed to make certain the Child Protection
Door Lock is in the desired position. The inside door
handle will not open the sliding door when the Child
Protection Door Lock is engaged.
• The power sliding door will operate from the switch
located just inside the sliding door, regardless of the
Child Protection Door Lock lever position. •
To avoid unintentional operation of the power sliding
door from the rear seats, push the Sliding Door Power
Off button, located in the overhead console. When the
overhead console power OFF LED is lit, the sliding door
may not be power opened or closed by pushing the
buttons just inside the sliding doors or pulling on the
handles.
WARNING!
Avoid trapping anyone in the vehicle in a collision.
Remember that the sliding doors cannot be opened
from the inside door handle when the Child Protection
Door Locks are engaged.
To Disengage The Child Protection Door Lock
1. Open the sliding side door.
2. Slide the Child Protection Door Lock control outward (away from the vehicle) to disengage the Child Protec-
tion Door Lock.
3. Repeat Steps 1 and 2 on the opposite sliding door.
NOTE:
• After disengaging (or engaging) the Child Protection
Door Lock, always test the inside door handle with the
Child Protection Door Locks
3
GETTING TO KNOW YOUR VEHICLE 67

sliding door closed to make certain the Child Protection
Door Lock is in the desired position. The inside door
handle will open the sliding door when the Child
Protection Door Lock is disengaged.
SEATS
Seats are a part of the Occupant Restraint System of the
vehicle.
WARNING!
•It is dangerous to ride in a cargo area, inside or
outside of a vehicle. In a collision, people riding in
these areas are more likely to be seriously injured or
killed.
• Do not allow people to ride in any area of your
vehicle that is not equipped with seats and seat belts.
In a collision, people riding in these areas are more
likely to be seriously injured or killed.
• Be sure everyone in your vehicle is in a seat and
using a seat belt properly.
Manual Adjustment (Front Seats) — If Equipped
WARNING!
• Adjusting a seat while the vehicle is moving is
dangerous. The sudden movement of the seat could
cause you to lose control. The seat belt might not be
adjusted properly and you could be injured. Adjust
the seat only while the vehicle is parked.
• Do not ride with the seatback reclined so that the
shoulder belt is no longer resting against your chest.
In a collision you could slide under the seat belt and
be seriously or even fatally injured. Use the recliner
only when the vehicle is parked.
Manual Front Adjuster
Both front seats are adjustable forward or rearward. The
manual seat adjustment handle is located under the seat
cushion at the front edge of each seat.
68 GETTING TO KNOW YOUR VEHICLE

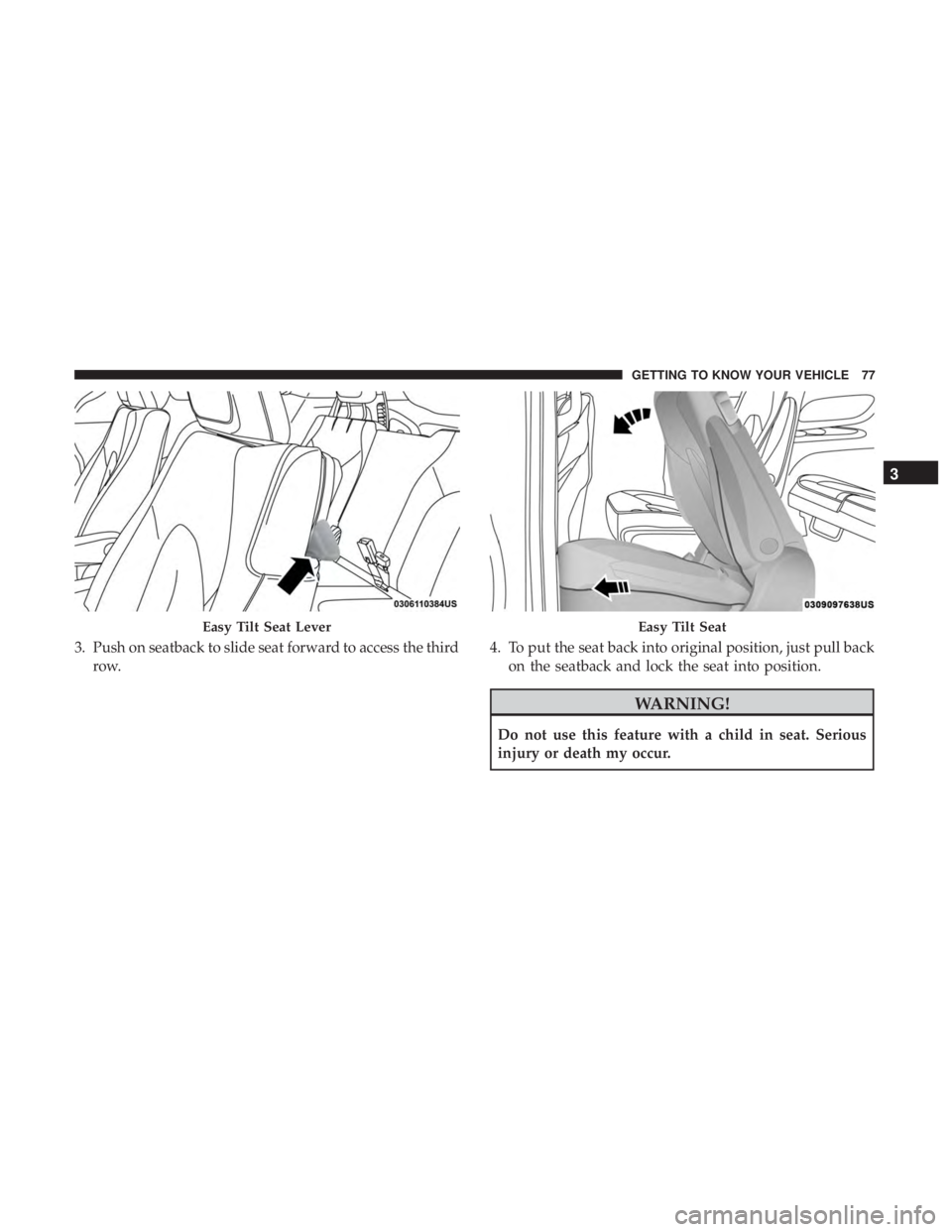

3. Push on seatback to slide seat forward to access the thirdrow. 4. To put the seat back into original position, just pull back
on the seatback and lock the seat into position.
WARNING!
Do not use this feature with a child in seat. Serious
injury or death my occur.
Easy Tilt Seat LeverEasy Tilt Seat
3
GETTING TO KNOW YOUR VEHICLE 77

WARNING!(Continued)
ON/RUN mode. Occupants, particularly unattended
children, can become entrapped by the power sun-
roof while operating the power sunroof switch. Such
entrapment may result in serious injury or death.
• In a collision, there is a greater risk of being thrown
from a vehicle with an open sunroof. You could also
be seriously injured or killed. Always fasten your
seat belt properly and make sure all passengers are
also properly secured.
• Do not allow small children to operate the sunroof.
Never allow your fingers, other body parts, or any
object, to project through the sunroof opening. In-
jury may result.
Opening Sunroof
Express Mode
Push the switch rearward and release it within one second.
The sunroof will open automatically from any position and
stop at the full open position. This is called “Express
Open.” During Express Open operation, any other actua-
tion of the sunroof switch will stop the sunroof. NOTE:
If the sunshade is in the closed position when the
open switch is pushed, the sunshade will automatically
cycle to the halfway open position prior to the sunroof
opening.
Manual Mode
To open the sunroof, push and hold the switch rearward to
full open. Any release of the switch will stop the move-
ment. The sunroof will remain in a partially opened
condition until the sunroof switch is pushed again.
Venting Sunroof — Express
Push and release the Ventbutton within one second and
the sunroof will open to the vent position. This is called
“Express Vent”, and it will occur regardless of sunroof
position.
NOTE: If the sunshade is in the closed position when the
vent switch is pushed, the sunshade will automatically
cycle to the halfway open position prior to the sunroof
opening to the Vent position.
124 GETTING TO KNOW YOUR VEHICLE

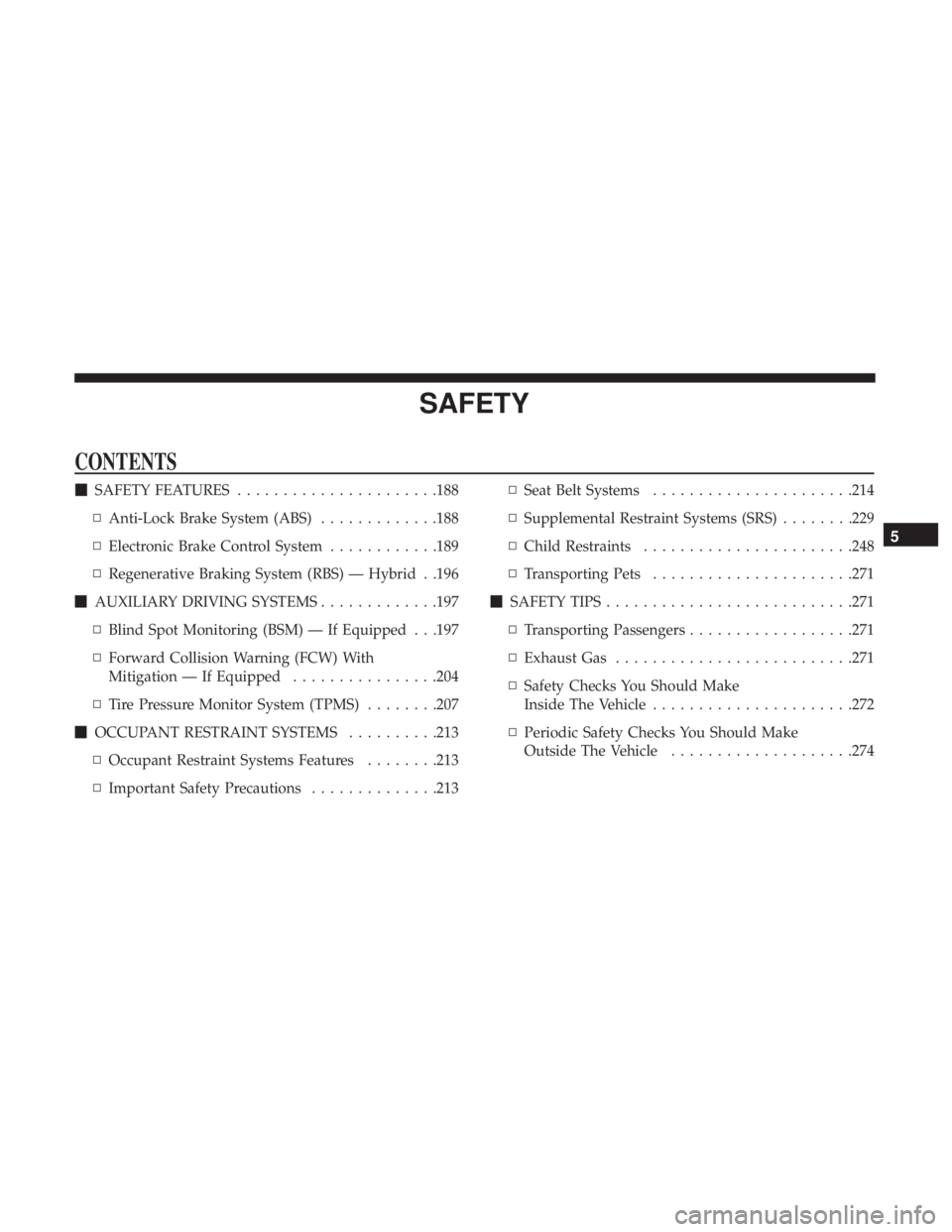

SAFETY
CONTENTS
SAFETY FEATURES ..................... .188
▫ Anti-Lock Brake System (ABS) .............188
▫ Electronic Brake Control System ............189
▫ Regenerative Braking System (RBS) — Hybrid . .196
 AUXILIARY DRIVING SYSTEMS .............197
▫ Blind Spot Monitoring (BSM) — If Equipped . . .197
▫ Forward Collision Warning (FCW) With
Mitigation — If Equipped ................204
▫ Tire Pressure Monitor System (TPMS) ........207
 OCCUPANT RESTRAINT SYSTEMS ..........213
▫ Occupant Restraint Systems Features ........213
▫ Important Safety Precautions ..............213▫
Seat Belt Systems ..................... .214
▫ Supplemental Restraint Systems (SRS) ........229
▫ Child Restraints ...................... .248
▫ Transporting Pets ..................... .271
 SAFETY TIPS .......................... .271
▫ Transporting Passengers ..................271
▫ Exhaust Gas ......................... .271
▫ Safety Checks You Should Make
Inside The Vehicle ..................... .272
▫ Periodic Safety Checks You Should Make
Outside The Vehicle ....................274
5
