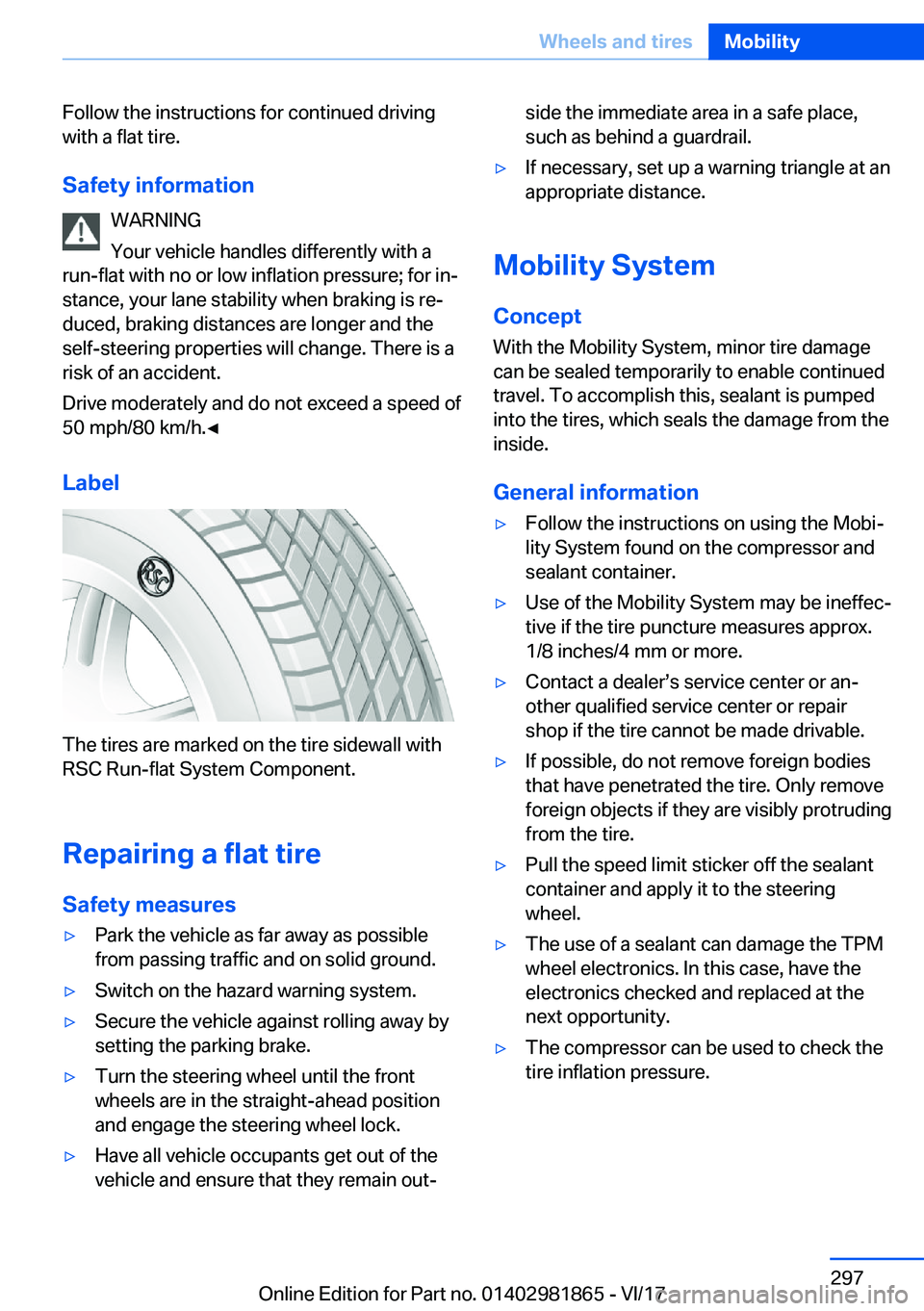

2018 BMW 7 SERIES Owners Manual

Follow the instructions for continued driving
with a flat tire.
Safety
information WARNING
Your vehicle handles differently with a
run-flat with no or low inflation pressure; for in#j stance, your lane stability when braking is re#jduced, braking distances are longer and theself-steering properties will change. There is a
risk of an accident.
Drive moderately and do not exceed a speed of 50 mph/80 km/h.'

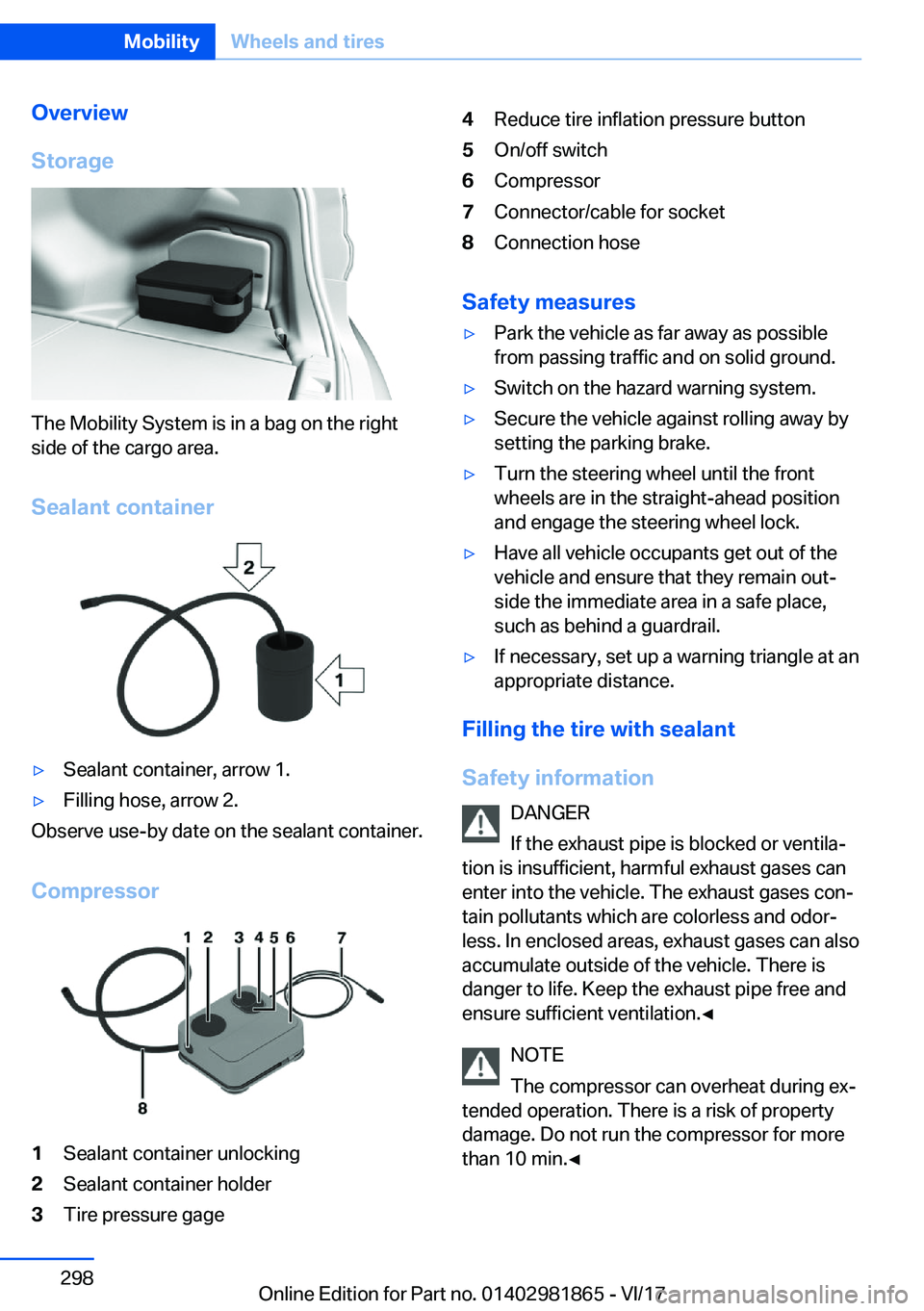

Overview
Storage
The Mobility System is in a bag on the right side of the cargo area.
Sealant
container
'ySealant container, arrow 1.'yFilling hose, arrow 2.
Observe use-by date on the sealant container.
Compressor
1Sealant container unlocking2Sealant container holder3Tire pressure gage4Reduce tire inflation pressure button5On/off switch6Compressor7Connector/cable for socket8Connection hose
Safety
measures
'yPark the vehicle as far away as possible
from passing traffic and on solid ground.'ySwitch on the hazard warning system.'ySecure the vehicle against rolling away by setting the parking brake.'yTurn the steering wheel until the frontwheels are in the straight-ahead position
and engage the steering wheel lock.'yHave all vehicle occupants get out of the vehicle and ensure that they remain out#jside the immediate area in a safe place,
such as behind a guardrail.'yIf necessary, set up a warning triangle at an
appropriate distance.
Filling
the
tire
with
sealant
Safety
information DANGER
If the exhaust pipe is blocked or ventila#j
tion is insufficient, harmful exhaust gases can
enter into the vehicle. The exhaust gases con#j tain pollutants which are colorless and odor#j
less. In enclosed areas, exhaust gases can also
accumulate outside of the vehicle. There is
danger to life. Keep the exhaust pipe free and
ensure sufficient ventilation.'

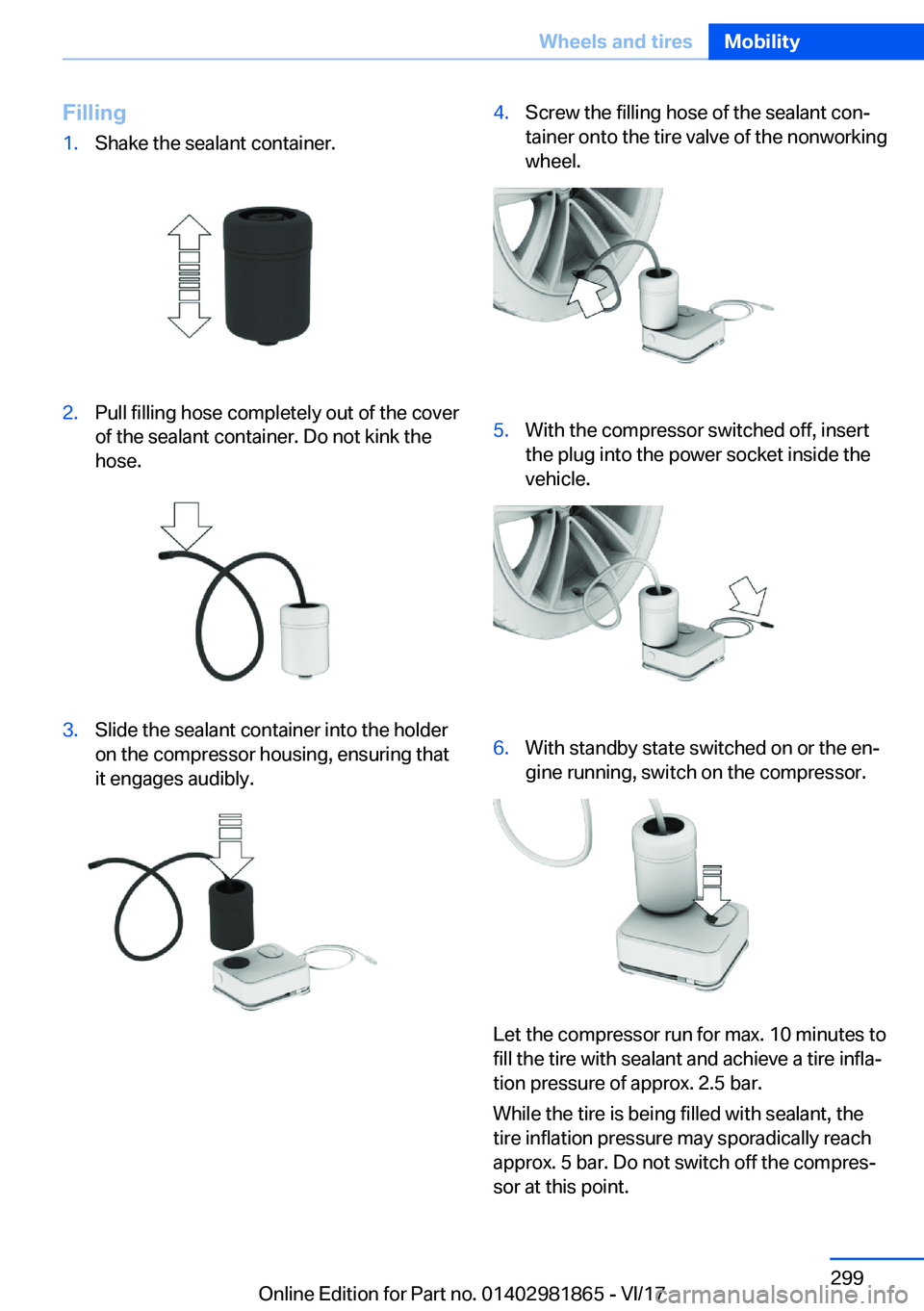

Filling1.Shake the sealant container.2.Pull filling hose completely out of the cover
of the sealant container. Do not kink the
hose.3.Slide the sealant container into the holder
on the compressor housing, ensuring that
it engages audibly.4.Screw the filling hose of the sealant con#j tainer onto the tire valve of the nonworking
wheel.5.With the compressor switched off, insert
the plug into the power socket inside the
vehicle.6.With standby state switched on or the en#j gine running, switch on the compressor.
Let the compressor run for max. 10 minutes tofill the tire with sealant and achieve a tire infla#j
tion pressure of approx. 2.5 bar.
While the tire is being filled with sealant, the
tire inflation pressure may sporadically reach
approx. 5 bar. Do not switch off the compres#j
sor at this point.
Seite 299Wheels
and
tiresMobility299
Online Edition for Part no. 01402981865 - VI/17

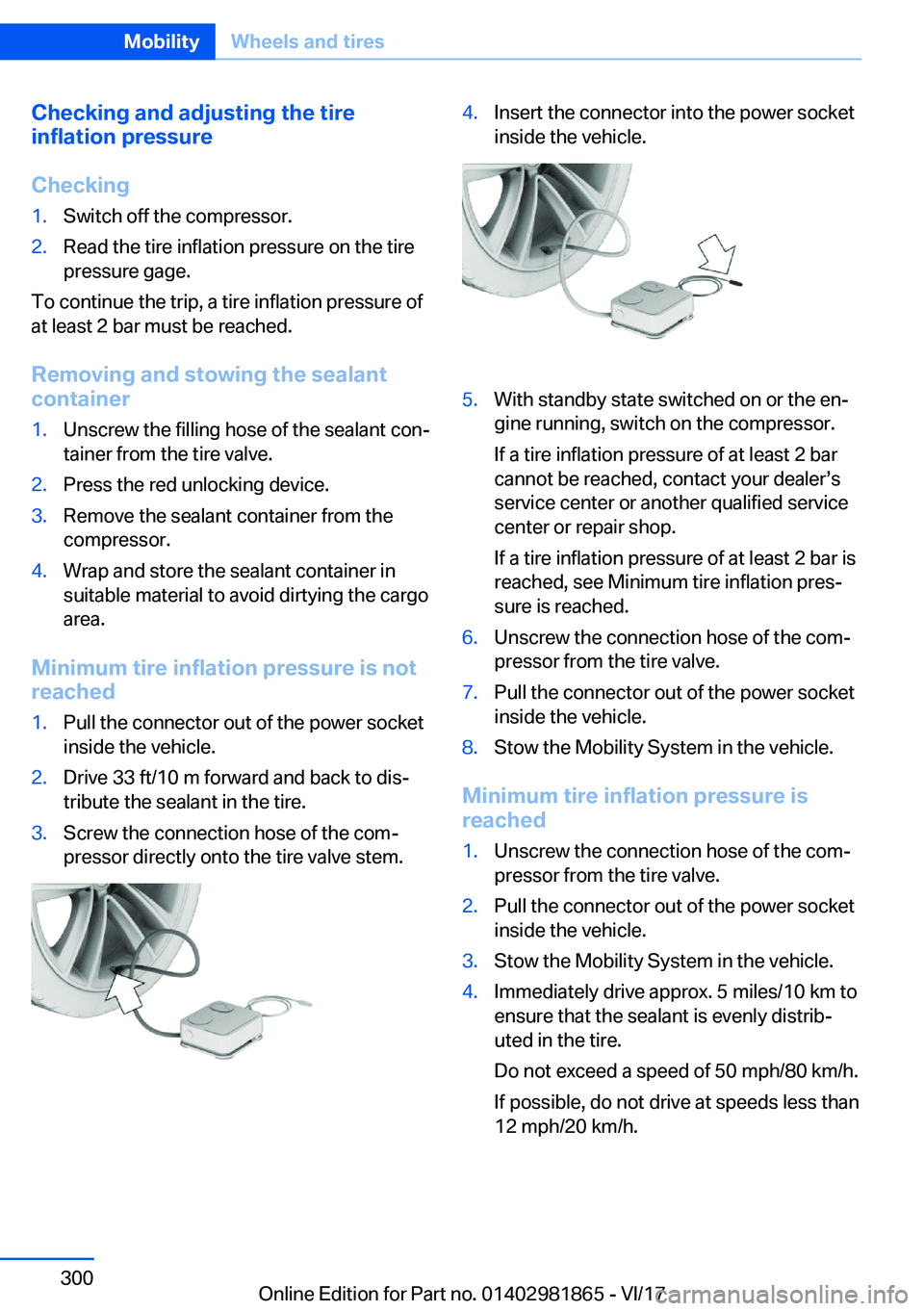

Checking
and
adjusting
the
tire
inflation
pressure
Checking1.Switch off the compressor.2.Read the tire inflation pressure on the tire pressure gage.
To continue the trip, a tire inflation pressure of
at least 2 bar must be reached.
Removing
and
stowing
the
sealant
container
1.Unscrew the filling hose of the sealant con#j
tainer from the tire valve.2.Press the red unlocking device.3.Remove the sealant container from the
compressor.4.Wrap and store the sealant container in suitable material to avoid dirtying the cargo
area.
Minimum
tire
inflation
pressure
is
not
reached
1.Pull the connector out of the power socket inside the vehicle.2.Drive 33 ft/10 m forward and back to dis#jtribute the sealant in the tire.3.Screw the connection hose of the com#jpressor directly onto the tire valve stem.4.Insert the connector into the power socket
inside the vehicle.5.With standby state switched on or the en#j gine running, switch on the compressor.
If a tire inflation pressure of at least 2 bar
cannot be reached, contact your dealer#ss
service center or another qualified service
center or repair shop.
If a tire inflation pressure of at least 2 bar is
reached, see Minimum tire inflation pres#j
sure is reached.6.Unscrew the connection hose of the com#j pressor from the tire valve.7.Pull the connector out of the power socketinside the vehicle.8.Stow the Mobility System in the vehicle.
Minimum
tire
inflation
pressure
is
reached
1.Unscrew the connection hose of the com#j pressor from the tire valve.2.Pull the connector out of the power socketinside the vehicle.3.Stow the Mobility System in the vehicle.4.Immediately drive approx. 5 miles/10 km toensure that the sealant is evenly distrib#j
uted in the tire.
Do not exceed a speed of 50 mph/80 km/h. If possible, do not drive at speeds less than
12 mph/20 km/h.Seite 300MobilityWheels
and
tires300
Online Edition for Part no. 01402981865 - VI/17

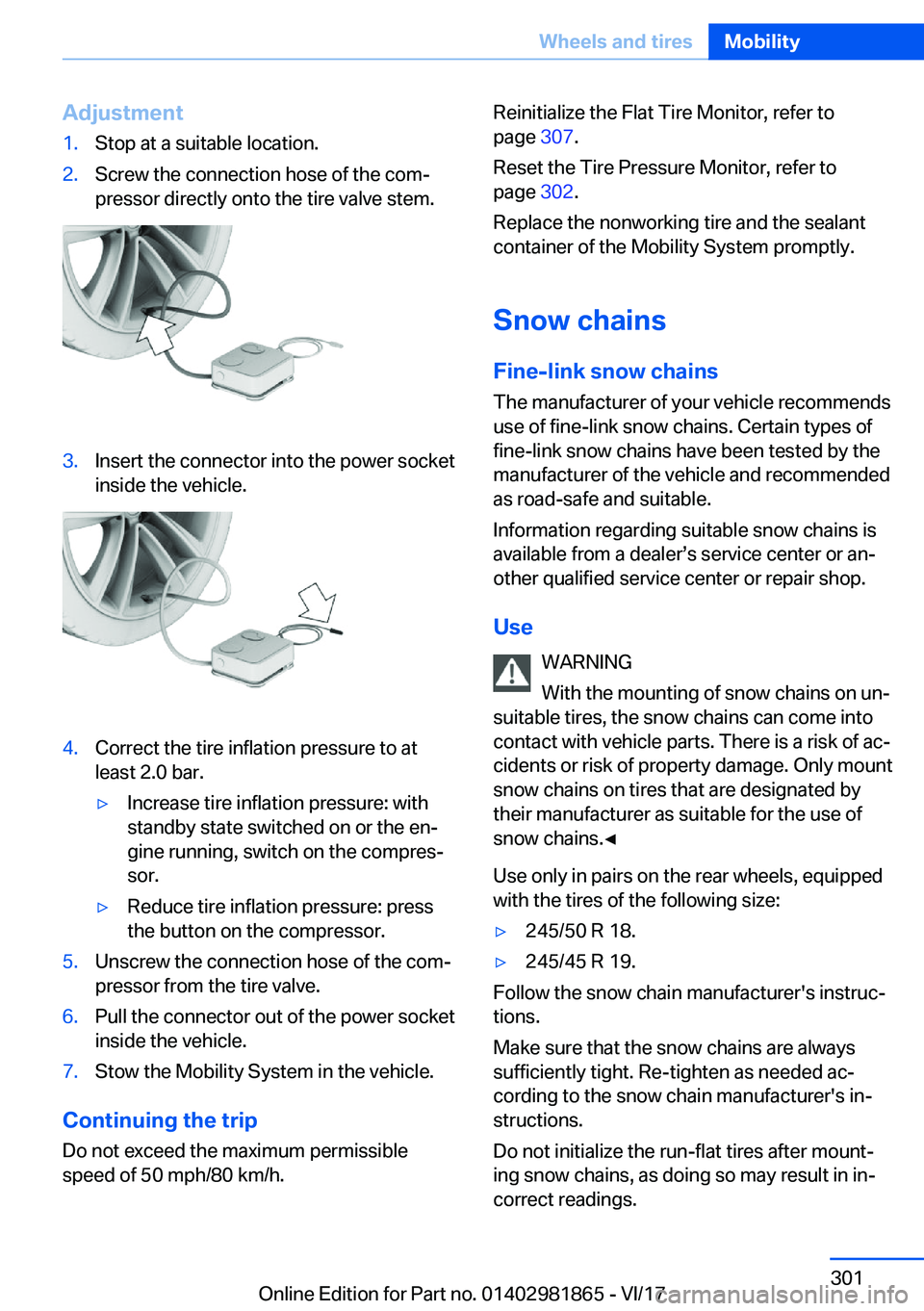

Adjustment1.Stop at a suitable location.2.Screw the connection hose of the com#jpressor directly onto the tire valve stem.3.Insert the connector into the power socket
inside the vehicle.4.Correct the tire inflation pressure to at least 2.0 bar.'yIncrease tire inflation pressure: with
standby state switched on or the en#j
gine running, switch on the compres#j sor.'yReduce tire inflation pressure: press
the button on the compressor.5.Unscrew the connection hose of the com#j pressor from the tire valve.6.Pull the connector out of the power socketinside the vehicle.7.Stow the Mobility System in the vehicle.
Continuing
the
trip
Do not exceed the maximum permissible
speed of 50 mph/80 km/h.
Reinitialize the Flat Tire Monitor, refer to
page 307.
Reset the Tire Pressure Monitor, refer to
page 302.
Replace the nonworking tire and the sealant
container of the Mobility System promptly.
Snow
chains
Fine-link
snow
chains
The manufacturer of your vehicle recommends
use of fine-link snow chains. Certain types of fine-link snow chains have been tested by the
manufacturer of the vehicle and recommended as road-safe and suitable.
Information regarding suitable snow chains is
available from a dealer#ss service center or an#j other qualified service center or repair shop.
Use WARNING
With the mounting of snow chains on un#j
suitable tires, the snow chains can come into
contact with vehicle parts. There is a risk of ac#j
cidents or risk of property damage. Only mount
snow chains on tires that are designated by
their manufacturer as suitable for the use of
snow chains.'

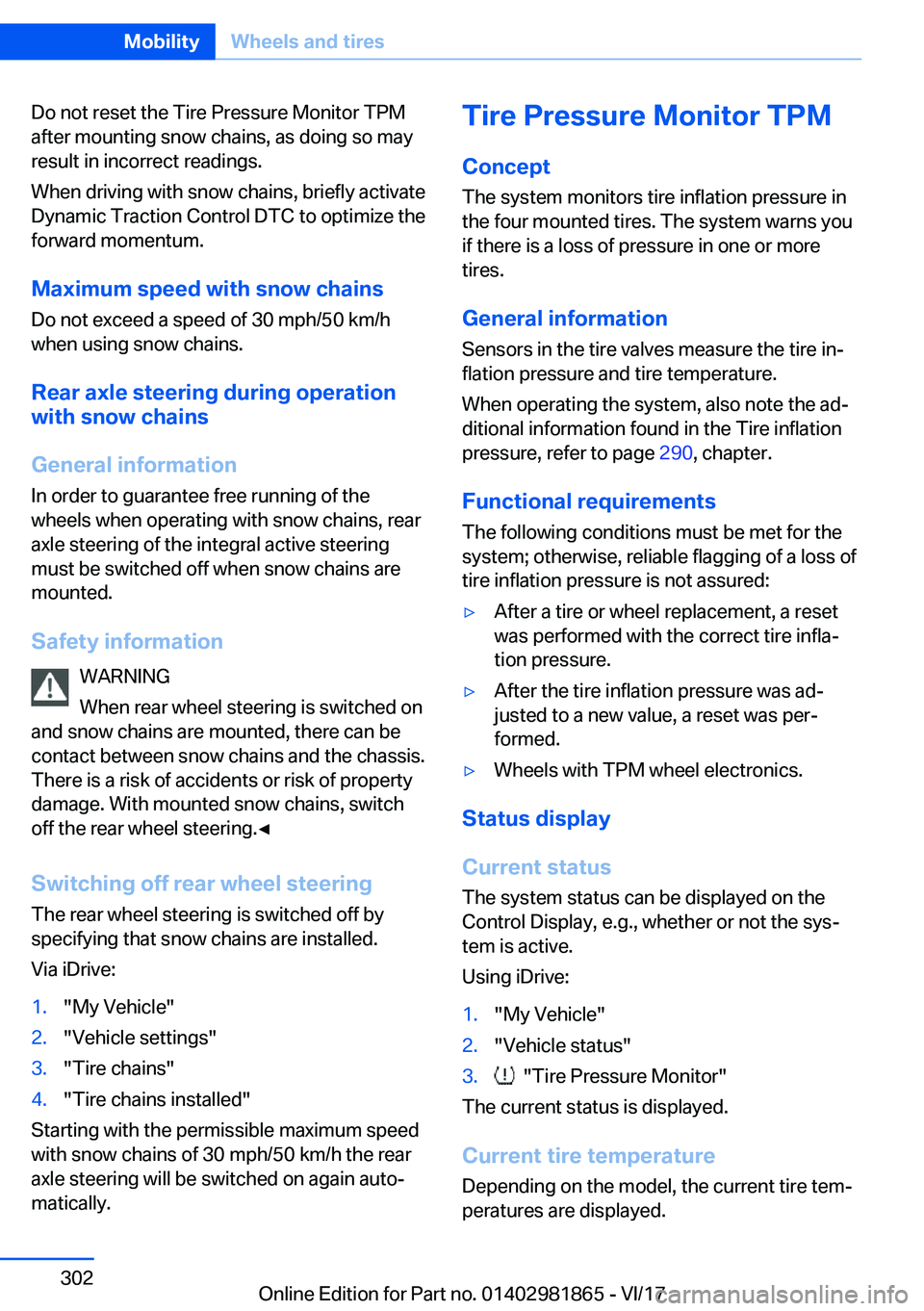

Do not reset the Tire Pressure Monitor TPMafter mounting snow chains, as doing so mayresult in incorrect readings.
When driving with snow chains, briefly activate
Dynamic Traction Control DTC to optimize the
forward momentum.
Maximum
speed
with
snow
chains Do not exceed a speed of 30 mph/50 km/h
when using snow chains.
Rear
axle
steering
during
operation
with
snow
chains
General
information
In order to guarantee free running of the wheels when operating with snow chains, rearaxle steering of the integral active steering
must be switched off when snow chains are mounted.
Safety
information WARNING
When rear wheel steering is switched on
and snow chains are mounted, there can be contact between snow chains and the chassis.There is a risk of accidents or risk of propertydamage. With mounted snow chains, switchoff the rear wheel steering.'

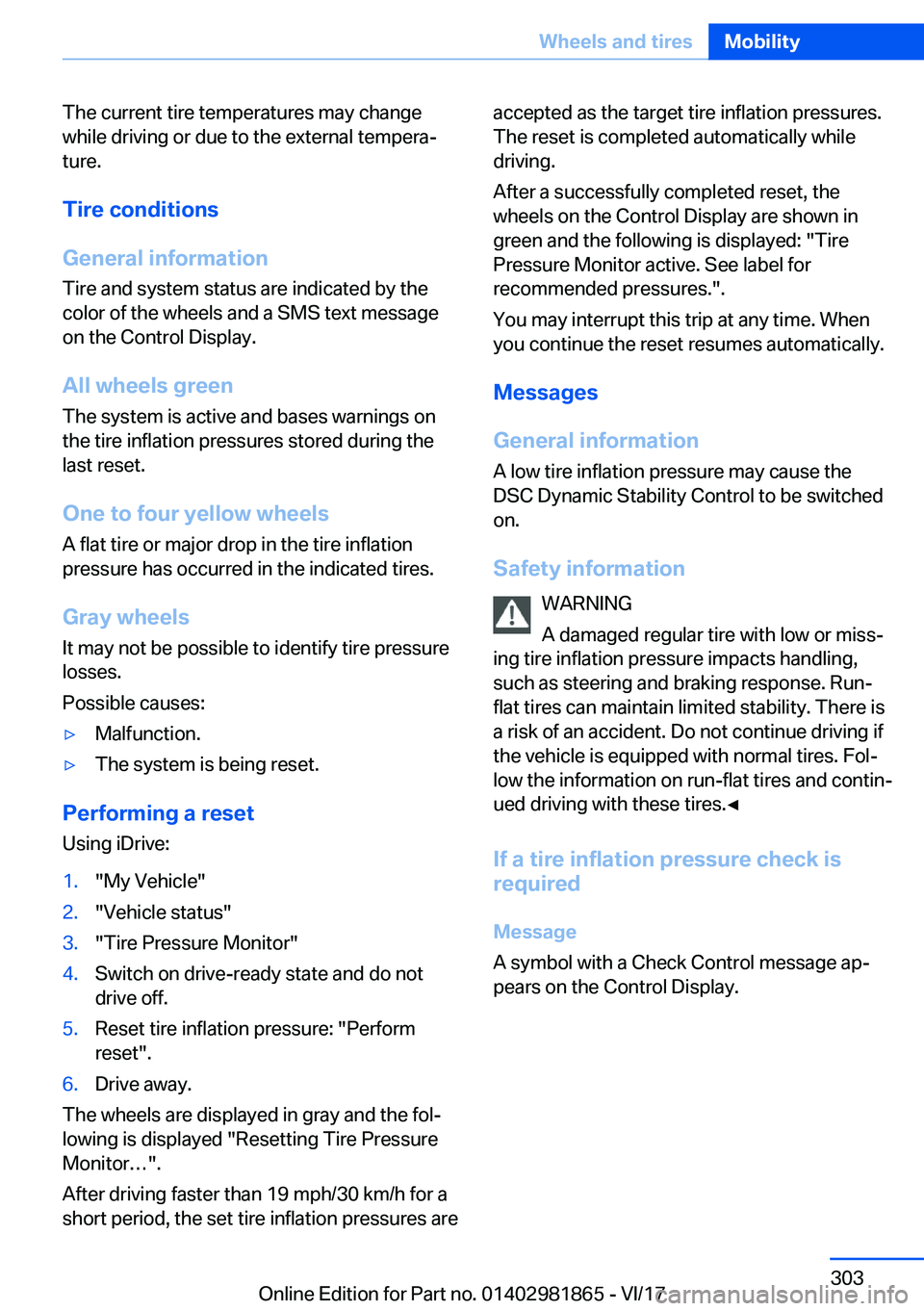

The current tire temperatures may change
while driving or due to the external tempera#j
ture.
Tire
conditions
General
information
Tire and system status are indicated by the
color of the wheels and a SMS text message on the Control Display.
All
wheels
green
The system is active and bases warnings on
the tire inflation pressures stored during the
last reset.
One
to
four
yellow
wheels
A flat tire or major drop in the tire inflation
pressure has occurred in the indicated tires.
Gray
wheels
It may not be possible to identify tire pressure
losses.
Possible causes:'yMalfunction.'yThe system is being reset.
Performing
a
reset
Using iDrive:
1."My Vehicle"2."Vehicle status"3."Tire Pressure Monitor"4.Switch on drive-ready state and do not
drive off.5.Reset tire inflation pressure: "Perform reset".6.Drive away.
The wheels are displayed in gray and the fol#jlowing is displayed "Resetting Tire PressureMonitor#

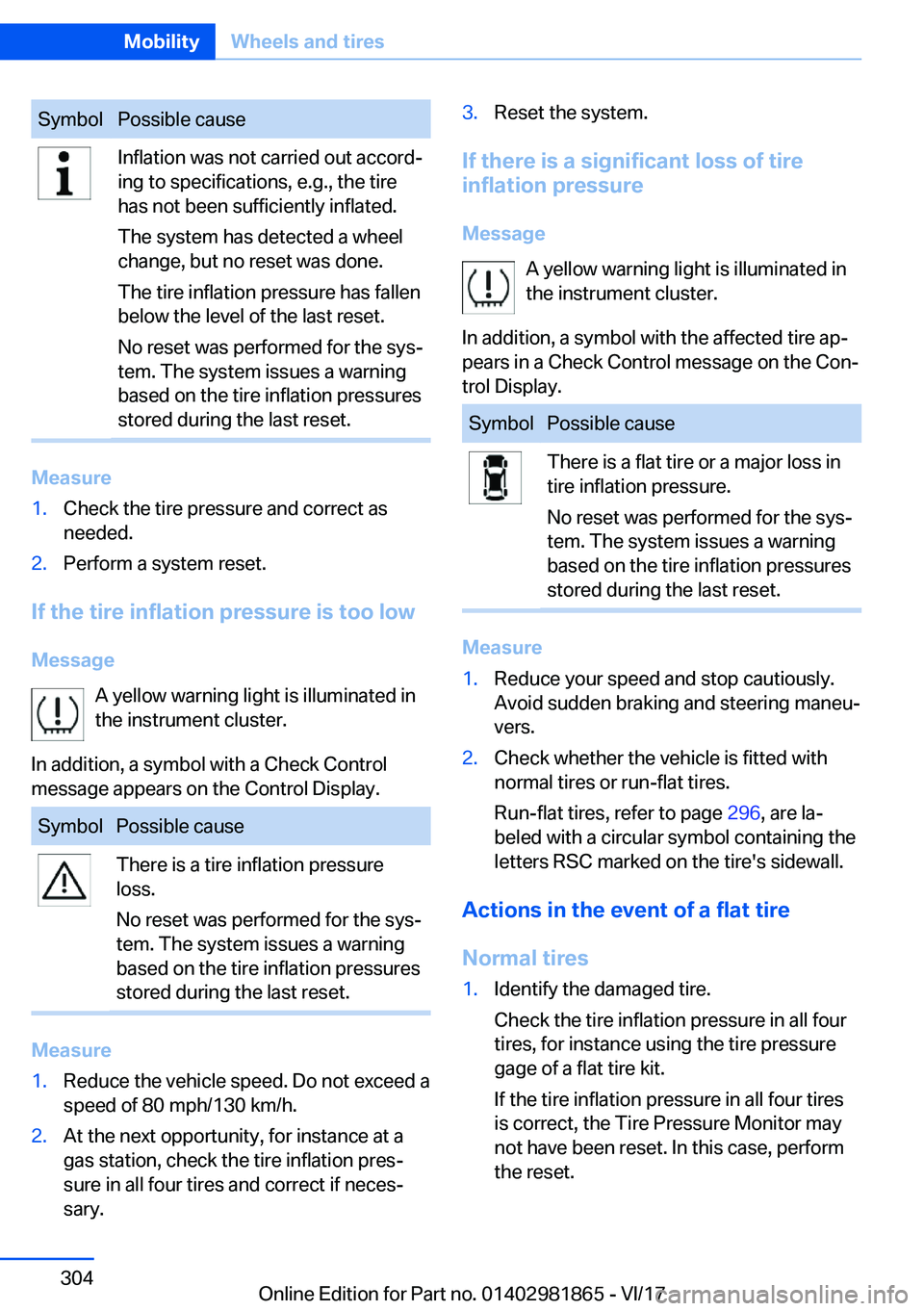

SymbolPossible causeInflation was not carried out accord#jing to specifications, e.g., the tire
has not been sufficiently inflated.
The system has detected a wheel change, but no reset was done.
The tire inflation pressure has fallen below the level of the last reset.
No reset was performed for the sys#j
tem. The system issues a warning
based on the tire inflation pressures
stored during the last reset.
Measure
1.Check the tire pressure and correct as
needed.2.Perform a system reset.
If
the
tire
inflation
pressure
is
too
low
Message A yellow warning light is illuminated in
the instrument cluster.
In addition, a symbol with a Check Control message appears on the Control Display.
SymbolPossible causeThere is a tire inflation pressure
loss.
No reset was performed for the sys#j tem. The system issues a warning
based on the tire inflation pressures
stored during the last reset.
Measure
1.Reduce the vehicle speed. Do not exceed a
speed of 80 mph/130 km/h.2.At the next opportunity, for instance at a gas station, check the tire inflation pres#j
sure in all four tires and correct if neces#j sary.3.Reset the system.
If
there
is
a
significant
loss
of
tire
inflation
pressure
Message A yellow warning light is illuminated inthe instrument cluster.
In addition, a symbol with the affected tire ap#j
pears in a Check Control message on the Con#j
trol Display.
SymbolPossible causeThere is a flat tire or a major loss in
tire inflation pressure.
No reset was performed for the sys#j tem. The system issues a warning
based on the tire inflation pressures
stored during the last reset.
Measure
1.Reduce your speed and stop cautiously. Avoid sudden braking and steering maneu#jvers.2.Check whether the vehicle is fitted with
normal tires or run-flat tires.
Run-flat tires, refer to page 296, are la#j
beled with a circular symbol containing the letters RSC marked on the tire's sidewall.
Actions
in
the
event
of
a
flat
tire
Normal
tires
1.Identify the damaged tire.
Check the tire inflation pressure in all four tires, for instance using the tire pressuregage of a flat tire kit.
If the tire inflation pressure in all four tires
is correct, the Tire Pressure Monitor may
not have been reset. In this case, perform the reset.Seite 304MobilityWheels
and
tires304
Online Edition for Part no. 01402981865 - VI/17
