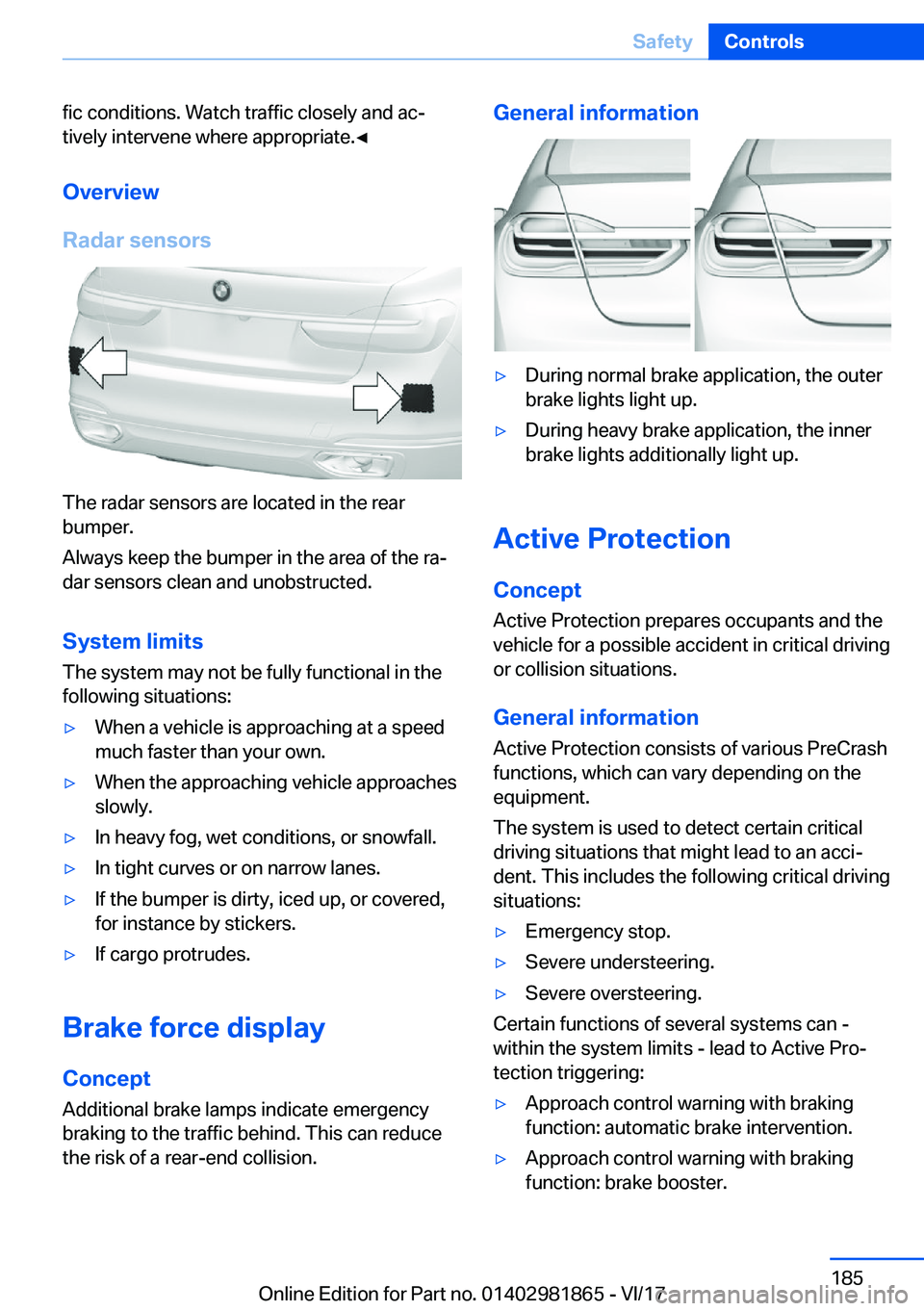

fic conditions. Watch traffic closely and ac#jtively intervene where appropriate.'

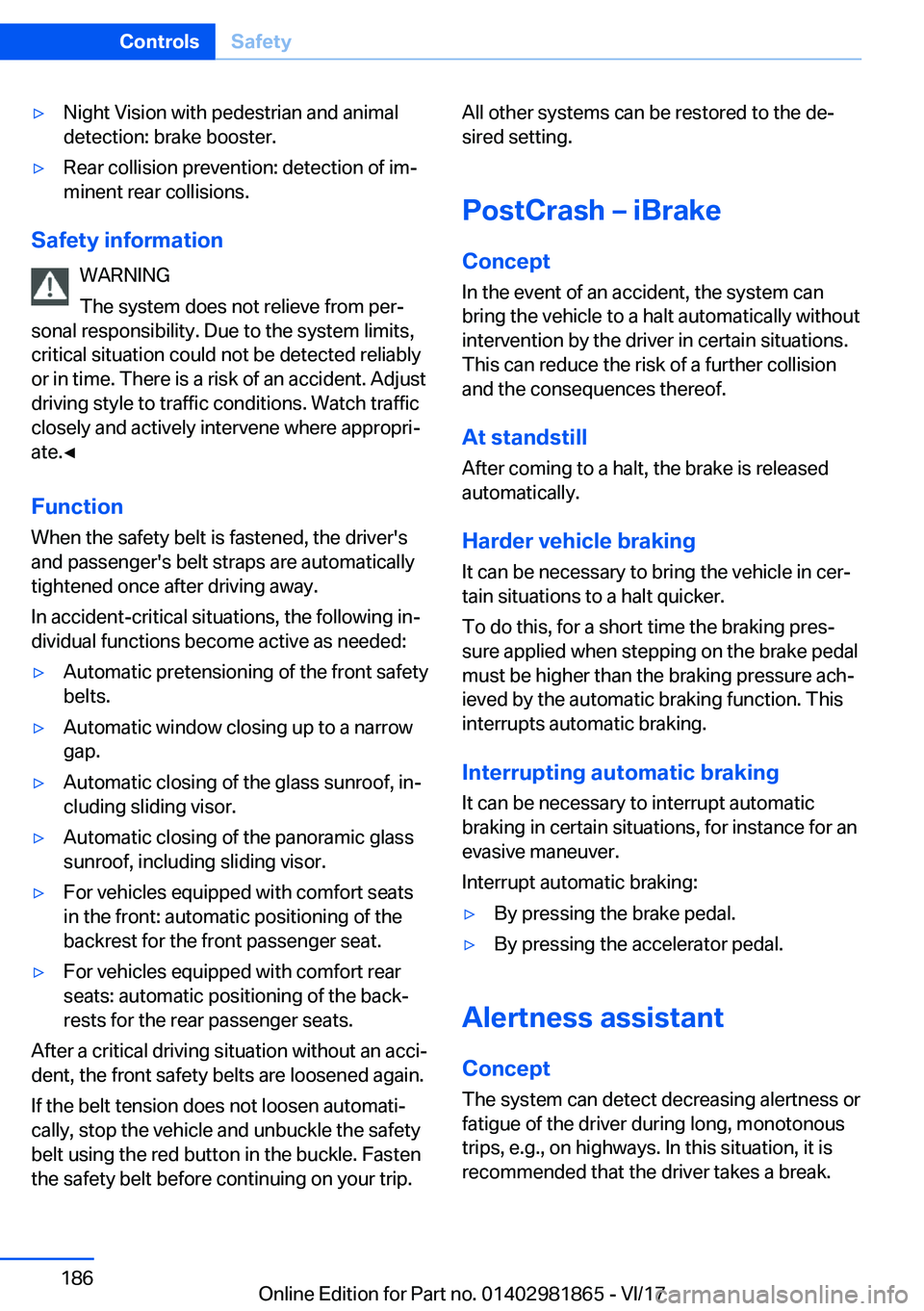

'yNight Vision with pedestrian and animaldetection: brake booster.'yRear collision prevention: detection of im#j
minent rear collisions.
Safety
information
WARNING
The system does not relieve from per#j
sonal responsibility. Due to the system limits, critical situation could not be detected reliably
or in time. There is a risk of an accident. Adjust driving style to traffic conditions. Watch trafficclosely and actively intervene where appropri#j
ate.'

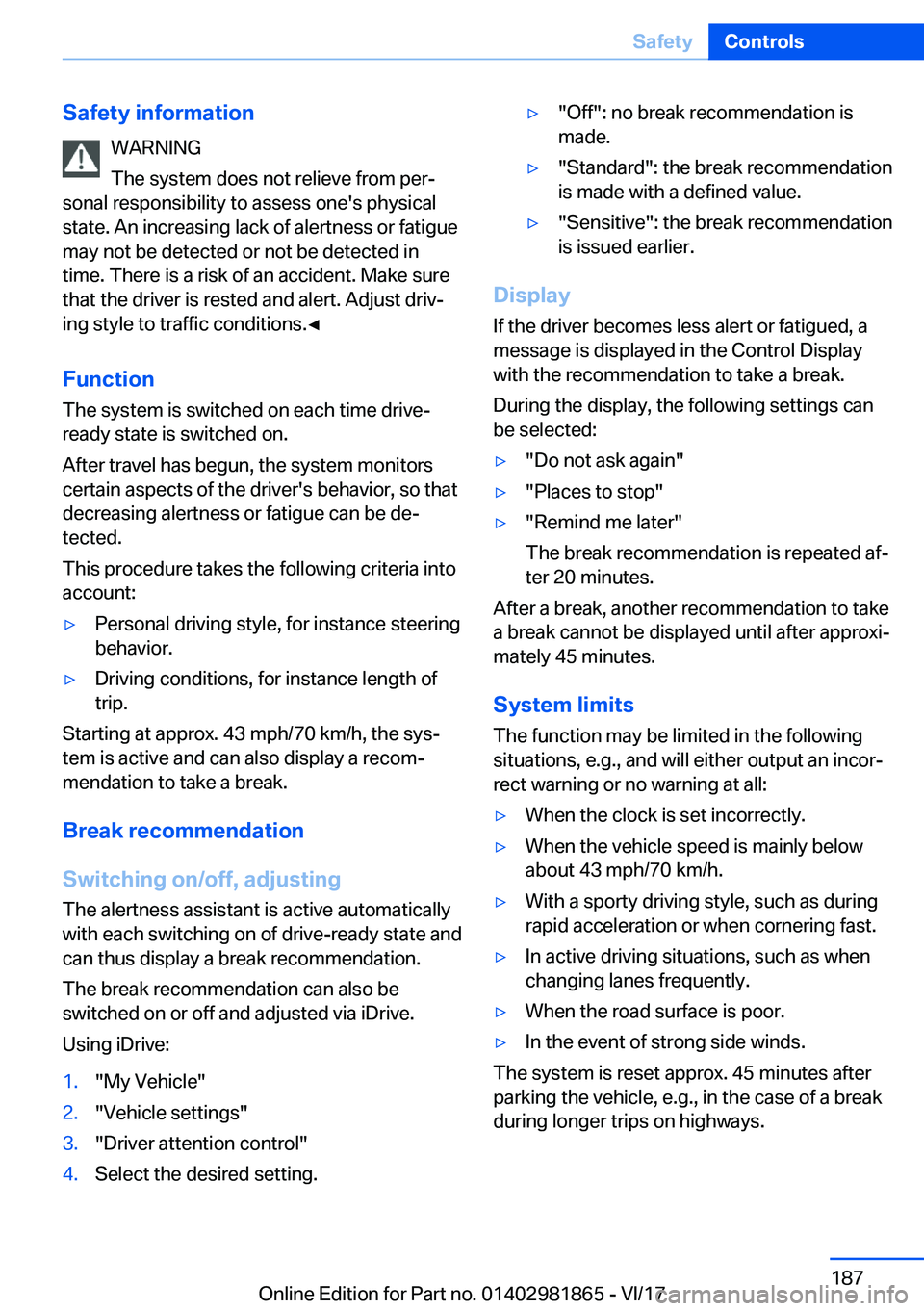

Safety
informationWARNING
The system does not relieve from per#j
sonal responsibility to assess one's physical state. An increasing lack of alertness or fatiguemay not be detected or not be detected intime. There is a risk of an accident. Make sure
that the driver is rested and alert. Adjust driv#j ing style to traffic conditions.'

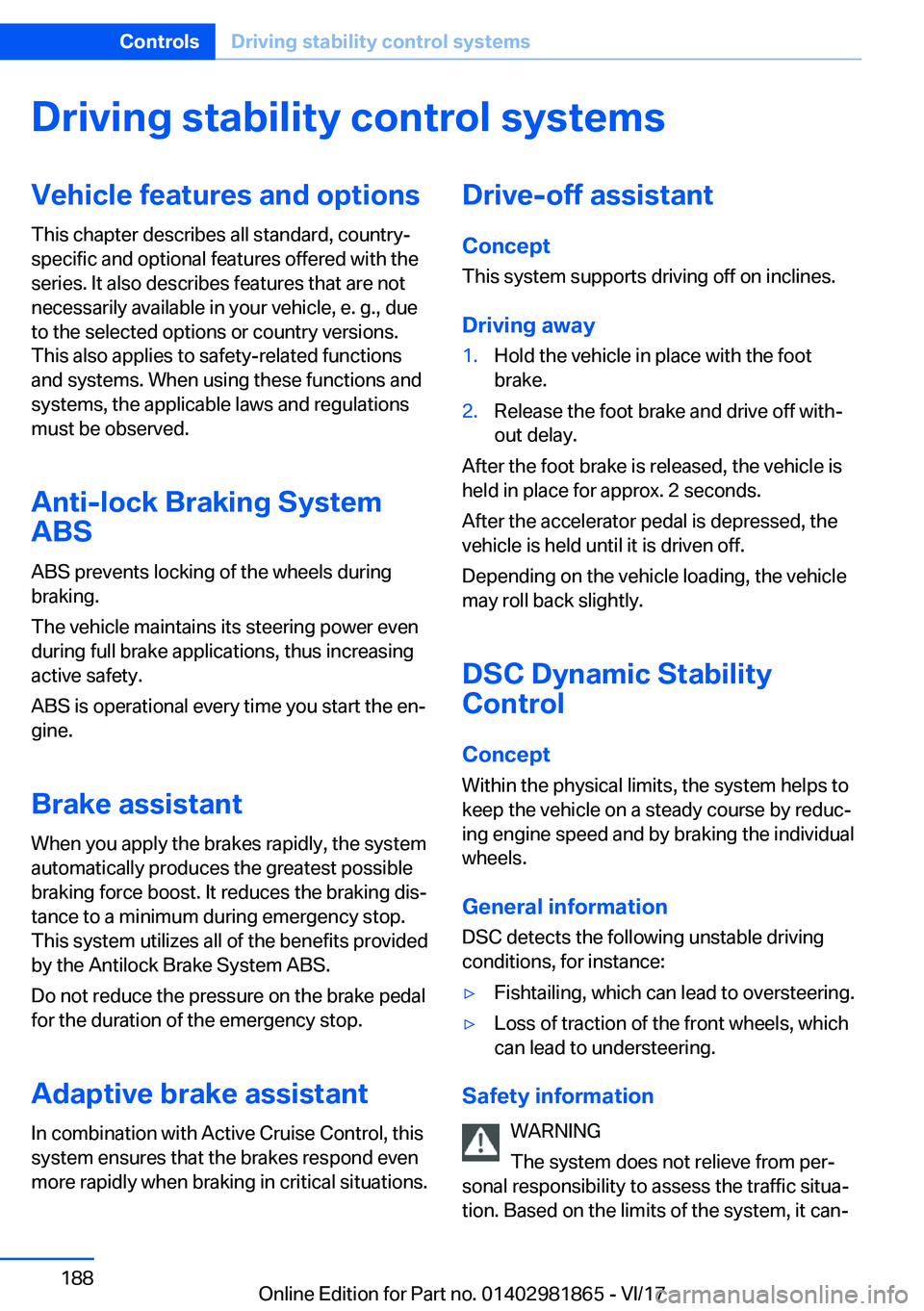

Driving
stability
control
systemsVehicle
features
and
optionsThis chapter describes all standard, country-specific and optional features offered with theseries. It also describes features that are notnecessarily available in your vehicle, e. g., due
to the selected options or country versions.
This also applies to safety-related functions
and systems. When using these functions and systems, the applicable laws and regulations
must be observed.
Anti-lock
Braking
System
ABS
ABS prevents locking of the wheels during
braking.
The vehicle maintains its steering power even during full brake applications, thus increasing
active safety.
ABS is operational every time you start the en#j gine.
Brake
assistant When you apply the brakes rapidly, the system
automatically produces the greatest possible
braking force boost. It reduces the braking dis#j
tance to a minimum during emergency stop.
This system utilizes all of the benefits provided
by the Antilock Brake System ABS.
Do not reduce the pressure on the brake pedal
for the duration of the emergency stop.
Adaptive
brake
assistant In combination with Active Cruise Control, this
system ensures that the brakes respond even
more rapidly when braking in critical situations.Drive-off
assistant
Concept
This system supports driving off on inclines.
Driving
away1.Hold the vehicle in place with the foot
brake.2.Release the foot brake and drive off with#j
out delay.
After the foot brake is released, the vehicle is held in place for approx. 2 seconds.
After the accelerator pedal is depressed, the
vehicle is held until it is driven off.
Depending on the vehicle loading, the vehicle
may roll back slightly.
DSC
Dynamic
Stability
Control
Concept Within the physical limits, the system helps to
keep the vehicle on a steady course by reduc#j
ing engine speed and by braking the individual
wheels.
General
information
DSC detects the following unstable driving conditions, for instance:
'yFishtailing, which can lead to oversteering.'yLoss of traction of the front wheels, which
can lead to understeering.
Safety
information
WARNING
The system does not relieve from per#j
sonal responsibility to assess the traffic situa#j tion. Based on the limits of the system, it can#j
Seite 188ControlsDriving
stability
control
systems188
Online Edition for Part no. 01402981865 - VI/17

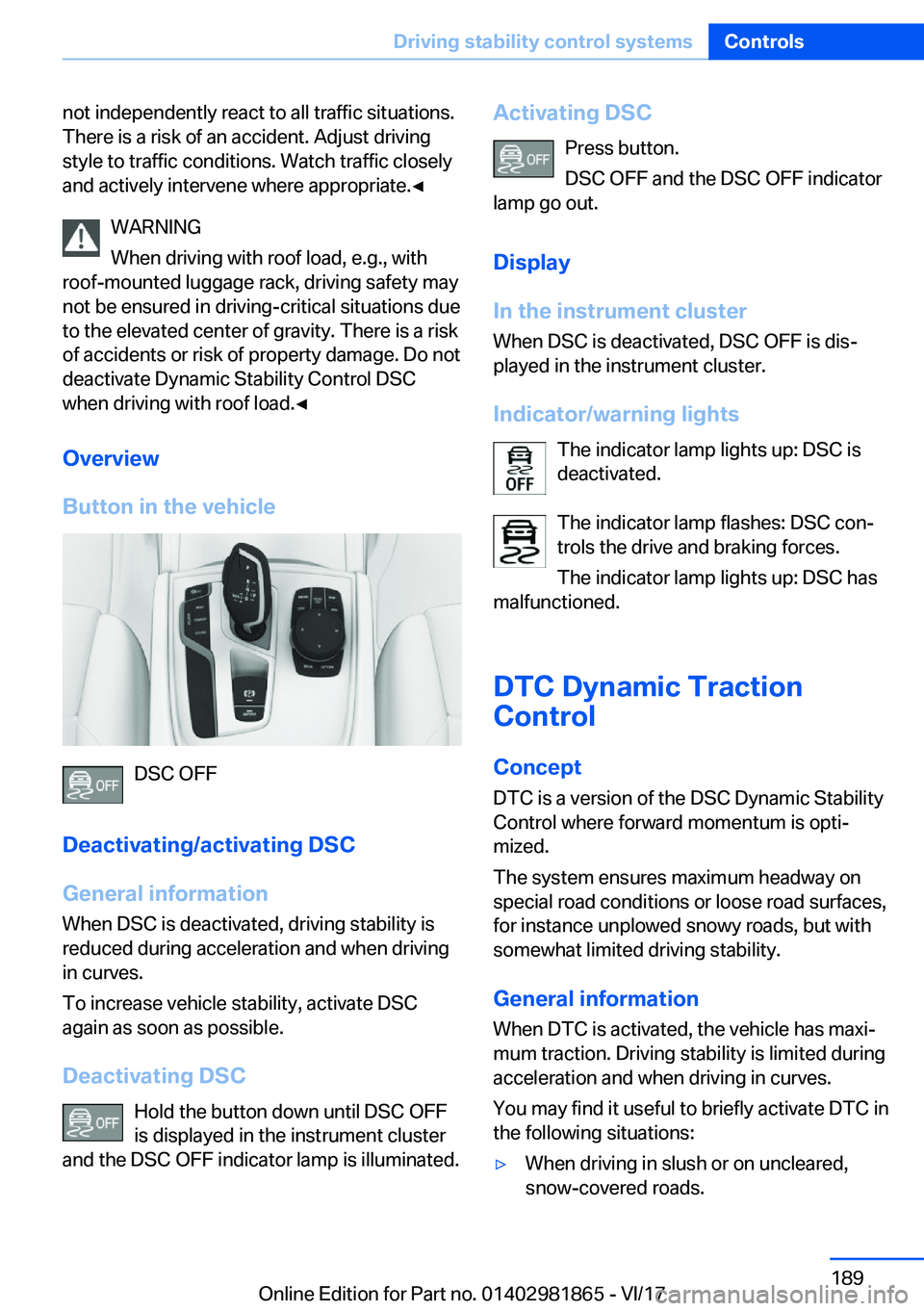

not independently react to all traffic situations.
There is a risk of an accident. Adjust driving style to traffic conditions. Watch traffic closelyand actively intervene where appropriate.'

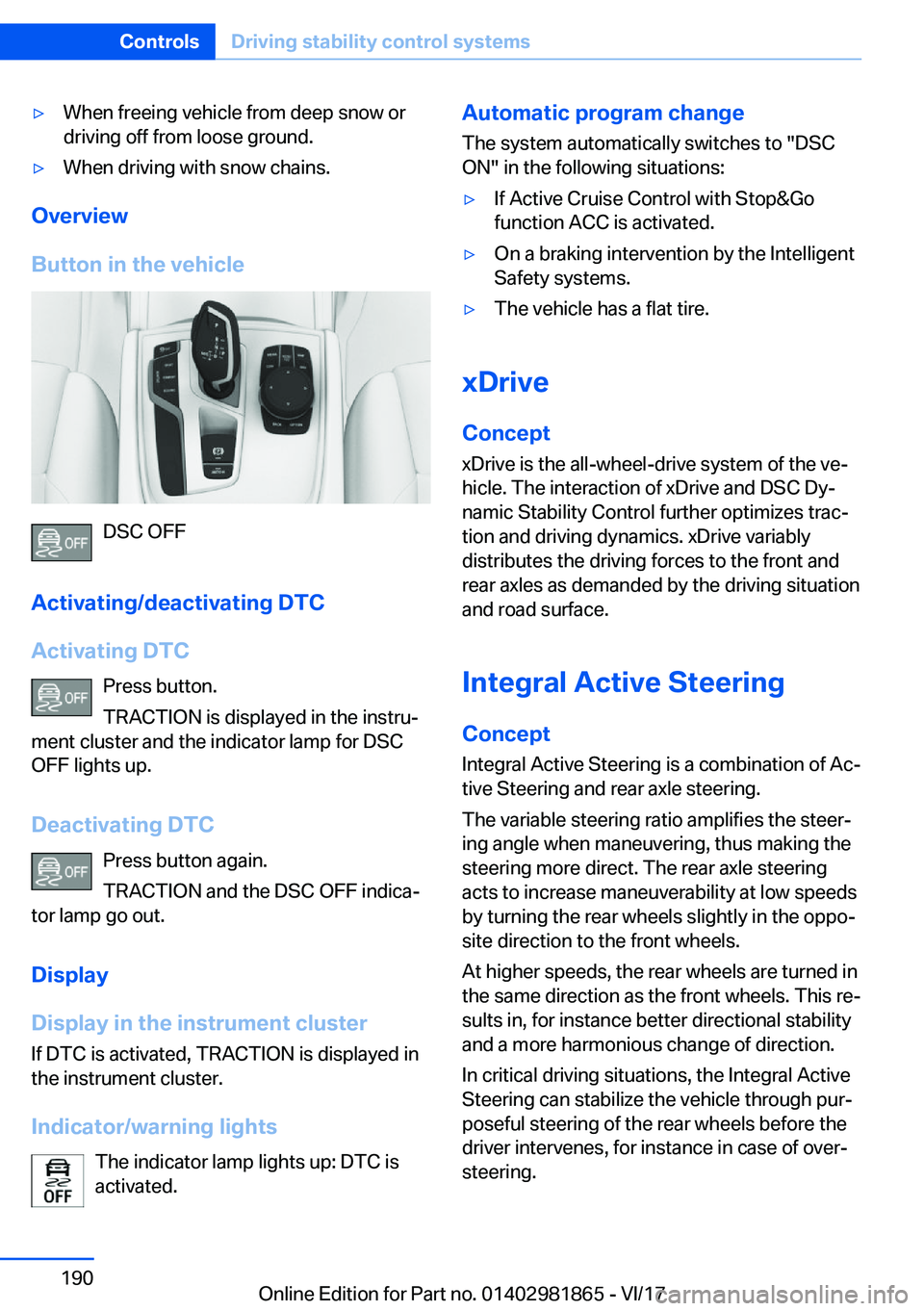

'yWhen freeing vehicle from deep snow ordriving off from loose ground.'yWhen driving with snow chains.
Overview
Button
in
the
vehicle
DSC OFF
Activating/deactivating
DTC
Activating
DTC Press button.
TRACTION is displayed in the instru#j
ment cluster and the indicator lamp for DSC
OFF lights up.
Deactivating
DTC Press button again.
TRACTION and the DSC OFF indica#j
tor lamp go out.
Display
Display
in
the
instrument
cluster If DTC is activated, TRACTION is displayed inthe instrument cluster.
Indicator/warning
lights The indicator lamp lights up: DTC is
activated.
Automatic
program
change
The system automatically switches to "DSC
ON" in the following situations:'yIf Active Cruise Control with Stop&Go
function ACC is activated.'yOn a braking intervention by the Intelligent
Safety systems.'yThe vehicle has a flat tire.
xDrive
Concept
xDrive is the all-wheel-drive system of the ve#j hicle. The interaction of xDrive and DSC Dy#j namic Stability Control further optimizes trac#j
tion and driving dynamics. xDrive variably
distributes the driving forces to the front and rear axles as demanded by the driving situation
and road surface.
Integral
Active
Steering
Concept
Integral Active Steering is a combination of Ac#j tive Steering and rear axle steering.
The variable steering ratio amplifies the steer#j
ing angle when maneuvering, thus making the
steering more direct. The rear axle steering
acts to increase maneuverability at low speeds
by turning the rear wheels slightly in the oppo#j site direction to the front wheels.
At higher speeds, the rear wheels are turned in the same direction as the front wheels. This re#j
sults in, for instance better directional stability and a more harmonious change of direction.
In critical driving situations, the Integral Active
Steering can stabilize the vehicle through pur#j
poseful steering of the rear wheels before the
driver intervenes, for instance in case of over#j
steering.
Seite 190ControlsDriving
stability
control
systems190
Online Edition for Part no. 01402981865 - VI/17

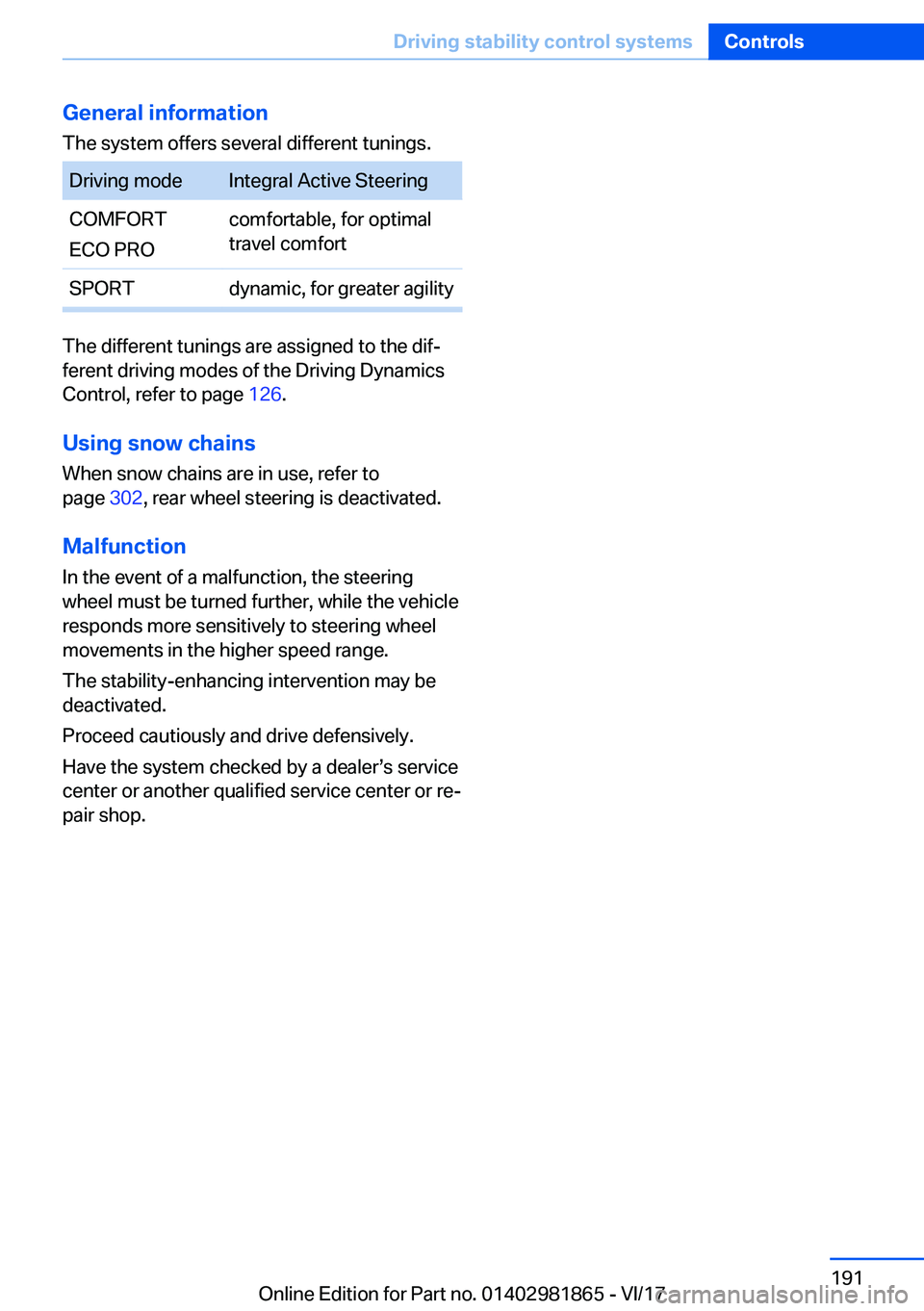

General
information
The system offers several different tunings.Driving modeIntegral Active SteeringCOMFORT
ECO PROcomfortable, for optimal travel comfortSPORTdynamic, for greater agility
The different tunings are assigned to the dif#j
ferent driving modes of the Driving Dynamics
Control, refer to page 126.
Using
snow
chains
When snow chains are in use, refer to
page 302, rear wheel steering is deactivated.
Malfunction
In the event of a malfunction, the steering
wheel must be turned further, while the vehicle responds more sensitively to steering wheelmovements in the higher speed range.
The stability-enhancing intervention may bedeactivated.
Proceed cautiously and drive defensively. Have the system checked by a dealer#ss service
center or another qualified service center or re#j pair shop.
Seite 191Driving
stability
control
systemsControls191
Online Edition for Part no. 01402981865 - VI/17

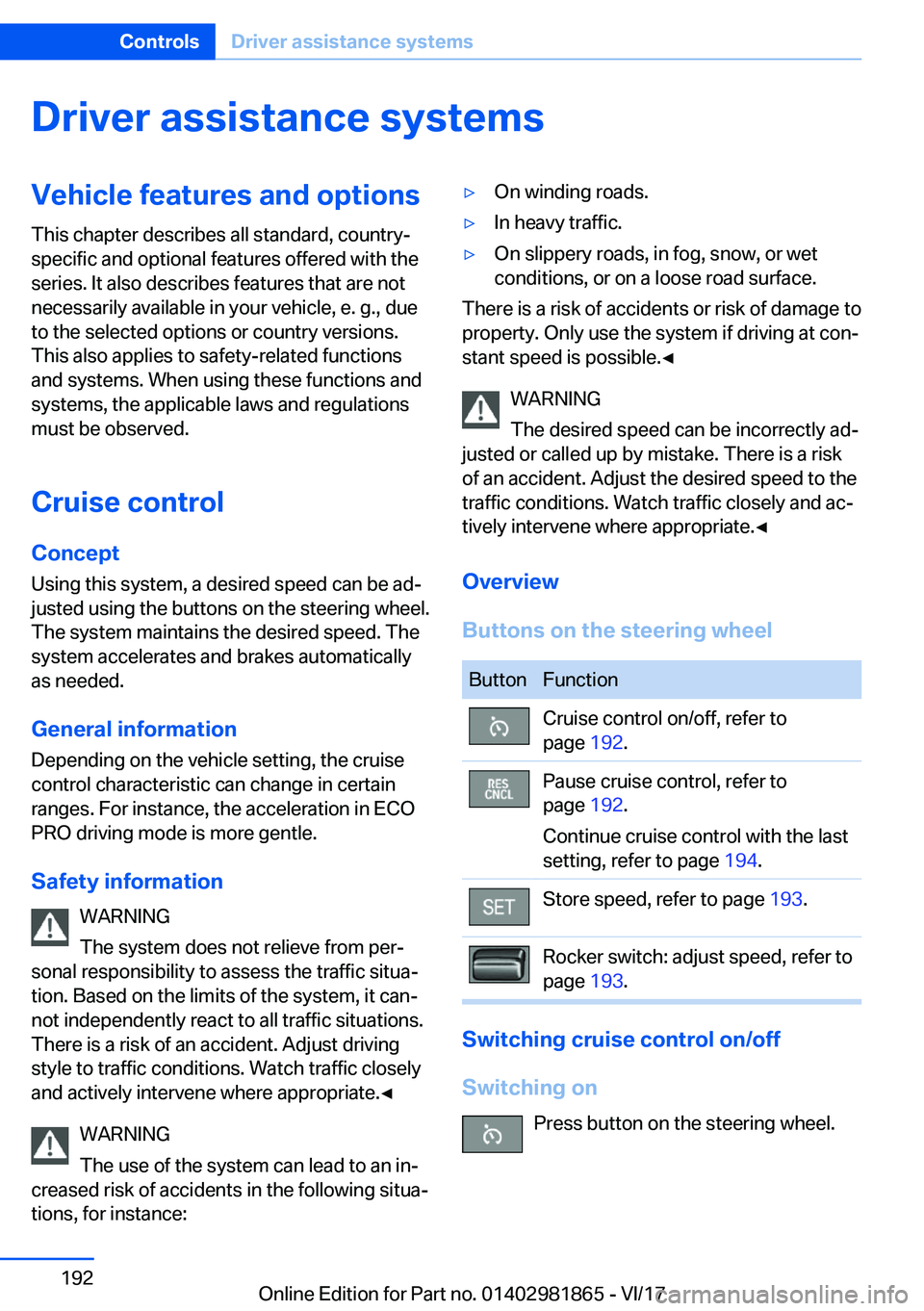

Driver
assistance
systemsVehicle
features
and
options
This chapter describes all standard, country- specific and optional features offered with theseries. It also describes features that are notnecessarily available in your vehicle, e. g., due
to the selected options or country versions.
This also applies to safety-related functions
and systems. When using these functions and systems, the applicable laws and regulations
must be observed.
Cruise
controlConcept
Using this system, a desired speed can be ad#j justed using the buttons on the steering wheel.
The system maintains the desired speed. The system accelerates and brakes automaticallyas needed.
General
information
Depending on the vehicle setting, the cruise
control characteristic can change in certain ranges. For instance, the acceleration in ECOPRO driving mode is more gentle.
Safety
information WARNING
The system does not relieve from per#j
sonal responsibility to assess the traffic situa#j tion. Based on the limits of the system, it can#jnot independently react to all traffic situations.
There is a risk of an accident. Adjust driving
style to traffic conditions. Watch traffic closely
and actively intervene where appropriate.'
