2018 AUDI S3 SEDAN Owners Manual

LL co .... N
" N .... 0 N > co
The term "vehicle battery" refers to the 12 Volt
batte ry in your vehicle.
Appl ies to: vehicles w ith plug-in hybrid drive: you
can find important informa tion abo ut yo ur high­
voltage battery in
r=> page 92.
Detail ed warning s for the vehicle battery :
~
Always wear eye protect ion .
&
Battery acid is high ly corrosive. Always
wea r protect ive g loves and eye protect ion .
.
®
Fire, spa rks, open flame and smoking are
forbidden .
A
A highly exp losive mixt ure of gases can
form when charging ba tte ries.
®
Always keep children far away from bat-
tery electrolyte and the battery .
~
Always follow the instructions in the oper -
ating manual.
A WARNING
All work on the battery or electrical system in
your vehicle can result in injuries, chemical burns, accidents or burns. Because of this, all
work m ust be perfo rmed
only by an author­
ized Aud i dea le r or autho rized Aud i Serv ice
Facili ty.
A WARNING
Cali fornia P roposi tion 65 Warn ing:
- Battery posts, termina ls and re lated acc es­
sories contain le ad and lead compounds,
c hem ica ls known to the St ate of C alifornia
to cause cance r and rep roductive problems.
Wash hands after handling.
(D Note
If the veh icle w ill be par ked for long periods
of t ime, pro tect it agains t the col d so that i t
w ill not be destroyed by "freezing"
q page 32 7, Charging the vehicle battery .
Checking and Filling
Charging the vehicle battery
Applies to: veh icles w ith vehicle battery in t he e ng in e com ­
partment
Fig . 272 En g in e co mpa rtm en t: c onnect ions for charge r
a nd j ump start c abl e
Applies to: vehicles w ith jump s ta rt point(+)
Fig . 2 73 Engin e compar tm ent: c onn ect io ns fo r charge r
a n d j ump s ta rt c able
Observe the safety precautions r=>page 318,
Working in the engine compartment .
Vehicles with plug-in hybrid drive*: r=> page 102,
Jump s tar t.
Requirement: only use chargers with a ma ximum
charging current of 30 amp s/14.8 Volt s.
The ve­
hicle battery cab les remain connected.
Depend ing on the engine, the battery is located
in the engine compartment or i n the l uggage
compartment. For vehicles w ith the battery in
the luggage compartment, a jump start point
that is also used for battery charg ing is located i n
the engine compartment . The battery is a lways
charged in the eng ine compartment. The g round
poin t
0 is always loca ted on the vehicle chass is .
.,. Read the warnings r=> .&.. in General warnings
about batteries on page 32 7
and r=> .&._.
.,. Switch off the ig nitio n and all electrical equ ip­
ment .
.,. Open the hood r=> page 320.
327

Check ing and F illing
~ Applies to: vehicles with the vehicle battery in
the engine compartment: open the battery cov­
er
¢ fig. 272 .
~ Applies to: vehicles with jump start point(+):
open the cover on the posi tive term inal
¢ fig . 273 .
~ Clamp the charger terminal clamps as instruct­
ed on the
p os itiv e t erminal (+ ) and only on the
bo dy ground p oin t(-).
~ Inse rt the powe r cable for the charg ing device
into the socket and switch the device on.
~ At the end of the charging process, switch the
charger off and pull the power cab le out of the
socket.
~ Remove the charger terminal clamps.
~ Applies to: vehicles with the vehicle battery in
the engine compartment: fold the cover back
on the battery correctly .
~ Applies to: vehicles with jump start point(+):
close t he cover on the positive term inal.
~ Close the hood ¢ page 320.
A WARNING
-A highly exp losive mixture of gases can form
when charging batteries . On ly charge the
vehicle battery in well -venti lated areas.
- A drained vehicle battery can freeze at tem ­
peratures around 32
QF (0 QC). A frozen or
thawed vehicle battery must not be charged
and must not be used anymore. If ice forms,
the battery housing can crack and battery electrolyte can leak out, which increases the
risk of a n explos ion and chemical burns .
Contact an autho rized Aud i deale r or au ­
tho rized Aud i Serv ice Facility fo r more info r­
mation .
-Do not connect o r disconne ct the c ha rg ing
cable while charg ing beca use th is increases
the risk of an exp losion.
(D Tips
-Only charge the vehicle battery through the
con nections in t he e ng ine compartment.
-Read all of the manufacture r's instructions
fo r th e cha rger befo re charg ing t he ve hicle
battery.
32 8
Windshield washer
system
Fig . 274 En gin e compar tmen t: w inds hield was he r fl ui d
cove r (example)
Observe the safety precautions ¢ page 318 ,
Working in the engine compartment .
M N
-N
"' "' m
The windshield washer fluid reservo ir W contains
the cleaning solution for the w indshield and the
headlight washer system*
¢ page 321, fig . 267 .
The reservoir capacity can be found in
¢page 382.
To reduce the risk of lime scale depos its on the
sp ray nozzles, use clean water with low amounts
of calcium . Always add w indow cleaner to the wa­
ter . When the outside temperatures are cold , an
ant i-freez ing agent sho uld be added to t he wate r
so that it does no t freeze.
@ Note
-Th e concentration of ant i-freez ing agent
must be adjusted to t he ve hicle operat ing
c ondi tions i n the respective clima te . A con ­
centration t hat is too high can lead to vehi ­
cle damage .
-Never add radia to r an ti- free ze o r o ther ad di­
t ives to the washer fluid.
-Do not use a glass clea ner th at conta ins
paint so lvents, because t his could damage
the paint.
Service interval display
The service interval display detects when your ve ­
hicle is due for service .
The service interval display works in two stages: .,.

u. 00 .-< N l'­ N .-< 0 N > 00
-Inspection or oil change reminder: after a cer ­
tain distance driven, a message appears in the i nst rument cluste r display each time the ign i­
t ion is switched on or off. The rema ining dis­
tance or time is displayed briefly .
-Inspection or oil change due: if your vehicle
has reached an inspection or o il change interval
or bot h intervals at t he same time, the mes­
sage
Inspection due! or Oil change due! or Oil
change and in spection due!
appears briefly a f­
te r swi tc h ing t he ignition on/off.
Checking service intervals
You can check the rema ining distance or time un­
til the nex t oil change o r next inspection in the
Info tainmen t sys tem. Select in the Infotainmen t
sys tem: th e
I MENU I button > Vehicle > left con­
tro l button
> Service & checks > Service inter ­
vals .
Resetting the indicator
An author ized A udi dealer or author ized A udi
Serv ice Fac ility will reset the serv ice inte rval dis­
p lay after pe rforming serv ice .
If you have changed t he oil you rself, you must re ­
set t he oil change interva l.
To reset the display, se lect in the Infotainment
system: the
I MENU I button > Vehicle > left con­
tro l button
> Service & checks > Service intervals
> Reset oil change interval.
@ Note
- Only reset the oil c hange indicato r if the oil
was c hanged.
- Fo llow ing the service inte rvals is c ritical to
maintai ning the fu nction, serv ice li fe, and
va lue of yo ur ve hicle , es pecially the eng ine.
Eve n if th e m ile ag e on the v ehicle is low, do
not exc eed t he ti me f or th e next ser vic e.
Checking and Filling
329

Wheels
Wheels
Wheels and T ires
General information
~check your tires regularly for
damage (punctures, cuts, cracks
and bulges). Remove foreign ob ­
jects from the tire tread.
~ If driving over curbs or similar
obstacles, drive slowly and ap­ proach the curb at an angle.
~Have faulty tires or rims re­
placed immediately.
~ Protect your tires from oil,
grease and fuel.
~ Mark tires before removing
them so that the same running
direction can be maintained if
they are reinstalled.
~Lay tires flat when storing and
store them in a cool, dry location
with as little exposure to light as
possible.
_&. WARNING -
-Never drive faster than the maximum permitted speed
for your tires. This could cause
the tires to heat up too much.
This increases the risk of an
accident because it can cause
the tire to burst .
-Always adapt your driving to the road and traffic condi-
330
tions . Drive carefully and re­
duce your speed on icy or slip­
pery roads . Even winter tires
can lose traction on black ice.
(@ Note
-Please note that summer and
winter tires are designed for
the conditions that are typical
i n those seasons . Aud i recom­
mends using winter tires dur­
ing the winter months . Low
temperatures significantly de­
crease the elasticity of summ­
er tires, which affects traction
and braking ability. If summer
tires are used in very cold
temperatures, cracks can form
on the tread bars, resulting in
permanent tire damage that
can cause loud driving noise
and unbalanced tires.
-Burnished, polished or chromed rims must not be used in winter driving condi­
t ions. The surface of the r ims
does not have sufficient corro­
sion protection for this and
could be permanently dam ­
aged by road salt or similar
substances.

LL co .... N
" N .... 0 N > co
Tire designations
Fig. 275 Tire designations on the side­
wall
(D Tires for passenger vehicles
(if applicable)
"P" indicates a tire for a passenger
vehicle. "T" indicates a tire desig­
nated for temporary use.
@ Nominal width
Nominal width of the tire be­
tween the sidewalls in millime­
ters. In general: the larger the
number, the wider the tire.
@ Aspect ratio
Height/width ratio expressed as a
percentage .
Wheels
@Tire construction
"R" indicates a radial tire.
® Rim diameter
Size of the rim diameter in inches.
® Load index and speed rating
The load index indicates the tire's
load-carrying capacity.
The speed rating indicates the
maximum permitted speed. Also
see
¢ &. in General information
on page 330.
"EXTRA LOAD", "xl" or "RF" indi­
cates that the tire is reinforced or
i s an Extra Load tire.
Speed rat-
Maximum permitted speed
ing
p up to 93 mph (150 km/h)
Q up to 99 mph (160 km/h)
R up to 106 mph (170 km/h)
s up to 110 mph (180 km/h)
T up to 118 mph (190 km/h)
u up to 124 mph (200 km/h)
H up to 130 mph (210 km/h)
V up to 149 mph (240 km/h)a)
z above 149 mph (240 km/h)a)
w up to 168 mph (270 km/h)a)
y up to 186 mph (300 km/h)a)
a) For tires above 149 mph (240 km/h),
tire manufacturers sometimes use the
code "ZR".
331

Wheel s

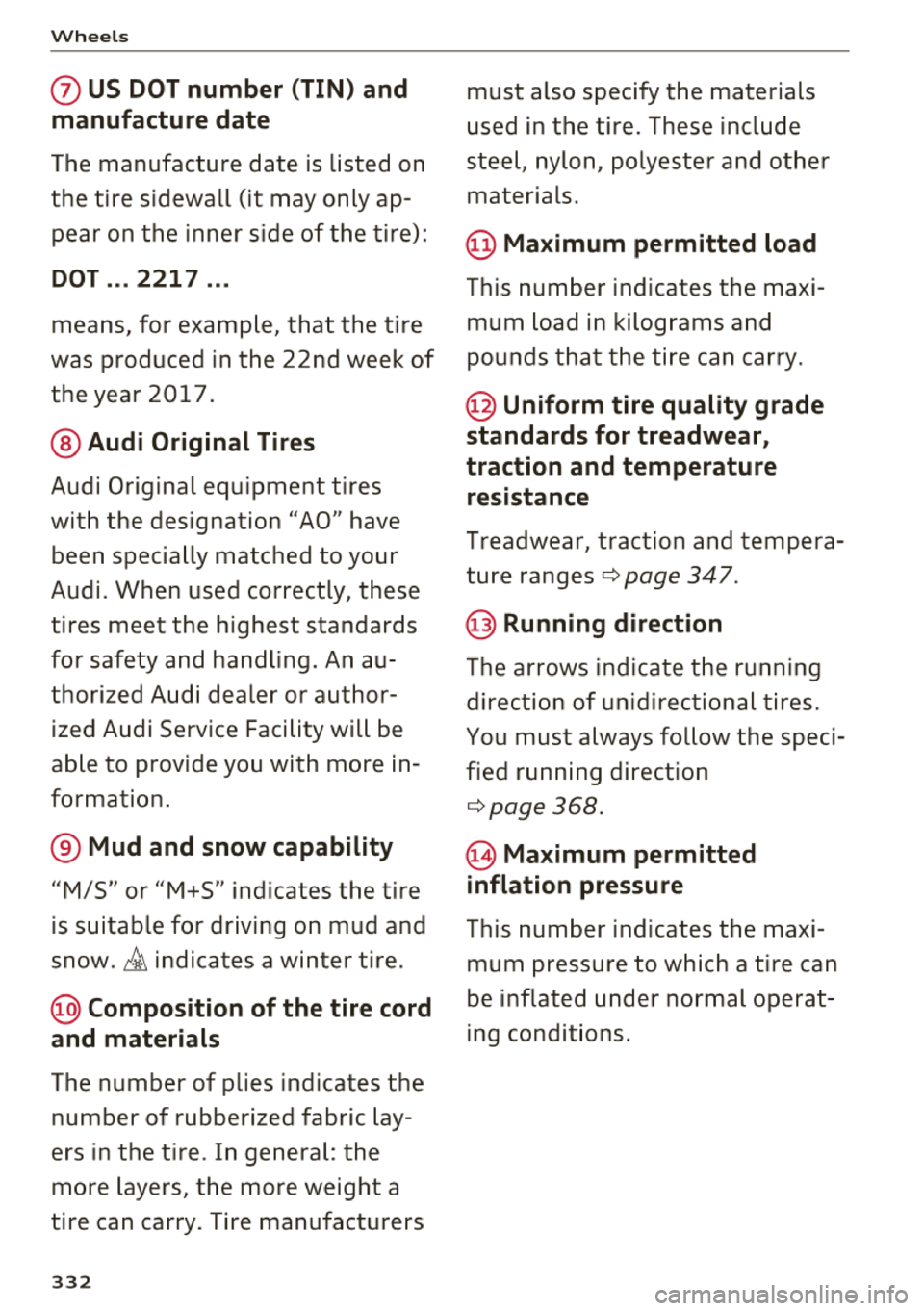

0 US DOT number (TIN) and
manufacture date
T he manufacture date is listed on
the tire sidewall (it may only ap­
pear on the inner side of the tire) :
DOT ... 2217 ...
means, for example, that the tire
was produced in the 22nd week of
the year 2017.
@ Audi Original Tires
Audi Original equipment tires
with the designation
"AO" have
been specially matched to your
Audi. When used correctly, these
tires meet the highest standards
for safety and handling. An au ­
thorized Audi dealer or author­
ized Audi Service Facility will be
able to provide you with more in­
formation.
® Mud and snow capability
"M/5" or "M+S" indicates the tire
is suitable for driving on mud and
snow.
& indicates a winter tire.
@ Composition of the tire cord
and materials
T he number of plies indicates the
number of rubberized fabric lay­
ers in the tire . In general: the
more layers, the more weight a
tire can carry. Tire manufacturers
332
must also specify the materials
used in the tire. These include
steel, nylon, polyester and other materials.
@ Maximum permitted load
This number indicates the maxi­
mum load in kilograms and
pounds that the tire can carry.
@ Uniform t ire quality grade
standards for treadwear ,
traction and temperature resistance
Treadwear, traction and tempera­
ture ranges
q page 347 .
@ Running d ir e ction
The arrows indicate the running
direction of unidirectional tires.
You must always follow the speci­
fied running direction
q page 368 .
@ Maximum permitted
inflation pressu re
This number indicates the maxi­
mum pressure to which a tire can
be inflated under normal operat ­
ing condit ions.

u. a, ... N
" N ... 0 N > a:,
Glossary of tire and loading
terminology
Accessory weight
means the combined weight ( in
excess of those standard items
which may be replaced) of auto­ matic transmission , power steer ­
ing, power brakes, power win­
dows, power seats, radio, and
heater, to the extent that these
items a re available as factory- in­
stalled equipment (whether i n­
stalled or not) .
Aspect ratio
means the ratio of the height to
the width of the tire in percent .
Numbers of 55 or lower indicate a
low s idewall for improved steer­
ing response and better overall
handling on dry pavement.
Bead
means the part of the tire that is
made of steel wires, wrapped or
reinforced by ply cords and that is
shaped to fit the rim .
Bead separation
means a breakdown of the bond
between components in the bead .
Wheel s
Cord
means the strands forming the
plies in the tire .
Cold tire inflation pressure
means the tire pressure recom­
mended by the vehicle manufac ­
turer for a tire of a designated
size that has not been driven for
more than a couple of miles (kilo­
meters) at low speeds in the
three hour period before the tire pressure is measured or adjusted .
Curb weight
means the weight of a motor ve­
hicle with standard equipment in­
cluding the maximum capacity of
fuel, oil , and coolant, air condi­
tioning and additional weight of
optional eq uipm ent .
Extra load tire
means a tire designed to operate
at higher loads and at highe r in­
flation pressures than the corre­
sponding standard tire . Extra load
tires may be identified as "X L",
"xl", "EXTRA LOAD", or "RF" on
the sidewall.
.,.
333

Wheel s

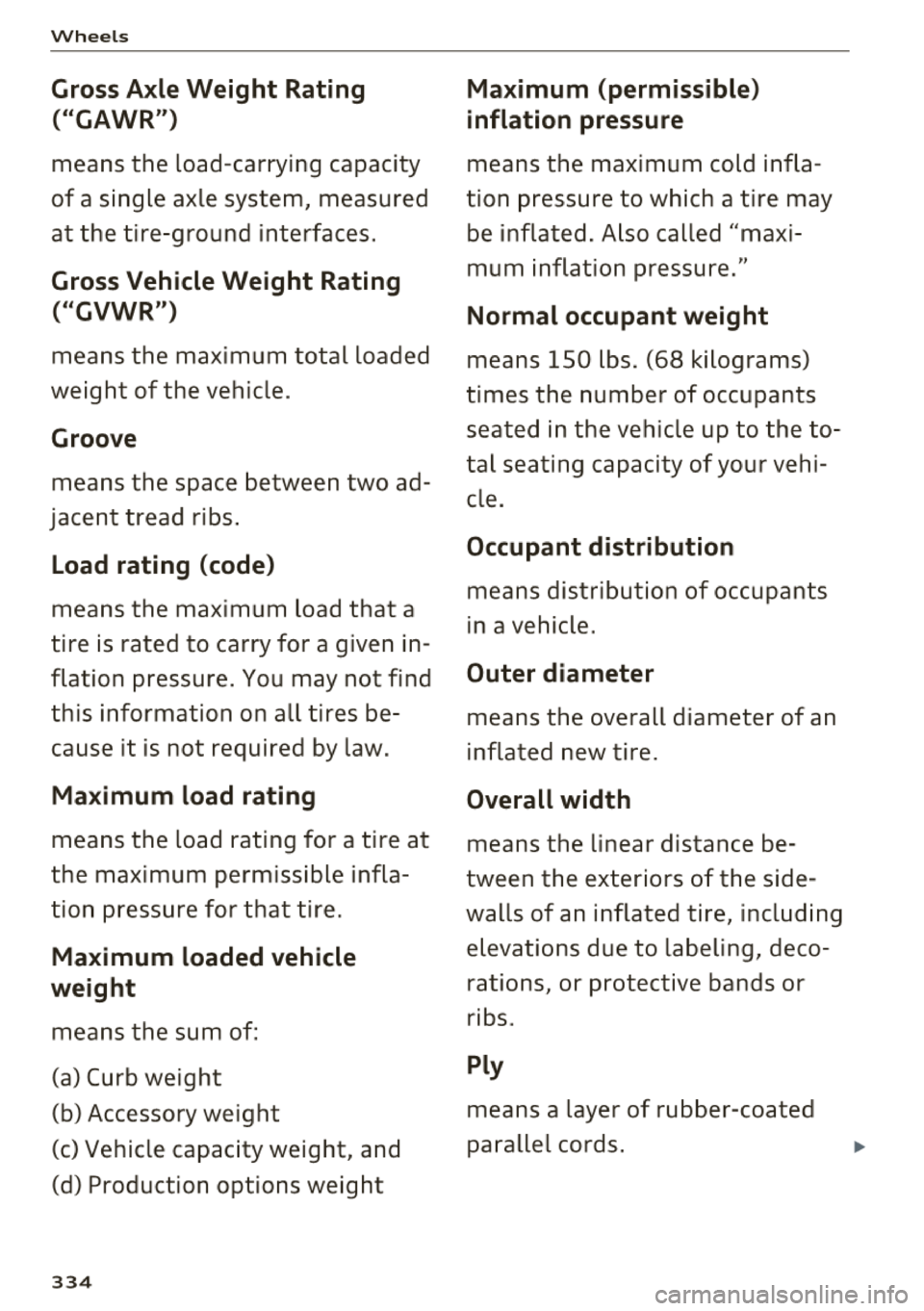

Gross Axle Weight Rating
("GAWR ")
means the load -carrying capacity
of a single axle system, measured
at the tire -ground interfaces.
Gross Vehicle Weight Rating
(" GVWR ")
means the maximum total loaded
weight of the vehicle .
Groove
means the space between two ad­
jacent tread ribs .
Load rating (code )
means the maximum load that a
tire is rated to carry for a given in ­
flation pressure. You may not find
this information on all tires be­
cause it is not required by law .
Max imum load rating
means the load rating for a tire at
the maximum permissible infla­
tion pressure for that tire.
Ma ximum loaded vehicle
weight
means the sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight, and
(d) Production options weight
33 4
Maximum (permissible)
inflation pressu re
means the maximum cold infla ­
tion pressure to which a t ire may
be inflated. A lso called "maxi­
mum inflat ion pressure."
Normal occupant weight
means 150 lbs. (68 kilograms)
times the number of occupants seated in the vehicle up to the to­
tal seating capacity of your vehi­
cle.
Occupant distribution
means distribution of occupants
in a vehicle.
Outer diameter
means the overall diameter of an
inflated new tire.
Overall width
means the linear distance be­
tween the exteriors o f the side­
walls of an inflated tire , includ ing
elevations due to labeling, deco­ rations, or protective bands or
ribs .
Ply
means a layer of rubber-coated
parallel cords .
