2017 TOYOTA YARIS HATCHBACK Owners Manual

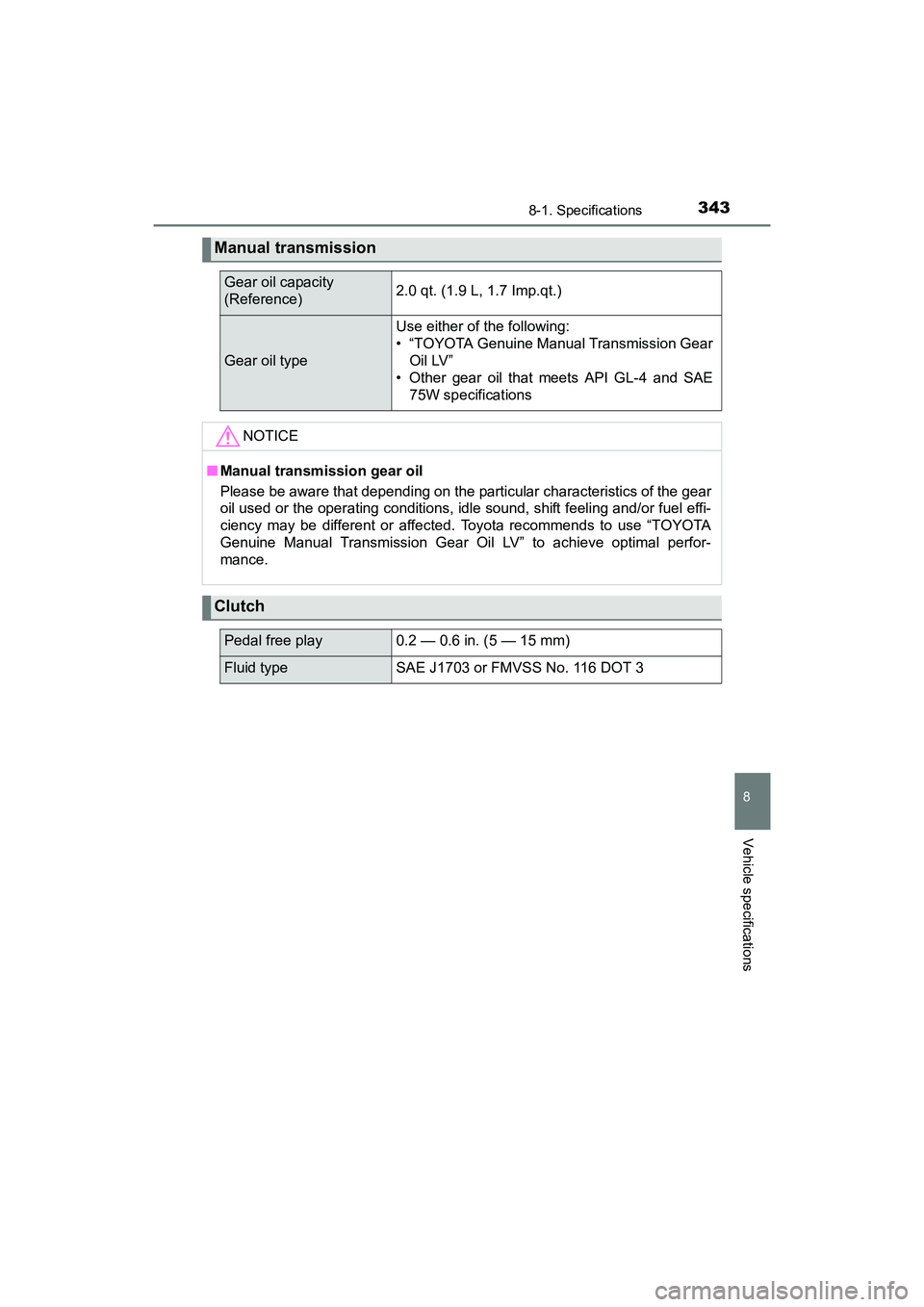

3438-1. Specifications
8
Vehicle specifications
YARIS_HB_OM_USA_OM52G64U
Manual transmission
Gear oil capacity
(Reference)2.0 qt. (1.9 L, 1.7 Imp.qt.)
Gear oil type
Use either of the following:
• “TOYOTA Genuine Manual Transmission GearOil LV”
• Other gear oil that meets API GL-4 and SAE 75W specifications
NOTICE
■Manual transmission gear oil
Please be aware that depending on the particular characteristics of the gear
oil used or the operating conditions, idle sound, shift feeling and/or fuel effi-
ciency may be different or affected. Toyota recommends to use “TOYOTA
Genuine Manual Transmission Gear Oil LV” to achieve optimal perfor-
mance.
Clutch
Pedal free play0.2 — 0.6 in. (5 — 15 mm)
Fluid typeSAE J1703 or FMVSS No. 116 DOT 3
YARIS_HB_OM_USA_OM52G64U.book 343 ページ ２０１６年２月１６日　火曜日　午後３時２０分

3448-1. Specifications
YARIS_HB_OM_USA_OM52G64U
*1: Minimum pedal clearance when depressed with a force of 67 lbf (300 N,31 kgf) while the engine is running
*2: Parking brake lever travel when pulled up with a force of 45 lbf (200 N,20 kgf)
Brakes
Pedal clearance*1
Rear drum brakes
3.2 in. (81 mm) Min.
Rear disc brakes
3.3 in. (84 mm) Min.
Pedal free play0.04 — 0.24 in. (1 — 6 mm)
Brake pad wear limit0.04 in. (1.0 mm)
Brake lining wear limit0.04 in. (1.0 mm)
Parking brake lever travel*2
Rear drum brakes
8 — 11 clicks
Rear disc brakes
6 — 9 clicks
Fluid typeSAE J1703 or FMVSS No.116 DOT 3
Steering
Free playLess than 1.2 in. (30 mm)
YARIS_HB_OM_USA_OM52G64U.book 344 ページ ２０１６年２月１６日　火曜日　午後３時２０分

3458-1. Specifications
8
Vehicle specifications
YARIS_HB_OM_USA_OM52G64U
15-inch tires
16-inch tires
Compact spare tires
Tires and wheels
Tire sizeP175/65R15 84H
Tire inflation pressure
(Recommended cold
tire inflation pressure)
Driving under normal conditions
Front:
33 psi (230 kPa, 2.3 kgf/cm
2 or bar)
Rear:
33 psi (230 kPa, 2.3 kgf/cm
2 or bar)
Never exceed the maximum cold tire inflation
pressure indicated on the tire sidewall.
Wheel size15  5 1/2J
Wheel nut torque76 ft·lbf (103 N·m, 10.5 kgf·m)
Tire sizeP195/50R16 83V
Tire inflation pressure
(Recommended cold
tire inflation pressure)
Driving under normal conditions
Front:
32 psi (220 kPa, 2.2 kgf/cm
2 or bar)
Rear:
29 psi (200 kPa, 2.0 kgf/cm
2 or bar)
Never exceed the maximum cold tire inflation
pressure indicated on the tire sidewall.
Wheel size16  6J
Wheel nut torque76 ft·lbf (103 N·m, 10.5 kgf·m)
Tire sizeT125/70D16 96M
Tire inflation pressure
(Recommended cold
tire inflation pressure)60 psi (420 kPa, 4.2 kgf/cm2 or bar)
Never exceed the maximum cold tire inflation
pressure indicated on the tire sidewall.
Wheel size16  4T
Wheel nut torque76 ft·lbf (103 N·m, 10.5 kgf·m)
YARIS_HB_OM_USA_OM52G64U.book 345 ページ ２０１６年２月１６日　火曜日　午後３時２０分

3468-1. Specifications
YARIS_HB_OM_USA_OM52G64UA: HB2 halogen bulbs
B: HIR2 halogen bulbs
C: H16 halogen bulbs D: Wedge base bulbs (clear)
E: Wedge base bulbs (amber) F: Single end bulbs (clear)
G: Double end bulbs
Light bulbs
Light BulbsBulb NoWTy p e
Exterior Headlights and daytime running
lights (if equipped)
Ty pe A
Ty pe B9003
— 60/55
55 A
B
Front fog lights (if equipped) — 19 C
Front side marker lights — 5 D
Front turn signal lights/
parking lights 7444NA 28/8 E
Rear turn signal lights — 21 F
Stop/tail and rear side marker
lights 7443 21/5 D
Back-up lights 921 16 D
License plate light — 5 D
Interior
Personal lights/interior light —5D
Luggage compartment light —5G
YARIS_HB_OM_USA_OM52G64U.book 346 ページ ２０１６年２月１６日　火曜日　午後３時２０分

3478-1. Specifications
8
Vehicle specifications
YARIS_HB_OM_USA_OM52G64U
Fuel infor mation
■Gasoline quality
In very few cases, driveability problems may be caused by the brand of gaso-
line you are using. If driveability problems persist, try changing the brand of
gasoline. If this does not correct the problem, consult your Toyota dealer.
■ Gasoline quality standards
●Automotive manufacturers in the U.S.A., Europe and Japan have developed
a specification for fuel quality call ed World-Wide Fuel Charter (WWFC),
which is expected to be applied worldwide.
● The WWFC consists of four categorie s that are based on required emission
levels. In the U.S., category 4 has been adopted.
● The WWFC improves air quality by lowering emissions in vehicle fleets, and
improves customer satisfaction through better performance.
■ Recommendation of the use of gasoli ne containing detergent additives
● Toyota recommends the use of gasoline that contains detergent additives to
avoid the build-up of engine deposits.
● All gasoline sold in the U.S.A. co ntains minimum detergent additives to
clean and/or keep clean intake systems, per EPA’s lowest additives concen-
tration program.
● Toyota strongly recommends the use of Top Tier Detergent Gasoline. For
more information on Top Tier Detergent Gasoline and a list of marketers,
please go to the official website www.toptiergas.com.
You must only use unleaded gasoline.
Select octane rating 87 (Research Octane Number 91) or higher.
Use of unleaded gasoline with an octane rating lower than 87
may result in engine knocking. Persistent knocking can lead to
engine damage.
At minimum, the gasoline you use should meet the specifications of
ASTM D4814 in the U.S.A..
YARIS_HB_OM_USA_OM52G64U.book 347 ページ ２０１６年２月１６日　火曜日　午後３時２０分

3488-1. Specifications
YARIS_HB_OM_USA_OM52G64U■
Recommendation of the use of low emissions gasoline
Gasolines containing oxygenates such as ethers and ethanol, as well as
reformulated gasolines, are available in some cities. These fuels are typically
acceptable for use, providing they meet other fuel requirements.
Toyota recommends these fuels, since the formulations allow for reduced
vehicle emissions.
■ Non-recommendation of the use of blended gasoline
●If you use gasohol in your vehicle, be sure that it has an octane rating no
lower than 87.
● Toyota does not recommend the use of gasoline containing methanol.
■ Non-recommendation of the use of gasoline containing MMT
Some gasoline contains an octane enhancing additive called MMT (Methylcy-
clopentadienyl Manganese Tricarbonyl).
Toyota does not recommend the use of gasoline that contains MMT. If fuel
containing MMT is used, your emission control system may be adversely
affected.
The malfunction indicator lamp on the instrument cluster may come on. If this
happens, contact your Toyota dealer for service. ●Use only gasoline containing up to 15%
ethanol.
DO NOT use any flex-fuel or gasoline
that could contain more than 15% etha-
nol, including from any pump labeled
E30, E50, E85 (which are only some
examples of fuel containing more than
15% ethanol).
DO NOT use gasoline
containing more than
15% ethanol.
(30% ethanol)
(50% ethanol)
(85% ethanol)
YARIS_HB_OM_USA_OM52G64U.book 348 ページ ２０１６年２月１６日　火曜日　午後３時２０分

3498-1. Specifications
8
Vehicle specifications
YARIS_HB_OM_USA_OM52G64U■
If your engine knocks
●Consult your Toyota dealer.
● You may occasionally notice light knocking for a short time while accelerat-
ing or driving uphill. This is nor mal and there is no need for concern.
NOTICE
■Notice on fuel quality
●Do not use improper fuels. If improper fuels are used, the engine will be
damaged.
● Do not use leaded gasoline.
Leaded gasoline can cause damage to your vehicle’s three-way catalytic
converters causing the emission control system to malfunction.
● Do not use gasohol other than the type previously stated.
Other gasohol may cause fuel system damage or vehicle performance
problems.
● Using unleaded gasoline with an octane number or rating lower than the
level previously stated will cause persistent heavy knocking.
At worst, this will lead to engine damage.
■ Fuel-related poor driveability
If poor driveability (poor hot starting, vaporization, engine knocking, etc.) is
encountered after using a different type of fuel, discontinue the use of that
type of fuel.
■ When refueling with gasohol
Take care not to spill gasohol. It can damage your vehicle’s paint.
YARIS_HB_OM_USA_OM52G64U.book 349 ページ ２０１６年２月１６日　火曜日　午後３時２０分

3508-1. Specifications
YARIS_HB_OM_USA_OM52G64U
Tire infor mation
Full-size tire
Compact spare tire
Typical tire symbols
