2017 TOYOTA YARIS HATCHBACK fuse box

2436-3. Do-it-yourself maintenance
6
Maintenance and care
YARIS_HB_OM_USA_OM52G64U
Engine compar tment
Fuse boxes (P. 273)
Engine oil filler cap (P. 245)
Battery ( P. 249)
Brake fluid reservoir (P. 248)
Radiator ( P. 248) Condenser (
P. 248)
Electric cooling fan
Engine coolant reservoir (P. 246)
Engine oil level dipstick (P. 244)
Washer fluid tank ( P. 251)1
2
3
4
5
6
7
8
9
10
YARIS_HB_OM_USA_OM52G64U.book 243 ページ ２０１６年２月１６日　火曜日　午後３時２０分

2736-3. Do-it-yourself maintenance
6
Maintenance and care
YARIS_HB_OM_USA_OM52G64U
Checking and replacing fuses
Turn the engine switch to the “LOCK” position.
Open the fuse box cover.
Engine compartment: type A and B fuse boxesType A fuse box
Push the tab in and lift the lid off.
Type B fuse box
Push the tab in and lift the lid off.
If any of the electrical components do not operate, a fuse may
have blown. If this happens, check and replace the fuses as nec-
essary.
1
2
1
2
YARIS_HB_OM_USA_OM52G64U.book 273 ページ ２０１６年２月１６日　火曜日　午後３時２０分

2746-3. Do-it-yourself maintenance
YARIS_HB_OM_USA_OM52G64U
Engine compartment: type C fuse boxPull the rubber strip on the
edge to unhook it from the
cover, and then push the
tabs in and lift the cover off.
Remove the battery terminal
cover and then the fuse box
cover.
Instrument panel
Remove the lid.
Remove the fuse with the pull-
out tool.
Only type A fuse can be removed
using the pullout tool.
1
2
3
YARIS_HB_OM_USA_OM52G64U.book 274 ページ ２０１６年２月１６日　火曜日　午後３時２０分

2756-3. Do-it-yourself maintenance
6
Maintenance and care
YARIS_HB_OM_USA_OM52G64U
Check if the fuse is blown.Normal fuse
Blown fuse
From Type A to E:
Replace the blown fuse with a new fuse of an appropriate amperage rat-
ing. The amperage rating can be found on the fuse box lid.
Type F:
Contact your Toyota dealer.
4
1
2
Type ATy pe B
Type CTy pe D
Type ETy pe F
YARIS_HB_OM_USA_OM52G64U.book 275 ページ ２０１６年２月１６日　火曜日　午後３時２０分

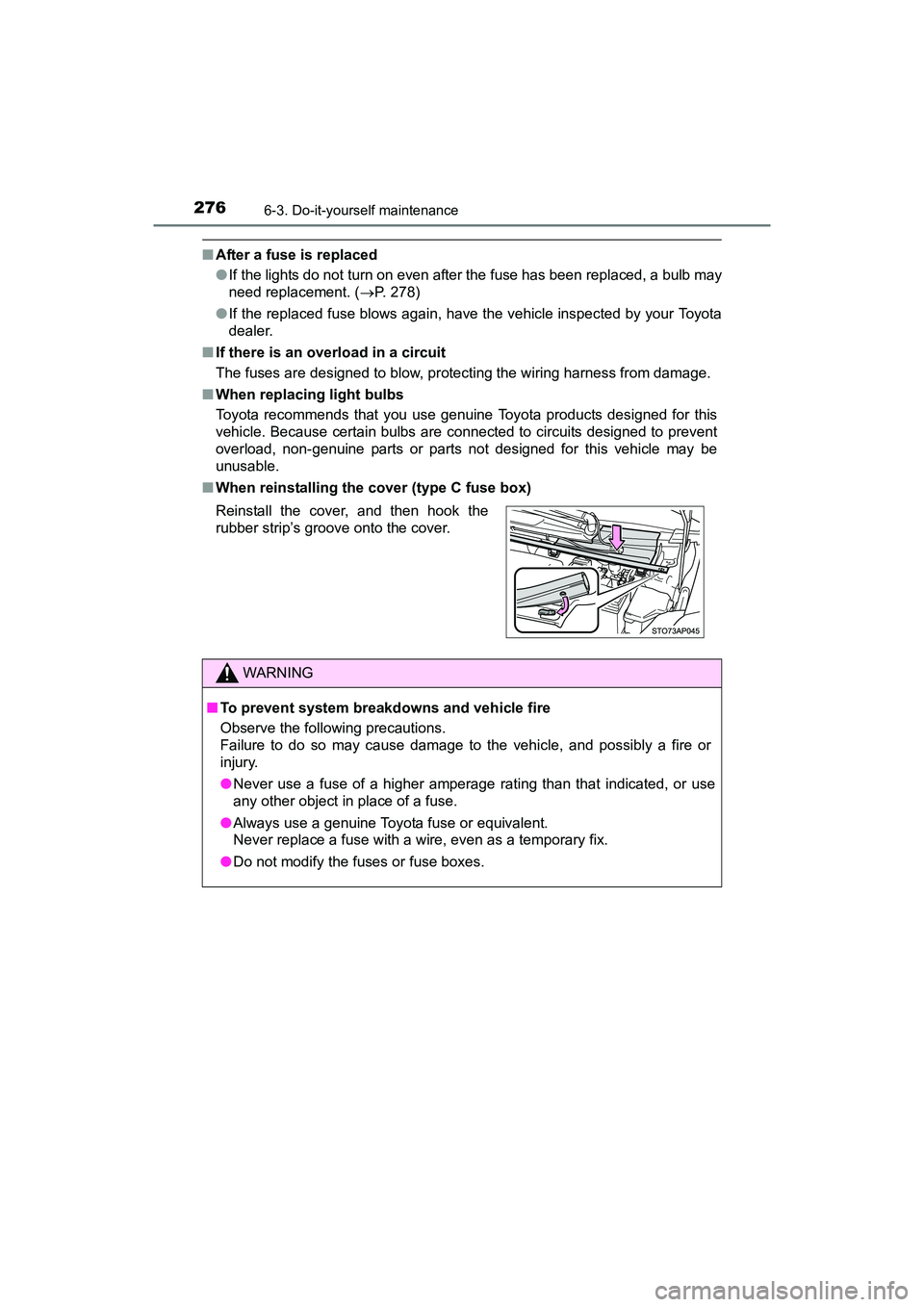

2766-3. Do-it-yourself maintenance
YARIS_HB_OM_USA_OM52G64U
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb may
need replacement. ( P. 278)
● If the replaced fuse blows again, have the vehicle inspected by your Toyota
dealer.
■ If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
■ When replacing light bulbs
Toyota recommends that you use genuine Toyota products designed for this
vehicle. Because certain bulbs are connected to circuits designed to prevent
overload, non-genuine parts or parts not designed for this vehicle may be
unusable.
■ When reinstalling the cover (type C fuse box)
Reinstall the cover, and then hook the
rubber strip’s groove onto the cover.
WARNING
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or
injury.
●Never use a fuse of a higher amperage rating than that indicated, or use
any other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
● Do not modify the fuses or fuse boxes.
YARIS_HB_OM_USA_OM52G64U.book 276 ページ ２０１６年２月１６日　火曜日　午後３時２０分
