2017 TOYOTA YARIS HATCHBACK Owners Manual

1434-2. Driving procedures
4
Driving
YARIS_HB_OM_USA_OM52G64U
Tur n signal lever
Right turn
Lane change to the right (push
and hold the lever partway)
The right hand signals will flash
until you release the lever.
Lane change to the left (push
and hold the lever partway)
The left hand signals will flash until
you release the lever.
Left turn
■Turn signals can be operated when
The engine switch is in the “ON” position.
■ If the indicator flashes faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned
out.
Operation instructions
1
2
3
4
YARIS_HB_OM_USA_OM52G64U.book 143 ページ ２０１６年２月１６日　火曜日　午後３時２０分

1444-2. Driving procedures
YARIS_HB_OM_USA_OM52G64U

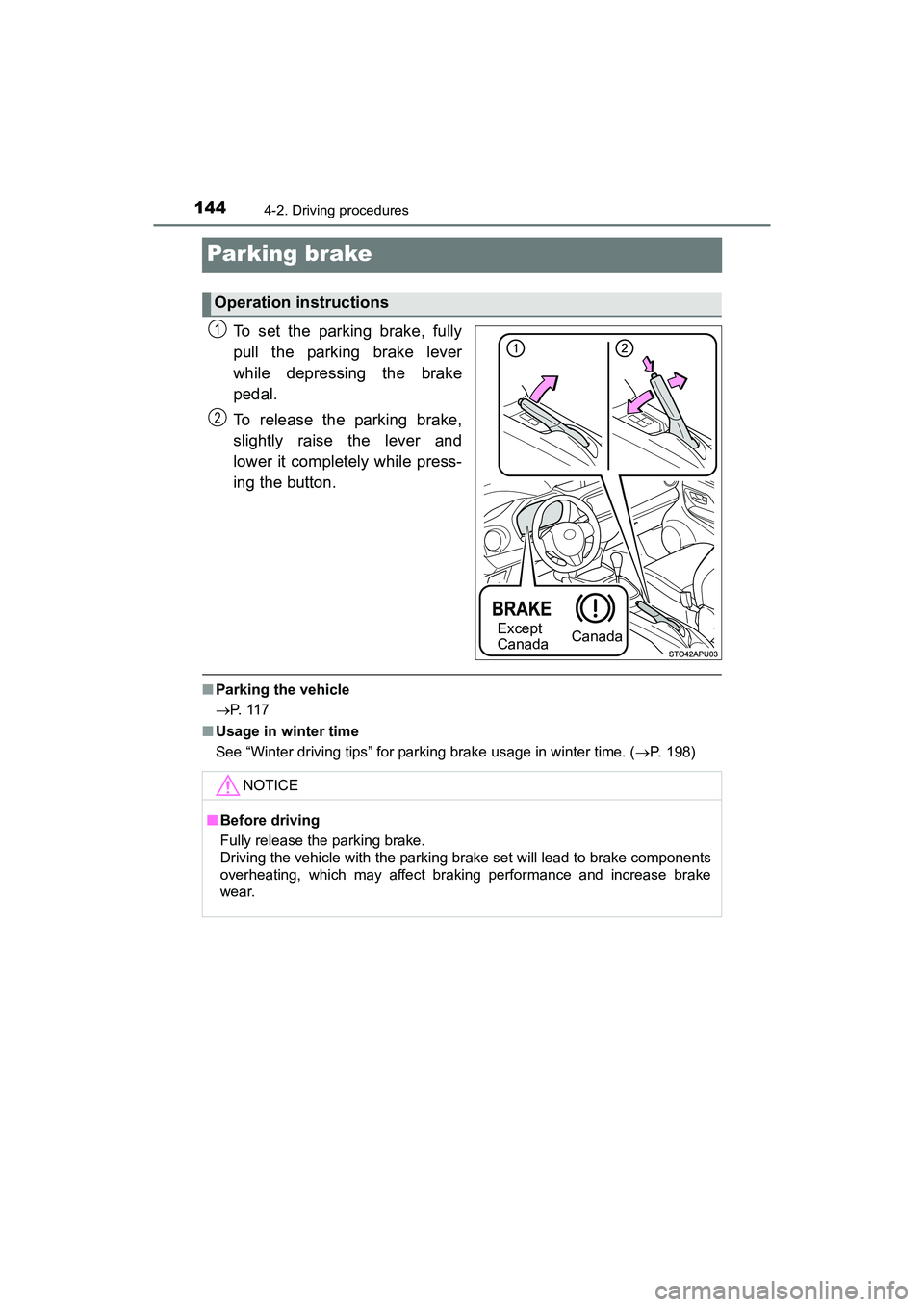

Parking brake
To set the parking brake, fully
pull the parking brake lever
while depressing the brake
pedal.
To release the parking brake,
slightly raise the lever and
lower it completely while press-
ing the button.
■Parking the vehicle
P. 1 1 7
■ Usage in winter time
See “Winter driving tips” for parking brake usage in winter time. ( P. 198)
Operation instructions
Except
CanadaCanada
1
2
NOTICE
■Before driving
Fully release the parking brake.
Driving the vehicle with the parking brake set will lead to brake components
overheating, which may affect braking performance and increase brake
wear.
YARIS_HB_OM_USA_OM52G64U.book 144 ページ ２０１６年２月１６日　火曜日　午後３時２０分

1454-3. Operating the lights and wipers
4
Driving
YARIS_HB_OM_USA_OM52G64U
Headlight switch
Turning the end of the lever turns on the lights as follows:
Type AOff
Vehicles with daytime run-
ning light system:
The daytime running lights
turn on. ( P. 147)
The side marker, park-
ing, tail, license plate,
daytime running lights (if
equipped)
(P. 147) and
instrument panel lights
turn on.
The headlights and all
lights listed above
(except daytime running
lights) turn on.
The headlights can be operated manually.
Operation instructions
1
2
3
YARIS_HB_OM_USA_OM52G64U.book 145 ページ ２０１６年２月１６日　火曜日　午後３時２０分

1464-3. Operating the lights and wipers
YARIS_HB_OM_USA_OM52G64U
Type BOff
Vehicles with daytime run-
ning light system:
The daytime running lights
turn on. ( P. 147)
The side marker, park-
ing, tail, license plate,
daytime running lights (if
equipped)
(P. 147) and
instrument panel lights
turn on.
The headlights and all
lights listed above
(except daytime running
lights) turn on.
Type C
The daytime running
lights turn on.
(P. 147)
The side marker, park-
ing, tail, license plate,
daytime running lights
(P. 147) and instrument
panel lights turn on.
The headlights and all
lights listed above
(except daytime running
lights) turn on.
The daytime running
lights turn off.
1
2
3
1
2
3
4
YARIS_HB_OM_USA_OM52G64U.book 146 ページ ２０１６年２月１６日　火曜日　午後３時２０分

1474-3. Operating the lights and wipers
4
Driving
YARIS_HB_OM_USA_OM52G64U
With the headlights on, push
the lever away from you to turn
on the high beams.
Pull the lever toward you to the
center position to turn the high
beams off.
Pull the lever toward you and
release it to flash the high
beams once.
You can flash the high beams with the headlights on or off.
■Daytime running light system (if equipped)
●Vehicles with reflector type headlights: To make your vehicle more visible to
other drivers during daytime driving, the daytime running lights turn on auto-
matically whenever the engine is started and the parking brake is released
with the headlight switch off or in the position. (Illuminate dimmer
than the headlights.) Daytime running lights are not designed for use at
night.
For type C of this headlight, daytime running lights can be turned off by
operating the switch.
Vehicles with projector type headlights: To make your vehicle more visible
to other drivers during daytime driving, the daytime running lights turn on
automatically whenever the engine is started and the parking brake is
released with the headlight switch off or in the position. Daytime run-
ning lights are not designed for use at night.
For type C of this headlight, daytime running lights can be turned off by
operating the switch.
● Compared to turning on the headlights, the daytime running light system
offers greater durability and consumes less electricity, so it can help improve
fuel economy.
■ Automatic High Beam (if equipped)
P. 183
■ Light reminder buzzer
A buzzer sounds when the engine switch is turned to the “LOCK” or “ACC”
position and the driver’s door is opened while the lights are turned on.
Turning on the high beam headlights
1
2
NOTICE
■To prevent battery discharge
Do not leave the lights on longer than necessary when the engine is not
running.
YARIS_HB_OM_USA_OM52G64U.book 147 ページ ２０１６年２月１６日　火曜日　午後３時２０分

1484-3. Operating the lights and wipers
YARIS_HB_OM_USA_OM52G64U
Fog light switch
Type ATurns the front fog lights
off
Turns the front fog lights
on
: If equipped
The fog lights secure excellent visibility in difficult driving con-
ditions, such as in rain and fog.
Operation instructions
1
2
YARIS_HB_OM_USA_OM52G64U.book 148 ページ ２０１６年２月１６日　火曜日　午後３時２０分

1494-3. Operating the lights and wipers
4
Driving
YARIS_HB_OM_USA_OM52G64U
Type BTurns the front fog lights
off
Turns the front fog lights
on
■Fog lights can be used when
The headlights are on in low beam.
1
2
YARIS_HB_OM_USA_OM52G64U.book 149 ページ ２０１６年２月１６日　火曜日　午後３時２０分

1504-3. Operating the lights and wipers
YARIS_HB_OM_USA_OM52G64U
Windshield wipers and washer
Operate the lever as follows to operate the wipers.
Type AIntermittent windshield
wiper operation
Low speed windshield
wiper operation
High speed windshield
wiper operation
Temporary operation
Washer/wiper dual operation
The wipers will automatically oper-
ate a couple of times after the
washer squirts.
Operating the wiper lever
1
2
3
4
5
