Maintenance and care

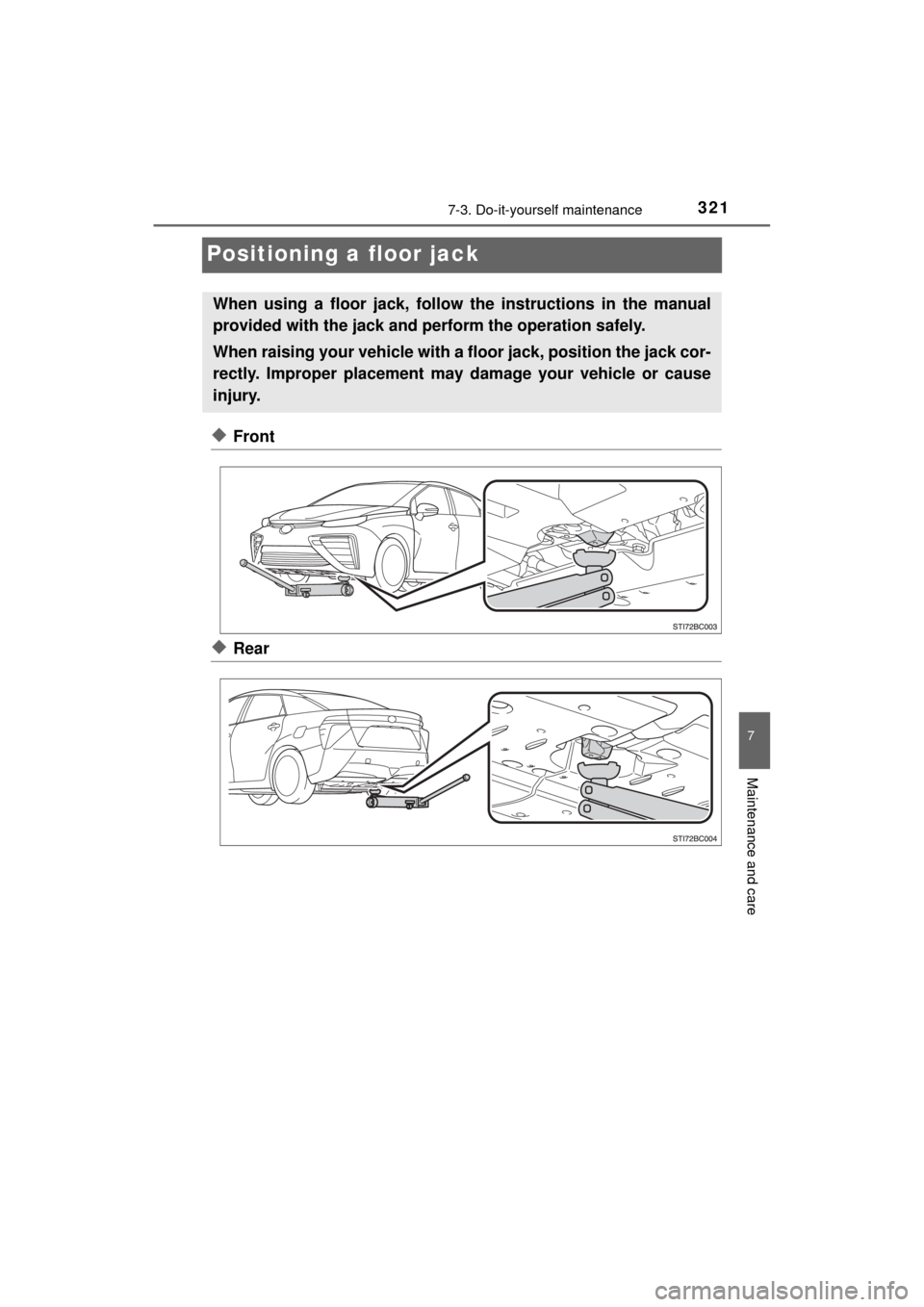

Positioning a floor jack
◆Front
◆Rear
When using a floor jack, follow the instructions in the manual
provided with the jack and perform the operation safely.
When raising your vehicle with a floor jack, position the jack cor-
rectly. Improper placement may damage your vehicle or cause
injury.

3227-3. Do-it-yourself maintenance
MIRAI_OM_USA_OM62023U
WARNING
■When raising your vehicle
Make sure to observe the following precautions to reduce the possibility of
death or serious injury:
● Make sure to set the floor jack properly at the jack point.
Raising the vehicle with an improperly positioned floor jack will damage
the vehicle and may cause the vehicle to fall off the floor jack.

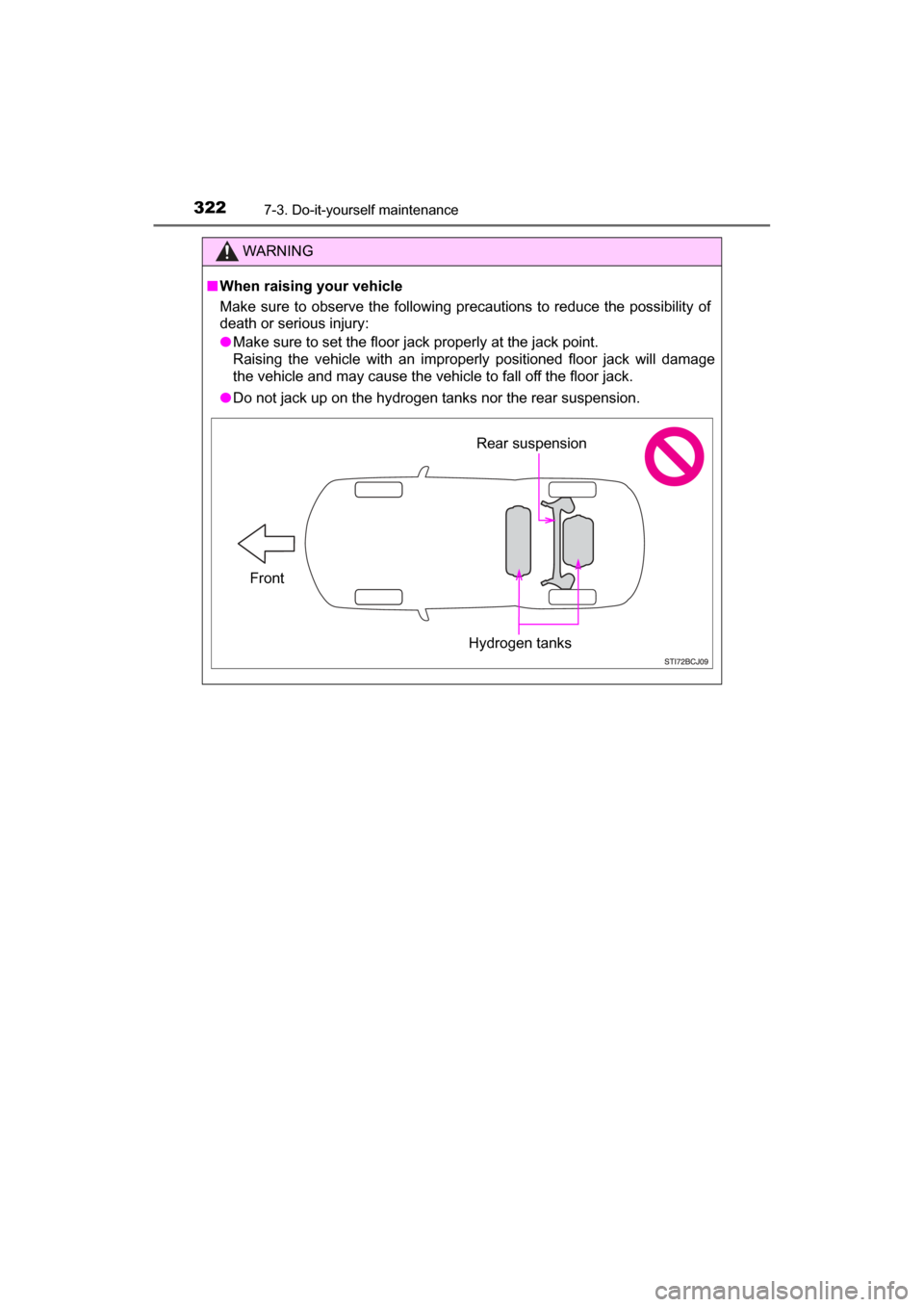

● Do not jack up on the hydrogen tanks nor the rear suspension.
Rear suspension
Hydrogen tanks
Front

3237-3. Do-it-yourself maintenance
MIRAI_OM_USA_OM62023U
7
Maintenance and care
Motor compartment
Washer fluid tank (→P. 327)
Brake fluid reservoir (→ P. 326)
Inverter coolant reservoir (→ P. 324)
Fuse boxes ( →P. 355)
Fuel cell stack coolant radiator (→ P. 325) Inverter coolant radiator
(→ P. 325)
Condenser ( →P. 325)
Electric cooling fans
Fuel cell stack coolant reser-
voir ( →P. 324)
Fuel cell stack coolant sub
radiator ( →P. 325)

3247-3. Do-it-yourself maintenance
MIRAI_OM_USA_OM62023U

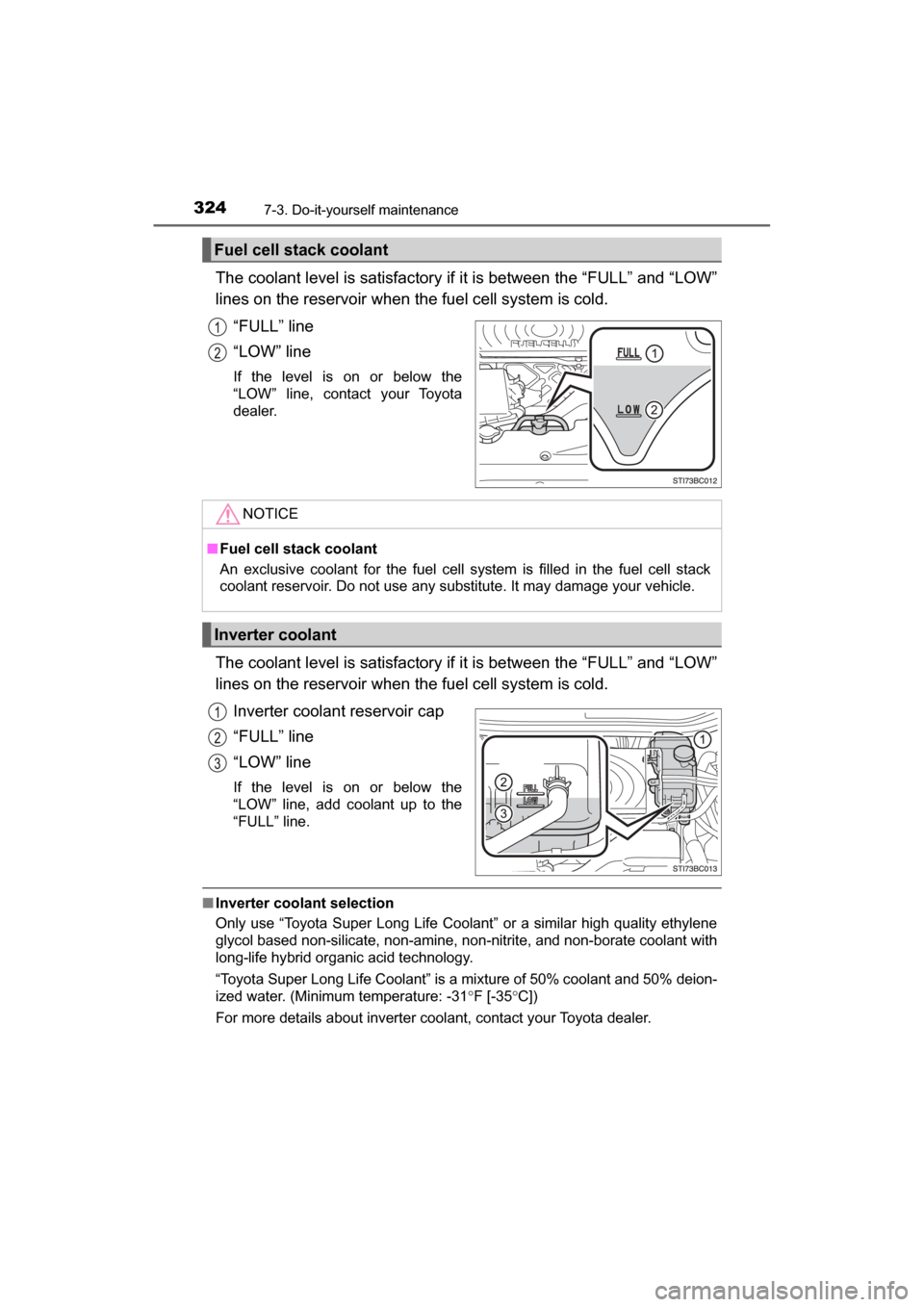

The coolant level is satisfactory if it is between the “FULL” and “LOW”
lines on the reservoir when the fuel cell system is cold.“FULL” line
“LOW” line
If the level is on or below the
“LOW” line, contact your Toyota
dealer.
The coolant level is satisfactory if it is between the “FULL” and “LOW”
lines on the reservoir when the fuel cell system is cold.Inverter coolant reservoir cap
“FULL” line
“LOW” line
If the level is on or below the
“LOW” line, add coolant up to the
“FULL” line.
■Inverter coolant selection
Only use “Toyota Super Long Life Coolant” or a similar high quality ethylene
glycol based non-silicate, non-amine, non-nitrite, and non-borate coolant with
long-life hybrid organic acid technology.
“Toyota Super Long Life Coolant” is a mixture of 50% coolant and 50% deion-
ized water. (Minimum temperature: -31 °F [-35° C])
For more details about inverter coolant, contact your Toyota dealer.
Fuel cell stack coolant
NOTICE
■ Fuel cell stack coolant
An exclusive coolant for the fuel cell system is filled in the fuel cell stack
coolant reservoir. Do not use any substitute. It may damage your vehicle.
Inverter coolant

3257-3. Do-it-yourself maintenance
MIRAI_OM_USA_OM62023U
7
Maintenance and care
■If the inverter coolant level drops within a short time of replenishing
Visually check the radiators, hoses, inverter coolant reservoir cap, drain cock
and water pump.
If you cannot find a leak, have your Toyota dealer test the cap and check for
leaks in the cooling system.
Check the radiator and condenser and clear away any foreign objects.
If either of the above parts is ex tremely dirty or you are not sure of
their condition, have your vehicle inspected by your Toyota dealer.
WARNING
■ When the fuel cell system is hot
Do not remove the coolant reservoir caps.
The cooling system may be under pressure and may spray hot coolant if the
cap is removed, causing serious injuries, such as burns.
NOTICE
■When adding coolant
Coolant is neither plain water nor stra ight antifreeze. The correct mixture of
water and antifreeze must be used to provide proper lubrication, corrosion
protection and cooling. Be sure to read the antifreeze or coolant label.
■ If you spill coolant
Be sure to wash it off with water to prevent it from damaging parts or paint.
Radiator and condenser
WARNING
■When the fuel cell system is hot
Do not touch the radiator or condenser as they may be hot and cause seri\
-
ous injuries, such as burns.

3267-3. Do-it-yourself maintenance
MIRAI_OM_USA_OM62023U■
Checking fluid level

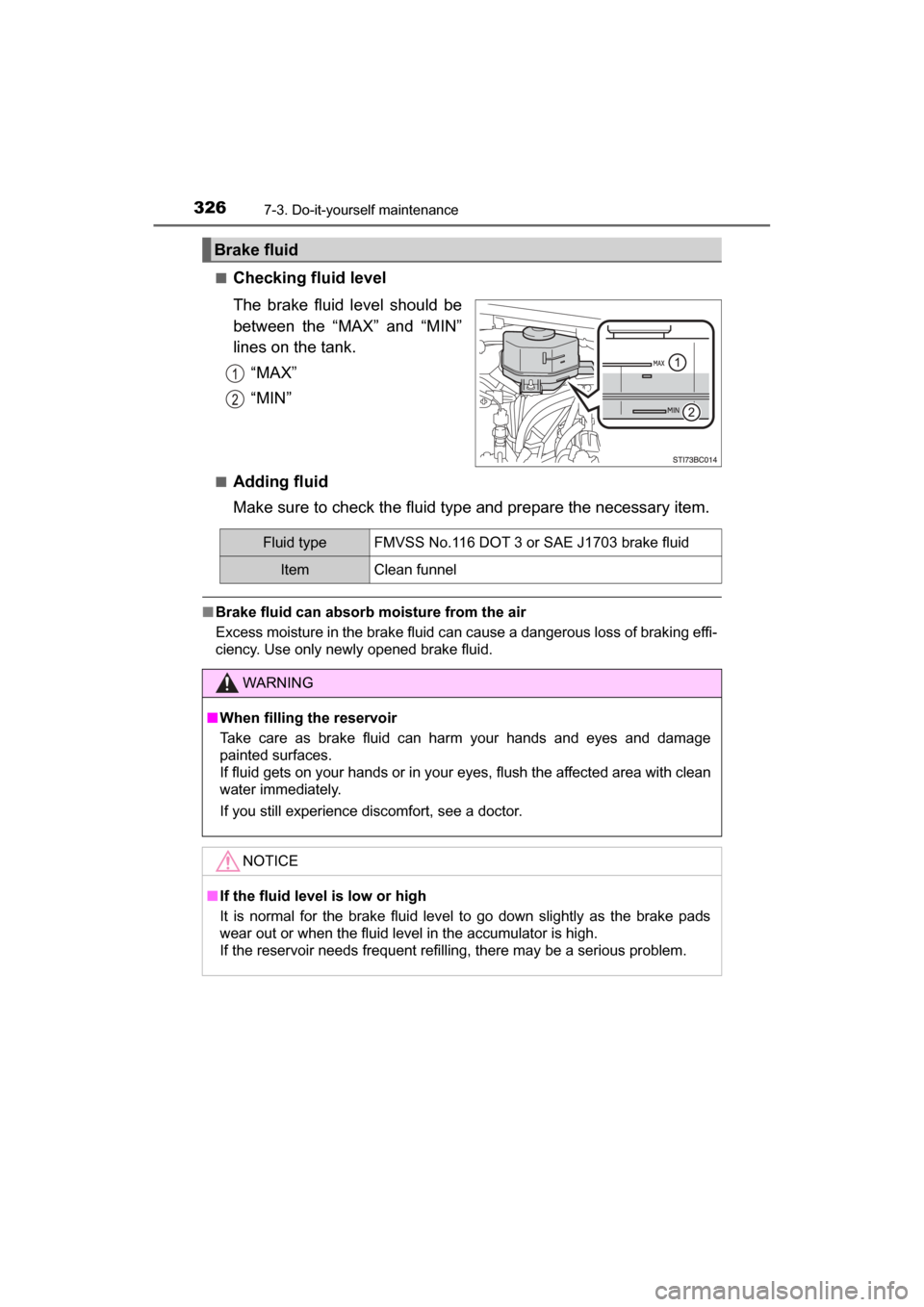

The brake fluid level should be
between the “MAX” and “MIN”
lines on the tank.
“MAX”
“MIN”
■Adding fluid
Make sure to check the fluid type and prepare the necessary item.
■Brake fluid can absorb moisture from the air
Excess moisture in the brake fluid can cause a dangerous loss of braking effi-
ciency. Use only newly opened brake fluid.
Brake fluid
Fluid typeFMVSS No.116 DOT 3 or SAE J1703 brake fluid
ItemClean funnel
WARNING
■When filling the reservoir
Take care as brake fluid can harm your hands and eyes and damage
painted surfaces.
If fluid gets on your hands or in your eyes, flush the affected area with clean
water immediately.
If you still experience discomfort, see a doctor.
NOTICE
■If the fluid level is low or high
It is normal for the brake fluid level to go down slightly as the brake pads
wear out or when the fluid level in the accumulator is high.
If the reservoir needs frequent refilling, there may be a serious problem.

3277-3. Do-it-yourself maintenance
MIRAI_OM_USA_OM62023U
7
Maintenance and care
If none of the washer do not work
or the warning message appears
on the multi-information display,
the washer tank may be empty.
Add washer fluid. (→P. 376)
Washer fluid
WARNING
■When adding washer fluid
Do not add washer fluid when the fuel cell system is hot or operating, as
washer fluid contains alcohol and may catch fire if spilled on the fuel cell
system, etc.
NOTICE
■Do not use any fluid other than washer fluid
Do not use soapy water or antifreeze instead of washer fluid.
Doing so may cause streaking on the vehicle’s painted surfaces.
■ Diluting washer fluid
Dilute washer fluid with water as necessary.
Refer to the freezing temperatures listed on the label of the washer fluid bot-
tle.

3287-3. Do-it-yourself maintenance
MIRAI_OM_USA_OM62023U

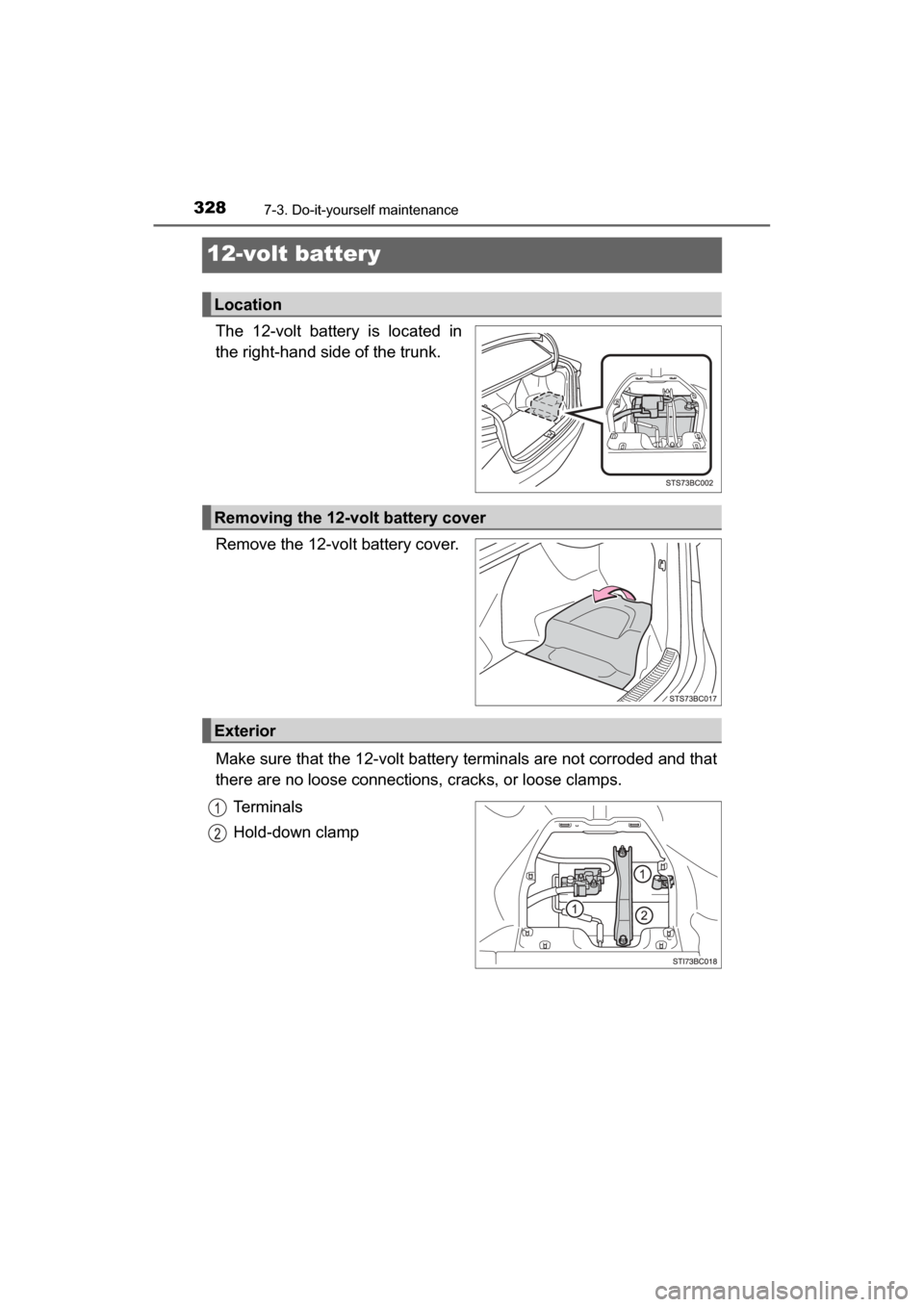

12-volt battery
The 12-volt battery is located in
the right-hand side of the trunk.
Remove the 12-volt battery cover.
Make sure that the 12-volt battery terminals are not corroded and that
there are no loose connections, cracks, or loose clamps.Terminals
Hold-down clamp
Location
Removing the 12-volt battery cover
Exterior
