Instrument cluster
MIRAI_OM_USA_OM62023U

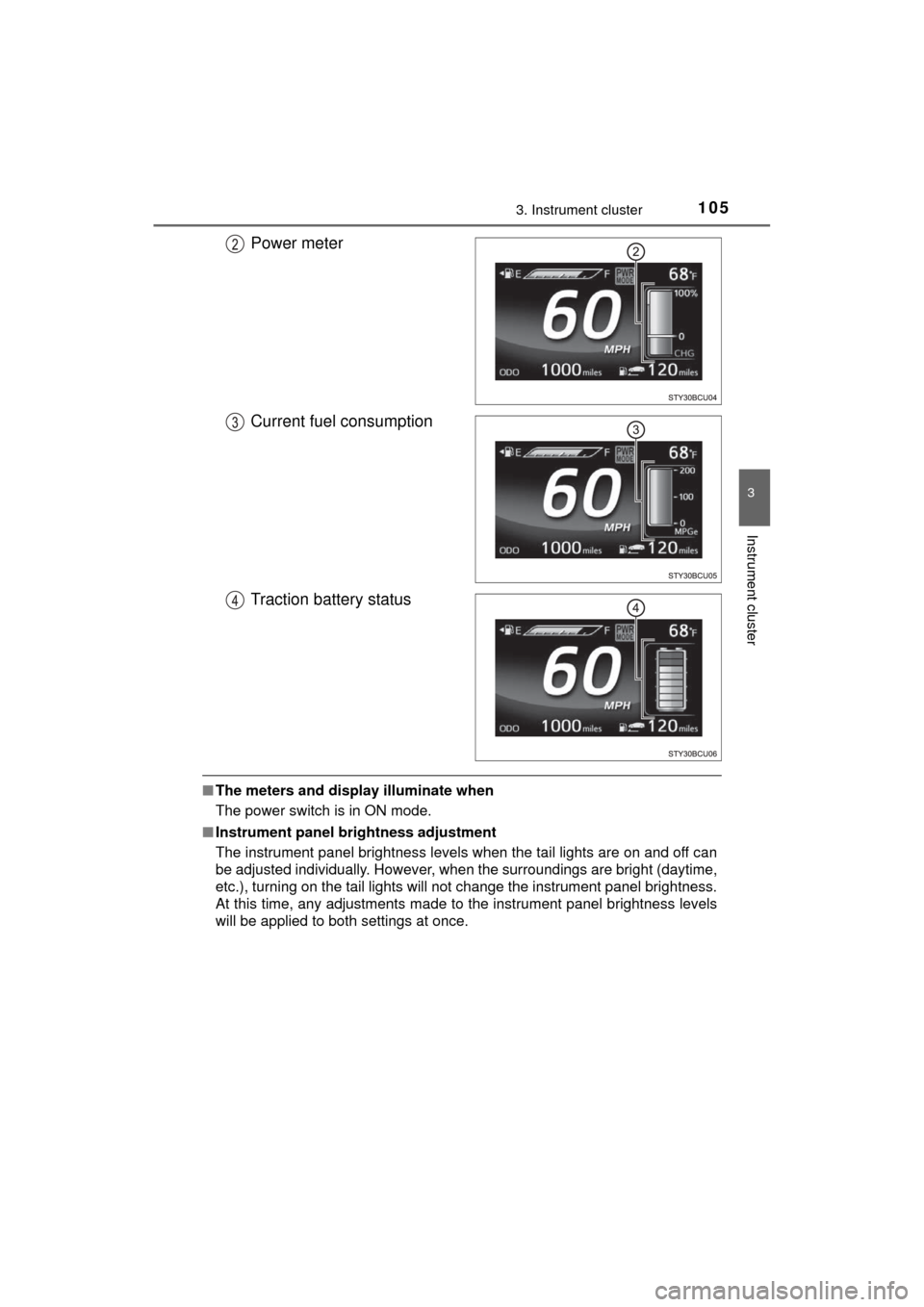

Power meter
Current fuel consumption
Traction battery status
■The meters and display illuminate when
The power switch is in ON mode.
■ Instrument panel brightness adjustment
The instrument panel brightness levels when the tail lights are on and off can
be adjusted individually. However, when the surroundings are bright (daytime,
etc.), turning on the tail lights will not change the instrument panel brightness.
At this time, any adjustments made to the instrument panel brightness levels
will be applied to both settings at once.

1063. Instrument cluster
MIRAI_OM_USA_OM62023U■
Outside temperature display
●In the following situations, the correct outside temperature may not be dis-
played, or the display may take longer than normal to change.
• When stopped, or driving at low speeds (less than 16 mph [25 km/h])
• When the outside temperature has changed suddenly (at the entrance/
exit of a garage, tunnel, etc.)
● When “--” or “E” is displayed, the system may be malfunctioning.
Take your vehicle to your Toyota dealer.
■ Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal displays, and there is no problem continuing to
use the display.
■ Customization
The meter display can be customized on the multi-information display.
(Customizable features: →P. 439)
NOTICE
■To prevent damage to the fuel cell system and its components
This vehicle is equipped with high coolant temperature warning light
(→ P. 369), instead of, coolant temperature gauge.
The fuel cell system may be overheating if the high coolant temperature
warning light flashes or comes on. In this case, immediately stop the
vehicle in a safe place, and check the fuel cell system after it has cooled
completely.

1073. Instrument cluster
3
Instrument cluster
MIRAI_OM_USA_OM62023U
Multi-information display
Displays the following informa-
tion when an icon is selected.
(→P. 108)
Some of the information may be
displayed automatically
depending on the situation.
Drive information
Select to display various drive data. ( →P. 108)
Navigation system-linked display
Select to display the following navigation system-linked information.
• Route guidance
• Compass display (north-up display/heading-up display)
Audio system-linked display
Select to enable selection of an audio source or track on the display
using the meter control switches.
Driving assist systems display
Displays when each driving assistance system is used.• Dynamic radar cruise control ( →P. 203)
• LDA (Lane Departure Alert) ( →P. 216)
• Intuitive parking assist ( →P. 223)
• PCS (Pre-Collision System) ( →P. 238)
Warning message display
Select to display warning messages and measures to be taken if a
malfunction is detected. (→P. 376)
The multi-information display pre sents the driver with a variety
of vehicle data.

1083. Instrument cluster
MIRAI_OM_USA_OM62023U
Settings display
When using each equipment, it is possible to toggle the switch and
change the settings of the meter display. • Intuitive parking assist ( →P. 223)
• BSM (Blind Spot Monitor) ( →P. 245)
•Clock ( →P. 280)
• Customize ( →P. 439)
The multi-information display is
operated using the meter control
switches.
Select an item/change pages
Enter/Set
Return to the previous
screen
To toggle through the items, pr ess or of the meter control
switches ( →P. 108), select [drive information] on the multi-
information display, and press or .
■Energy monitor
Displays fuel cell system status.

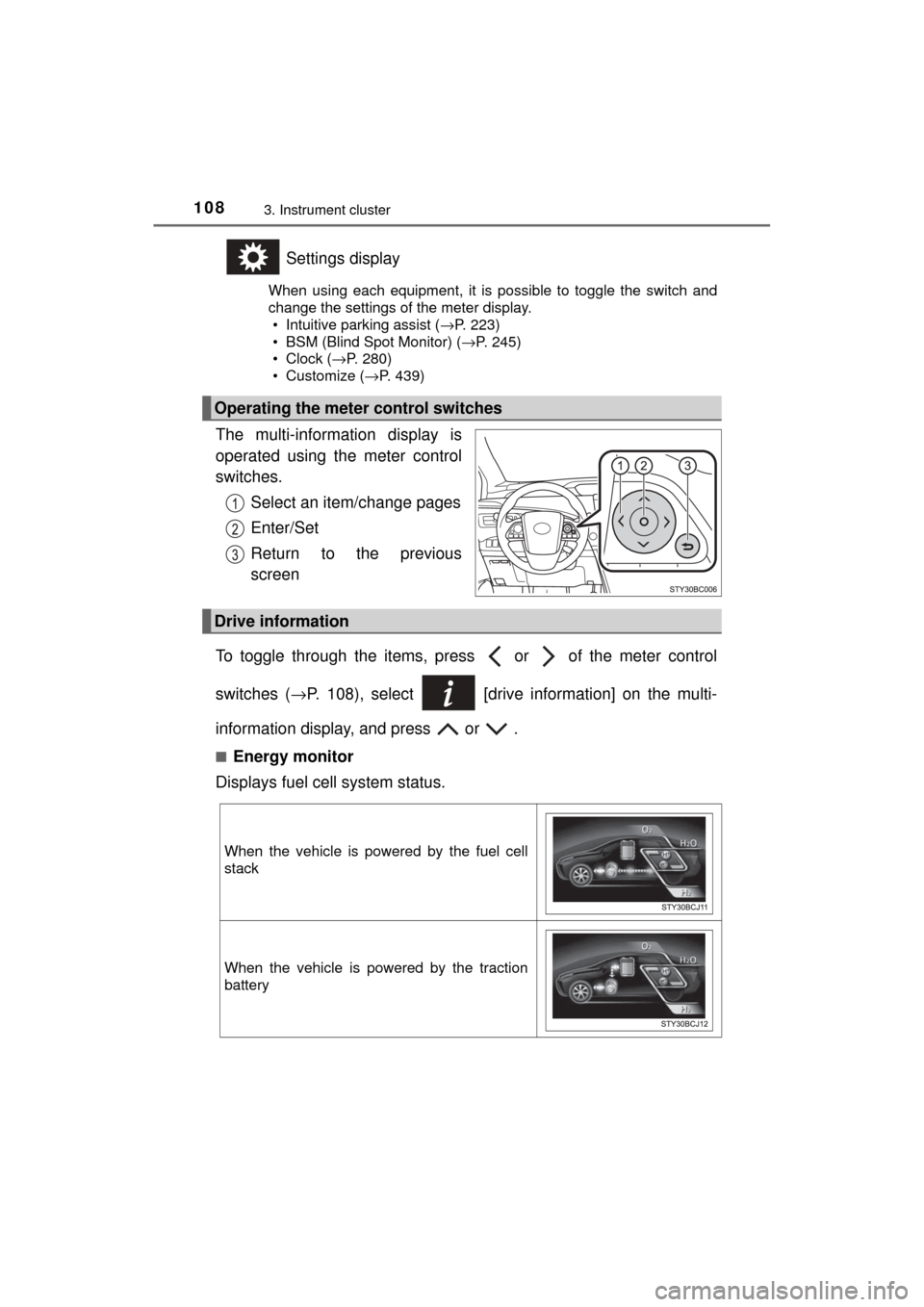

Operating the meter control switches
Drive information
When the vehicle is powered by the fuel cell
stack
When the vehicle is powered by the traction
battery

1093. Instrument cluster
3
Instrument cluster
MIRAI_OM_USA_OM62023U
These images are examples only, and may vary slightly from actual
conditions.

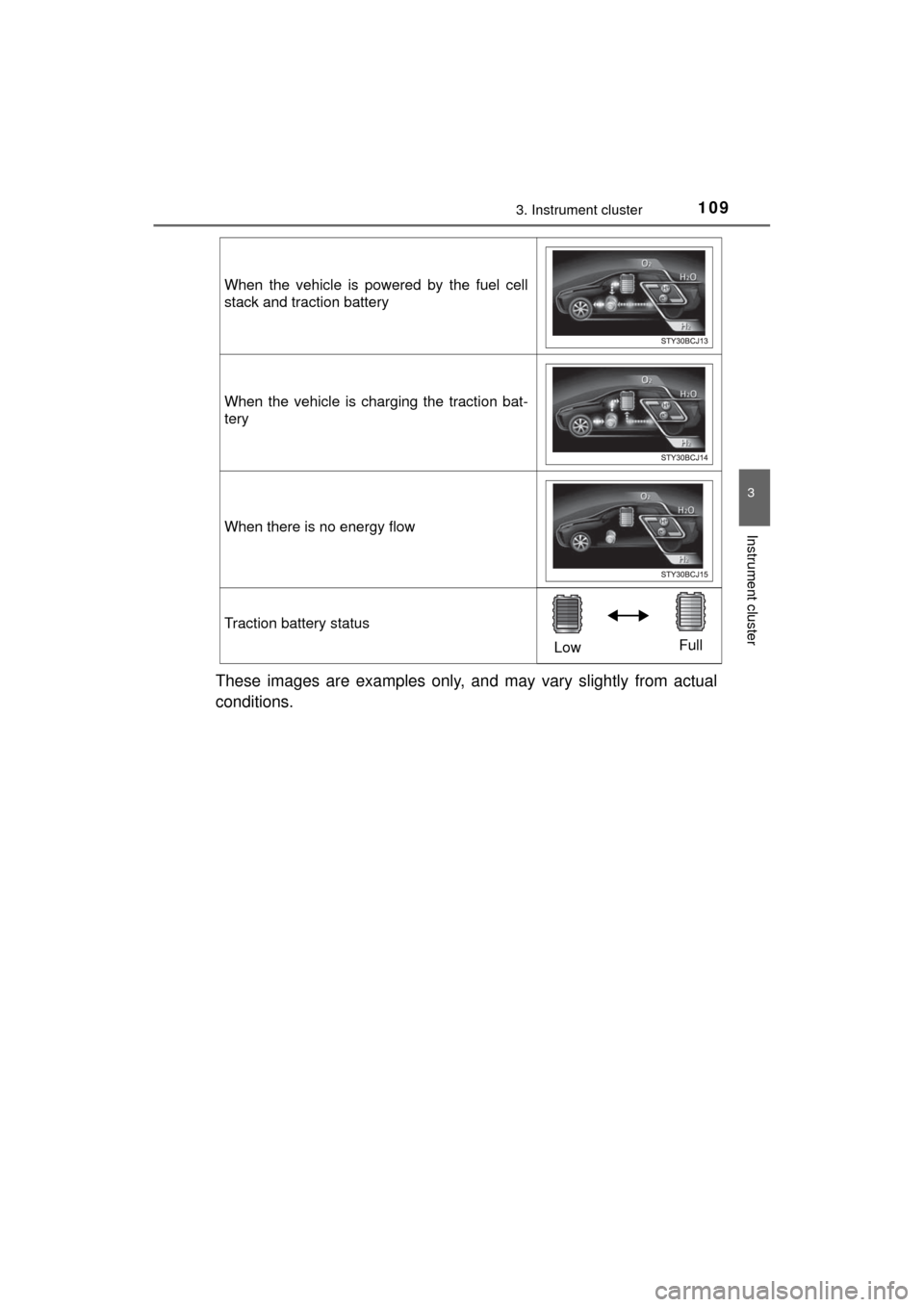

When the vehicle is powered by the fuel cell
stack and traction battery
When the vehicle is charging the traction bat-
tery
When there is no energy flow
Traction battery status
LowFull

1103. Instrument cluster
MIRAI_OM_USA_OM62023U■
Fuel cell system indicator and ECO Score
The output power of the fuel cell system, regeneration level display,
and the ECO driving is scored and displayed.
Charge area
Shows that energy is being
recovered via the regenera-
tive brake.
Eco area
Shows that the vehicle is
being driven in an Eco-
friendly manner.
Power area
Shows that an Eco-friendly dr iving range is being exceeded.
ECO Score
Displays the driving conditions in 5 stages, which are separated
in the 3 patterns of ECO Start, ECO Cruise and ECO Stop. Also,
each time the vehicle is stopped, that number is displayed. (The
number for each take off is reset and not counted)
● By maintaining the indicator display in the ECO area or Charge
area, Eco-friendly driving is possible.
● Charge area indicates regeneration
* status. Regenerated energy
will be used to charge t he traction battery.
*: When used in this manual, “regeneration” refers to the conversion of
energy created by the movement of the vehicle into electrical energy.

1113. Instrument cluster
3
Instrument cluster
MIRAI_OM_USA_OM62023U■

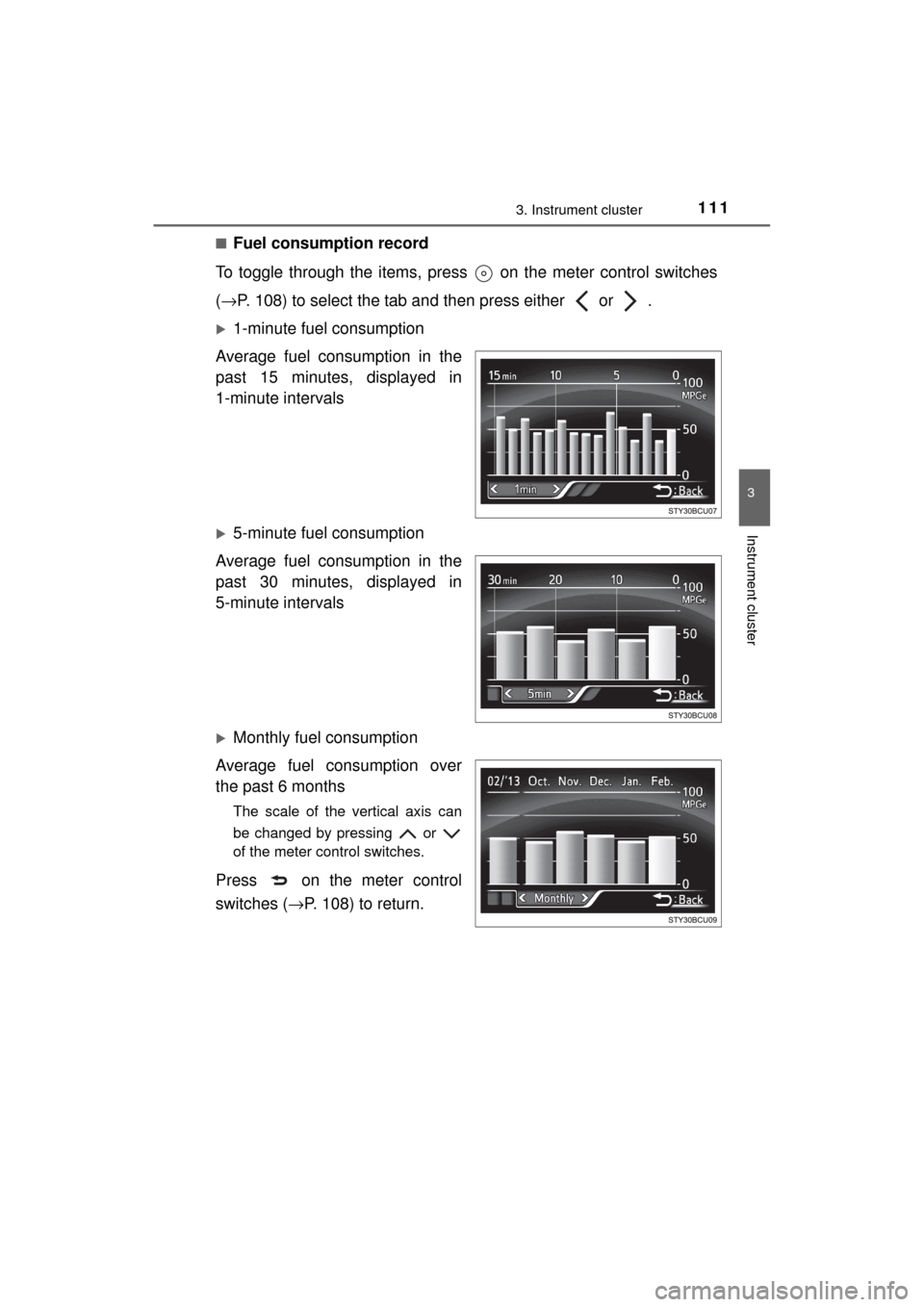

Fuel consumption record
To toggle through the items, press on the meter control switches
( → P. 108) to select the tab and then press either or .
1-minute fuel consumption
Average fuel consumption in the
past 15 minutes, displayed in
1-minute intervals
5-minute fuel consumption
Average fuel consumption in the
past 30 minutes, displayed in
5-minute intervals
Monthly fuel consumption
Average fuel consumption over
the past 6 months
The scale of the vertical axis can
be changed by pressing or
of the meter control switches.
Press on the meter control
switches ( →P. 108) to return.

1123. Instrument cluster
MIRAI_OM_USA_OM62023U■

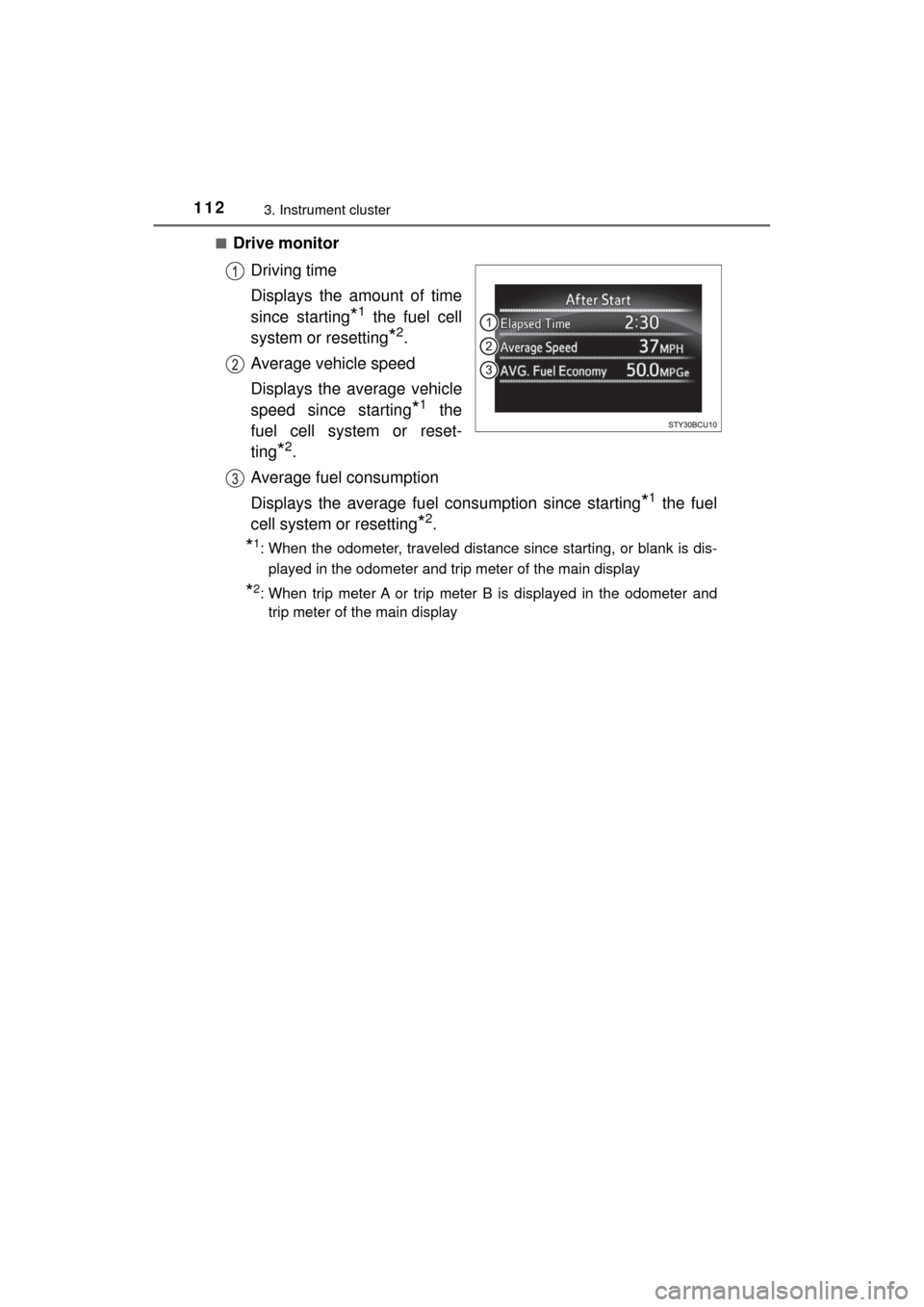

Drive monitor
Driving time
Displays the amount of time
since starting
*1 the fuel cell
system or resetting
*2.
Average vehicle speed
Displays the average vehicle
speed since starting
*1 the
fuel cell system or reset-
ting
*2.
Average fuel consumption
Displays the average fuel consumption since starting
*1 the fuel
cell system or resetting
*2.
*1: When the odometer, traveled distance since starting, or blank is dis-
played in the odometer and trip meter of the main display
*2: When trip meter A or trip meter B is displayed in the odometer andtrip meter of the main display
