2017 TOYOTA AVENSIS Owners Manual (in English)

5057-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C66E_(EE)
7
Maintenance and care
■Front fog light (if equipped)Remove the fender liner
bolts. Partly remove the
fender liner.
Unplug the connector while
pushing the lock release.
Turn the bulb base counter-
clockwise.
Replace the light bulb, and
install the bulb base.
Align the 3 tabs on the light bulb
with the mounting, and insert.
1
2
3
4
AVENSIS_OM_OM20C66E_(EE).book Page 505 Wednesday, June 15, 20 16 4:07 PM

5067-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C66E_(EE)
Turn and secure the bulb
base.
Set the connector.
Shake the bulb base gently to
check that it is not loose, turn
the front fog light on once and
visually confirm that no light is
leaking through the mounting.
Reinstall the fender liner with bolts by conducting in reverse.
■Cornering/fog light (if equipped)Remove the fender liner
bolts. Partly remove the
fender liner.
Unplug the connector while
pushing the lock release.
5
6
71
1
2
AVENSIS_OM_OM20C66E_(EE).book Page 506 Wednesday, June 15, 20 16 4:07 PM

5077-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C66E_(EE)
7
Maintenance and care
Turn the bulb base counter-
clockwise.
Replace the light bulb, and
install the bulb base.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the bulb
base.
Set the connector.
Shake the bulb base gently to
check that it is not loose, turn
the cornering/fog light on once
and visually confirm that no light
is leaking through the mounting.
Reinstall the fender liner with bolts by conducting in reverse.
3
4
5
6
71
AVENSIS_OM_OM20C66E_(EE).book Page 507 Wednesday, June 15, 2016 4:07 PM

5087-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C66E_(EE)■
Front turn signal light
For the left side only:
Remove the securing clip
and the upper part of the air
cleaner duct (if it is remov-
able).
Turn the bulb base counter-
clockwise.
Remove the light bulb.
When installing the bulb, reverse the steps and in reverse.
For the left side only: Install
the upper part of the air
cleaner duct and the secur-
ing clip by conducting in
reverse.
1
2
3
432
5
1
AVENSIS_OM_OM20C66E_(EE).book Page 508 Wednesday, June 15, 20 16 4:07 PM

5097-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C66E_(EE)
7
Maintenance and care
■Back-up light (sedan)For the right side, open the
trunk and remove the cover
clips and the trunk grip.
For the left side, open the
trunk and remove the cover
clips.
Partly remove the trunk panel
cover and turn the bulb base
counterclockwise.
Remove the light bulb.
When installing, reverse the steps listed.
1
2
3
4
AVENSIS_OM_OM20C66E_(EE).book Page 509 Wednesday, June 15, 20 16 4:07 PM

5107-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C66E_(EE)■
Back-up light (wagon)
Open the back door and
remove the cover.
Turn the bulb base counter-
clockwise.
Remove the light bulb.
When installing, reverse the steps listed.
1
2
3
4
AVENSIS_OM_OM20C66E_(EE).book Page 510 Wednesday, June 15, 20 16 4:07 PM

5117-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C66E_(EE)
7
Maintenance and care
■Rear turn signal light (sedan)Open the trunk and remove
the cover.
Turn the bulb base counter-
clockwise.
Remove the light bulb.
When installing, reverse the steps listed.
1
2
3
4
AVENSIS_OM_OM20C66E_(EE).book Page 511 Wednesday, June 15, 20 16 4:07 PM

5127-3. Do-it-yourself maintenance
AVENSIS_OM_OM20C66E_(EE)■

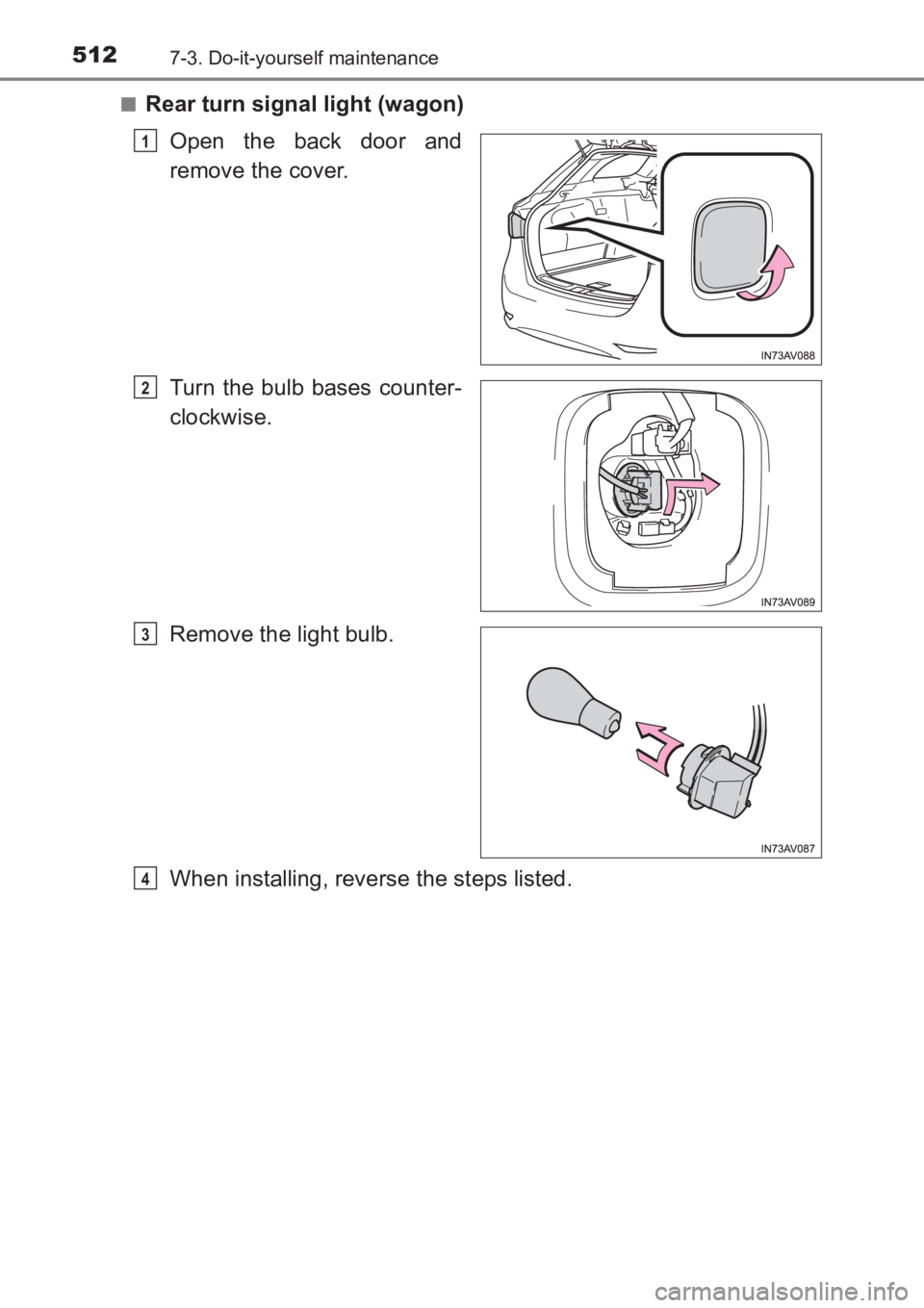

Rear turn signal light (wagon)
Open the back door and
remove the cover.
Turn the bulb bases counter-
clockwise.
Remove the light bulb.
When installing, reverse the steps listed.
1
2
3
4
AVENSIS_OM_OM20C66E_(EE).book Page 512 Wednesday, June 15, 20 16 4:07 PM
