2017 SUBARU BRZ Navigation Manual

Audio and Visual 215
Audio Operations
3Enter the 4-digit parental lock code.
• When setting for the first time, enter any code that you want to
use.
• Touch to delete 1 digit from the entered number. Touch
for 1 second or more to delete the digits continuously.
• Touching 10 times continuously clears the parental lock
code.
4Touch (Done).
• If the code is correct, the setting screen appears.
• If an incorrect code is entered, “Incorrect code. Please try again.”
appears and the number is cleared.
5Select the channel with the settings that you want to
change, and touch (Lock) or (Unlock).
• If the channel is restricted, appears.
• If there are more pages, touch or to scroll the
pages.
• When you touch (ALL Unlock), the all restricted
channels are canceled.
• After configuring the setting, touch to save the setting
and return to the initial screen.
• If you have locked the currently listening channel, the channel
buttons to the next receivable (unlocked) channel.
Done
LockUnlock
ALL Unlock

216 Audio and Visual
Audio Operations
■Clearing the parental lock
1Enter the parental lock code, and then touch
(Done).
• Touch to delete 1 digit from the entered number. Touch
for 1 second or more to delete the digits continuously.
Done

Audio and Visual 217
Audio Operations
Using the CD Player
Using the CD Player
(1) Title information scroll buttons*
(2) Settings button
(3) Search button
(4) Track up/down and fast forward (fast reverse) buttons
(5) AUDIO button
* The full title will be displayed unless it is too lengthy. If the length of the
information is too long, title information scroll buttons will be displayed.
■Listening to a CD
Insert a CD into the disc slot, and it will start playing.
1Press .
2Touch (CD).
• The playback starts.
NOTE
•Playback may be intermittent when there is a scratch on the CD or when the
recorded side is dirty. For details, see “About Discs” on Page 186.
•If track titles and other data are recorded in the CD-Text format, they can be
displayed.
•It may not be possible to display the CD-Text of CD-R/RW discs.
(2) (3) (4) (5)(1)
CD

218 Audio and Visual
Audio Operations
■Selecting a track
You can cue the track to which you want to listen.
1Touch or .
•:
Advance to the next track.
(touch once):
Return to the start of the currently playing track.
(touch twice or more):
Return to a previous track.
■Fast forwarding and fast reversing
You can fast forward or fast reverse the currently playing track.
1Touch or for 1 second or more.
•:
Fast forward the track.
:
Fast reverse the track.
Fast forward (or fast reverse) operates until you release your
finger from the button.
■Finding a track
1Touch (Search).
2Touch the track to which you want to listen.
• The selected track starts to play.
• If there are more pages, touch or to scroll the
pages.
• Touch to return to the previous screen.
Search

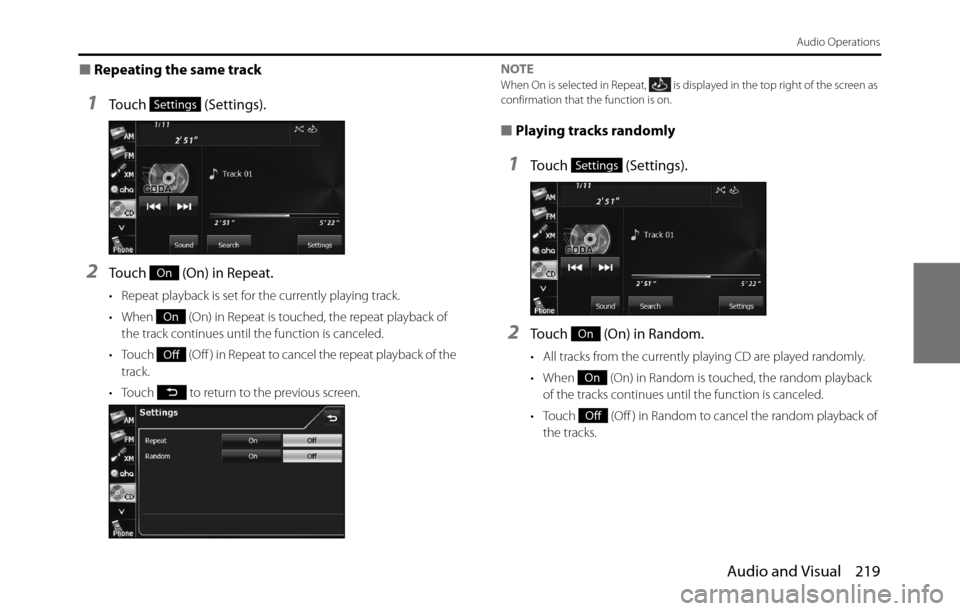

Audio and Visual 219
Audio Operations
■Repeating the same track
1Touch (Settings).
2Touch (On) in Repeat.
• Repeat playback is set for the currently playing track.
• When (On) in Repeat is touched, the repeat playback of
the track continues until the function is canceled.
• Touch (Off ) in Repeat to cancel the repeat playback of the
track.
• Touch to return to the previous screen.NOTE
When On is selected in Repeat, is displayed in the top right of the screen as
confirmation that the function is on.
■Playing tracks randomly
1Touch (Settings).
2Touch (On) in Random.
• All tracks from the currently playing CD are played randomly.
• When (On) in Random is touched, the random playback
of the tracks continues until the function is canceled.
• Touch (Off ) in Random to cancel the random playback of
the tracks.
Settings
On
On
Off
Settings
On
On
Off

220 Audio and Visual
Audio Operations
• Touch to return to the previous screen.
NOTE
When On is selected in Random, is displayed in the top right of the screen
as confirmation that the function is on.
■Scrolling title information
If the Disc, Track or Artist information cannot be fully displayed because
it is too long, you can scroll the display.
1Touch on the item that you want to scroll.
• The selected title information scrolls to the left.
• Touch to stop the scrolling and return to the start of the
title.
• If driving is detected while the display is being scrolled, the
scrolling stops and returns to the start of the title.
• When the end of the title information is displayed, the scrolling
stops.

Audio and Visual 221
Audio Operations
Using the MP3/WMA Player
Using the MP3/WMA Player
(1) Title information scroll buttons*
(2) Settings button
(3) Search button
(4) Folder selection buttons
(5) AUDIO button
(6) File up/down and fast forward (fast reverse) buttons
* The full title will be displayed unless it is too lengthy. If the length of the
information is too long, title information scroll buttons will be displayed.
■Listening to an MP3/WMA file
Insert a CD-R/RW that contains MP3/WMA files into the disc slot, and it
will start playing.
1Press .
2Touch (CD).
• The playback starts.
• The usual playing order is J J J J J . (See
Page 228.)
• If multiple MP3/WMA files and folders are located in the same
hierarchy, they are played in the ascending order of folder name
and file name.
• If you try to play a non-MP3/WMA format file, “No support.” is
displayed.(1)
(2) (3) (4) (5)(6)
CD

222 Audio and Visual
Audio Operations
NOTE•Playback may be intermittent when there is a scratch on the CD or when the
recorded side is dirty. For details, see “About Discs” on Page 186.
•For CD-ROMs, a function is available for selecting the folder and file.
•If a non-MP3/WMA file has the “.mp3” or “.wma” file extension, it may be
recognized erroneously as an MP3 or WMA file. When such a file is played, a
loud noise may be output and damage the speakers. Take care not to assign
the “.mp3” or “.wma” extension to non- MP3/WMA files.
•If no Album/Title/Artist information exists in the MP3/WMA file, “No Data”
appears.
■Selecting a folder
You can select the folder that you want to use from the disc.
1Touch or .
•:
Return to the previous folder and play the first file in the folder.
:
Advance to the next folder and play the first file in the folder.
■Selecting a music file
You can select the file that you want to play from a folder.
Selecting with a file name button
1Touch (Search).
2Touch the folder that you want to use.
• If there are more pages, touch or to scroll the
pages.
• Touch to return to the previous screen.
Search
