Front door storage
compartments 1

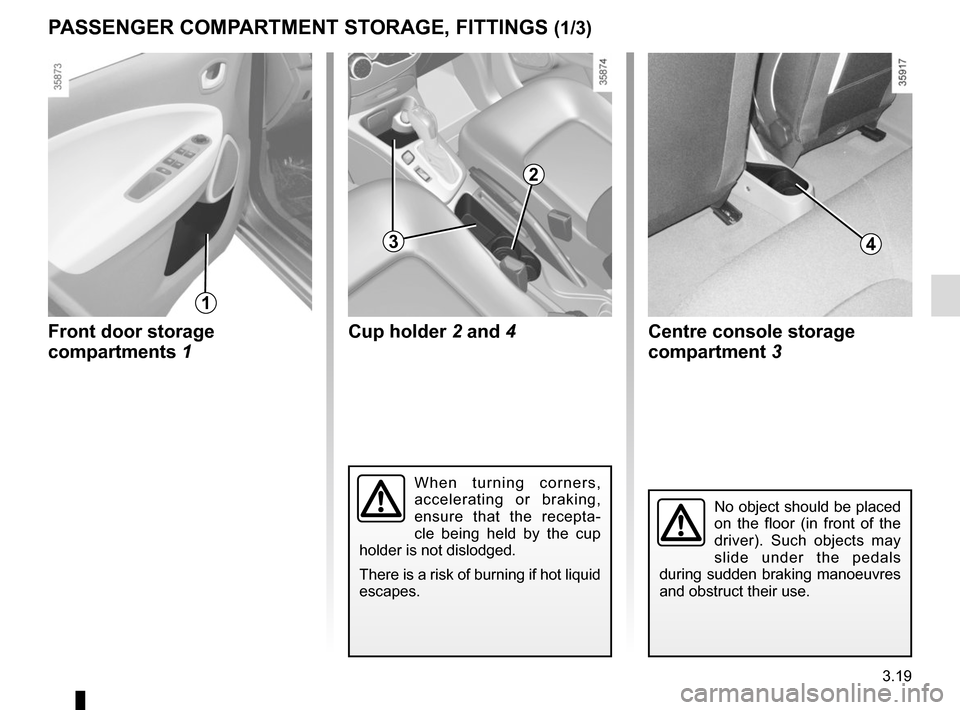

PASSENGER COMPARTMENT STORAGE, FITTINGS (1/3)
1
No object should be placed
on the floor (in front of the
driver). Such objects may
slide under the pedals
during sudden braking manoeuvres
and obstruct their use.
When turning corners,
accelerating or braking,
ensure that the recepta-
cle being held by the cup
holder is not dislodged.
There is a risk of burning if hot liquid
escapes.
2
3
Cup holder 2 and 4 Centre console storage
compartment 3
4

3.20
PASSENGER COMPARTMENT STORAGE, FITTINGS (2/3)
5
Ensure that no hard, heavy
or pointed objects are
placed in the “open” storage
compartments in such a
way that they may fall onto passen-
gers during sudden turning, braking
or in the event of an accident.
Rear door storage
compartment 7
7
Dashboard storage
compartment 5
Glove box
Pull handle 6 to open it.
It can hold A4 size documents, a large
bottle of water, etc.
6
Grab handle 8
This offers support and can be held
when the vehicle is being driven.
Do not use it for getting into or out of
the vehicle.
8

3.21
PASSENGER COMPARTMENT STORAGE, FITTINGS (3/3)

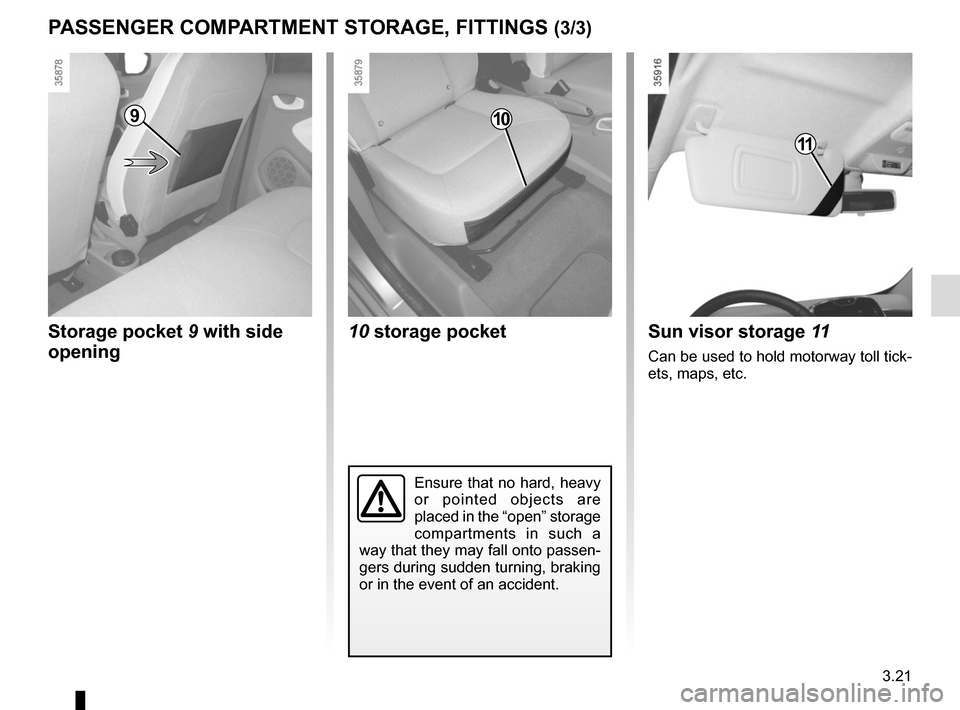

Storage pocket 9 with side opening
910
10 storage pocketSun visor storage 11
Can be used to hold motorway toll tick-
ets, maps, etc.
11
Ensure that no hard, heavy
or pointed objects are
placed in the “open” storage
compartments in such a
way that they may fall onto passen-
gers during sudden turning, braking
or in the event of an accident.

3.22

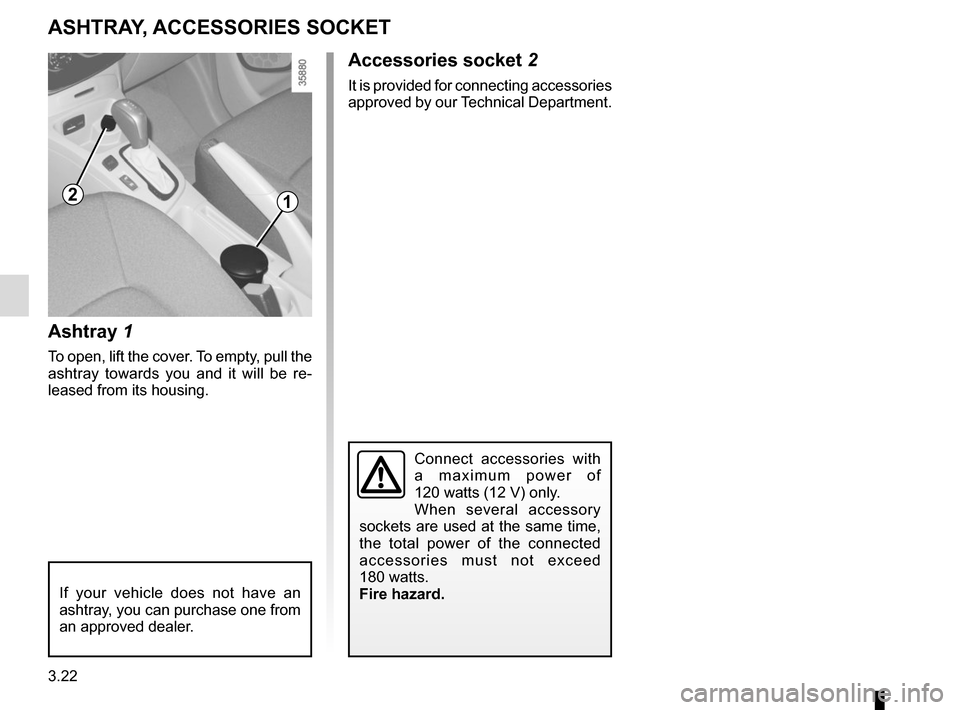

Ashtray 1
To open, lift the cover. To empty, pull the
ashtray towards you and it will be re-
leased from its housing.
ASHTRAY, ACCESSORIES SOCKET
Accessories socket 2
It is provided for connecting accessories
approved by our Technical Department.
If your vehicle does not have an
ashtray, you can purchase one from
an approved dealer.
12
Connect accessories with
a maximum power of
120 watts (12 V) only.
When several accessory
sockets are used at the same time,
the total power of the connected
accessories must not exceed
180 watts.
Fire hazard.

3.23
REAR HEADRESTS
Position for use
Raise or lower the headrest while pull-
ing it towards the front of the vehicle.
To remove the headrest
Press the button A on the switch 1 and
remove the headrest.
To refit the headrest
Insert the headrest rods into the holes,
and lower the headrest to the first
notch. Check that it is correctly locked.
Storage position
Press the button A and lower the head-
rest completely.
When the headrest is set at the
lowest position (position B ), this is
for storage only: it should not be in
this position when a seat is occupied.
B
1
A
The headrest is a safety
component; check that it is
fitted and in the correct po-
sition. The top of the head-
rest should be as close as possible
to the top of the head.

3.24
Before moving the seatback, put
the seat belt in belt guide A to avoid
damaging it.
For safety reasons, carry
out any adjustments when
the vehicle is not being
driven.
The configuration of the two-seat
bench with the small seatback B
pulled down, does not allow the
central seat to be used as it would
be impossible to buckle the seat belt
(belt buckles inaccessible).
The seatback may be folded down to
allow bulky objects to be transported.
To fold down the seatback
Ensure that the front seats are far
enough forward.
Lower the headrests fully.
Place the seat belts in their guides A.
Press button 1 and lower the seat-
back B.
REAR BENCH SEAT: functions
B
A
1
To replace the seatback, proceed in
the reverse order to removal.
Refit the seatback and click it back into
place.
When moving the rear
seats, ensure that nothing
obstructs the anchorage
points (passenger’s arm or
leg, a pet, gravel, cloth, toys, etc.).
When refitting the seat-
back, make sure it is cor-
rectly locked in place.
If seat covers are fitted ,
make sure these do not prevent the
seatback latch from locking in.
Make sure that the seat belts are
positioned correctly.
Reposition the headrests.

3.25
Do not place any objects,
especially heavy or hard
objects, on the parcel shelf.
These may pose a risk to
the vehicle occupants if the driver
has to brake suddenly or if the vehi-
cle is involved in an accident.
Rear parcel shelf
To remove:
– lower the rear headrests;
– unhook both straps 1;
– lift the shelf 2 upwards to unclip;
REAR PARCEL SHELF
Maximum weight on rear parcel
shelf: 2 kg, evenly distributed.
1
2
– push the shelf 2 inwards and turn it;
– pull the shelf towards you.
To refit, proceed in the reverse order to
removal.

3.26
The luggage compartment cover con-
sists of a rigid section A and a folding
section B.
The luggage cover is in the unfolded
position . The luggage compartment cover is
removed.
To remove it: with the cover in the folded
position and holding it horizontally:
– pull one side of the luggage compart- ment cover towards you, pivoting it
slightly;
– then pull the other side of the lug- gage compartment cover to com-
pletely detach it from its housing.
LUGGAGE COMPARTMENT COVER: utility versions
Do not place any objects,
especially heavy or solid
objects on the luggage
compartment cover. These
may pose a risk to the vehicle occu-
pants if the driver has to brake sud-
denly or if the vehicle is involved in
an accident.
The luggage compartment cover is
in the folded position .
To fold it:
– lift shelf A slightly and pull it towards
you to remove;
– then fold section B back on itself.
AB
