2017 RENAULT SCENIC Owners Manual

1.19
FRONT HEADRESTS
The headrest is an impor-
tant safety component:
ensure that it is in place and
in the correct position. The
distance between your head and the
headrest and the distance between
the head and section A should be
as small as possible.
To raise the headrestPull the headrest upwards to the de-
sired height.
To lower the headrestPress button 2 and guide the headrest
down to the desired height.
To adjust the angle of the
headrest
Depending on the vehicle, move sec-
tion A towards or away from you to the
required position.
To adjust side supports BDepending on the vehicle, sections B
can be adjusted independently to the
desired position.
To remove the headrest
Raise it to its highest position (tilt the
seatback backwards if necessary).
Press button 2 and lift the headrest to
release it.
To refit the headrestCheck that the headrest rods are
clean 3.
Insert the headrest rods into the holes 1
(tilt the seatback backwards if neces-
sary).
Lower the headrest until it locks, press
button 2 and lower the headrest as far
as it will go.
Check that the headrest is properly
locked in place.
BAB
2
3
1

1.20

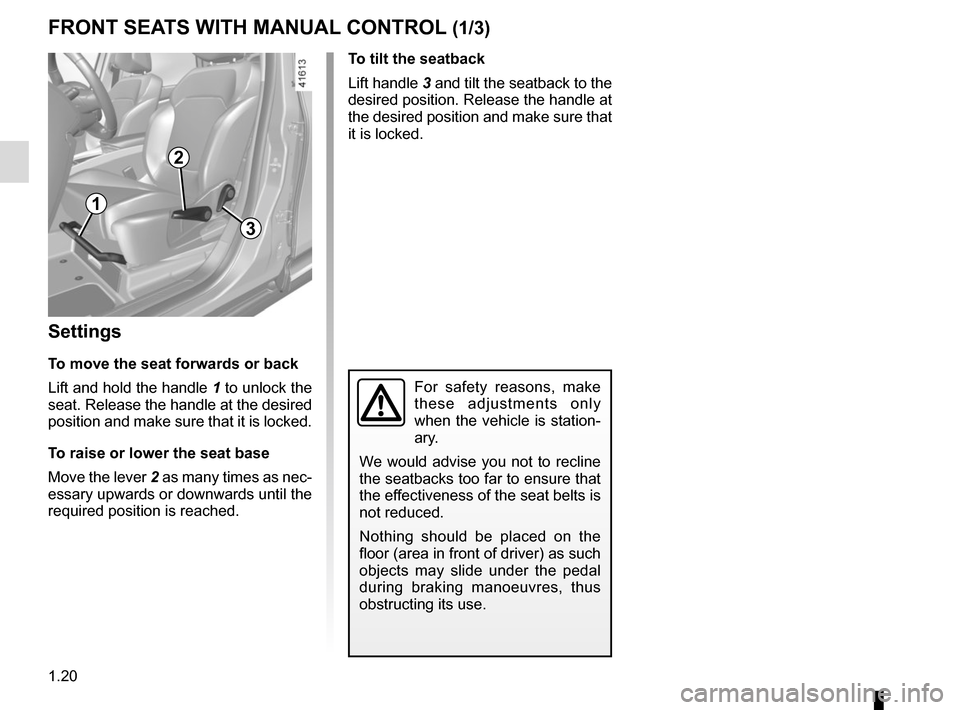

FRONT SEATS WITH MANUAL CONTROL (1/3)
Settings
To move the seat forwards or back
Lift and hold the handle 1 to unlock the
seat. Release the handle at the desired
position and make sure that it is locked.
To raise or lower the seat base
Move the lever 2 as many times as nec-
essary upwards or downwards until the
required position is reached.
1
2
3
To tilt the seatback
Lift handle 3 and tilt the seatback to the
desired position. Release the handle at
the desired position and make sure that
it is locked.
For safety reasons, make
these adjustments only
when the vehicle is station-
ary.
We would advise you not to recline
the seatbacks too far to ensure that
the effectiveness of the seat belts is
not reduced.
Nothing should be placed on the
floor (area in front of driver) as such
objects may slide under the pedal
during braking manoeuvres, thus
obstructing its use.

1.21
Heated seats
With the ignition on:
– pressing the switch 5 on the required
seat for the first time activates the
heating system at maximum power.
Both integrated switch warning lights
come on;
– a second press decreases the heat- ing to minimum power. One inte-
grated warning light comes on;
– pressing for the third time turns the heating off.
FRONT SEATS WITH MANUAL CONTROL (2/3)
54
To adjust the seat’s lumbar position
Lower handle 4 to increase the support
and lift it to decrease it.
For safety reasons, carry
out any adjustments when
the vehicle is not being
driven.

1.22
Table function
Depending on the vehicle, the passen-
ger seatback may be folded down onto
the seat base to create a table.
– Lower the headrest;
– move the seat back;
– lower the seat base fully;
– pull the handle 7 and fully lower the
seatback.
When the front seat is in
table position, the front pas-
senger airbag airbag must
be deactivated (see the in-
formation on “Child safety: activat-
ing/deactivating the front passenger
airbag” in Section 1).
Risk of serious injury caused by
items resting on the seatback table
which may be dislodged when the
airbagairbag is deployed.
The label (on the dashboard) and
the markings (on the windscreen)
remind you of these instructions.
7
For your safety, attach any
transported objects when
the seat is in the table po-
sition.
When using the passenger seat in table
position, you must not use the two rear
seats immediately behind it.Repositioning the seat
Make sure that nothing prevents the
seat from moving.
It is essential to pull the handle 7 to
raise the seatback. Ensure it is cor-
rectly locked in place.
Be sure to hold the seat-
back when placing the seat
in table position.
Risk of injury.
For safety reasons, carry
out any adjustments when
the vehicle is not being
driven.
FRONT SEATS WITH MANUAL CONTROL (3/3)

1.23

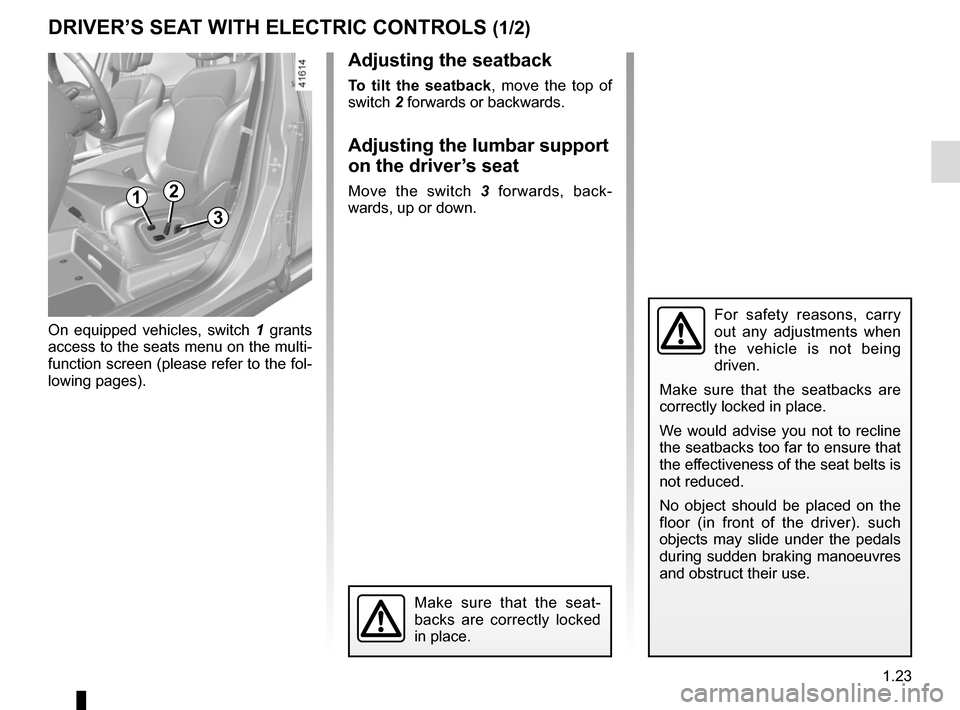

DRIVER’S SEAT WITH ELECTRIC CONTROLS (1/2)
For safety reasons, carry
out any adjustments when
the vehicle is not being
driven.
Make sure that the seatbacks are
correctly locked in place.
We would advise you not to recline
the seatbacks too far to ensure that
the effectiveness of the seat belts is
not reduced.
No object should be placed on the
floor (in front of the driver). such
objects may slide under the pedals
during sudden braking manoeuvres
and obstruct their use.
12
3
On equipped vehicles, switch 1 grants
access to the seats menu on the multi-
function screen (please refer to the fol-
lowing pages).
Make sure that the seat-
backs are correctly locked
in place.
Adjusting the seatback
To tilt the seatback, move the top of
switch 2 forwards or backwards.
Adjusting the lumbar support
on the driver’s seat
Move the switch 3 forwards, back-
wards, up or down.

1.24
DRIVER’S SEAT WITH ELECTRIC CONTROLS (2/2)
5
Heated seats
With the ignition on:
– pressing the switch 6 on the rele-
vant seat for the first time activates
the heating system on high. Both in-
tegrated switch warning lights come
on. The system automatically de-
cides whether or not the heating is
needed;
– pressing the switch for the second time changes the heating to low. One
integrated warning light comes on;
– pressing for the third time turns the heating off.
Operating faults
When an operating fault is detected,
the warning lights in the switch 6 for
the seat concerned flash or, depending
on the vehicle, switch off after approxi-
mately five seconds.
Consult an approved dealer
Adjusting the seat position
To move the seat forwards or back
Move switch 4 forwards or backwards.
To raise or lower the seat base
Move the back of switch 4 up or down.
To tilt the seat base
(depending on the vehicle)
Move the front of switch 4 upwards or
downwards.
Adjusting the seat length
Lift handle 5 to unlock. Release the
handle at the desired position and
make sure that it is locked.
6
4

1.25
FRONT SEATS: Functions (1/3)Massage
You can activate the driver and front
passenger seat massage function.
Using the multifunction screen,
select menu “Vehicle”, “Seats” then
“Massage”. Browse menu “Driver” or “Passenger”
to:
– select the type of massage (Tonic,
Relaxing or Lumbar);
– adjust the intensity (+ or -);
– adjust the speed (+ or -);
– reset the selected settings. Press 2
then “Reset”;
– activate/deactivate the massage seat (ON or OFF).
Note:
– the duration of the massage is ap- proximately ten minutes. Then the
function is disabled automatically
(back in OFF position);
– the mode that you select in the “Multi-Sense” menu may affect the
massage configuration (please refer
to the information on “Multi-Sense” in
Section 3);
– with the engine switched off, the massage function will run just once.
2
Using the multifunction screen, de-
pending on the vehicle you can access
a number of seat functions.
On equipped vehicles, the switch 1 per-
mits direct access to the “Seats” menu
on the multifunction screen.
Please refer to the multimedia equip-
ment instructions for further informa-
tion.
1
Massage
Passenger
Driver
Massage
ON
Tonic Relaxing Lumbar
Intensity
Speed

1.26

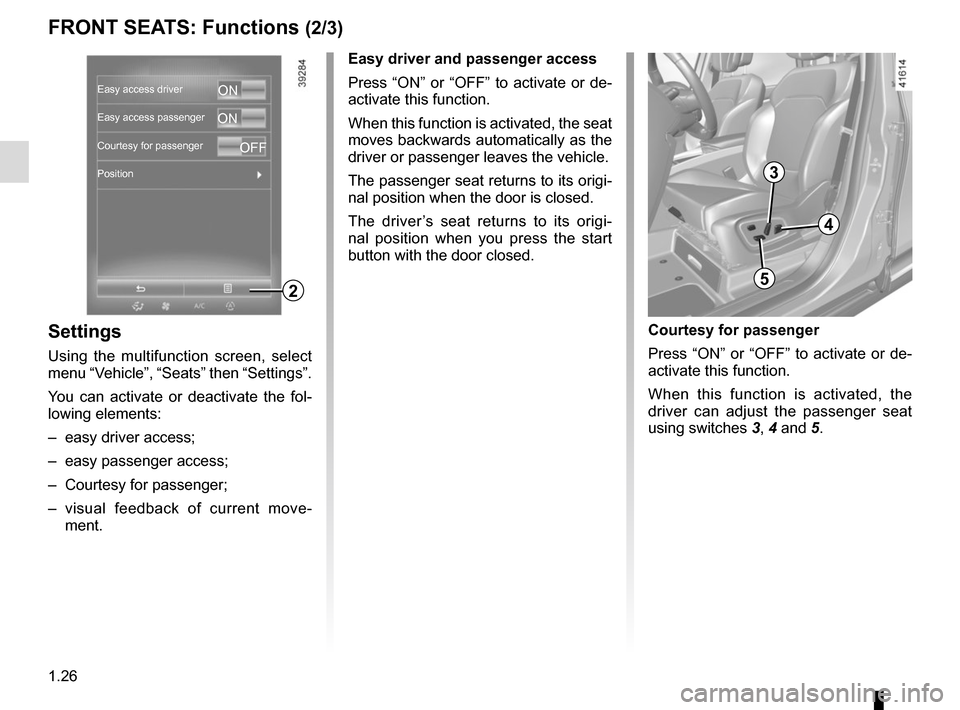

FRONT SEATS: Functions (2/3)
Settings
Using the multifunction screen, select
menu “Vehicle”, “Seats” then “Settings”.
You can activate or deactivate the fol-
lowing elements:
– easy driver access;
– easy passenger access;
– Courtesy for passenger;
– visual feedback of current move- ment. Easy driver and passenger access
Press “ON” or “OFF” to activate or de-
activate this function.
When this function is activated, the seat
moves backwards automatically as the
driver or passenger leaves the vehicle.
The passenger seat returns to its origi-
nal position when the door is closed.
The driver’s seat returns to its origi-
nal position when you press the start
button with the door closed.
Courtesy for passenger
Press “ON” or “OFF” to activate or de-
activate this function.
When this function is activated, the
driver can adjust the passenger seat
using switches
3, 4 and 5.
2
3
4
5
Easy access driver
Easy access passenger
Courtesy for passenger
PositionON
ON
OFF
