REAR LIGHTS AND SIDE LIGHTS: replacing the bulbs (1/5)
Direction indicator lights/
brake and side lights
Short chassis version
Open the luggage compartment,
remove the cover 1 to access the
screw 2 and undo it.
Remove the rear lights unit.
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
Refitting
To refit, proceed in the reverse order,
taking care not to damage the wiring.
34
Unclip the bulb holder a quarter of a
turn.
Replace the bulb.
Direction indicator light 3
Bulb type: PY21W. Brake light 4
Bulb type: P21W.
1
2

5.20
REAR LIGHTS AND SIDE LIGHTS: replacing the bulbs (2/5)
Direction indicator lights/
brake and side lights
(continued)
Long chassis version
Open the luggage compartment lid and
remove the bolts 5 using a tool.
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
Open the luggage compartment,
remove the cover 6 to access the
screw 7 and undo it.
Remove the rear lights unit.
Unclip the bulb holder a quarter of a
turn.
Replace the bulb.
8
9
Direction indicator light 8
Bulb type: PY21W.
Brake light 9
Bulb type: P21W.
Refitting
To refit, proceed in the reverse order,
taking care not to damage the wiring.
5
6
7

5.21
Reversing lights
From the luggage compartment, unclip
the cover 10 on the interior trim of the
luggage compartment lid.
10
REAR LIGHTS AND SIDE LIGHTS: replacing the bulbs (3/5)
Unclip the bulb holder 11 a quarter of
a turn.
Bulb type: W16W.
Refitting
To refit, proceed in the reverse order,
taking care not to damage the wiring.
11

5.22
Fog light 12
Unscrew the flap located under the
rear bumper using a flat-blade screw-
driver or similar. Access the bulb holder,
then unscrew it by turning towards the
centre of the vehicle.
Bulb type: P21W.
REAR LIGHTS AND SIDE LIGHTS: replacing the bulbs (4/5)
12
LED lighting
The lights are equipped with an LED
lighting system as soon as the side
lights are switched on.
Consult an approved Dealer to replace
the LEDs.
This lighting does not replace a faulty
side light.
13
High level brake light 13
Consult an approved Dealer.

5.23
REAR LIGHTS AND SIDE LIGHTS: replacing the bulbs (5/5)
Indicator lights 15
Consult an approved Dealer.
15
Number plate lights 14
Unclip the light 14 by sliding the light to
the right (movement A).
Remove the light cover to gain access
to the bulb.
Bulb type: festoon type bulb W5W.
14
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
A

5.24
INTERIOR LIGHTING: changing bulbs (1/3)

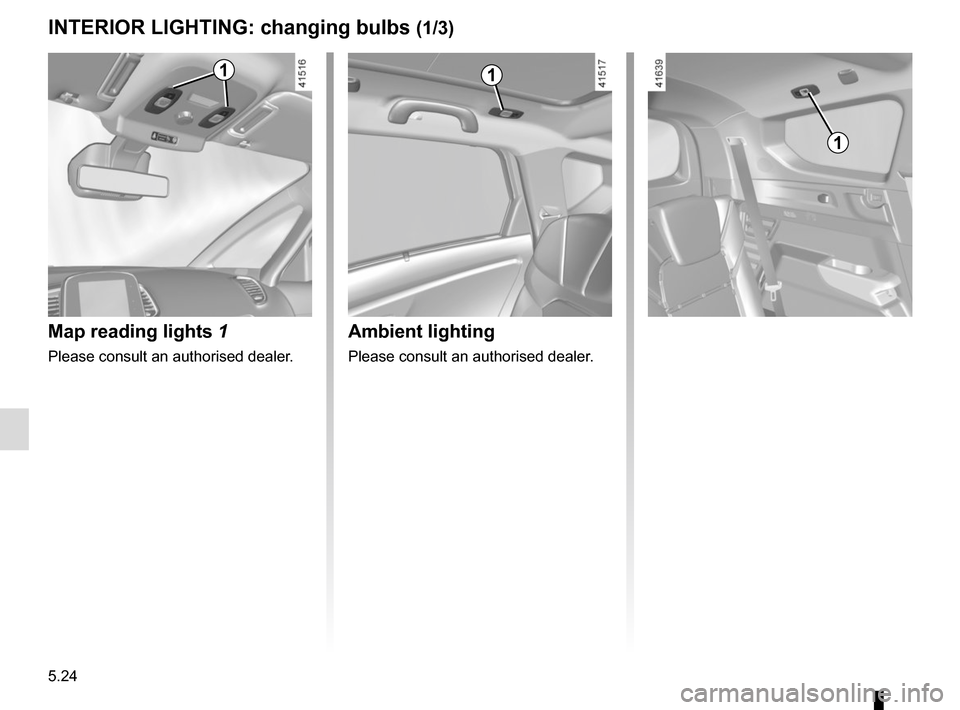

Map reading lights 1
Please consult an authorised dealer.
11
Ambient lighting
Please consult an authorised dealer.
1

5.25

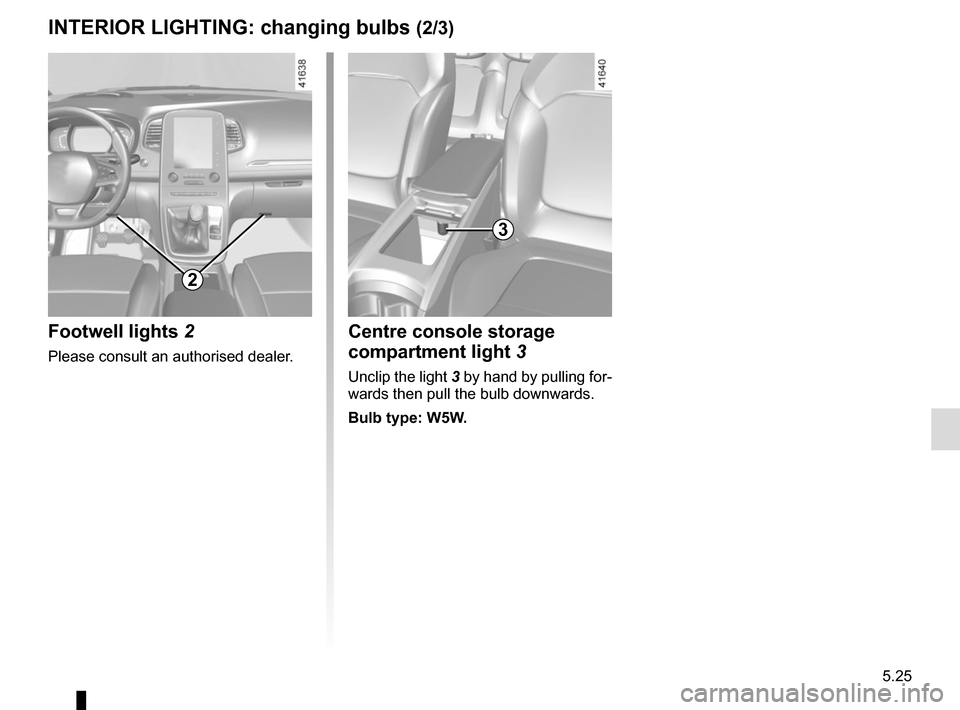

Centre console storage
compartment light 3
Unclip the light 3 by hand by pulling for-
wards then pull the bulb downwards.
Bulb type: W5W.
3
2
Footwell lights 2
Please consult an authorised dealer.
INTERIOR LIGHTING: changing bulbs (2/3)

5.26
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
INTERIOR LIGHTING: changing bulbs (3/3)
Boot lights 5
Using a flat-blade screwdriver or simi-
lar, unclip the light 5 by pressing the
tab located on one side of the light to
access the bulb.
Bulb type: W5W.
5
4
Glove box light 4
Using a flat-blade screwdriver or simi-
lar, unclip the light 4 by pressing the
tab located on one side of the light to
access the bulb.
Bulb type: W5W.
