2017 RENAULT SCENIC Owners Manual

3.27
Boot lights
Light 5 comes on when the luggage
compartment is opened.
INTERIOR LIGHTING (2/2)
5
Glove box light 4
Light 4 comes on when the cover is
opened.
4
Centre console storage
compartment light
The light 3 comes on when the storage
compartment is opened.
3

3.28

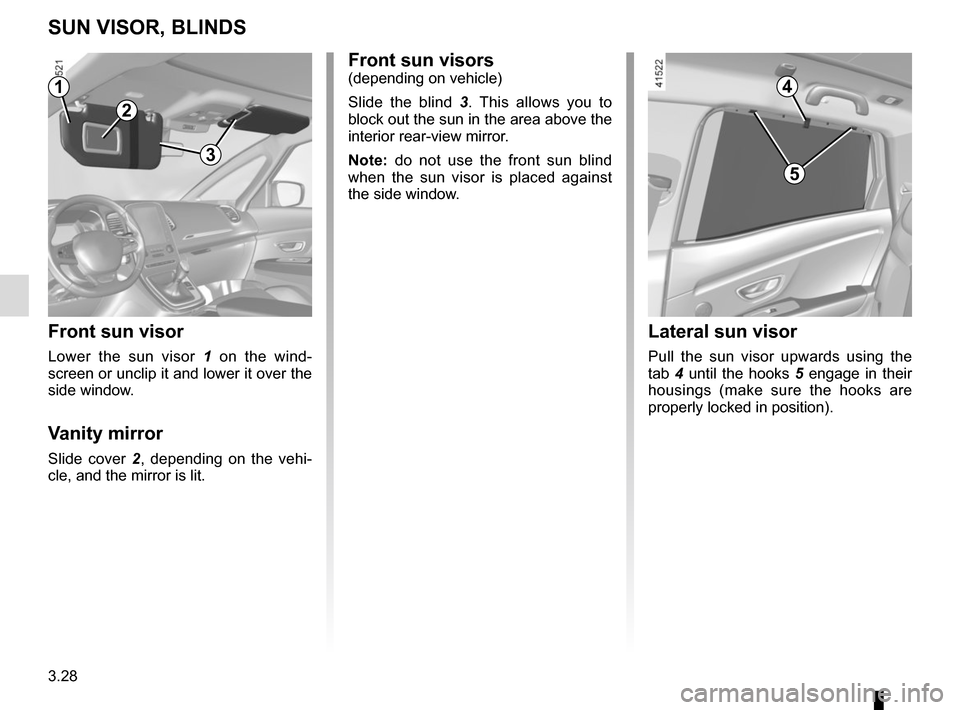

SUN VISOR, BLINDS
Front sun visor
Lower the sun visor 1 on the wind-
screen or unclip it and lower it over the
side window.
Vanity mirror
Slide cover 2 , depending on the vehi-
cle, and the mirror is lit.
Lateral sun visor
Pull the sun visor upwards using the
tab 4 until the hooks 5 engage in their
housings (make sure the hooks are
properly locked in position).
4
5
2
1
Front sun visors(depending on vehicle)
Slide the blind 3. This allows you to
block out the sun in the area above the
interior rear-view mirror.
Note: do not use the front sun blind
when the sun visor is placed against
the side window.
3

3.29
Passenger storage drawer 3To open, move your fingers into area 4 -
it will open by itself. If on a steep slope,
assist the drawer opening by pulling the
handle 5. It can hold A4 documents. It
is ventilated and refrigerated.Dashboard storage
compartment 2Door pockets 1
It can hold a bottle.
PASSENGER COMPARTMENT STORAGE SPACE AND FITTINGS (1/8)
1
Nothing should be placed
on the floor area in front of
the driver as such objects
may slide under the pedal
during braking manoeuvres, thus
obstructing its use.
Ensure that no hard, heavy
or pointed objects are
placed in the “open” sto-
rage compartments in such
a way that they may fall onto pas-
sengers during sudden turning or
braking.
2
Maximum load allowed in the pas-
senger storage compartment: 6 kg,
evenly distributed.
When driving, ensure
that the storage drawer is
closed. Risk of injury.
34
5

3.30
PASSENGER COMPARTMENT STORAGE SPACE AND FITTINGS (2/8)
Cup holders 7
8
9
When turning corners,
accelerating or braking,
ensure that the recepta-
cle being held by the cup
holder is not dislodged.
There is a risk of burning if hot
liquid escapes.
7
Passenger storage
compartment
Pull handle 6 to open it.
The glove box can hold A4-size docu-
ments, a large bottle of water, etc.
The storage compartment is ventilated
and refrigerated.
6
Central storage
compartment 8
Slide the curtain 9 to open the storage
compartment.

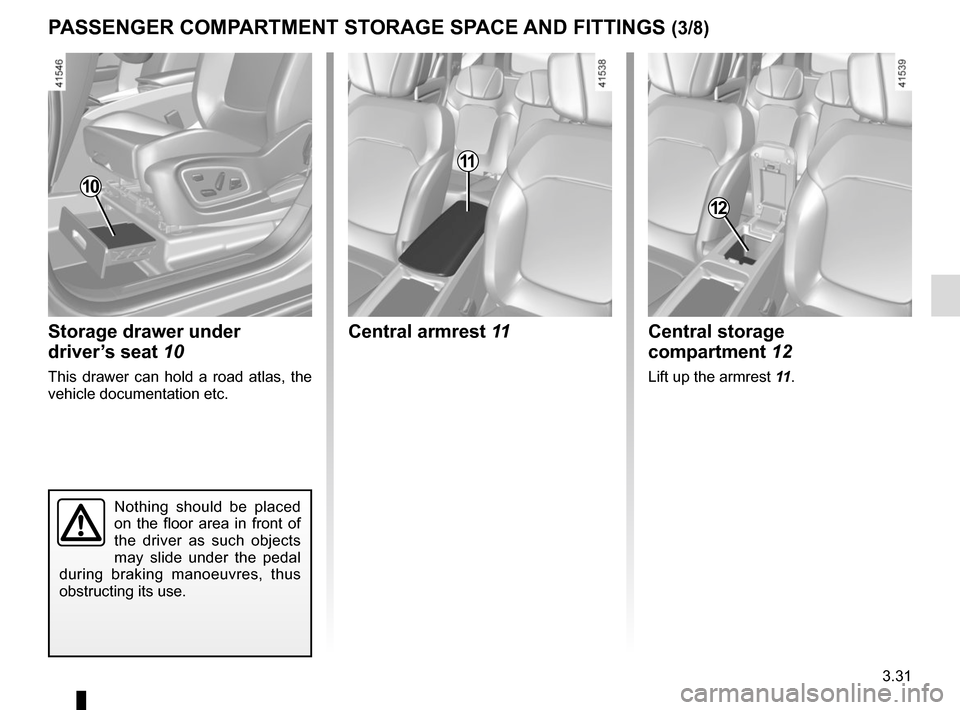

3.31
12
Central storage
compartment 12
Lift up the armrest 11.
PASSENGER COMPARTMENT STORAGE SPACE AND FITTINGS (3/8)
Central armrest 11
11
Storage drawer under
driver’s seat 10
This drawer can hold a road atlas, the
vehicle documentation etc.
Nothing should be placed
on the floor area in front of
the driver as such objects
may slide under the pedal
during braking manoeuvres, thus
obstructing its use.
10

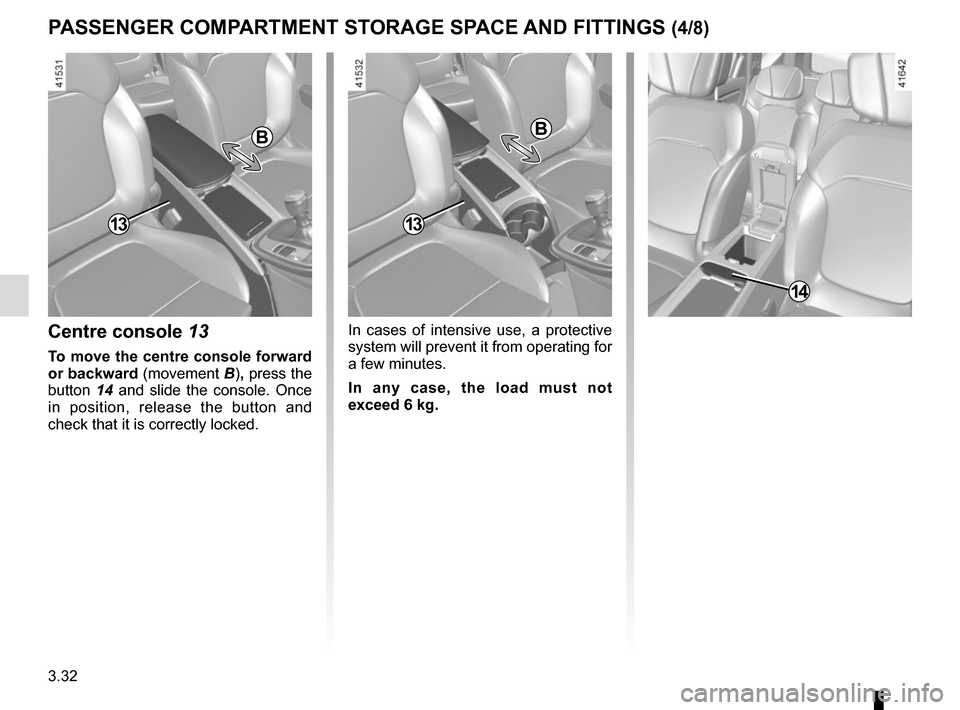

3.32
PASSENGER COMPARTMENT STORAGE SPACE AND FITTINGS (4/8)
Centre console 13
To move the centre console forward
or backward (movement B), press the
button 14 and slide the console. Once
in position, release the button and
check that it is correctly locked.
B
13
In cases of intensive use, a protective
system will prevent it from operating for
a few minutes.
In any case, the load must not
exceed 6 kg.
14
B
13

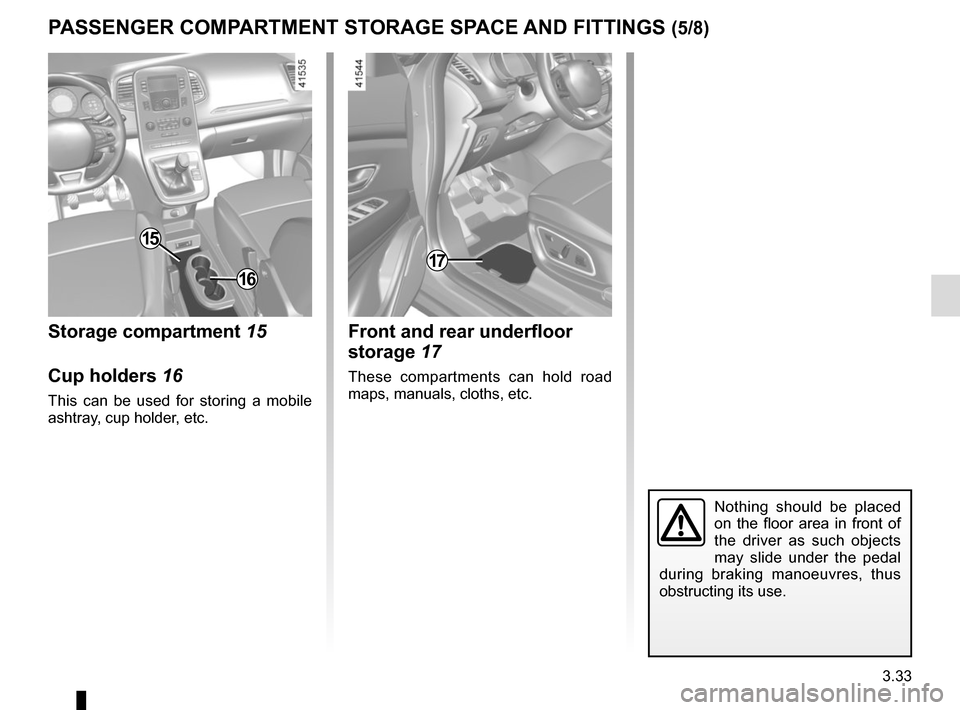

3.33
PASSENGER COMPARTMENT STORAGE SPACE AND FITTINGS (5/8)
Storage compartment 15
Cup holders 16
This can be used for storing a mobile
ashtray, cup holder, etc.
15
16
17
Front and rear underfloor
storage 17
These compartments can hold road
maps, manuals, cloths, etc.
Nothing should be placed
on the floor area in front of
the driver as such objects
may slide under the pedal
during braking manoeuvres, thus
obstructing its use.

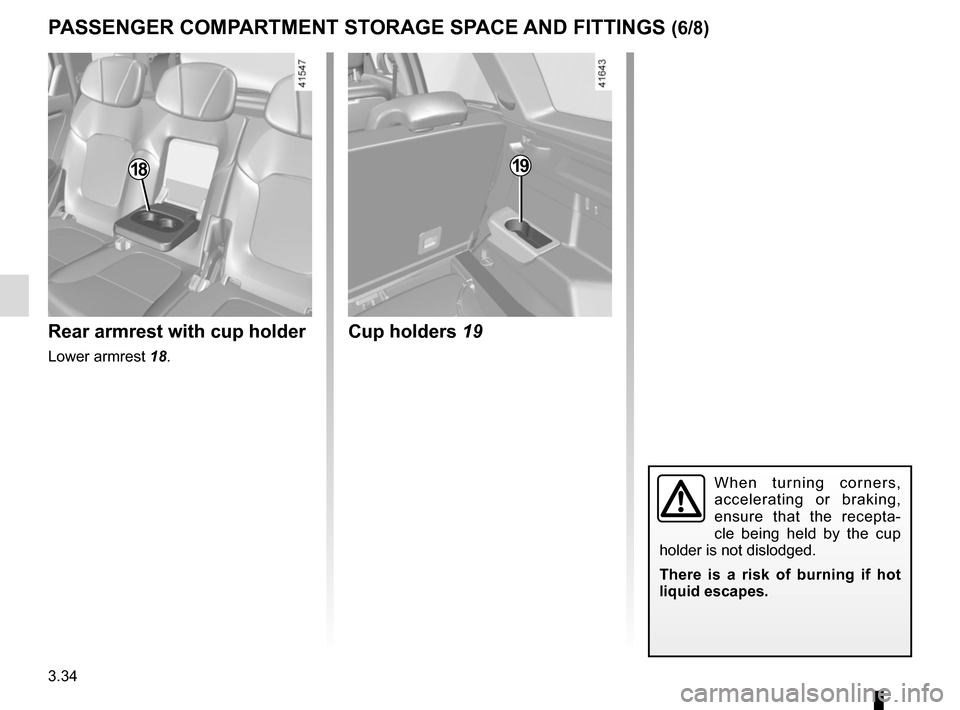

3.34
Cup holders 19Rear armrest with cup holder
Lower armrest 18.
18
When turning corners,
accelerating or braking,
ensure that the recepta-
cle being held by the cup
holder is not dislodged.
There is a risk of burning if hot
liquid escapes.
PASSENGER COMPARTMENT STORAGE SPACE AND FITTINGS (6/8)
19
