2017 RENAULT SCENIC deactivate airbag

1.22
Table function
Depending on the vehicle, the passen-
ger seatback may be folded down onto
the seat base to create a table.
– Lower the headrest;
– move the seat back;
– lower the seat base fully;
– pull the handle 7 and fully lower the
seatback.
When the front seat is in
table position, the front pas-
senger airbag airbag must
be deactivated (see the in-
formation on “Child safety: activat-
ing/deactivating the front passenger
airbag” in Section 1).
Risk of serious injury caused by
items resting on the seatback table
which may be dislodged when the
airbagairbag is deployed.
The label (on the dashboard) and
the markings (on the windscreen)
remind you of these instructions.
7
For your safety, attach any
transported objects when
the seat is in the table po-
sition.
When using the passenger seat in table
position, you must not use the two rear
seats immediately behind it.Repositioning the seat
Make sure that nothing prevents the
seat from moving.
It is essential to pull the handle 7 to
raise the seatback. Ensure it is cor-
rectly locked in place.
Be sure to hold the seat-
back when placing the seat
in table position.
Risk of injury.
For safety reasons, carry
out any adjustments when
the vehicle is not being
driven.
FRONT SEATS WITH MANUAL CONTROL (3/3)

1.35
METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS (4/4)
Warnings concerning the driver’s airbag
– Do not modify the steering wheel or the steering wheel boss.
– Do not cover the steering wheel boss under any circumstances.
– Do not attach any objects (badge, logo, clock, telephone holder, etc.) to the steering wheel boss.
– The steering wheel must not be removed (except by qualified personnel f\
rom our Network).
– Do not sit too close to the steering wheel when driving: Sit with your a\
rms slightly bent (see the information on “Adjusting your driving position” in Section 1). This will allow sufficient space for the air bag to deploy correctly and to be fully effe ctive.
Warnings concerning the passenger airbag
– Do not attach or glue any objects (badge, logo, clock, telephone holder\
, etc.) to the dashboard on or near the airbag.
– Do not place anything between the dashboard and the passenger (pet, umb\
rella, walking stick, parcels, etc.).
– The passenger must not put his or her feet on the dashboard or seat as t\
here is a risk that serious injuries may be sustained .
In general, parts of the body should be kept away from the dashboard (k\
nees, hands, head, etc.)
– The devices in addition to the front passenger seat belt should be react\
ivated as soon as a child seat is removed, to ensure the protection of the passenger in the event of an impact.
A REAR-FACING CHILD SEAT MUST NOT BE FITTED TO THE FRONT PASSENGER SEAT UNLESS THE ADDITIONAL RESTRAINT SYSTEMS, I.E. THE PASSENGER AIR BAG, ARE DEACTIVATED.
(refer to the information on “Child safety: deactivating/activating \
the front passenger airbag” in Section 1)
All of the warnings below are given so that the airbag is not obstructed in any way when it is inflated and also to prevent
the risk of serious injuries caused by items which may be dislodged when\
it inflates.

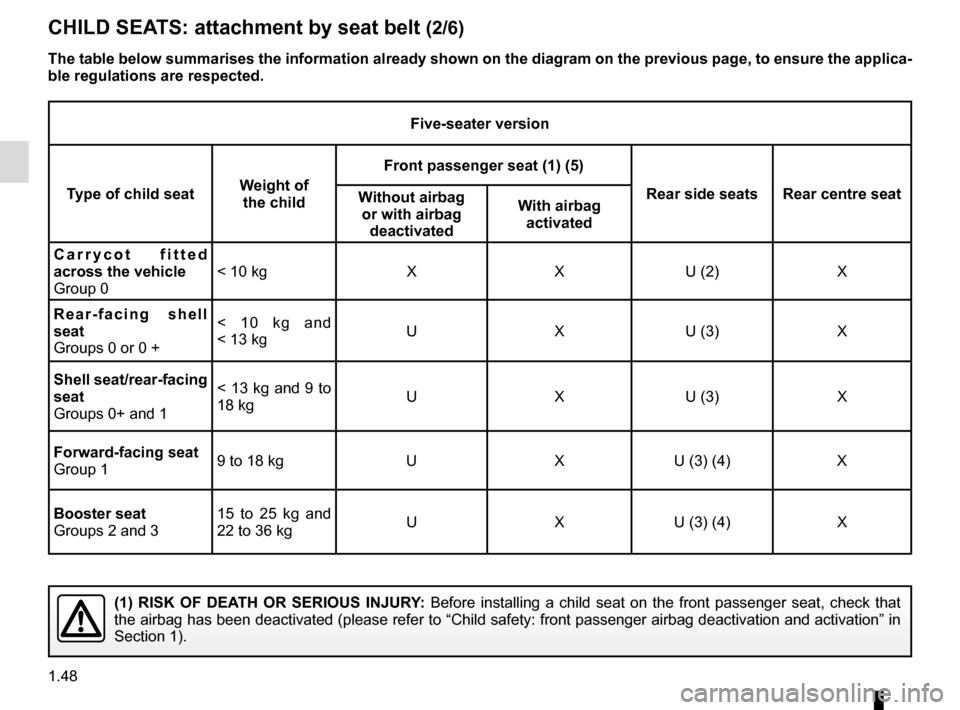

1.48
CHILD SEATS: attachment by seat belt (2/6)
Five-seater version
Type of child seat Weight of
the child Front passenger seat (1) (5)
Rear side seats Rear centre seat
Without airbag
or with airbag
deactivated With
airbag
activated
Carrycot fitted
across the vehicle
Group 0 < 10 kg X X U (2) X
Rear-facing shell
seat
Groups 0 or 0 + < 10 kg and
< 13 kg
U X U (3) X
Shell seat/rear-facing
seat
Groups 0+ and 1 < 13 kg and 9 to
18 kg
U X U (3) X
Forward-facing seat
Group 1 9 to 18 kg U X U (3) (4) X
Booster seat
Groups 2 and 3 15 to 25 kg and
22 to 36 kg
U X U (3) (4) X
(1) RISK OF DEATH OR SERIOUS INJURY: Before installing a child seat on the front passenger seat, check that \
the airbag has been deactivated (please refer to “Child safety: fron\
t passenger airbag deactivation and activation” in
Section 1).
The table below summarises the information already shown on the diagram \
on the previous page, to ensure the applica-
ble regulations are respected.

1.50
CHILD SEATS: attachment by seat belt (4/6)
Seven-seat version
Type of child seat Weight of the child Front passenger seat (1) (6)
Row 2 rear side seats Row 2 rear
centre seat Row 3 rear
centre
seat (5)
Without
airbag
or with airbag
deactivated With
airbag
activated
Carrycot fitted
across the vehicle
Group 0 < 10 kg X X U (2) X X
Rear-facing shell
seat
Groups 0 or 0 + < 10 kg and < 13 kg U X U (3) X X
Shell seat/rear-facing
seat
Groups 0+ and 1 < 13 kg and 9 to 18
kg
U X U (3) X X
Forward-facing seat
Group 1 9 to 18 kg U X U (3) (4) X U (7)
Booster seat
Groups 2 and 3 15 to 25 kg and 22
to 36 kg
U X U (3) (4) X U
(1) RISK OF DEATH OR SERIOUS INJURY: Before installing a child seat on the front passenger seat, check that \
the airbag has been deactivated (please refer to “Child safety: fron\
t passenger airbag deactivation and activation” in
Section 1).
The table below summarises the information already shown in the diagram \
on the following pages, to ensure the appli-
cable regulations are respected.

1.54
CHILD SEATS: attachment using the ISOFIX system (2/6)
Five-seater version
Type of child seat Weight of
the child Seat size
ISOFIX Passenger front seat (4) (1)
Rear side seats Rear centre
seat
Without
airbag
or with airbag
deactivated With
airbag
activated
Carrycot fitted across
the vehicle
Group 0 < 10 kg
F, GXXXX
Rear-facing shell
seat
Groups 0 or 0 + < 10 kg and
< 13 kg
E
ILXIL (1) X
Shell seat/rear-facing
seat
Groups 0+ and 1 < 13 kg and 9
to 18 kg
C, D
ILXIL (1) X
Forward-facing seat
Group 1 9 to 18 kg A, B, B1 IUF - IL
XIUF - IL
(2) (3) X
Booster seat
Groups 2 and 3 15 to 25 kg
and 22 to 36
kg
IUF - IL
XIUF - IL
(2) (3) X
Seat i-Size i-UXi-U X
The table below summarises the information already shown on the diagram \
on the previous page, to ensure the regula-
tions in force are respected.

1.55
X = Seat not suitable for fitting child seats ISOFIX.
IUF/IL = On equipped vehicles, seat which allows an approved “Universal/semi-u\
niversal” or “vehicle specific” child seat to be at-
tached using the ISOFIX system; check that it can be fitted.
i-U = Suitable for the i-Size restraint devices in the “universal” forwa\
rd-facing and backward-facing category.
(1) Raise the seat to the maximum and position it as far back as possible, \
tilting the seatback slightly (approximately 25°).
(2) If necessary, position the vehicle seat as far back as possible. Move the front seat\
as far forward as possible to install a re ar-
facing child seat, then move back the seat in front as far as it will go\
, although without allowing it to come into contact with the
child seat.
(3) In all situations, remove the rear headrest of the seat on which the chi\
ld seat is positioned. This must be done before fitting the
child seat. Please refer to the information on the “Rear headrests”\
in Section 3. Move the seat in front of the child forwards,
move the seatback forward to avoid contact between the seat and the chil\
d’s legs.
The size of the ISOFIX child seat is indicated by a letter:
– A, B and B1: for forward-facing seats in group 1 (9 to 18 kg);
– C and D: shell seat or rear-facing seats in group 0+ (less than 13 kg)\
or group 1 (9 to 18 kg);
– E: rear-facing shell seats in group 0 (less than 10 kg) or 0+ (less t\
han 13 kg);
– F and G: cots in group 0 (less than 10 kg).
CHILD SEATS: attachment using the ISOFIX system (3/6)
(4) RISK OF DEATH OR SERIOUS INJURY: before installing a child seat in the front passenger seat, make sure t\
he
airbag has been deactivated (refer to the information on “Child safe\
ty: deactivation, activation of the front passenger
airbag” in Section 1).

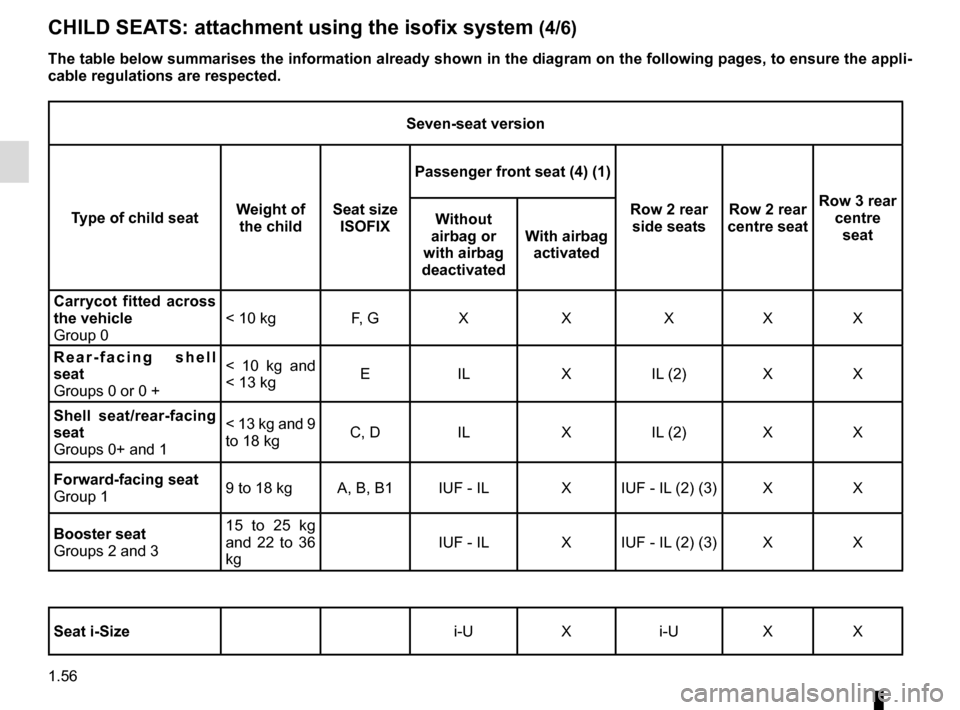

1.56
Seven-seat version
Type of child seat Weight of
the child Seat size
ISOFIX Passenger front seat (4) (1)
Row 2 rear side seats Row 2 rear
centre seat Row 3 rear
centre seat
Without

airbag or
with airbag
deactivated With airbag
activated
Carrycot fitted across
the vehicle
Group 0 < 10 kg F, G X X X X X
Rear-facing shell
seat
Groups 0 or 0 + < 10 kg and
< 13 kg
E IL X IL (2) X X
Shell seat/rear-facing
seat
Groups 0+ and 1 < 13 kg and 9
to 18 kg
C, D IL X IL (2) X X
Forward-facing seat
Group 1 9 to 18 kg A, B, B1 IUF - IL X IUF - IL (2) (3) X X
Booster seat
Groups 2 and 3 15 to 25 kg
and 22 to 36
kg
IUF - IL X IUF - IL (2) (3) X X
Seat i-Size i-U X i-U X X
CHILD SEATS: attachment using the isofix system (4/6)
The table below summarises the information already shown in the diagram \
on the following pages, to ensure the appli-
cable regulations are respected.

1.57
X = Seat not suitable for fitting child seats ISOFIX.
IUF/IL = On equipped vehicles, seat which allows an approved “Universal/semi-u\
niversal” or “vehicle specific” child seat to be at-
tached using the ISOFIX system; check that it can be fitted.
i-U = Suitable for the i-Size restraint devices in the “universal” forwa\
rd-facing and backward-facing category.
(1) Raise the seat to the maximum and position it as far back as possible, \
tilting the seatback slightly (approximately 25°).
(2) If necessary, position the vehicle seat as far back as possible. Move the front seat\
as far forward as possible to install a re ar-
facing child seat, then move back the seat in front as far as it will go\
, although without allowing it to come into contact with the
child seat.
(3) In all situations, remove the rear headrest of the seat on which the chi\
ld seat is positioned. This must be done before fitting the
child seat. Please refer to the information on the “Rear headrests”\
in Section 3. Move the seat in front of the child forwards,
move the seatback forward to avoid contact between the seat and the chil\
d’s legs.
The size of the ISOFIX child seat is indicated by a letter:
– A, B and B1: for forward-facing seats in group 1 (9 to 18 kg);
– C and D: shell seat or rear-facing seats in group 0+ (less than 13 kg)\
or group 1 (9 to 18 kg);
– E: rear-facing shell seats in group 0 (less than 10 kg) or 0+ (less t\
han 13 kg);
– F and G: cots in group 0 (less than 10 kg).
CHILD SEATS: attachment using the isofix system (5/6)
(4) RISK OF DEATH OR SERIOUS INJURY: before installing a child seat in the front passenger seat, make sure t\
he
airbag has been deactivated (refer to the information on “Child safe\
ty: deactivation, activation of the front passenger
airbag” in Section 1).
