Playing an MP3 compilation
Insert an MP3 compilation in the CD player.
T he audio equipment searches for all of the
music tracks, which may take anything between
a few seconds and several tens of seconds,
before play begins.
On a single disc, the CD player can
read up to 255
MP3 files spread over
8
directory levels.
However, it is advisable to keep to a limit
of two levels to reduce the access time
before the CD is played.
The folder structure is not obser ved during
playback.
All of the files are displayed on a single
level.
To play a disc which has already
been inserted, press the SOURCE
button several times in succession
and select " CD".
Press one of the buttons to select a
folder on the CD.
Press one of the buttons to select a
track on the CD. Press the LIST
button to display
the list of directories of the
MP3

compilation.
Press and hold one of these buttons
for fast for ward or rewind.
Bluetooth® audio streaming
Streaming allows music files on the telephone
to be played via the vehicle's loudspeakers.
Connect the telephone.
(Refer to the " Pairing a telephone " section).
Activate the streaming source by
pressing SOURCE.
In certain cases, play of the audio
files must be initiated from the
keypad.
Audio files can be selected using the buttons
on the audio system control panel and the
steering mounted controls The contextual
information can be displayed in the screen, if
the telephone supports the function. The audio
quality depends on the quality of transmission
by the telephone.
Connecting Apple® players
Connect the Apple® player to the USB port
using a suitable cable (not supplied).
Play starts automatically.
Control is via the audio system.
The classifications available are those of the
portable device connected (artists / albums /
genres / playlists).
The version of software in the audio system
may not be compatible with the generation of
your Apple
® p l aye r.
Information and advice
The CD player can play files with ".mp3",
".wma", ".wav" and ".aac" file extensions, with a
bit rate of 32
to 320 Kbps.
It also supports TAG mode (ID3
tag, WMA
TAG) .
No other file types (.mp4, etc.) can be read.
Files of the ".wma" type should be to the wma
9


standard.
The sampling rates supported are 11, 22,
44
and 48 kHz.
Bluetooth® audio system

13
Then select and confirm:
- "Connect telephone " /
" Disconnect telephone ":
to connect / disconnect the telephone or the hands-free kit
o n l y.
-
"Connect media player " /
" Disconnect media player ":
to connect / disconnect streaming o n l y.
-
"Connect telephone +
media player " / "Disconnect
telephone + media player ":
to connect / disconnect the telephone (hands-free kit and
streaming).
-
"Delete connection ": to delete
the pairing.
When you delete a pairing in the system,
remember to delete it from your telephone
as well. Confirm with OK.Receiving a call
An incoming call is announced by a ring and a
superimposed display in the screen. Select the " YES" tab in the screen
using the buttons.
Confirm with OK.
Press this button at the steering
mounted controls to accept the call.
Making a call
In the " Telephone " menu.
Select " Call".
Select " Dial".
Or
Select " Directory ".
Or
Select " Calls list ".
Confirm with OK.
Press this button for more than
two seconds for access to your
directory, then navigate using the
thumb wheel.
Ending a call
In the " Telephone " menu.
Select " End call".
Confirm with OK to end the call.
During a call, press one of the
buttons for more than two seconds.
The system accesses the telephone's
contacts directory, depending on its
compatibility, and while it is connected via
Bluetooth.
With certain telephones connected by
Bluetooth you can send a contact to the
directory of the audio system.
Contacts imported in this way are saved
in a permanent directory visible to all,
whatever the telephone connected.
The menu for the directory is not
accessible if it is empty.
Managing calls
During a call, press OK to display
the contextual menu.
.
Bluetooth® audio system

15

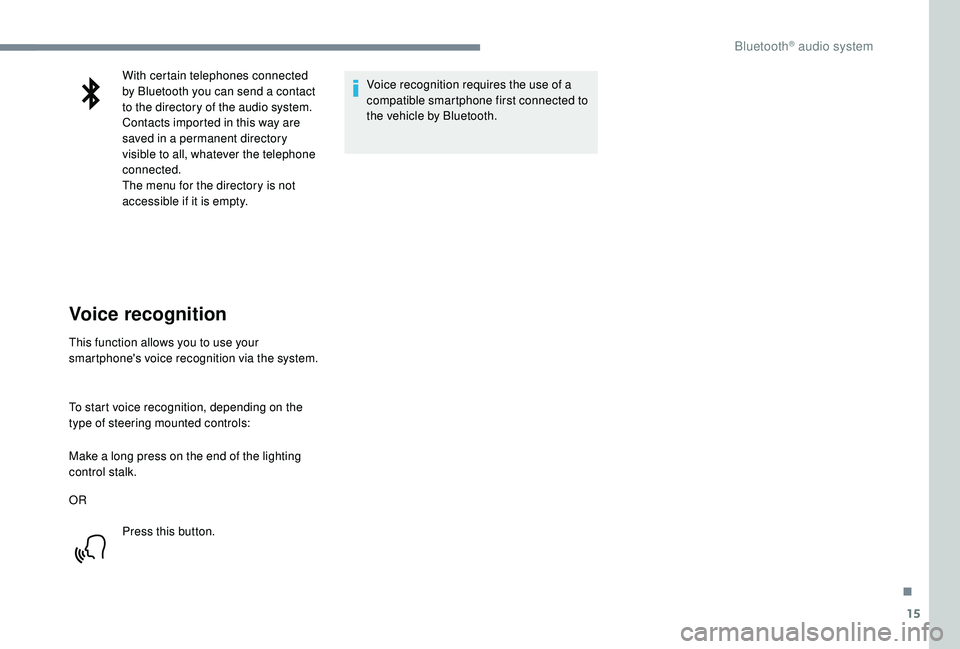

With certain telephones connected
by Bluetooth you can send a contact
to the directory of the audio system.
Contacts imported in this way are
saved in a permanent directory
visible to all, whatever the telephone
connected.
The menu for the directory is not
accessible if it is empty.
Voice recognition
This function allows you to use your
smartphone's voice recognition via the system.
To start voice recognition, depending on the
type of steering mounted controls:
Make a long press on the end of the lighting
control stalk.
ORPress this button. Voice recognition requires the use of a
compatible smartphone first connected to
the vehicle by Bluetooth.
.
Bluetooth® audio system

297
Accessories .......................................... 13 8, 18 0
Active Safety Brake..................... 1 6 -17, 215 -218
AdBlue
® additive ............................. 3 2, 262-265
Adjusting headlamps .................................... 128
Adjusting head restraints


................................ 79
Adjusting seats


......................... 7 6 - 7 7, 79, 85 - 87
Adjusting the air distribution


...................9 9 -10 2
Adjusting the air flow
............................... 9

9 -10 2
Adjusting the date


......................... 38-39, 36, 20
Adjusting the height and reach of the steering wheel


.................................... 83
Adjusting the lumbar support
............... 7

6 - 7 7, 79
Adjusting the seat belt height
....................... 14

9
Adjusting the temperature


......................9 9 -10 2
Adjusting the time


......................... 38-39, 36, 20
Advanced Grip Control


.......................... 145 -14 6
Advice on driving


................................... 175 -176
Airbags
...............................

.............18, 15 3, 15 8
Airbags, curtain


...................................... 15 5 -15 6
Airbags, front ................................. 15 3 -15 4, 15 6
Airbags, lateral


...................................... 15 4, 15 6
Air conditioning


......................................... 96, 98
Air conditioning, automatic


.............................95
Air conditioning, digital


........................... 99, 103
Air conditioning, dual-zone automatic


....99, 103
Air conditioning, manual
................... 9

5-96, 103
Air conditioning, mono-zone


.............97- 9 8 , 103
Air intake


................................................. 9 9 -10 2
Air vents


.......................................................... 94
Alarm


............................................................... 61
Amplifier, audio
...............................

..............112
Anti-lock braking system (ABS)
..............15, 142
Anti-slip regulation (ASR)


............................. 142Anti-theft


.......................................................
17 7
Armrest, front ................................................
114
Assistance call
...............................
........
13 9 -141
Assistance, emergency braking

...........
142, 217
Audio streaming (Bluetooth)

.....................
2 7, 11
Auxiliary

..........................................
2 6 - 2 7, 1 0 -11 Cable, audio

..............................................
26, 10
Cable, jack

................................................
26, 10
Capacity, fuel tank

........................................
245
CarPlay connection ................................... 18, 13
Cartridge, fragrance
.............................. 11
4 -115
CD

........................................................
2 6 - 2 7, 11
CD, MP3

...............................................
2 6 - 2 7, 11
Central locking .......................................... 5 3,
60
Changing a bulb ..................... 2
78-279, 281-283
Changing a fuse
.................................... 28

4-285
Changing a wheel
.................. 2

67-269, 273-274
Changing a wiper blade
........................ 13

6, 284
Changing the remote control battery


..............58
Charger, induction


..................................112 -113
Charger, wireless
................................... 11

2 -113
Checking the engine oil level


..........................30
Checking the levels


...............................258-260
Checking tyre pressures (using the kit)


..............................269-270, 272
Checks


..........................................2 5 7, 260-262
Checks, routine


.....................................260-262
Child lock


................................................173 -174
Children


.................................16 4, 166 -168, 170
Children (safety)


.....................................173 -174
Child seats

.............15

2, 157-15 8, 162-16 4, 172
Child seats, conventional


......................163 -16 4
Child seats, i-Size
.........................................170
Child seats, ISOFIX
.......................166 -168, 170
Cigarette lighter


............................................111
Closing the boot

............................51

, 54-55, 65
Closing the doors


..........................51, 53-55, 64
Configurations, seats


......................................92
Configuration, vehicle
......................... 3

8 - 42, 45
Connection, Bluetooth
........ 21

-22, 28-30, 15 -17
Connection, MirrorLink


........................19, 12-14
Connection, Wi-Fi network


.............................22
Control, emergency door
................................ 57
C

ontrol, heated seats

................................81- 82
Controls, steering mounted


...................185 -189
A
B
C
Backrest, folding ............................................. 78
B attery ..................... 13, 252, 260, 285-286, 288
Battery charge (warning lamp)


.......................13
Battery, charging


.................................... 287-288
Battery, remote control


.............................56, 58
Blanking screen (snow shield)


......................253
Blind
..............................

..................................70
Blind spot monitoring system
..........23, 227-229
Blind spot monitoring system, active
......23, 229
Blind spot sensors


..........................23, 227-229
Blinds, side


.................................................... 11 9
BlueHDi


.................................... 32, 34, 262, 266
Bluetooth (hands-free)
................... 2

8-29, 15 -16
Bluetooth (telephone)
..................... 2

8-30, 15 -17
Bonnet


........................................................... 256
Boot


............................................. 64-65, 6 7, 123
Boot (fittings)


................................................. 120
Brake discs


............................................ 261-262
Brake lamps
...............................

...................281
Brakes


.............................................. 15, 261-262
Braking assistance system
...........................142
Braking, automatic emergency


...1 6 -17, 215 -218
Braking, dynamic emergency


................181-18 4
Brightness


....................................................... 19
Bulbs


............................................................. 278
Bulbs (changing)


....................278-279, 281-283
180° rear vision

....................................
233, 235
.
Alphabetical index

300
S
Safety, children ..............15 3 -15 4, 157-15 8, 162,
16 4, 166 -168, 170
Saturation of the particle filter (Diesel)
.........261
Scented air freshener


............................114 -115
Screen menu map


........................................... 13
Screen, monochrome


...............................38-39
Screens, very cold conditions

.....................25

3
Screenwash, front


......................................... 13 5
Screenwash, rear


.......................................... 13 5
SCR (Selective Catalytic Reduction) system
...................................... 262
Seat belts


....................................... 14 9 -152, 163
Seat belts, rear


....................................... 14 9 -15 0
Seats, additional
....................................... 8

8 -91
Seats, electric


................................................. 81
RRadio .......................................... 23 -24, 2 7, 7, 11
Radio, digital (Digital Audio Broadcasting - DAB)

.................................25

, 9
Range, AdBlue


................................................ 32
RDS
................

....................................... 24-25, 7
Rear air blower

...............................
...............102
Rear screen, demisting – defrosting .....104 -105
Recharging the battery


..........................287-288
Reduction of electrical load


..........................252
Regeneration of the particle filter
.................261
Pads, brake


...........................................
261-262
Paint

..............................................................
296
Paint colour code ..........................................
296
Parcel shelf, rear

...........................................
11 9
Park Assist
...............................
.............
2 3 7, 239
Parking brake

........................................
261-262
Parking brake, electric
..................... 2
6,
181-18 4
Parking sensors, front

...........................
230-231
Parking sensors, rear .................................... 230
Personalisation

............................................
9 -10
PEUGEOT Connect Nav ...................................
1
PEUGEOT Connect Radio
...............................
1
P
lates, identification
...................................... 296
Player, Apple
® ........................................... 2 7, 11
Player, MP3 CD ............................... ................26
Player, USB

....................................... 112 , 26, 10
Port, USB

.......................................... 112 , 26, 10
Pre-heater, Diesel


........................................... 22
Pressures, tyres


.................................... 272, 296
Pre-tensioning seat belts


.............................. 152
Priming the fuel system
........................ 266-267
Profiles


...................................................... 34, 18
Protecting children


......... 15 3 -15 4, 157-15 8, 162,
16 4, 166 -168, 170
Puncture


........................................ 269-270, 272
PReinitialisation of the under-
inflation detection system ...........................19 6
Reinitialising the remote control
..................... 58
R

eminder, key in ignition
...............................17

8
Remote control


.........................4 9 - 51, 53, 55-56
Removing a wheel
................................ 275 -278
Removing the mat


......................................... 11 6
Replacing bulbs
..................... 2

78-279, 281-283
Replacing fuses


.................................... 284-285
Replacing the air filter
................................... 2

61
Replacing the oil filter
................................... 2

61
Replacing the passenger compartment filter ......261
Reservoir, screenwash
......................... 259-260
Resetting the service indicator


....................... 30
Resetting the trip recorder


........................ 35 -37
Rev counter


................................................... 8-9
Reversing lamps
..............................

......281-282
Roof bars


....................................................... 255
Running out of fuel (Diesel)

.................. 266-267 Seats, front
...............................

.................
76, 81
Seats, heated

............................................
81- 82
Seats, rear

.................................................
85 -91
Selector, gear

.........................................
185 -189
Serial number, vehicle

..................................
296
Service indicator

.......................................
28, 34
Servicing
......................................................... 28
S
ettings, equipment

............................
38 - 42, 45
Settings, system

........................................
35, 19
Sidelamps
.............................. 12
6 -127,
279, 281
Side repeater ................................................
281
Snow chains .......................................... 195, 254
Snow screen
................................................. 253
Socket, 12 V
.................................................. 271
Socket, 12 V accessory
.........111, 11 9 , 123, 271
Socket, 230 V

...............................
.................11 8
Socket, auxiliary
........................................ 2

6, 10
Socket, JACK


............................................ 26, 10
Speakers


....................................................... 112
Speed limiter
.......................... 19

7-198, 200-203
Speed limit recognition
......................... 19

8 -19 9
Speedometer


................................................ 8-9
Stability control (ESC).................... 142, 14 4 -14 6
Starting a Diesel engine
............................... 2

47
Starting the engine
....................................... 17

7
Starting the vehicle


....26, 175 , 17 7-179, 185 -189
Starting using another battery


.......18 0 -181, 286
Station, radio
...............................

..........23-25, 7
Stay, bonnet


.................................................. 256
Steering mounted controls, audio
................ 3,

3
Steering wheel, adjustment
............................ 83
S

topping the vehicle

....26, 175 , 17 7-179, 185 -189
Stop & Start


.................22, 3 7, 95, 103, 192-195,
245, 256, 260, 289
Storage


............................................ 11 0 -111, 114
Storage boxes


............................................... 120
Storage compartments


.................................11 0
Storing driving positions
................................. 81
S

unroof, panoramic
........................................ 70
S

un visor
...............................
........................111
Alphabetical index
