2017 Peugeot 3008 Hybrid 4 Owner's Manual - RHD (UK. Australia)

47
3008-2_en_Chap01_instruments-de-bord_ed01-2016

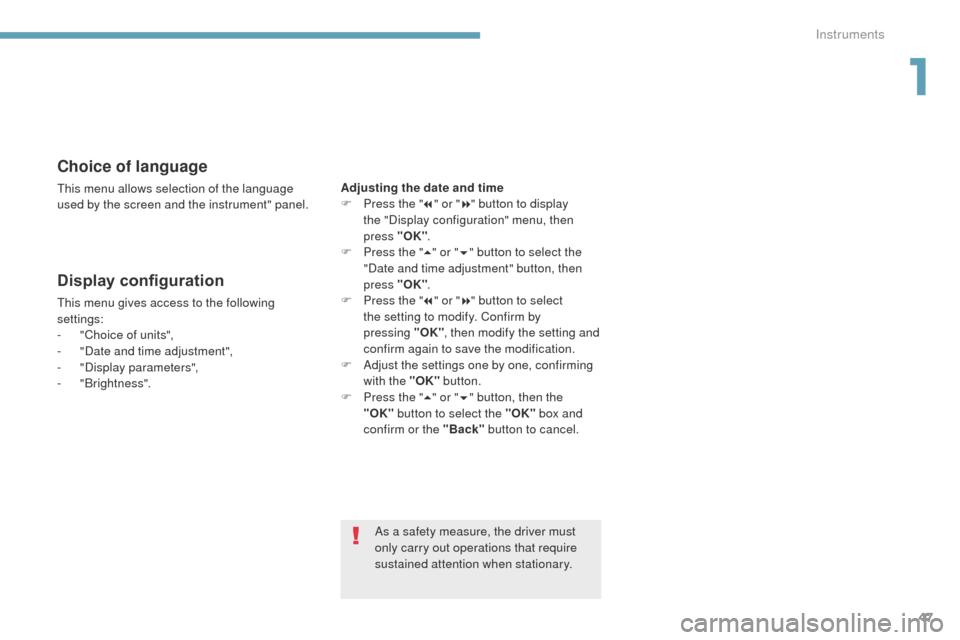

Choice of language
This menu allows selection of the language
used by the screen and the instrument" panel.
Display configuration
This menu gives access to the following
settings:
-
"
Choice of units",
-

"
Date and time adjustment",
-
"

Display parameters",
-


"Brightness". Adjusting the date and time
F

P
ress the "
7" or " 8" button to display
the "Display configuration" menu, then
press "OK"
.
F
P
ress the "
5" or " 6" button to select the
"Date and time adjustment" button, then
press "OK" .
F P ress the "
7" or " 8" button to select
the setting to modify. Confirm by
pressing


"OK", then modify the setting and
confirm again to save the modification.
F

A
djust the settings one by one, confirming
with the "OK" button.
F

P
ress the "5" or " 6" button, then the
"OK"


button to select the "OK" box and
confirm or the "Back" button to cancel.
As a safety measure, the driver must
only carry out operations that require
sustained attention when stationary.
1
Instruments

48
3008-2_en_Chap01_instruments-de-bord_ed01-2016

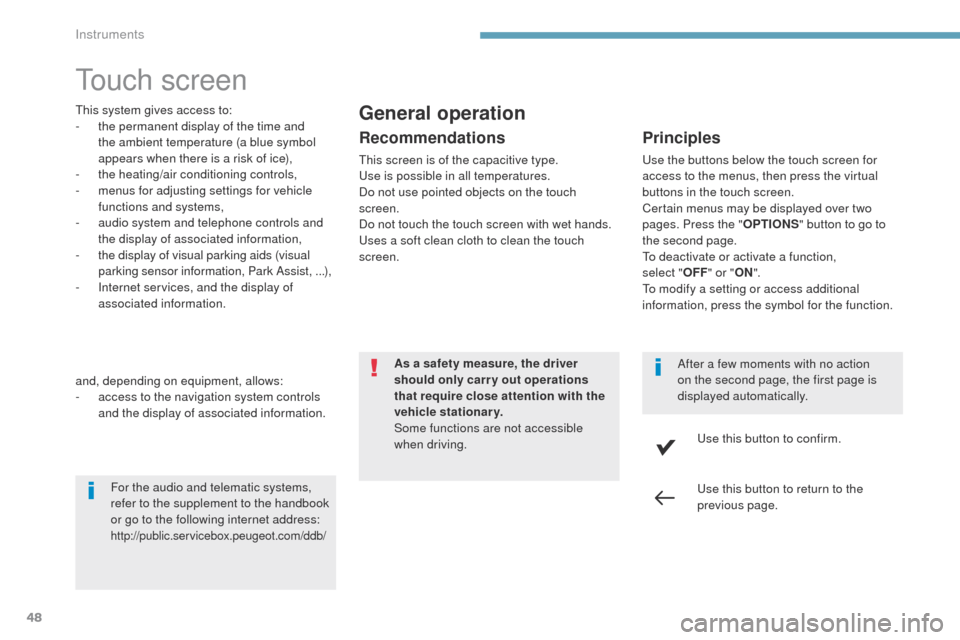

Touch screen
This system gives access to:
- t he permanent display of the time and
the ambient temperature (a blue symbol
appears when there is a risk of ice),
-
t

he heating/air conditioning controls,
-

m
enus for adjusting settings for vehicle
functions and systems,
-

a
udio system and telephone controls and
the display of associated information,
-
t

he display of visual parking aids (visual
parking sensor information, Park Assist, ...),
-

I
nternet services, and the display of
associated information.General operation
and, depending on equipment, allows:
- a ccess to the navigation system controls
and the display of associated information. As a safety measure, the driver
should only carr y out operations
that require close attention with the
vehicle stationary.
Some functions are not accessible
when driving.
Recommendations
This screen is of the capacitive type.
Use is possible in all temperatures.
Do not use pointed objects on the touch
screen.
Do not touch the touch screen with wet hands.
Uses a soft clean cloth to clean the touch
screen.
Principles
Use the buttons below the touch screen for
access to the menus, then press the virtual
buttons in the touch screen.
Certain menus may be displayed over two
pages. Press the "
OPTIONS" button to go to
the second page.
To deactivate or activate a function,
select


"OFF " or " ON".
To modify a setting or access additional
information, press the symbol for the function.
Use this button to confirm.
Use this button to return to the
previous page.
After a few moments with no action
on the second page, the first page is
displayed automatically.
For the audio and telematic systems,
refer to the supplement to the handbook
or go to the following internet address:
http://public.servicebox.peugeot.com/ddb/
Instruments

49
3008-2_en_Chap01_instruments-de-bord_ed01-2016
Air conditioning.
Allows control of the settings for
temperature, air flow...Connected navigation or Mirror
Scre en*.
See more information in "Audio
equipment and telematics".

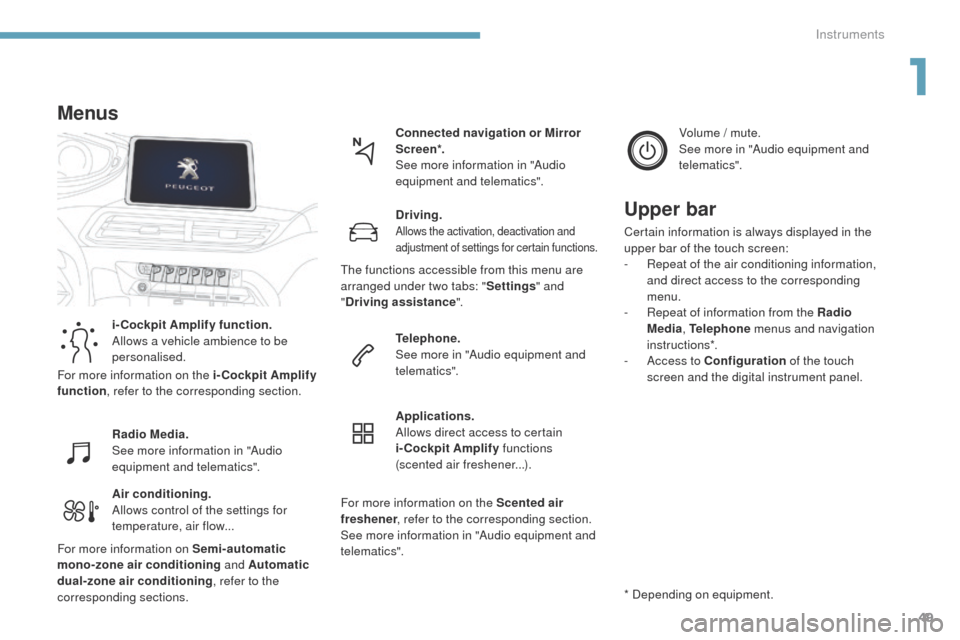

Menus
i-Cockpit Amplify function.
Allows a vehicle ambience to be
personalised.
Radio Media.
See more information in "Audio
equipment and telematics".
Driving.
Allows the activation, deactivation and
adjustment of settings for certain functions.
Telephone.
See more in "Audio equipment and
telematics".
Applications.
Allows direct access to certain
i-Cockpit Amplify
functions
(scented air freshener...). Volume / mute.
See more in "Audio equipment and
telematics".
* Depending on equipment.
Upper bar
Certain information is always displayed in the
upper bar of the touch screen:
-
R
epeat of the air conditioning information,
and direct access to the corresponding
menu.
-

R
epeat of information from the Radio
Media , Telephone menus and navigation
instructions*.
-

A
ccess to Configuration of the touch
screen and the digital instrument panel.
For more information on the i-Cockpit Amplify

function , refer to the corresponding section.
For more information on Semi-automatic
mono-zone air conditioning and Automatic
dual-zone air conditioning , refer to the
corresponding sections. The functions accessible from this menu are
arranged under two tabs: "
Settings" and
" Driving assistance ".
For more information on the Scented air
freshener , refer to the corresponding section.
See more information in "Audio equipment and
telematics".
1
Instruments

50
3008-2_en_Chap01_instruments-de-bord_ed01-2016
Driving menu
"Settings" tab
ButtonComments
" Lighting " -
"

Directional headlamps": activation/deactivation of cornering lighting.
-

"
LED daytime running lamps" (depending on the country of sale).
" Vehicle access "-
"

Driver plip action": activation/deactivation of selective unlocking of the driver's door.
-

"
Unlock boot only": activation/deactivation of selective unlocking at the tailgate.
-
"

Motorized tailgate": activation/deactivation of motorized operation of the tailgate.
-

"
Hands-Free Tailgate Access": activation/deactivation of the hands-free tailgate access system.
" Comfort " -
"

Rear wiper in reverse": activation/deactivation of the rear wiper coupled with reverse gear.
-
"

Guide-me-home lighting": activation/deactivation of automatic guide-me-home lighting.
-
"

Welcome lighting": activation/deactivation of exterior welcome lighting.
-
"

Mood lighting": activation/deactivation of mood lighting and adjustment of brightness.
-

"
Auto mirror dipping in reverse": activation/deactivation of automatic dipping of door mirrors in reverse gear.
" Safety " -
"

Collision risk alert and automatic braking": activation/deactivation of collision risk alert and automatic emergency
braking.
-
"

Recommended speed display": activation/deactivation of speed limit recognition.
-
"

Fatigue Detection System": activation/deactivation of the driver fatigue detection system.
For more information on one of these functions, refer to the corresponding section.
Instruments

51
3008-2_en_Chap01_instruments-de-bord_ed01-2016
"Driving assistance" tab
Corresponding function"Comments"
"Speed settings" Memorisation of speed settings for the speed limiter or cruise control.
"Under-inflation initialization "Reinitialization of the under-inflation detection system.
"Lane departure detection assistance. "Activation/deactivation of the function.
"Help staying in lane" Activation/deactivation of the function.
Parking sensors Activation/deactivation of the function.
"Park Assist" Activation/deactivation of the function.
"Automatic headlamp dip "Activation/deactivation of the function.
"Stop & Star t" Activation/deactivation of the function.
" Blind spot monitoring " Activation/deactivation of the function.
"Panoramic visual aid" Activation of the Visiopark 2 function.
"Wheel anti-slip regulation" Activation/deactivation of the function
For more information on one of these functions, refer to the corresponding section.
1
Instruments

52
3008-2_en_Chap01_instruments-de-bord_ed01-2016

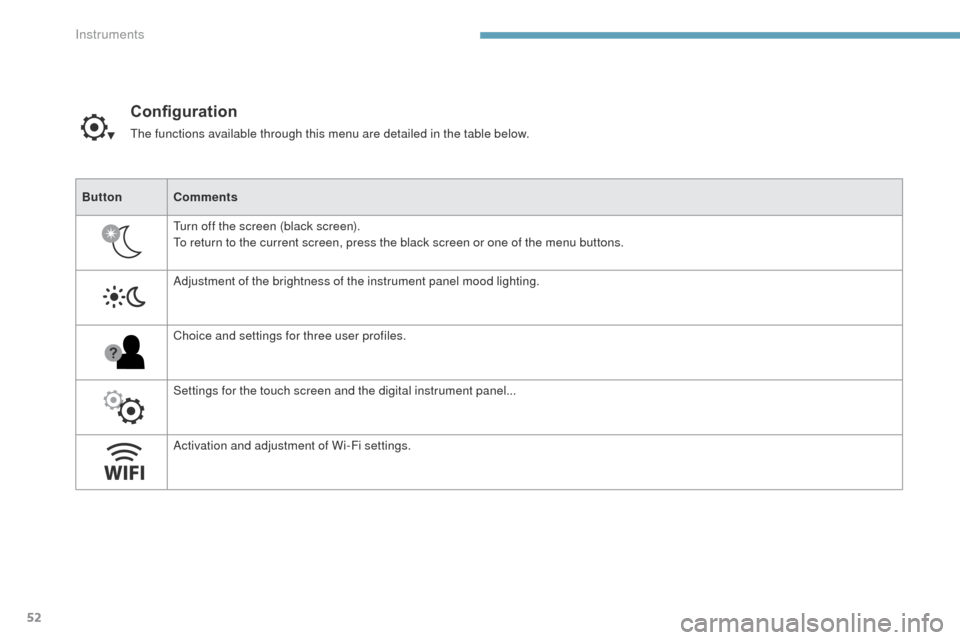

Configuration
The functions available through this menu are detailed in the table below.
Button Comments
Turn off the screen (black screen).
To return to the current screen, press the black screen or one of the menu buttons.
Adjustment of the brightness of the instrument panel mood lighting.
Choice and settings for three user profiles.
Settings for the touch screen and the digital instrument panel...
Activation and adjustment of Wi-Fi settings.
Instruments

53
3008-2_en_Chap01_instruments-de-bord_ed01-2016
ButtonCorresponding function Comments
Screen configuration Adjustment of the display settings (scrolling of text, animations...) and brightness.
Instrument panel perso Select the type of information displayed in the digital instrument panel.
System configuration Choice of units:
-
t

emperature (°Celsius or °Fahrenheit)
-

d
istance and fuel consumption (l/100 km, mpg or km/l).
Languages Choice of language used for the touch screen and the digital instrument panel.
Time / Date Setting the time, date and format.
Option of synchronisation with GPS.

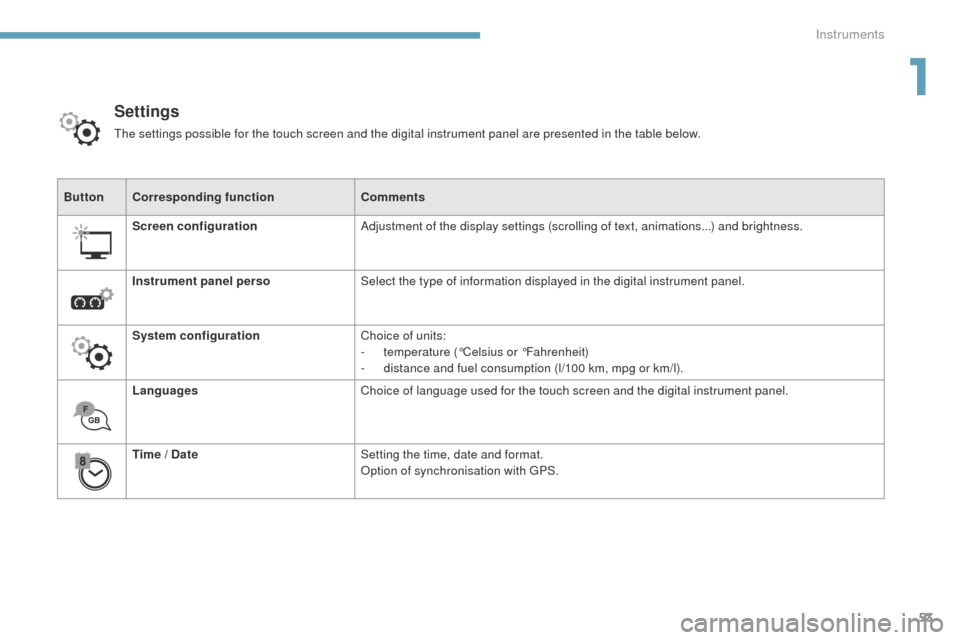

Settings
The settings possible for the touch screen and the digital instrument panel are presented in the table below.
1
Instruments

54
3008-2_en_Chap02_ouvertures_ed01-2016

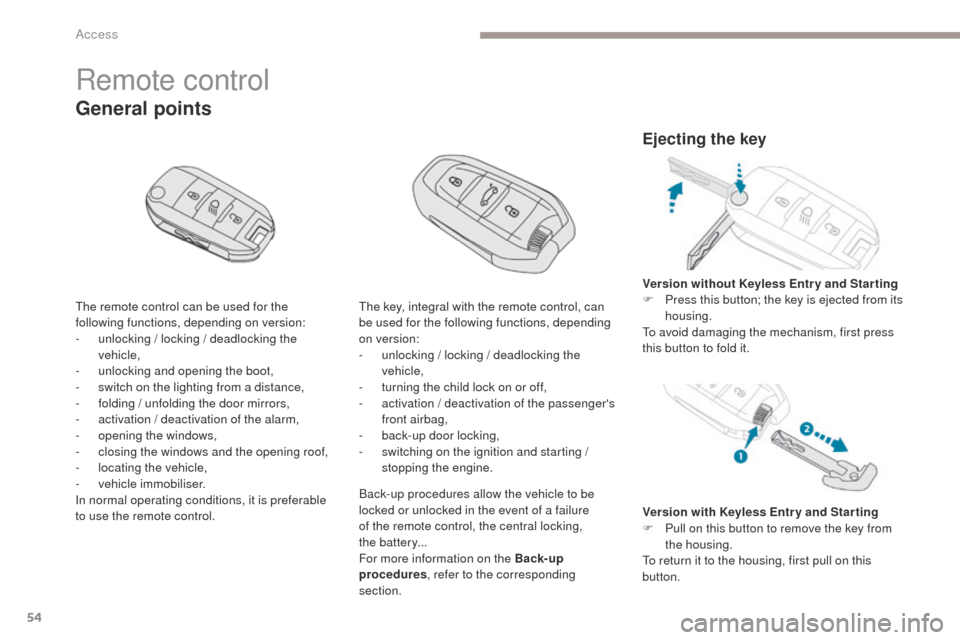

Remote control
The remote control can be used for the
following functions, depending on version:
-
u
nlocking / locking / deadlocking the
vehicle,
-

u
nlocking and opening the boot,
-

s
witch on the lighting from a distance,
-

f
olding / unfolding the door mirrors,
-

a
ctivation / deactivation of the alarm,
-
o

pening the windows,
-
c

losing the windows and the opening roof,
-

l
ocating the vehicle,
-
v

ehicle immobiliser.
In normal operating conditions, it is preferable
to use the remote control.
General points
The key, integral with the remote control, can
be used for the following functions, depending
on version:
-

u
nlocking / locking / deadlocking the
vehicle,
-

t
urning the child lock on or off,
-
a

ctivation / deactivation of the passenger's
front airbag,
-

b
ack-up door locking,
-

s
witching on the ignition and starting /
stopping the engine.
Ejecting the key
Version with Keyless Entr y and Star ting
F P ull on this button to remove the key from
the housing.
To return it to the housing, first pull on this
button. Version without Keyless Entr y and Star ting
F
P
ress this button; the key is ejected from its
housing.
To avoid damaging the mechanism, first press
this button to fold it.
Back-up procedures allow the vehicle to be
locked or unlocked in the event of a failure
of the remote control, the central locking,
the


batter y...
For more information on the Back-up
procedures , refer to the corresponding
section.
Access
