2017 Peugeot 3008 Hybrid 4 Owner's Manual - RHD (UK. Australia)

239
3008-2_en_Chap06_conduite_ed01-2016

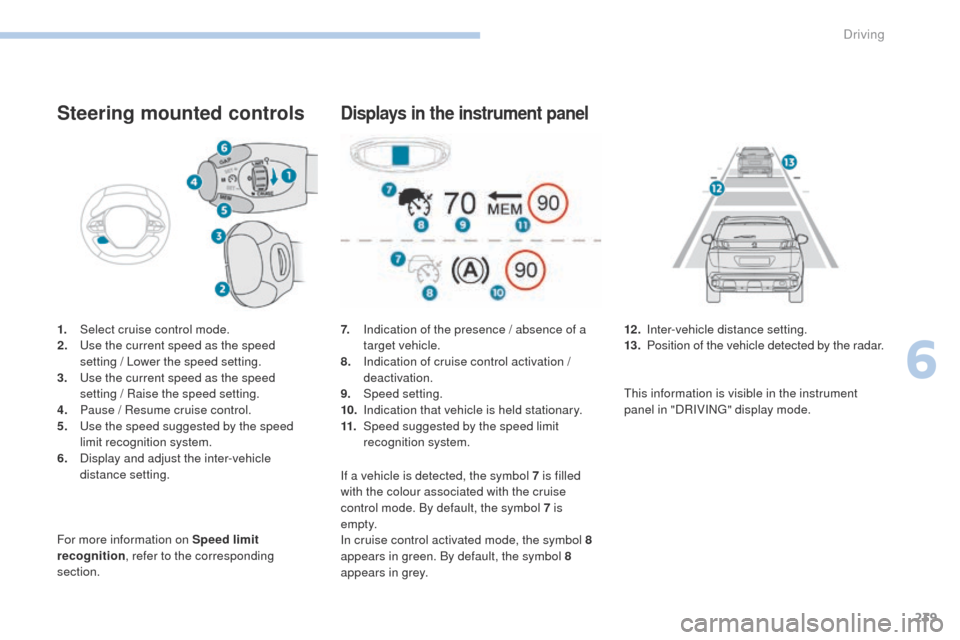

Steering mounted controls
1. Select cruise control mode.
2. Use the current speed as the speed
setting


/ Lower the speed setting.
3.
U

se the current speed as the speed
setting


/ Raise the speed setting.
4.
P

ause / Resume cruise control.
5.
U

se the speed suggested by the speed
limit recognition system.
6.
D

isplay and adjust the inter-vehicle
distance setting.
For more information on Speed limit
recognition , refer to the corresponding
section.
Displays in the instrument panel
7. Indication of the presence / absence of a target vehicle.
8.
I

ndication of cruise control activation /
deactivation.
9.
Spe

ed setting.
10.
I

ndication that vehicle is held stationary.
11.
Spe

ed suggested by the speed limit
recognition system. 12 . I
nter-vehicle distance setting.
13. P osition of the vehicle detected by the radar.
If a vehicle is detected, the symbol 7
is filled
with the colour associated with the cruise
control mode. By default, the symbol 7 is
e m pt y.
In cruise control activated mode, the symbol
8
appears in green. By default, the symbol 8
appears in grey. This information is visible in the instrument
panel in "DRIVING" display mode.
6
Driving

240
3008-2_en_Chap06_conduite_ed01-2016

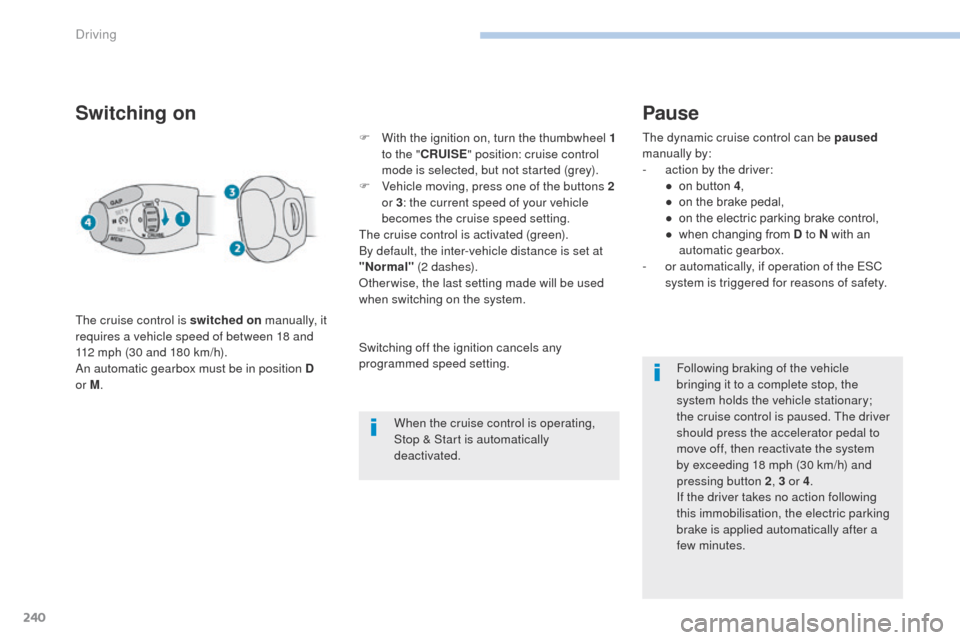

Switching on
The cruise control is switched on manually, it
requires a vehicle speed of between 18 and
112 mph (30 and 180 km/h).
An automatic gearbox must be in position D
or M . F

W
ith the ignition on, turn the thumbwheel 1
to the " CRUISE " position: cruise control
mode is selected, but not started (grey).
F
V
ehicle moving, press one of the buttons 2
or 3 : the current speed of your vehicle
becomes the cruise speed setting.
The cruise control is activated (green).
By default, the inter-vehicle distance is set at
"Normal" (2 dashes).
Otherwise, the last setting made will be used
when switching on the system.
When the cruise control is operating,
Stop & Start is automatically
deactivated.
Pause
The dynamic cruise control can be paused
manually by:
-

a
ction by the driver:
●

o
n button 4 ,
●

o
n the brake pedal,
●

o
n the electric parking brake control,
●

w
hen changing from D to N with an
automatic gearbox.
-

o
r automatically, if operation of the ESC
system is triggered for reasons of safety.
Following braking of the vehicle
bringing it to a complete stop, the
system holds the vehicle stationary;
the cruise control is paused. The driver
should press the accelerator pedal to
move off, then reactivate the system
by exceeding 18
mph (30 km/h) and
pressing button
2, 3 or 4 .
If the driver takes no action following
this immobilisation, the electric parking
brake is applied automatically after a
few minutes.
Switching off the ignition cancels any
programmed speed setting.
Driving

241
3008-2_en_Chap06_conduite_ed01-2016

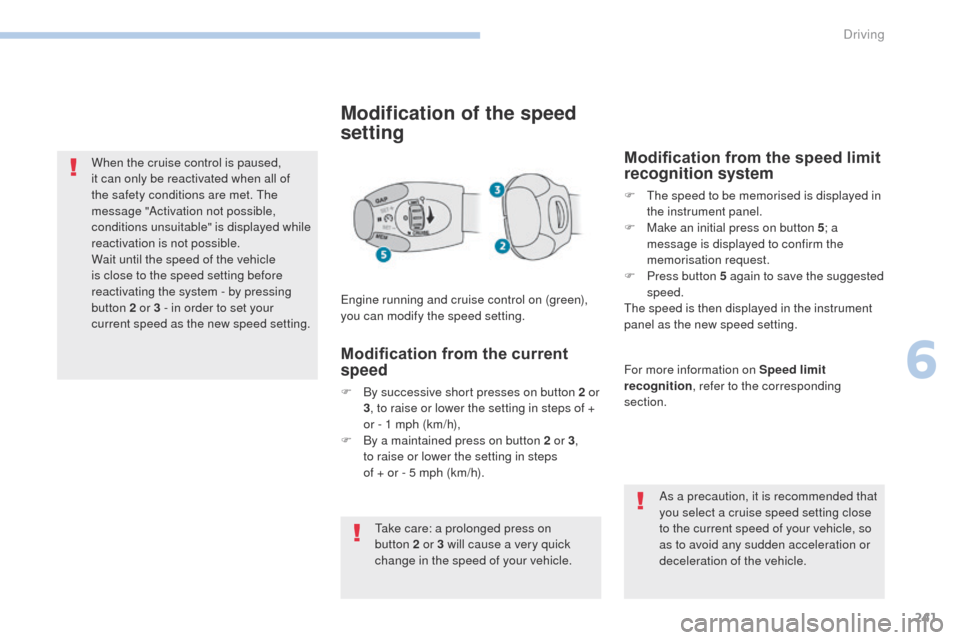

When the cruise control is paused,
it can only be reactivated when all of
the safety conditions are met. The
message "Activation not possible,
conditions unsuitable" is displayed while
reactivation is not possible.
Wait until the speed of the vehicle
is close to the speed setting before
reactivating the system - by pressing
button 2 or 3 - in order to set your
current speed as the new speed setting.
Modification of the speed
setting
Engine running and cruise control on (green),
you can modify the speed setting.As a precaution, it is recommended that
you select a cruise speed setting close
to the current speed of your vehicle, so
as to avoid any sudden acceleration or
deceleration of the vehicle.
Modification from the speed limit
recognition system
F The speed to be memorised is displayed in the instrument panel.
F

M
ake an initial press on button 5 ; a
message is displayed to confirm the
memorisation request.
F

P
ress button 5 again to save the suggested
speed.
The speed is then displayed in the instrument
panel as the new speed setting.
Modification from the current
speed
F By successive short presses on button 2 or 3, to raise or lower the setting in steps of +
or - 1 mph (km/h),
F

B
y a maintained press on button 2 or 3 ,
to
raise or lower the setting in steps
of + or - 5 mph (km/h). For more information on Speed limit
recognition
, refer to the corresponding
section.
Take care: a prolonged press on
button
2 or 3 will cause a very quick
change in the speed of your vehicle.
6
Driving

242
3008-2_en_Chap06_conduite_ed01-2016

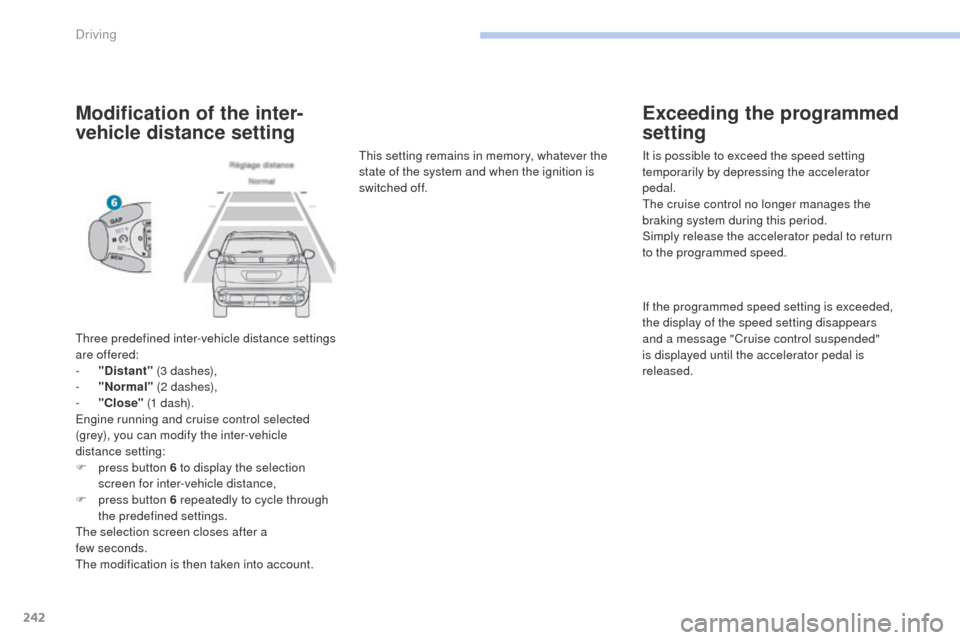

Modification of the inter-
vehicle distance setting
Three predefined inter-vehicle distance settings
are offered:
-
"
Distant" (3 dashes),
-

"
Normal" (2 dashes),
-

"
Close" (1 dash).
Engine running and cruise control selected
(grey), you can modify the inter-vehicle
distance setting:
F

p
ress button 6 to display the selection
screen for inter-vehicle distance,
F

p
ress button 6 repeatedly to cycle through
the predefined settings.
The selection screen closes after a
few


seconds.
The modification is then taken into account. This setting remains in memory, whatever the
state of the system and when the ignition is
switched off.
Exceeding the programmed
setting
It is possible to exceed the speed setting
temporarily by depressing the accelerator
pedal.
The cruise control no longer manages the
braking system during this period.
Simply release the accelerator pedal to return
to the programmed speed.
If the programmed speed setting is exceeded,
the display of the speed setting disappears
and a message "Cruise control suspended"
is displayed until the accelerator pedal is
released.
Driving

70
70
243
3008-2_en_Chap06_conduite_ed01-2016

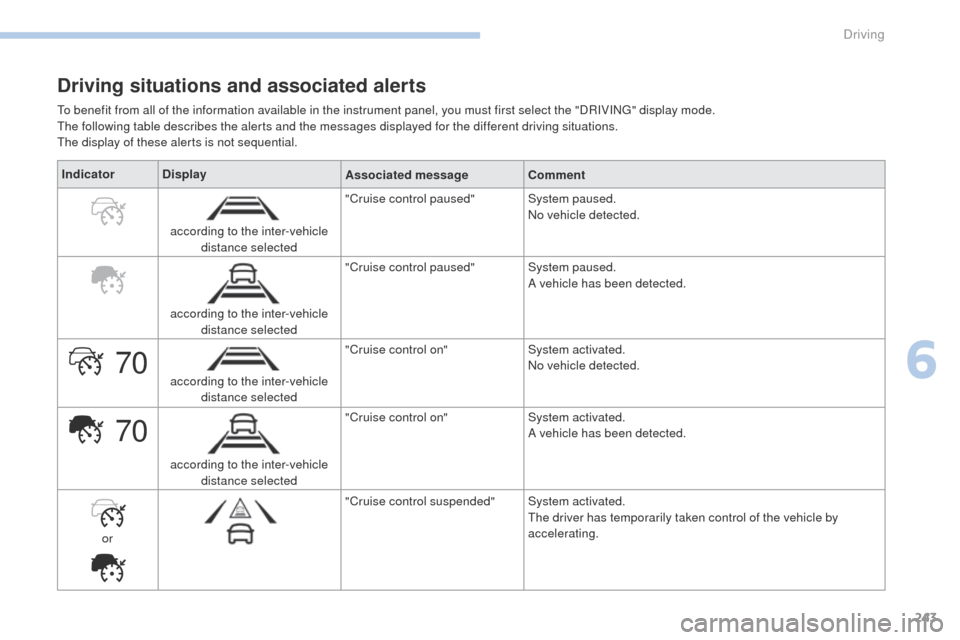

Driving situations and associated alerts
To benefit from all of the information available in the instrument panel, you must first select the "DRIVING" display mode.
The following table describes the alerts and the messages displayed for the different driving situations.
The display of these alerts is not sequential.Indicator Display
Associated messageComment
according to the inter-vehicle distance selected "Cruise control paused"
System paused.
No vehicle detected.
according to the inter-vehicle distance selected "Cruise control paused"
System paused.
A vehicle has been detected.
according to the inter-vehicle distance selected "Cruise control on"
System activated.
No vehicle detected.
according to the inter-vehicle distance selected "Cruise control on"
System activated.
A vehicle has been detected.
or "Cruise control suspended"
System activated.
The driver has temporarily taken control of the vehicle by
accelerating.
6
Driving

70
70
70
70
244
3008-2_en_Chap06_conduite_ed01-2016

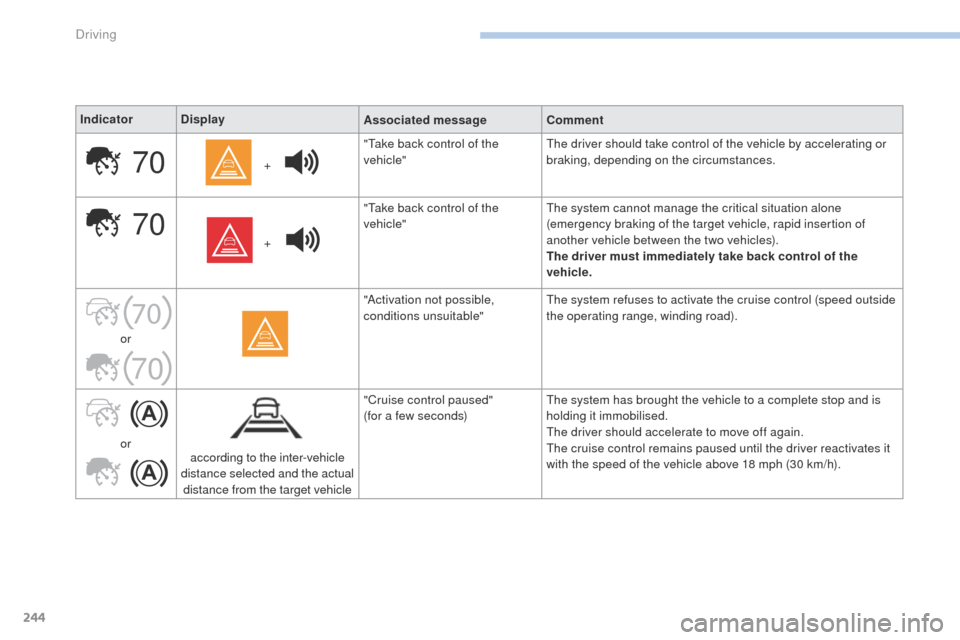

IndicatorDisplay
Associated messageComment
+ "Take back control of the
vehicle"
The driver should take control of the vehicle by accelerating or
braking, depending on the circumstances.
+ "Take back control of the
vehicle"
The system cannot manage the critical situation alone
(emergency braking of the target vehicle, rapid insertion of
another vehicle between the two vehicles).
The driver must immediately take back control of the
vehicle.
or "Activation not possible,
conditions unsuitable"
The system refuses to activate the cruise control (speed outside
the operating range, winding road).
or according to the inter-vehicle
distance selected and the actual distance from the target vehicle "Cruise control paused"
(for a few seconds)
The system has brought the vehicle to a complete stop and is
holding it immobilised.
The driver should accelerate to move off again.
The cruise control remains paused until the driver reactivates it
with the speed of the vehicle above 18 mph (30 km/h).
Driving

245
3008-2_en_Chap06_conduite_ed01-2016

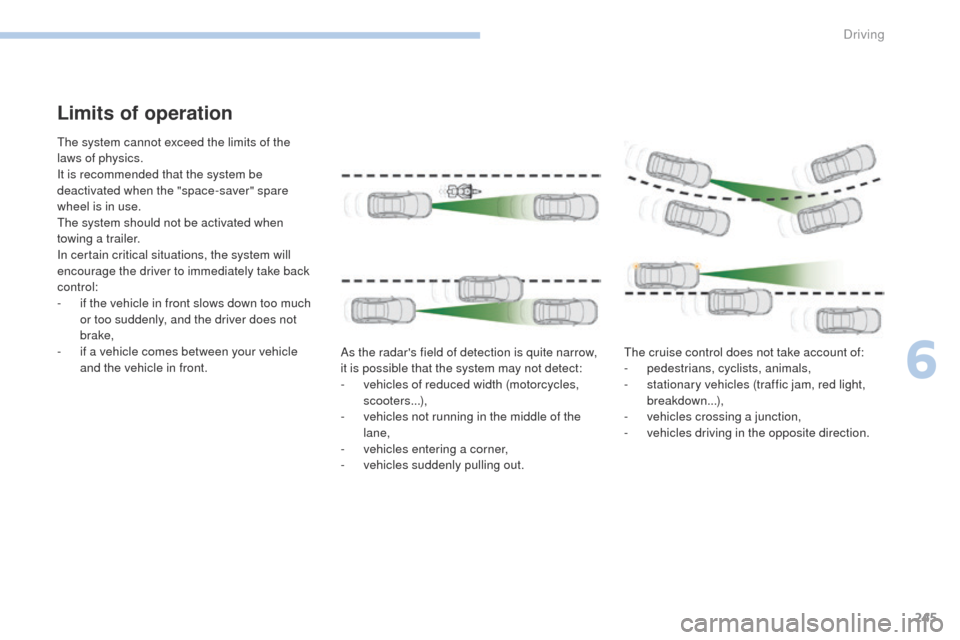

Limits of operation
The system cannot exceed the limits of the
laws of physics.
It is recommended that the system be
deactivated when the "space-saver" spare
wheel is in use.
The system should not be activated when
towing a trailer.
In certain critical situations, the system will
encourage the driver to immediately take back
control:
-
i
f the vehicle in front slows down too much
or too suddenly, and the driver does not
brake,
-

i
f a vehicle comes between your vehicle
and the vehicle in front. As the radar's field of detection is quite narrow,
it is possible that the system may not detect:
-

v
ehicles of reduced width (motorcycles,
scooters...),
-

v
ehicles not running in the middle of the
lane,
-
v

ehicles entering a corner,
-
v

ehicles suddenly pulling out.The cruise control does not take account of:
-

p
edestrians, cyclists, animals,
-

s
tationary vehicles (traffic jam, red light,
breakdown...),
-

v
ehicles crossing a junction,
-

v
ehicles driving in the opposite direction.
6
Driving

246
3008-2_en_Chap06_conduite_ed01-2016

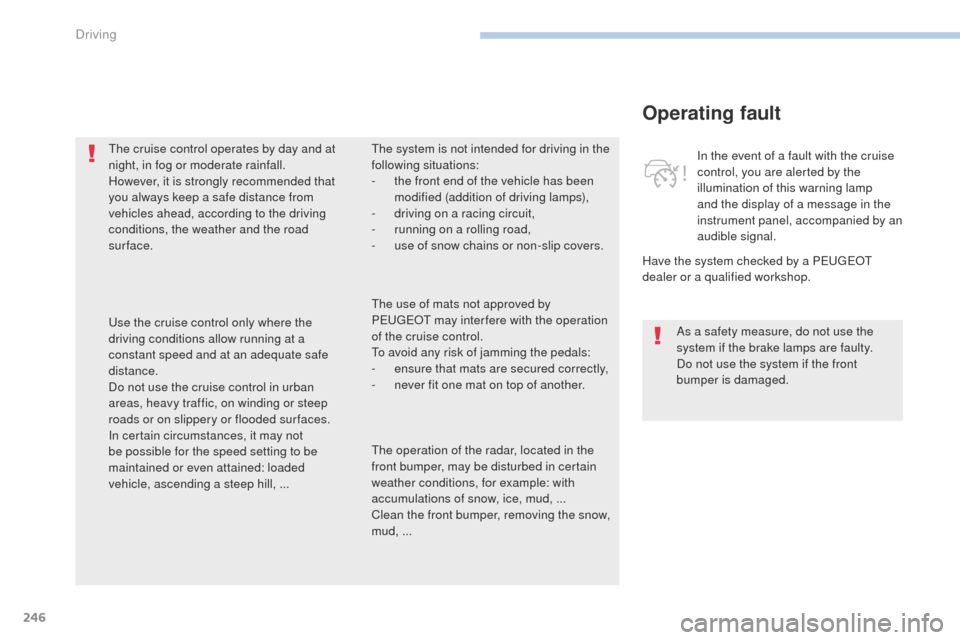

Operating fault
Have the system checked by a PEUGEOT
dealer or a qualified workshop.In the event of a fault with the cruise
control, you are alerted by the
illumination of this warning lamp
and the display of a message in the
instrument panel, accompanied by an
audible signal.
The cruise control operates by day and at
night, in fog or moderate rainfall.
However, it is strongly recommended that
you always keep a safe distance from
vehicles ahead, according to the driving
conditions, the weather and the road
sur face.
Use the cruise control only where the
driving conditions allow running at a
constant speed and at an adequate safe
distance.
Do not use the cruise control in urban
areas, heavy traffic, on winding or steep
roads or on slippery or flooded sur faces.
In certain circumstances, it may not
be possible for the speed setting to be
maintained or even attained: loaded
vehicle, ascending a steep hill, ... The system is not intended for driving in the
following situations:
-

t

he front end of the vehicle has been
modified (addition of driving lamps),
-

d

riving on a racing circuit,
-

r

unning on a rolling road,
-
u
se of snow chains or non-slip covers.
As a safety measure, do not use the
system if the brake lamps are faulty.
Do not use the system if the front
bumper is damaged.
The operation of the radar, located in the
front bumper, may be disturbed in certain
weather conditions, for example: with
accumulations of snow, ice, mud, ...
Clean the front bumper, removing the snow,
mud, ... The use of mats not approved by
PEUGEOT may inter fere with the operation
of the cruise control.
To avoid any risk of jamming the pedals:
-

e

nsure that mats are secured correctly,
-

n

ever fit one mat on top of another.
