2017 Peugeot 3008 Hybrid 4 Owner's Manual - RHD (UK. Australia)

95
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016
1. Adjusting the angle and height of the seat cushion / Adjusting the seat for wards and
backwards
F

R
aise or lower the front of the control to
obtain the desired seat cushion angle.
F

R
aise or lower the rear of the control to
raise or lower the seat.
F

S
lide the control for wards or backwards to
move the seat for wards or backwards.
2. Adjusting the seat backrest angle
F

T
urn the control for wards or backwards to
recline the backrest to the desired angle. 3. Adjusting the height of the head restraint
Refer to the corresponding section.
4. Adjusting the length of the seat cushion
F

P
ull the handle for wards to release the
cushion, then move the front part of the
seat cushion forwards or backwards.
5. Adjusting the lumbar support
The control allows independent adjustment of
the depth and vertical position of the lumbar
support.
F

P
ress and hold the front or rear of the
control to increase or reduce the lumbar
support.
F

P
ress and hold the top or bottom of the
control to raise or lower the lumbar support
area.
3
Ease of use and comfort

96
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016

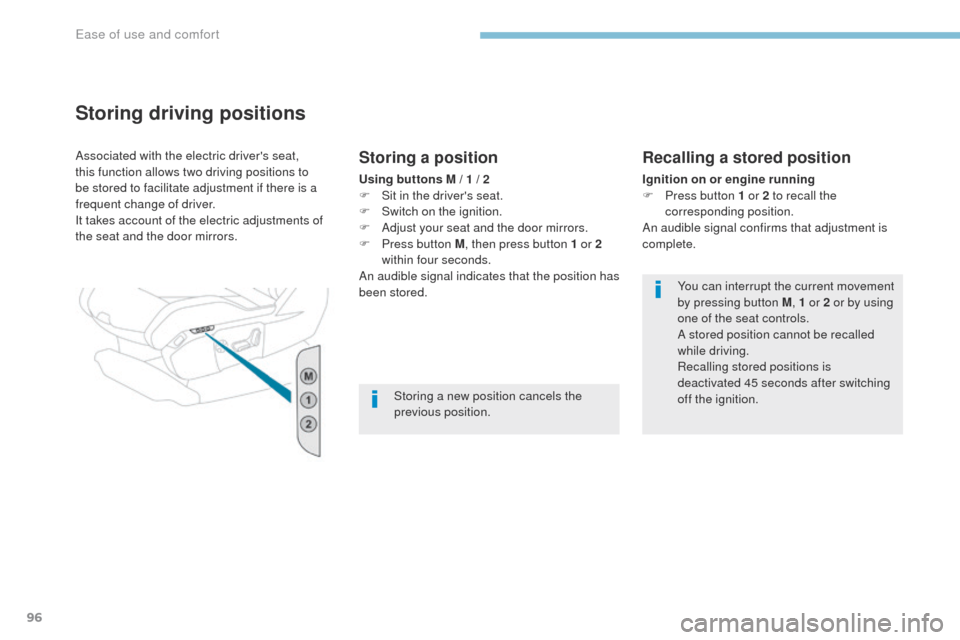

Storing driving positions
Associated with the electric driver's seat,
this function allows two driving positions to
be stored to facilitate adjustment if there is a
frequent change of driver.
It takes account of the electric adjustments of
the seat and the door mirrors.Storing a position
Using buttons M / 1 / 2
F S it in the driver's seat.
F

S
witch on the ignition.
F

A
djust your seat and the door mirrors.
F

P
ress button M , then press button 1 or 2
within four seconds.
An audible signal indicates that the position has
been stored.
Storing a new position cancels the
previous position. You can interrupt the current movement
by pressing button M
, 1 or 2 or by using
one of the seat controls.
A stored position cannot be recalled
while driving.
Recalling stored positions is
deactivated 45 seconds after switching
off the ignition.
Recalling a stored position
Ignition on or engine running
F P ress button 1 or 2 to recall the
corresponding position.
An audible signal confirms that adjustment is
complete.
Ease of use and comfort

97
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016

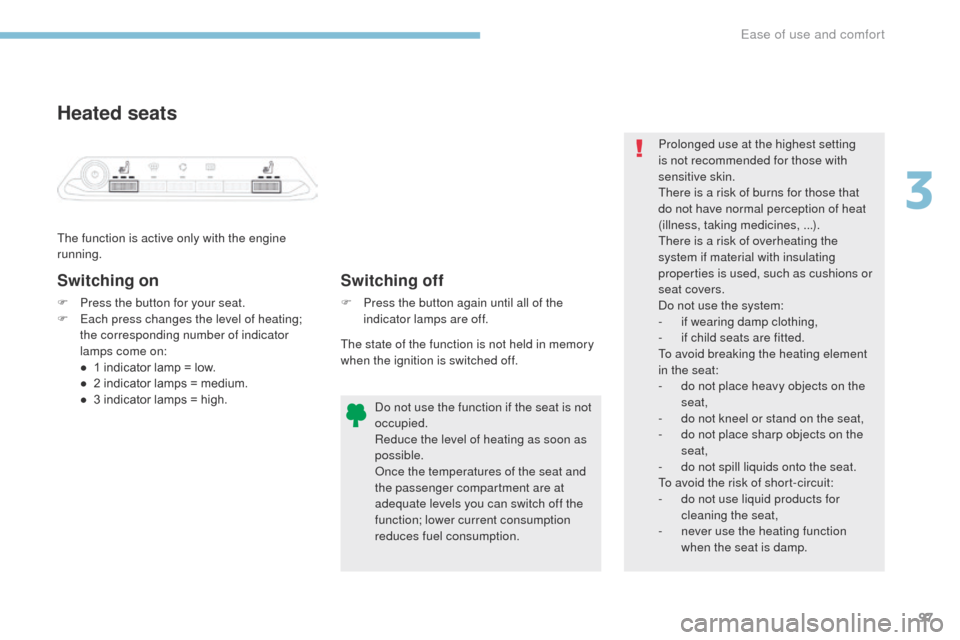

Heated seats
The function is active only with the engine
running.
Switching on
F Press the button for your seat.
F E ach press changes the level of heating;
the corresponding number of indicator
lamps come on:
●

1 i
ndicator lamp = low.
●

2 i
ndicator lamps = medium.
●

3 i
ndicator lamps = high. Do not use the function if the seat is not
occupied.
Reduce the level of heating as soon as
possible.
Once the temperatures of the seat and
the passenger compartment are at
adequate levels you can switch off the
function; lower current consumption
reduces fuel consumption.
Switching off
F Press the button again until all of the
indicator lamps are off.
The state of the function is not held in memory
when the ignition is switched off. Prolonged use at the highest setting
is not recommended for those with
sensitive skin.
There is a risk of burns for those that
do not have normal perception of heat
(illness, taking medicines, ...).
There is a risk of overheating the
system if material with insulating
properties is used, such as cushions or
seat covers.
Do not use the system:
-

i
f wearing damp clothing,
-

i
f child seats are fitted.
To avoid breaking the heating element
in the seat:
-

d
o not place heavy objects on the
seat,
-

d
o not kneel or stand on the seat,
-

d
o not place sharp objects on the
seat,
-

d
o not spill liquids onto the seat.
To avoid the risk of short-circuit:
-

d
o not use liquid products for
cleaning the seat,
-

n
ever use the heating function
when the seat is damp.
3
Ease of use and comfort

98
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016

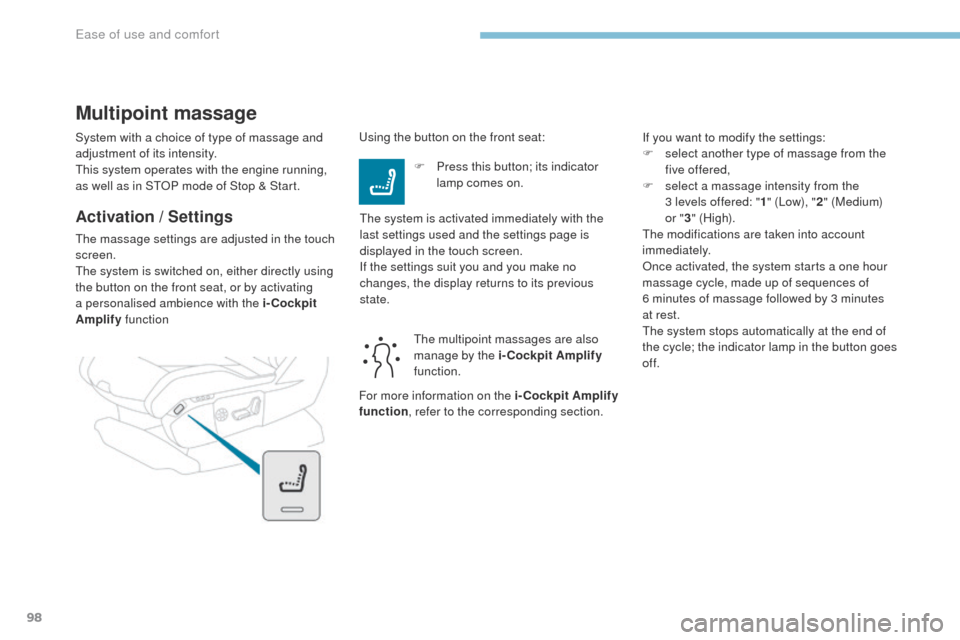

System with a choice of type of massage and
adjustment of its intensity.
This system operates with the engine running,
as well as in STOP mode of Stop & Start.
Activation / Settings
The massage settings are adjusted in the touch
screen.
The system is switched on, either directly using
the button on the front seat, or by activating
a personalised ambience with the i-Cockpit
Amplify function
Multipoint massage
F Press this button; its indicator
lamp comes on.
The system is activated immediately with the
last settings used and the settings page is
displayed in the touch screen.
If the settings suit you and you make no
changes, the display returns to its previous
state. If you want to modify the settings:
F
s elect another type of massage from the
five offered,
F

s
elect a massage intensity from the
3
levels offered: "1" (Low), " 2" (Medium)
or " 3" (High).
The modifications are taken into account
immediately.
Once activated, the system starts a one hour
massage cycle, made up of sequences of
6
minutes of massage followed by 3 minutes
at rest.
The system stops automatically at the end of
the cycle; the indicator lamp in the button goes
of f.
The multipoint massages are also
manage by the i-Cockpit Amplify

function.
Using the button on the front seat:
For more information on the i-Cockpit Amplify

function , refer to the corresponding section.
Ease of use and comfort

99
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016

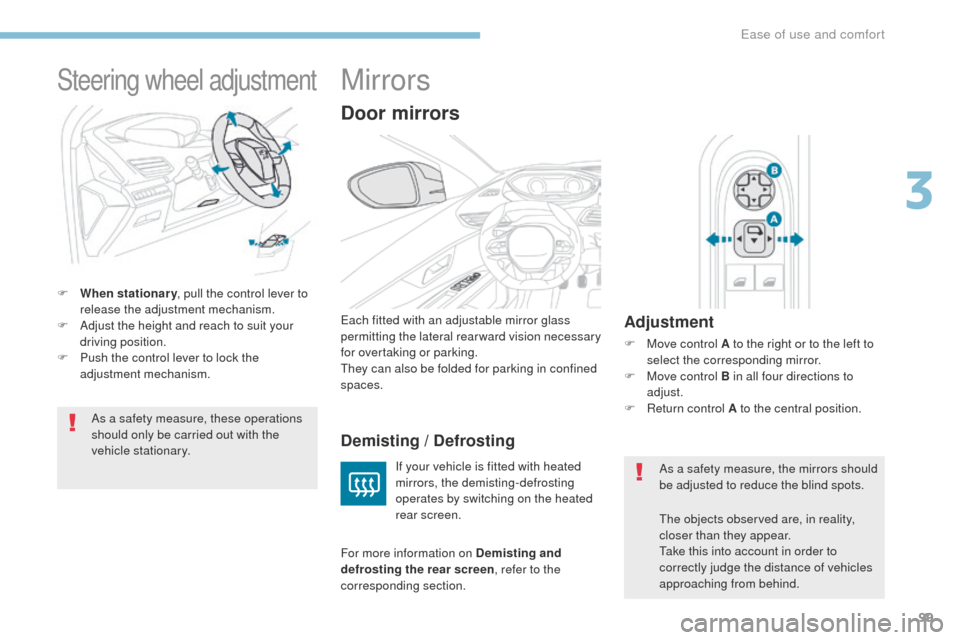

Steering wheel adjustment
F When stationary, pull the control lever to
release the adjustment mechanism.
F

A
djust the height and reach to suit your
driving position.
F

P
ush the control lever to lock the
adjustment mechanism.
As a safety measure, these operations
should only be carried out with the
vehicle stationary.
Mirrors
Each fitted with an adjustable mirror glass
permitting the lateral rearward vision necessary
for overtaking or parking.
They can also be folded for parking in confined
spaces.
Door mirrors
Demisting / Defrosting
If your vehicle is fitted with heated
mirrors, the demisting-defrosting
operates by switching on the heated
rear screen.
For more information on Demisting and
defrosting the rear screen , refer to the
corresponding section.
Adjustment
F Move control A to the right or to the left to select the corresponding mirror.
F

M
ove control B in all four directions to
adjust.
F

R
eturn control A to the central position.
The objects observed are, in reality,
closer than they appear.
Take this into account in order to
correctly judge the distance of vehicles
approaching from behind. As a safety measure, the mirrors should
be adjusted to reduce the blind spots.
3
Ease of use and comfort

100
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016

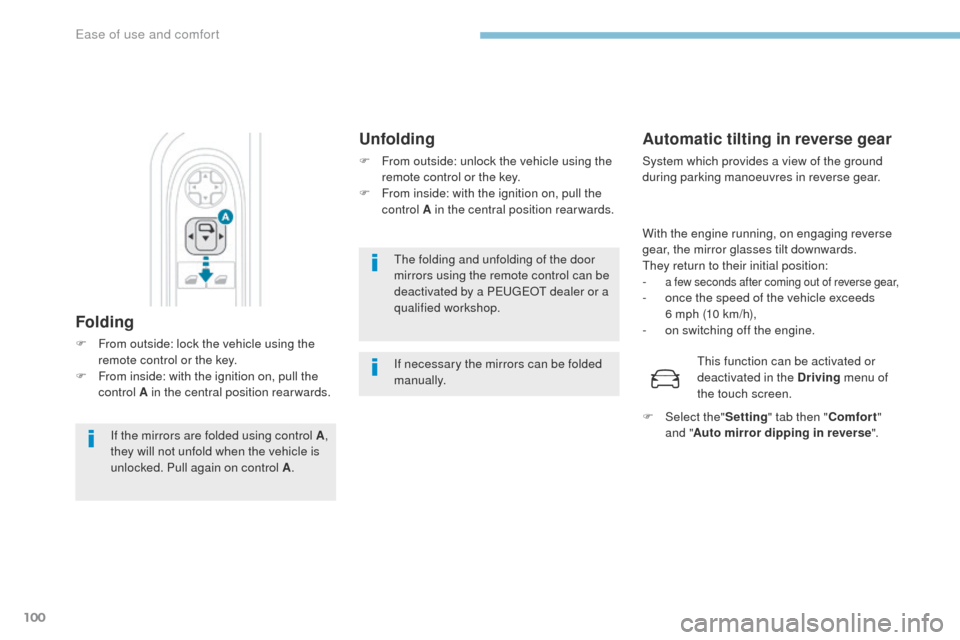

The folding and unfolding of the door
mirrors using the remote control can be
deactivated by a PEUGEOT dealer or a
qualified workshop.
If necessary the mirrors can be folded
manually.
Unfolding
F From outside: unlock the vehicle using the remote control or the key.
F

F
rom inside: with the ignition on, pull the
control A in the central position rearwards.
Automatic tilting in reverse gear
System which provides a view of the ground
during parking manoeuvres in reverse gear.
With the engine running, on engaging reverse
gear, the mirror glasses tilt downwards.
They return to their initial position:
-

a few seconds after coming out of reverse gear,- once the speed of the vehicle exceeds 6 mph (10 km/h),
-

o
n switching off the engine.This function can be activated or
deactivated in the Driving menu of
the touch screen.
If the mirrors are folded using control A ,
they will not unfold when the vehicle is
unlocked. Pull again on control A .
Folding
F From outside: lock the vehicle using the
remote control or the key.
F

F
rom inside: with the ignition on, pull the
control A in the central position rearwards.
F

Sel
ect the"Setting " tab then " Comfort"
and " Auto mirror dipping in reverse ".
Ease of use and comfort

101
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016
Rear view mirror
Equipped with an anti-dazzle system, which darkens the mirror glass and reduces the nuisance to
the driver caused by the sun, headlamps from other vehicles...
Manual model
Adjustment
F A djust the mirror so that the glass is
directed correctly in the "day" position.
Day / night position
F

P
ull the lever to change to the "night" anti-
dazzle position.
F

P
ush the lever to change to the normal
"day" position.
Automatic "electrochrome"
model
This system automatically and progressively
changes between the day and night uses by
means of a sensor, which measures the light
from the rear of the vehicle.
In order to ensure optimum visibility
during your manoeuvres, the mirror
lightens automatically when reverse
gear is engaged.
3
Ease of use and comfort

102
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016

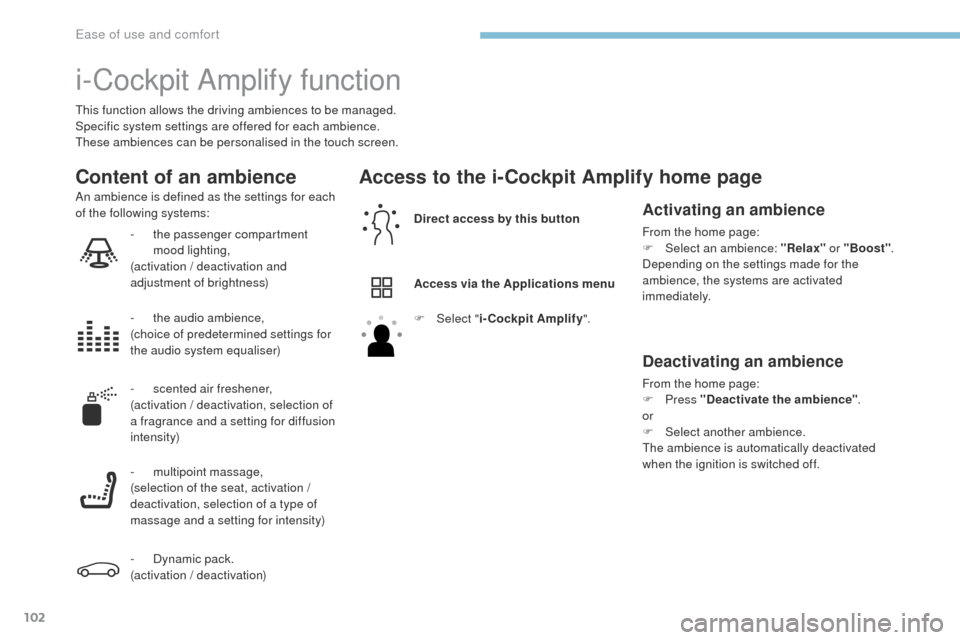

i-Cockpit Amplify function
This function allows the driving ambiences to be managed.
Specific system settings are offered for each ambience.
These ambiences can be personalised in the touch screen.
Content of an ambienceAccess to the i-Cockpit Amplify home page
Direct access by this button
Access via the Applications menu
An ambience is defined as the settings for each
of the following systems:Activating an ambience
From the home page:
F
Sel ect an ambience: "Relax" or "Boost".
Depending on the settings made for the
ambience, the systems are activated
immediately.
Deactivating an ambience
From the home page:
F Press "Deactivate the ambience" .
or
F

Sel
ect another ambience.
The ambience is automatically deactivated
when the ignition is switched off.
F

Sel

ect "
i-Cockpit Amplify ".
-
t

he passenger compartment
mood lighting,
(activation / deactivation and
adjustment of brightness)
-

t

he audio ambience,
(choice of predetermined settings for
the audio system equaliser)
- s
cented air freshener,
(activation / deactivation, selection of
a fragrance and a setting for diffusion
intensity)
-
m

ultipoint massage,
(selection of the seat, activation /
deactivation, selection of a type of
massage and a setting for intensity)
-
D

ynamic pack.
(activation / deactivation)
Ease of use and comfort
