2017 Peugeot 3008 Hybrid 4 Owner's Manual - RHD (UK. Australia)

343
3008-2_en_Chap09_caracteristiques_ed01-2016
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
When towing, the maximum authorised speed is reduced (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.Diesel engine
2.0 litre BlueHDi 150
2.0 litre BlueHDi 150 S&S 2.0 litre BlueHDi 180 S&S
GearboxManual
(6- speed) EAT6 automatic
(6- speed) Manual
(6- speed) EAT6 automatic
(6- speed)
Model code:
MJ... -
-AHRH/S
AHSH/S
AHXH/S AHWW/S
Unladen weight --1 425 1 465
Kerb weight* --1 500 1 540
Gross vehicle weight (GV W) --2 050 2 090
Gross train weight (GTW)
on a 12% gradient -
-3 700 3 730
Braked trailer (within the GTW limit)
on a 10% or 12% gradient -
-1 650 1 640
Unbraked trailer --74 5 750
Recommended nose weight --70 70
* The kerb weight is equal to the unladen weight + driver (75 kg).
Diesel weights and towed loads (in kg)
9
Technical data

344
3008-2_en_Chap09_caracteristiques_ed01-2016

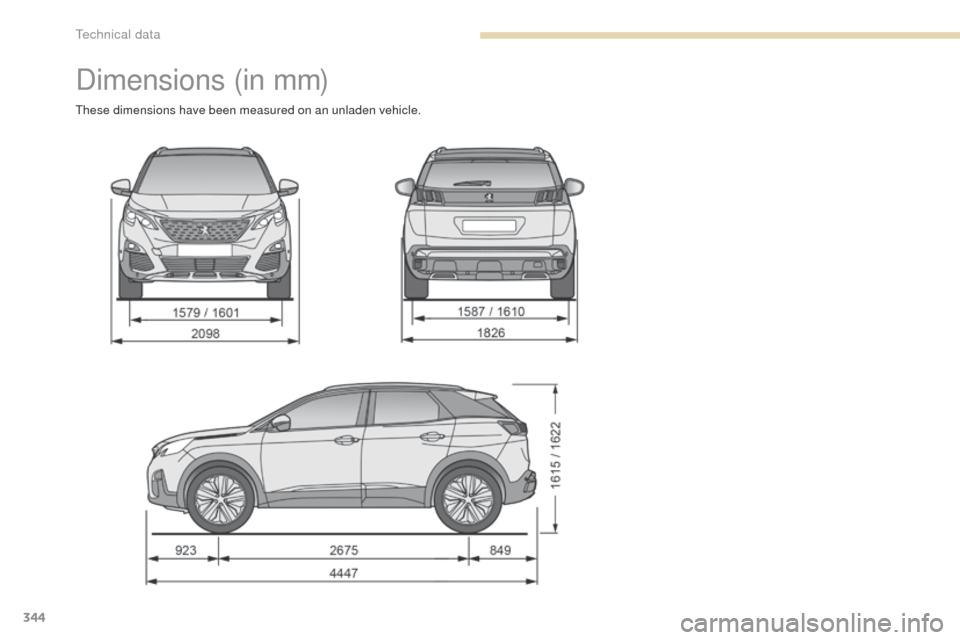

Dimensions (in mm)
These dimensions have been measured on an unladen vehicle.
Technical data

345
3008-2_en_Chap09_caracteristiques_ed01-2016

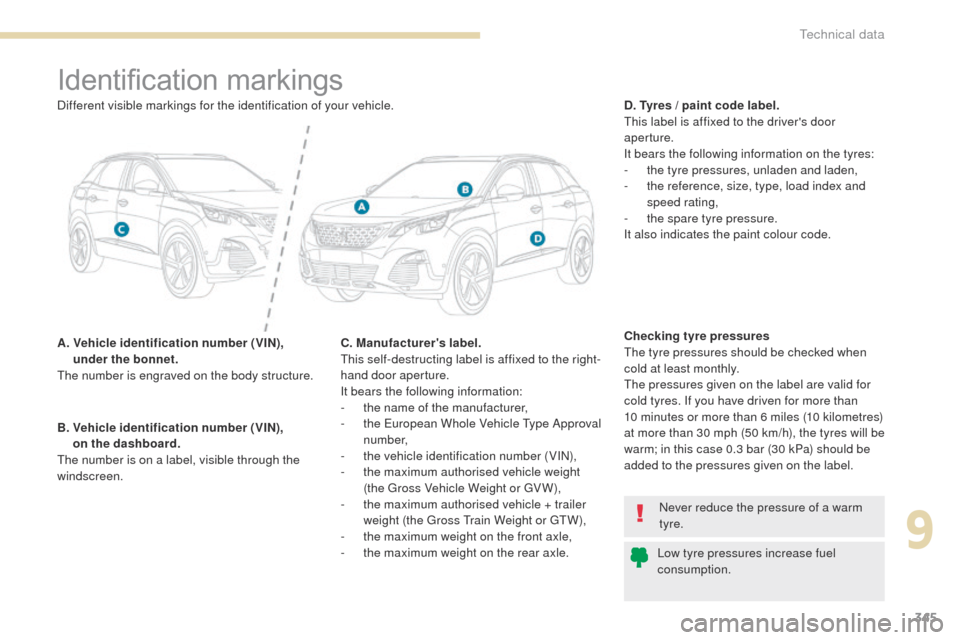

Identification markings
A. Vehicle identification number (VIN), under the bonnet.
The number is engraved on the body structure. D. Tyres / paint code label.
This label is affixed to the driver's door
aperture.
It bears the following information on the tyres:
-

t
he tyre pressures, unladen and laden,
-
t
he reference, size, type, load index and
speed rating,
-
t
he spare tyre pressure.
It also indicates the paint colour code.
B.
V
ehicle identification number (VIN),
on the dashboard.
The number is on a label, visible through the
windscreen.
Never reduce the pressure of a warm
tyre.
Low tyre pressures increase fuel
consumption.
Different visible markings for the identification of your vehicle.
Checking tyre pressures
The tyre pressures should be checked when
cold at least monthly.
The pressures given on the label are valid for
cold tyres. If you have driven for more than
10 minutes or more than 6 miles (10 kilometres)
at more than 30 mph (50 km/h), the tyres will be
warm; in this case 0.3 bar (30 kPa) should be
added to the pressures given on the label.
C. Manufacturer's label.
This self-destructing label is affixed to the right-
hand door aperture.
It bears the following information:
-

t
he name of the manufacturer,
-

t
he European Whole Vehicle Type Approval
number,
-

t
he vehicle identification number (VIN),
-

t
he maximum authorised vehicle weight
(the Gross Vehicle Weight or GV W),
-

t
he maximum authorised vehicle + trailer
weight (the Gross Train Weight or GTW),
-

t
he maximum weight on the front axle,
-

t
he maximum weight on the rear axle.
9
Technical data

346
3008-2_en_Chap11_index-alpha_ed01-2016
180° rear vision .............................................2 67Air intake .......................................................111
Air vents ........................................................104
Alarm


...............................................................70
Amplifier, audio


.............................................12 2
Anti-lock braking system (ABS)

......................................16

0, 161
Anti-theft


.......................................................197
Armrest, front
................................................124
Armrest, rear
................................................. 13

4
Assistance call


..............................................15 8
Assistance, emergency braking
...............

.................................160, 249
Audio system (r adi o)


............................................................45
C
Capacity, fuel tank .............................. ..........281
Cartridge, fragrance .............................125, 126
Central locking


.......................................... 60, 68
Changing a bulb


........................... 323, 328 , 330
Changing a fuse


............................................ 331
Changing a wheel


......................................... 309
Changing a wiper blade


................................15 4
Changing the remote control battery
........................................................... 66
C

harger, induction

......................................... 12 2
Charger, wireless


.......................................... 12 2
CHECK
................

............................................ 40
Checking the engine oil level


.......................................................... 36
Checking the levels


...............................2 97- 3 0 0
Checking tyre pressures (using the kit)
..............................

................312
Checks
...............

..................295, 296 , 301, 302
Checks, routine


..................................... 301, 302
Child lock
...............................

................193, 19 4
Children
...............................

..18 4 , 18 6 -188 , 19 0
Children (safety)
...............................

.....193 , 19 4
Backrest, folding


............................................. 92
Battery


................................... 290, 301 , 332-335
Battery, charging


........................................... 334
Battery, remote control
............................. 63,

66
Blanking screen
(snow shield)
...............................

................ 291
Blind


................................................................ 84
Blind spot monitoring system

......... 20, 260 , 262
Blind spot monitoring system, active ..................................................... 20, 262
Blind spot sensors


.................................. 20, 260
BlueHDi


..................................... 37, 40 , 303 , 308
Bonnet


........................................................... 294
Boot


..................................................... 75, 76 , 79
Brake discs
.................................................... 3

02
Brake lamps


.................................................. 328
B
Brakes ..................................................... 26, 302
Braking assistance system
......................................................... 160
Braking, automatic emergency


.............................. 21, 26 , 247 , 250
Braking, dynamic emergency


......................................... 203, 208
Bulbs (changing)
.......................... 32

3, 328 , 330
Accessories


.......................................... 15 6, 201
Active Safety Brake................... 21, 26 , 247 , 250
AdBlue
® ..................................... 3 0, 37 , 303 , 304
Additive, Diesel ............................................. 301
Adjusting headlamps


.................................... 145
Adjusting head restraints


................................ 93
Adjusting seat


..................................... 90, 91 , 94
Adjusting the air distribution


.........................111
Adjusting the air flow


..................................... 111
Adjusting the date


........................................... 45
Adjusting the height and reach of the steering wheel


.................................... 99
Adjusting the lumbar support


..............90, 91 , 94
Adjusting the seat belt height


.......................168
Adjusting the temperature
............................ 111
A

djusting the time

........................................... 45
Advanced Grip Control


................................. 16 4
Advice on driving


.................................. 195, 19 6
Airbags


.................................................... 28, 172
Airbags, curtain
..................................... 17

5, 176
Airbags, front ......................................... 173, 176
Airbags, lateral


...................................... 175, 176
Air conditioning


................................ 10, 107 , 11 0
Air conditioning, automatic


...........................105
Air conditioning, digital


.......................... 111, 11 6
Air conditioning, dual-zone automatic
............................................. 111,

11 6
Air conditioning, manual


...............105, 10 6 , 11 6
Air conditioning, mono-zone


.................108, 11 6
A
Alphabetical index

347
3008-2_en_Chap11_index-alpha_ed01-2016
Demisting ......................................................11 6
Demisting, front ............................................. 11 6
Demisting, rear
.............................................. 11

8
Demisting, rear screen


.................................118
Dials and gauges


............................................ 12
Dimensions


................................................... 344
Dipstick
................

.................................... 36, 297
Direction indicators


..............14 4, 323 , 324, 328
Display screen, instrument panel
...............................

..........218
Distance alert


............................ 21, 26 , 247 , 248
Door pockets
................................................. 11

9
Doors


............................................................... 74
Doors, rear
.................................................... 19 4
Driver’s attention warning
...............................

........................253
Driving


............................................................. 88
Driving abroad ............................................... 143
Driving economically ....................................... 10
Driving positions (storing)


...............................96
Driving time warning


..................................... 252
Dynamic pack
..............................

.................217
Dynamic stability control (DSC)


................................... 26, 160 , 162, 16 4 Emergency switching off ...............................
2 02
Emergency warning lamps ................... 15
7, 307
Emissions control system, SCR


..............................................................31
Energy economy mode


.................................290
Engine compartment


...........................295, 296
Engine, Diesel
...................... 28

3, 296 , 308 , 340
Engine, petrol


...............................283, 295 , 338
Engines


................................................338, 340
Environment
...............................

...............10, 63
Child seats
.............
17
1
, 17 7 , 178 , 182-18 4 , 192
Child seats, conventional
...................... 183, 18 4
Child seats, i-Size

...............................

.......... 19 0
Child seats, ISOFIX

...................... 18

6 -188 , 19 0
Cigarette lighter ............................................. 120
Closing the boot

............................ 56, 61 , 62 , 75
Closing the doors


.......................... 56, 60-62 , 74
Configuration, vehicle


........................ 45, 48 , 50
Control, emergency boot release


.................................................. 81
Control, emergency door


................................ 64
Control, heated seats


...................................... 97
Controls, steering mounted


.......................... 2 11
Control stalk, lighting
....................... 17,

141 , 14 4
Control stalk, wipers

..................... 152, 153 , 155
Courtesy lamps

............................................. 128
Cover, load space

......................................... 13

6
Cruise control
....................... 2

26 , 229 , 234 , 238
Cruise control by speed limit recognition


.......................................... 229
Cruise control, dynamic with Stop function


.............................. 229, 238
Cup holder

...............................

...................... 11 9
F
Fatigue detection .................................. 252, 253
Filling the fuel tank ................................. 28
1-283
Filter, air
...............

......................................... 301
Filter, Diesel fuel


........................................... 296
Filter, oil


......................................................... 301
Filter, particle


....................................... 300, 301
Filter, passenger compartment
.............................................. 3

01
Fitting a wheel

...............................
................319
Fitting roof bars


............................................. 293
Fittings, boot
................................................. 13

5
Fittings, interior


..................................... 11 9, 120
Fittings, rear
...............................

...................13 3
Flap, fuel filler

...............................
.........281, 282
Flashing indicators


................................ 14 4, 324
Floor, boot, adjustable


..................................13 8
Foglamps


...................................................... 142
Foglamps, front


.............142, 151 , 323 , 324, 326
Foglamps, rear


...................................... 142, 329
Folding the rear seats


...................................13 0
D
Date (setting) ............................... ....................45
Daytime running lamps .................143, 323 , 324
Deactivating the passenger airbag
.......................................................... 17

3
Deadlocking


.............................................. 56, 62
Defrosting


.............................................. 11 6, 118
Defrosting, front
............................................ 11

6E
Eco-driving (advice) ........................................ 10
Economy mode ............................................. 290
Electronic brake force distribution (EBFD)


................................................ 160, 161
Emergency braking assistance (EBA)
.......... 16

0
Emergency call
............................................. 15

8
.
Alphabetical index

348
3008-2_en_Chap11_index-alpha_ed01-2016
Headlamps, automatic dipping ...............17, 149
Headlamps, automatic illumination


.................................. 141, 146 , 147
Headlamps, dipped beam


................17, 323-325
Headlamps, halogen


..................................... 324
Headlamps, main beam
................... 17,

323-325
Head restraints, front
...................................... 93
Head restraints, rear
..................................... 13 0
Heating


.................................... 10, 104 , 10 6 , 108
Hi-Fi system
.................................................. 12 2
Hill Assist Descent Control
.................................................. 20,

166
Hill start assist

............................................... 2

16
Horn ............................................................... 157Inflating tyres
..........................................
10, 345
Inflating tyres and accessories (using the kit)
..........................312
Instrument panel
..................... 12,

13, 40 , 42, 43
Intelligent Traction Control
........................................................ 16

1
ISOFIX


..........................................................187
Isofix mountings
...............................

.............18 6
i- Cockpit amplify function


................................. 98, 102 , 125, 217
Ignition
................

................................... 19 9, 201
Immobiliser, electronic


............................63, 197
Indicator, AdBlue
®
range
....................................................... 30, 37
Indicator, coolant temperature


.................................................. 32
Indicator, engine oil level


.................................................... 36, 40
Indicator lamps, operation


........................................... 17, 19 , 21
Indicator lamps, status


............................................................ 19
Indicators, direction


.............................. 14 4, 324 Jack
........

.......................................................
310
Jump starting
..............................
..................
333
I
J
Key ..................................................... 54, 63 , 64
Key, electronic ..................................... 58, 60-62
Keyless Entry and Starting


......................58, 61- 63 , 197, 200
Key not recognised
....................................... 202
Key with remote control
......................................................... 19

7
Kit, temporary puncture repair


................................................... 309, 312
K
Fuel .......................................................... 10, 283
Fuel consumption ............................................ 10
Fu
el tank ................................................ 281, 282
Fuses


............................................................. 331
Gauge, fuel .................................................... 281
Gearbox, automatic
....... 10,

2 11, 216 , 217, 219 , 302 , 332
Gearbox, manual


....10, 210 , 216 , 217, 219 , 302
Gear lever
..............................

.........................10
Gear lever, automatic gearbox
................

....................................... 2 11
Gear lever, manual gearbox
................

....................................... 210
Gear shift indicator


....................................... 218
Glove box
...................................................... 120
Grab handles
................................................ 11

9
G
Hands-free access ..........................................78
H ands-free tailgate ............................. 76,
78, 79
Hazard warning lamps


..........................157, 307
Headlamp adjustment


...................................145
H
Alphabetical index

349
3008-2_en_Chap11_index-alpha_ed01-2016
Labels, identification .....................................3 45
Lamp, boot .................................................... 140
Lamps, parking
............................................. 14

4
Lamps, rear


................................................... 328
Lamps with "Full LED" technology


.......................................... 151, 323
Lane departure warning active ....................................... 21, 27 , 255 , 262
Lane Departure Warning System (LDWS)


.................................... 27, 254
LEDs - Light-emitting diodes


................................ 143, 323 , 324, 328
Level, brake fluid

........................................... 29

8
Level, Diesel additive


...........................300, 301
Level, engine coolant


..............................32, 299
Level, engine oil

...............................
.......36, 297
Levels and checks
................................ 295-300
Level, screenwash fluid


..................................................... 15 4, 299
Light-emitting diodes - LEDs

....................14

3, 323 , 324, 328
Lighting
................

............................................ 17
Lighting, cornering


........................................ 151
Lighting dimmer
..............................

................42
Lighting, exterior
...............................

............141
Lighting, guide-me home


.............................................. 57, 146 -148
Lighting, interior


.................................... 128, 129
Lighting, mood


........................................ 42, 129
Lighting, welcome


......................................... 147
Loading


........................................... 10, 137 , 293
Load reduction mode


.................................... 290
Locating your vehicle
...................................... 56
Lo

cking

................................................ 55, 61 , 63
Locking from the inside


...................................................... 68
Long objects, transporting
............................ 13

4
Low fuel level
................................................ 281
L
Maintenance, routine ...................................... 10
Map reading lamps ....................................... 128
Markings, identification


.................................345
Massage function
........................................... 98
Massage, multi-point


...................................... 98
Mat


................................................................ 127
Memorising a speed


..................................... 226
Mirror, rear view
............................................ 101
Mirrors, door ............................ 99, 10 0 , 118, 260
Mirror, vanity
..............................

...................120
Misfuel prevention
...............................

..........282
Motorised tailgate


............................... 76, 77 , 79
Mountings, Isofix


........................................... 18 6
M
Net, high load retaining .................................137
Number plate lamps ...................................... 33
0
N
Opening the boot ......................................58, 75
Opening the doors ............................... .....58, 74
Opening the fuel filler flap
.............................281
Opening the windows


..................................... 55
Pads, brake


................................................... 302
Paint


.............................................................. 345
Paint colour code
.......................................... 345
Parcel shelf, rear
........................................... 13

6
Park Assist
............................................ 272, 2 74
Parking brake


................................................ 302
Parking brake, electric


...................25, 203 , 208
Parking sensors, front


...................................264
Parking sensors, rear .................................... 263
Personalisation
...............................

................13
P
E

UGEOT
C
onnect
Assistance
.................................................. 15

8
P
E

UGEOT
C
onnect Packs

...........................15 8
P
E

UGEOT
C
onnect SOS
............................. 15

8
Plates, identification ...................................... 345
Player, USB
................................................... 121
Port, USB

...................................................... 12

1
Pre-heater, Diesel


........................................... 18
Pressures, tyres


.................................... 316, 345
Pre-tensioning seat belts
..............................

..............................171
Priming the fuel system
................................308
Protecting children


........................173, 17 7 , 178 ,
182 , 18 4 , 18 6 -188 , 19 0
Puncture


........................................................ 312
P
Oil change ..................................................... 297
Oil consumption ............................................ 297
OIl, engine


..................................................... 297
On-board tools


...................................... 13 9, 309
Opening the bonnet
...................................... 29

4
O
.
Alphabetical index

350
3008-2_en_Chap11_index-alpha_ed01-2016
Range, AdBlue .................................... 30, 37 , 38
Rear screen, demisting .................................118
Recharging the battery
................................. 33

4
Reduction of electrical load


..........................290
Regeneration of the particle filter
.......................................... 301
Reinitialisation of the under-inflation detection system
.................................224 , 225
Reinitialising the remote control
........................................................... 67
R

eminder, key in ignition ...............................19 9
Remote control
........................ 5

4-56, 60, 62, 63
Removing a wheel
........................................ 319
Removing the mat


......................................... 127
Replacing bulbs


........................... 323, 328 , 330
Replacing fuses
..............................

..............331
Replacing the air filter


...................................301
Replacing the oil filter
................................... 3

01
Replacing the passenger compartment filter


...................................... 301
Reservoir, screenwash
................................. 29

9
Resetting the service indicator


.......................35
Resetting the trip recorder


..............................41
Reset trip

......................................................... 43
R

ev counter

..................................................... 12
Reversing lamps


........................................... 328
Roof bars
....................................................... 2

93
Running out of fuel (Diesel)

..........................3

08 Table of weights

....................................339,

342
Table position


..................................................92
Tables of engines


.................................338, 340
Tailgate
................

............................................75
Ta n k , f u e l


...............................................281, 282
Technical data


...............................338-340, 342
Telephone


.....................................................12 2
Temperature, coolant


......................................32
Third brake lamp


...........................................330
Three flashes (direction indicators)


...................................14 4
T
Starting using another
battery ................................................ 2
02, 333
Stay, bonnet


.................................................. 294
Steering wheel, adjustment
.................................................... 99
S

topping the vehicle

.....................197, 200 , 2 11
Stop & Start


........................ 18, 21 , 44 , 105 , 11 6,
219 , 281 , 294 , 301, 335
Storage


.......................... 11 9, 120 , 124, 13 4 , 13 5
Storage box
................................................... 13

9
Storage compartments
................................. 11

9
Storage wells


........................................ 13 5, 13 9
Storing driving positions


.................................96
Stowing rings


................................................ 13 5
Sunroof, panoramic


........................................ 84
Sun visor


....................................................... 120
Switching off the engine
............................... 19

7
Synchronising the remote control
........................................................... 67
S

aturation of the particle
filter (Diesel)
............................................... 301
Scented air freshener
........................... 12

5 , 126
Screen, monochrome


..................................... 45
Screens, very cold conditions

.................................................. 291
Screenwash, front


......................................... 153
Screenwash, rear


.......................................... 153
SCR (Selective Catalytic Reduction)
............................................ 31,

303
SCR system

............................................ 31, 303
Seat belts
....................................... 1

6 8 -171 , 183
Seat belts, rear


...................................... 169, 170
Seats, electric


................................................. 96
Seats, front
...............................

................. 90, 96
Seats, heated


.................................................. 97
Seats, rear


..................................................... 13 0
Selector, gear


................................................ 2 11
Serial number, vehicle
.................................. 3

45
Service indicator


....................................... 33, 40
Servicing
...............................

.................... 10, 33
Settings, equipment


........................... 45, 48 , 50
Sidelamps


.................... 143, 14 4 , 323 , 324, 328
Side repeater
..............................

.................. 327
Ski flap
..............................

............................ 13 4
Snow chains
......................................... 2

23 , 292
Snow screen


................................................. 291
Socket, 12V


................................................... 314
Socket, 12 V accessory

........ 12

0 , 13 3 , 13 6 , 314
Socket, 230 V

...............................

................. 13 3
Speakers


....................................................... 12 2
Speed limiter


................................ 226, 229 , 231
Speed limit recognition


................................. 227
Speedometer


.................................................. 12
Spotlamps, side


.................................... 148, 327
Stability control (ESC)................... 160, 163 , 16 4
Starting the vehicle


....................... 197, 200 , 2 11
R
Safety, children ..................... 17 3, 17 7 , 178 , 182 ,
18 4 , 18 6 -188 , 19 0
S
Alphabetical index
