2017 Peugeot 3008 Hybrid 4 Owner's Manual - RHD (UK. Australia)

15
3008-2_en_Chap01_instruments-de-bord_ed01-2016

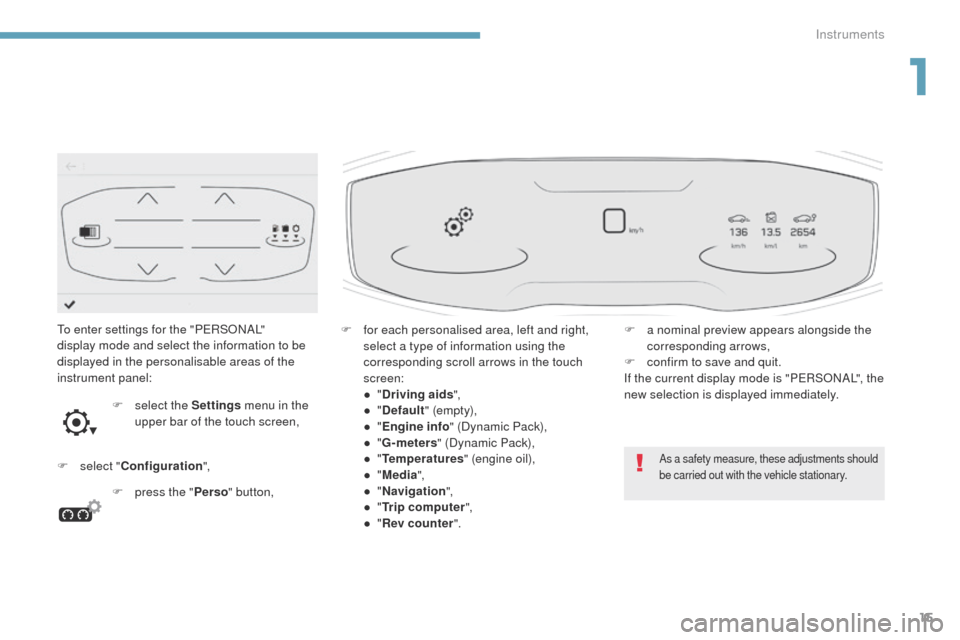

To enter settings for the "PERSONAL"
display mode and select the information to be
displayed in the personalisable areas of the
instrument panel:F

s
elect the Settings menu in the
upper bar of the touch screen,
F

p
ress the "Perso" button, F
f or each personalised area, left and right,
select a type of information using the
corresponding scroll arrows in the touch
screen:
●

"D

riving aids",
●

"D

efault" (empt y),
●

"En

gine info" (Dynamic Pack),
●

"G

-meters" (Dynamic Pack),
●

"T

emperatures" (engine oil),
●

"M

edia",
●

"N

avigation",
●

"T

rip computer",
●

"R

ev counter". F
a n ominal preview appears alongside the
corresponding arrows,
F

c
onfirm to save and quit.
If the current display mode is "PERSONAL", the
new selection is displayed immediately.
F

s
elect " Configuration ",
As a safety measure, these adjustments should
be carried out with the vehicle stationary.
1
Instruments

16
3008-2_en_Chap01_instruments-de-bord_ed01-2016

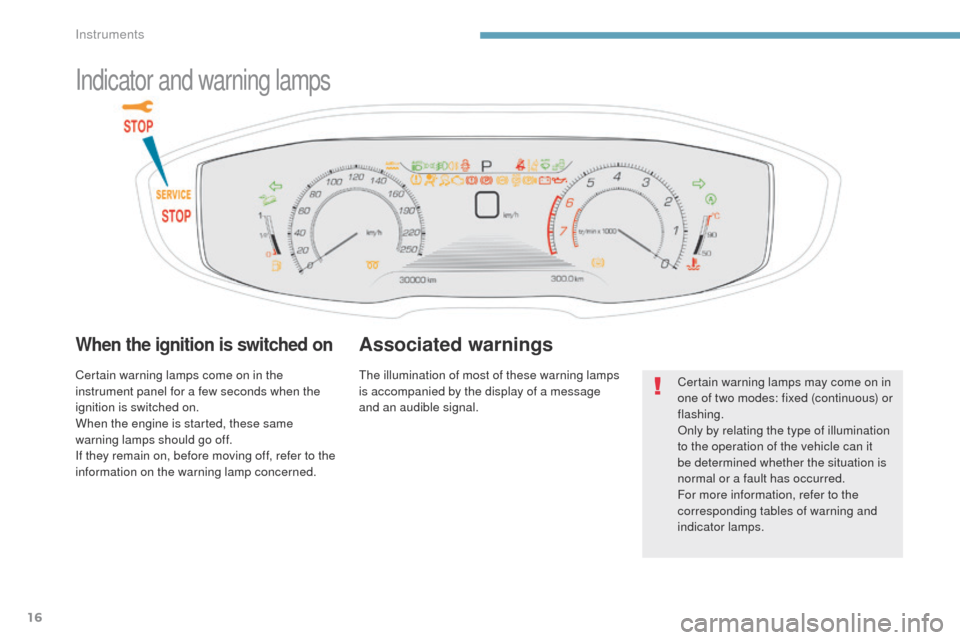

Indicator and warning lamps
When the ignition is switched on
Certain warning lamps come on in the
instrument panel for a few seconds when the
ignition is switched on.
When the engine is started, these same
warning lamps should go off.
If they remain on, before moving off, refer to the
information on the warning lamp concerned.Certain warning lamps may come on in
one of two modes: fixed (continuous) or
flashing.
Only by relating the type of illumination
to the operation of the vehicle can it
be determined whether the situation is
normal or a fault has occurred.
For more information, refer to the
corresponding tables of warning and
indicator lamps.
Associated warnings
The illumination of most of these warning lamps
is accompanied by the display of a message
and an audible signal.
Instruments

17
3008-2_en_Chap01_instruments-de-bord_ed01-2016
Warning / indicator lampStateCause Action / Observations
Left-hand
direction indicatorflashing with buzzer.The lighting stalk has been pushed
down.
Right-hand
direction indicator flashing with buzzer.
The lighting stalk has been pushed
up.
Hazard warning
lamps flashing with audible
signal. The hazard warning lamps switch,
located on the dashboard, has been
operated. The left-hand and right-hand direction indicators and
their associated indicator lamps flash simultaneously.
Sidelamps fixed. The lighting stalk is in the
"Sidelamps" position.
Dipped beam
headlamps fixed.
The lighting stalk is in the "Dipped
beam headlamps" position.
Main beam
headlamps fixed.
The lighting stalk has been pulled
towards you. Pull the stalk to return to dipped beam headlamps.
+
or Automatic
headlamp
dipping
fixed.
The function has been activated
via the Driving menu of the touch
screen.
The lighting stalk is in the "AUTO"
position. The camera, located at the top of the windscreen,
manages the illumination of main or dipped beam,
depending on the exterior lighting and the driving
conditions.
For more information on Automatic headlamp
dipping
, refer to the corresponding section.
Operation indicator lamps
For more information on the Lighting control stalk , refer to the corresponding section.
If one or more of the following indicator lamps come on, this confirms that the corresponding system has been switched on.
1
Instruments

18
3008-2_en_Chap01_instruments-de-bord_ed01-2016
Warning / indicator lampStateCause Action / Observations
Diesel engine
pre-heating fixed.
When the ignition is switched on
with a key in the ignition switch or
a starting instruction made using
the
"START/STOP " button, the
engine temperature makes engine
pre-heating necessary. The period of illumination of the indicator lamp is
determined by the ambient conditions (up to about
thirty seconds in severe winter conditions).
With an ignition switch and key, wait until the indicator
lamp goes off before starting.
With Keyless Entry and Starting, once it goes off,
starting is immediate, on condition that the brake
pedal remains pressed with an automatic gearbox, or
the clutch pedal is pressed fully down with a manual
gearbox.
If the engine does not start, switch the ignition off and
then on, wait until the indicator lamp goes off again,
then start the engine.
Stop & Star t fixed. When the vehicle stops (red lights, traffic
jams,
...) the Stop & Start system has put
the engine into STOP mode. The warning lamp goes off and the engine restarts
automatically in START mode, as soon as you want
to move off.
flashes for a few
seconds, then goes
of f. STOP mode is temporarily
unavailable,
or
START mode is invoked
automatically. For more information on Stop & Star t
, refer to the
corresponding section.
Rear foglamps
fixed. The rear foglamps have been
switched on using the ring on the
lighting control stalk. Turn the ring on the lighting control stalk rear wards to
switch off the rear foglamps.
Front foglamps fixed. The front foglamps are switched on
using the ring on the lighting control
stalk. Turn the ring on the lighting control stalk rear ward
twice to switch off the front foglamps.
Instruments

19
3008-2_en_Chap01_instruments-de-bord_ed01-2016
Warning / indicator lampStateCause Action / Observations
Passenger's
airbag system fixed in the seat belt
and passenger's front
airbag warning lamps
display. The control switch, located in the
glove box, has been placed in the
"ON"
position.
The passenger's front airbag is
activated. In this case, do not install a rear ward facing child seat
on this seat.
Move the control switch to the "OFF"
position to
deactivate the passenger's front airbag. In this case,
you can install a rear ward facing child seat, unless
there is a fault with the airbags (airbag warning
lamp


on).
Deactivation of
the automatic
functions of the
electric parking
brake
fixed.
The "automatic application" (on
switching off the engine) and
"automatic release" functions are
deactivated or faulty. Activate the function again or contact a PEUGEOT
dealer or a qualified workshop in the event of a fault.
For more information on the Electric parking brake
,
refer to the corresponding section.
Electric parking
brake
fixed.
The electric parking brake is applied. Release the parking brake to switch off the warning
lamp: with your foot on the brake pedal, briefly push
the parking brake control lever.
Observe the safety recommendations.
For more information on the Electric parking brake ,
refer to the corresponding section.
1
Instruments

20
3008-2_en_Chap01_instruments-de-bord_ed01-2016
Warning / indicator lampStateCause Action / Observations
Hill Assist
Descent Control fixed.
The system has been activated, but
is paused because the speed is too
high. Between 18 and 30 mph (30 and 50 km/h), the system
is paused.
Reduce the speed of the vehicle.
fixed. The system has been activated, but
the conditions for regulation are not
met (gradient, gear engaged).
flashing. The system is regulating the speed of
the vehicle. The vehicle is being braked; the brake lamps come on
during the descent.
For more information on the Hill Assist Descent
Control
system, refer to the corresponding section.
Blind Spot
Monitoring
System fixed.
The system has been activated. For more information on the Blind Spot Monitoring
System, refer to the corresponding section.
Automatic
wiping fixed.
The wiper control stalk has been
pushed down.
Automatic front wiping is activated. To deactivate automatic wiping, push the wiper control
stalk down again or put the wiper control stalk in
another position.
Instruments

21
3008-2_en_Chap01_instruments-de-bord_ed01-2016
Warning / indicator lampStateCause Action / Observations
Stop & Star t fixed, accompanied
by the display of a
message. The Stop & Start system is
deactivated.
The engine will not cut out at the next stop in the
traffic.
Reactivate the system by pressing the button again.
For more information on Stop & Star t
, refer to the
corresponding section.
Passenger's
airbag system
fixed in the instrument
panel and/or seat belt
and front passenger's
airbag warning lamps
display. The control switch, located in the
glove box, is set to the OFF
position.
The passenger's front airbag is
deactivated. You can install a rear ward facing child seat, unless
there is a fault with the airbags (airbag warning lamp
o n).
Set the control to the "
ON" position to activate the
passenger's front airbag. In this case, do not install a
rearward facing child seat on this seat.
Deactivation indicator lamps
If one of the following indicator lamps comes on, this confirms that the corresponding system has been switched off intentionally.
This may be accompanied by the display of a message and an audible signal.
Distance aler t
/
Active Safety
Brake fixed, accompanied by
a message.
The system has been deactivated,
via the vehicle configuration menu in
the screen. For more information on the Distance alert
/ Active
Safety Brake system, refer to the corresponding
section.
Assisted Lane
Departure
Warning System fixed, accompanied
by the display of a
message. The system has been deactivated. There will be no correction of the vehicle's trajectory
should there be a change of direction.
For more information on the Assisted Lane
Departure Warning System, refer to the
corresponding section.
1
Instruments

22
3008-2_en_Chap01_instruments-de-bord_ed01-2016
Warning / indicator lampStateCause Action / Observations
Warning lamps
STOPfixed, associated with
another warning lamp,
accompanied by the
display of a message
and an audible signal. Illumination of this warning lamp
is related to a serious fault with
the engine, braking system, power
steering, automatic gearbox or a
major electrical fault. You must stop as soon as it is safe to do so.
Park, switch off the ignition and call a PEUGEOT
dealer or a qualified workshop.
When the engine is running or the vehicle is being driven, illumination of one or more of the following warning lamps indicates a fault which requires
action on the part of the driver.
Any fault resulting in the illumination of a warning lamp must be investigated further using the associated alert message.
If you encounter any problems, contact a PEUGEOT dealer or a qualified workshop.
Instruments
