Page 47 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @

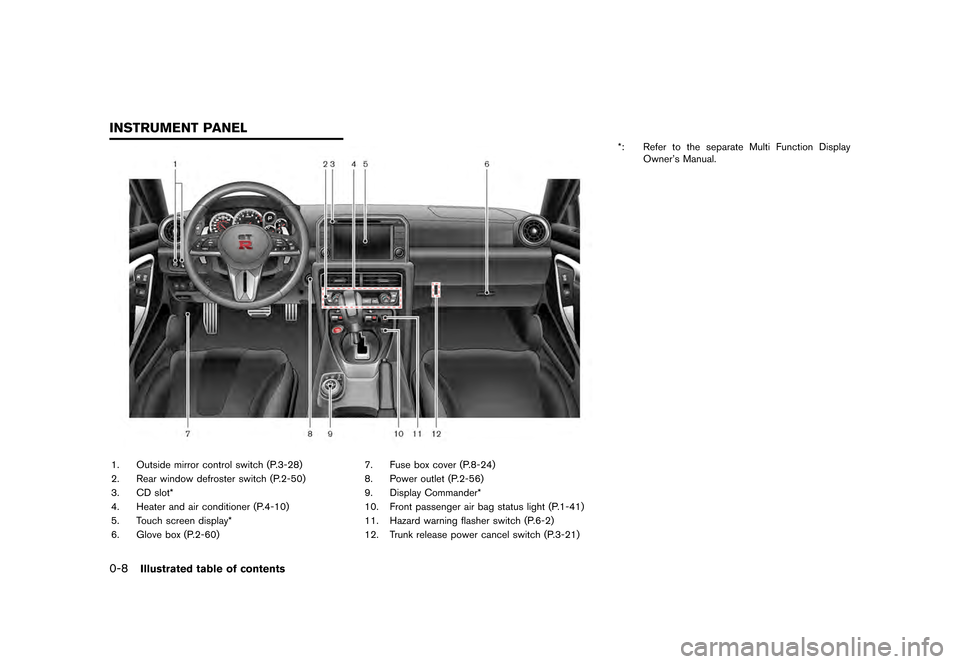

0-8Illustrated table of contents
GUID-50D5BA99-EF96-4950-99FC-63C78CF5F854
JVC0925X
1. Outside mirror control switch (P.3-28)
2. Rear window defroster switch (P.2-50)
3. CD slot*
4. Heater and air conditioner (P.4-10)
5. Touch screen display*
6. Glove box (P.2-60)7. Fuse box cover (P.8-24)
8. Power outlet (P.2-56)
9. Display Commander*
10. Front passenger air bag status light (P.1-41)
11. Hazard warning flasher switch (P.6-2)
12. Trunk release power cancel switch (P.3-21)*: Refer to the separate Multi Function Display
Owner's Manual.
INSTRUMENT PANEL
Page 107 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
2-4Instruments and controls
GUID-58BCEE9C-BB3E-469E-B94B-C18DC03CDF5C
JVC0925X
1. Outside mirror control switch (P.3-28)
2. Rear window defroster switch (P.2-50)
3. CD slot*
4. Heater and air conditioner (P.4-10)
5. Touch screen display*
6. Glove box (P.2-60)7. Fuse box cover (P.8-24)
8. Power outlet (P.2-56)
9. Display Commander*
10. Front passenger air bag status light (P.1-41)
11. Hazard warning flasher switch (P.6-2)
12. Trunk release power cancel switch (P.3-21)*: Refer to the separate Multi Function Display
Owner's Manual.
INSTRUMENT PANEL
Page 160 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @

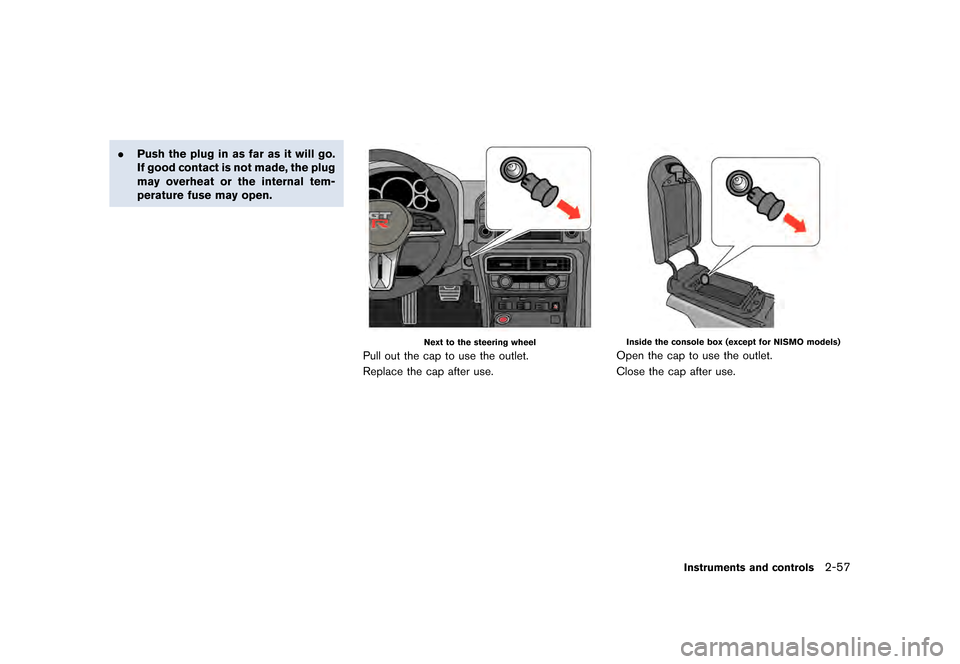

.Push the plug in as far as it will go.
If good contact is not made, the plug
may overheat or the internal tem-
perature fuse may open.
JVI1461X
Next to the steering wheel
Pull out the cap to use the outlet.
Replace the cap after use.
JVI0157X
Inside the console box (except for NISMO models)
Open the cap to use the outlet.
Close the cap after use.
Instruments and controls2-57
Page 325 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @

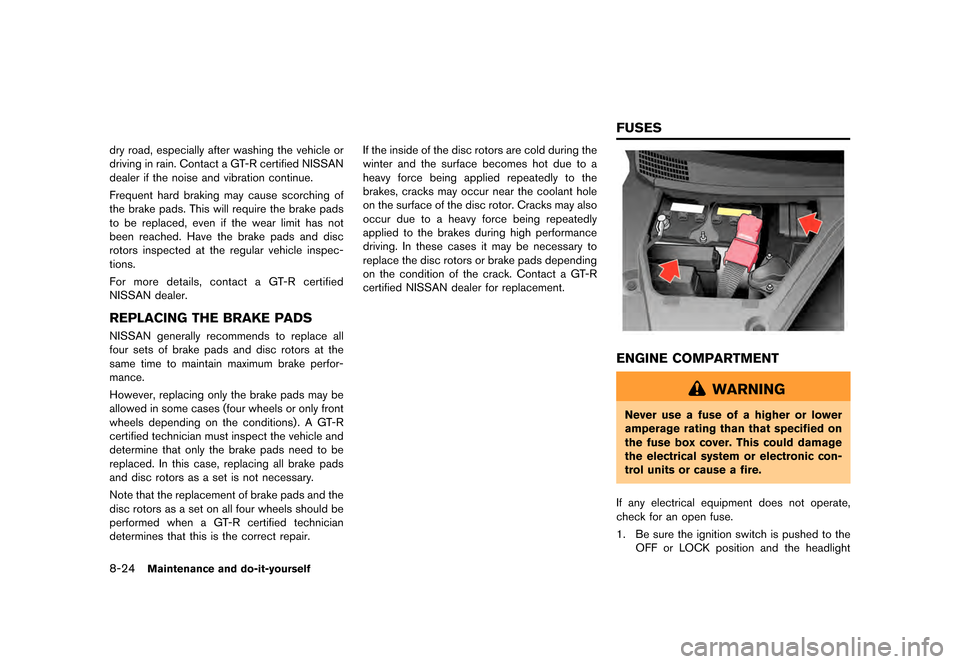

8-24Maintenance and do-it-yourself
dry road, especially after washing the vehicle or
driving in rain. Contact a GT-R certified NISSAN
dealer if the noise and vibration continue.
Frequent hard braking may cause scorching of
the brake pads. This will require the brake pads
to be replaced, even if the wear limit has not
been reached. Have the brake pads and disc
rotors inspected at the regular vehicle inspec-
tions.
For more details, contact a GT-R certified
NISSAN dealer.
REPLACING THE BRAKE PADSGUID-799EFC95-74BE-45AD-A4A4-EBD670C885BCNISSAN generally recommends to replace all
four sets of brake pads and disc rotors at the
same time to maintain maximum brake perfor-
mance.
However, replacing only the brake pads may be
allowed in some cases (four wheels or only front
wheels depending on the conditions) . A GT-R
certified technician must inspect the vehicle and
determine that only the brake pads need to be
replaced. In this case, replacing all brake pads
and disc rotors as a set is not necessary.
Note that the replacement of brake pads and the
disc rotors as a set on all four wheels should be
performed when a GT-R certified technician
determines that this is the correct repair.If the inside of the disc rotors are cold during the
winter and the surface becomes hot due to a
heavy force being applied repeatedly to the
brakes, cracks may occur near the coolant hole
on the surface of the disc rotor. Cracks may also
occur due to a heavy force being repeatedly
applied to the brakes during high performance
driving. In these cases it may be necessary to
replace the disc rotors or brake pads depending
on the condition of the crack. Contact a GT-R
certified NISSAN dealer for replacement.
GUID-FC3BF33C-AF4F-426F-86B5-716FFFD54679
GIE0007
ENGINE COMPARTMENTGUID-7D201790-E48B-49CA-AA55-D88112FA94E8
WARNING
Never use a fuse of a higher or lower
amperage rating than that specified on
the fuse box cover. This could damage
the electrical system or electronic con-
trol units or cause a fire.
If any electrical equipment does not operate,
check for an open fuse.
1. Be sure the ignition switch is pushed to the OFF or LOCK position and the headlight
FUSES
Page 326 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @

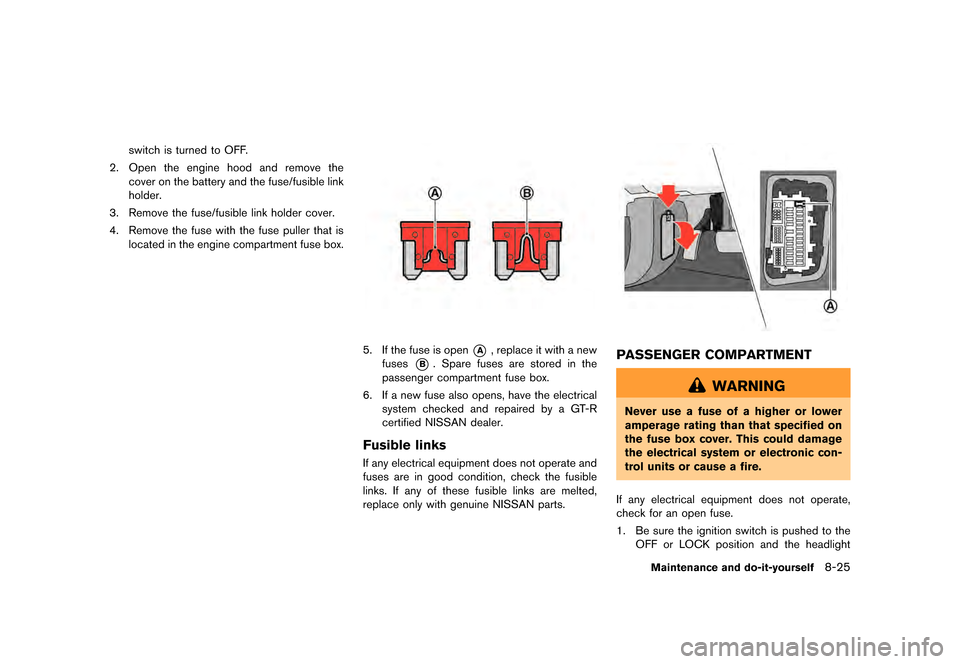

switch is turned to OFF.
2. Open the engine hood and remove the cover on the battery and the fuse/fusible link
holder.
3. Remove the fuse/fusible link holder cover.
4. Remove the fuse with the fuse puller that is located in the engine compartment fuse box.
GIE0009
5. If the fuse is open*A, replace it with a new
fuses
*B. Spare fuses are stored in the
passenger compartment fuse box.
6. If a new fuse also opens, have the electrical system checked and repaired by a GT-R
certified NISSAN dealer.
Fusible linksGUID-AA24DFC0-05A0-4485-9BB5-4E98A92E70C1If any electrical equipment does not operate and
fuses are in good condition, check the fusible
links. If any of these fusible links are melted,
replace only with genuine NISSAN parts.
GIE0006
PASSENGER COMPARTMENTGUID-D6D1E137-0DF3-4AF7-AF3C-92458F4D6329
WARNING
Never use a fuse of a higher or lower
amperage rating than that specified on
the fuse box cover. This could damage
the electrical system or electronic con-
trol units or cause a fire.
If any electrical equipment does not operate,
check for an open fuse.
1. Be sure the ignition switch is pushed to the OFF or LOCK position and the headlight
Maintenance and do-it-yourself8-25
Page 327 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
8-26Maintenance and do-it-yourself

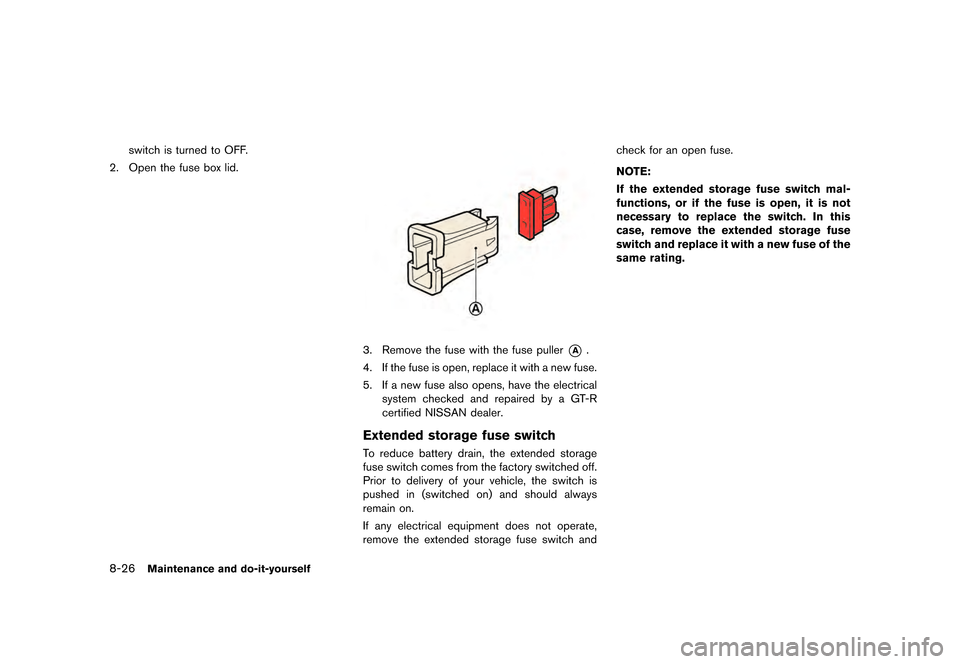

switch is turned to OFF.
2. Open the fuse box lid.
GIE0008
3. Remove the fuse with the fuse puller*A.
4. If the fuse is open, replace it with a new fuse.
5. If a new fuse also opens, have the electrical system checked and repaired by a GT-R
certified NISSAN dealer.
Extended storage fuse switchGUID-1D65BA69-0444-4AA6-9B99-930E8BE8E357To reduce battery drain, the extended storage
fuse switch comes from the factory switched off.
Prior to delivery of your vehicle, the switch is
pushed in (switched on) and should always
remain on.
If any electrical equipment does not operate,
remove the extended storage fuse switch and check for an open fuse.
NOTE:
If the extended storage fuse switch mal-
functions, or if the fuse is open, it is not
necessary to replace the switch. In this
case, remove the extended storage fuse
switch and replace it with a new fuse of the
same rating.
Page 328 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
JVM0031X

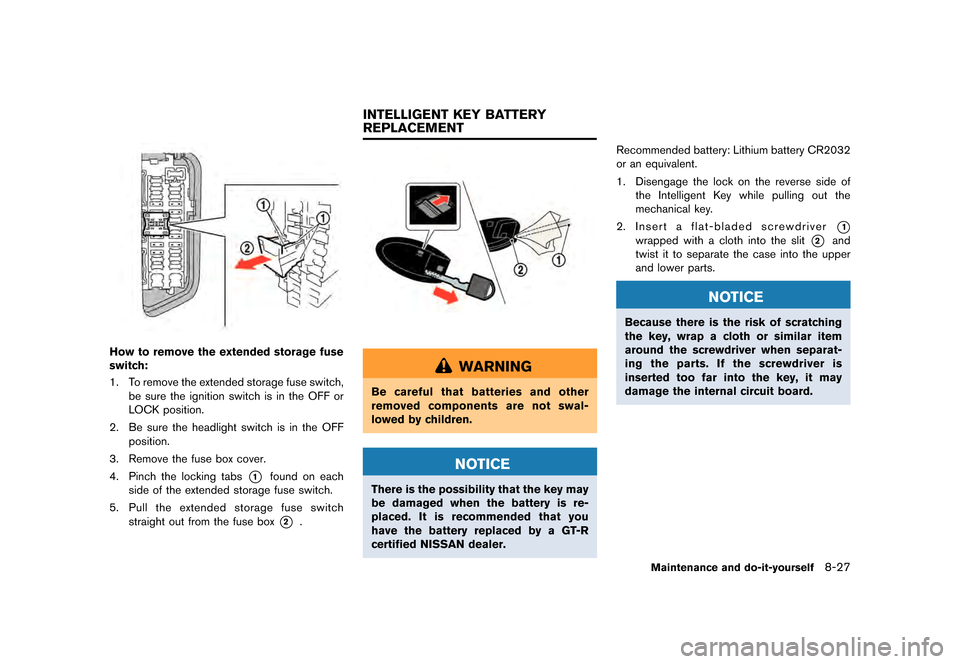

How to remove the extended storage fuse
switch:
GUID-E22DEED8-E349-45C2-B1F1-0C9BCF3B8FB91. To remove the extended storage fuse switch,be sure the ignition switch is in the OFF or
LOCK position.
2. Be sure the headlight switch is in the OFF position.
3. Remove the fuse box cover.
4. Pinch the locking tabs
*1found on each
side of the extended storage fuse switch.
5. Pull the extended storage fuse switch
straight out from the fuse box
*2.
GUID-15820DA1-6097-4CC9-B8B9-36043617531D
GPC0006
WARNING
Be careful that batteries and other
removed components are not swal-
lowed by children.
NOTICE
There is the possibility that the key may
be damaged when the battery is re-
placed. It is recommended that you
have the battery replaced by a GT-R
certified NISSAN dealer. Recommended battery: Lithium battery CR2032
or an equivalent.
1. Disengage the lock on the reverse side of
the Intelligent Key while pulling out the
mechanical key.
2. Insert a flat-bladed screwdriver
*1
wrapped with a cloth into the slit*2and
twist it to separate the case into the upper
and lower parts.
NOTICE
Because there is the risk of scratching
the key, wrap a cloth or similar item
around the screwdriver when separat-
ing the parts. If the screwdriver is
inserted too far into the key, it may
damage the internal circuit board.
Maintenance and do-it-yourself8-27
INTELLIGENT KEY BATTERY
REPLACEMENT
