2-44Instruments and controls
JVI0073X
ENGINE START OPERATION INDI-
CATOR
GUID-68E40FAE-E058-4710-9C7F-60EF16AAF526This indicator appears when the shift lever is in
the
&Pposition.
This indicator means that the engine will start by
pushing the ignition switch with the brake pedal
depressed.
JVI0074X
SHIFT ªPº WARNINGGUID-1602D9FC-05F9-4F65-BB75-5795D1C85A36This warning appears and an inside warning
chime sounds when the ignition switch is
pushed to stop the engine with the shift lever
in any position except the
&Pposition.
If this warning appears, move the shift lever to
the
&Pposition. This warning will also turn off
when pushing the ignition switch to the ON
position.
JVI0075X
ªPUSHº WARNINGGUID-203EDB28-19A1-411B-8EFE-2BEA7CCE2478This warning appears when the shift lever is
moved to the
&Pposition with the ignition switch
in the ACC position after the SHIFT
&Pwarning
appears.
If this warning appears, push the ignition switch
to the OFF position.


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
JVI0094X
How to arm the vehicle security
system
GUID-7F596F37-3AA2-4D57-824B-F60E4815C9471. Close all windows.The system can be armed even if the
windows are open.
2. Push the ignition switch to the OFF or LOCK position.
3. Remove the Intelligent Key from the vehicle.
4. Close all doors, hood and trunk. Lock all doors. The doors can be locked with the
Intelligent Key, door handle request switch
or power door lock switch. The power door
lock switch should be operated while the
door is open, and then closed. 5.
Confirm that the security indicator light
comes on. The security indicator light stays
on for about 30 seconds. The vehicle
security system is now pre-armed. After
about 30 seconds the vehicle security
system automatically shifts into the armed
phase. The security light begins to flash
once every approximately 3 seconds. If,
during this 30-second pre-arm time period,
the door is unlocked, or the ignition switch is
pushed to ACC or ON, the system will not
arm.
Even when the driver and/or passengers
are in the vehicle, the system will activate
with all doors, hood, and trunk lid locked
with the ignition switch in the LOCK
position. When pushing the ignition switch
to the ACC or ON position, the system will
be released.
Vehicle security system activationGUID-A43E97AF-39F9-49C9-98AB-1877FD0EE01DThe vehicle security system will give the follow-
ing alarm:
. The headlights blink and the horn sounds
intermittently.
. The alarm automatically turns off after
approximately 1 minute. However, the alarm
reactivates if the vehicle is tampered with
again. The alarm is activated by:
.
Opening the door or the trunk lid without
using the button on the Intelligent Key, the
door handle request switch or the mechan-
ical key. (Even if the door is opened by
releasing the door inside lock knob, the
alarm will activate.)
. Opening the hood.
How to stop an activated alarmGUID-5074B89D-A82F-4CD3-9682-B35D540856A8The alarm will stop by:
.Unlocking a door by pushing the UNLOCK
button on the Intelligent Key.
. Unlocking a door by pushing the door
handle request switch.
. Pushing the ignition switch to the ACC or
ON position.
If the system does not operate as de-
scribed above, it is recommended you have
it checked by a GT-R certified NISSAN
dealer.
NISSAN VEHICLE IMMOBILIZER
SYSTEM
GUID-F3FE1AB9-4898-48E8-957A-B09774184B70The NISSAN Vehicle Immobilizer System will not
allow the engine to start without the use of the
registered Intelligent Key. Never leave these
keys in the vehicle.
Instruments and controls2-47


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
2-48Instruments and controls
FCC Notice:
For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference that
may cause undesired operation.
Note: Changes or modifications not ex-
pressly approved by the party responsible
for compliance could void the user's
authority to operate the equipment.
For Canada:
This device complies with Industry Canada
licence-exempt RSS standard(s) . Opera-
tion is subject to the following two condi-
tions: (1) this device may not cause
interference, and (2) this device must
accept any interference, including interfer-
ence that may cause undesired operation
of the device.
JVI0095X
Security indicator lightGUID-F11C75EF-0D68-4C3F-A312-C0031BE37433The security indicator light is located on the
instrument panel. It indicates the status of the
NISSAN Vehicle Immobilizer System.
The light blinks whenever the ignition switch is in
the ACC, OFF or LOCK position. This function
indicates the security systems equipped on the
vehicle are operational.
If the NISSAN Vehicle Immobilizer System is
malfunctioning, this light will remain on while the
ignition switch is in the ON position.
If the light still remains on and/or the
engine will not start, it is recommended
you see a GT-R certified NISSAN dealer forNISSAN Vehicle Immobilizer System ser-
vice as soon as possible. Please bring all
Intelligent Keys that you have when visit-
ing a GT-R certified NISSAN dealer for
service.


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
2-50Instruments and controls
NOTE:
.In the MIST position, the wipers oper-
ate while the lever is lifted up. When
the lever is released, it automatically
returns to the OFF position and the
wipers stop.
. When the speed sensing wiper interval
function is turned on, the intermittent
operation speed varies in accordance
with the vehicle speed. (For example,
when the vehicle speed is high, the
intermittent operation speed will be
faster.) To turn this function on and
off, see the separate Multi Function
Display Owner's Manual.
. If the wiper operation is interrupted by
snow or ice, the wiper may stop moving
to protect its motor. If this occurs, turn
the wiper switch to the OFF position
and remove the snow or ice on and
around the wiper arms. In approxi-
mately 1 minute, turn the switch on
again to operate the wiper.
JVI0907X
USING THE WASHERGUID-74E5C3EC-28DC-4109-A2BD-256046160FCBPull the lever toward you to operate the washer.
Then the wiper will also operate several times.
NOTE:
When the level of washer fluid is low, a
warning display appears on the vehicle
information display. (
ªLow washer
fluid warningº page 2-42)
GUID-758F14E8-AEB1-4436-AC9B-B9A128AA7C5B
JVI1459X
To defog/defrost the rear window, start the
engine and push the switch on. The indicator
light on the switch will come on. Push the switch
again to turn the defroster off.
It will automatically turn off in approximately 15
minutes.
NOTE:
When the rear window defroster switch is
pressed, the heated outside mirrors also
operate at the same time. (
ªOutside
mirrorsº page 3-28)
REAR WINDOW DEFROSTER
SWITCH


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @

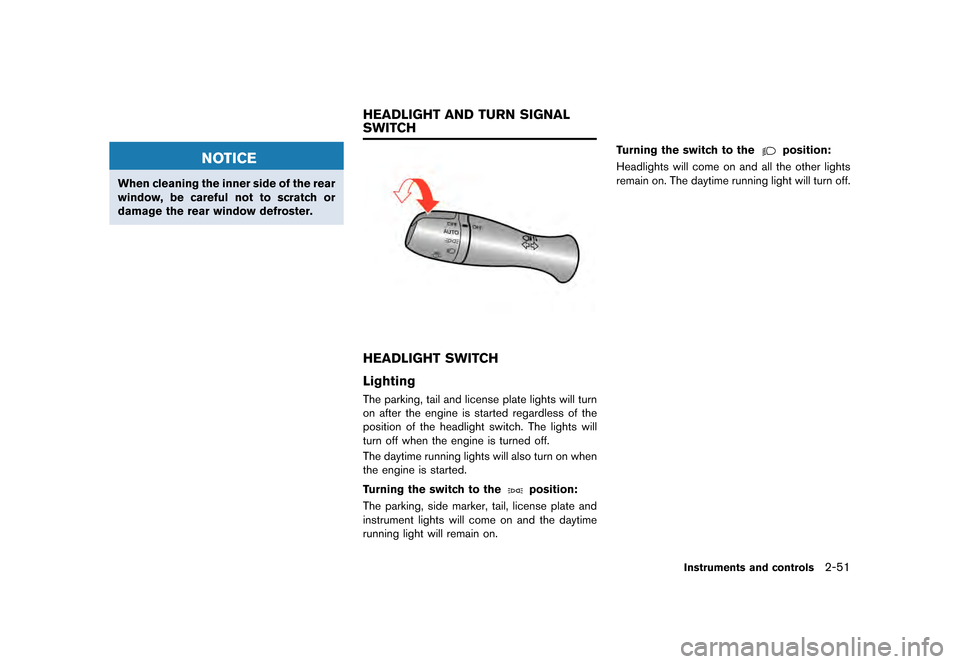

NOTICE
When cleaning the inner side of the rear
window, be careful not to scratch or
damage the rear window defroster.
GUID-3C94CAA2-3FE9-46C4-866E-6125BB53BBBA
JVI0255X
HEADLIGHT SWITCHGUID-8D8636DE-42C3-459B-B394-77C79B8FEB8D
LightingGUID-24210D3D-5055-4E6E-8EDB-FAF1756BEF99The parking, tail and license plate lights will turn
on after the engine is started regardless of the
position of the headlight switch. The lights will
turn off when the engine is turned off.
The daytime running lights will also turn on when
the engine is started.
Turning the switch to the
position:GUID-E22DEED8-E349-45C2-B1F1-0C9BCF3B8FB9The parking, side marker, tail, license plate and
instrument lights will come on and the daytime
running light will remain on.Turning the switch to the
position:GUID-E22DEED8-E349-45C2-B1F1-0C9BCF3B8FB9Headlights will come on and all the other lights
remain on. The daytime running light will turn off.
Instruments and controls2-51
HEADLIGHT AND TURN SIGNAL
SWITCH


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @

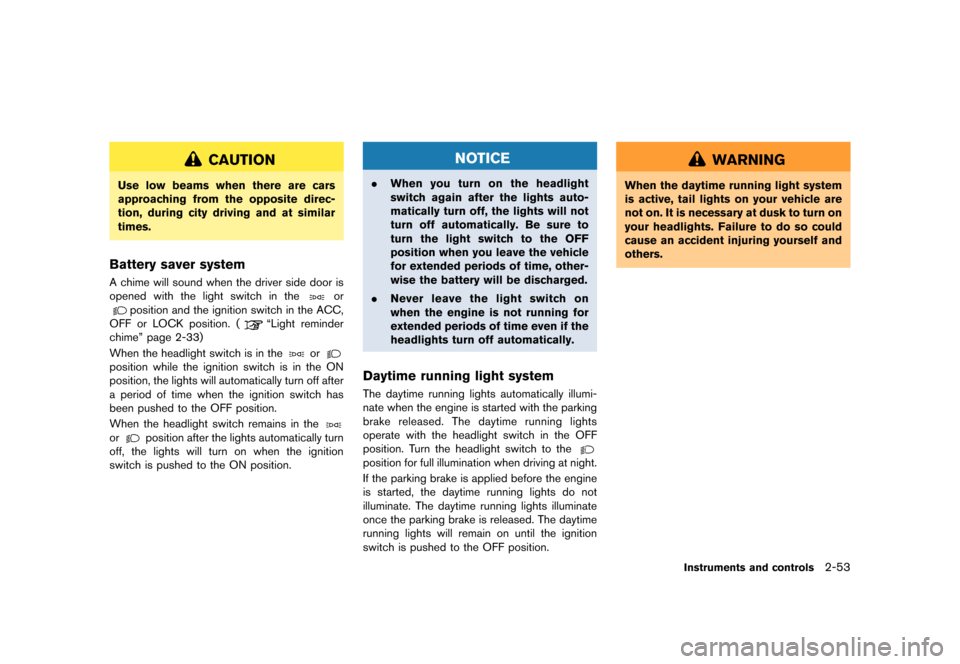

CAUTION
Use low beams when there are cars
approaching from the opposite direc-
tion, during city driving and at similar
times.
Battery saver systemGUID-14D5BA42-BB8C-4BD7-9D16-9AC9745F8B72A chime will sound when the driver side door is
opened with the light switch in the
or
position and the ignition switch in the ACC,
OFF or LOCK position. (
ªLight reminder
chimeº page 2-33)
When the headlight switch is in the
or
position while the ignition switch is in the ON
position, the lights will automatically turn off after
a period of time when the ignition switch has
been pushed to the OFF position.
When the headlight switch remains in the
orposition after the lights automatically turn
off, the lights will turn on when the ignition
switch is pushed to the ON position.
NOTICE
. When you turn on the headlight
switch again after the lights auto-
matically turn off, the lights will not
turn off automatically. Be sure to
turn the light switch to the OFF
position when you leave the vehicle
for extended periods of time, other-
wise the battery will be discharged.
. Never leave the light switch on
when the engine is not running for
extended periods of time even if the
headlights turn off automatically.
Daytime running light systemGUID-C6B953C9-5CB8-4E31-BB3A-F4BD70D2E336The daytime running lights automatically illumi-
nate when the engine is started with the parking
brake released. The daytime running lights
operate with the headlight switch in the OFF
position. Turn the headlight switch to the
position for full illumination when driving at night.
If the parking brake is applied before the engine
is started, the daytime running lights do not
illuminate. The daytime running lights illuminate
once the parking brake is released. The daytime
running lights will remain on until the ignition
switch is pushed to the OFF position.
WARNING
When the daytime running light system
is active, tail lights on your vehicle are
not on. It is necessary at dusk to turn on
your headlights. Failure to do so could
cause an accident injuring yourself and
others.
Instruments and controls2-53


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
GUID-AC5BDA42-EA40-4CB5-9C90-5765A6DBEB0E
JVI0104X
The seat heaters can be used when the ignition
switch is in the ON position. The front seats are
warmed by the built-in heaters.
TURNING ON THE HEATERSGUID-07C6AE9B-84FE-47C0-A95C-CC84566145B5Push the "HI" or "LO" side of the switch to
activate the heaters. The switch indicator
illuminates.
Switch positionFunction
HI To heat the seat quickly
LO To keep the seat warm
TURNING OFF THE HEATERSGUID-0AFB3C41-E37B-4A5D-8857-74E127323927Move the switch to the level position. The switch
indicator turns off.
WARNING
Do not use or allow occupants to use
the seat heater if you or the occupants
cannot monitor elevated seat tempera-
tures or have an inability to feel pain in
those body parts in contact with the
seat. Use of the seat heater by such
people could result in serious injury.
CAUTION
. Do not put anything on the seat
which insulates heat, such as a
blanket, cushion, seat cover, etc.
Otherwise, the seat may become
overheated.
. Do not place anything hard or heavy
on the seat or pierce it with a pin or
similar object. This may result in
damage to the heater.
. Any liquid spilled on the heated seat
should be removed immediately with a dry cloth.
. If any malfunctions are found or the
heated seat does not operate, turn
the switch off and it is recom-
mended you have the system
checked by a GT-R certified NISSAN
dealer.
NOTICE
.The battery could run down if the
seat heater is operated while the
engine is not running.
. Do not use the seat heater for
extended periods or when no one
is using the seat.
. When cleaning the seat, never use
gasoline, thinner, or any similar
materials.
Instruments and controls2-55
HEATED SEATS


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @

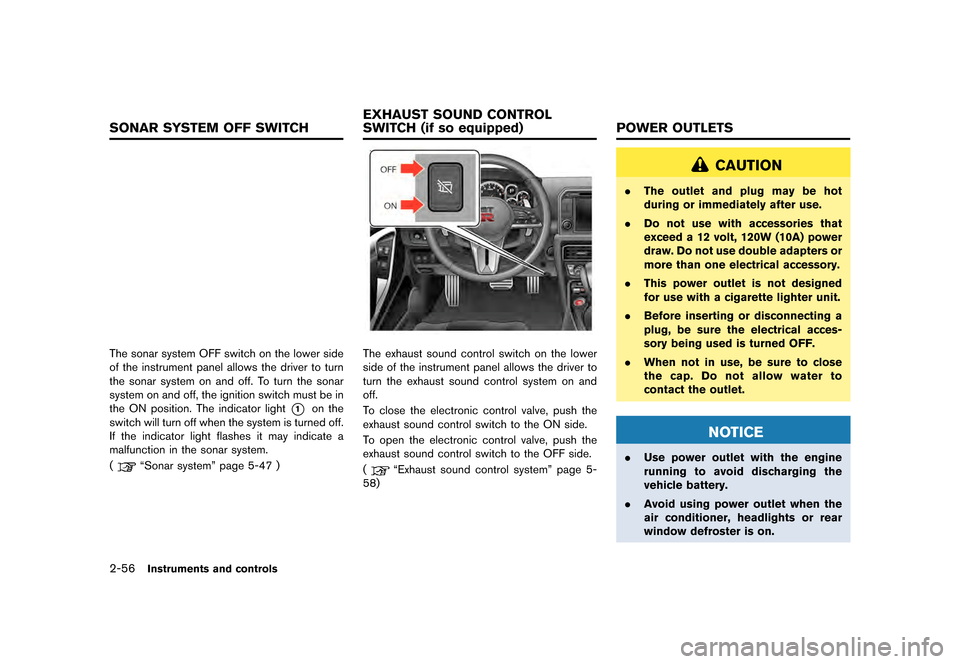

2-56Instruments and controls
GUID-6E444278-29B6-4C8B-858F-EC85933BCC26
JVS0803X
The sonar system OFF switch on the lower side
of the instrument panel allows the driver to turn
the sonar system on and off. To turn the sonar
system on and off, the ignition switch must be in
the ON position. The indicator light
*1on the
switch will turn off when the system is turned off.
If the indicator light flashes it may indicate a
malfunction in the sonar system.
(
ªSonar systemº page 5-47 )
GUID-B547D28E-6241-4B24-B8C5-9516353CE47B
JVS0814X
The exhaust sound control switch on the lower
side of the instrument panel allows the driver to
turn the exhaust sound control system on and
off.
To close the electronic control valve, push the
exhaust sound control switch to the ON side.
To open the electronic control valve, push the
exhaust sound control switch to the OFF side.
(
ªExhaust sound control systemº page 5-
58)
GUID-0FB1AF40-8345-44F5-A4A0-BCF46FD7CE43
CAUTION
. The outlet and plug may be hot
during or immediately after use.
. Do not use with accessories that
exceed a 12 volt, 120W (10A) power
draw. Do not use double adapters or
more than one electrical accessory.
. This power outlet is not designed
for use with a cigarette lighter unit.
. Before inserting or disconnecting a
plug, be sure the electrical acces-
sory being used is turned OFF.
. When not in use, be sure to close
the cap. Do not allow water to
contact the outlet.
NOTICE
.Use power outlet with the engine
running to avoid discharging the
vehicle battery.
. Avoid using power outlet when the
air conditioner, headlights or rear
window defroster is on.
SONAR SYSTEM OFF SWITCH EXHAUST SOUND CONTROL
SWITCH (if so equipped)
POWER OUTLETS
