2017 NISSAN GT-R engine


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
5 Starting and driving
Precautions when starting and driving................................... 5-3
Exhaust gas (carbon monoxide) ....
..................................... 5-3
Three-way catalyst ................................................................. 5-3
Tire Pressure Monitoring System (TPMS) ....
................... 5-4
Avoiding collision and rollover ............................................ 5-7
Off-road recovery ................................................................... 5-8
Rapid air pressure loss ....
..................................................... 5-8
Drinking alcohol/drugs and driving ....
................................ 5-9
All-Wheel Drive (AWD) driving safety precautions ....
.... 5-9
Push-button ignition switch ....
................................................ 5-10
Operating range for engine start .................................... 5-10
Ignition switch operation ................................................... 5-10
Ignition switch positions .................................................... 5-11
Emergency engine shut off ....
........................................... 5-11
Intelligent Key battery discharge ..................................... 5-12
Before starting the engine ...................................................... 5-13
Starting the engine ................................................................... 5-13
Driving the vehicle .................................................................... 5-15
Dual clutch transmission ................................................... 5-15
Driving tips ............................................................................\
5-21
VDC, transmission and suspension setup switches ....
.... 5-25
How to switch the modes ................................................ 5-25
Features of each mode ....
.................................................. 5-27
Turbocharger system ....
............................................................ 5-31 R mode start function
............................................................. 5-32
How to use R mode start function ....
........................... 5-33
Parking brake ....
........................................................................\
. 5-33
Cruise control ....
........................................................................\
5-34
Precautions on cruise control ....
.................................... 5-35
Steering-wheel-mounted controls ................................ 5-35
Indicators and display ...................................................... 5-36
Cruise control operations ............................................... 5-36
Hill Start Assist System ....
...................................................... 5-38
Break-in schedule .................................................................... 5-39
Wheel alignment ............................................................... 5-39
Fuel Efficient Driving Tips ...................................................... 5-40
Increasing fuel economy ....
..................................................... 5-41
All-Wheel Drive (AWD) .......................................................... 5-41
AWD warning light ........................................................... 5-41
Tight corner braking phenomenon ............................... 5-43
Tires ....
........................................................................\
.......... 5-43
AWD system characteristics ....
...................................... 5-43
Limited Slip Differential (LSD) .............................................. 5-44
Parking/parking on hills ....
....................................................... 5-45
Sonar system ....
........................................................................\
. 5-47
Sonar indicator .................................................................. 5-48
Sonar system OFF switch .............................................. 5-49
Sonar system setting ....................................................... 5-49


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @

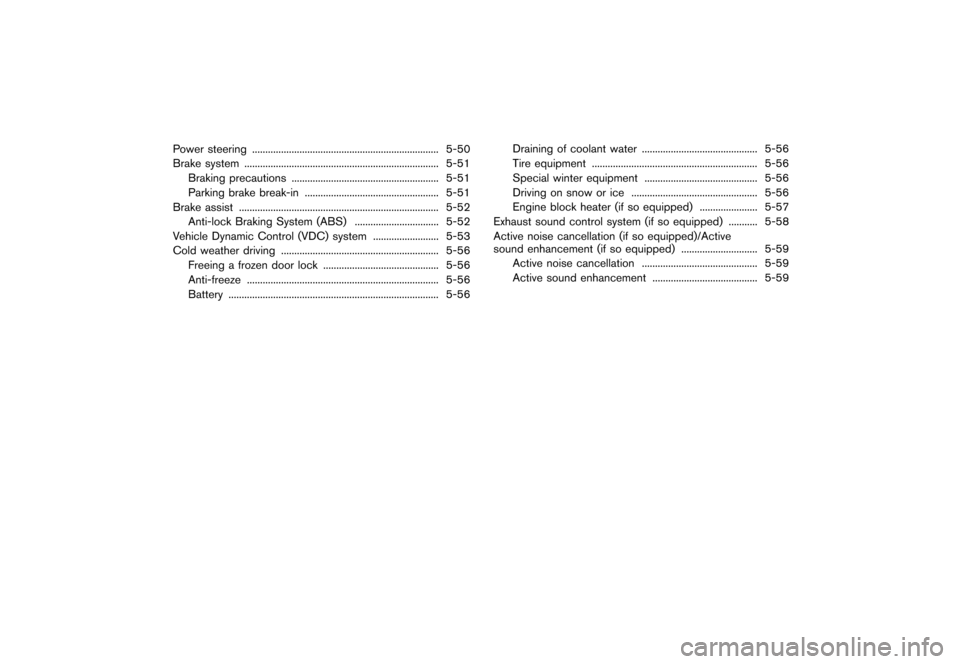

Power steering....
....................................................................... 5-50
Brake system ....
........................................................................\
.. 5-51
Braking precautions ....
........................................................ 5-51
Parking brake break-in ....................................................... 5-51
Brake assist ............................................................................\
.... 5-52
Anti-lock Braking System (ABS) .................................... 5-52
Vehicle Dynamic Control (VDC) system ............................. 5-53
Cold weather driving ....
............................................................ 5-56
Freeing a frozen door lock ....
............................................ 5-56
Anti-freeze ............................................................................\
. 5-56
Battery ............................................................................\
........ 5-56 Draining of coolant water
....
............................................ 5-56
Tire equipment ................................................................... 5-56
Special winter equipment ............................................... 5-56
Driving on snow or ice .................................................... 5-56
Engine block heater (if so equipped) .......................... 5-57
Exhaust sound control system (if so equipped) ....
........... 5-58
Active noise cancellation (if so equipped)/Active
sound enhancement (if so equipped) ....
............................. 5-59
Active noise cancellation ................................................ 5-59
Active sound enhancement ............................................ 5-59


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @

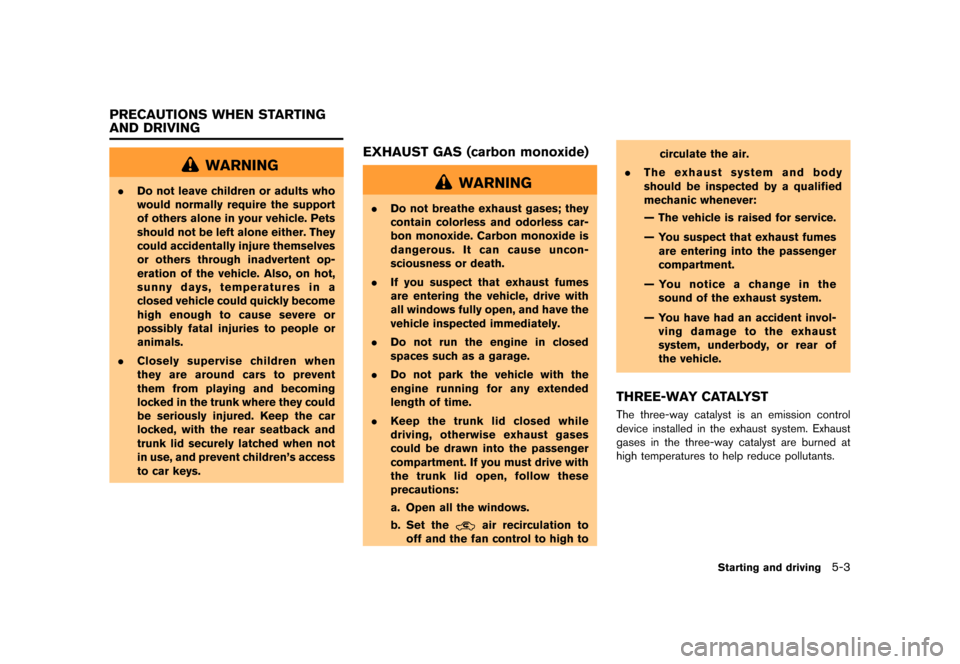

GUID-1CB354FF-CB21-4C73-B70E-AFB9E2916D3E
WARNING
.Do not leave children or adults who
would normally require the support
of others alone in your vehicle. Pets
should not be left alone either. They
could accidentally injure themselves
or others through inadvertent op-
eration of the vehicle. Also, on hot,
sunny days, temperatures in a
closed vehicle could quickly become
high enough to cause severe or
possibly fatal injuries to people or
animals.
. Closely supervise children when
they are around cars to prevent
them from playing and becoming
locked in the trunk where they could
be seriously injured. Keep the car
locked, with the rear seatback and
trunk lid securely latched when not
in use, and prevent children's access
to car keys.
EXHAUST GAS (carbon monoxide)GUID-C4169681-307E-40B5-A630-3CDCBC8979B6
WARNING
.Do not breathe exhaust gases; they
contain colorless and odorless car-
bon monoxide. Carbon monoxide is
dangerous. It can cause uncon-
sciousness or death.
. If you suspect that exhaust fumes
are entering the vehicle, drive with
all windows fully open, and have the
vehicle inspected immediately.
. Do not run the engine in closed
spaces such as a garage.
. Do not park the vehicle with the
engine running for any extended
length of time.
. Keep the trunk lid closed while
driving, otherwise exhaust gases
could be drawn into the passenger
compartment. If you must drive with
the trunk lid open, follow these
precautions:
a. Open all the windows.
b. Set the
air recirculation to
off and the fan control to high to circulate the air.
. The exhaust system and body
should be inspected by a qualified
mechanic whenever:
Ð The vehicle is raised for service.
Ð You suspect that exhaust fumes
are entering into the passenger
compartment.
Ð You notice a change in the sound of the exhaust system.
Ð You have had an accident invol- ving damage to the exhaust
system, underbody, or rear of
the vehicle.
THREE-WAY CATALYSTGUID-C6C2AC5C-58D1-4557-AB2B-17AA4021BD05The three-way catalyst is an emission control
device installed in the exhaust system. Exhaust
gases in the three-way catalyst are burned at
high temperatures to help reduce pollutants.
Starting and driving5-3
PRECAUTIONS WHEN STARTING
AND DRIVING


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
5-4Starting and driving
WARNING
.The exhaust gas and the exhaust
system are very hot. Keep people,
animals or flammable materials
away from the exhaust system com-
ponents.
. Do not stop or park the vehicle over
flammable materials such as dry
grass, waste paper or rags. They
may ignite and cause a fire.
NOTICE
.Do not use leaded gasoline. Depos-
its from leaded gasoline seriously
reduce the three-way catalyst's abil-
ity to help reduce exhaust pollu-
tants.
. Keep your engine tuned up. Mal-
functions in the ignition, fuel injec-
tion, or electrical systems can cause
overrich fuel flow into the three-way
catalyst, causing it to overheat. Do
not keep driving if the engine mis-
fires, or if noticeable loss of perfor-
mance or other unusual operating conditions are detected. It is recom-
mended you have the vehicle in-
spected promptly by a GT-R certified
NISSAN dealer.
. Avoid driving with an extremely low
fuel level. Running out of fuel could
cause the engine to misfire, dama-
ging the three-way catalyst.
. Do not race the engine while warm-
ing it up.
. Do not push or tow your vehicle to
start the engine.TIRE PRESSURE MONITORING
SYSTEM (TPMS)
GUID-90024E82-FB34-427B-AB7F-4FE62719A8F1Each tire should be checked monthly when cold
and inflated to the inflation pressure recom-
mended by the vehicle manufacturer on the
vehicle placard or tire inflation pressure label. (If
your vehicle has tires of a different size than the
size indicated on the vehicle placard or tire
inflation pressure label, you should determine
the proper tire inflation pressure for those tires.)
As an added safety feature, your vehicle has
been equipped with a Tire Pressure Monitoring
System (TPMS) that illuminates a low tire
pressure telltale when one or more of your tires is significantly under-inflated. Accordingly, when
the low tire pressure telltale illuminates, you
should stop and check your tires as soon as
possible, and inflate them to the proper pres-
sure. Driving on a significantly under-inflated tire
causes the tire to overheat and can lead to tire
failure. Under-inflation also reduces fuel effi-
ciency and tire tread life, and may affect the
vehicle's handling and stopping ability.
If the vehicle is being driven with one or more flat
tires, the low tire pressure warning light will
illuminate continuously and a chime will sound
for 10 seconds. The chime will only sound at the
first indication of a flat tire, and the warning light
will illuminate continuously. When the flat tire
warning is activated, it is recommended you
have the system reset and the tire checked and
replaced if necessary by a GT-R certified
NISSAN dealer. Even if the tire is inflated to
the specified COLD tire pressure, the warning
light will continue to illuminate until the system is
reset by a GT-R certified NISSAN dealer. Your
vehicle can be driven for a limited time on a flat
tire. (
ªRun-flat tiresº page 8-39)
Please note that the TPMS is not a substitute for
proper tire maintenance, and it is the driver's
responsibility to maintain correct tire pressure,
even if under-inflation has not reached the level
to trigger illumination of the TPMS low tire


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
4. Gradually steer the vehicle to a safe locationoff the road and away from traffic if possible.
5. Lightly apply the brake pedal to gradually stop the vehicle.
6. Turn on the hazard warning flashers and contact a roadside emergency service to
change the tire.
DRINKING ALCOHOL/DRUGS AND
DRIVING
GUID-D40A9B53-32EA-4196-9F25-3C6BB46498B3
WARNING
Never drive under the influence of
alcohol or drugs. Alcohol in the blood-
stream reduces coordination, delays
reaction time and impairs judgement.
Driving after drinking alcohol increases
the likelihood of being involved in an
accident injuring yourself and others.
Additionally, if you are injured in an
accident, alcohol can increase the se-
verity of the injury.
NISSAN is committed to safe driving. However,
you must choose not to drive under the influence
of alcohol. Every year thousands of people are
injured or killed in alcohol-related accidents.
Although the local laws vary on what is considered to be legally intoxicated, the fact is
that alcohol affects all people differently and
most people underestimate the effects of
alcohol.
Remember, drinking and driving don't mix! And
that is true for drugs, too (over-the-counter,
prescription, and illegal drugs) . Don't drive if
your ability to operate your vehicle is impaired by
alcohol, drugs, or some other physical condition.
ALL-WHEEL DRIVE (AWD) DRIVING
SAFETY PRECAUTIONS
GUID-1CCF4F08-164B-4A8B-9000-1004F7B3662C
WARNING
.
Do not drive beyond the perfor-
mance capability of the tires, even
with AWD engaged. Accelerating
quickly, sharp steering maneuvers
or sudden braking may cause loss
of control.
. Always use the specified tires on all
four wheels. Install tire chains on
the rear wheels when driving on
slippery roads and drive carefully.
. This vehicle is not designed for
offroad (rough road) use. Do not
drive on sandy or muddy roads that
tires may get stuck in. .
Do not attempt to raise two wheels
off the ground and shift the trans-
mission to any
&A
F&Mor&Rposition
with the engine running. Doing so
may result in drivetrain damage or
unexpected vehicle movement
which could result in serious vehicle
damage or personal injury.
. Do not attempt to test an AWD
equipped vehicle on a 2-wheel dy-
namometer, (such as the dynam-
ometers used by some states for
emissions testing) , or similar equip-
ment even if the other two wheels
are raised off the ground. Make sure
you inform test facility personnel
that your vehicle is equipped with
AWD before it is placed on a
dynamometer. Using the wrong test
equipment may result in drivetrain
damage or unexpected vehicle
movement which could result in
serious vehicle damage or personal
injury.
. When a wheel is off the ground due
to an unlevel surface, do not spin
the wheel excessively.
Starting and driving5-9


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
5-10Starting and driving
GUID-032D251F-22C0-4898-A4EE-3D4C82BA6AD0
WARNING
Do not operate the push-button ignition
switch while driving the vehicle except
in an emergency. (The engine will stop
when the ignition switch is pushed
three consecutive times or the ignition
switch is pushed and held for more than
2 seconds.) If the engine stops while
the vehicle is being driven, this could
lead to a crash and serious injury.
Before operating the push-button ignition
switch, be sure to move the shift lever to the
&Pposition.
GPC0003
OPERATING RANGE FOR ENGINE
START
GUID-9693670E-132B-426B-8FCB-A69614F878BFThe operating range for starting the engine
inside the vehicle is shown in the illustration.
. If the Intelligent Key is on the instrument
panel, rear parcel shelf, inside the glove box,
door pocket, cup holders or console box, or
the corner of the passenger compartment, it
may not be possible to start the engine.
Carry the Intelligent-Key and try to start the
engine again.
. If the Intelligent Key is near the door or door
glass outside the vehicle, it may be possible
to start the engine.
GST0074
IGNITION SWITCH OPERATIONGUID-69CE1221-4C70-48A8-B474-02F2187E6ECEWhen the Intelligent Key is carried with you and
the ignition switch is pushed without depressing
the brake pedal, the ignition switch position will
change as follows:
.Push center once to change to ACC.
. Push center two times to change to ON.
. Push center three times to change to OFF.
(No position illuminates.)
. Push center four times to return to ACC.
. Open or close any door to return to LOCK
during the OFF position.
PUSH-BUTTON IGNITION SWITCH


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
IGNITION SWITCH POSITIONSGUID-3729D39A-D3BB-45D9-AACC-F8012205C82D
LOCK (Normal parking position)GUID-B45A088B-04A2-4B0E-9019-3C55A3B018F5The ignition switch can only be locked in this
position.
The ignition switch will be unlocked when it is
pushed to the ACC position while carrying the
Intelligent Key or with the Intelligent Key inserted
in the port.
ACC (Accessories)GUID-CED34830-E07F-462E-96CB-83E1CE6EB287This position activates electrical accessories
such as the radio, when the engine is not
running.
ON (Normal operating position)GUID-20C0C7F6-565C-4F80-8704-D5AD1B7539FEThis position turns on the ignition system and
electrical accessories.
OFFGUID-772ACD21-8119-45AC-85F2-CCEA46C2D027The engine can be turned off without locking the
steering wheel.
The ignition lock is designed so that the ignition
switch cannot be switched to the LOCK position
until the shift lever is moved to the
&Pposition.NOTE:
.
If the steering lock release malfunction
indicator appears on the vehicle infor-
mation display when the ignition
switch is pressed, press the ignition
switch again while gently turning the
steering wheel left and right.
(
ªSteering lock release malfunc-
tion indicatorº page 2-45)
. If the shift
&Pwarning appears on the
vehicle information display when the
ignition switch is pushed, the shift lever
is in any position except the
&Pposi-
tion. Move the shift lever to the
&P
position. (ªShift ªPº warningº
page 2-44)
. If the Intelligent Key battery discharge
indicator appears on the vehicle infor-
mation display, the Intelligent Key
battery is discharged and the ignition
switch will not operate. Insert the
Intelligent Key into the key port to
operate the ignition switch.
(
ªIntelligent Key battery discharge
indicatorº page 2-46)
. When all of the following conditions
are met for 60 minutes, the battery
saver system will cut off the power
supply to prevent battery discharge. Ð
The ignition switch is in the ACC
position, and
Ð All doors are closed, and
Ð The shift lever is in the
&Pposition.
. Do not leave the vehicle with the
ignition switch in the ACC or ON
position when the engine is not run-
ning for an extended period of time.
This can discharge the battery.
EMERGENCY ENGINE SHUT OFFGUID-B72F2DFA-F7E1-4866-9938-F703E11AD9A5To shut off the engine in an emergency situation
while driving, perform the following procedure:
.Rapidly push the push-button ignition switch
3 consecutive times in less than 1.5
seconds, or
. Push and hold the push button ignition
switch for more than 2 seconds.
Starting and driving5-11


> (GLW    0RGHO 0< 1,66$1 *755 20(58 @
5-12Starting and driving
JVS0789X
INTELLIGENT KEY BATTERY DIS-
CHARGE
GUID-F5EBB19F-C46A-4298-B7EF-2944B792DF0CIf the battery of the Intelligent Key is almost
discharged, the guide light
*1of the Intelligent
Key port blinks and the indicator appears on the
vehicle information display. (
ªIntelligent Key
insertion indicatorº page 2-45)
In this case, inserting the Intelligent Key into the
port allows you to start the engine. Make sure
that the mechanical key side faces backward as
illustrated. Insert the Intelligent Key in the port
until it is latched and secured.
To remove the Intelligent Key from the port, push
the ignition switch to the OFF position and pull the Intelligent Key out of the port.
NOTICE
Never place anything except the Intelli-
gent Key in the Intelligent Key port.
Doing so may cause damage to the
equipment.
GST0079
NOTE:
.
Make sure the Intelligent Key is in the
correct direction when inserting it into
the Intelligent Key port. The engine
may not start if it is in the incorrect
direction.
. Remove the Intelligent Key from the
Intelligent Key port after the ignition
switch is pushed to the OFF position.
. The Intelligent Key port does not
charge the Intelligent Key battery. If
you see the low battery indicator in the
vehicle information display, replace the
battery as soon as possible.
