Indicator light, warning light, an
d information screen display list
5-114 Features and controls
5

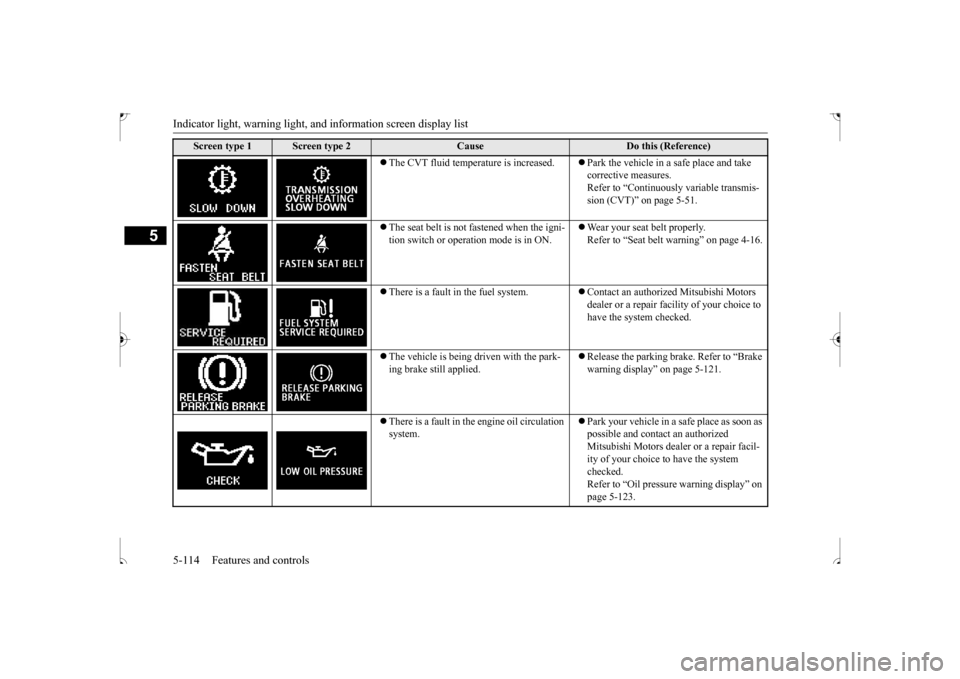

 The CVT fluid temperature is increased.
Park the vehicle in a safe place and take corrective measures. Refer to “Continuously variable transmis-sion (CVT)” on page 5-51.
 The seat belt is not fastened when the igni- tion switch or operation mode is in ON.
 Wear your seat belt properly. Refer to “Seat belt warning” on page 4-16.
 There is a fault in the fuel system.
Contact an authorized Mitsubishi Motors dealer or a repair facility of your choice to have the system checked.
 The vehicle is being driven with the park- ing brake still applied.
 Release the parking brake. Refer to “Brake warning display” on page 5-121.
 There is a fault in the engine oil circulation system.
 Park your vehicle in a safe place as soon as possible and contact an authorized Mitsubishi Motors dealer or a repair facil- ity of your choice to have the system checked. Refer to “Oil pressure warning display” on page 5-123.
Screen type 1
Screen type 2
Cause
Do this (Reference)
BK0239500US.book
114 ページ ２０１６年５月１３日　金曜日　午前８時５３分

Indicator light, warning light, an
d information screen display list Features and controls 5-115
5

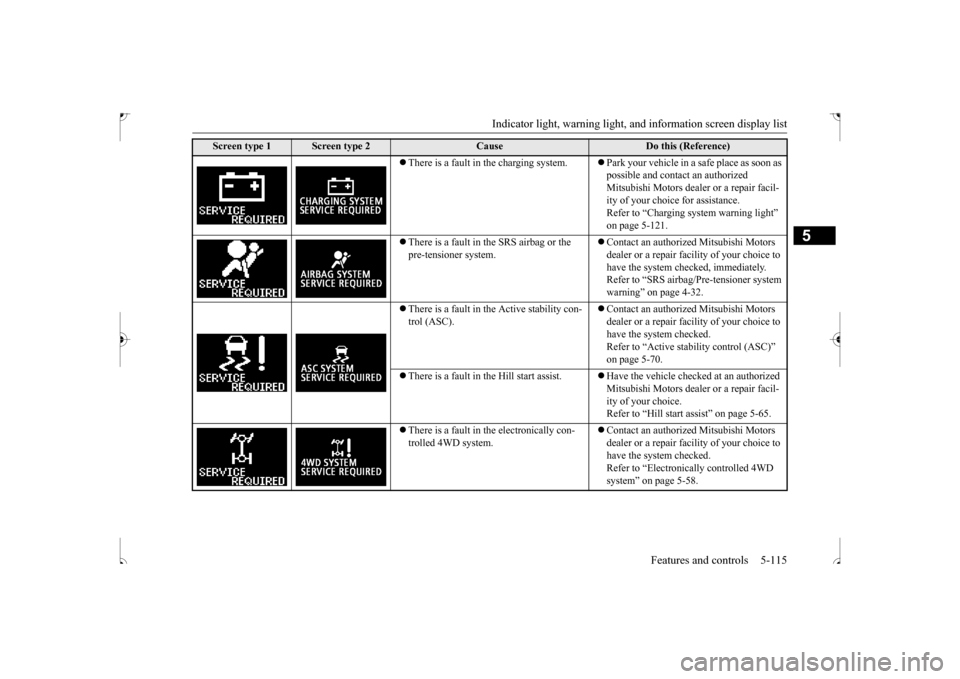

 There is a fault in the charging system.
Park your vehicle in a safe place as soon as possible and contact an authorized Mitsubishi Motors dealer or a repair facil-ity of your choice for assistance. Refer to “Charging system warning light” on page 5-121.
 There is a fault in the SRS airbag or the pre-tensioner system.
 Contact an authorized Mitsubishi Motors dealer or a repair facility of your choice to have the system checked, immediately. Refer to “SRS airbag/Pre-tensioner system warning” on page 4-32.
 There is a fault in the Active stability con- trol (ASC).
 Contact an authorized Mitsubishi Motors dealer or a repair facility of your choice to have the system checked.Refer to “Active stability control (ASC)” on page 5-70.
 There is a fault in the Hill start assist.
Have the vehicle checked at an authorized Mitsubishi Motors deal
er or a repair facil-
ity of your choice. Refer to “Hill start assist” on page 5-65.
 There is a fault in the electronically con- trolled 4WD system.
 Contact an authorized Mitsubishi Motors dealer or a repair facility of your choice to have the system checked. Refer to “Electronically controlled 4WD system” on page 5-58.
Screen type 1
Screen type 2
Cause
Do this (Reference)
BK0239500US.book
115 ページ ２０１６年５月１３日　金曜日　午前８時５３分

Indicator light, warning light, an
d information screen display list
5-116 Features and controls
5
 There is a fault in the CVT.
Contact an authorized Mitsubishi Motors dealer or a repair facility of your choice to have the system checked.Refer to “Continuously variable transmis- sion (CVT)” on page 5-51.
 The electronically controlled 4WD system is hot.
Refer to “Electronically controlled 4WD sys- tem” on page 5-58.
 The fuel is running low.
Refuel as soon as possible. Refer to “Fuel remaining display screen” on page 5-96.
 The outside temperature is 37 °F (3 °C) or less.
 Be careful driving on frozen ground.  The ground may be frozen even when this warning is not displayed, so drive care- fully.
Screen type 1
Screen type 2
Cause
Do this (Reference)
BK0239500US.book
116 ページ ２０１６年５月１３日　金曜日　午前８時５３分

Indicator light, warning light, an
d information screen display list Features and controls 5-117
5
N00558200242
Other interrupt displays
Screen type 1
Screen type 2
System operation status
Reference
—

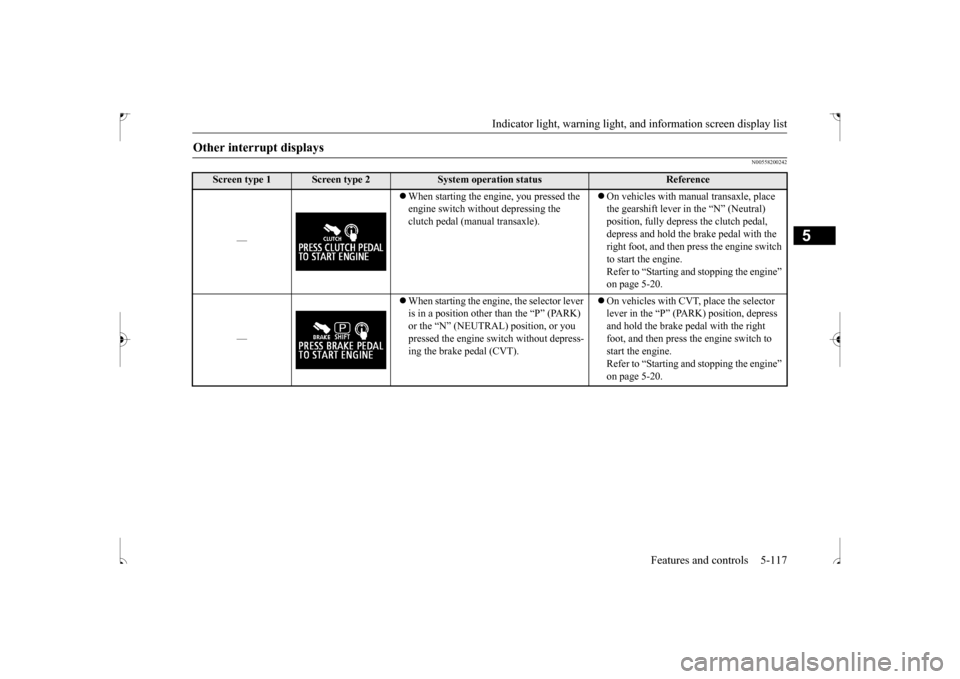

 When starting the engine, you pressed the engine switch without depressing the clutch pedal (manual transaxle).
 On vehicles with manual transaxle, place the gearshift lever in
the “N” (Neutral)
position, fully depress the clutch pedal, depress and hold the brake pedal with the right foot, and then press the engine switch to start the engine. Refer to “Starting and stopping the engine” on page 5-20.
—
 When starting the engine, the selector lever is in a position other than the “P” (PARK) or the “N” (NEUTRAL) position, or you pressed the engine switch without depress- ing the brake pedal (CVT).
 On vehicles with CVT, place the selector lever in the “P” (PARK) position, depress and hold the brake pedal with the right foot, and then press the engine switch to start the engine. Refer to “Starting and stopping the engine” on page 5-20.
BK0239500US.book
117 ページ ２０１６年５月１３日　金曜日　午前８時５３分

Indicator light, warning light, an
d information screen display list
5-118 Features and controls
5
The operation status of each system is displayed on the informa
tion screen. For further details, refer to the appropriate page
for each system.
Screen type 1
Screen type 2
System operation status
Reference

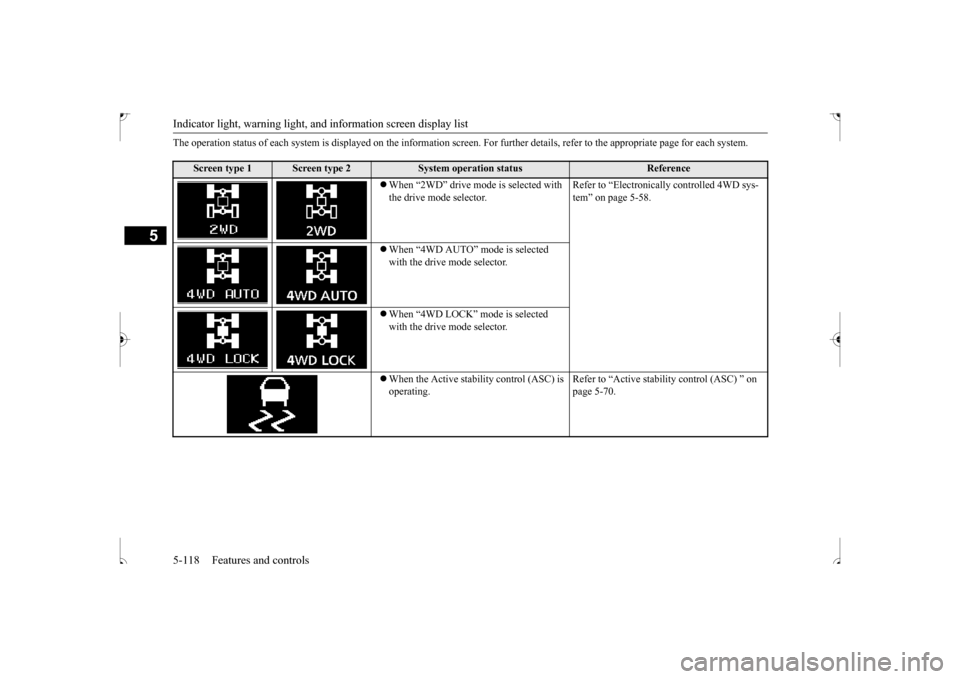

 When “2WD” drive mode is selected with the drive mode selector.
Refer to “Electronically controlled 4WD sys- tem” on page 5-58.
 When “4WD AUTO” mode is selected with the drive mode selector.  When “4WD LOCK” mode is selected with the drive mode selector.  When the Active stability control (ASC) is operating.
Refer to “Active stability control (ASC) ” on page 5-70.
BK0239500US.book
118 ページ ２０１６年５月１３日　金曜日　午前８時５３分

Indicators
Features and controls 5-119
5

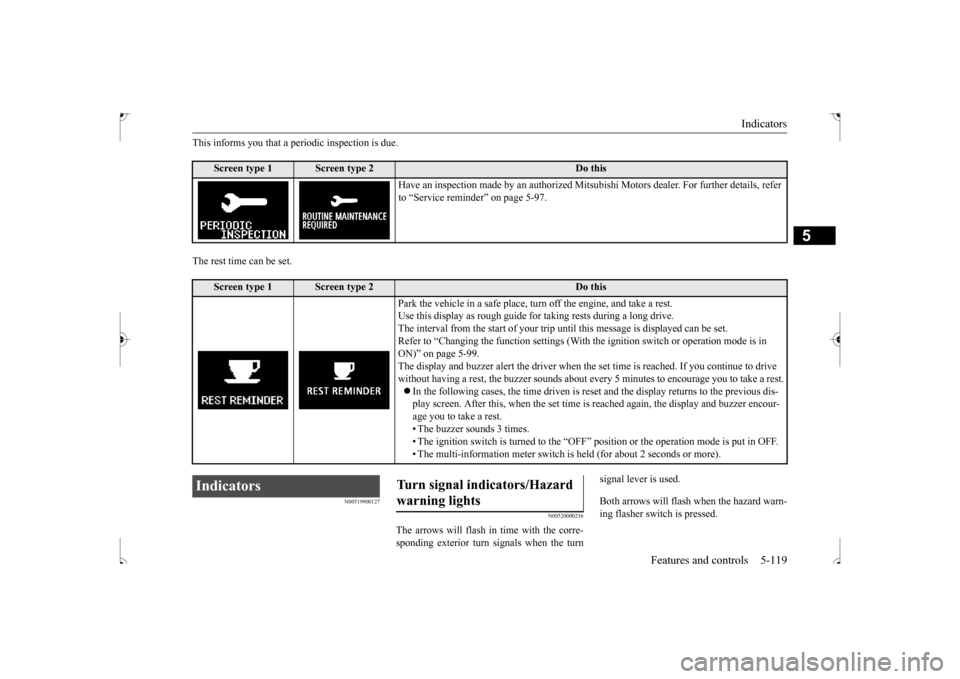

This informs you that a periodic inspection is due. The rest time can be set.
N00519900127
N00520000216
The arrows will flash in time with the corre- sponding exterior turn signals when the turn
signal lever is used. Both arrows will flash when the hazard warn- ing flasher switch is pressed.
Screen type 1
Screen type 2
Do this
Have an inspection made by an authorized Mitsub
ishi Motors dealer. For further details, refer
to “Service reminder” on page 5-97.
Screen type 1
Screen type 2
Do this
Park the vehicle in a safe place, turn off the engine, and take a rest. Use this display as rough guide for taking rests during a long drive. The interval from the start of your trip un
til this message is displayed can be set.
Refer to “Changing the function settings (With
the ignition switch or operation mode is in
ON)” on page 5-99. The display and buzzer alert the driver when th
e set time is reached. If you continue to drive
without having a rest, the buzzer sounds about ev
ery 5 minutes to encourage you to take a rest.
 In the following cases, the time driven is rese
t and the display return
s to the previous dis-
play screen. After this, when the set time is
reached again, the display and buzzer encour-
age you to take a rest.• The buzzer sounds 3 times. • The ignition switch is turned to the “OFF”
position or the operation mode is put in OFF.
• The multi-information meter switch is
held (for about 2 seconds or more).
Indicators
Turn signal indicators/Hazard warning lights
BK0239500US.book
119 ページ ２０１６年５月１３日　金曜日　午前８時５３分

Warning lights 5-120 Features and controls
5
N00520100086
A blue light comes on when the headlights are on high beam.
N00520200175
This indicator comes on while the front fog lights are on.
N00551301081
This indicator light illuminates while theparking lights are on.
N00568800023
This indicator will be displayed when fuel-efficient driving is achieved.
N00520300147 N00520400470
This light comes on when the ignition switch is turned to the “ON” position (engine off) orthe operation mode is put in ON. When the engine is started, the light should go off a few seconds later. A warning is alsodisplayed in the multi-information display.The warning light also illuminates after start- ing the engine under the following condi- tions.  When the parking brake is still applied.  When the brake fluid level is low.  When the brake system circuit is not working properly.
Before driving, be sure that the parking brake is fully released and brake warning light is off.
N00520500804
This indicator is a part of the onboard diag- nostic (OBD) system which monitors the emissions, engine contro
l system or continu-
ously variable transmission (CVT) control
NOTE
 If the indicator flashes faster than usual or if the indicator stays on without flashing, check for a malfunctioning turn signal light bulb or turn signal connection.
High beam indicator Front fog light indicator
(if so
equipped)Position indicator ECO mode indicator
(if so
equipped)

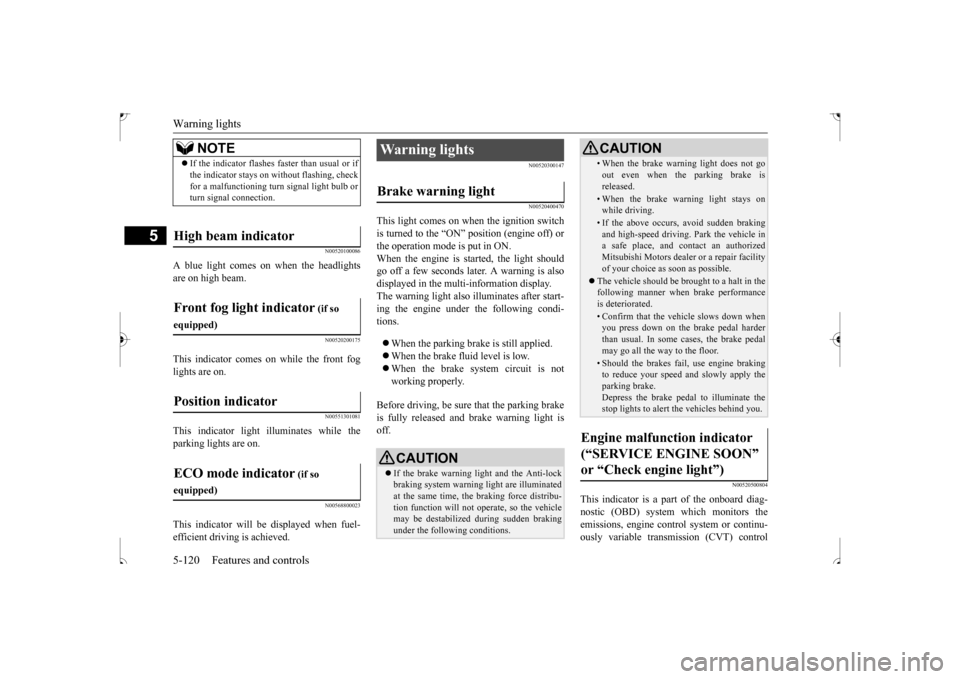

Warning lights Brake warning light
CAUTION If the brake warning light and the Anti-lock braking system warning light are illuminated at the same time, the braking force distribu- tion function will not operate, so the vehiclemay be destabilized during sudden braking under the following conditions.
• When the brake warning light does not goout even when the parking brake is released.• When the brake warning light stays onwhile driving.• If the above occurs, avoid sudden brakingand high-speed driving. Park the vehicle in a safe place, and contact an authorized Mitsubishi Motors dealer or a repair facilityof your choice as soon as possible.
 The vehicle should be brought to a halt in the following manner when brake performance is deteriorated.• Confirm that the vehicle slows down whenyou press down on the brake pedal harder than usual. In some cases, the brake pedalmay go all the way to the floor.• Should the brakes fail, use engine brakingto reduce your speed and slowly apply the parking brake. Depress the brake pedal to illuminate thestop lights to alert the vehicles behind you.
Engine malfunction indicator (“SERVICE ENGINE SOON” or “Check engine light”)
CAUTION
