Replacement of light bulbs 9-32 Vehicle care and maintenance
9
N00950401744
* : If so equipped
N00901801144

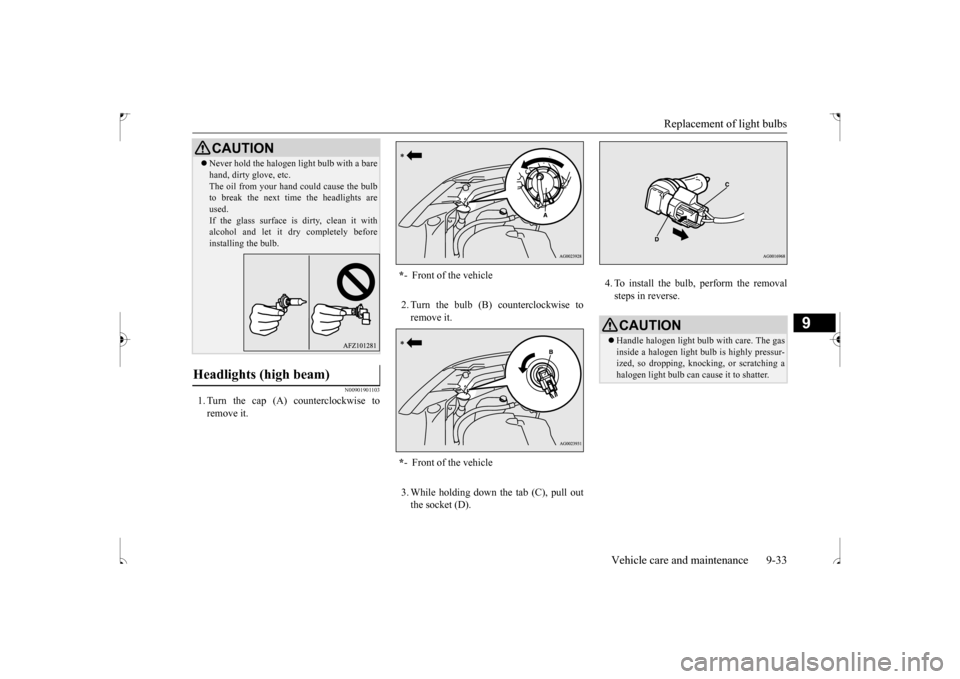

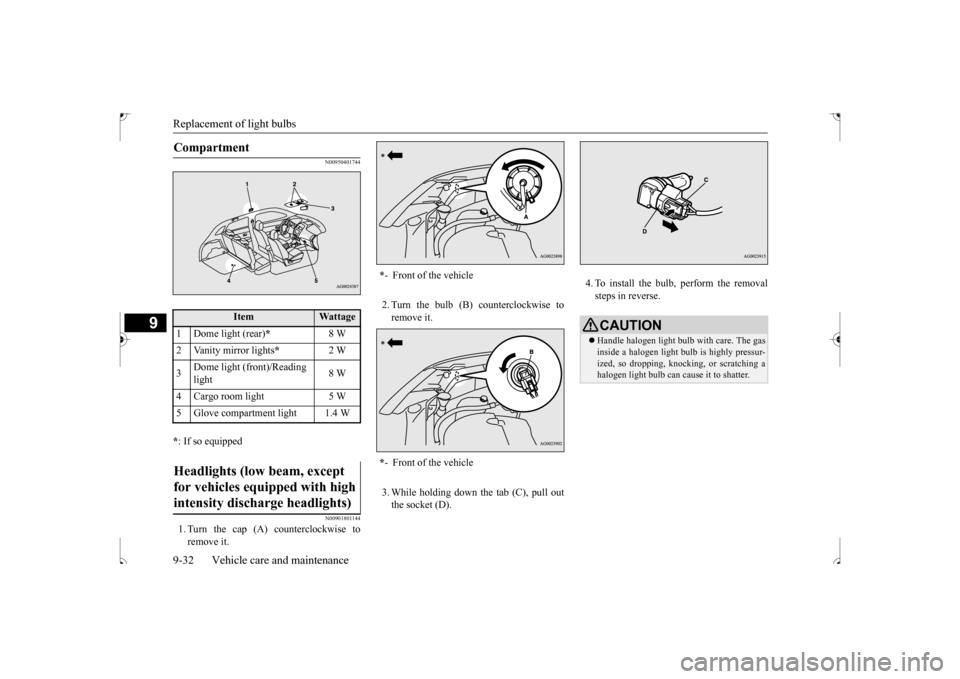

1. Turn the cap (A) counterclockwise to remove it.
2. Turn the bulb (B) counterclockwise to remove it. 3. While holding down the tab (C), pull out the socket (D).
4. To install the bulb, perform the removal steps in reverse.
Compartment
Item
Wattage
1 Dome light (rear)
*
8 W
2 Vanity mirror lights
*
2 W
3
Dome light (front)/Reading light
8 W
4 Cargo room light 5 W 5 Glove compartment light 1.4 WHeadlights (low beam, except for vehicles equipped with high intensity discharge headlights)
* - Front of the vehicle * - Front of the vehicle
CAUTIONHandle halogen light bulb with care. The gas inside a halogen light bulb is highly pressur- ized, so dropping, knocking, or scratching a halogen light bulb can cause it to shatter.
BK0239500US.bo
ok 32 ページ ２０１６年５月１３日　金曜日　午前８時５３分

Replacement of light bulbs
Vehicle care and maintenance 9-33
9
N00901901103
1. Turn the cap (A) counterclockwise to remove it.
2. Turn the bulb (B) counterclockwise to remove it. 3. While holding down the tab (C), pull out the socket (D).
4. To install the bulb, perform the removal steps in reverse.
 Never hold the halogen light bulb with a bare hand, dirty glove, etc. The oil from your hand could cause the bulb to break the next time the headlights are used.If the glass surface is dirty, clean it with alcohol and let it dry completely before installing the bulb.
Headlights (high beam)
CAUTION
* - Front of the vehicle * - Front of the vehicle
CAUTIONHandle halogen light bulb with care. The gas inside a halogen light bulb is highly pressur-ized, so dropping, knocking, or scratching a halogen light bulb can cause it to shatter.
BK0239500US.bo
ok 33 ページ ２０１６年５月１３日　金曜日　午前８時５３分

Replacement of light bulbs 9-34 Vehicle care and maintenance
9
N00900300099
Do not attempt to disassemble or repair head- lights, and do not attempt to replace their bulbs.
N00943200121
The alignment of the headlights should bechecked by an authorized Mitsubishi Motorsdealer or a repair facility of your choice.
N00917301737
1. Turn the socket (A) counterclockwise to remove it.
2. Pull the bulb out of the socket. 3. To install the bulb, perform the removal steps in reverse.

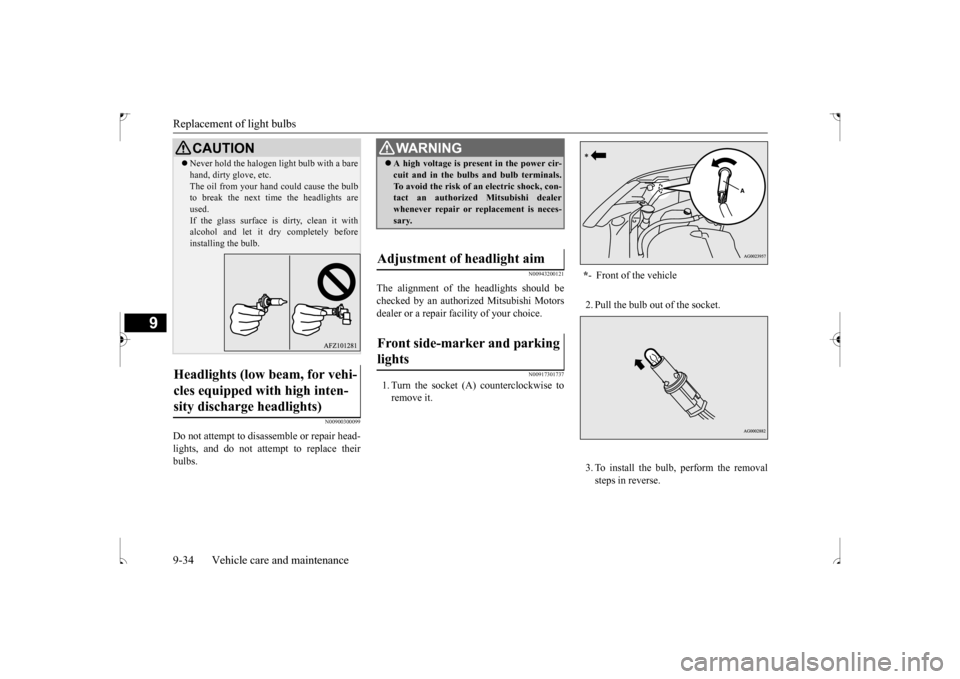

 Never hold the halogen light bulb with a bare hand, dirty glove, etc. The oil from your hand could cause the bulb to break the next time the headlights are used.If the glass surface is dirty, clean it with alcohol and let it dry completely before installing the bulb.
Headlights (low beam, for vehi- cles equipped with high inten- sity discharge headlights)
CAUTION
WA R N I N G A high voltage is present in the power cir- cuit and in the bulbs and bulb terminals. To avoid the risk of an electric shock, con- tact an authorized Mitsubishi dealer whenever repair or replacement is neces-sary.
Adjustment of headlight aim Front side-marker and parking lights
* - Front of the vehicle
BK0239500US.bo
ok 34 ページ ２０１６年５月１３日　金曜日　午前８時５３分

Replacement of light bulbs
Vehicle care and maintenance 9-35
9
N00943401452

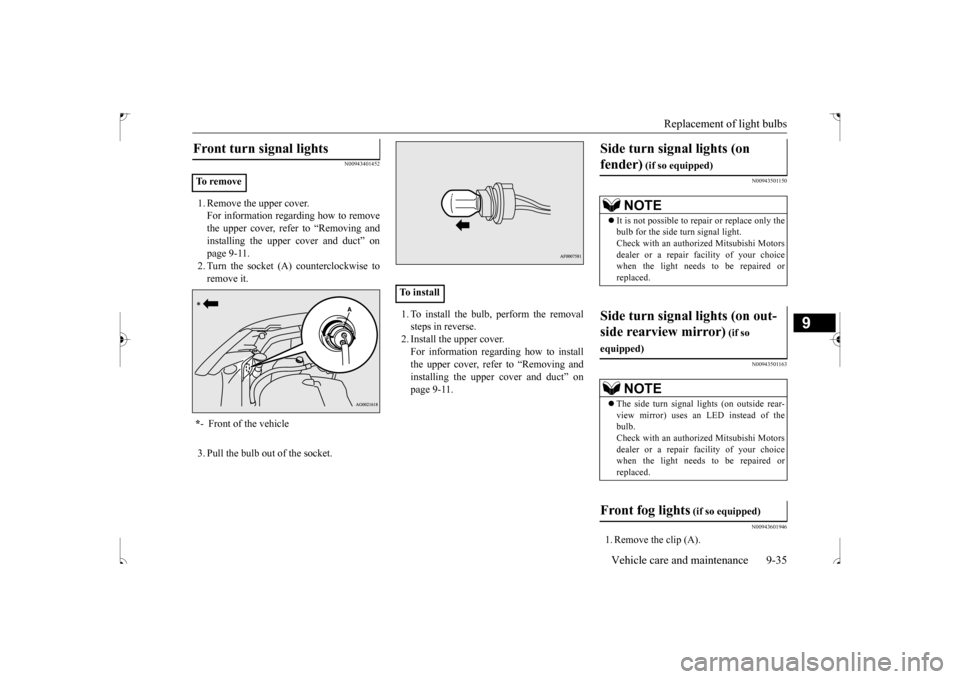

1. Remove the upper cover. For information regarding how to remove the upper cover, refer to “Removing andinstalling the upper cover and duct” on page 9-11. 2. Turn the socket (A) counterclockwise toremove it. 3. Pull the bulb out of the socket.
1. To install the bulb, perform the removal steps in reverse.2. Install the upper cover. For information regarding how to install the upper cover, refer to “Removing andinstalling the upper cover and duct” onpage 9-11.
N00943501150 N00943501163 N00943601946
1. Remove the clip (A).
Front turn signal lights To r e m o v e * - Front of the vehicle
To install
Side turn signal lights (on fender)
(if so equipped)
NOTE
 It is not possible to re
pair or replace only the
bulb for the side turn signal light. Check with an authorized Mitsubishi Motorsdealer or a repair facility of your choice when the light needs to be repaired or replaced.
Side turn signal lights (on out- side rearview mirror)
(if so
equipped)
NOTE
 The side turn signal lights (on outside rear- view mirror) uses an LED instead of the bulb.Check with an authorized Mitsubishi Motors dealer or a repair facility of your choice when the light needs to be repaired or replaced.
Front fog lights
(if so equipped)
BK0239500US.bo
ok 35 ページ ２０１６年５月１３日　金曜日　午前８時５３分

Replacement of light bulbs 9-36 Vehicle care and maintenance
9

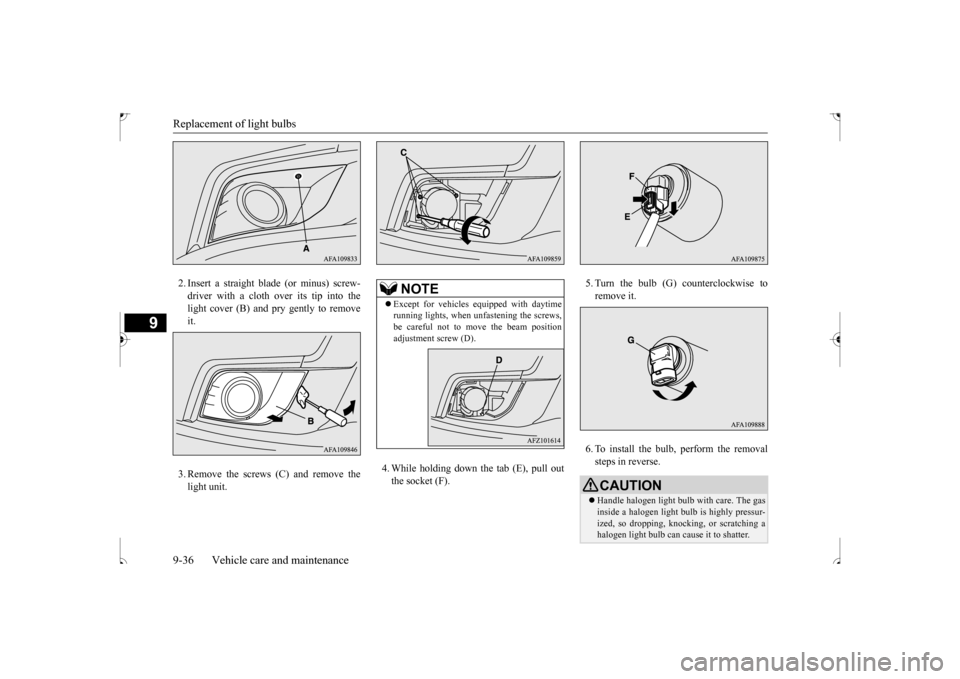

2. Insert a straight blade (or minus) screw- driver with a cloth over its tip into thelight cover (B) and pry gently to remove it. 3. Remove the screws (C) and remove the light unit.
4. While holding down the tab (E), pull out the socket (F).
5. Turn the bulb (G) counterclockwise to remove it. 6. To install the bulb, perform the removal steps in reverse.
NOTE
 Except for vehicles equipped with daytime running lights, when unfastening the screws, be careful not to move the beam position adjustment screw (D).
CAUTION Handle halogen light bulb with care. The gas inside a halogen light bulb is highly pressur- ized, so dropping, knocking, or scratching ahalogen light bulb can cause it to shatter.
BK0239500US.bo
ok 36 ページ ２０１６年５月１３日　金曜日　午前８時５３分

Replacement of light bulbs
Vehicle care and maintenance 9-37
9
N00900301184
1. Remove the clip (A).
2. Insert a straight blade (or minus) screw- driver with a cloth over its tip info the light cover (B) and pry gently to remove it. 3. Remove the screws (C) and remove the light unit. 4. Turn the bulb (D) counterclockwise to remove it.
5. While holding down the tab (E), pull out the socket (F). 6. To install the bulb, perform the removal steps in reverse.
N00943701530
1. Remove the screws (A) that hold the light unit and remove the light unit.

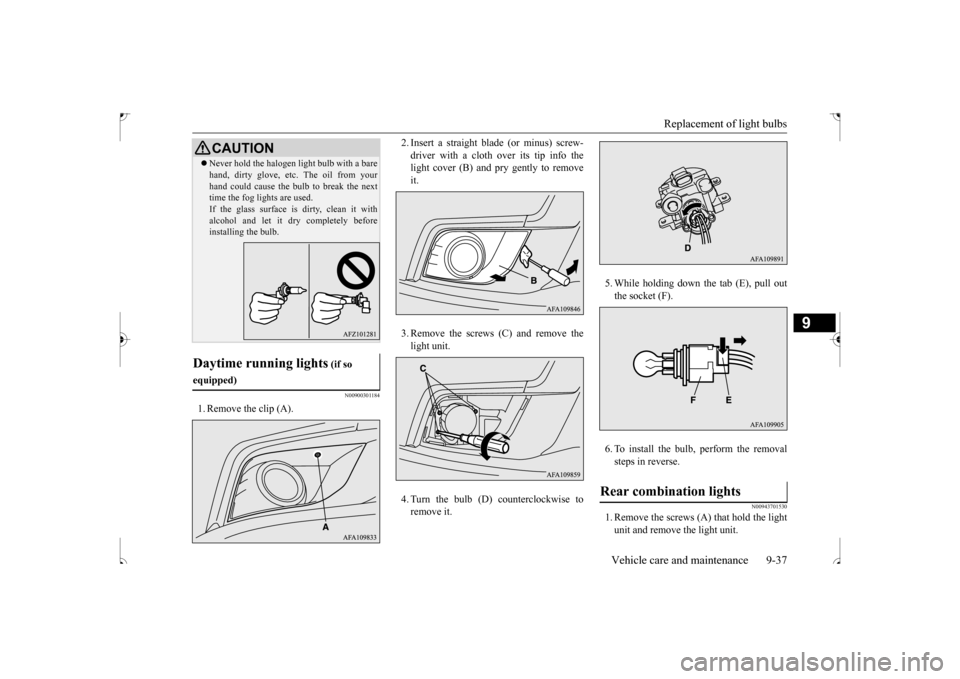

 Never hold the halogen light bulb with a bare hand, dirty glove, etc. The oil from your hand could cause the bulb to break the next time the fog lights are used. If the glass surface is dirty, clean it withalcohol and let it dry completely before installing the bulb.
Daytime running lights
(if so
equipped)
CAUTION
Rear combination lights
BK0239500US.bo
ok 37 ページ ２０１６年５月１３日　金曜日　午前８時５３分

Replacement of light bulbs 9-38 Vehicle care and maintenance
9

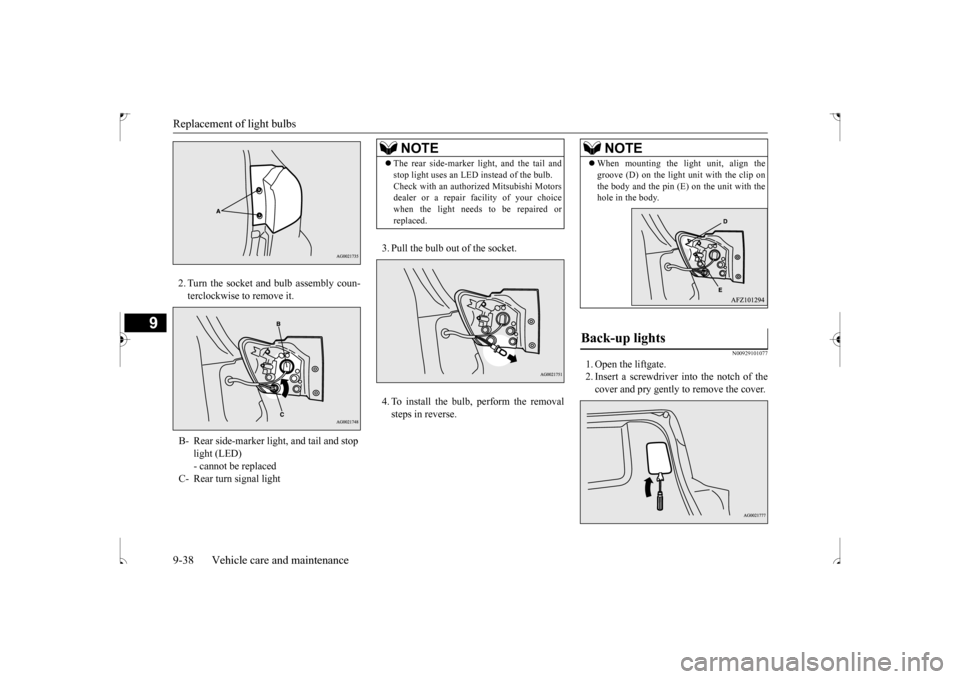

2. Turn the socket and bulb assembly coun- terclockwise to remove it.
3. Pull the bulb out of the socket. 4. To install the bulb, perform the removal steps in reverse.
N00929101077
1. Open the liftgate. 2. Insert a screwdriver into the notch of the cover and pry gently to remove the cover.
B- Rear side-marker light, and tail and stop
light (LED) - cannot be replaced
C- Rear turn signal light
NOTE
 The rear side-marker light, and the tail and stop light uses an LED instead of the bulb. Check with an authorized Mitsubishi Motors dealer or a repair
facility of your choice
when the light needs to be repaired orreplaced.
NOTE
 When mounting the light unit, align the groove (D) on the light unit with the clip on the body and the pin (E) on the unit with the hole in the body.
Back-up lights
BK0239500US.bo
ok 38 ページ ２０１６年５月１３日　金曜日　午前８時５３分

Replacement of light bulbs
Vehicle care and maintenance 9-39
9

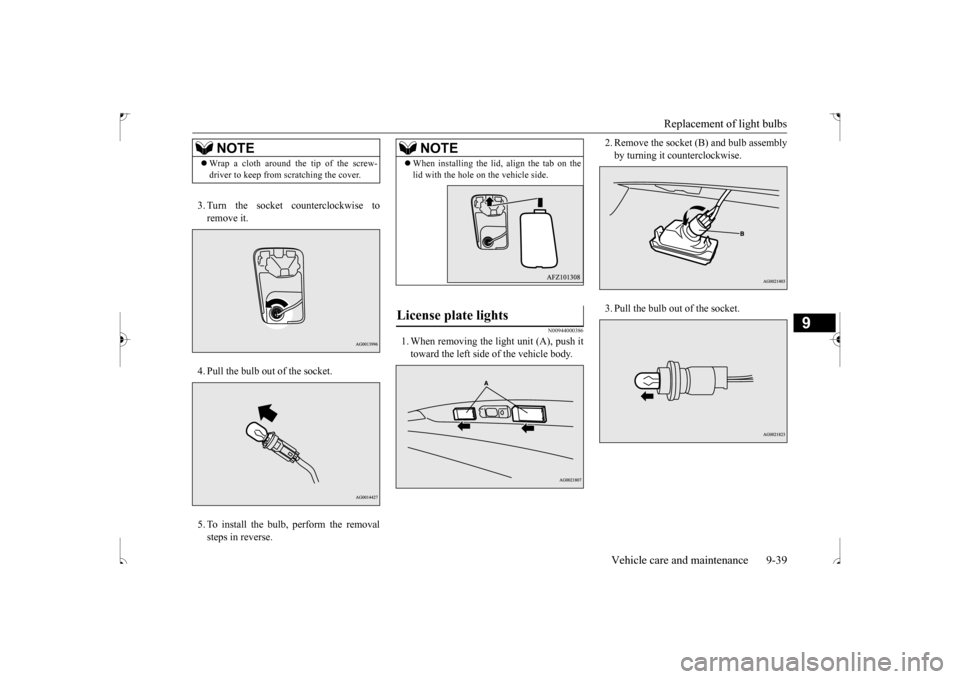

3. Turn the socket counterclockwise to remove it. 4. Pull the bulb out of the socket. 5. To install the bulb, perform the removal steps in reverse.
N00944000386
1. When removing the light unit (A), push ittoward the left side of the vehicle body.
2. Remove the socket (B) and bulb assembly by turning it counterclockwise. 3. Pull the bulb out of the socket.
NOTE
 Wrap a cloth around the tip of the screw- driver to keep from scratching the cover.
NOTE
 When installing the lid, align the tab on the lid with the hole on the vehicle side.
License plate lights
BK0239500US.bo
