Multi Around Monitor (if so equipped)
5

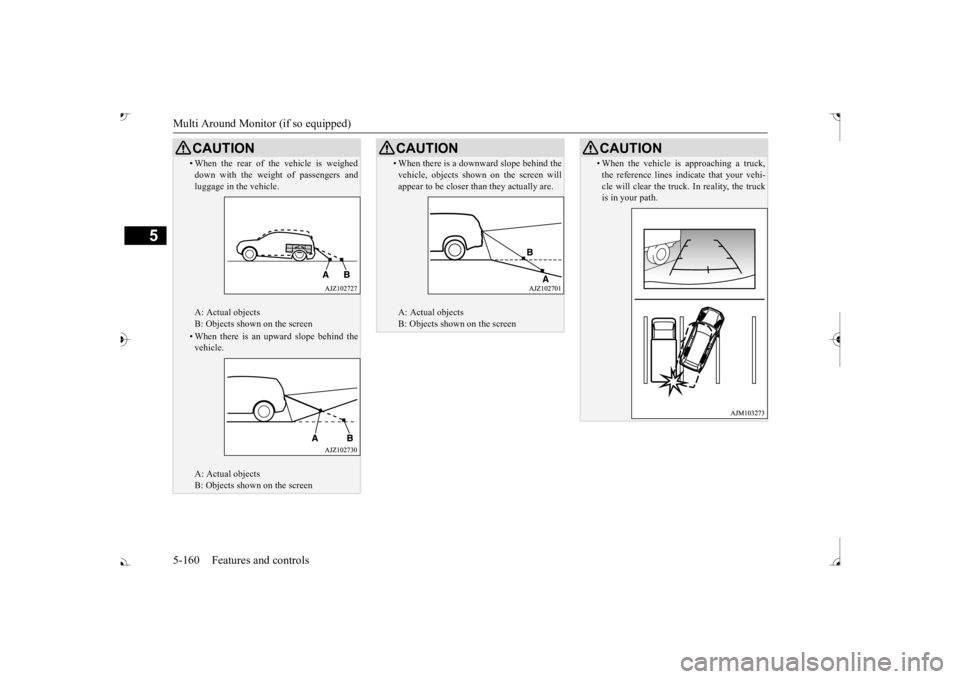

• When the rear of the vehicle is weighed down with the weight of passengers andluggage in the vehicle. A: Actual objects B: Objects shown on the screen• When there is an upward slope behind thevehicle. A: Actual objects B: Objects shown on the screenCAUTION
• When there is a downward slope behind the vehicle, objects shown on the screen willappear to be closer than they actually are. A: Actual objects B: Objects shown on the screenCAUTION
• When the vehicle is
approaching a truck,
the reference lines indi
cate that your vehi-
cle will clear the truck. In reality, the truckis in your path.CAUTION
BK0239700US.book 160 ページ ２０１６年６月１６日　木曜日　午前１０時５８分

Multi Around Monitor (if so equipped)
Features and controls 5-161
5
N00587900023
Reference lines for the
vehicle width and the
front end of the vehicle are displayed on the screen.
• When there is an object behind the vehicle that has upper sections projecting in thedirection of the vehicl
e, the reference lines
on the screen will indicate that point A is the farthest point and
point B is the closest
point to the vehicle.
In reality, point A and
B are actually the same distance from the vehicle, and point C is
farther off than point
A and B.CAUTION
NOTE
 When the expected course lines are dis- played in the rear-view, the expected courselines are also displayed in the bird’s eye-view (Front: broken li
ne, Rear: solid line).
Side-view mode

1- Approximate vehi
cle width including
the door mirror.
2- Approximate location
of the axle center
of the front wheel.
3- Approximate 20 inches (50 cm) from the
front edge of the front bumper.
BK0239700US.book 161 ページ ２０１６年６月１６日　木曜日　午前１０時５８分

Multi Around Monitor (if so equipped)
5
N00588000021
An overhead view in which the vehicle is looked down is displaye
d so that you can eas-
ily identify the location of your vehicle andthe course to enter the parking space.Bird’s eye-view mode

CAUTION The bird’s eye-view is a composite image from images captured by the “Front-viewcamera

Instrument cluster
Features and controls 5-163
5
N00519001402
N00519101272
The speedometer shows
the vehicle speed in
miles per hour (mph) or kilometers per hour(km/h).
N00519201303
The tachometer shows en
gine revolutions per
minute. This allows the driver to determine the most efficient selector position and engine speed combinations.This gauge also assists in evaluating engine performance.
Instrument cluster 1- Tachometer
 P.5-163
Type 1 Type 2
2- Multi Information display (Type
1:Color liquid crystal display type)  P.5-164 Information screen display list (Type 1) Multi Information display (Type2:Mono-color liquid crystal display type)
 P.5-183
3- Speedometer
P.5-163
4- Rheostat illumination button (Type 1) 5- Multi information display switch (Type
2)  P.5-184
Speedometer Type A
Tachometer Type B
BK0239700US.book 163 ページ ２０１６年６月１６日　木曜日　午前１０時５８分

Multi Information display - Type 1 5-164 Features and controls
5
N00554901248
Each time you press this button, there is a sound and the brightness of the instruments changes.
N00555001392
The multi information display displays warn- ings, the odometer, trip odometer, service reminder, engine cool
ant temperature, fuel
remaining, outside temper
ature, selector lever
position, average and momentary fuel con- sumption, driving range, average speed, etc. It is also possible to change elements such as the language and units used on the multi information display. [With ignition switch or operation mode in OFF]
CAUTION The red zone indicate
s an engine speed
beyond the range of
safe operation.
Select the correct selector position to control the engine speed so that
the tachometer indi-
cator does not ente
r the red zone.
Meter illumination control (Vehicle equipped with the multi information display - Type 1) 1- Brightness level 2- Rheostat illumination button
NOTE
 You can adjust to 8 different levels for when the front side-marker
lights are illuminated
and when they are not.  If the vehicle is equi
pped with the automatic
light control, the light switch is in a positionother than the “OFF” position and it is suffi- ciently dark outside th
e vehicle, the meter
illumination switches automatically to theadjusted brightness.  The brightness level of the instruments is stored when the ignition switch is turned to the “OFF” or “LOCK”
position or the opera-
tion mode is put in OFF.  If you press and hold the button for longer than about 2 second when the front side-marker lights are illumi
nated, the brightness
level changes to the maximum level. Press- ing and holding the button for longer thanabout 2 second again returns the brightness level to the previous level. On vehicles equipped
with Mitsubishi Multi-
Communication System
, the map screen
color of Mitsubishi Multi-Communication System may not be sw
itched to nighttime
setting when the meter illumination bright- ness level is at the maximum.
Multi Information display - Type 1 1-
Warning display screen
 P.5-171
2- Information screen
 P.5-167
Interrupt display screen
 P.5-170
BK0239700US.book 164 ページ ２０１６年６月１６日　木曜日　午前１０時５８分

Multi Information display - Type 1
Features and controls 5-165
5
3- Door ajar warning display screen
 P.5-171
4- Odometer
 P.5-172
5-
“ ” or “ ” mark indicator
 P.5-170
BK0239700US.book 165 ページ ２０１６年６月１６日　木曜日　午前１０時５８分

Multi Information display - Type 1 5-166 Features and controls
5
[With ignition switch or operation mode in ON] 1- Drive mode indicator display screen (if
so equipped)
 P.5-84
2- S-AWC drive mode display screen (if
so equipped)
 P.5-87
3-
Warning display screen
 P.5-171
4- Forward Collision Mitigation System
(FCM) OFF display screen (if so equipped)
 P.5-117
Ultrasonic misacceleration MitigationSystem OFF display screen (if so equipped)
 P.5-127
5- Lane Departure Warning (LDW) sys-
tem display screen (if so equipped)  P.5-139
6- ECO mode indicator display screen
 P.5-231
7- Information screen
 P.5-167
8- Selector lever
position display
 P.5-70, 5-77
9- Engine coolant temperature display
 P.5-171
10- Odometer
 P.5-172
11- Cruise control display screen (if so
equipped)
 P.5-102
12- Adaptive Cruise Control System (ACC)
display screen (if so equipped) P.5-106
13- ECO indicator
 P.5-176
14-
“ ” or “ ” mark indicator
 P.5-170
15- Fuel remaining display screen
 P.5-172
16- Outside temperature display screen
 P.5-172NOTE
The fuel units, outside temperature units, display language, and ot
her settings can be
changed. Refer to “Changing th
e function settings” on
page 5-177.
